Parts Breakdown 3708FC
Page 1 of 3 2/8/2008

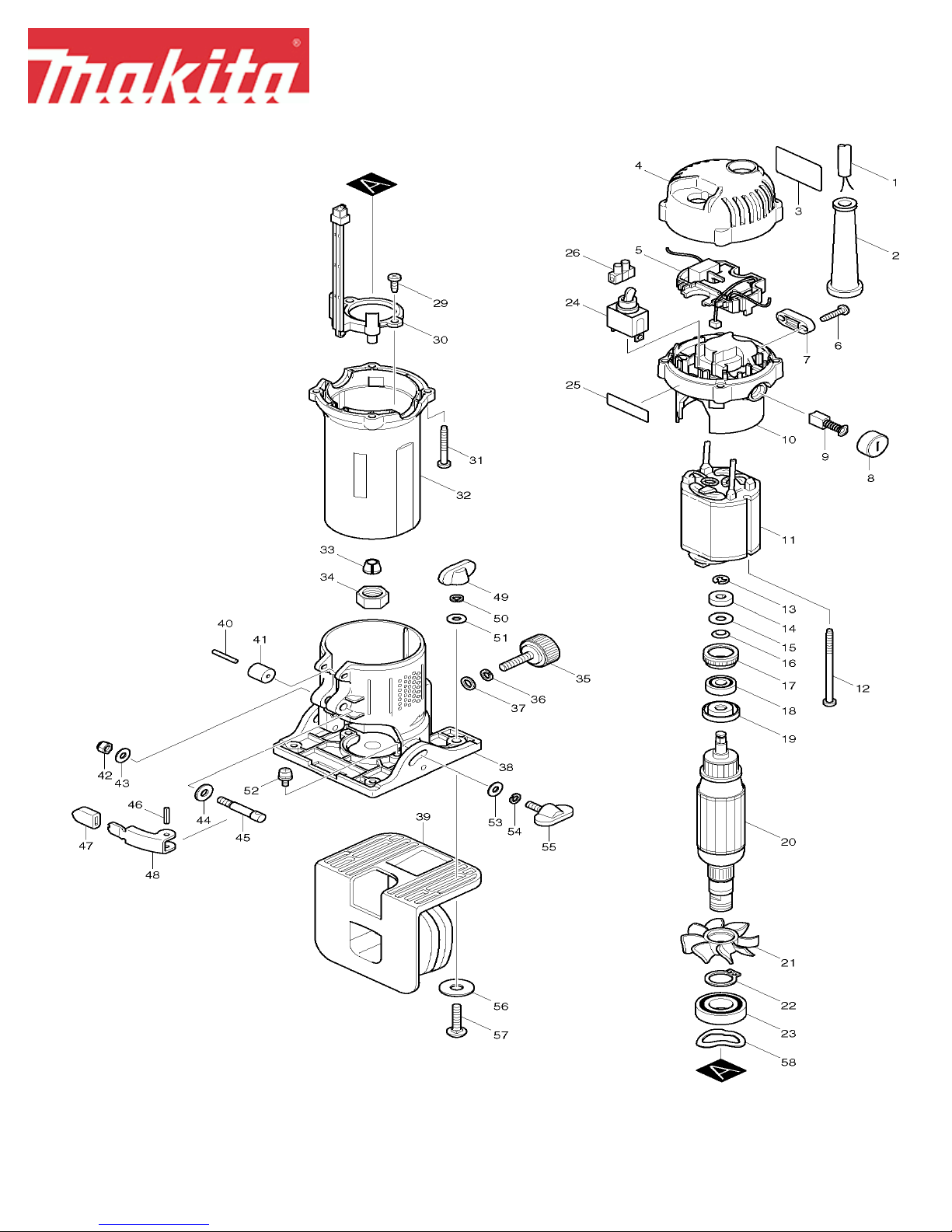

Parts Breakdown 3708FC
Fig # Part ID Part Name Quantity
1 664064-4 CORD (2X18X8 SJ), HR2400 1
2 682502-4 CORD GUARD 8-85, HP1621F 1
3 853541-3 NAME PLATE,3708FC 1
4 417747-3 REAR COVER, 3708FC 1
5 631479-0 CONTROLLER 1
6 265995-6 TAPPING SCREW 4X18, 4323K 2
7 687063-9 STRAIN RELIEF, 4323K 1
8 643928-5 HOLDER CAP, 9523NB 2
9 191938-1 CARBON BRUSH 408 SET, 3901 1
10 183417-3 MOTOR REAR HOUSING, 3707FC 1
11 595061-8 FIELD ASS'Y 115V, 3707FC 1
12 266004-4 TAPPING SCREW 4X70 2
13 259039-2 SELF LOCK 6, 3707FC 1
14 688117-5 MAGNET SLEEVE, GD0800C 1
15 253332-6 T. WASHER 6, 6791DW 1
16 267756-0 WAVE WASHER 6, 9561CV 1
17 421494-0 LABYRINTH RUBBER RING, 4304 1
18 210017-7 BALL BEARING 607DDW, 420S,T2 1
19 681636-0 INSULATION WASHER, 4304 1
20 517566-8 ARMATURE ASS'Y 115V, 3707FC 1
20 517616-9 ARMATURE ASS'Y, 3707FC 1
21 240049-0 FAN 48, 3707FC 1
22 961055-9 RETAINING RING S-15, 5057KB 1
23 211236-8 BALL BEARING 6002DDW,BO5001 1
24 651423-1 SWITCH, RD1100/1101 1
25 819720-3 MAKITA LABEL, 3707fc 1
26 654544-8 TERMINAL BLOCK 1
29 251991-0 P.H. SCREW M4X12, 4090DW 2
30 631480-5 LED CIRCUIT 1
31 266053-1 P.T. SCREW 4X35, 4304 4
32 153346-4 MOTOR HOUSING COMPLETE 1
32 153348-0 MOTOR HOUSING CPL. 1
33 763608-8 1/4 COLLET, 3700B 1
33 763608-8 1/4 COLLET, 3700B 1
34 763606-2 COLLET NUT, GEO600 1
35 251814-2 SCREW M6X18, 9820-2 1
36 942151-2 SPRING WASHER 6, 5007NB 1
37 941151-9 F. WASHER 6, 5007NB 1
38 153351-1 BASE CPL.,3708FC 1
39 414304-8 TRIMMER SHOE, 3702B 1
40 256158-5 PIN 3, BJR181 1
41 421566-1 ROLLER, 3707FC 1
42 252103-8 HEX. LOCK NUT M5-8, 5007FK 1
43 941101-4 F. WASHER 5, JR3000V 1
44 267214-6 FLAT WASHER 6, 3707FC 1
45 324243-3 SUPPORT PIN, 3707FC 1
46 951060-4 SPRING PIN 3-14, 4301BV 1
47 421818-0 RUBBER CAP, 3707FC 1
48 345229-4 LOCK LEVER, 3707FC 1
49 252646-0 WING NUT M5, 3708FC 2
50 942101-7 SPRING WASHER 5, 9005B 2
51 941101-4 F. WASHER 5, JR3000V 2
52 911114-9 P.H. SCREW M4X10, 2012 2
53 941101-4 F. WASHER 5, JR3000V 2
54 942101-7 SPRING WASHER 5, 9005B 2
55 265740-9 SCREW M5X15, 3708FC 2
56 267248-9 FLAT WASHER 8, 3708FC 2
57 923241-0 C.S.N. BOLT M6X20, 3702B 2
58 253905-5 W. WASHER 23, 3700B 1
1,001 122389-7 TRIMMER GUIDE ASSY, 3702B 1
Page 2 of 3 2/8/2008
Parts Breakdown 3708FC
1,001 122703-7 TRIMMER GUIDE ASS'Y, 3700B 1
1,002 251819-2 SCREW M6, 3700B 1
1,002 265764-5 THUM SCREW M6, 3700B 1
1,003 265135-6 CSH SCREW M4X10, 3700B 1
1,003 912116-8 C.S.H. SCREW M4X12, 5201NA 1
1,004 341136-9 HOOK, 3700B 1
1,005 251420-3 SCREW M5, 3700B 1
1,005 251471-6 FLAT HEAD SCREW M5, 3700B 1
1,006 323495-3 ROLLER, 3700B 1
1,006 324378-0 ROLLER 11, 3700B 1
1,007 312396-0 GUIDE HOLDER, 3700B 1
1,007 317788-8 GUIDE HOLDER, 3700B 1
1,008 941151-9 F. WASHER 6, 5007NB 1
1,009 253903-9 W. WASHER 6, 2414NB 1
1,010 265763-7 SCREW M6X25, 3700B 1
1,010 251815-0 SCREW M6X25, 9900B 1
1,011 343577-5 TEMPLET GUIDE 10, 3702B 1
1,012 781003-0 SPANNER, 3700B 1
1,013 781008-0 WRENCH 17, 9217SPC 1
5,001 810134-9 N/A 1
Page 3 of 3 2/8/2008
