INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Trimmer
MODEL 3710
006628
DOUBLE
INSULATION

2
SPECIFICATIONS
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
SYMBOLS END201-2
The following show the symbols used for the tool. Be
sure that you understand their meaning before use.
...................Read instruction manual.
...................DOUBLE INSULATION
..................Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life
must be collected separately and
returned to an environmentally
compatible recycling facility.
Intended use
The tool is intended for flush trimming and profiling of
wood, plastic and similar materials.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
For European countries only
Noise and Vibration
The typical A-weighted sound pressure level is 79 dB (A).
Uncertainty is 3 dB(A).
The noise level under working may exceed 85 dB (A).
– Wear ear protection. –
The typical weighted root mean square acceleration
value is not more than 2.5 m/s2.
These values have been obtained according to
EN60745.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product
is in compliance with the following standards of stand-
ardized documents, EN60745, EN55014, EN61000 in
accordance with Council Directives, 73/23/EEC, 89/336/
EEC, 98/37/EC.
Yasuhiko Kanzaki CE 2005
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND
Responsible manufacturer:
Makita Corporation Anjo Aichi Japan
Model 3710
Collet chuck capacity 6 mm or 1/4”
No load speed (min-1)30,000
Overall length 302 mm
Net weight 1.6 kg
Safetu class /II

3
GENERAL SAFETY RULES GEA001-2
WARNING:
Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term
“power tool”in all of the warnings listed below refers to your mains-
operated (corded) power tool or battery-operated (cordless) power
tool.
SAVE THESE INSTRUCTIONS
Work area safety
1. Keep work area clean and well lit. Cluttered
and dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
Electrical safety
4. Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of elec-
tric shock.
5. Avoid body contact with earthed or
grounded surfaces such as pipes, radia-
tors, ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
8. When operating a power tool outdoors,
use an extension cord suitable for out-
door use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
Personal safety
9. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
10. Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate con-
ditions will reduce personal injuries.
11. Avoid accidental starting. Ensure the
switch is in the off-position before plug-
ging in. Carrying power tools with your finger
on the switch or plugging in power tools that
have the switch on invites accidents.

4
12. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
13. Do not overreach. Keep proper footing
and balance at all times. This enables bet-
ter control of the power tool in unexpected sit-
uations.
14. Dress properly. Do not wear loose cloth-
ing or jewellery. Keep your hair, clothing,
and gloves away from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
15. If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust-
related hazards.
Power tool use and care
16. Do not force the power tool. Use the cor-
rect power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
17. Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
18. Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any adjust-
ments, changing accessories, or storing
power tools. Such preventive safety mea-
sures reduce the risk of starting the power
tool accidentally.
19. Store idle power tools out of the reach of
children and do not allow persons unfa-
miliar with the power tool or these instruc-
tions to operate the power tool. Power
tools are dangerous in the hands of untrained
users.
20. Maintain power tools. Check for misalign-
ment or binding of moving parts, break-
age of parts and any other condition that
may affect the power tools operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
21. Keep cutting tools sharp and clean. Prop-
erly maintained cutting tools with sharp cut-
ting edges are less likely to bind and are
easier to control.
22. Use the power tool, accessories and tool
bits etc. in accordance with these instruc-
tions and in the manner intended for the
particular type of power tool, taking into
account the working conditions and the
work to be performed. Use of the power tool
for operations different from those intended
could result in a hazardous situation.
Service
23. Have your power tool serviced by a quali-
fied repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
ADDITIONAL SAFETY RULES ENB054-1
1. Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring or its own cord. Con-
tact with a “live”wire will make exposed metal parts
of the tool “live”and shock the operator.
2. Wear hearing protection during extended period
of operation.
3. Handle the bits very carefully.
4. Check the bit carefully for cracks or damage
before operation. Replace cracked or damaged
bit immediately.
5. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.

5
8. Make sure the bit is not contacting the work-
piece before the switch is turned on.
9. Before using the tool on an actual workpiece, let
it run for a while. Watch for vibration or wob-
bling that could indicate improperly installed bit.
10. Be careful of the bit rotating direction and the
feed direction.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Always switch off and wait for the bit to come to
a complete stop before removing the tool from
workpiece.
13. Do not touch the bit immediately after operation;
it may be extremely hot and could burn your
skin.
14. Always lead the power supply cord away from
the tool towards the rear.
15. Do not smear the tool base carelessly with thin-
ner, gasoline, oil or the like. They may cause
cracks in the tool base.
16. Draw attention to the need to use cutters of the
correct shank diameter and which are suitable
for the speed of the tool.
SAVE THESE INSTRUCTIONS

6
FUNCTIONAL
DESCRIPTION CAUTION:
•Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Adjusting bit protrusion
To adjust the bit protrusion, loosen the clamping nut and move the tool base up
or down as desired by turning the adjusting screw. After adjusting, tighten the
clamping nut firmly to secure the tool base.
Adjusting angle of tool base
Loosen the wing bolts and adjust the angle of the tool base (5°per graduation)
to obtain the desired cutting angle.
Adjusting amount of chamfering
To adjust the amount of chamfering, loosen the wing nuts and adjust the trim-
mer shoe.
CAUTION:
•With the tool unplugged and switch in the “OFF”position, rotate the collet
nut on the tool several times to be sure that the bit turns freely and does
not contact the base or trimmer shoe in any way.
1. Bit protrusion
2. Base
3. Clamping nut
4. Scale
5. Adjusting screw
1
2
3
4
5
006631
1. Wing bolt
2. Graduation
3. Wing nut
4. Trimmer shoe
5. Amount of chamfering
6. Base
1
2
3
4
5
6
006632

7
Switch action
To start the tool, move the switch lever to the I (ON) position. To stop the tool,
move the switch lever to the O (OFF) position.
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Installing or removing trimmer bit
CAUTION:
•Do not tighten the collet nut without inserting a bit, or the collet cone will
break.
•Use only the wrenches provided with the tool.
Insert the bit all the way into the collet cone and tighten the collet nut securely
with the two wrenches.
To remove the bit, follow the installation procedure in reverse.
Installing trimmer shoe (after it has been removed from the tool)
NOTE:
•The trimmer shoe is factory installed on the tool.
Use the bolts, wing nuts, spring washers and flat washers to install the trimmer
shoe as shown in the figure.
1. Switch lever
1
006614
1. Loosen
2. Tighten
3. Hold
12
3
006629
1. Wing nut
2. Spring washer
3. Base
4. Trimmer shoe
5. Flat washer
6. Bolt
1
23
4
5
6
006630

8
OPERATION
Turn the tool on without the bit making any contact with the workpiece and wait
until the bit attains full speed. Then move the tool over the workpiece surface,
keeping the tool base and trimmer shoe flush with the sides of the workpiece.
NOTE:
•This tool can be used as a conventional trimmer when you remove the
trimmer shoe.
When doing edge cutting, the workpiece surface should be on the left side of
the bit in the feed direction.
NOTE:
•Moving the tool forward too fast may cause a poor quality of cut, or
damage to the bit or motor. Moving the tool forward too slowly may burn
and mar the cut. The proper feed rate will depend on the bit size, the kind
of workpiece and depth of cut. Before beginning the cut on the actual
workpiece, it is advisable to make a sample cut on a piece of scrap
lumber. This will show exactly how the cut will look as well as enable you
to check dimensions.
•When using the trimmer shoe, the straight guide or the trimmer guide, be
sure to keep it on the right side in the feed direction. This will help to keep
it flush with the side of the workpiece.
CAUTION:
•Since excessive cutting may cause overload of the motor or difficulty in
controlling the tool, the depth of cut should not be more than 3 mm at a
pass when cutting grooves. When you wish to cut grooves more than 3
mm deep, make several passes with progressively deeper bit settings.
Templet guide
The templet guide provides a sleeve through which the bit passes, allowing
use of the trimmer with templet patterns.
1. Trimmer shoe
2. Base
2
1
006633
1. Workpiece 2. Bit revolving direction
3. View from the top of the tool 4. Feed direction
12
3
44
2
001984
1. Feed direction
2. Bit revolving direction
3. Workpiece
4. Straight guide
1
23
4
001985
006639

9
Remove the tool base from the tool. Loosen the wing bolts and secure the tool
base horizontally. Loosen the two screws on the tool base.
Place the templet guide on the tool base. There are four convex portions on
the templet guide. Secure two of the four convex portions using the two
screws. Install the tool base on the tool.
Secure the templet to the workpiece. Place the tool on the templet and move
the tool with the templet guide sliding along the side of the templet.
NOTE:
•The workpiece will be cut a slightly different size from the templet. Allow
for the distance (X) between the router bit and the outside of the templet
guide. The distance (X) can be calculated by using the following
equation:
Distance (X) = (outside diameter of the templet guide - router bit diameter) / 2
Straight guide (Accessory)
1. Screws
2. Wing bolt
3. Base
4. Screwdriver
1
2
3
4
006640
1. Template guide
2. Base
3. Convex portions
1
23
006641
1. Straight bit
2. Base
3. Templet
4. Distance (X)
5. Workpiece
6. Templet guide 10
1
2
3
45
6
10mm(3/8”)
001988
006634

10
Attach the guide plate to the straight guide with the bolt and the wing nut.
Circular work
Circular work may be accomplished if you assemble the straight guide and
guide plate as shown in the figures.
Min. and max. radius of circles to be cut (distance between the center of circle
and the center of bit) are as follows:
Min.: 70 mm
Max.: 221 mm
For cutting circles between 70 mm and 121 mm in radius.
1. Bolt
2. Guide plate
3. Straight guide
4. Wing nut
1
2
3
4
006617
1. Clamp screw (A)
2. Straight guide
3. Wing nut
4. Base
5. Wing bolt
1. Wing nut
2. Guide plate
3. Straight guide
4. Center hole
5. Bolt
1
2
34
5
006635
A
006636
1
2
3
4
5
006619

11
For cutting circles between 121 mm and 221 mm in radius.
NOTE:
•Circles between 172 mm and 186 mm in radius cannot be cut using this
guide.
Align the center hole in the straight guide with the center of the circle to be cut.
Drive a nail less than 6 mm in diameter into the center hole to secure the
straight guide. Pivot the tool around the nail in clockwise direction.
Trimmer guide
Trimming, curved cuts in veneers for furniture and the like can be done easily
with the trimmer guide. The guide roller rides the curve and assures a fine cut.
Loosen the wing bolts and secure the tool base horizontally. Install the trimmer
guide on the tool base with the clamp screw (A). Loosen the clamp screw (B)
and adjust the distance between the bit and the trimmer guide by turning the
adjusting screw (1 mm per turn). At the desired distance, tighten the clamp
screw (B) to secure the trimmer guide in place.
1. Wing nut
2. Guide plate
3. Straight guide
4. Center hole
5. Bolt
1
2
3
4
5
006620
1. Nail
2. Center hole
3. Straight guide
1
2
3
006637
006648
1. Clamp screw (A)
2. Adjusting screw
3. Clamp screw (B)
4. Trimmer guide
5. Wing bolt
1
2
3
45
006638

12
When cutting, move the tool with the guide roller riding the side of the work-
piece.
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
Replacing carbon brushes
Remove and check the carbon brushes regularly. Replace when they wear
down to the limit mark. Keep the carbon brushes clean and free to slip in the
holders. Both carbon brushes should be replaced at the same time. Use only
identical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take out the worn carbon
brushes, insert the new ones and secure the brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs, any other mainte-
nance or adjustment should be performed by Makita Authorized Service Cent-
ers, always using Makita replacement parts.
1. Workpiece
2. Bit
3. Guide roller
1
2
3
001998
1. Limit mark
1
001145
1. Screwdriver
2. Brush holder cap
1
2
006622

13
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita service center.

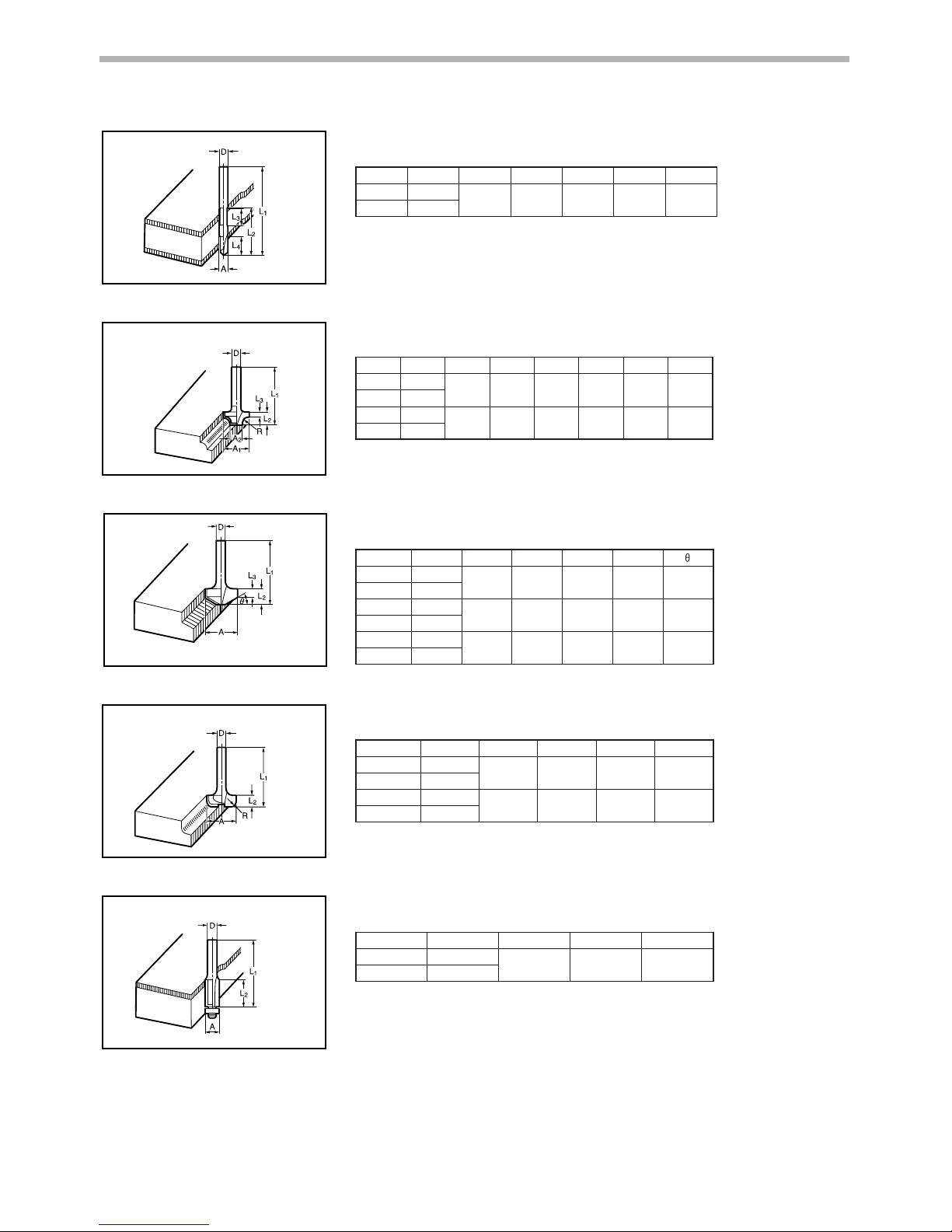

Router bits
Straight bit
“U”Grooving bit
“V”Grooving bit
Drill point flush trimming bit
005116
mm
D A L1 L2
20 6
20E 1/4"
86
8E 1/4"
66
6E 1/4" 65018
20 50 15
85018
006485
R
005117
mm
D A L1 L2 R
66
6E 1/4" 660283
006486
005118
mm
D A L 1 L 2
20 6
20E 1/4" 20 50 15 90˚
006454
005120
mm
D A L1 L2 L3
66
6E 1/4" 6 601828
006487

14
Drill point double flush trimming bit
Corner rounding bit
Chamfering bit
Cove beading bit
Ball bearing flush trimming bit
005121
mm
D A L1 L2 L3 L4
66
6E 1/4" 146 704012
006488
005125
mm
D A1A2L1L2L3 H
8R 6
8RE 1/4"
4R 6
4RE 1/4"
25
20 8 45
94813 8
44
5
10
006489
005126
mm
D A L 1 L 2 L 3
30˚6
30˚E 1/4"
45˚6
45˚E 1/4"
60˚6
60˚E 1/4" 60˚20 49 14 2
30˚
20 50 13 5 45˚
23 46 11 6
006462
005129
mm
D A L 1 L 2 R
4R 6
4RE 1/4"
8R 6
8RE 1/4" 25 48 13 8
20 43 8 4
006464
005130
mm
D A L 1 L 2
10 6
10E 1/4" 10 50 20
006465

15
Ball bearing corner rounding bit
Ball bearing chamfering bit
Ball bearing beading bit
Ball bearing cove beading bit
Ball bearing roman ogee bit
005131
mm
D A 1 A 2 L 1 L 2 L 3 R
16
1E 1/4"
26
2E 1/4"
7 3.5 3
21 8 40 10 3.5 6
15 8 37
006466
005132
mm
D A 1 A 2 L 1 L 2
45˚6
45˚E 1/4"
60˚6
60˚E 1/4"
45˚
20 8 41 11 60˚
26 8 42 12
006467
005133
mm
D A 1 A 2 A 3 L 1 L 2 L 3 R
26
2E 1/4"
36
3E 1/4"
20 12 8 40 10 5.5 4
26 12 8 42 12 4.5 7
006468
005134
mm
D A 1 A 2 A 3 A 4 L 1 L 2 L 3 R
26
2E 1/4"
36
3E 1/4" 42 12 5 526 22 12 8
40 10 5.5 320 18 12 8
006469
005135
mm
D A 1 A 2 L 1 L 2 L 3 R1 R2
26
2E 1/4"
36
3E 1/4"
4.5 2.5 4.5
26 8 42 12 4.5 3 6
20 8 40 10
006470

Makita Corporation Anjo, Aichi, Japan
884630-229
