Makita LS0714 User manual

INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Slide Compound Saw
MODEL LS0714
MODEL LS0714F
MODEL LS0714FL
MODEL LS0714L
005515
DOUBLE
INSULATION

2
SPECIFICATIONS
Model ................................................................................................................LS0714/ LS0714F/ LS0714FL/ LS0714L
Blade diameter.....................................................................................................................................................190 mm
Hole (arbor) diameter.............................................................................................................................................20 mm
Max. Miter angle ................................................................................................................................ Left 47° , Right 57°
Max. Bevel angle................................................................................................................................... Left 45°, Right 5°
Max. Cutting capacities (H x W) with blade 190 mm in diameter.
(Note)
* mark indicates that a wood facing with the following thickness is used.
1: When using a wood facing 20 mm thick.
2: When using a wood facing 15 mm thick.
3: When using a wood facing 10 mm thick.
No load speed (min-1) ..............................................................................................................................................6,000
Laser Type (LS0714FL/L) ........................................................................ Red Laser 650 nm, < 1mW ( Laser Class 2 )
Dimensions (L x W x H) ..................................................................................................... 670 mm x 430 mm x 458 mm
Net weight..................................................LS0714: 12.5 kg, LS0714F: 12.8 kg, LS0714FL: 13.1 kg, LS0714L: 13.0 kg
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
Miter angle
Bevel angle
45° (left) 0° 5° (right)
0°
* 45 mm x 265 mm Note1 * 60 mm x 265 mm Note 1 -----
40 mm x 300 mm 52 mm x 300 mm 40 mm x 300 mm
45° (left and right)
* 45 mm x 185 mm Note2 * 60 mm x 185 mm Note 2 -----
40 mm x 212 mm 52 mm x 212 mm
57° (right) -----
* 60 mm x 145 mm Note 3
-----
52 mm x 163 mm

3

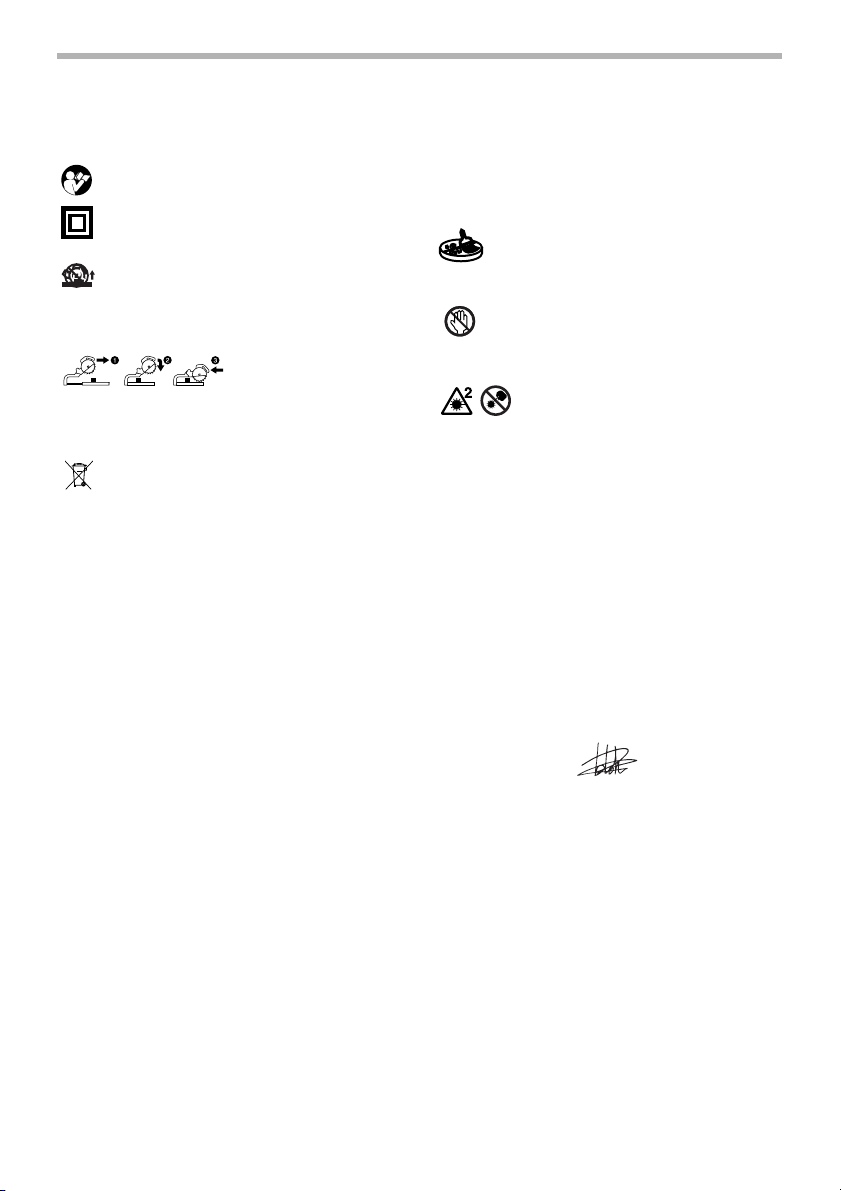

Symbols END210-3
The following show the symbols used for the tool. Be sure that you understand their meaning before use.
...................Read instruction manual.
...................DOUBLE INSULATION
...................To avoid injury from flying debris,
keep holding the saw head down,
after making cuts, until the blade has
come to a complete stop.
..............................When performing slide cut, first pull
carriage fully and press down handle,
then push carriage toward the guide
fence. For your safety, remove chips,
small pieces, etc. from the table top
before operation.
................For your safety, remove chips, small
pieces, etc. from the table top before
operation.
................Do not place hand or fingers close to
the blade.
........Never look into the laser beam.
Direct laser beam may injure your
eyes.
..................Only for EU countries
Do not dispose of electric equipment together with household waste material!
In observance of European Directive 2002/96/EC on waste electric and electronic equipment and
its implementation in accordance with national law, electric equipment that have reached the end
of their life must be collected separately and returned to an environmentally compatible recycling
facility.
Intended use
The tool is intended for accurate straight and miter cut-
ting in wood. With appropriate saw blades, aluminum
can also be sawed.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
For European countries only
Noise and Vibration
The typical A-weighted noise levels are
sound pressure level: 92 dB (A)
sound power level: 105 dB (A)
Uncertainty: 3 dB(A)
– Wear ear protection. –
The typical weighted root mean square acceleration
value is not more than 2.5 m/s2.
These values have been obtained according to
EN61029.
EC-DECLARATION OF CONFORMITY
Model; LS0714, LS0714F, LS0714L, LS0714FL
We declare under our sole responsibility that this prod-
uct is in compliance with the following standards of
standardized documents;
EN61029, EN55014, EN61000 in accordance with
Council Directives, 2004/108/EC, 98/37/EC.
CE 2006
To m o ya s u K a t o
Director
Responsible Manufacturer:
Makita Corporation
3-11-8, Sumiyoshi-cho, Anjo, Aichi, JAPAN
Authorized Representative in Europe:
Makita International Europe Ltd.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND

4
SAFETY INSTRUCTIONS ENA001-2
WARNING:
When using electric tools, basic safety precautions, including the following,
should always be followed to reduce the risk of fire, electric shock and
personal injury. Read all these instructions before operating this product
and save these instructions.
For safe operations:
1. Keep work area clean.
Cluttered areas and benches invite injuries.
2. Consider work area environment.
Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work
area well lit. Do not use power tools where there is
risk to cause fire or explosion.
3. Guard against electric shock.
Avoid body contact with earthed or grounded sur-
faces (e.g. pipes, radiators, ranges, refrigerators).
4. Keep children away.
Do not let visitors touch the tool or extension cord.
All visitors should be kept away from work area.
5. Store idle tools.
When not in use, tools should be stored in a dry,
high or locked up place, out of reach of children.
6. Do not force the tool.
It will do the job better and safer at the rate for which
it was intended.
7. Use the right tool.
Do not force small tools or attachments to do the job
of a heavy duty tool. Do not use tools for purposes
not intended; for example, do not use circular saws
to cut tree limbs or logs.
8. Dress properly.
Do not wear loose clothing or jewellery, they can be
caught in moving parts. Rubber gloves and non-skid
footwear are recommended when working out-
doors. Wear protecting hair covering to contain long
hair.
9. Use safety glasses and hearing protection.
Also use face or dust mask if the cutting operation is
dusty.
10. Connect dust extraction equipment.
If devices are provided for the connection of dust
extraction and collection facilities ensure these are
connected and properly used.
11. Do not abuse the cord.
Never carry the tool by the cord or yank it to discon-
nect it from the socket. Keep the cord away from
heat, oil and sharp edges.
12. Secure work.
Use clamps or a vice to hold the work. It is safer
than using your hand and it frees both hands to
operate the tool.
13. Do not overreach.
Keep proper footing and balance at all times.
14. Maintain tools with care.
Keep cutting tools sharp and clean for better and
safer performance. Follow instructions for lubrica-
tion and changing accessories. Inspect tool cord
periodically and if damaged have it repaired by an
authorized service facility. Inspect extension cords
periodically and replace, if damaged. Keep handles
dry, clean and free from oil and grease.
15. Disconnect tools.
When not in use, before servicing and when chang-
ing accessories such as blades, bits and cutters.
16. Remove adjusting keys and wrenches.
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool
before turning it on.
17. Avoid unintentional starting.
Do not carry a plugged-in tool with a finger on the
switch. Ensure switch is off when plugging in.
18. Use outdoor extension leads.
When tool is used outdoors, use only extension
cords intended for outdoor use.
19. Stay alert.
Watch what you are doing. Use common sense. Do
not operate tool when you are tired.
20. Check damaged parts.
Before further use of the tool, a guard or other part
that is damaged should be carefully checked to
determine that it will operate properly and perform
its intended function. Check for alignment of moving
parts, free running of moving parts, breakage of
parts, mounting and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced
by an authorized service center unless otherwise
indicated in this instruction manual. Have defective
switches replaced by an authorized service facility.
Do not use the tool if the switch does not turn it on
and off.
21. Warning.
The use of any accessory or attachment, other than
those recommended in this instruction manual or
the catalog, may present a risk of personal injury.
22. Have your tool repaired by a qualified person.
This electric tool is in accordance with the relevant
safety requirements. Repairs should only be carried
out by qualified persons using original spare parts,
otherwise this may result in considerable danger to
the user.

5
ADDITIONAL SAFETY RULES FOR TOOL ENB034-3
1. Wear eye protection.
2. Keep hands out of path of saw blade. Avoid con-
tact with any coasting blade. It can still cause
severe injury.
3. Do not operate saw without guards in place.
Check blade guard for proper closing before
each use. Do not operate saw if blade guard
does not move freely and close instantly. Never
clamp or tie the blade guard into the open posi-
tion.
4. Do not perform any operation freehand. The
workpiece must be secured firmly against the turn
base and guide fence with the vise during all opera-
tions. Never use your hand to secure the workpiece.
5. Never reach around saw blade.
6. Turn off tool and wait for saw blade to stop
before moving workpiece or changing settings.
7. Unplug tool before changing blade or servicing.
8. Always secure all moving portions before carry-
ing the tool.
9. Stopper pin which locks the cutter head down is
for carrying and storage purposes only and not
for any cutting operations.
10. Don’t use the tool in the presence of flammable liq-
uids or gases.
11. Check the blade carefully for cracks or damage
before operation.
Replace cracked or damaged blade immediately.
12. Use only flanges specified for this tool.
13. Be careful not to damage the arbor, flanges (espe-
cially the installing surface) or bolt. Damage to
these parts could result in blade breakage.
14. Make sure that the turn base is properly secured so
it will not move during operation.
15. For your safety, remove the chips, small pieces, etc.
from the table top before operation.
16. Avoid cutting nails. Inspect for and remove all nails
from the workpiece before operation.
17. Make sure the shaft lock is released before the
switch is turned on.
18. Be sure that the blade does not contact the turn
base in the lowest position.
19. Hold the handle firmly. Be aware that the saw
moves up or down slightly during start-up and stop-
ping.
20. Make sure the blade is not contacting the workpiece
before the switch is turned on.
21. Before using the tool on an actual workpiece, let it
run for a while. Watch for vibration or wobbling that
could indicate poor installation or a poorly balanced
blade.
22. Wait until the blade attains full speed before cutting.
23. Stop operation immediately if you notice anything
abnormal.
24. Do not attempt to lock the trigger in the on position.
25. Be alert at all times, especially during repetitive,
monotonous operations. Don’t be lulled into a false
sense of security. Blades are extremely unforgiving.
26. Always use accessories recommended in this man-
ual. Use of improper accessories such as abrasive
wheels may cause an injury.
27. Do not use the saw to cut other than wood, alu-
minum or similar materials.
28. Connect miter saws to a dust collecting device
when sawing.
29. Select saw blades in relation to the material to
be cut.
30. Take care when slotting.
31. Replace the kerf board when worn.
32. Do not use saw blades manufactured from high
speed steel.
33. Some dust created from operation contains
chemicals known to cause cancer, birth defects
or other reproductive harm. Some examples of
these chemicals are:
•lead from lead-based-painted material and,
•arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies, depend-
ing on how often you do this type of work. To
reduce your exposure to these chemicals: work
in a well ventilated area and work with approved
safety equipment, such as those dust masks
that are specially designed to filter out micro-
scopic particles.
34. To reduce the emitted noise, always be sure that
the blade is sharp and clean.
35. The operator is adequately trained in the use,
adjustment and operation of the machine.
36. Use correctly sharpened saw blades. Observe
the maximum speed marked on the saw blade.
37. Refrain from removing any cut-offs or other
parts of the workpiece from the cutting area
whilst the tool is running and the saw head is
not in the rest position.
SAVE THESE INSTRUCTIONS

6

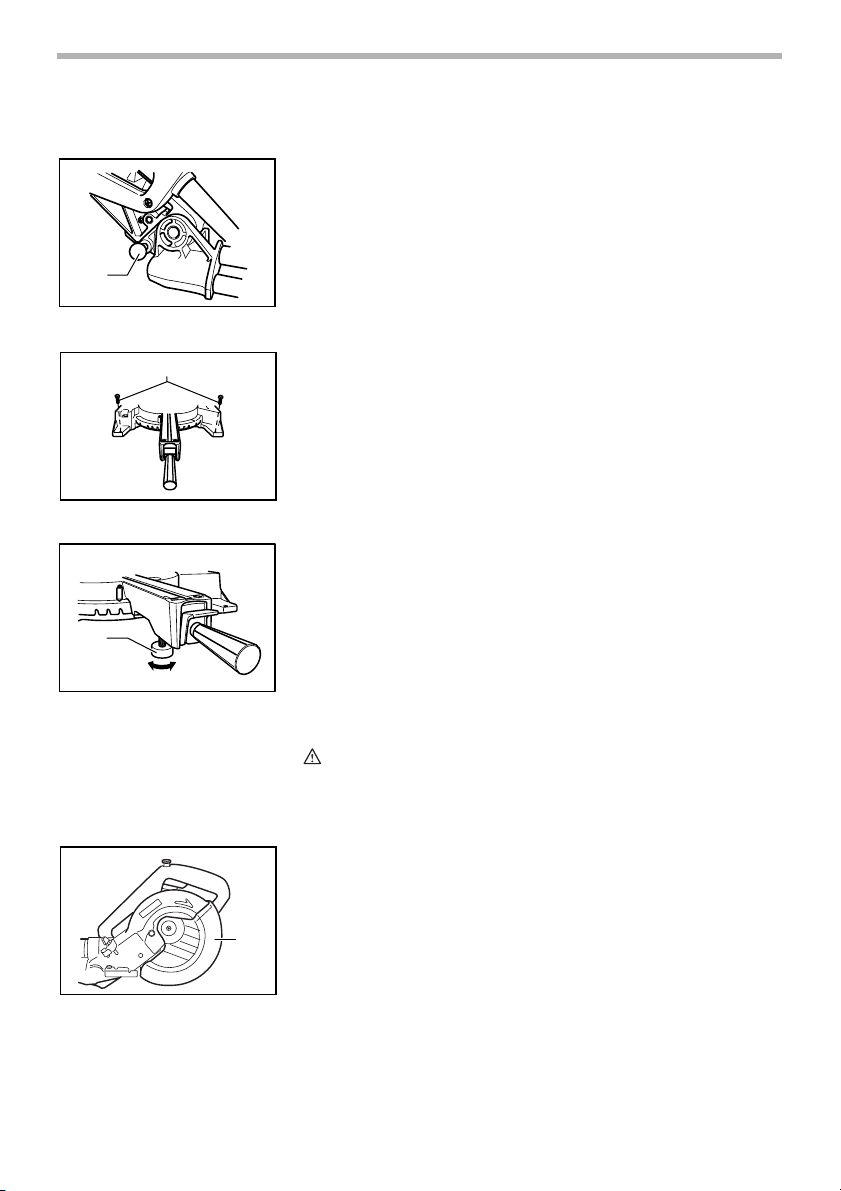

INSTALLATION Bench mounting
When the tool is shipped, the handle is locked in the lowered position by the
stopper pin. Release the stopper pin by lowering the handle slightly and pulling
the stopper pin.
This tool should be bolted with two bolts to a level and stable surface using the
bolt holes provided in the tool’s base. This will help prevent tipping and possi-
ble injury.
Turn the adjusting bolt clockwise or counterclockwise so that it comes into a
contact with the floor surface to keep the tool stable.
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Blade guard
For all countries other than European countries
When lowering the handle, the blade guard rises automatically. The guard is
spring loaded so it returns to its original position when the cut is completed
and the handle is raised. NEVER DEFEAT OR REMOVE THE BLADE GUARD
OR THE SPRING WHICH ATTACHES TO THE GUARD.
In the interest of your personal safety, always maintain the blade guard in good
condition. Any irregular operation of the blade guard should be corrected
immediately. Check to assure spring loaded return action of guard. NEVER
USE THE TOOL IF THE BLADE GUARD OR SPRING ARE DAMAGED,
FAULTY OR REMOVED. DOING SO IS HIGHLY DANGEROUS AND CAN
CAUSE SERIOUS PERSONAL INJURY.
1. Stopper pin
1
003923
1. Bolt
1
003924
1. Adjusting bolt
1
003925
1. Blade guard
1
002252

7
For European countries
When lowering the handle, the blade guard A rises automatically. The blade
guard B rises as it contacts a workpiece. The guards are spring loaded so it
returns to its original position when the cut is completed and the handle is
raised. NEVER DEFEAT OR REMOVE THE BLADE GUARDS OR THE
SPRING WHICH ATTACHES TO THE GUARD.
In the interest of your personal safety, always maintain each blade guard in
good condition. Any irregular operation of the blade guards should be cor-
rected immediately. Check to assure spring loaded return action of guards.
NEVER USE THE TOOL IF THE BLADE GUARDS OR SPRING ARE DAM-
AGED, FAULTY OR REMOVED. DOING SO IS HIGHLY DANGEROUS AND
CAN CAUSE SERIOUS PERSONAL INJURY.
If the see-through blade guard becomes dirty, or sawdust adheres to it in such
a way that the blade is no longer easily visible, unplug the saw and clean the
guard carefully with a damp cloth. Do not use solvents or any petroleum-based
cleaners on the plastic guard.
If the blade guard is especially dirty and vision through the guard is impaired,
use the supplied socket wrench to loosen the hex bolt holding the center cover.
Loosen the hex bolt by turning it counterclockwise and raise the blade guard
and center cover. With the blade guard so positioned, cleaning can be more
completely and efficiently accomplished. When cleaning is complete, reverse
procedure above and secure bolt. Do not remove spring holding blade guard.
If guard becomes discolored through age or UV light exposure, contact a Mak-
ita service center for a new guard. DO NOT DEFEAT OR REMOVE GUARD.
1. Blade guard A
2. Blade guard B
(For European countries)
1
2
006661
1. Blade guard B
(For European countries)
1
001782

8

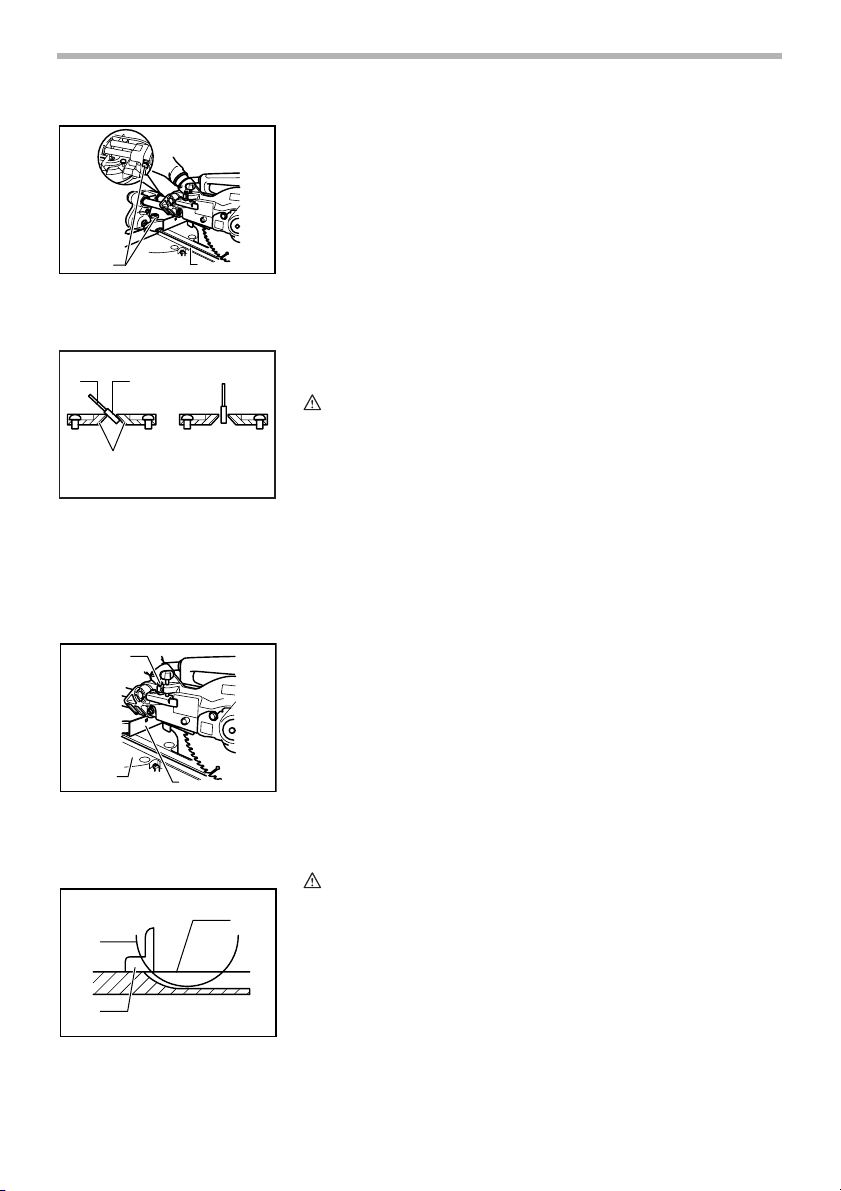

Positioning kerf board
This tool is provided with the kerf boards in the turn base to minimize tearing
on the exit side of a cut. The kerf boards are factory adjusted so that the saw
blade does not contact the kerf boards. Before use, adjust the kerf boards as
follows:
First, unplug the tool. Loosen all the screws (2 each on left and right) securing
the kerf boards. Re-tighten them only to the extent that the kerf boards can still
be easily moved by hand. Lower the handle fully and push in the stopper pin to
lock the handle in the lowered position. Loosen two clamp screws which
secure the slide poles. Pull the carriage toward you fully. Adjust the kerf boards
so that the kerf boards just contact the sides of the blade teeth. Tighten the
front screws (do not tighten firmly). Push the carriage toward the guide fence
fully and adjust the kerf boards so that the kerf boards just contact the sides of
blade teeth. Tighten the rear screws (do not tighten firmly).
After adjusting the kerf boards, release the stopper pin and raise the handle.
Then tighten all the screws securely.
CAUTION:
•Before and after changing the bevel angle, always adjust the kerf boards
as described above.
Maintaining maximum cutting capacity
This tool is factory adjusted to provide the maximum cutting capacity for a 190
mm saw blade.
When installing a new blade, always check the lower limit position of the blade
and if necessary, adjust it as follows:
First, unplug the tool. Push the carriage toward the guide fence fully and lower
the handle completely. Use the socket wrench to turn the adjusting bolt until
the periphery of the blade extends slightly below the top surface of the turn
base at the point where the front face of the guide fence meets the top surface
of the turn base.
With the tool unplugged, rotate the blade by hand while holding the handle all
the way down to be sure that the blade does not contact any part of the lower
base. Re-adjust slightly, if necessary.
CAUTION:
•After installing a new blade, always be sure that the blade does not
contact any part of the lower base when the handle is lowered
completely. Always do this with the tool unplugged.
1. Thumb screw
2. Kerf board
1. Saw blade
2. Blade teeth
3. Kerf board
4. Left bevel cut
5. Straight cut
12
003926
12
3
45
001800
1. Adjusting bolt
2. Turn base
3. Guide fence
1. Top surface of turn table
2. Periphery of blade
3. Guide fence
1
23
003927
2
3
1
005516

9

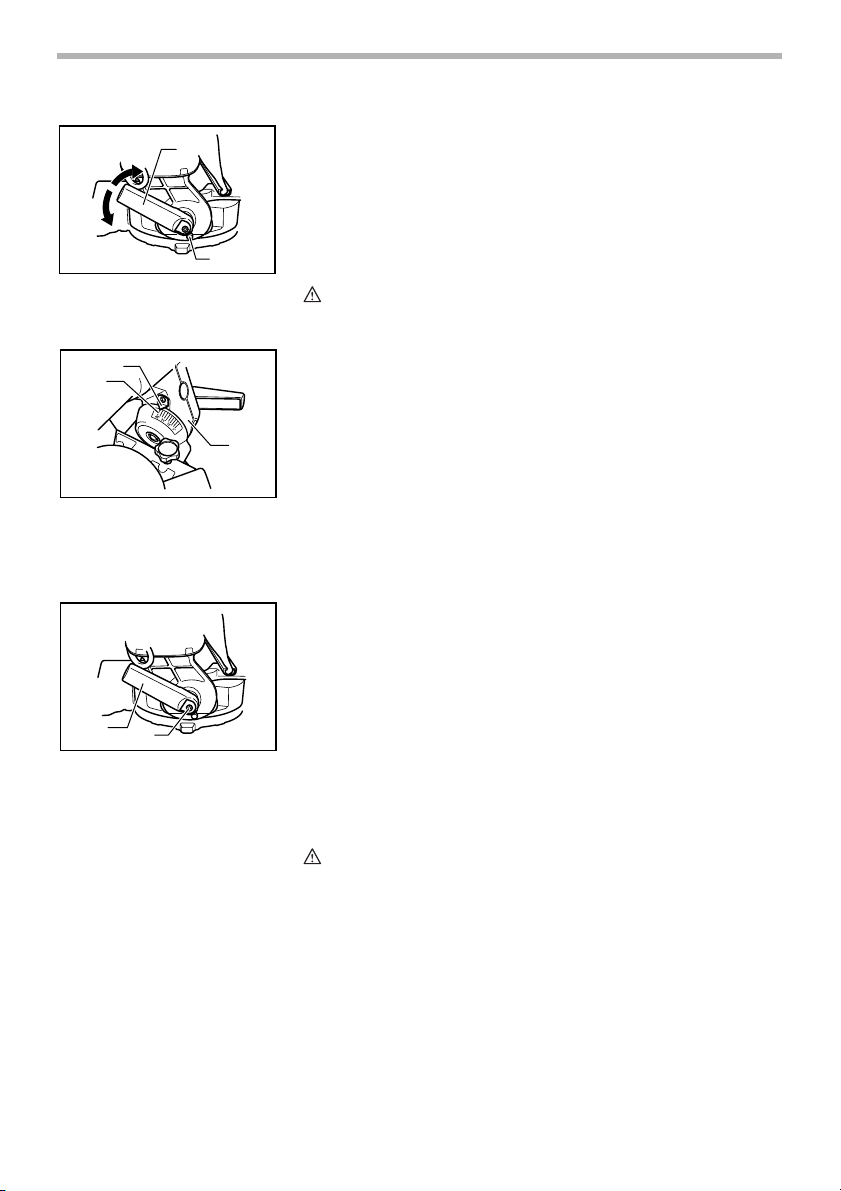

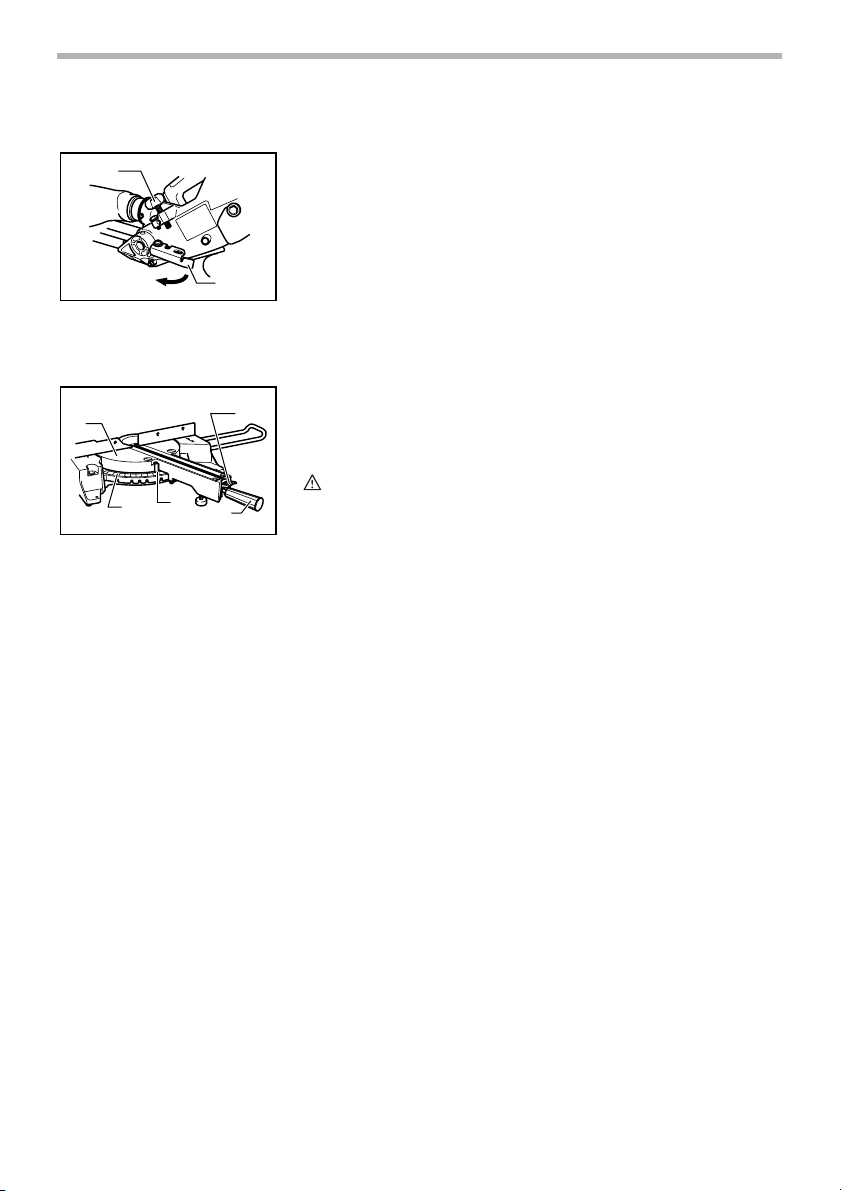

Stopper arm
The lower limit position of the blade can be easily adjusted with the stopper
arm. To adjust it, move the stopper arm in the direction of the arrow as shown
in the figure. Adjust the adjusting screw so that the blade stops at the desired
position when lowering the handle fully.
Adjusting the miter angle
Loosen the grip by turning counterclockwise. Turn the turn base while pressing
down the lock lever. When you have moved the grip to the position where the
pointer points to the desired angle on the miter scale, securely tighten the grip
clockwise.
CAUTION:
•When turning the turn base, be sure to raise the handle fully.
•After changing the miter angle, always secure the turn base by tightening
the grip firmly.
1. Adjusting screw
2. Stopper arm
1
2
003928
1. Turn base
2. Lock lever
3. Miter scale
4. Pointer
5. Grip
12
345
003929

10
Adjusting the bevel angle
To adjust the bevel angle, loosen the lever at the rear of the tool counterclock-
wise.
Push the handle to the left to tilt the saw blade until the pointer points to the
desired angle on the bevel scale. Then tighten the lever clockwise firmly to
secure the arm.
To tilt the blade to the right, push the release button at the rear of the tool while
tilting the blade slightly to the left after loosening the lever. With the release
button depressed, tilt the saw blade to the right.
CAUTION:
•When tilting the saw blade, be sure to raise the handle fully.
•After changing the bevel angle, always secure the arm by tightening the
lever clockwise.
•When changing bevel angles, be sure to position the kerf boards
appropriately as explained in the “Positioning kerf boards”section.
Adjusting the lever position
The lever can be repositioned at every angle 30°when the lever does not pro-
vide full tightening.
Loosen and remove the screw that secures the lever at the rear of the tool.
Remove the lever and install it again so that it is slightly above the level.
Secure the lever with the screw firmly.
Switch action
CAUTION:
•Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the “OFF”position when released.
•When not using the tool, remove the lock-off button and store it in a
secure place. This prevents unauthorized operation.
•Do not pull the switch trigger hard without pressing in the lock-off button.
This can cause switch breakage.
1. Lever
2. Release button
1. Pointer
2. Bevel scale
3. Arm
1
2
003930
1
2
3
003931
1. Lever
2. Screw
12
003932

11
For European countries
To prevent the switch trigger from being accidentally pulled, a lock-off button is
provided. To start the tool, push the lever to the left, press in the lock-off button
and then pull the switch trigger. Release the switch trigger to stop.
For all countries other than European countries
To prevent the switch trigger from being accidentally pulled, a lock-off button is
provided. To start the tool, press in the lock-off button and pull the switch trig-
ger. Release the switch trigger to stop.
WARNING:
•NEVER use tool without a fully operative switch trigger. Any tool with an
inoperative switch is HIGHLY DANGEROUS and must be repaired before
further usage.
•For your safety, this tool is equipped with a lock-off button which prevents
the tool from unintended starting. NEVER use the tool if it runs when you
simply pull the switch trigger without pressing the lock-off button. Return
tool to a Makita service center for proper repairs BEFORE further usage.
•NEVER tape down or defeat purpose and function of lock-off button.
Lighting up the lamps
For model LS0714F, LS0714FL
CAUTION:
•This is not a rainproof light. Do not wash the light in water or use it in a
rain or a wet area. Such a conduct can cause an electric shock and
fume.
•Do not touch the lens of the light, as it is very hot while it is lighted or
shortly after it is turned off. This may cause a burn to a human body.
•Do not apply impact to the light, which may cause damage or shorted
service time to it.
•Do not keep casting the beam of the light to your eyes. This can cause
your eyes to be hurt.
•Do not cover the light with clothes, carton, cardboard or similar objects
while it is lighted, which can cause a fire or an ignition.
Push the upper position of the switch for turning on the light and the lower
position for off.
Move the light to shift an area of lighting.
NOTE:
•Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to
scratch the lens of light, or it may lower the illumination.
1. Lever
1
005517
1. Lock-off button
2. Switch trigger
3. Handle
2
3
1
002253
1. Light
2. Light switch
1
2
005518

12

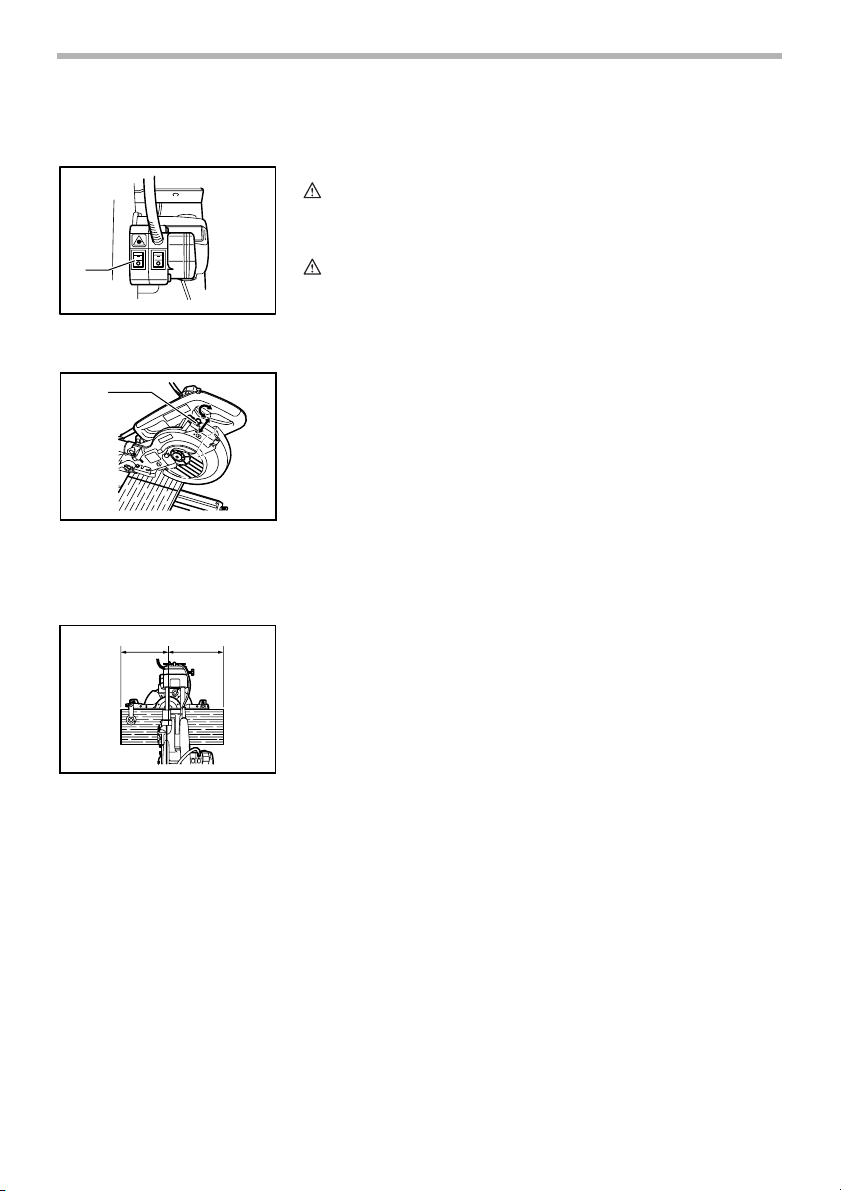

Laser beam action
For model LS0714FL, LS0714L
CAUTION:
•Never look into the laser beam. Direct laser beam may injure your eyes.
For European countries only
CAUTION:
•LASER RADIATION, DO NOT VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS, CLASS 1M LASER PRODUCT.
To turn on the laser beam, press the upper position (I) of the switch. Press the
lower position (O) to turn off.
Laser line can be shifted to either the left or right side of the saw blade by
adjusting the adjusting screw as follows.
1. Loosen the adjusting screw by turning it counterclockwise.
2. With the adjusting screw loosened, slide the adjusting screw to the right
or left as far as it goes.
3. Tighten the adjusting screw firmly at the position where it stops sliding.
Laser line is factory adjusted so that it is positioned within 1 mm from the side
surface of the blade (cutting position).
NOTE:
•When laser line is dim and almost or entirely invisible because of the
direct sunlight in the indoor or outdoor window-by work, relocate the work
area to a place not exposed to the direct sunlight.
Aligning the laser line
Laser line can be shifted to either the left or right side of the blade according to
the applications of cutting. Refer to explanation titled “Laser beam action”
regarding its shifting method.
NOTE:
•Use wood facing against the guide fence when aligning the cutting line
with the laser line at the side of guide fence in compound cutting (bevel
angle 45 degrees and miter angle right 45 degrees).
A) When you obtain correct size on the left side of workpiece
•Shift the laser line to the left of the blade.
B) When you obtain correct size on the right side of workpiece
•Shift the laser line to the right of the blade.
Align the cutting line on your workpiece with the laser line.
1. Switch for laser
1
005519
1. Adjusting screw
1
005520
AB
005521

13
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Socket wrench storage
The socket wrench is stored as shown in the figure. When using the socket
wrench, pull it out of the wrench holder. After using the socket wrench, return it
to the wrench holder.
Installing or removing saw blade
CAUTION:
•Always be sure that the tool is switched off and unplugged before
installing or removing the blade.
•Use only the Makita socket wrench provided to install or remove the
blade. Failure to do so may result in overtightening or insufficient
tightening of the hex bolt. This could cause an injury.
Lock the handle in the raised position by pushing in the stopper pin.
To remove the blade, use the socket wrench to loosen the hex bolt holding the
center cover by turning it counterclockwise. Raise the blade guard and center
cover.
1. Wrench holder
2. Pipe holder
1
2
003933
1. Stopper pin
1
003923
1. Center cover
2. Socket wrench
3. Hex bolt
4. Safety cover
1
234
003934

14
Press the shaft lock to lock the spindle and use the socket wrench to loosen
the hex bolt clockwise. Then remove the hex bolt, outer flange and blade.
To install the blade, mount it carefully onto the spindle, making sure that the
direction of the arrow on the surface of the blade matches the direction of the
arrow on the blade case. Install the outer flange and hex bolt, and then use the
socket wrench to tighten the hex bolt (left-handed) securely counterclockwise
while pressing the shaft lock.
Return the blade guard and center cover to its original position. Then tighten
the hex bolt clockwise to secure the center cover. Release the handle from the
raised position by pulling the stopper pin. Lower the handle to make sure that
the blade guard moves properly. Make sure shaft lock has released spindle
before making cut.
1. Shaft lock
2. Arrow
3. Blade case
4. Socket wrench
5. Hex bolt (left-handed)
1
2
3
45
003935
1. Outer flange
2. Saw blade
3. Inner flange
4. Hex bolt (left-handed)
5. Spindle
1. Blade case
2. Arrow
3. Saw blade
4. Arrow
123
45
003936
12 43
005523

15

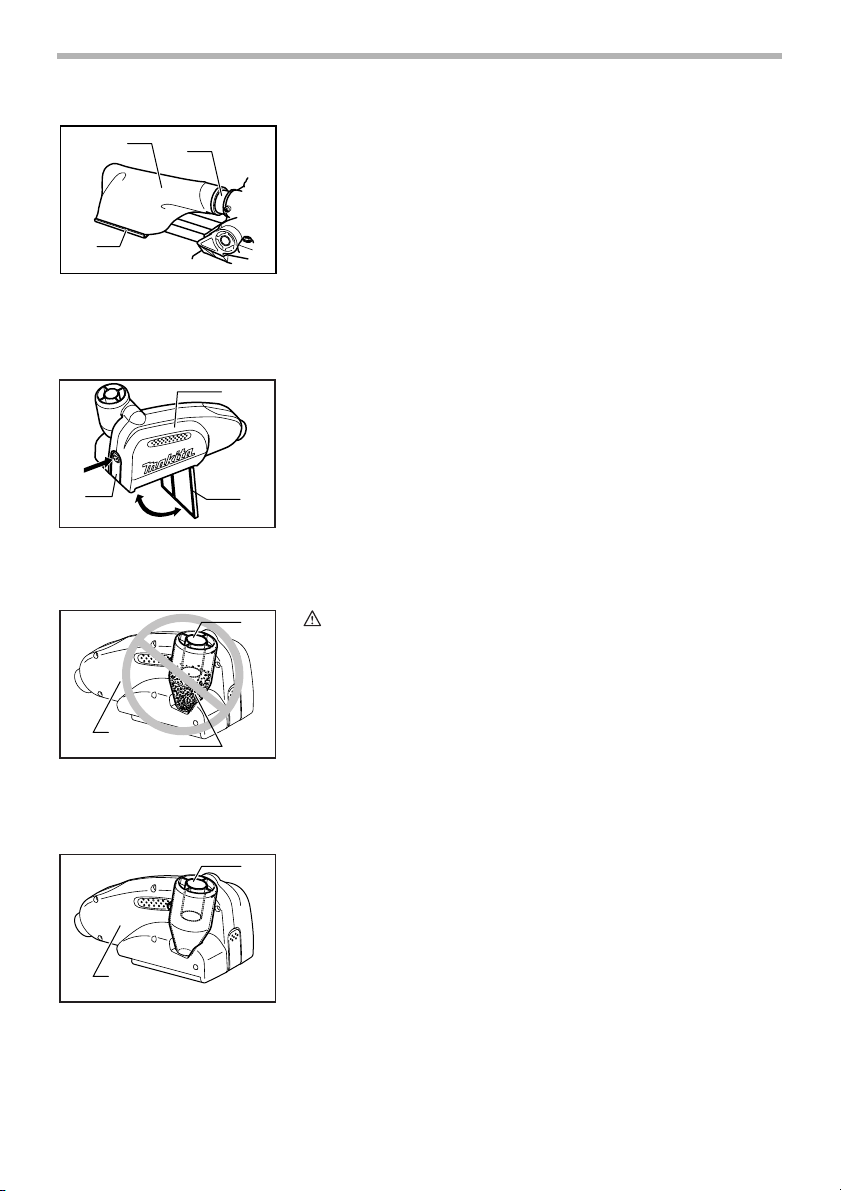

Dust bag (accessory)
The use of the dust bag makes cutting operations clean and dust collection
easy. To attach the dust bag, fit it onto the dust nozzle.
When the dust bag is about half full, remove the dust bag from the tool and pull
the fastener out. Empty the dust bag of its contents, tapping it lightly so as to
remove particles adhering to the insides which might hamper further collec-
tion.
NOTE:
If you connect a Makita vacuum cleaner to your saw, more efficient and
cleaner operations can be performed.
Dust box (accessory)
Insert the dust box into the dust nozzle.
Empty the dust box at the earliest possible.
To empty the dust box, open the cover by pushing the button and throw away
sawdust. Return the cover to the original position and it locks. Dust box can
easily be removed by pulling out while turning it near the dust nozzle on the
tool.
NOTE:
If you connect a Makita vacuum cleaner to this tool, more efficient and cleaner
operations can be performed.
CAUTION:
•Empty the dust box before collected sawdust level reaches the cylinder
part.
1. Dust bag
2. Dust nozzle
3. Fastener
12
3
003937
1. Dust box
2. Cover
3. Button
1
2
3
006793
1. Cylinder part
2. Dust box
3. Sawdust
1. Cylinder part
2. Dust box
1
23
006792
1
2
006794

16

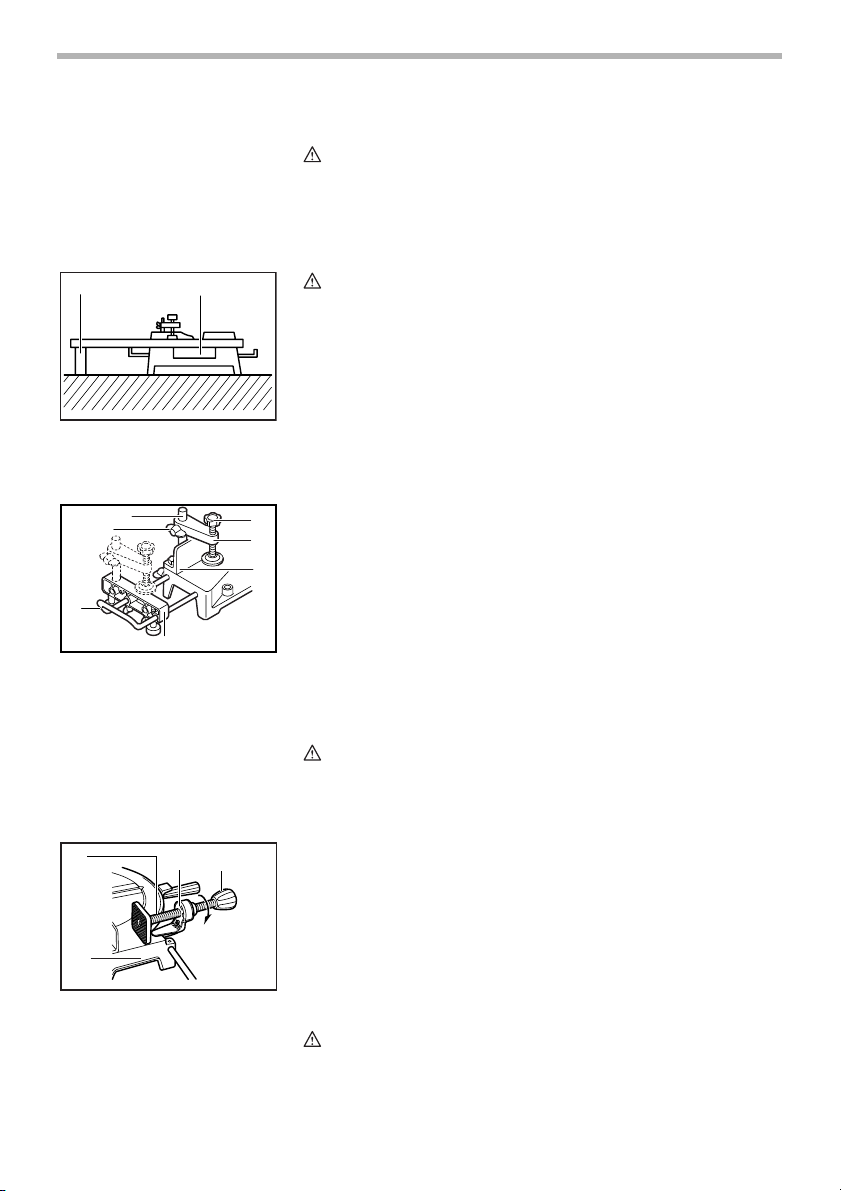

Securing workpiece
WARNING:
•It is extremely important to always secure the workpiece properly and
tightly with the vise. Failure to do so can cause the tool to be damaged
and/or the workpiece to be destroyed. PERSONAL INJURY MAY ALSO
RESULT. Also, after a cutting operation, DO NOT raise the blade until the
blade has come to a complete stop.
CAUTION:
•When cutting long workpieces, use supports that are as high as the top
surface level of the turn base. Do not rely solely on the vertical vise and/
or horizontal vise to secure the workpiece.
Thin material tends to sag. Support workpiece over its entire length to
avoid blade pinch and possible KICKBACK.
Vertical vise
The vertical vise can be installed in two positions on either the left or right side
of the guide fence or the holder assembly (optional accessory). Insert the vise
rod into the hole in the guide fence or the holder assembly and tighten the
screw to secure the vise rod.
Position the vise arm according to the thickness and shape of the workpiece
and secure the vise arm by tightening the screw. If the screw to secure the vise
arm contacts the guide fence, install the screw on the opposite side of vise
arm. Make sure that no part of the tool contacts the vise when lowering the
handle fully and pulling or pushing the carriage all the way. If some part con-
tacts the vise, re-position the vise.
Press the workpiece flat against the guide fence and the turn base. Position
the workpiece at the desired cutting position and secure it firmly by tightening
the vise knob.
CAUTION:
•The workpiece must be secured firmly against the turn base and guide
fence with the vise during all operations.
Horizontal vise (optional accessory)
The horizontal vise can be installed on the left side of the base. By turning the
vise knob counterclockwise, the screw is released and the vise shaft can be
moved rapidly in and out. By turning the vise knob clockwise, the screw
remains secured. To grip the workpiece, turn the vise knob gently clockwise
until the projection reaches its topmost position, then fasten securely. If the
vise knob is forced in or pulled out while being turned clockwise, the projection
may stop at an angle. In this case, turn the vise knob back counterclockwise
until the screw is released, before turning again gently clockwise.
The maximum width of the workpiece which can be secured by the horizontal
vise is 120 mm.
CAUTION:
•Grip the workpiece only when the projection is at the topmost position.
Failure to do so may result in insufficient securing of the workpiece. This
1. Support
2. Turn base
12
001549
1. Vise arm
2. Vise rod
3. Guide fence
4. Holder
5. Holder assembly
6. Vise knob
7. Screw
2
7
4
5
3
1
6
002255
1. Vise knob
2. Projection
3. Vise shaft
4. Base
12
3
4
001807

17
could cause the workpiece to be thrown, cause damage to the blade or
cause the loss of control, which can result in PERSONAL INJURY.

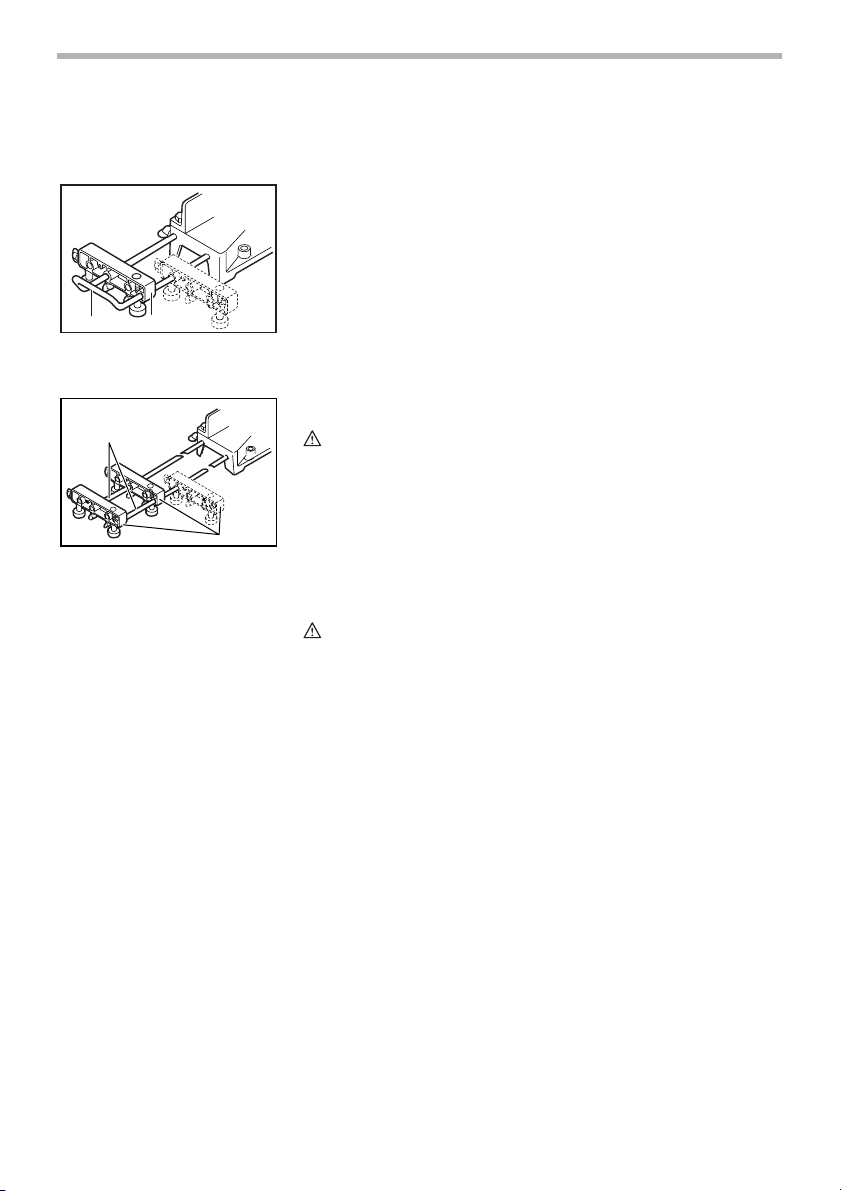

Holders and holder assembly (optional accessories)
The holders and the holder assembly can be installed on either side as a con-
venient means of supporting workpieces horizontally. Install them as shown in
the figure. Then tighten the screws firmly to secure the holders and the holder
assembly.
When cutting long workpieces, use the holder-rod assembly (optional acces-
sory). It consists of two holder assemblies and two rods 12.
CAUTION:
•Always support long workpieces level with the top surface of the turn
base for accurate cuts and to prevent dangerous loss of control of the
tool.
OPERATION CAUTION:
•Before use, be sure to release the handle from the lowered position by
pulling the stopper pin.
•Make sure the blade is not contacting the workpiece, etc. before the
switch is turned on.
•Do not apply excessive pressure on the handle when cutting. Too much
force may result in overload of the motor and/or decreased cutting
efficiency. Push down handle with only as much force as is necessary for
smooth cutting and without significant decrease in blade speed.
•Gently press down the handle to perform the cut. If the handle is pressed
down with force or if lateral force is applied, the blade will vibrate and
leave a mark (saw mark) in the workpiece and the precision of the cut will
be impaired.
•During a slide cut, gently push the carriage toward the guide fence
without stopping. If the carriage movement is stopped during the cut, a
mark will be left in the workpiece and the precision of the cut will be
impaired.
1. Holder
2. Holder assembly
12
002247
1. Holder assembly
2. Rod 12
2
1
002246

18

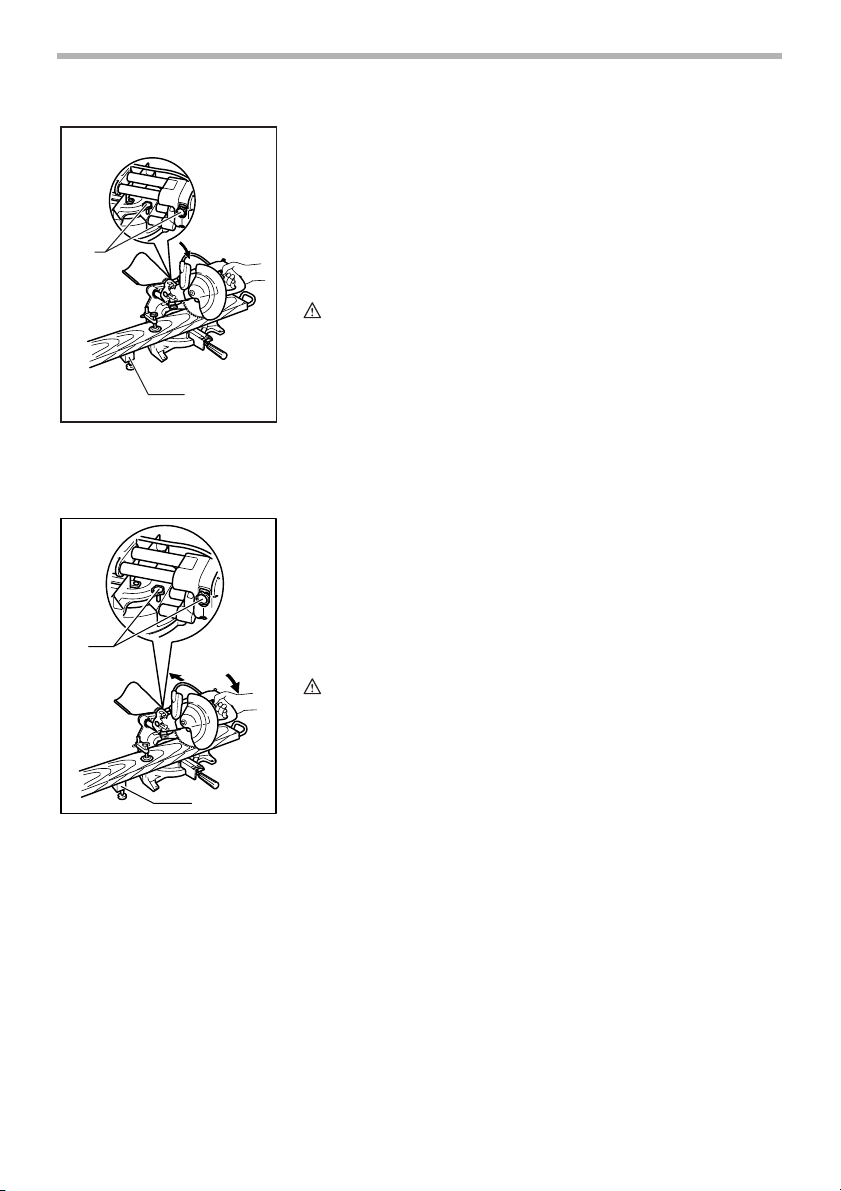

1. Press cutting (cutting small workpieces)
Workpieces up to 50 mm high and 97 mm wide can be cut in the follow-
ing way.
Push the carriage toward the guide fence fully and tighten two clamp
screws which secure the slide poles clockwise to secure the carriage.
Secure the workpiece with the vise. Switch on the tool without the blade
making any contact and wait until the blade attains full speed before low-
ering. Then gently lower the handle to the fully lowered position to cut the
workpiece. When the cut is completed, switch off the tool and WAIT
UNTIL THE BLADE HAS COME TO A COMPLETE STOP before return-
ing the blade to its fully elevated position.
CAUTION:
•Firmly tighten two clamping screws which secure the slide poles
clockwise so that the carriage will not move during operation. Insufficient
tightening may cause unexpected kickback of the blade. Possible serious
PERSONAL INJURY may result.
2. Slide (push) cutting (cutting wide workpieces)
Loosen two clamp screws which secure the slide poles counterclockwise
so that the carriage can slide freely. Secure the workpiece with the vise.
Pull the carriage toward you fully. Switch on the tool without the blade
making any contact and wait until the blade attains full speed. Press
down the handle and PUSH THE CARRIAGE TOWARD THE GUIDE
FENCE AND THROUGH THE WORKPIECE. When the cut is com-
pleted, switch off the tool and WAIT UNTIL THE BLADE HAS COME TO
A COMPLETE STOP before returning the blade to its fully elevated posi-
tion.
CAUTION:
•Whenever performing the slide cut, FIRST PULL THE CARRIAGE
TOWARD YOU FULLY and press down the handle to the fully lowered
position, then PUSH THE CARRIAGE TOWARD THE GUIDE FENCE.
NEVER START THE CUT WITH THE CARRIAGE NOT FULLY PULLED
TOWARD YOU. If you perform the slide cut without pulling the carriage
fully or if you perform the slide cut toward your direction, the blade may
kickback unexpectedly with the potential to cause serious PERSONAL
INJURY.
•Never perform the slide cut with the handle locked in the lowered position
by pressing the stopper pin.
•Never loosen the clamp screw which secures the carriage while the
blade is rotating. This may cause serious injury.
3. Miter cutting
Refer to the previously covered “Adjusting the miter angle”.
1. Two clamping screws which
secure the slide pole
2. Holder assembly
(optional accessory)
1
2
005524
1. Two clamping screws which
secure the slide pole
2. Holder assembly
(optional accessory)
2
1
005525

19
4. Bevel cut
Loosen the lever and tilt the saw blade to set the bevel angle (Refer to
the previously covered “Adjusting the bevel angle”). Be sure to retighten
the lever firmly to secure the selected bevel angle safely. Secure the
workpiece with a vise. Make sure the carriage is pulled all the way back
toward the operator. Switch on the tool without the blade making any
contact and wait until the blade attains full speed. Then gently lower the
handle to the fully lowered position while applying pressure in parallel
with the blade and PUSH THE CARRIAGE TOWARD THE GUIDE
FENCE TO CUT THE WORKPIECE. When the cut is completed, switch
off the tool and WAIT UNTIL THE BLADE HAS COME TO A COMPLETE
STOP before returning the blade to its fully elevated position.
CAUTION:
•Always be sure that the blade will move down to bevel direction during a
bevel cut. Keep hands out of path of saw blade.
•During a bevel cut, it may create a condition whereby the piece cut off will
come to rest against the side of the blade. If the blade is raised while the
blade is still rotating, this piece may be caught by the blade, causing
fragments to be scattered which is dangerous. The blade should be
raised ONLY after the blade has come to a complete stop.
•When pressing the handle down, apply pressure parallel to the blade. If
the pressure is not parallel to the blade during a cut, the angle of the
blade might be shifted and the precision of the cut will be impaired.
5. Compound cutting
Compound cutting is the process in which a bevel angle is made at the
same time in which a miter angle is being cut on a workpiece. Compound
cutting can be performed at angle shown in the table.
When performing compound cutting, refer to “Press cutting”, “Slide cut-
ting”, “Miter cutting”and “Bevel cut”explanations.
6. Cutting aluminum extrusion
When securing aluminum extrusions, use spacer blocks or pieces of
scrap as shown in the figure to prevent deformation of the aluminum. Use
a cutting lubricant when cutting the aluminum extrusion to prevent build-
up of the aluminum material on the blade.
CAUTION:
•Never attempt to cut thick or round aluminum extrusions. Thick aluminum
extrusions may come loose during operation and round aluminum
extrusions cannot be secured firmly with this tool.
1. Holder assembly
(optional accessory)
1
005526
Miter angle Bevel angle
Left and Right 45˚ Left 0˚ - 45˚
Right 50˚ Left 0˚ - 40˚
Right 55˚ Left 0˚ - 30˚
Right 57˚ Left 0˚ - 25˚
006393
1. Vise
2. Spacer block
3. Guide fence
4. Aluminum extrusion
5. Spacer block
1
2
3
4
5
001844

20

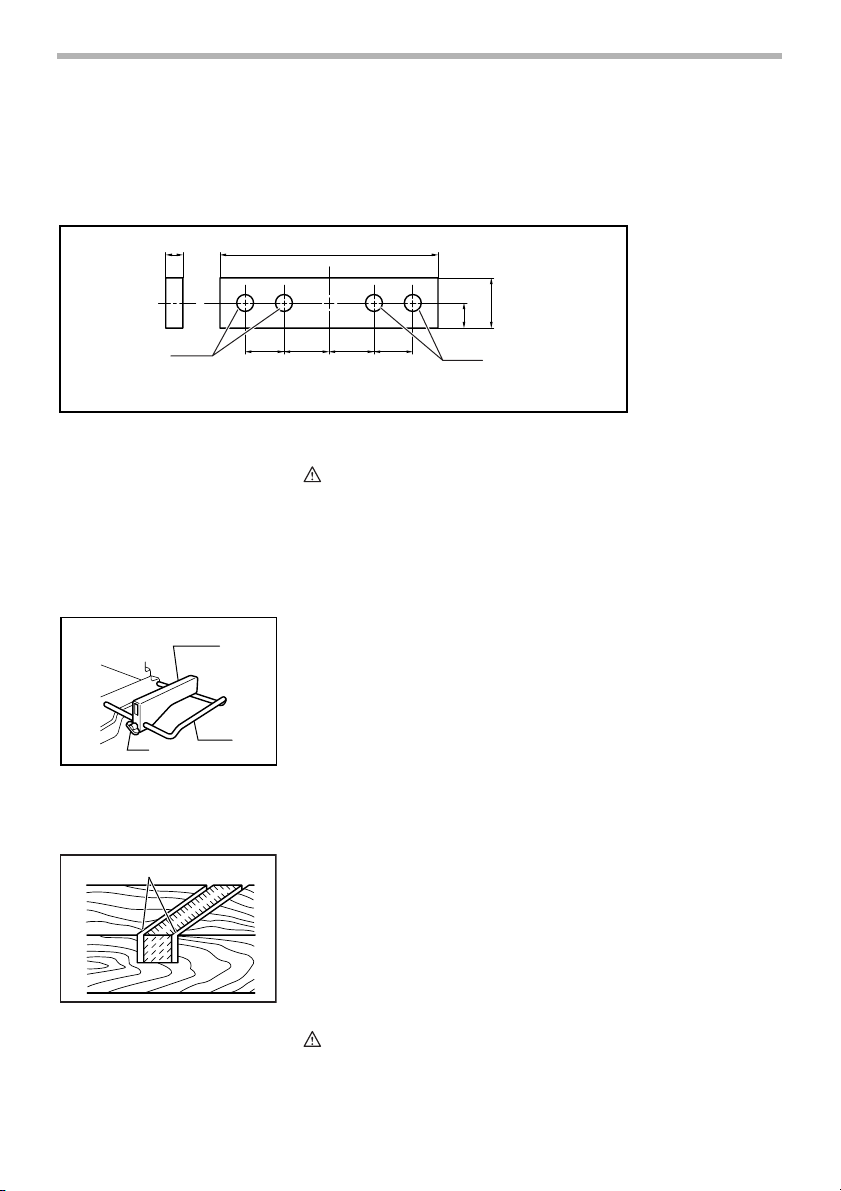

7. Wood facing
Use of wood facing helps to assure splinter-free cuts in workpieces.
Attach a wood facing to the guide fence using the holes in the guide
fence.
See the figure concerning the dimensions for a suggested wood facing.
CAUTION:
•Use straight wood of even thickness as the wood facing.
•Use screws to attach the wood facing to the guide fence. The screws
should be installed so that the screw heads are below the surface of the
wood facing.
•When the wood facing is attached, do not turn the turn base with the
handle lowered. The blade and/or the wood facing will be damaged.
8. Cutting repetitive lengths
When cutting several pieces of stock to the same length, ranging from
220 mm to 385 mm, use of the set plate (optional accessory) will facili-
tate more efficient operation. Install the set plate on the holder (optional
accessory) as shown in the figure.
Align the cutting line on your workpiece with either the left or right side of
the groove in the kerf board, and while holding the workpiece from mov-
ing, move the set plate flush against the end of the workpiece. Then
secure the set plate with the screw. When the set plate is not used,
loosen the screw and turn the set plate out of the way.
NOTE:
•Use of the holder-rod assembly (optional accessory) allows cutting
repetitive lengths up to 2,200 mm approximately.
9. Groove cutting
A dado type cut can be made by proceeding as follows:
Adjust the lower limit position of the blade using the adjusting screw and
the stopper arm to limit the cutting depth of the blade. Refer to “Stopper
arm”section described on previously.
After adjusting the lower limit position of the blade, cut parallel grooves
across the width of the workpiece using a slide (push) cut as shown in
the figure. Then remove the workpiece material between the grooves
with a chisel. Do not attempt to perform this type of cut using wide (thick)
blades or with a dado blade. Possible loss of control and injury may
result.
CAUTION:
•Be sure to return the stopper arm to the original position when
performing other than groove cutting.
1. Holes
Over 15mm (5/8”)Over 420mm (16-1/2”)
11
50mm-60mm
(2”-2-3/8”)
27mm (1-1/16”)
85mm
(3-3/8”)
70mm
(2-3/4”)
85mm
(3-3/8”)
70mm
(2-3/4”)
002206
1. Set plate
2. Holder
3. Screw
1
2
3
001846
1. Cut grooves with blade
1
001563
