Makita DUX60 User manual
INSTRUCTION MANUAL
Cordless Multi Function Power
Head
DUX60
ENGLISH: Original instructions
Read before use.
2ENGLISH
SPECIFICATIONS
Model: DUX60
No load speed
(without attachment)
Low 0 - 5,700 min-1
Medium 0 - 8,200 min-1
High 0 - 9,700 min-1
Overall length 1,011 mm
Rated voltage D.C. 36 V
Net weight 4.1 kg - 11.9 kg
without notice.
-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge
BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860B
WARNING: Only use the battery cartridges listed above.
No load speed with attachment
Model Rotation speed
Low Medium High
EM401MP 0 - 4,200 min-1 0 - 6,000 min-1 0 - 7,100 min-1
EN401MP, EN410MP, EN420MP 0 - 2,400 spm 0 - 3,400 spm 0 - 4,000 spm
EY401MP (chain speed) 0 - 12 m/s 0 - 17 m/s 0 - 20 m/s
KR400MP 0 - 160 min-1 0 - 230 min-1 0 - 280 min-1
KR401MP 0 - 130 min-1 0 - 190 min-1 0 - 230 min-1
EE400MP 0 - 2,800 min-1 0 - 4,000 min-1 0 - 4,700 min-1
EJ400MP 0 - 1,600 min-1 0 - 2,300 min-1 0 - 2,800 min-1
BR400MP 0 - 130 min-1 0 - 190 min-1 0 - 230 min-1
SW400MP 0 - 130 min-1 0 - 190 min-1 0 - 230 min-1
Approved attachment
Type Model
Brushcutter attachment EM401MP
Hedge trimmer attachment EN401MP, EN410MP
Ground trimmer attachment EN420MP
Pole saw attachment EY401MP
Cultivator attachment KR400MP, KR401MP
Edger attachment EE400MP
Coffee harvester attachment EJ400MP
Shaft extension attachment LE400MP
Power brush attachment BR400MP
Power sweep attachment SW400MP
3ENGLISH
Symbols
-
use.
Read instruction manual.
Take particular care and attention.
Do not expose to moisture.
Ni-MH
Li-ion
waste material! In observance of the
European Directives, on Waste Electric
and Accumulators and Waste Batteries and
Accumulators and their implementation
in accordance with national laws, electric
pack(s) that have reached the end of
Intended use
This cordless multi function power head is intended for
driving an approved attachment listed in the section
"SPECIFICATIONS" of this instruction manual. Never
use the unit for the other purpose.
WARNING: Read the instruction manual of
the attachment as well as this instruction manual
before using. Failure to follow the warnings and
Noise
Attachment Sound pressure level
average
Sound power level
average
Applicable
standard
LPA (dB (A))
Uncertainty K
(dB (A))
LWA (dB (A))
Uncertainty K
(dB (A))
EM401MP (as a brushcutter) 78.5 1.0 90.2 1.5 EN11806
EM401MP (as a string trimmer) 84.3 0.6 93.3 1.6 EN50636
EN401MP 83.7 1.2 92.6 0.7 ISO10517
EN401MP + LE400MP 83.7 1.3 92.8 1.1 ISO10517
EN410MP 80.2 1.9 88.2 2.2 ISO10517
EN410MP + LE400MP 78.9 1.7 88.3 2.7 ISO10517
EN420MP 84.0 0.8 94.0 0.7 ISO10517
EY401MP 92.5 1.4 101.9 1.4 ISO11680
EY401MP + LE400MP 86.6 1.0 101.2 1.0 ISO11680
KR400MP 76.7 2.2 84.2 1.0 EN709
KR401MP 73.1 1.4 84.2 1.8 EN709
EE400MP 74.8 1.5 88.2 2.6 ISO11789
EJ400MP 87.4 1.4 94.5 1.3 ISO10517
EJ400MP + LE400MP 85.6 1.0 95.5 1.3 ISO10517
BR400MP 79.5 0.9 89.0 0.7 EN60335
SW400MP 80.1 1.8 88.8 0.7 EN60335
(A). Wear ear protection.
4ENGLISH
Vibration
Attachment Left handle (Front grip) Right handle (Rear grip) Applicable
standard
ah (m/s2)
Uncertainty K
(m/s2)
ah (m/s2)
Uncertainty K
(m/s2)
EM401MP (as a brushcutter) 3.0 1.5 2.5 1.5 EN11806
EM401MP (as a string trimmer) 5.0 1.5 2.5 1.5 EN50636
EN401MP 5.5 1.5 3.5 1.5 ISO10517,
EN60745
EN401MP + LE400MP 5.5 1.5 4.0 1.5 ISO10517,
EN60745
EN410MP 4.0 1.5 2.5 1.5 ISO10517,
EN60745
EN410MP + LE400MP 4.5 1.5 2.5 1.5 ISO10517,
EN60745
EN420MP 6.5 1.5 4.0 1.5 ISO10517
EY401MP 2.5 1.5 2.5 1.5 ISO11680
EY401MP + LE400MP 5.5 1.5 2.5 1.5 ISO11680
KR400MP 2.5 1.5 2.5 1.5 EN709
KR401MP 2.5 1.5 2.5 1.5 EN709
EE400MP 2.5 1.5 2.5 1.5 ISO11789
EJ400MP 4.0 1.5 3.0 1.5 ISO10517
EJ400MP + LE400MP 4.5 1.5 3.0 1.5 ISO10517
BR400MP 2.5 1.5 2.5 1.5 EN60335
SW400MP 2.6 1.5 2.6 1.5 EN60335
NOTE: The declared vibration emission value has been measured in accordance with the standard test method
NOTE:
WARNING: The vibration emission during actual use of the power tool can differ from the declared emission
WARNING:
the tool is switched off and when it is running idle in addition to the trigger time).
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
with this power tool. Failure to follow all instructions
Save all warnings and instruc-
tions for future reference.
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
liquids, gases or dust. Power tools create sparks
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
5ENGLISH
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
-
ication. A moment of inattention while operating
2. Use personal protective equipment. Always
wear eye protection.
hearing protection used for appropriate conditions
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool.
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off.
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
power tools.
6. Keep cutting tools sharp and clean.
maintained cutting tools with sharp cutting edges
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease.
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
6ENGLISH
Battery tool use and care
1.
the manufacturer. A charger that is suitable for
2. -
nated battery packs.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.-
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
liquid contacts eyes, additionally seek medical
help.
irritation or burns.
5. Do not use a battery pack or tool that is dam-
6.
excessive temperature.-
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
-
tions.
Service
1.
repair person using only identical replacement
parts.
tool is maintained.
2. Never service damaged battery packs. Service
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
national regulations.
Tape or mask off open contacts and pack up the
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
Installing the batteries to
-
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
7ENGLISH

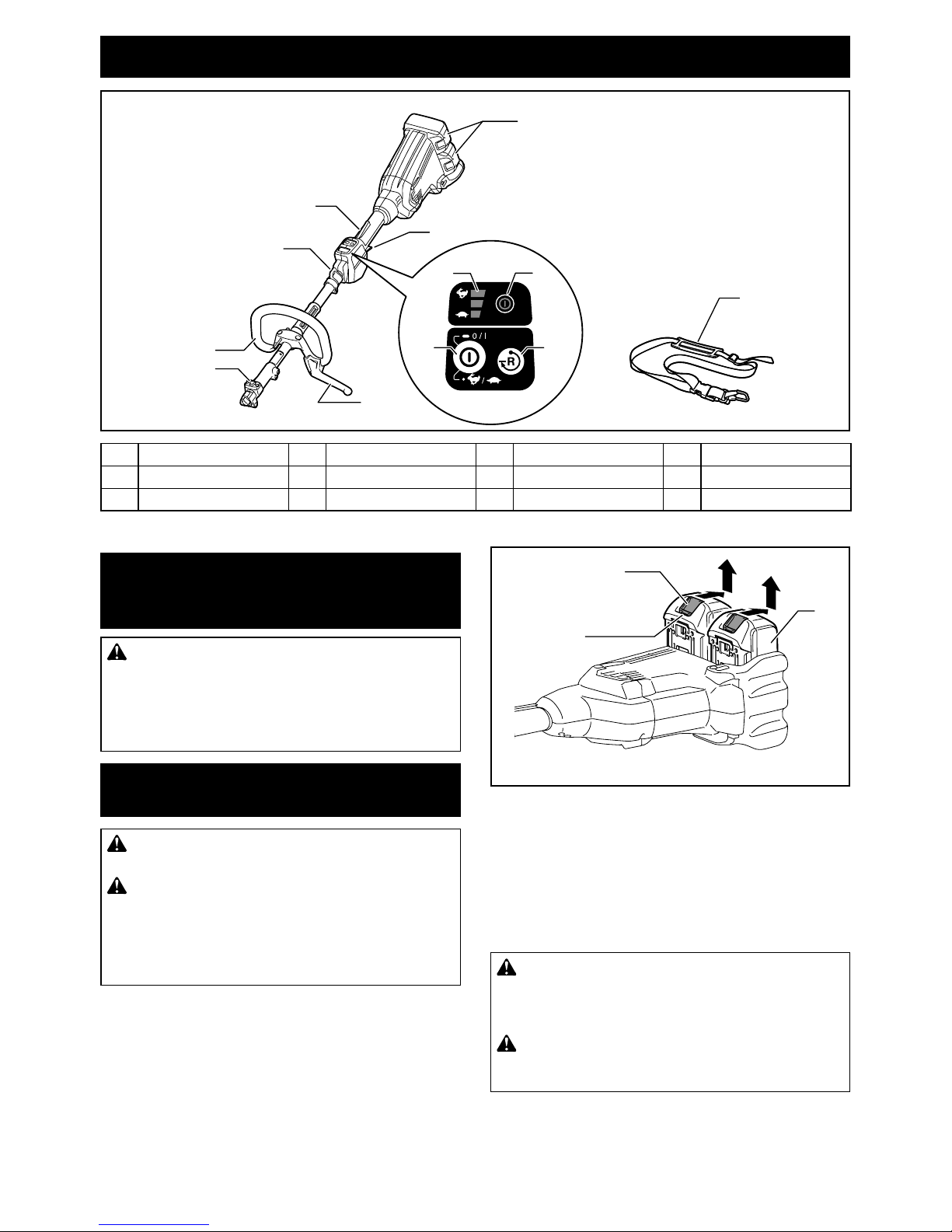

PARTS DESCRIPTION
2
1
89
10 11
3
4
5
6
7
12
1 2Lock-off lever 3Switch trigger 4Hanger
5Handle 6Release button 7 8Speed indicator
9Power lamp 10 Main power button 11 Reverse button 12 Shoulder harness
FUNCTIONAL
DESCRIPTION
WARNING: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
start-up.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
cartridge.
2
1
3
1. Red indicator 2. Button 3.
while sliding the button on the front of the cartridge.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
CAUTION: Do not install the battery cartridge
forcibly.
8ENGLISH
Tool / battery protection system
-
-
placed under one of the following conditions:
Status Indicator lamps
On Off Blinking
Overload
Overheat
Over
discharge
Overload protection
debris, and the middle indicators start blinking and
In this situation, turn the tool off and stop the application
that caused the tool to become overloaded. Then turn
the tool on to restart.
Overheat protection for tool or battery
When a over heating occurs, all speed indicators blink.
Overdischarge protection
indicator blinks.
If the tool does not operate even when the switches are operated,
remove the batteries from the tool and charge the batteries.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
1. Indicator lamps 2. Check button
-
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
malfunctioned.
NOTE: Depending on the conditions of use and the
Main power switch
WARNING: Always turn off the main power
switch when not in use.
the main power lamp lights up. To turn off, press the
main power button again.
1
1. Main power button
NOTE: The main power lamp brinks if the switch
trigger is pulled under unoperatable conditions. The
holding down the lock-off lever and the switch trigger
NOTE:
To avoid unintentional start up, the main power switch
is not pulled for a certain period after the main power
switch is turned on.
9ENGLISH
Switch action
WARNING:
For your safety, this tool is equipped
with lock-off lever which prevents the tool from unin-
tended starting. NEVER use the tool if it runs when
you simply pull the switch trigger without pressing the
lock-off lever. Return the tool to our authorized ser-
vice center for proper repairs BEFORE further usage.
WARNING: NEVER tape down or defeat pur-
pose and function of lock-off lever.
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
NOTICE: Do not pull the switch trigger hard with-
out pressing the lock-off lever. This can cause
switch breakage.
pulled, a lock-off lever is provided.
2
1
1. Lock-off lever 2. Switch trigger
To start the tool, turn on the main power switch and
grasp) and then pull the switch trigger. Tool speed is
trigger. To stop the tool, release the switch trigger.
Speed adjusting
speed will change.
1
1. Main power button
Indicator Mode
High
Medium
Low
Reverse button for debris removal
WARNING: Switch off the tool and remove
the battery cartridge before you remove entan-
gled weeds or debris which the reverse rotation
function can not remove. Failure to switch off and
This tool has a reverse button to change the direction of
-
gled in the tool.
To reverse the rotation, tap the reverse button and pull
the trigger when the tool’s head is stopped. The power
lamp starts blinking, and the tool's head rotates in
To return to regular rotation, release the trigger and wait
until the tool's head stops.
1
1. Reverse button
NOTE: During the reverse rotation, the tool operates
stops.
NOTE: Once the tool is stopped, the rotation returns
NOTE:
head is still rotating, the tool comes to stop and to be
10 ENGLISH
Electronic torque control function
To restart the tool, release the switch trigger. Clear the cause
of sudden drop in the rotation speed and then turn the tool on.
NOTE:
This function is not a preventive measure for kickbacks.
ASSEMBLY
WARNING: Always be sure that the tool is
switched off and battery cartridge is removed
before carrying out any work on the tool. Failure to
WARNING: Never start the tool unless it is
completely assembled. Operation of the tool in a
-

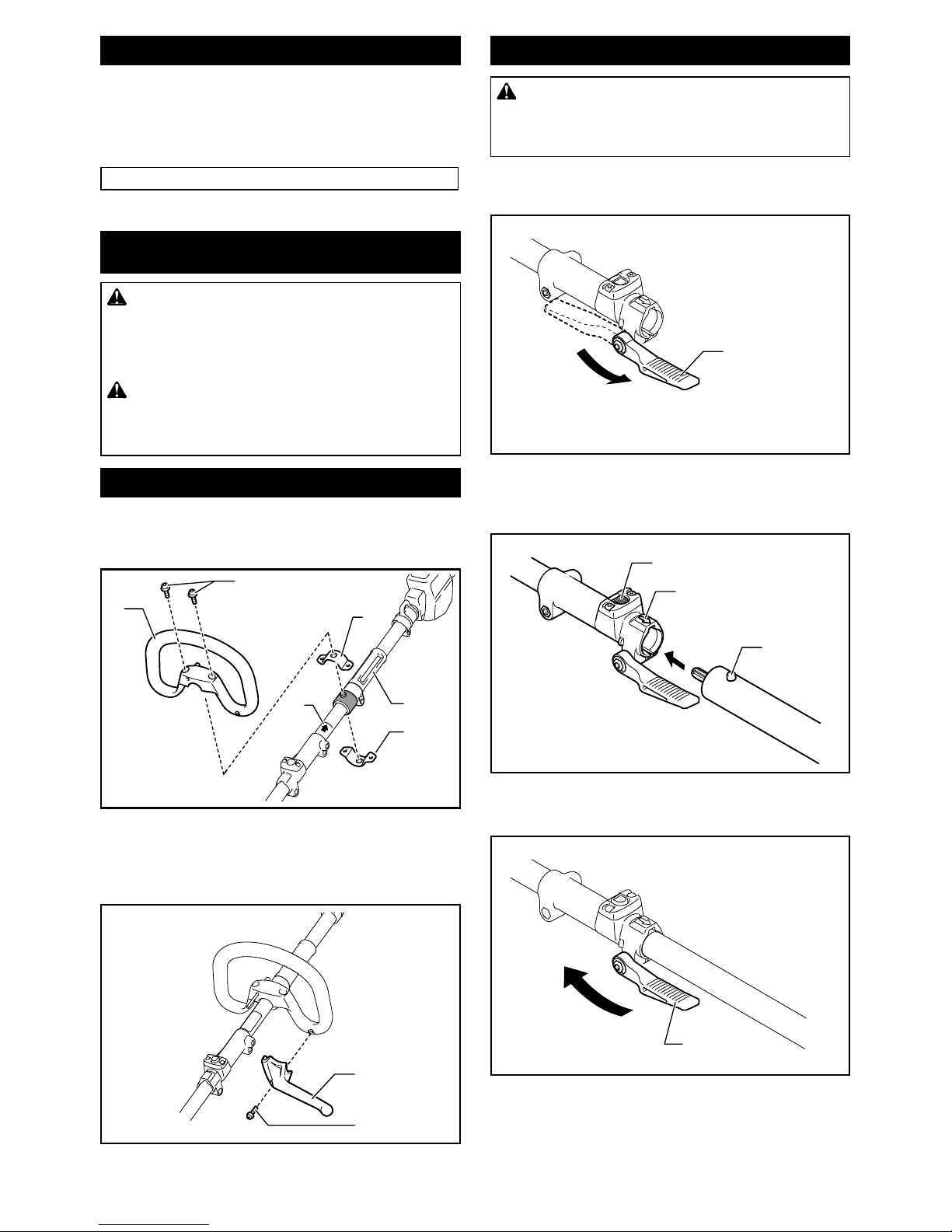

Mounting the handle
Attach the handle with supplied clamps and bolts. Make
sure that the handle is located between the spacer and
the arrow mark. Do not remove or shrink the spacer.
4
2
3
1
3
5
1. Handle 2. Hex socket bolt 3. Clamp 4. Spacer
5. Arrow mark
on the barrier. Once assembled, do not remove the barrier.
1
2
1. Barrier 2. Screw
Mounting the attachment pipe
CAUTION: Always check that the attachment
pipe is secured after installation. Improper instal-
Mount the attachment pipe to the power unit.
1. Turn the lever toward the attachment.
1
1. Lever
2. Align the pin with the arrow mark and insert the
attachment pipe until the release button pops up.
1
2
3
1. Release button 2. Arrow mark 3. Pin
3. Turn the lever toward the power unit.
1
1. Lever
11 ENGLISH
Make sure that the surface of the lever is parallel to the
pipe.
To remove the pipe, turn the lever toward the attach-
ment and pull the pipe out while pressing down the
release button.
Fig.12
3
1
2
1. Release button 2. Lever 3. Pipe
Adjusting the handle/hanger
position
-
able handling of the tool.
Loosen the hex socket head bolt on the handle. Move
the handle to a comfortable working position and then
tighten the bolt.
1
2
1. Handle 2. Hex socket head bolt
Loosen the hex socket head bolt on the hanger. Move
the hanger to a comfortable working position and then
tighten the bolt.
21
1. Hex socket head bolt 2. Hanger
Attaching shoulder harness
WARNING: Be extremely careful to maintain
control of the tool at all times. Do not allow the
work vicinity. Failure to keep control of the tool
operator.
CAUTION: Always use the shoulder harness
attached. Before operation, adjust the shoulder
harness according to the user size to prevent
fatigue.
-
After putting the shoulder harness, attach it to the tool
hook and the harness. Be sure that the buckles click
1
2
1. Hanger 2. Hook
sides and the buckle.
1
1. Buckle
12 ENGLISH
Hex wrench storage
CAUTION: Be careful not to leave the hex
wrench inserted in the tool head.
When not in use, store the hex wrench as illustrated to
keep it from being lost.
1
2
1. Handle 2. Hex wrench
MAINTENANCE
WARNING:
Always be sure that the tool is
switched off and battery cartridge is removed before
attempting to perform inspection or maintenance on the
tool.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Battery guard
WARNING: Do not remove the battery
guard. Do not use the tool with the battery guard
removed or damaged.
for repairs.
1
1.
To maintain product SAFETY and RELIABILITY,
TROUBLESHOOTING
-
ment parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
Motor does not run.
Motor stops running after a little use. Rotation is in reverse. Change the direction of rotation with the reversing
switch.
Overheating. Stop using of tool to allow it to cool down.
It does not reach maximum RPM.
manual.
13 ENGLISH
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
accessories or attachments might present a risk of
for its stated purpose.
-
Center.
Refer to "Approved attachment" section for the applica-
ble models for this tool.
• Edger attachment
• Brushcutter attachment
• Hedge trimmer attachment
• Ground trimmer attachment
• Pole saw attachment
• Coffee harvester attachment
• Cultivator attachment
• Shaft extension attachment
NOTE:
14
15
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
www.makita.com
885603A895
EN
20180409
Other manuals for DUX60
10
Table of contents
Other Makita Trimmer manuals
Makita
Makita DUH506 User manual
Makita
Makita DUR365U User manual
Makita
Makita UR180D User manual
Makita
Makita M3700 User manual
Makita
Makita DUR365U User manual
Makita
Makita DUR184L User manual
Makita
Makita UR016G User manual
Makita
Makita XNU01 User manual
Makita
Makita DUM166 Manual
Makita
Makita EN4951SH User manual
Makita
Makita UH5570 User manual
Makita
Makita DRT50 User manual
Makita
Makita DUR361U User manual
Makita
Makita 3709 User manual
Makita
Makita DUH601 User manual
Makita
Makita EH561 User manual
Makita
Makita EBH250U User manual
Makita
Makita LXHU02Z User manual
Makita
Makita DUN461W User manual
Makita
Makita DUR187URF User manual
