Makita UH4261 User manual

1
ENGLISH (Original instructions)
INSTRUCTION MANUAL
DOUBLE INSULATION
IMPORTANT: Read Before Using.
Hedge Trimmer
UH4261
UH4861
UH5261
009397

2
ENGLISH (Original instructions)

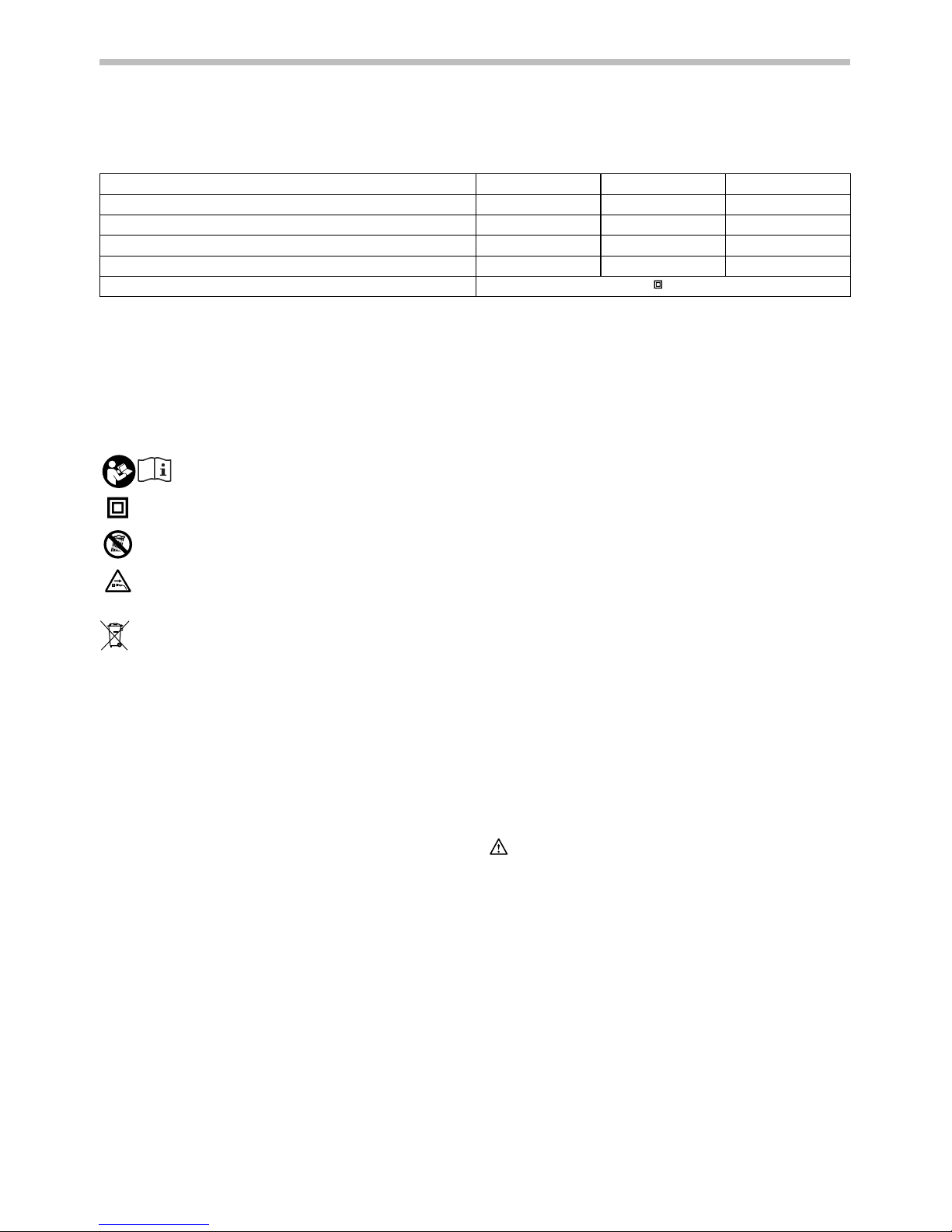

SPECIFICATIONS
Model UH4261 UH4861 UH5261
Blade length 420 mm 480 mm 520 mm
Strokes per minute (min-1) 1,600 1,600 1,600
Overall length 821 mm 871 mm 921 mm
Net weight 2.9 kg 3.0 kg 3.0 kg
Safety class /II
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END220-4
Symbol
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･DOUBLE INSULATION
･Do not expose to rain.
･Remove plug from the mains
immediately if the cable is damaged or
cut.
･Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible recycling
facility.
ENE014-1
Intended use
The tool is intended for trimming hedges.
ENF002-1
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated in accordance with European Standard
and can, therefore, also be used from sockets without
earth wire.
ENG905-1
Noise
The typical A-weighted noise level determined according
to EN60745:
Sound pressure level (LpA) : 82 dB(A)
Sound power level (LWA) : 93 dB(A)
Uncertainty (K) : 2.1 dB(A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum) determined
according to EN60745:
Work mode : hedge trimming
Vibration emission (ah) : 6.7 m/s2
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).

3
ENH021-6
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Hedge Trimmer
Model No./ Type: UH4261, UH4861, UH5261
Specifications: see "SPECIFICATIONS" table.
are of series production and
Conforms to the following European Directives:
2000/14/EC, 2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by our authorised
representative in Europe who is:
Makita International Europe Ltd.
Michigan Drive, Tongwell,
Milton Keynes, Bucks MK15 8JD, England
The conformity assessment procedure required by
Directive 2000/14/EC was in Accordance with annex V.
Measured Sound Power Level: 93dB (A)
Guaranteed Sound Power Level: 96dB (A)
23.07.2010
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN
GEA005-3
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30mA or less is always
recommended.
Personal safety
11. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
12. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
13. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.

4
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
17.
If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of
dust collection can reduce dust-related hazards.
Power tool use and care
18. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
19. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
20. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
21. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
22. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
26. Follow instruction for lubricating and
changing accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB041-8
HEDGE TRIMMER SAFETY
WARNINGS
1. Hold the power tool by insulated gripping
surfaces only, because the cutter blade may
contact hidden wiring or its own cord. Cutter
blades contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give
the operator an electric shock.
2. Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold
material to be cut when blades are moving.
Make sure the switch is off when clearing
jammed material. A moment of inattention while
operating the hedge trimmer may result in serious
personal injury.
3. Carry the hedge trimmer by the handle with
the cutter blade stopped. When transporting
or storing the hedge trimmer always fit the
cutting device cover. Proper handling of the
hedge trimmer will reduce possible personal injury
from the cutter blades.
4. Keep cable away from cutting area. During
operation the cable may be hidden in shrubs and
can be accidentally cut by the blade.
5. Do not use the hedge trimmer in the rain or in wet
or very damp conditions. The electric motor is not
waterproof.
6. First-time users should have an experienced
hedge trimmer user show them how to use the
trimmer.
7. The hedge trimmer must not be used by children
or young persons under 18 years of age. Young
persons over 16 years of age may be exempted
from this restriction if they are undergoing training
under the supervision of an expert.
8. Use the hedge trimmer only if you are in good
physical condition. If you are tired, your attention
will be reduced. Be especially careful at the end of
a working day. Perform all work calmly and
carefully. The user is responsible for all damages
to third parties.
9. Never use the trimmer when under the influence of
alcohol, drugs or medication.
10.
Check to make sure that the voltage and frequency
of the power supply correspond to the
specifications given on the identification plate. We
recommend the use of a residual-current-operated

5
circuit breaker (ground-fault circuit interrupter) with
a tripping current of 30 mA or less, or an earth
leakage current protector.
11. Work gloves of stout leather are part of the basic
equipment of the hedge trimmer and must always
be worn when working with it. Also wear sturdy
shoes with anti-skid soles.
12. Before starting work check to make sure that the
trimmer is in good and safe working order. Ensure
guards are fitted properly. Check cable for damage
before starting work and replace if necessary. The
hedge trimmer must not be used unless fully
assembled.
13. Keep cable away from the cutting area. Always
work in such a way that the extension power cord
is behind you.
14. Remove plug from the mains immediately if cable
is damaged or cut.
15. Make sure you have a secure footing before
starting operation.
16. Hold the tool firmly when using the tool.
17. Do not operate the tool at no-load unnecessarily.
18. Immediately switch off the motor and unplug the
mains plug if the cutter should come into contact
with a fence or other hard object. Check the cutter
for damage, and if damaged repair immediately.
19. Before checking the cutter, taking care of faults, or
removing material caught in the cutter, always
switch off the trimmer and unplug the mains plug.
20. Switch off the trimmer and disconnect and secure
the mains plug before doing any maintenance
work.
21. When moving the hedge trimmer to another
location, including during work, always unplug the
mains plug and put the blade cover on the cutter
blades. Never carry or transport the trimmer with
the cutter running. Never grasp the cutter with your
hands.
22. Clean the hedge trimmer and especially the cutter
after use, and before putting the trimmer into
storage for extended periods. Lightly oil the cutter
and put on the cover. The cover supplied with the
unit can be hung on the wall, providing a safe and
practical way to store the hedge trimmer.
23. Store the hedge trimmer with the cover on, in a dry
room. Keep it out of reach of children. Never store
the trimmer outdoors.
24. Do not operate the tool at no-load
unnecessarily.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to safety
rules for the subject product. MISUSE or failure to
follow the safety rules stated in this instruction manual
may cause serious personal injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
• Put the blade cover on the shear blades before
adjusting or checking function on the tool.
Switch action
12
3
009398
For your safety, this tool is equipped with a triple
switching system. To turn on the tool, press switch trigger
B and press switch trigger A or C at the same time.
Release either one of the two pressed switch triggers to
turn off. The sequence of switching is unimportant as the
tool only starts when both switches are activated.
Straight cut
009399
To trim the hedge straight, pull switch triggers A and B.
Vertical cut
009400
Cut upwards with both hands pull the switch triggers B
and C and move it in front of your body.
1. Switch trigger B
2. Switch trigger A
3. Switch trigger C

6
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Engage the extension cord
CAUTION:
• Make sure that the extension cord is unplugged to
the mains outlet.
1
2
3
007542
When engaging the extension cord, secure it to the tool's
cord with the hook complete. Attach the hook about 100 -
200 mm from the extension cord connector. This will help
prevent unintentional disconnection.
Waist cord hook
CAUTION:
• Do not attach the holder of waist cord hook to other
than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete. Failure to do so may cause an accident
or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
the extension cord. Working with the tool with a
sole hook only attached may cause an accident
and injury.
Using the waist cord hook helps to minimizing a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
12
3
4
5
6
7
009401
1
2
007545
Press in or pull out the cord through the opening of the
holder.
CAUTION:
• Do not force the opening of the holder. Failure to do
so may cause deflection and damage to it.
Arm cord hook (Accessory)
CAUTION:
• Do not attach the holder of arm cord hook to other
than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete hooks. Failure to do so may cause an
accident or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
1. Holder
2. Cord
1. Hook
2. Tool
3. Tool's cord
4. Hook complete
5. Extension cord
6. Holder
7. Waist cord hoo
k
1. Hook complete
2. Tool's cord
3. Extension cord

7
the extension cord. Working with the tool with a
sole hook only attached may cause an accident
and injury.
Using the arm cord hook helps to minimize a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
1
2
009402
Attach firmly the arm cord hook band placing around your
arm and pass the extension cord through the holder. The
length of the arm cord hook band is adjustable.
NOTE:
• Do not pass the extension cord through the band.
• Do not force the opening of the holder. Failure to do
so may cause deflection and damage to it.
• Using the arm cord hook together with the waist
cord hook is more helpful.
OPERATION
CAUTION:
• Be careful not to accidentally contact a metal fence
or other hard objects while trimming. The blade will
break and may cause serious injury.
• Overreaching with a hedge trimmer, particularly
from a ladder, is extremely dangerous. Do not work
from anything wobbly or infirm.
007559
Do not attempt to cut branches thicker than 10 mm
diameter with this trimmer. These should first be cut with
shears down to the hedge trimming level.
CAUTION:
• Do not cut off dead trees or similar hard objects.
Failure to do so may damage the tool.
009403
Hold the trimmer with both hands pull the switch trigger A
or B and move it in front of your body.
009403
12
3
009404
As a basic operation, tilt the blades towards the trimming
direction and move it calmly and slowly at the speed rate
of 3 - 4 seconds per meter.
1
009405
To cut a hedge top evenly, it helps to tie a string at the
desired hedge height and to trim along it, using it as a
reference line.
1. String
1. Trimming
direction
2. Tilt the blades
3. Hedge surface
to be trimmed
1. Holder
2. Arm cord hook
band

8
009406

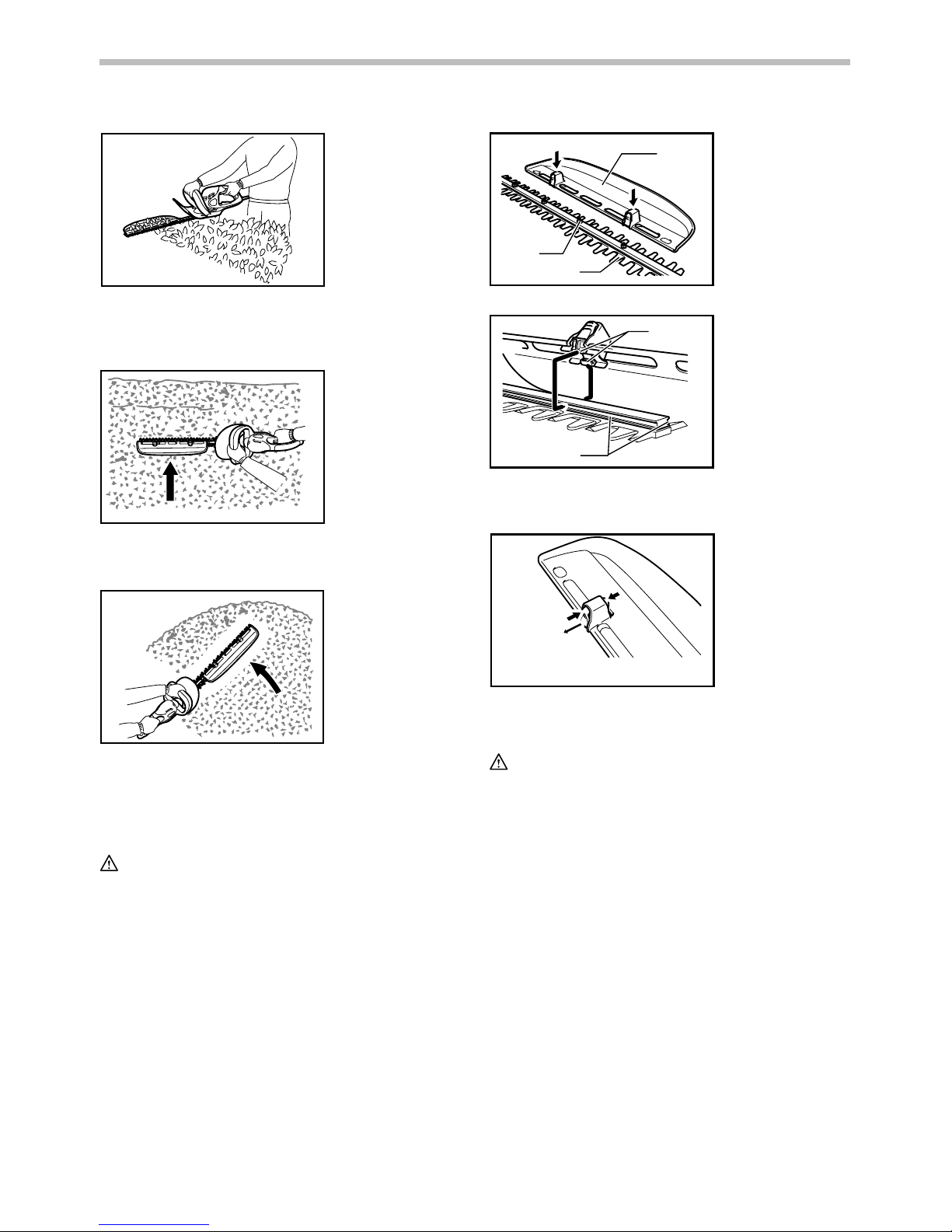

Attaching the chip receiver (accessory) on the tool when
trimming the hedge straight can avoid cut off leaves'
being thrown away.
009407
To cut a hedge side evenly, it helps to cut from the bottom
upwards.
009408
Trim boxwood or rhododendron from the base toward the
top for a nice appearance and good job.
Installing or removing chip receiver
(accessory)
CAUTION:
• Always be sure that the tool is switched off and
unplugged before installing or removing chip
receiver.
NOTE:
• When replacing the chip receiver, always wear
gloves so that hands and face does not directly
contact the blade. Failure to do so may cause
personal injury.
• Always be sure to remove the blade cover before
installing the chip receiver.
• The chip receiver receives cut-off leaves and
alleviates collecting thrown-away leaves. This can
be installed on either side of the tool.
12
3
4
009290
1
2
3
009292
At this time, the chip receiver needs to be installed so
that its hooks fit into grooves in the shear blade unit.
1
2
009293
To remove the chip receiver, press its lever on both sides
so that the hooks are unlocked.
CAUTION:
• The blade cover (standard equipment) cannot be
installed on the tool with the chip receiver being
installed. Before carrying or storing, uninstall the
chip receiver and then install the blade cover to
avoid blade exposure.
NOTE:
• Check the chip receiver for secure installment
before use.
• Never try to uninstall the chip receiver by an
excessive force with its hooks locked in the blade
unit grooves. Using the excessive force may
damage it.
1. Press the hooks
on both sides
2. Unlock the
hooks
1. Hooks
2. Fit the hooks into
groove
3. Grooves
1. Press
2. Chip receiver
3. Nut
4. Shear blade

9
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or
soap-dipped rag.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
Blade maintenance
Smear the blade before and once per half an hour during
operation using machine oil or similars.
After operation, remove dust from both sides of the blade
with wired brush, wipe off it with a rag and then apply
enough low-viscosity oil, such as machine oil etc. and
spray-type lubricating oil.
CAUTION:
• Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
• Wear gloves when performing the blade
maintenance.
Storage
Put the blade cover on the shear blades so that the
blades are not exposed. Store the tool out of the reach of
children carefully.
Store the tool in the place not exposed to water and rain.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Blade cover
• Hook complete
• Waist cord hook
• Arm cord hook
• Chip receiver
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.

10

11

12
Makita Corporation
Anjo, Aichi, Japan
www.makita.com
885005A225
