Makita DCU602 User manual

DCU602
EN Battery Powered
Wheelbarrow INSTRUCTION MANUAL 15
PL Taczka z napędem
akumulatorowym INSTRUKCJA OBSŁUGI 30
HU Akkumulátoros talicska HASZNÁLATI KÉZIKÖNYV 46
SK Akumulátorový fúrik NÁVOD NA OBSLUHU 62
CS Akumulátorový vozík NÁVOD K OBSLUZE 77
UK Візок самохідний з
акумулятором ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 92
RO Roabă cu motor MANUAL DE INSTRUCŢIUNI 108
DE Akku-Schubkarre BETRIEBSANLEITUNG 124

2
1
2
3
5
46
76
8
9
11
10
13
14
15
12

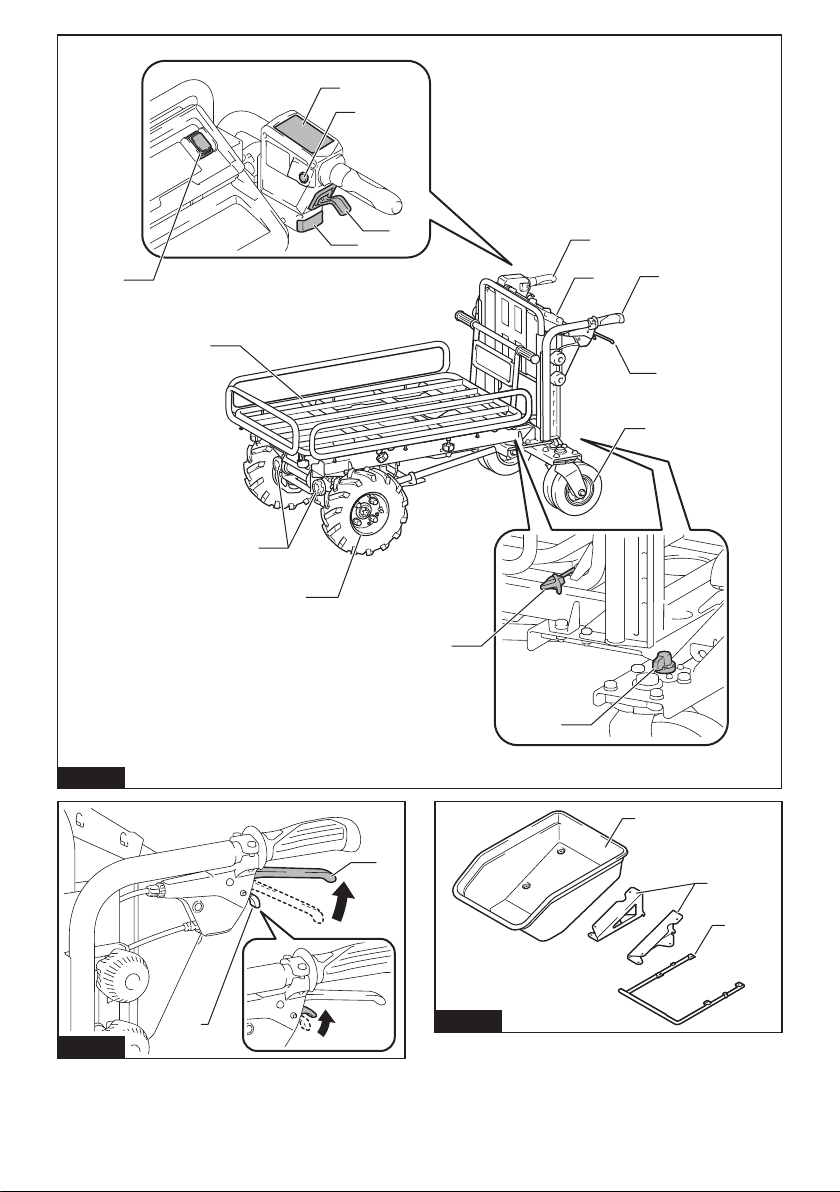

Fig.1

3
1
2
3
5
46
76
8
9
11
10
12
13
14
Fig.2
1
2
Fig.3
1
2
3
Fig.4

4
1
Fig.5
1
2
Fig.6
1
2
3
4
5
Fig.7
Fig.8
1
2
3
Fig.9
1
2
3
4
Fig.10

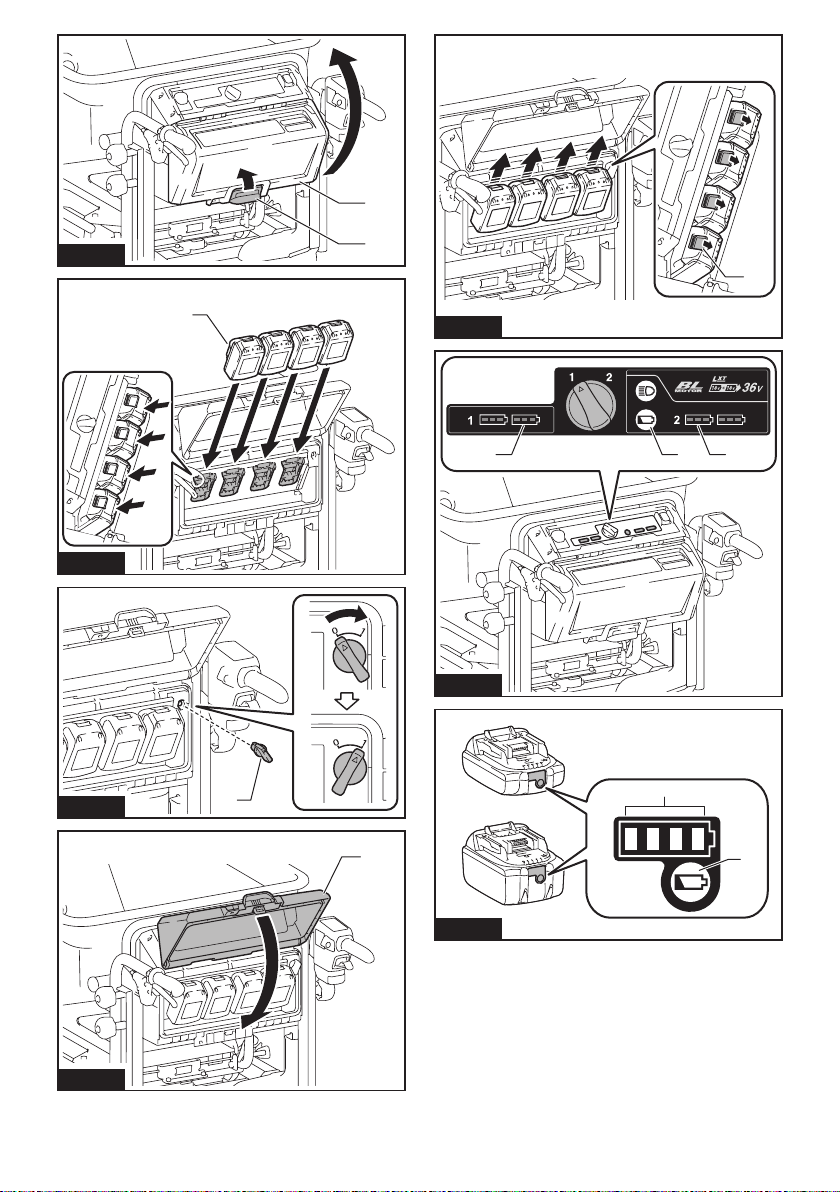

5
2
1
Fig.11
1
Fig.12
1
Fig.13
1
Fig.14
1
Fig.15
11
2
Fig.16
1
2
Fig.17

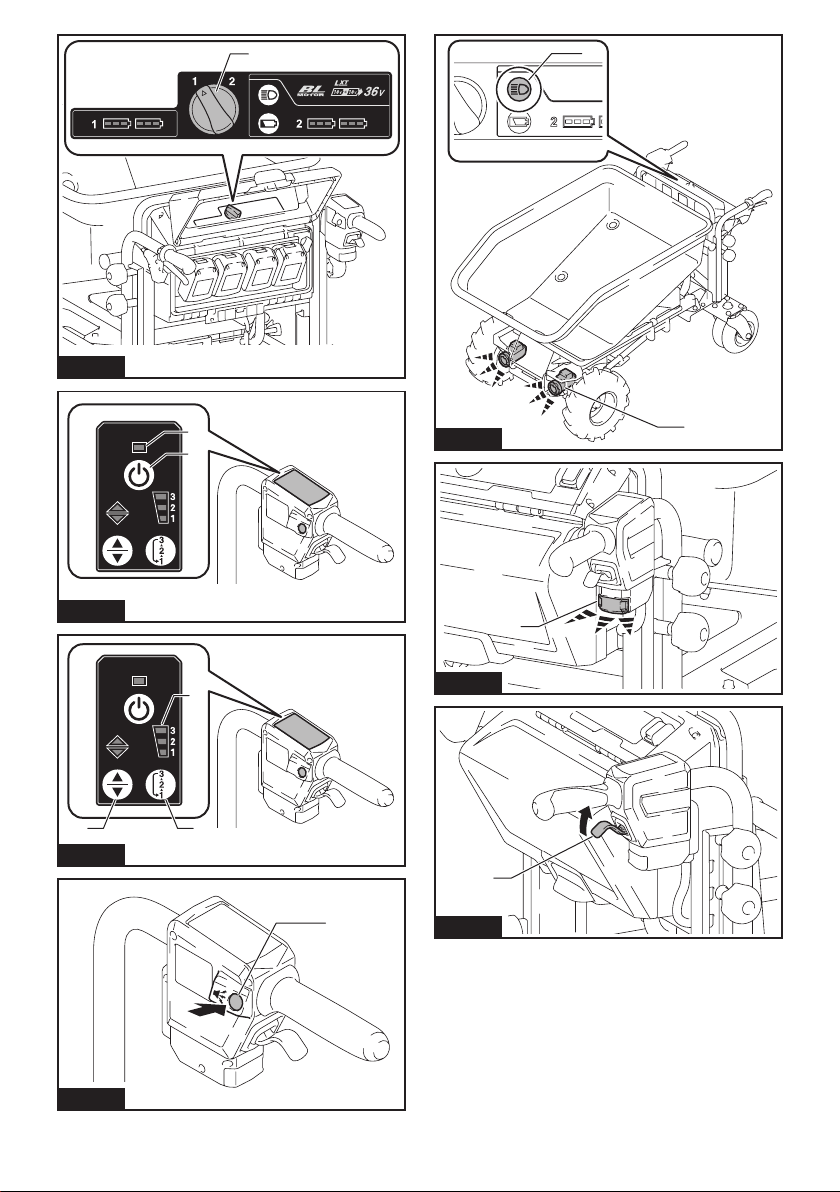

6
1
Fig.18
1
2
Fig.19
13
2
Fig.20
1
Fig.21
1
2
Fig.22
1
Fig.23
1
Fig.24

7
1
2
Fig.25
1
Fig.26
1
2
Fig.27
Fig.28
1
Fig.29
1
Fig.30
1
Fig.31

8
1
Fig.32
Fig.33
1
Fig.34
1
Fig.35
1
Fig.36
Fig.37
1
Fig.38

9
Fig.39
Fig.40
1
Fig.41
1
Fig.42
1
2
Fig.43

10
Fig.44
1
Fig.45

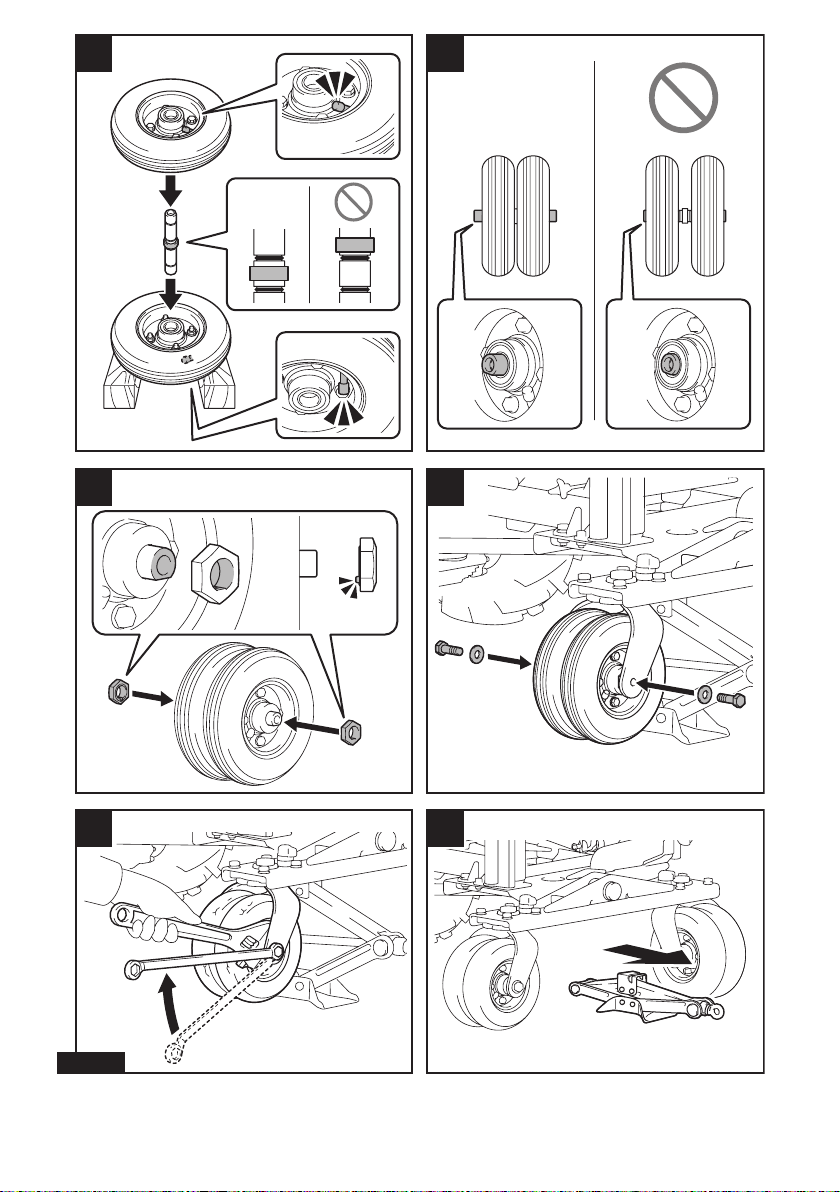

1
Fig.46
Fig.47
Fig.48

11
1
3
5
2
4
6
Fig.49

12
1
3
5
2
4
6
Fig.50

13
7
9
11
8
10
12
Fig.51

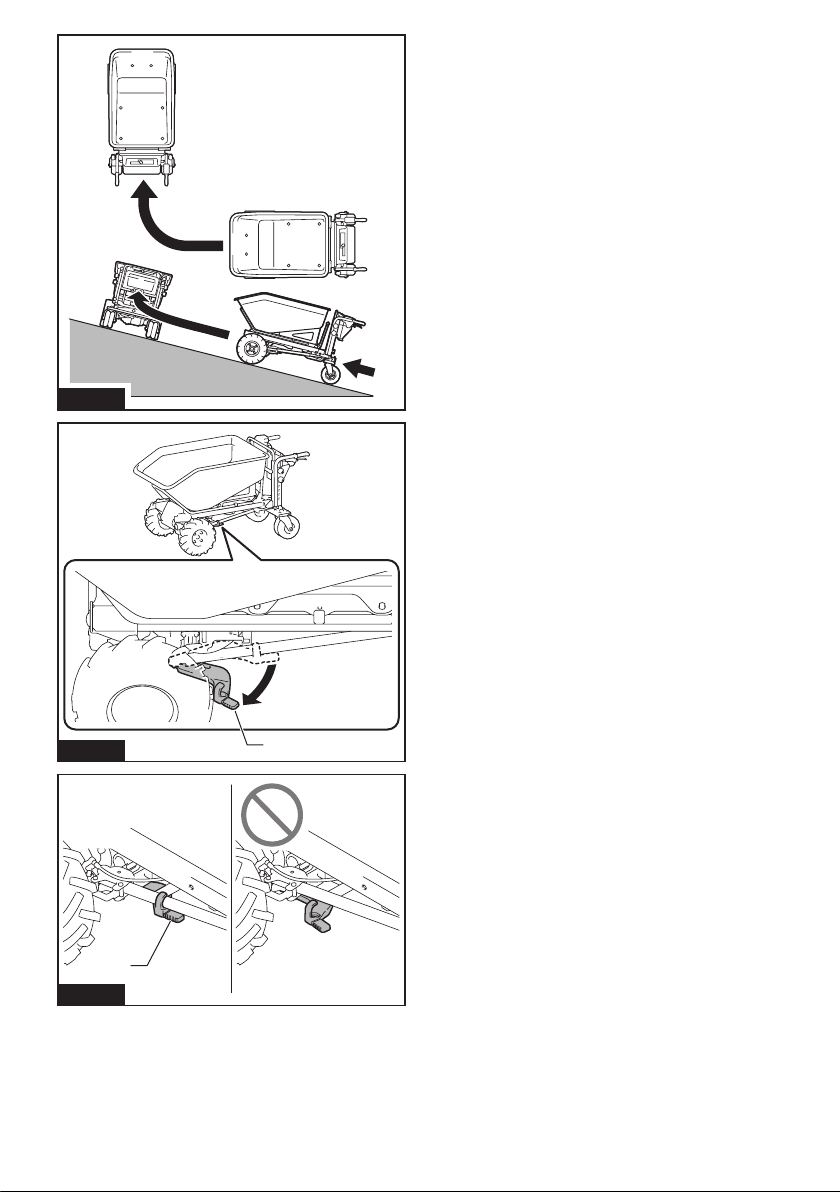

14
Fig.52
1
Fig.53
1
Fig.54

15 ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DCU602
Dimensions
(L x W x H)
When bucket is installed 1,480 mm x 730 mm x 820 - 1,030 mm
When carrier is installed 1,450 - 1,600 mm x 730 - 1,080 mm x 820 - 1,030 mm
Traveling speed Forward 5.0 / 3.5 / 1.5 km/h
Reverse 1.0 km/h
Maximum load capacity On at ground 300 kg
On slope (3 ° - 12 °) 180 kg
Maximum climbing capacity 12°
Minimum turning radius * 1,150 mm
Brake Hand brake and support brake
Tire Front wheel Pneumatic tire
Rear wheel Pneumatic tire
Rated voltage D.C. 36 V
Net weight When bucket is installed 145 - 147 kg
When carrier is installed 141 - 143 kg
Protection degree IPX4
*: Outer diameter when turning with front wheel as axis.
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
WARNING: Never use Portable Power Pack PDC1200 or PDC01 with this product. Using them together
may cause personal injury or malfunction.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
Do not change direction on slopes.
This machine cannot be used on
public roads.
Before loading or unloading objects,
lock the brake and dump unit.
Do not load or unload objects on
slopes.
Do not use the machine for trans-
porting people.
Do not dump objects on slopes. Lock
the dump unit after dumping.

16 ENGLISH
Load objects on the bucket or carrier
evenly. Do not load objects unevenly
or only on front side.
Pinch and crush hazard. Keep
hands clear during operation. Do not
put your hands or part of your body
into the moving parts.
Maximum load capacity: 300 kg on
at ground and 180 kg on slopes
(up to 12°).
Do not directly look into lamps.
Do not wash the machine with high
pressure washer.
Keep bystanders away from the
machine during operation.
Do not operate the machine around
uneven surfaces.
Do not operate the machine when
the bucket or carrier is not returned
completely.
Remove ropes before dumping
objects.
Always wear non-slip and protective
footwear.
❶ ❷
Lock the brake before pulling out the
neutral change lever.
❶ ❷
Lock the brake before returning the
neutral change lever.

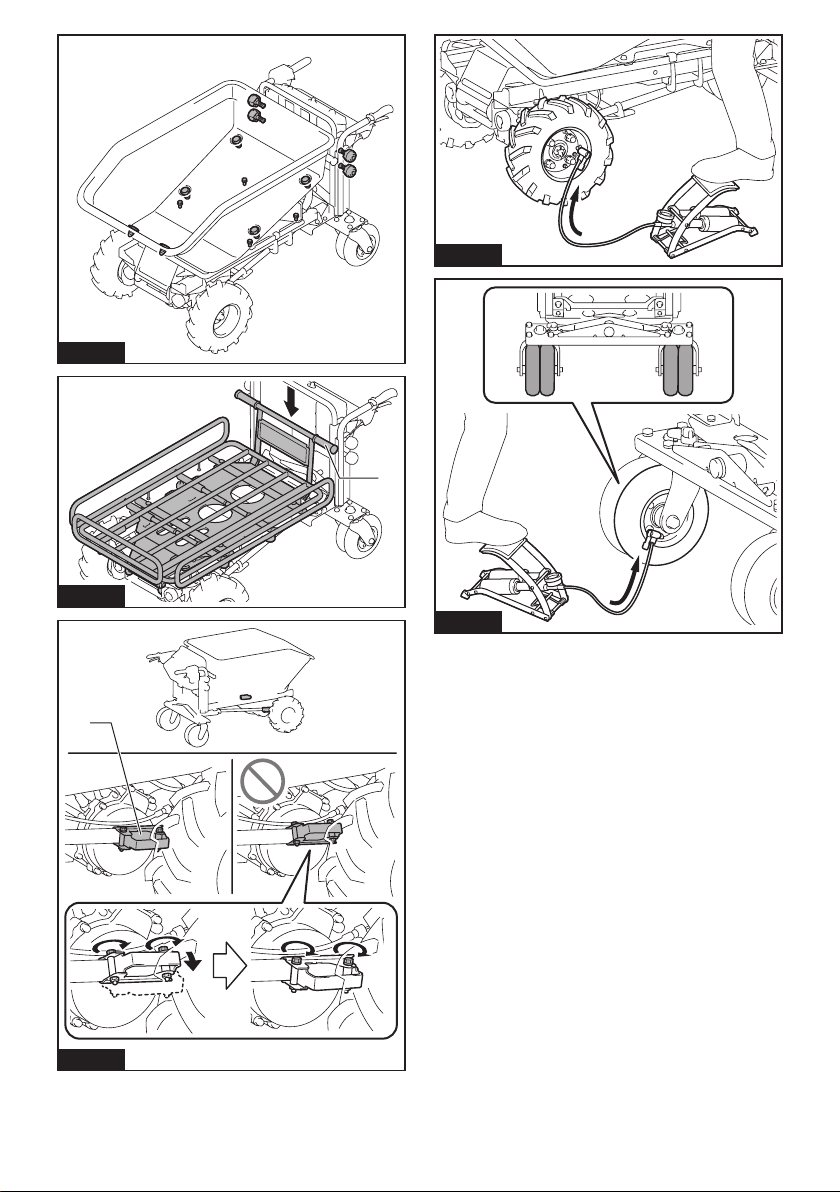

Air pressure: front tire 280 kPa and
rear tire 525 kPa.
Make sure that the lock lever is
locked.
Turn the lock lever toward the front
of machine to unlock the dump unit.
When a beep sound is emitted, lock
the brake lever.
When you release the switch trigger,
lock the brake lever.
To cancel the beep sound, release
the switch trigger and pull the brake
lever.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous
components in the equipment, waste
electrical and electronic equipment,
accumulators and batteries may
have a negative impact on the envi-
ronment and human health.
Do not dispose of electrical and
electronic appliances or batteries
with household waste!
In accordance with the European
Directive on waste electrical and
electronic equipment and on accu-
mulators and batteries and waste
accumulators and batteries, as well
as their adaptation to national law,
waste electrical equipment, batteries
and accumulators should be stored
separately and delivered to a sep-
arate collection point for municipal
waste, operating in accordance with
the regulations on environmental
protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on
the equipment.
Guaranteed sound power level
according to EU Outdoor Noise
Directive.
Sound power level according to
Australia NSW Noise Control
Regulation.
Intended use
The machine is intended for loading and carrying
objects with battery powered assistance.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841-1 and EN12053 as applicable:
Sound pressure level (LpA) : 70 dB(A) or less
Uncertainty (K) : 4 dB (A)
The noise level under working may exceed 80 dB (A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.

17 ENGLISH
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the tool is
used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-1:
Work mode: operation without load
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual
use of the power tool can di󰀨er from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Declarations of Conformity
For European countries only
The Declarations of conformity are included in Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instruc-
tions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious
injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Battery powered wheelbarrow safety
warnings
1. While operating the machine, always wear non-
slip and protective footwear. Non-skid, closed-toed
safety boots and shoes will reduce the risk of injury.
2. Inspect pathway before hauling objects/mate-
rials. Familiarizing yourself with the pathway and
ensuring it is wide enough to safely navigate the
machine under load will help reduce losing control
of the machine.
3. Use extreme caution on slippery, loose and
unstable terrain. Wet and slippery surfaces, such
as wet grassy areas, snow or ice, and loose and
unstable terrain, such as sand or gravel surfaces,
may cause the machine to lose traction and may
adversely a󰀨ect steering, braking and stability.
4. Do not operate the machine on excessively
steep slopes. This reduces the risk of loss of
control, slipping and falling which may result in
personal injury. Slopes greater than the maxi-
mum recommended grade and side grades may
increase the risk of instability and may adversely
a󰀨ect the ability to stop safely.
5. When working on slopes, always be sure of
your footing, always work across the face
of slopes, never up or down, and exercise
extreme caution when changing direction. This
reduces the risk of loss of control, slipping and
falling which may result in personal injury.
6. Whenever possible, use level areas for stop-
ping, loading and unloading and never leave
machine unattended on a slope. The machine is
more unstable when resting on a slope than when
resting on a level surface.
7. When leaving the machine unattended, set
parking brake once the machine is located in a
safe stopping area. The parking brake prevents
unwanted movement of the front wheel and can
improve stability.
8.
Ensure that ramps are clean, strong and secure.
In order to reduce the risk of injury, all ramps must
be clear of loose debris and strong enough to
withstand the weight of anticipated loads that will
be moved over them. They must have adequate
blocking underneath and to both sides to eliminate
deections and side-to-side movement under load.
All ramps must be wide enough to have sure foot-
ing while hauling loads across them.
9. Ensure all locking screws are tightly secure
before using. Locking screws on the rear wheels
and open-type carrier front and side walls must be
secure to prevent unwanted movement of these
adjustable parts of the machine.
10. Never operate the machine in an overloaded
condition. Make sure the machine has the proper
capacity rating for the objects or materials that
have to be hauled. Excessive loads will make
the machine more di󰀩cult to maneuver and stop,
will increase stopping time and distance, and will
increase the risk of instability.
11. Never operate your machine in an over stacked
condition. Stacking material above the tray rim or
over the sides of the tray can cause the machine
to be uncontrollably out of balance and control.

18 ENGLISH
12.
Use containers and tie-downs to secure loads.
Loose and/or insecure loads are more likely to shift
which can result in loss of stability and control.
13. Always maintain a rm grip on handles. Loss of
control can increase the risk of personal injury.
14. Remove safety key when not in use. The safety
key prevents unwanted, powered use of the
machine, such as by children or other untrained
or unauthorized persons. Without the key, electric
power cannot be turned “on”.
15. This machine cannot be used on public roads.
Use of the wheelbarrow on a public road is unlaw-
ful and could result in local jurisdiction penalties in
addition it could result in personal injury.
16. Use a sturdy plate with anti-slip and detach-
ment prevention function when loading and/
or unloading this machine for transportation,
or moving this machine between di󰀨erent
levels. Make sure the plate inclination does not
exceed 12°, and operate the machine slowly
and carefully. Unstable and quick operation
may result in overturn and/or falling.
17. Do not disassemble, repair, or modify this
machine.
Preparation
1. Before operating the machine, make sure that
there are no people around the machine.
2. Before operating the machine, perform
the inspections referring to the section for
maintenance.
Operation
1. When operating the machine, stand behind the
machine and hold the handles with both hands
rmly.
2. Do not operate the machine while riding on the
machine.
3. Do not allow others to ride on the machine.
4.
When operating the machine in reverse and
walking backward, watch behind you and watch
your step, and be careful not to slip or trip.
5. Do not use the machine when visibility is poor
because there is a risk of striking obstacles.
6. When operating the machine on rough ground
or going over the level di󰀨erence of the road,
decrease speed and exercise caution.
7. When using the machine, avoid soft ground
to prevent overturn due to the shoulder of the
road collapsing.
8. Do not operate the machine on slopes greater
than 12°.
9. If you nd an abnormality, stop the machine
on at ground. Before inspecting the machine,
lock the brake lever, and then turn the power
o󰀨.
10. Before operating the machine, make sure that
the handle of the dump unit is fully pulled
down and completely locked. If the lock is
incomplete, there is a risk of accident or injury as
the carrier or bucket may be tilted and the objects
fall when going downhill.
11. When operating the machine near walls, be
careful not to get your hands caught between
the handle and the wall.
12.
Do not use the machine in bad weather condi-
tions, especially when there is a risk of lightning.
This decreases the risk of being struck by lightning.
13. Do not touch the metal parts during use or
after use as they may get hot enough to cause
burns due to sunlight.
14. Be careful not to entangle the cords with the
load or obstacles.
15. When crossing a wooden bridge, etc., make
sure that the sum of the weight of product,
load capacity, and operator's weight does
not exceed the weight limit of the bridge, and
cross the bridge carefully at a constant speed.
16. Wear the gloves when operating the machine
in low temperature environments. Touching
the metal parts with bare hands may cause your
hands to stick.
17. If there are people or obstacles in the direction
of travel, avoid them in advance.
18. Do not scoop objects directly with the carrier
or bucket. Doing so may damage the machine
and cause an accident.
19. When you use the machine on muddy ground,
wet slope, or slippery place, pay attention to
your footing.
20. Do not submerge the machine into a puddle.
21. When you leave the machine while working, be
sure to completely return the dump unit to its
original position, and lock the brake lever and
remove the lock key.
22. Do not leave the machine unattended while
objects are loaded on the carrier or bucket.
Operation on slopes
1. Do not cross on slopes.
2. Stop before the downhill, and be sure to
decrease speed and exercise caution.
3. If the speed is too fast when traveling downhill,
the beep sound is emitted. In this case, slow
down using the brake.
4. Exercise caution when starting or stopping the
machine on slopes.
5. As the loads become less stable on slopes,
rmly secure the loads with ropes.
6. As the machine becomes unstable depending
on the condition of the road, keep the load to a
minimum.
7. As the view is obscured on slopes, keep the
height of the load to a minimum.
8. Never stop the machine on slopes. Stop the
machine on at ground, and lock the brake
lever, and then turn the power o󰀨.
9. Do not change the direction or speed mode on
steep slopes.
10. Do not release the switch trigger on upward
slopes. The machine may go in reverse and
cause an accident.
11.
Make sure that the remaining battery capacity
is enough before operating on slopes. If the
remaining battery capacity is not enough, charge
the battery or replace it with a charged one.
12. When starting the machine on slopes, do not
place your foot behind the rear wheel since the
machine moves back a few centimeters.

19 ENGLISH
Loading objects
1. Do not overload objects. When loading
objects, be sure to follow the instructions and
load limits in the manual.
2. Since the larger the load, the more di󰀩cult it
is to operate the machine, keep the load within
the range that does not a󰀨ect the operation.
3. Firmly secure the objects with ropes.
4. Load the objects within the carrier or bucket.
If the objects protrude from the carrier or bucket,
there is a risk of accidents due to the objects
falling or contact obstacles such as walls.
5. Be sure that loaded objects are below eye
level. If the load is too high, it is dangerous
because the view is obscured. Also, there is a risk
of overturning and injury because the load is likely
to be unbalanced.
6. Load the objects on the carrier or bucket
evenly. If the objects are loaded unevenly, there is
a risk of overturning and injury because the load is
likely to be unbalanced.
7. Before loading the objects or operating the
machine, make sure that the handle of the
dump unit is fully pulled down and completely
locked.
8. Be sure to load heavy objects rst to keep
balance.
9. Do not extend the front and side rails on steep
slopes. Extend the side rails when lightweight
objects are loaded.
10. When extending the front and side rails, do not
extend them over the extension limit. Be sure
to extend the side rails so that the right and
left sides are the same length, and load objects
evenly.
11. Load and unload objects on at ground. Never
load or unload objects on slope.
12. When lifting and tilting the carrier or bucket,
hold the handles and frame rmly, and work in
a stable posture.
Transportation of machine
1. Use the ladder rails that are at least 4 times
as long as the height of the truck bed, with
xtures suitable for the bed, with a non-slip
surface and su󰀩cient width, and capable of
withstanding the weight of the machine and
operator. Read the instruction manual of the
ladder rails carefully before use.
2. Before loading the machine, unload all objects
from the machine and remove mud and other
debris from the tires. Install the ladder rails on
a at and stable surface.
3. Before loading or unloading the machine,
make sure that there are no people around the
machine and the ladder rails. Load or unload
the machine at low speed, taking care to pre-
vent the machine from falling o󰀨 the ladder
rails, and not to hit your head on the ceiling of
the truck. Use extreme caution when loading
or unloading the machine backward.
4. When transporting the machine, lock the brake
lever, turn the power o󰀨, remove the batteries
and lock key, and x the machine securely.
Maintenance and storage
1. Before storage or attempting to perform
inspections or maintenance, always be sure
to stop the machine on at ground and lock
the brake lever, and turn o󰀨 the machine, and
remove the lock key and battery cartridges.
2. Do not leave the machine unattended outdoors
in the rain.
3. When storing the machine, avoid direct sun-
light and rain, and store it in a place where it
does not get hot or humid.
4. This machine is equipped with a hydraulic
unit on the underside of the dump unit to auto-
matically tilt the dump unit. Do not modify the
hydraulic unit, or do not loosen the mounting
bolts of the unit or the adjustment screws of
the relief valve. It is very dangerous as it may
cause accidents or malfunctions.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, ush with water. If liquid con-
tacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Electrical and battery safety
1. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
2. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
3. Do not charge battery in rain, or in wet
locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug,
and charger terminals with wet hands.
6. Do not replace the battery in the rain.

20 ENGLISH
7. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. Do not
leave the battery in the rain, nor charge, use,
or store the battery in a damp or wet place. If
the terminal gets wet or liquid enters inside of bat-
tery, the battery may be short circuited and there is
a risk of overheat, re, or explosion.
8. After removing the battery from the machine or
charger, be sure to attach the battery cover to
the battery and store it in a dry place.
9. Do not replace the battery with wet hands.
10. Avoid dangerous environment. Don't use the
machine in damp or wet locations or expose it
to rain. Water entering the machine will increase
the risk of electric shock.
11.
If the battery cartridge gets wet, drain the water
inside and then wipe it with a dry cloth. Dry the bat-
tery cartridge completely in a dry place before use.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery car-
tridge. It may result in a re, excessive heat, or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current ow,
overheating, possible burns and even a breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may cause heating, catching re,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2.
Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tempera-
ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot
battery cartridge cool down before charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
