INSTRUCTION MANUAL
Cordless Vacuum Cleaner
DVC350
ENGLISH: Original instructions
Read before use.

2ENGLISH
WARNING
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sen-
sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc-
tion concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children with-
out supervision.
• See the chapter “SPECIFICATIONS” for the type reference of the battery.
• See the section “Installing or removing battery cartridge” for how to remove or install the battery.
• When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local
regulations relating to disposal of battery.
• If the tool is not used for a long period of time, the battery must be removed from the tool.
• Do not short the battery cartridge.
• See the chapter “MAINTENANCE” for the appropriate details of precautions during user maintenance.
SPECIFICATIONS
Model DVC350
Capacity Volume 3.0 L
Max. Air volume HIGH 3.4 m3/min
Vacuum HIGH 5.5 kPa
Nominal overpressure
(when using as a blower)
HIGH 5.5 kPa
Continuous use (Approx.) HIGH 7 min (with BL1815N)
8 min (with BL1820B)
13 min (with BL1830B)
18 min (with BL1840B)
21 min (with BL1850B)
26 min (with BL1860B)
LOW 14 min (with BL1815N)
16 min (with BL1820B)
26 min (with BL1830B)
36 min (with BL1840B)
42 min (with BL1850B)
52 min (with BL1860B)
Overall length 403 mm
Net weight 2.2 - 2.5 kg
Rated voltage D.C. 18 V
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydi󰀨erfromcountrytocountry.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.

3ENGLISH
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
Take particular care and attention.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Intended use
The tool is intended for collecting dry dust.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
cancausesevereinjurywithinafractionofa
second.

4ENGLISH

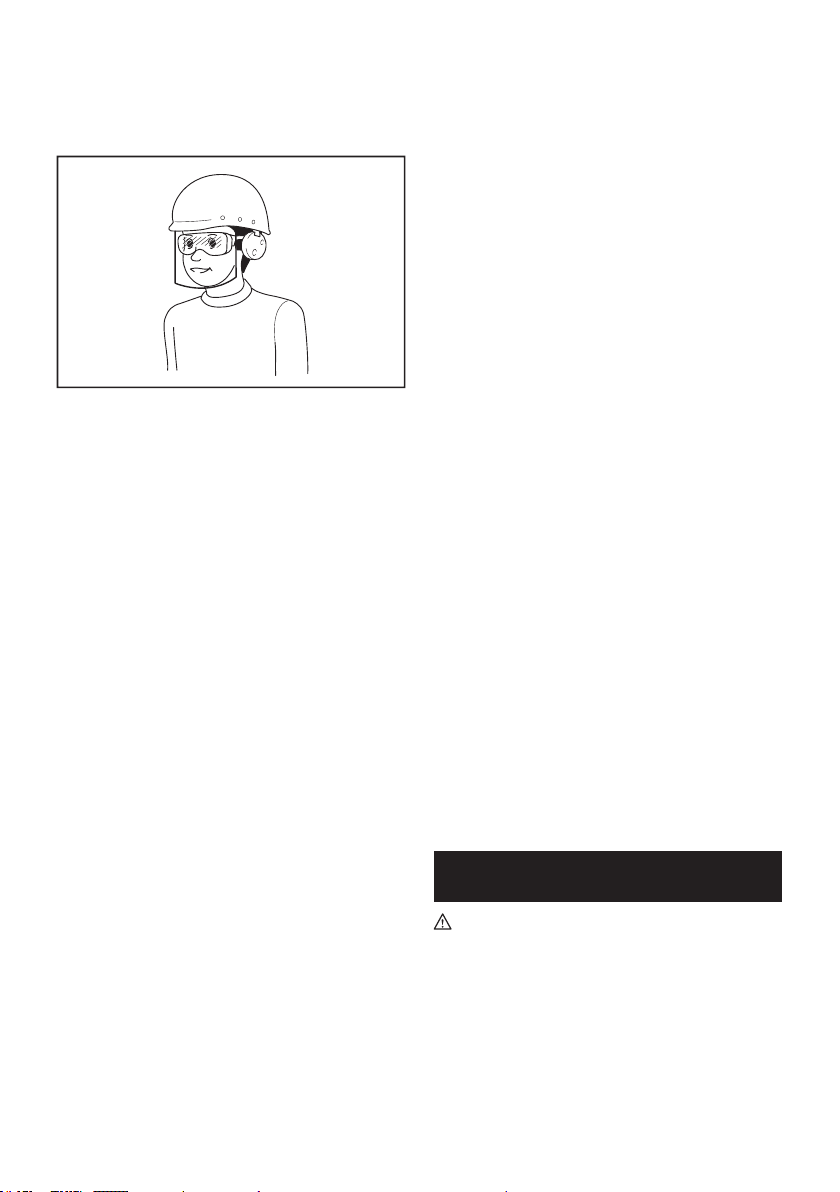

9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5.
Maintain power tools and accessories. Check for
misalignment or binding of moving parts, break-
age of parts and any other condition that may
a󰀨ect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
foroperationsdi󰀨erentfromthoseintendedcould
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
CORDLESS VACUUM CLEANER
SAFETY WARNINGS
WARNING! IMPORTANT READ CAREFULLY all
safety warnings and all instructions BEFORE USE
.Failure to follow the warnings and instructions may
resultinelectricshock,reand/orseriousinjury.
1. Operators must be adequately instructed on
the use of this cleaner.
2. This cleaner is not suitable for picking up
hazardous dust.
3. This cleaner is for dry use only.
4. This cleaner is for indoor use only.
5. This cleaner shall be stored indoors only.

5ENGLISH
6. Do not pick up the following materials:
— Hot materials such as lit cigarettes or
spark/metal dust generated by grinding/
cutting metal
— Flammable materials such as gasoline,
thinner, benzine, kerosene or paint
— Explosive materials like nitroglycerin
— Ignitable materials such as Aluminum,
zinc, magnesium, titanium, phosphorus
or celluloid
— Wet dirt, water, oil or the like
— Hard pieces with sharp edges, such as
wood chips, metals, stones, glasses,
nails, pins or razors
— Powder to clot such as cement or toner
— Conductive dust such as metal or carbon
— Fine particle like concrete dust
Such action may cause re, injury and/or prop-
erty damage.
7. Stop operation immediately if you notice any-
thing abnormal.
8. Do not bring close to stoves or other heat
sources.
9. Do not block the intake hole or vent holes.
10. Do not leave the cleaner when battery tted.
Remove battery from appliance when not in
use and before servicing.
11. Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
12. Use only as described in this manual. Use only
manufacturer's recommended attachments.
13.
Do not put any object into openings. Do not use
with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce air ow.
14. Use extra care when cleaning on stairs.
15. When using the cleaner as a stationary
cleaner, place it on a horizontal at sur-
face to prevent it from falling or moving
unintentionally.
16. For Finland, this machine is not to be used
outdoors at low temperature.
17. When using the cleaner as a blower
• always use protective goggles, a cap and
mask while operating;
• always be sure that the cleaner is
switched o󰀨 and the battery cartridge is
removed before clearing a blockage;
• always be sure of your footing on slopes;
• walk, never run;
• never point the nozzle at anyone in the
vicinity;
• Keep all nuts, bolts and screws tight to
be sure the cleaner is in safe working
condition;
• Store the cleaner only in a dry place;
• The operator or user is responsible for
accidents or hazzards ocurring to other
people or their property.
KEEP FOR FUTURE
REFERENCE
WARNING: DO NOT let comfort or famil-
iarity with product (gained from repeated
use) replace strict adherence to safety
rules for the subject product. MISUSE or
failure to follow the safety rules stated in
this instruction manual may cause serious
personal injury.
This cleaner is intended for both domestic and com-
mercial use, for example in hotels, schools, hospitals,
factories,shops,o󰀩cesandrentalbusinesses.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormasko󰀨opencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.

6ENGLISH
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION:
• Alwaysbesurethatthecleanerisswitchedo󰀨
and the battery cartridge is removed before
adjustingorcheckingfunctiononthecleaner.
Installing or removing battery cartridge
1
2
3
►1. Red indicator 2. Button 3. Battery cartridge
CAUTION:
• Alwaysswitcho󰀨thecleanerbeforeinstallingor
removing of the battery cartridge.
• Hold the cleaner and the battery cartridge
rmly when installing or removing battery
cartridge. Failure to hold the cleaner and the
batterycartridgermlymaycausethemtoslip
o󰀨yourhandsandresultindamagetothe
cleaner and battery cartridge and a personal
injury.
To remove the battery cartridge, slide it from the cleaner
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may acci-
dentallyfalloutofthecleaner,causinginjuryto
you or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Battery protection system
The cleaner is equipped with the protection system, which
automaticallycutso󰀨theoutputpowerforitslongservicelife.
The cleaner stops during operation when the cleaner
and/or battery are placed under the following situation.
This is caused by the activation of protection system
and does not show the cleaner trouble.

7ENGLISH
• When the cleaner is overloaded:
At this time, press the "OFF" button and
remove causes of overload and then press
the "HIGH/LOW" button again to restart.
•
When battery cells get hot: (refer to the note below.)
If any operation of the "HIGH/LOW" button
and the "OFF" button, the motor will remain
stopped. At this time, stop use of the cleaner
and cool or charge the battery cartridge after
removing it from the cleaner.
• When the remaining battery capacity gets low:
If any operation of the "HIGH/LOW" button
and the "OFF" button, the motor will remain
stopped. At this time, remove the battery
cartridge from the cleaner and charge it.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.
Switch action
1
2
►1. HIGH/LOW button 2. OFF button
To start the cleaner, simply press the "HIGH/LOW"
button.Toswitcho󰀨,pressthe"OFF"button.Tochange
the cleaner speed, press the "HIGH/LOW" button. The
rstpressonthisbuttonisforhighspeedandthesec-
ond press for low speed and then each press on this
button repeats the high/low speed cycle alternatively.
ASSEMBLY
CAUTION:
• Alwaysbesurethatthecleanerisswitchedo󰀨
and the battery cartridge is removed before
carrying out any work on the cleaner.
• Any work with the battery cartridge being
installed on the cleaner may cause a personal
injuryordamagetotheobjectsaroundthe
cleaner.
Installing dust bag
1
2
34
►1. Dust outlet 2.Dustbagjoint3. Pins 4. Dust bag
Holdthesquaresectionofthedustbagjointandtthe
pinsinsidethedustbagjointtothenotchesinthedust
outlet of the cleaner and then insert and turn it clock-
wise all the way until it stops.

8ENGLISH
1
►1. Hook
At this time, make sure that the fastener part on the dust
bag faces upward.
NOTE:
• Whenthedustbagjointandtheringinsidethe
dustbagcomeo󰀨,installasfollows.
(1) Alignthedustbagjointwiththeseamofthe
dust bag and install it so that its protrusion faces
upward.
1
►1. Protrusion
(2) Tightentheringinsidethedustbagrmlyso
that the pins and the ring are positioned as shown
inthegure.
12
►1. Pins 2. Ring
Installing the shoulder strap
1
2
►1. Shoulder strap 2. Two hooks
Attach one end hook of the shoulder strap onto the ring
in the front of the cleaner and thrust the other end of the
strap through the band of the dust bag and then attach
theotherendhookasshowninthegure.
Adjusting the shoulder strap
1
3
2
►1. Pull out 2. For shortening 3. For extending
Toadjustthelengthoftheshoulderstrap,pullitoutto
your desired length and pull the strap in the direction of
arrowasshowninthegure.

9ENGLISH
Connecting the hose
CAUTION:
• Do not force the hose to bend it and/or
stamp it. Forcing and/or stamping the hose may
cause deformation or damage to the hose.
• Do not pull the hose to carry the cleaner.
Pulling the hose may cause deformation or
damage to the hose.
1
2
A
B
►1. Dust outlet 2. Power tool
Insert the "A" end of the hose to the suction opening
of the cleaner and turn it clockwise all the way until it
locks.
Attachthecu󰀨onthe"B"endofthehoseandthen
connect it to the dust outlet of an power tool.
Replacing the front cu󰀨
Changethefrontcu󰀨ofthehoseaccordingtothedust
outlet size of a power tool you use.
1
2
3
4
►1.Frontcu󰀨2. Hose 3. Remove 4. Install
Toremovethefrontcu󰀨,holdthehoseandturnit
counterclockwise.
Tomountthefrontcu󰀨,turnitclockwiseandthenscrew
it in until it stops.
OPERATION
WARNING:
• Do not use the shoulder strap when working in a
high place.
• When using the cleaner as a stationary cleaner,
placeitonaatandstablesurface.
Vacuum Cleaner
When using the cleaner as a portable cleaner,
cross-hanging the shoulder strap before the breast is
di󰀩culttodropthecleaner.

10 ENGLISH
1
2
3
4
5
►1. Decorative paper 2. Saw blade 3. Base 4. Cutting
depth 5. Plaster board
NOTE:
• Longcut-o󰀨decorativepaperthatmaybepro-
duced by plaster board cutting work depending
on the conditions of workpiece to be cut and
thatmaybestu󰀨edinsidethehosemaycause
the hose suction blocking. When this occurs,
change the cutting depth setting of power tool to
deeper depth, which will relieve the hose suction
blocking.
CAUTION:
• Whenthedustbagisjustnew,dustmaycome
out of its surface. Using it a few times will mini-
mize the dust leak from the surface.
Operation of the cleaner with a
nozzle or a dust bag being installed
WARNING:
• Always be sure that the cleaner is switched
o󰀨 and the battery cartridge is removed
before installing or removing the nozzle or
any other attachment on the cleaner. Failure
toswitcho󰀨andremovethebatterycartridge
mayresultinseriouspersonalinjury.
NOTE:
• Before the blower mode operation immediately
after the cleaner mode operation, remove all
remaining dust from the cleaner due to possible
blow out of dust .
Using as a blower
12
3
►1. Outlet (air vent) 2. Nozzle 3. Pin
Install the nozzle onto the outlet (air vent) without fail.
Toinstallthenozzle,tthepinprotrudingfromthe
inside of nozzle to one of the cleaner notches and then
turn the nozzle clockwise securely.
To remove the nozzle, turn counterclockwise and pull
it out.
Direct the top point of the cleaner and then switch on.
Emptying the dust bag
WARNING:
• Always be sure that both the cleaner and a
connected power tool are switched o󰀨 and
the battery cartridge is removed and the
power tool, if corded tool, is unplugged
before installing or removing the dust bag
on the cleaner and emptying the dust bag(
made of cloth).Failuretoswitcho󰀨,remove
the battery cartridge and unplug the connected
power tool may result in electric shock and
seriouspersonalinjury.
• When the dust bag is about half full, remove the
dust bag from the cleaner and pull the fastener
out. Empty the dust bag of its contents, tapping
it lightly so as to remove particles adhering
to the insides which might hamper further
collection.
NOTE:
• For the time to empty the dust bag, use a
guide line that the dust bag becomes full
when drilling about 450 holes with 6.5 mm
diameter and 40 mm depth on the concrete.
A dust bag clogged with the built up particles
may reduce the dust collection power and cause
damage to the cleaner motor.
CAUTION:
• Attach the dust bag (made of cloth) to the
dust bag joint securely and close the fas-
tener completely before use. Failure to attach
the dust bag securely and close its fastener
completely may cause blow-out of dust and
resultinseriouspersonalinjury.

11 ENGLISH
1
2
►1.Dustbagjoint2. Square section
Pickupthesquaresectionofthedustbagjointrmly,
turn it counterclockwise and then remove the dust bag.
Open the fastener and dispose of the dust.
CAUTION:
• Remove all particles adhering to the fastener
area.
MAINTENANCE
WARNING:
• Always be sure that the cleaner is switched
o󰀨andthebatterycartridgeisremoved
before attempting to perform inspection or
maintenance.
Cleaning the lter area
CAUTION:
•
Do not pick up materials other than dust , such as stone,
wood chip and the like since this cleaner is intended for
dust collection. Picking up stone, wood chip and the like
may cause damage to the fan and the cleaner.
1
►1. Filter area
Checkandcleanupthelterareainthesuctioninletregu-
larly.Removeforeignobjectswhichwillobstructsuction.
Cleaning
Fromtimetotimewipeo󰀨theoutside(cleanerbody)of
the cleaner using a cloth dampened in soapy water.
CAUTION:
•
Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY, repairs, any
othermaintenanceoradjustmentshouldbeperformedbyMakita
Authorized Service Centers, always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
•
These accessories or attachments are recommended
forusewithyourMakitacleanerspeciedinthis
manual. The use of any other accessories or attach-
mentsmightpresentariskofinjurytopersons.Only
use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Nozzles
• Dust bags
• Hoses
• Frontcu󰀨s
• Shoulder straps
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
maydi󰀨erfromcountrytocountry.

www.makita.com
Makita Europe N.V.
Makita Corporation 3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885299C222
EN
20210208
