M&C SP Series User manual

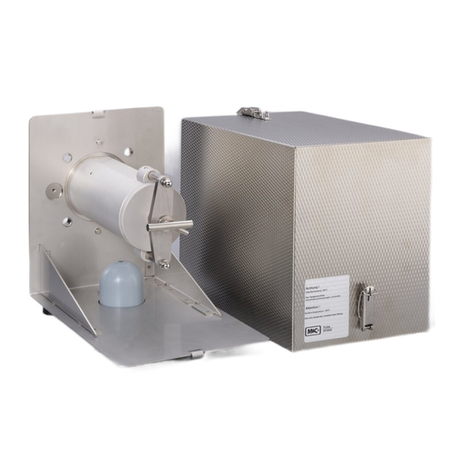

Gas Sample Probe Series SP®
SP 2000-H320/S, SP2000-H320/S1,
SP2000-H320/S2
Instruction Manual
Version 1.00.02

2 SP2000-H320 | 1.00.02 www.mc-techgroup.com
Dear customer,
Thank you for buying our product. In this instruction manual you will find all necessary information about
this M&C product. The information in the instruction manual is fast and easy to find, so you can start
using your M&C product right after you have read the manual.
If you have any question regarding the product or the application, please don’t hesitate to contact M&C
or your M&C authorized distributor. You will find all the addresses in the appendix of this manual.
For additional information about our products and our company, please go to M&C’s website www.mc-
techgroup.com. There you will find the data sheets and manuals of all our products in German and
English.
This Operating Manual does not claim completeness and may be sub-
ject to technical modifications.
© 03/2020
M&C TechGroup
Germany GmbH. Reproduction of this doc-
ument or its content is not allowed without permission from
M&C.
SP
®is a registered trade mark.
Version: 1.00.02

www.mc-techgroup.com SP2000-H320 | 1.00.02 3
Contents
1General information .............................................................................................................5
2Declaration of conformity....................................................................................................5
3Safety instructions...............................................................................................................6
4Warranty ...............................................................................................................................6
5Used terms and signal indications .....................................................................................7
6Introduction..........................................................................................................................8
6.1 Patented probe model ...................................................................................................8
6.2 Serial number................................................................................................................8
7Application ...........................................................................................................................9
8Technical data ......................................................................................................................9
9Description .........................................................................................................................10
9.1 Construction of the probe ............................................................................................ 10
10 Receipt of goods and storage........................................................................................... 11
11 Preparation and installation .............................................................................................. 11
12 Mounting............................................................................................................................. 13
12.1 Dismounting the filter housing cover and checking the filterelement............................ 13
12.2 Temperature regulator................................................................................................. 15
12.3 Scope of sampling tubes and prefilters........................................................................ 15
12.4 Mounting of the probe with extension tube or prefilter.................................................. 16
13 Supply connections...........................................................................................................18
13.1 Mounting the sample line............................................................................................. 18
13.2 Connection of the test gas feeding line........................................................................ 18
13.3 Connecting the condensate evacuation....................................................................... 19
13.4 Electrical connection ...................................................................................................20
13.4.1 Version SP2000-H320/S with internal capillary tube thermostat ......................... 20
13.4.2 Version SP2000-H320/S1 with electronic temperature controller........................ 21
13.4.3 Version SP2000-H320/S2 with 2 electronic temperature controllers ................... 22
14 Starting up..........................................................................................................................24
14.1 Adjustment of the set value temperature ..................................................................... 25
14.1.1 Version SP2000-H320/S..................................................................................... 25
14.1.2 Version SP2000-H320/S1................................................................................... 25
14.1.3 Version SP2000-H320/S2................................................................................... 26
14.2 Test gas feeding..........................................................................................................26
14.2.1 Option test gas feeding return valve ................................................................... 26
14.2.2 Option 3/2-Way ball valve /3VA320 .................................................................... 27
15 Closing down .....................................................................................................................27
16 Maintenance and repair .....................................................................................................27
16.1 Replacement of the Standard Filter element and control of the seals ......................... 28
16.2 Replacement of the heating cartridge and the thermostat............................................ 29
17 Spare parts list ...................................................................................................................32
18 Connection and mounting data......................................................................................... 33
19 Annex..................................................................................................................................33

4 SP2000-H320 | 1.00.02 www.mc-techgroup.com
List of Illustrations
Figure 1 Probe construction eg. version SP2000-H320/S1 ........................................................... 11
Figure 2 Mounting possibilities ...................................................................................................... 12
Figure 3 Schematic drawing of the filter housing cover ................................................................. 13
Figure 4 Dismounting of the filter housing lid................................................................................. 14
Figure 5 Filter element receiving part ............................................................................................ 14
Figure 6 Mounting the sample tube or pre-filter ............................................................................. 17
Figure 7 Connection tube on GL adapter ...................................................................................... 18
Figure 8 Connection of test gas line and condensate evacuation.................................................. 19
Figure 9 Electrical connection SP2000-H320/S with thermostat.................................................... 20
Figure 10 Electrical connection SP2000-H320/S1 with electronic controller eg. type 703G ............ 21
Figure 11 Electrical connection SP2000-H320/S2 with electronic double controller 703G .............. 23
Figure 12 Set value adjustment on Version SP2000-H320/S.......................................................... 25
Figure 13 Schema of test gas (calibration gas) feeding via return valve ......................................... 27
Figure 14 Mounting notice for probes with fibre glass filter element F-0,1GF 150........................... 29
Figure 15 Positioning of the thermostat and heating cartridge ........................................................ 30
Figure 16 Positioning of the fixing screws and cable gland ............................................................. 30
Figure 17 Connection box with heating cartridge and thermostat sensor ........................................ 31
Figure 18 Mechanical stop of the thermostat .................................................................................. 31
Figure 19 SP2000-H/Filter elements............................................................................................... 34
Figure 20 High temperature sample tube max. 1800°C .................................................................. 35
Figure 21 Electrically heated sample tube SP30-H1.1/-H2 ............................................................. 36
Figure 22 SP2000-H320/S.............................................................................................................. 37
Figure 23 SP2000-H320/S1............................................................................................................ 38
Figure 24 SP2000-H320/S2............................................................................................................ 39

www.mc-techgroup.com SP2000-H320 | 1.00.02 5
HEAD OFFICE
M&C TechGroup Germany GmbH Rehhecke 79 40885 Ratingen Germany
Telephone: 02102 / 935 – 0
Fax: 02102 / 935 – 111
E - mail: [e-mail]
www.mc-techgroup.com
1 GENERAL INFORMATION
The product described in this manual has been built and tested in our production facility.
All M&C products are packed to be shipped safely. To ensure the safe operation and to maintain the
safe condition, all instructions and regulations stated in this manual need to be followed. This manual
includes all information regarding proper transportation, storage, installation, operation and mainte-
nance of this product by qualified personnel.
Follow all instructions and warnings closely.
Read this manual carefully before commissioning and operating the device. If you have any questions
regarding the product or the application, please don’t hesitate to contact M&C or your M&C authorized
distributor.
2 DECLARATION OF CONFORMITY
CE - Certification
The product described in this operating manual complies with the following EU directives:
EMV-Instruction
The requirements of the EU directive 2014/30/EU “Electromagnetic compatibility“ are met.
Low Voltage Directive
The requirement of the EU directive 2014/35/EU “Low Voltage Directive“ are met.
The compliance with this EU directive has been examined according to DIN EN 61010.
Declaration of conformity
The EU Declaration of conformity can be downloaded from the M&C homepage or directly requested
from M&C.

6 SP2000-H320 | 1.00.02 www.mc-techgroup.com
3 SAFETY INSTRUCTIONS
Please take care of the following basic safety procedures when mounting, starting up or oper-
ating this equipment:
Read this operating manual before starting up and use of the equipment. The information and warnings
given in this operating manual must be heeded.
Any work on electrical equipment is only to be carried out by trained specialists as per the regulations
currently in force.
Attention must be paid to the requirements of VDE 0100 (IEC 364) when setting high-power electrical
units with nominal voltages of up to 1000 V, together with the associated standards and stipulations.
Check the details on the type plate to ensure that the equipment is connected to the correct mains
voltage.
Protection against touching dangerously high electrical voltages:
Before opening the equipment, it must be switched off and hold no voltages. This also applies to any
external control circuits that are connected.
The device is only to be used within the permitted range of temperatures and pressures.
Check that the location is weather-protected. It should not be subject to either direct rain or moisture.
The probes SP2000-H320S, SP2000-H320/S1 and SP2000-H320/S2 must not be used in hazardous
areas.
Installation, maintenance, monitoring and any repairs may only be done by authorized personnel with
respect to the relevant stipulations.
4 WARRANTY
In case of a device failure, please contact immediately M&C or your M&C authorized distributor.
We have a warranty period of 12 months from the delivery date. The warranty covers only appropriately
used products and does not cover the consumable parts. Please find the complete warranty conditions
in our terms and conditions.
The warranty includes a free-of-charge repair in our production facility or the free replacement of the
device. If you return a device to M&C, please be sure that it is properly packaged and shipped with
protective packaging. The repaired or replaced device will be shipped free of delivery charges to the
point of use.

www.mc-techgroup.com SP2000-H320 | 1.00.02 7
5 USED TERMS AND SIGNAL INDICATIONS
DANGER!
This means that death, severe physical injuries and/or important ma-
terial damages will occur
in case the respective safety measures are
not fulfilled.
WARNING!
This means that death, severe physical injuries and/or important ma-
terial damages may occur
in case the respective safety measures
are not fulfilled.
CAUTION!
This means that minor physical injuries may occur in case the re-
spective safety measures are not fulfilled.
CAUTION!
Without the warning triangle means that a material damage may oc-
cur in case the respective safety measures are not met.
ATTENTION
This means that an unintentional situation or an unintentional status
may occur in case the respective note is not respected.
NOTE!
These are important information about the product or parts of the op-
erating manual which require user’s attention.
SKILLED STAFF
These are persons with necessary qualification who are familiar with
installation, use and maintenance of the product.
Hot surface!
Contact may cause burn! Do not touch!
High voltages!
Protect yourself and others against damages which might be caused
by high voltages.
Corrosive!
These substances destroy living tissue and equipment upon contact.
Do not breathe vapors; avoid contact with skin and eyes.
Wear protective gloves!
Working with chemicals, sharpe objects or extremly high tempera-
tures requires wearing protective gloves.

8 SP2000-H320 | 1.00.02 www.mc-techgroup.com
Wear safety glasses!
Protect your eyes while working with chemicals or sharp objects.
Wear safety glasses to avoid getting something in your eyes.
Wear protective clothes!
Working with chemicals, sharp objects or extremely high tempera-
tures requires wearing protective clothes.
6 INTRODUCTION
A major problem in extractive continuous gas analysis are the accompanying substances contained in
the gas, such as dust, water vapor and also gas components that form corrosive acids with condensed
water vapor.
When gases are cooled down, solids can also precipitate, which would lead to the blockage of the
subsequent processing.
In order to achieve a maintenance-friendly measurement, the dust must be separated without water
vapor condensing. This prevents the dust from "caking" with the water and the possible formation of
acids. This prevents filters and connected lines from clogging and the probe material in contact with
the gas is not attacked by any acids that may be formed. In order to avoid the subsequent precipitation
of solids, these must also be separated and conveyed away.
The solution are heated M&C sample probes such as probes of the SP 2000-H... series. These probes
guarantee minimum maintenance when correctly adapted to the process conditions. In case of contin-
uous gas sampling for analytical measurements, M&C sample probes provide a fine dust filtration di-
rectly at the sampling point and, if necessary, a solids separation and removal. This avoids a large part
of the otherwise necessary maintenance work on an analytical system.
As a matter of principle, the amount of gas extracted should be limited to a necessary minimum to
ensure a minimum of maintenance work and a maximum of availability. This is possible by means of a
downstream optimized gas conditioning with components from M&C.
6.1 PATENTED PROBE MODEL
The patented gas sample probe SP2000....., designed in modular construction, is produced by
M&C TechGroup Germany GmbH, D- 40885 Ratingen. [PATENT-NO.: 41 11 377]
6.2 SERIAL NUMBER
The type plates with the serial numbers are on the side of the electrical connection box.
NOTE!
Please always indicate the serial number of the equipment when you have
questions or in case of ordering spare parts.

www.mc-techgroup.com SP2000-H320 | 1.00.02 9
7 APPLICATION
The probes type SP2000-H320/S.. are used for continuous gas sampling in processes with high dust
load and high temperatures and/or high gas humidity where additionally solid particles may precipitate.
M&C has developed these probes for eg. continuous gas sampling in waste gas of DENOX plants
(SCR) where NH3is added to the flue gas in order to reduce the NOXcontent. With temperatures of
< 300 °C, ammonium salts are produced due to the chemical reaction of NH3and SO2/SO3in the flue
gas. This salt formation inevitably leads to blockages of filters and sample lines in a relatively short
time.
8 TECHNICAL DATA
Gas sample probe Type SP2000-H320/S SP2000-H320/S1 SP2000-H320/S2
Part number
20S5000(a)
20S5005(a)
20S5010(a)
Temperature regulation Thermostat
FeCu-Ni (Regulator
optionally)
FeCu-Ni (Regulator
optionally)
Probe heating
Max. 320 °C
Ambient temperature
+5 to +60 °C ** optionally with GFK protective housing -20 to +60 °C
Sealing material
Graphite
Material probe flange
sealing
Novapress
Sampling tube/Pre filter
Optionally
Sampling pressure max.
0.4 –2 bar* abs.
Volume of filter chamber
120 cm3
Porosity
S – 2K150 = ceramic*, 2 micron, /F-0,1GF150 = Glass fiber** 0.1 mi-
cron
/F-3SS150** 3 micron, /FW = Glass fiber-filter cotton**
Ready for work
After 2 h
Connection gas outlet
Threaded hose coupling DN 4/6
Connection test gas
Pipe connection Ø 6 mm with blind plug, optionally Ø ¼“ (a)
Power Supply
230 V 50/60 Hz, 800 W, optionally 115 V 60 Hz (a)
Electrical connection
Terminals max. 2.5 mm2, terminal range 0.75 – 4 mm
Standard of electrical
equipment
EN 61010, EN 60519-1
Mounting flange
DN 65 PN 6, Form B, 1.4571*, > DN or ANSI possible**
Weight
17 kg
* = Standard ** =Option
Filter element Type Filter porosity Material
S-2K 150
2 µm
Ceramic *
S-3SS 150
3 µm
Stainl. Steel 1.4401
S-0,1GF 150
0.1 µm
Glass fiber
FW
--------
Glass wool
* = Standard

10 SP2000-H320 | 1.00.02 www.mc-techgroup.com
9 DESCRIPTION
The probes have been designed for easy mounting, safe operation, easy maintenance and a great
variety of applications.
The main features of this probe are: changing the filter element without tools and without necessity of
dismounting the sample line, easy cleaning of the filter housing, cleaning of the sample tube without
dismounting the probe. The big surface filter element is placed inside a heated filter receiving part of
stainless steel.
The M&C gas sample probe SP2000-H320/S is based on the standard sample probe SP2000-H320.
The temperature regulation of the gas sample probe SP2000-H320/S is made via an integrated capil-
lary sensor thermostat adjustable from 50 to 320 °C including an excess temperature limiter and alarm
in case of insufficient temperature. Optionally, the gas sample probe can be delivered with a thermo-
couple FeCu-Ni instead of the thermostat regulator. In this case, an external temperature regulator is
not necessary (eg. 703).
According to the application, it is possible to add sample tubes and pre-filters of different sizes and
versions out of the modular system of M&C probe accessories. All these options are to be mounted
before the probe. In the outlet of the probe, the sample gas is lead via a heated connection adapter
into a non-heated (SP2000-H320/S and SP2000-H320/S1) or into a heated (SP2000-H320/S and
SP2000-H320/S1) collection vessel. Inside the vessel that is made of glass and filled with glass balls
to enlarge the surface, the chemical reaction of the sample gas takes place and the solid particles and
salts are deposited.
On the versions SP2000-H320/S and SP2000-H320/S1 the condensate collected in the collection ves-
sel is pumped out by the peristaltic pump SR25.1G. The condensate effects that the existing solid
contaminations are withdrawn and transmitted outside. Because of the heated connection adapter and
the hot gas flow, the operating temperature inside the collection vessel is increased compared to the
ambient temperature.
Due to the fact that the gas components are solved to a negligible extent in the warm condensate, the
application of this sampling technique in DENOX systems with a low content of NH3(normally a few
ppm) allows the analyse of SO2and NOXwithout important losses. These will be a few ppm only and
can normally be neglected. In order to examine exactly the extent of the losses, you can feed test gas
on the gas sample probe and determine the eventual measuring fault that can be calibrated afterwards.
On version SP2000-H320/S2 the collecting vessel is equipped with a heater in order to avoid chemical
reactions of the sample gas components below a defined temperature as well as to avoid freezing of
the condensate in case the vessel is mounted outside. A heated sample line 3/4-M for max. 200 °C
operating temperature can be connected onto the gas outlet of the collection vessel. The collection
vessel is equipped with a heat isolating protection cover.
9.1 CONSTRUCTION OF THE PROBE
The complete probe is made up of the heated filter part and a sample tube or pre-filter. The filter re-
ceiving part with the surrounding heating jacket is fitted together to a unit with the standard mounting
flange DN65 PN6 and the electrical connecting box mounted laterally .
The heat insulated covering cap is placed on the stainless steel angle plate of the mounting
flange and is fixed with 2 fastening clamps. Thanks to the covering cap, the heat is distributed regularly
over the probe heating and serves at the same time as weather and contact protection. In the probe
outlet the connection adapter with the collecting vessel is mounted. A mounting clamp is avail-
able for the connection of the heated line. On the probes SP2000-H320/S and SP2000-H320/S1 a
peristaltic pump SR25.1 is mounted below the collecting vessel in order to evacuate the condensate.

www.mc-techgroup.com SP2000-H320 | 1.00.02 11
1
2
5
4
3
6
Figure 1Probe construction eg. version SP2000-H320/S1
10 RECEIPT OF GOODS AND STORAGE
•The gas sample probe and any special accessories should be removed carefully from the packaging
and checked immediately for completeness against the delivery note;
•Check the goods for any damage incurred during transport and if necessary inform your transport
insurer of any damage.
The gas sample probe is normally delivered in two packaging units:
1. The gas sample probe with the screws, nuts and flange seal required for mounting;
2. Sample tube or pre-filter, if applicable with extension tube.
NOTE!
The equipment should be stored in a protected, frost-free room!
11 PREPARATION AND INSTALLATION
•Select the optimal sampling point in accordance with the generally applicable guidelines of con-
sult the competent persons.
•Locate the sampling point in such a way that there is adequate space for inserting and removing
the probe and pay attention to the insertion length of the probe tube!

12 SP2000-H320 | 1.00.02 www.mc-techgroup.com
•Make certain that the probe is easily accessible so that you can carry out any subsequent
maintenance work without trouble.
•Make sure that the bleeder connection at site is made up and insulated so that the connection’s
temperature is always above the dew point or above the acid dew point in order to avoid corro-
sion and blockage problems as well as washing out effects. If this is not possible, a heated
sample tube SP35 / SP30 is recommended for cold connections.
•If the ambient temperature in the area of the connections is >80°C due to radiant heat, then a
radiant heat reflection plate must be mounted to protect the probe.
•The mounting flange connection of the connection piece should comply with DN65 PN6. If other
connection sizes are required, a special adapter flange can be supplied as option. Instead of a
flange connection mounting, the probe can also be mounted using a R2” adapter on a corre-
sponding threaded sleeve connection. The required minimum flange size or the minimum con-
nection piece diameter depends on the outside diameter of the used sample tube or pre-filter.
Adapter-
R 2"-threaded
to flange size
Seal according
Mounting fitting
20 S 9005
Seal 3/4"
90 S 2080
90 S 2077
DN65PN6
Seal
20 S 9004
flange
Options Probe Mounting
Figure 2 Mounting possibilities

www.mc-techgroup.com SP2000-H320 | 1.00.02 13
12 MOUNTING
The M&C probes SP2000-H320/S.. are designed for stationary use and guarantee a long service life
and a minimum of maintenance provided they are properly selected and mounted. The required position
is horizontally.
12.1 DISMOUNTING THE FILTER HOUSING COVER AND CHECKING THE FILTERELE-
MENT
For this purpose, the filter housing cover must be dismounted as follows:
Figure 3 Schematic drawing of the filter housing cover
•Remove the protection cover;
•Turn the locking handle Afor about one rotation to the left so that the lid is moved upwards;
•Put the handle Cinto position E;
•Swing the clamp clip Bto the left (into direction G);
•Pull the filter housing lid out using the locking handle A.

14 SP2000-H320 | 1.00.02 www.mc-techgroup.com
The following photos show how to execute the above mentioned steps.
Figure 4 Dismounting of the filter housing lid
•Check on the filter screw Iwhether the filter element Jhas been screwed hand-tight (see figure
20).
•Then put in again the filter receiving part, set the handle Cinto position E, swing the clamp clip
back again and tighten the lid with the locking handle A.
Filter sc rew Seal
Filter screw adapter
Filter space
Holding clip
Strap bolt
93 S 2084
93 S 2084
Schutzhaube wärmeisoliert
90 S 0020
Type S-2K 1 50
*
Filter element Type F-0,1GF150
90 F 0125
93 S 0053
Filter element
93 S 0055
93 S 0053
Adapter
Seal
93 S 0055
93 S 0055
Seal
I
L
J
L
K
K
I
K
J
Figure 5Filter element receiving part

www.mc-techgroup.com SP2000-H320 | 1.00.02 15
12.2 TEMPERATURE REGULATOR
On version SP2000–H320/S the temperature regulation is effected by the capillary thermostat mounted
inside the connecting box. The range of regulation is from 50 to 320 °C.
On the versions SP2000-H320/S1 and SP2000-H320/S2 the regulation is made by means of an exter-
nal electronic regulator. M&C supplies appropriate temperature regulators, eg. Type 703G (see data
sheet 2-5.1) or Type 703G double that can be mounted separately or directly on the gas sample probe
(max. ambient temperature +45 °C).
12.3 SCOPE OF SAMPLING TUBES AND PREFILTERS
Depending on the process gas temperature and composition, sample tubes of different materials with
connector G ¾” are applicable:
Selection of materials
Type
Max. process
temperature
Max. length
Outside tube diameter
(sleeve or adapter)
Stainl. Steel 1.4571
SS
600 °C
2.5 m *
25 (37) mm
Titanium
Ti
400 °C
2.5 m *
25 (37) mm
Hastelloy
HC
900 °C
2.5 m *
25 (37) mm
Inconel
IN
1100 °C
2.0 m *
25 (37) mm
Chrome-Aluminium
oxide
CR
1400°C
1.2m
23 (37) mm
Kanthal
Ka
1300 °C
2.5 m *
25 (37) mm
Aluminium-Oxide
AO
1800 °C
1.5 m *
25 (55) mm
PVDF
PV
90 °C
1.5 m *
25 (37) mm
PTFE
T
160 °C
0.5 m
33 mm
Incoloy
IC
1200 °C
2.0 m *
25 (37) mm
*Standard = 1 m
Further information on sampling tubes see data sheet 2.14
In case gas has to be sampled behind wet washers, the Demister sampling tube of PVDF with con-
nector G ¾” has to be applied in order to evacuate the droplets:
Type
Max.
Process temperature
Max. length
Outside diameter of the
tube
SP32
90 °C
0.8 m *
50 mm
*Standard
In order to avoid condensation between the sampling point and the heated gas sample probe or con-
densation in the area of the connection piece, heated sample tubes have to be applied made of stainl.
Steel with flange connection DN65 PN6.
Type
Max. Process
temperature
Max.
length
Outside tube diameter
SP30-H1.1, heating max. 320 °C
550 °C
2.0 m *
42.4 mm
SP30-H1.1V, heating max. 320 °C
550 °C
1 m
42.4 mm
SP30-H2, heating max. 320 °C
350 °C
2.0 m *
42.4 mm
SP35H.1, heating max. 320 °C
550 °C
0.175 m
42.4 mm
SP35H.2, heating max. 320 °C
350 °C
0.175 m
42.4 mm
*Standard = 1m

16 SP2000-H320 | 1.00.02 www.mc-techgroup.com
If there is a high dust load in the process gas, we urgently recommend the use of a pre-filter in order to
increase the service life. They can be supplied with a volume displacement to shorten the response
time. The pre-filters can be directly screwed into the probe flange or on request with extension tubes
equipped with a volume displacer.
Dust load
Type
Max. Process
temperature
Outside diameter of the pre-
filter (with keep-off plate)
< 2 g/m³
without, only sample tube
see above
see above
2-10 g/m³
/V20, /V20-0,
600 °C
50 mm (60 mm)
/V20-3, /V20-4,
600 °C
31 mm [sleeve 37 mm]
/V20/HC, /V20-0/HC,
900 °C
50 mm (60 mm)
> 10 g/m³
/V20-1, /V20-2
600 °C
60 mm (65 mm)
/V20-1/HC, /V20-2/HC
900 °C
60 mm (65 mm)
/V12-1,/V12-2,/V12-3
1000 °C
60 mm, /V12-1 = 40 mm
/V12-1/SS,/V12-2/SS,
/V12-3/SS
600 °C
60 mm, /V12-1/SS = 40 mm
/V12-1/IC,/V12-2/IC,
/V12-3/IC
1000 °C
60mm, /V12-1/IC = 40 mm
/V20-T
200 °C
40 mm
Further information on the pre-filters see data sheet 2.17.
12.4 MOUNTING OF THE PROBE WITH EXTENSION TUBE OR PREFILTER
The installation position is horizontally. When using the sample tube type SP32 eg. for sampling behind
wet washers, it is absolutely required to mount the probe with a gradient of 10° so that the separated
droplets can flow back into the process!
•Put the flange seal between the sample flange and the probe flange.
•In case the heated sample tube type SP30/35 or the ceramic pre-filter type V12.. are used, you
must screw first the probe with its flange (with threaded bolt welded inside). Here too, the
flange seal has to be put between both flanges.
•If the flange on the bleeder connection does not correspond to the standard flange connection
DN65 PN6, please use the optionally delivered adapter flange (figure 2) and mount it the same
way to the probe.
•The sample tube or the pre-filter with thread G¾“a are to be screwed into the G3/4” inside
thread in the flange of the probe either directly or together with an extension tube and the
flat seal 3/4" and tighten.
•Introduce the process internal sampling part of the complete probe unit into the bleeder con-
nection (pipe) and screw the probe onto the bleeder connection (pipe) by using the screws and
nuts attached to the packing.

www.mc-techgroup.com SP2000-H320 | 1.00.02 17
Sealing
DN65 PN6
90S2077
Figure 6 Mounting the sample tube or pre-filter

18 SP2000-H320 | 1.00.02 www.mc-techgroup.com
13 SUPPLY CONNECTIONS
13.1 MOUNTING THE SAMPLE LINE
•Open the fastening clip of the sample line.
•Unscrew the union nut of the connecting adapter GL18-DN4/6 and put it together with the
clamping ring in the correct order and direction over the 6mm PTFE core of the heated line.
•Put the PTFE core on the connection piece inside the connection adapter and fasten the
union nut with clamping ring hand-tight.
•Shut the fastening clip of the sample line.



Figure 7 Connection tube on GL adapter
NOTE!
For probe type SP2000-H320/S.. it is important to use a heated line with ex-
changeable PTFE core only.
13.2 CONNECTION OF THE TEST GAS FEEDING LINE
When using the standard execution or execution with a 3-way ball valve option /3VA320 in the probe
inlet for test gas feeding, an appropriate pipeline has to be connected to the 6mm pipe socket below
the probe housing by means of the attached tube connector. During the measurement, this tube con-
nector has to be closed with the attached blind cap.
Optionally, a check valve can be mounted in the test gas inlet for thermal decoupling. Also in this case,
an appropriate pipeline has to be connected to the 6mm pipe socket below the probe housing and by
means of the respective tube connector.

www.mc-techgroup.com SP2000-H320 | 1.00.02 19
1
2
Calibration gas connection
6mm tube
Figure 8Connection of test gas line and condensate evacuation
13.3 CONNECTING THE CONDENSATE EVACUATION
On versions SP2000-H320/S and SP2000-H320/S1 the condensate is evacuated via a peristaltic pump
SR25.1.
In order to carry away the condensate, a tube with 6 mm outside diameter has to be connected to the
condensate outlet DN4/6 .
On version SP2000-H320/S2 no peristaltic pump is integrated because no condensate is arising.
WARNING!
Aggressive condensate possible.
Wear safety glasses and Appropriate protective clothes!

20 SP2000-H320 | 1.00.02 www.mc-techgroup.com
13.4 ELECTRICAL CONNECTION
WARNING!
Wrong supply voltage can destroy the equipment. when con-
necting the device, please ensure that the supply voltage is iden-
tical with the information provided on the type plate!
WARNING!
Attention must be paid to the requirements of IEC 364 (DIN VDE
0100) when setting high-power electrical units with nominal volt-
ages of up to 1000V, together with the associated standards and
stipulations!
A main switch must be provided externally.
The m
ain circuit must be equipped with a fuse corresponding to
the nominal current (over current protection); for electrical details
see technical data.
13.4.1 VERSION SP2000-H320/S WITH INTERNAL CAPILLARY TUBE THERMOSTAT
•Remove the lid of the connection box. Inside the lid, you can see the terminal connecting plan.
•Insert the mains cable (min. 3 x 1.5 mm2, terminal range 6-12 mm) through the left cable gland
and connect it to the appropriate terminals.
•Insert the signal cable (terminal range 6-12 mm) through the right cable gland and connect it to
the appropriate terminals.
•Screw lid on again.
Figure 9 Electrical connection SP2000-H320/S with thermostat
