Manitowoc MLC300 User manual

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 1/211
Liftcrane Luffing Jib Capacities
Luffing Jib No. LJ10:501 on
Boom No. B60:500
with Mast No. M10:503 or Mast No. M11:503
175 100 kg VPC (Variable Position Counterweight)
360 Degree Rating
ASME B30.5
MLC300
VPC-MAX
SERIES 2
LIFTING CAPACITIES: Lifting capacities for
various boom lengths, boom angles, luffing jib
lengths, and luffing jib operating radii are for freely
suspended loads
and may be based on percent of static
tipping or strength of structural components.
Capacities must
be reduced by applicable deducts.
When Drum 2 or Drum 3 is used, capacity with single part
whip line is 16 600 kg, or 33 300 kg with two part whip line.
In all cases, upper luffing jib point capacities cannot exceed
those listed for main luffing jib capacity.
Weight of all load blocks, hooks, weight ball, slings, hoist
lines, etc., beneath boom, luffing jib, and upper luffing jib
point sheaves is considered part of luffing jib load. Boom and
luffing jib are not to be lowered beyond radii where combined
weights are greater than rated capacity. Where no capacity
is shown, operation is not intended or approved.
LUFFING JIB BACKWARD STABILITY: Capacities
indicated by (b) requires 2 270 kg minimum weight
suspended beneath luffing jib point, (c) requires 4 540 kg
minimum weight, and (d) requires 9 080 kg minimum weight.
Caution: Do not luff into areas indicated by (b), (c), or (d)
without required minimum weight. Luffing jib may not luff
down and luffing hoist wire rope may go slack. Luffing hoist
wire rope may overhaul luffing jib and cause wire rope
damage or failure.
OPERATING CONDITIONS: Machine to operate on a firm,
level, and uniformly supporting surface. Supporting surface
and bearing turntable are to be level within a tolerance of
13 mm in 3 m. During operation, boom must be maintained
at one of the selected angles shown in chart. Refer to Luffing
Jib Rigging No. 81023384, Mast Rigging No. 81025690 or
No. 84045340, Wire Rope Specification chart No. 9503-A,
Counterweight Arrangement chart No. 9345-A, Luffing Jib
Raising Procedure chart No. 9502-AM, and Wind Conditions
chart No. 9501-A. Crane operator judgment must be used to
allow for dynamic load effects of swinging, hoisting or
lowering, travel, wind conditions, as well as adverse
operating conditions and physical machine depreciation.
Refer to the Operator Manual for operating guidelines.
MACHINE TRAVEL: Machine to travel on a firm, level, and
uniformly supporting surface. Boom and luffing jib must be
within angle range shown in capacity chart. Refer to
Maximum Allowable Travel Specification chart No. 9500-A.

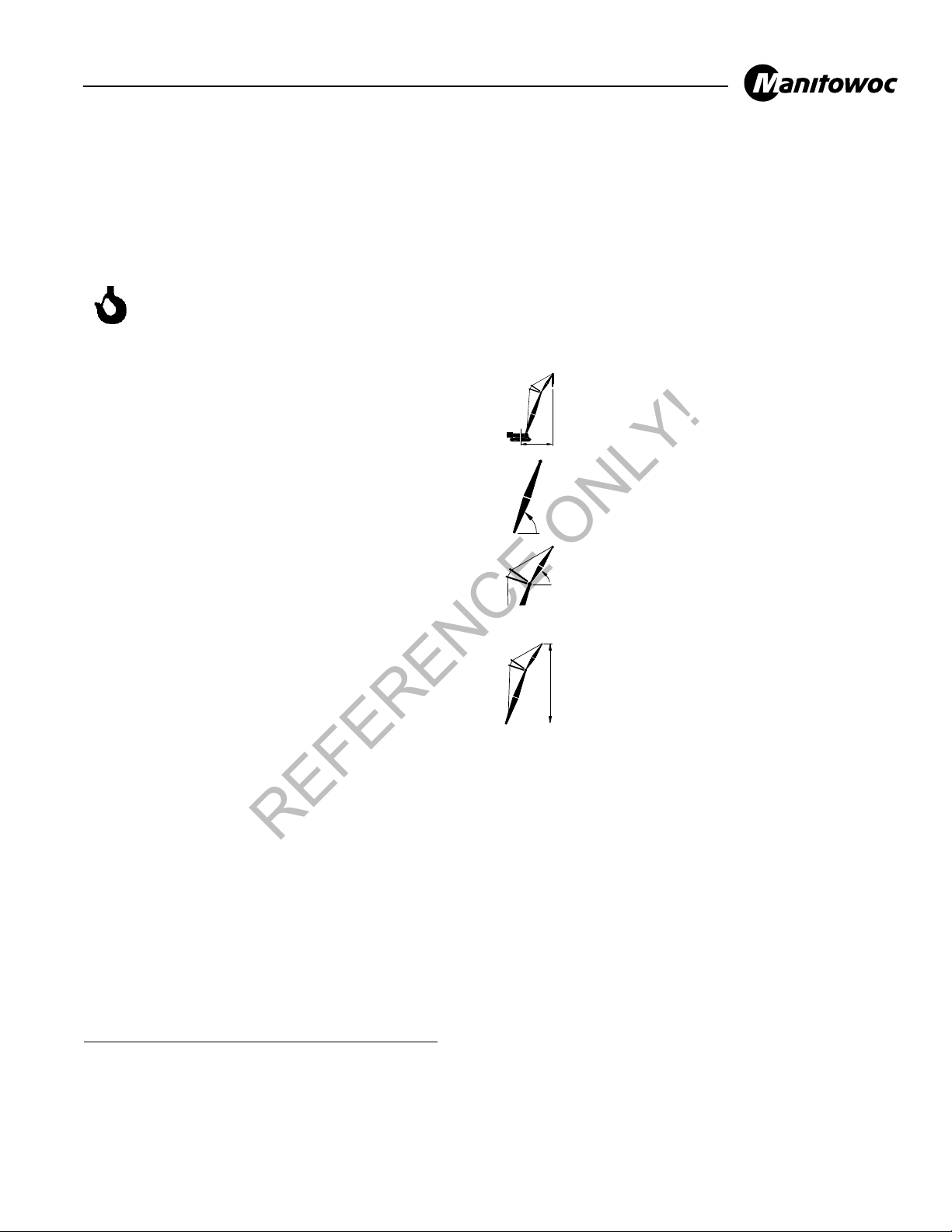

OPERATING RADIUS: Operating radius is
horizontal distance from axis of rotation to center of
vertical hoist line or load block.
BOOM ANGLE: Boom angle in degrees (°) is
angle between horizontal and centerline of boom
butt and inserts.
LUFFING JIB ANGLE: Luffing jib angle in
degrees (°) is angle between horizontal and
centerline of luffing jib butt and inserts, and is an
indication of operating radius. In all cases, operating
radius shall govern capacity.
LUFFING JIB POINT ELEVATION: Luffing jib
point elevation is vertical distance from ground level
to centerline of luffing jib point shaft.
MACHINE EQUIPMENT: Machine equipped with VPC-MAX,
9 700 mm crawlers, 1 219 mm or 1 524 mm treads,
9 144 mm live mast, 30,0 m mast, 10 part boom hoist
reeving, boom support straps, 14 part luffing jib hoist reeving,
luffing jib and backstay support straps, and 175 100 kg VPC.
Select counterweight position from Luffing Jib Raising
Procedure chart No. 9502-AM that will allow raising and
lowering of boom and luffing jib length. Counterweight
position selection may be changed with luffing jib on ground
or while luffing jib is within operating range of capacity chart.
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
2/211 Manitowoc, Wisconsin 54220 U.S.A.
MLC300
VPC-MAX S-2
ASME B30.5

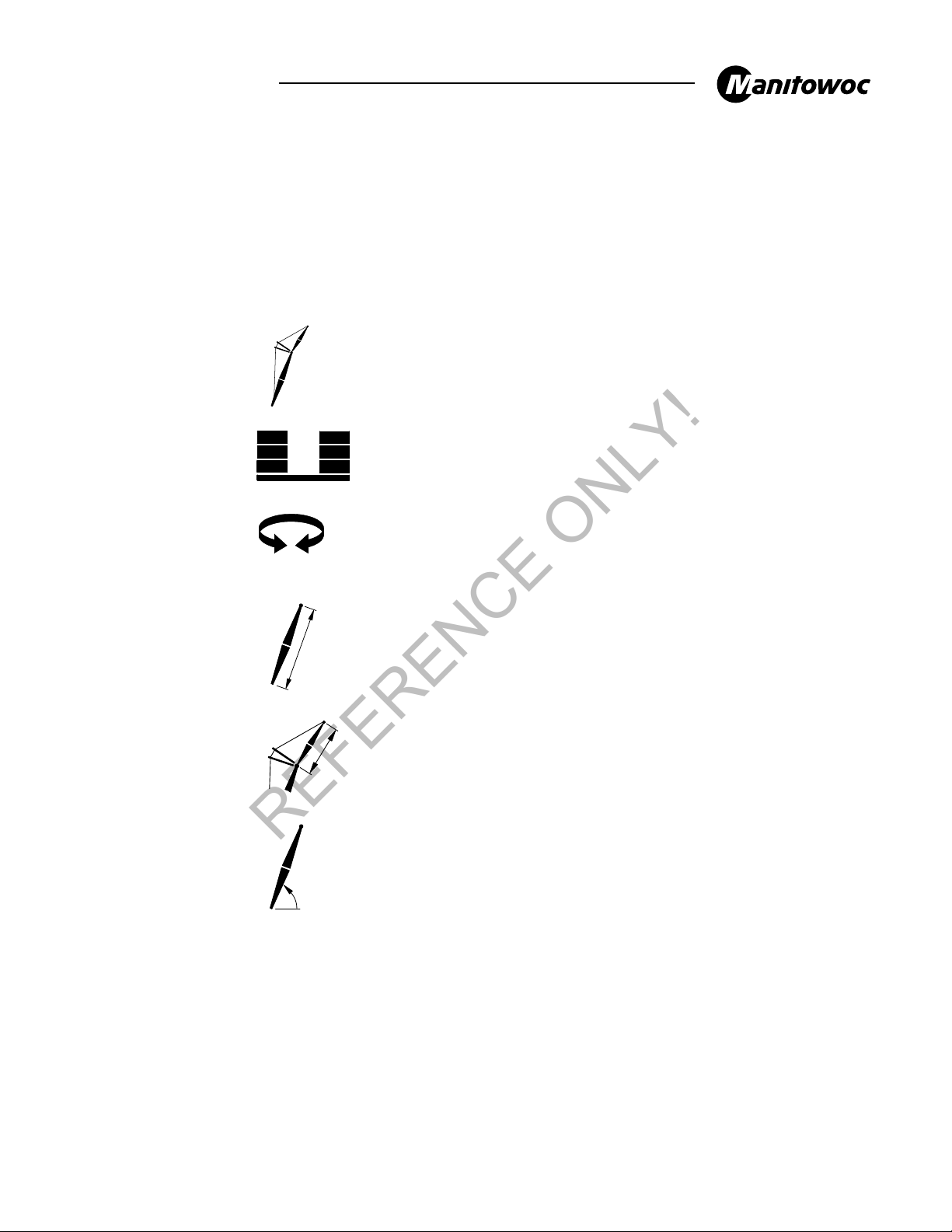

Explanation of Symbols

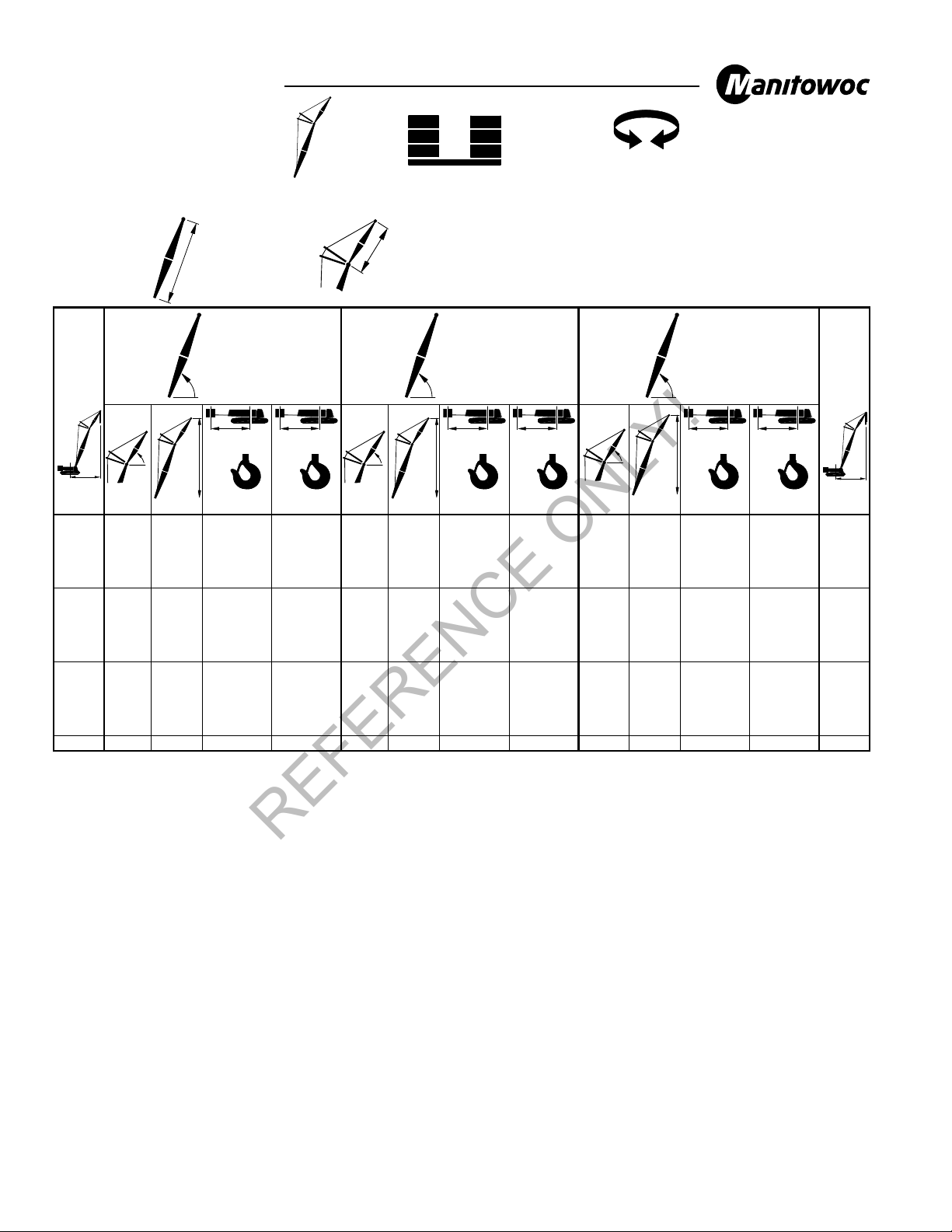

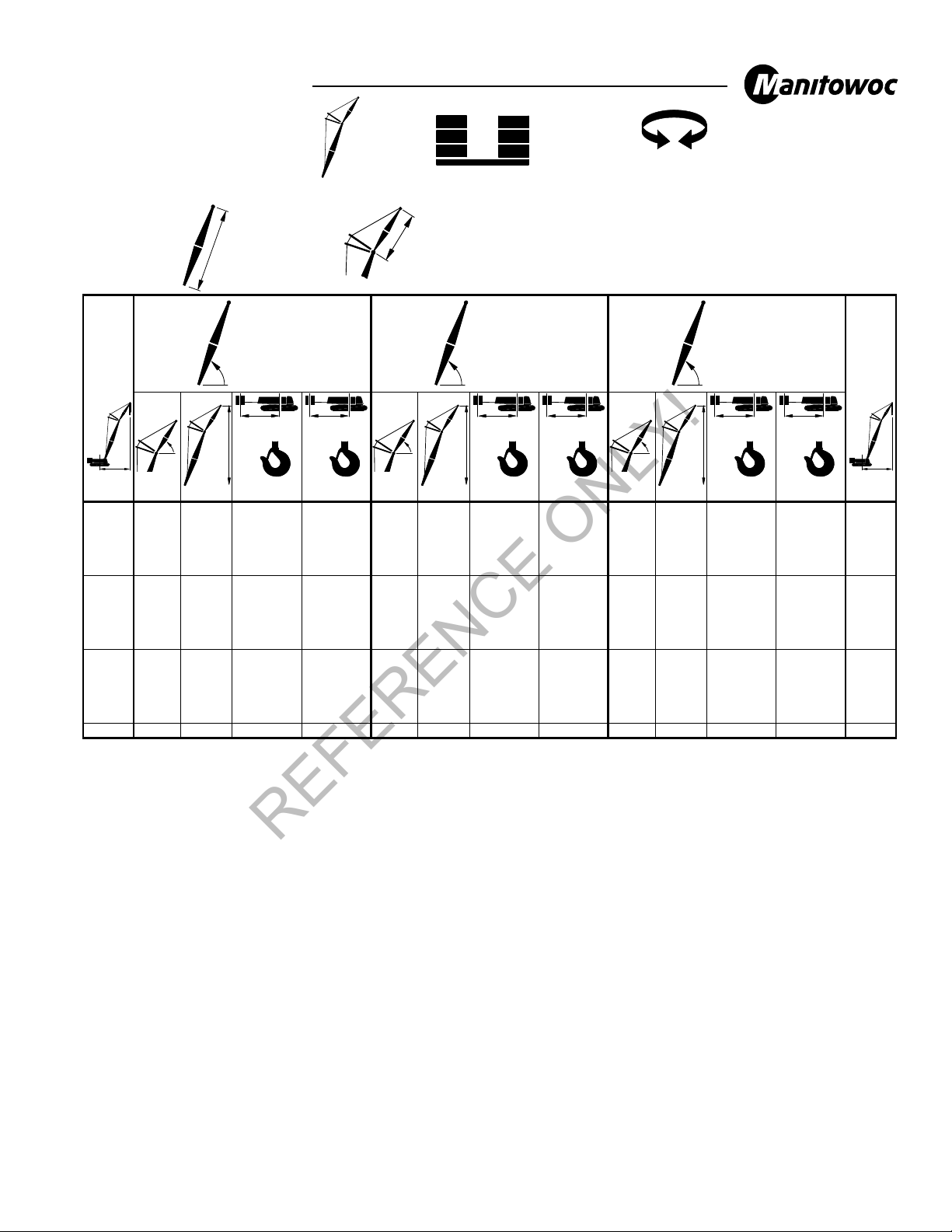

LJ10
+
B60
Luffing Jib No. LJ10:501
+
Boom No. B60:500
VPC (Variable Position Counterweight)
360°
360 Degree Rating
Boom Length
Luffing Jib Length
Boom Angle
(see page 1)
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 3/211
MLC300
VPC-MAX S-2
ASME B30.5

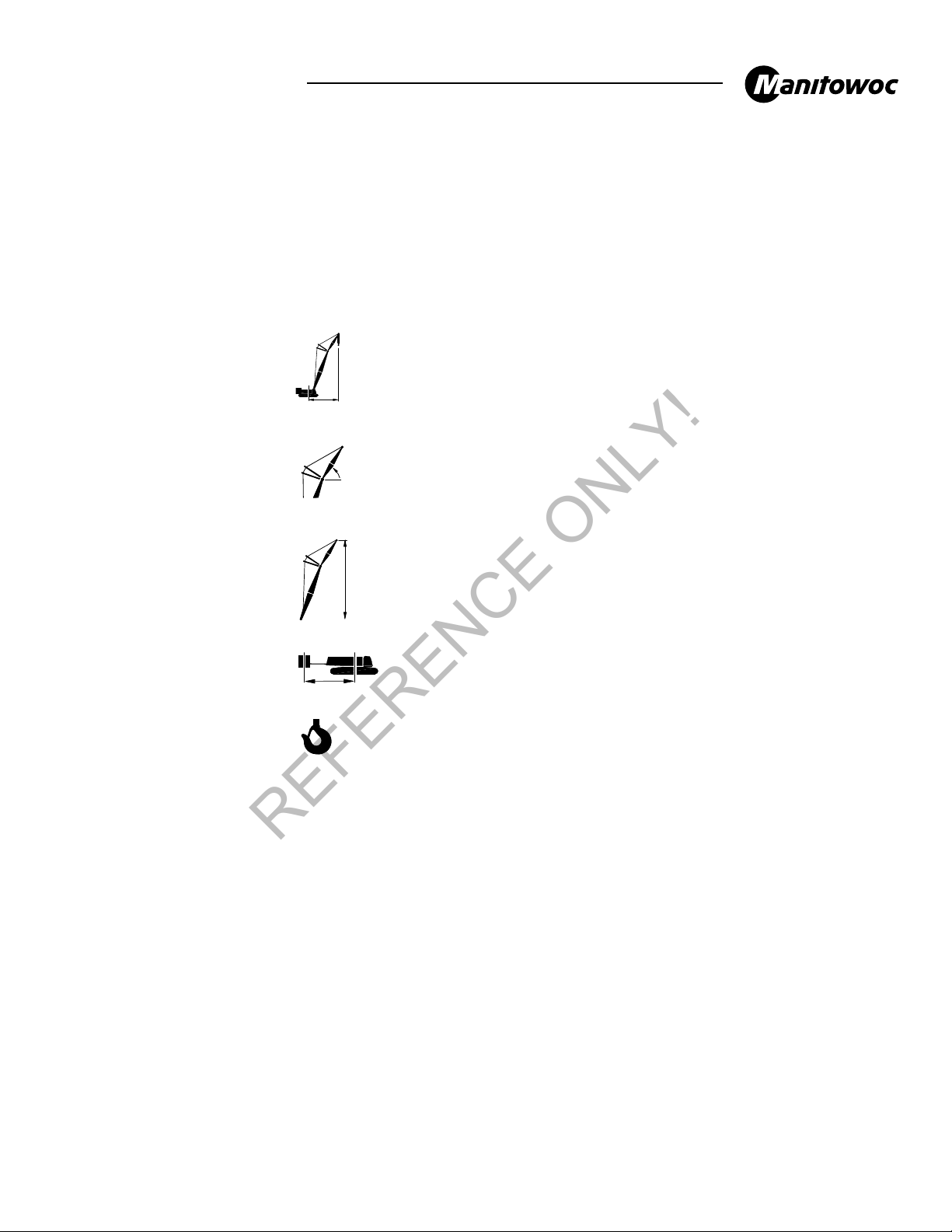

Explanation of Symbols
(continued)
Operating Radius
(see page 1)
Luffing Jib Angle
(see page 1)
Luffing Jib Elevation
(see page 1)
Counterweight Position
from Axis of Rotation
Lifting Capacities
(see page 1)
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
4/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 24,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
13,7 72,9 67,1 150 000 c150 000 c13,7
14,0 72,2 67,0 148 600 c148 600 c14,0
16,0 67,0 66,2 134 300 c134 300 c16,0
18,0 61,6 65,1 115 600 b115 600 b65,6 65,7 139 400 b139 400 b18,0
20,0 55,9 63,8 101 900 101 900 60,2 64,6 121 900b121 900 b66,1 65,5 141 000 b141 700 b20,0
22,0 49,7 62,2 91 400 91 400 54,3 63,2 107 100 107 100 60,7 64,4 125 600 b133 100 b22,0
24,0 42,9 60,1 83 000 83 000 48,0 61,5 95 700 95 700 54,9 63,0 112 700 122 000 24,0
26,0 34,9 57,5 76 400 76 400 40,9 59,3 86 700 86 700 48,7 61,3 102 100 108 100 26,0
28,0 24,7 53,7 71 600 71 600 32,5 56,4 79 800 79 800 41,7 59,2 93 200 97 100 28,0
30,0 21,1 52,1 73 200 73 200 33,4 56,4 85 700 88 400 30,0
32,0 22,5 52,3 79 000 81 600 32,0
34,0 34,0
36,0 36,0
38,0 38,0
40,0 40,0
42,0 42,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 5/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 24,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
13,7 13,7
14,0 14,0
16,0 16,0
18,0 18,0
20,0 20,0
22,0 22,0
24,0 24,0
26,0 59,6 63,3 98 500 124 500 26,0
28,0 53,7 61,9 90 000 113 900 28,0
30,0 47,3 60,1 82 700 104 800 30,0
32,0 40,2 57,8 76 400 96 900 52,2 60,3 73 600 94 200 32,0
34,0 31,6 54,9 70 900 89 900 45,7 58,4 68 400 87 600 34,0
36,0 19,6 50,3 66 000 80 200 38,3 56,0 63 800 81 800 50,4 58,3 61 500 79 500 36,0
38,0 29,1 52,8 59 600 76 600 43,6 56,3 57 500 74 400 38,0
40,0 35,8 53,7 54 000 70 000 40,0
42,0 25,8 50,1 50 800 65 900 42,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
6/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 30,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
15,2 73,4 72,9 118 500 b118 500 b15,2
16,0 71,9 72,7 117 600 b117 600 b16,0
18,0 67,7 71,9 115 300 115 300 18,0
20,0 63,5 70,9 103 800 103 800 66,6 71,4 114 900 114 900 20,0
22,0 59,1 69,7 92 400 92 400 62,3 70,4 108 100 108 100 67,0 71,2 115 400 115 400 22,0
24,0 54,4 68,3 83 300 83 300 57,9 69,2 98 500 98 500 62,8 70,2 109 600 109 600 24,0
26,0 49,4 66,6 76 000 76 000 53,1 67,7 88 500 88 500 58,3 69,0 101 700 102 000 26,0
28,0 44,0 64,7 70 100 70 100 48,1 66,0 80 600 80 600 53,6 67,5 92 900 95 100 28,0
30,0 38,0 62,2 65 200 65 200 42,5 63,9 74 100 74 100 48,6 65,8 85 400 88 900 30,0
32,0 31,0 59,1 61 200 61 200 36,3 61,3 68 700 68 700 43,1 63,7 78 900 83 300 32,0
34,0 21,9 54,8 57 100 57 100 28,9 58,0 64 500 64 500 36,9 61,2 73 300 76 900 34,0
36,0 18,7 53,0 57 500 57 500 29,7 58,0 68 300 70 400 36,0
38,0 19,9 53,3 62 600 62 700 38,0
40,0 40,0
42,0 42,0
44,0 44,0
46,0 46,0
48,0 48,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 7/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 30,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
15,2 15,2
16,0 16,0
18,0 18,0
20,0 20,0
22,0 22,0
24,0 24,0
26,0 26,0
28,0 61,9 69,1 89 500 108 200 28,0
30,0 57,4 67,8 82 200 101 200 30,0
32,0 52,6 66,3 76 000 94 700 32,0
34,0 47,5 64,6 70 600 88 700 56,3 66,3 67 900 87 100 34,0
36,0 41,9 62,4 65 800 83 100 51,4 64,8 63 300 81 300 36,0
38,0 35,6 59,8 61 600 76 100 46,2 62,9 59 200 76 200 38,0
40,0 28,0 56,4 57 800 69 500 40,5 60,7 55 600 71 600 49,9 62,8 53 500 69 500 40,0
42,0 17,3 51,1 54 300 61 900 33,9 57,9 52 400 67 500 44,6 60,8 50 400 65 500 42,0
44,0 25,8 54,2 49 400 63 800 38,6 58,4 47 500 61 900 44,0
46,0 31,7 55,4 44 900 58 700 46,0
48,0 22,9 51,3 42 500 55 700 48,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
8/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 36,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
16,8 73,7 78,7 102 400 b102 400 b16,8
18,0 71,6 78,3 99 900 99 900 18,0
20,0 68,2 77,5 93 800 93 800 70,7 77,9 99 000 99 000 20,0
22,0 64,7 76,6 87 700 87 700 67,3 77,1 92 700 92 700 22,0
24,0 61,1 75,5 82 100 82 100 63,8 76,2 86 800 86 800 24,0
26,0 57,3 74,3 76 800 76 800 60,1 75,0 81 300 81 300 64,1 75,9 87 900 87 900 26,0
28,0 53,4 72,8 70 500 70 500 56,3 73,7 76 400 76 400 60,5 74,8 82 500 82 500 28,0
30,0 49,2 71,1 65 100 65 100 52,3 72,2 71 800 71 800 56,7 73,5 77 500 77 500 30,0
32,0 44,8 69,2 60 600 60 600 48,1 70,5 67 400 67 400 52,7 72,0 72 900 72 900 32,0
34,0 39,9 66,9 56 900 56 900 43,5 68,4 63 300 63 300 48,5 70,3 68 500 68 500 34,0
36,0 34,5 64,1 53 700 53 700 38,6 66,0 59 500 59 500 44,0 68,3 64 300 64 300 36,0
38,0 28,1 60,6 51 100 51 100 32,9 63,1 55 900 55 900 39,1 65,9 60 300 60 300 38,0
40,0 19,8 55,8 47 700 47 700 26,2 59,4 52 700 52 700 33,5 63,0 56 700 56 700 40,0
42,0 16,9 53,9 46 500 46 500 26,9 59,4 53 400 53 400 42,0
44,0 18,1 54,2 49 600 49 600 44,0
46,0 46,0
48,0 48,0
50,0 50,0
52,0 52,0
54,0 54,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 9/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 36,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
16,8 16,8
18,0 18,0
20,0 20,0
22,0 22,0
24,0 24,0
26,0 26,0
28,0 28,0
30,0 30,0
32,0 59,7 73,7 75 600 81 800 32,0
34,0 55,9 72,4 70 300 77 100 34,0
36,0 51,9 70,8 65 500 72 600 36,0
38,0 47,6 69,1 61 300 68 300 55,0 70,8 58 900 75 800 38,0
40,0 43,1 67,0 57 600 64 100 50,9 69,3 55 300 71 300 40,0
42,0 38,0 64,5 54 200 60 200 46,6 67,4 52 100 67 300 42,0
44,0 32,3 61,5 51 200 56 600 41,9 65,3 49 100 63 500 49,6 67,3 47 200 61 600 44,0
46,0 25,4 57,7 48 400 53 300 36,7 62,7 46 500 59 700 45,2 65,3 44 600 58 400 46,0
48,0 15,7 51,9 45 800 49 000 30,8 59,5 44 100 56 200 40,4 63,1 42 300 55 400 48,0
50,0 23,4 55,4 41 800 52 900 35,0 60,4 40 100 52 700 50,0
52,0 28,8 57,0 38 200 50 200 52,0
54,0 20,7 52,3 36 300 47 900 54,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
10/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 42,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
18,3 73,9 84,5 88 500 88 500 18,3
20,0 71,5 84,0 84 200 84 200 20,0
22,0 68,6 83,2 79 400 79 400 70,7 83,6 83 300 83 300 22,0
24,0 65,6 82,3 74 800 74 800 67,8 82,8 78 600 78 600 24,0
26,0 62,5 81,3 69 800 69 800 64,8 81,9 74 000 74 000 68,1 82,5 79 200 79 200 26,0
28,0 59,3 80,1 65 200 65 200 61,7 80,8 69 000 69 000 65,1 81,6 74 700 74 700 28,0
30,0 56,1 78,8 60 900 60 900 58,5 79,6 64 400 64 400 62,0 80,6 69 900 69 900 30,0
32,0 52,7 77,3 57 000 57 000 55,2 78,2 60 200 60 200 58,8 79,4 65 300 65 300 32,0
34,0 49,1 75,6 53 500 53 500 51,7 76,7 56 400 56 400 55,5 78,0 61 100 61 100 34,0
36,0 45,3 73,7 50 200 50 200 48,1 74,9 52 900 52 900 52,1 76,5 57 200 57 200 36,0
38,0 41,2 71,5 47 100 47 100 44,3 72,9 49 600 49 600 48,5 74,8 53 600 53 600 38,0
40,0 36,8 68,9 44 300 44 300 40,1 70,6 46 600 46 600 44,6 72,8 50 300 50 300 40,0
42,0 31,8 65,8 41 700 41 700 35,5 68,0 43 800 43 800 40,5 70,5 47 200 47 200 42,0
44,0 25,9 62,0 39 400 39 400 30,3 64,7 41 300 41 300 36,0 67,9 44 400 44 400 44,0
46,0 18,3 56,8 36 800 36 800 24,1 60,6 39 000 39 000 30,9 64,7 41 800 41 800 46,0
48,0 15,6 54,7 36 200 36 200 24,8 60,7 39 500 39 500 48,0
50,0 16,6 55,1 37 300 37 300 50,0
52,0 52,0
54,0 54,0
56,0 56,0
58,0 58,0
60,0 60,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 11/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 42,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
18,3 18,3
20,0 20,0
22,0 22,0
24,0 24,0
26,0 26,0
28,0 28,0
30,0 30,0
32,0 32,0
34,0 61,4 79,5 69 000 69 000 34,0
36,0 58,2 78,3 64 700 64 700 36,0
38,0 54,8 76,9 60 700 60 700 38,0
40,0 51,4 75,3 56 900 56 900 57,4 76,8 54 700 63 400 40,0
42,0 47,7 73,5 53 400 53 400 54,0 75,4 51 500 59 700 42,0
44,0 43,8 71,5 50 100 50 100 50,5 73,7 48 600 56 200 44,0
46,0 39,7 69,2 47 100 47 100 46,8 71,9 46 000 52 800 53,0 73,4 44 000 57 800 46,0
48,0 35,0 66,4 44 300 44 300 42,9 69,8 43 600 49 600 49,4 71,7 41 700 54 800 48,0
50,0 29,8 63,1 41 700 41 700 38,6 67,4 41 400 46 600 45,7 69,8 39 600 51 800 50,0
52,0 23,4 58,9 39 400 39 400 33,8 64,5 39 400 43 900 41,6 67,7 37 700 48 800 52,0
54,0 14,5 52,7 37 300 37 300 28,4 61,1 37 500 41 400 37,2 65,1 35 900 45 900 54,0
56,0 21,6 56,5 35 700 39 100 32,3 62,1 34 200 43 300 56,0
58,0 26,5 58,4 32 600 40 900 58,0
60,0 19,1 53,3 31 200 38 700 60,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
12/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 48,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
21,3 72,2 89,9 69 900 69 900 21,3
22,0 71,4 89,6 68 600 68 600 22,0
24,0 68,8 88,9 65 000 65 000 24,0
26,0 66,2 88,0 61 500 61 500 68,1 88,5 64 400 64 400 26,0
28,0 63,5 87,0 58 100 58 100 65,5 87,6 61 000 61 000 28,0
30,0 60,8 85,9 54 700 54 700 62,8 86,6 57 600 57 600 65,8 87,3 61 600 61 600 30,0
32,0 58,0 84,7 51 400 51 400 60,1 85,4 54 200 54 200 63,1 86,3 58 300 58 300 32,0
34,0 55,1 83,3 48 300 48 300 57,3 84,2 50 900 50 900 60,4 85,2 54 900 54 900 34,0
36,0 52,1 81,8 45 300 45 300 54,3 82,8 47 900 47 900 57,5 83,9 51 700 51 700 36,0
38,0 49,0 80,1 42 500 42 500 51,3 81,2 45 000 45 000 54,6 82,5 48 600 48 600 38,0
40,0 45,7 78,2 39 900 39 900 48,1 79,4 42 100 42 100 51,6 81,0 45 600 45 600 40,0
42,0 42,2 76,0 37 500 37 500 44,8 77,4 39 600 39 600 48,4 79,2 42 800 42 800 42,0
44,0 38,4 73,6 35 200 35 200 41,2 75,2 37 200 37 200 45,1 77,3 40 200 40 200 44,0
46,0 34,3 70,7 33 100 33 100 37,3 72,7 34 900 34 900 41,6 75,1 37 700 37 700 46,0
48,0 29,6 67,4 31 200 31 200 33,1 69,7 32 900 32 900 37,7 72,6 35 500 35 500 48,0
50,0 24,2 63,3 29 300 29 300 28,3 66,2 30 900 30 900 33,5 69,7 33 400 33 400 50,0
52,0 17,0 57,7 27 700 27 700 22,5 61,8 29 100 29 100 28,8 66,2 31 400 31 400 52,0
54,0 14,5 55,5 27 400 27 400 23,1 61,9 29 600 29 600 54,0
56,0 15,5 55,9 27 900 27 900 56,0
58,0 58,0
60,0 60,0
62,0 62,0
64,0 64,0
66,0 66,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 13/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 48,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
21,3 21,3
22,0 22,0
24,0 24,0
26,0 26,0
28,0 28,0
30,0 30,0
32,0 32,0
34,0 34,0
36,0 62,6 85,2 57 500 57 500 36,0
38,0 59,8 84,1 54 400 54 400 38,0
40,0 57,0 82,8 51 300 51 300 40,0
42,0 54,0 81,4 48 400 48 400 42,0
44,0 51,0 79,8 45 500 45 500 56,3 81,3 48 000 50 400 44,0
46,0 47,8 78,0 42 700 42 700 53,3 79,8 45 400 47 700 46,0
48,0 44,4 76,0 40 100 40 100 50,2 78,2 43 000 44 900 48,0
50,0 40,8 73,8 37 700 37 700 47,0 76,4 40 800 42 300 50,0
52,0 36,9 71,2 35 500 35 500 43,6 74,3 38 800 39 800 49,3 76,2 37 000 44 100 52,0
54,0 32,6 68,2 33 400 33 400 39,9 72,0 36 900 37 500 46,0 74,3 35 200 41 600 54,0
56,0 27,7 64,6 31 500 31 500 35,9 69,3 35 200 35 400 42,5 72,2 33 600 39 300 56,0
58,0 21,8 60,1 29 700 29 700 31,5 66,2 33 300 33 300 38,8 69,8 32 100 37 100 58,0
60,0 13,5 53,4 28 000 28 000 26,4 62,5 31 400 31 400 34,7 67,0 30 600 35 000 60,0
62,0 20,1 57,6 29 600 29 600 30,1 63,7 29 300 33 000 62,0
64,0 10,4 49,7 28 000 28 000 24,7 59,7 28 000 31 200 64,0
66,0 17,8 54,3 26 800 29 500 66,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
14/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 54,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
22,9 72,6 95,7 62 200 62 200 22,9
24,0 71,3 95,3 60 400 60 400 24,0
26,0 69,0 94,5 57 200 57 200 70,7 94,9 59 800 59 800 26,0
28,0 66,7 93,7 54 200 54 200 68,4 94,1 56 700 56 700 28,0
30,0 64,3 92,7 51 300 51 300 66,1 93,3 53 700 53 700 30,0
32,0 62,0 91,7 48 500 48 500 63,7 92,3 50 900 50 900 66,3 93,0 54 200 54 200 32,0
34,0 59,5 90,5 45 800 45 800 61,3 91,2 48 200 48 200 64,0 92,0 51 400 51 400 34,0
36,0 57,0 89,2 43 200 43 200 58,8 90,0 45 500 45 500 61,5 91,0 48 700 48 700 36,0
38,0 54,4 87,8 40 800 40 800 56,3 88,7 42 900 42 900 59,1 89,8 46 100 46 100 38,0
40,0 51,7 86,3 38 500 38 500 53,7 87,3 40 500 40 500 56,5 88,5 43 600 43 600 40,0
42,0 48,9 84,6 36 200 36 200 51,0 85,7 38 200 38 200 53,9 87,0 41 100 41 100 42,0
44,0 46,0 82,7 34 100 34 100 48,1 83,9 36 000 36 000 51,2 85,5 38 800 38 800 44,0
46,0 42,9 80,6 32 100 32 100 45,2 81,9 33 900 33 900 48,4 83,7 36 500 36 500 46,0
48,0 39,6 78,2 30 300 30 300 42,0 79,8 31 900 31 900 45,5 81,8 34 400 34 400 48,0
50,0 36,1 75,5 28 500 28 500 38,7 77,4 30 000 30 000 42,4 79,6 32 400 32 400 50,0
52,0 32,2 72,5 26 900 26 900 35,1 74,6 28 300 28 300 39,0 77,2 30 500 30 500 52,0
54,0 27,9 68,9 25 300 25 300 31,1 71,4 26 700 26 700 35,5 74,5 28 800 28 800 54,0
56,0 22,7 64,5 23 900 23 900 26,6 67,7 25 100 25 100 31,5 71,4 27 100 27 100 56,0
58,0 16,0 58,5 22 500 22 500 21,1 62,9 23 700 23 700 27,1 67,7 25 500 25 500 58,0
60,0 13,7 56,2 22 400 22 400 21,7 63,1 24 100 24 100 60,0
62,0 14,6 56,6 22 700 22 700 62,0
64,0 64,0
66,0 66,0
68,0 68,0
70,0 70,0
72,0 72,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 15/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 54,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
22,9 22,9
24,0 24,0
26,0 26,0
28,0 28,0
30,0 30,0
32,0 32,0
34,0 34,0
36,0 36,0
38,0 38,0
40,0 61,1 89,9 48 200 48 200 40,0
42,0 58,6 88,7 45 800 45 800 42,0
44,0 56,0 87,3 43 300 43 300 44,0
46,0 53,4 85,9 41 000 41 000 58,0 87,2 44 700 44 800 46,0
48,0 50,7 84,3 38 700 38 700 55,4 85,8 42 400 42 600 48,0
50,0 47,8 82,5 36 500 36 500 52,8 84,3 40 200 40 400 50,0
52,0 44,9 80,5 34 400 34 400 50,0 82,7 38 200 38 300 52,0
54,0 41,7 78,3 32 500 32 500 47,1 80,9 36 200 36 200 51,9 82,4 34 700 39 400 54,0
56,0 38,4 75,9 30 600 30 600 44,1 78,9 34 200 34 200 49,2 80,7 33 000 37 500 56,0
58,0 34,7 73,1 28 800 28 800 40,9 76,6 32 200 32 200 46,3 78,8 31 500 35 500 58,0
60,0 30,7 69,9 27 200 27 200 37,5 74,1 30 500 30 500 43,2 76,7 30 100 33 700 60,0
62,0 26,1 66,0 25 600 25 600 33,8 71,2 28 700 28 700 39,9 74,4 28 800 31 800 62,0
64,0 20,5 61,2 24 200 24 200 29,6 67,8 27 100 27 100 36,4 71,8 27 500 30 100 64,0
66,0 12,7 54,0 22 900 22 900 24,9 63,8 25 600 25 600 32,6 68,8 26 300 28 500 66,0
68,0 18,9 58,6 24 200 24 200 28,3 65,2 25 200 26 900 68,0
70,0 9,8 50,2 22 900 22 900 23,2 60,9 24 100 25 400 70,0
72,0 16,7 55,1 23 000 24 100 72,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
16/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 60,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
24,4 72,8 101,5 56 600 56 600 24,4
26,0 71,2 101,0 55 600 55 600 26,0
28,0 69,2 100,2 54 300 54 300 70,7 100,6 55 400 55 400 28,0
30,0 67,1 99,4 52 600 52 600 68,6 99,8 54 100 54 100 30,0
32,0 65,0 98,4 50 800 50 800 66,5 99,0 52 500 52 500 68,8 99,5 54 200 54 200 32,0
34,0 62,8 97,4 49 100 49 100 64,4 98,0 50 800 50 800 66,7 98,7 52 700 52 700 34,0
36,0 60,7 96,3 47 400 47 400 62,3 97,0 49 100 49 100 64,6 97,7 51 200 51 200 36,0
38,0 58,4 95,1 45 700 45 700 60,1 95,8 47 400 47 400 62,5 96,7 49 700 49 700 38,0
40,0 56,1 93,8 44 000 44 000 57,8 94,6 45 800 45 800 60,3 95,6 48 100 48 100 40,0
42,0 53,8 92,3 42 400 42 400 55,5 93,2 44 200 44 200 58,0 94,4 46 500 46 500 42,0
44,0 51,3 90,8 40 800 40 800 53,1 91,8 42 600 42 600 55,7 93,0 44 900 44 900 44,0
46,0 48,8 89,0 39 300 39 300 50,7 90,1 41 000 41 000 53,4 91,5 43 400 43 400 46,0
48,0 46,2 87,1 37 800 37 800 48,1 88,4 39 500 39 500 50,9 89,9 41 800 41 800 48,0
50,0 43,5 85,1 36 300 36 300 45,5 86,4 38 000 38 000 48,4 88,2 40 300 40 300 50,0
52,0 40,6 82,8 34 800 34 800 42,7 84,3 36 400 36 400 45,8 86,3 38 800 38 800 52,0
54,0 37,5 80,3 33 200 33 200 39,8 82,0 34 700 34 700 43,0 84,2 37 100 37 100 54,0
56,0 34,1 77,4 31 400 31 400 36,6 79,4 32 800 32 800 40,1 81,8 35 000 35 000 56,0
58,0 30,5 74,1 29 700 29 700 33,2 76,4 31 000 31 000 36,9 79,3 33 100 33 100 58,0
60,0 26,4 70,3 28 100 28 100 29,4 73,0 29 400 29 400 33,6 76,3 31 300 31 300 60,0
62,0 21,5 65,6 25 900 25 900 25,2 69,0 27 800 27 800 29,8 73,0 29 600 29 600 62,0
64,0 15,1 59,3 22 200 22 200 20,0 64,0 26 000 26 000 25,6 69,1 28 100 28 100 64,0
66,0 12,9 56,8 21 700 21 700 20,6 64,2 26 500 26 500 66,0
68,0 13,8 57,4 23 500 23 500 68,0
70,0 70,0
72,0 72,0
74,0 74,0
76,0 76,0
78,0 78,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 17/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 60,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
24,4 24,4
26,0 26,0
28,0 28,0
30,0 30,0
32,0 32,0
34,0 34,0
36,0 36,0
38,0 38,0
40,0 40,0
42,0 62,1 95,6 48 900 48 900 42,0
44,0 59,9 94,5 47 600 47 600 44,0
46,0 57,6 93,2 46 200 46 300 46,0
48,0 55,3 91,9 44 000 44 900 48,0
50,0 52,9 90,4 41 800 43 500 57,0 91,8 39 800 45 100 50,0
52,0 50,4 88,8 39 700 42 100 54,7 90,4 37 800 44 100 52,0
54,0 47,9 87,0 37 800 40 700 52,3 88,8 36 000 42 900 54,0
56,0 45,2 85,0 36 000 39 000 49,8 87,2 34 300 41 800 56,0
58,0 42,4 82,9 34 400 36 900 47,3 85,4 32 700 40 500 51,6 86,9 31 100 41 500 58,0
60,0 39,5 80,5 32 900 34 800 44,6 83,4 31 300 38 700 49,1 85,2 29 600 40 000 60,0
62,0 36,3 77,9 31 400 32 900 41,7 81,2 29 900 36 500 46,5 83,3 28 300 38 400 62,0
64,0 32,8 74,9 30 100 31 100 38,7 78,7 28 600 34 500 43,7 81,3 27 000 36 800 64,0
66,0 29,0 71,4 28 900 29 500 35,5 76,0 27 400 32 600 40,8 79,0 25 800 35 400 66,0
68,0 24,7 67,3 27 700 27 900 32,0 72,9 26 300 30 900 37,8 76,5 24 700 33 900 68,0
70,0 19,4 62,2 26 400 26 500 28,1 69,3 25 200 29 200 34,5 73,7 23 600 32 200 70,0
72,0 23,5 65,0 24 200 27 700 30,8 70,4 22 600 30 500 72,0
74,0 17,9 59,5 23 200 26 300 26,8 66,7 21 600 28 900 74,0
76,0 9,3 50,7 22 200 24 800 22,0 62,1 20 700 27 400 76,0
78,0 15,8 56,0 19 800 25 900 78,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
18/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 66,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
25,9 73,1 107,3 48 100 48 100 25,9
26,0 73,0 107,3 48 100 48 100 26,0
28,0 71,1 106,6 47 800 47 800 28,0
30,0 69,3 105,8 47 200 47 200 70,6 106,2 47 000 47 000 30,0
32,0 67,4 105,0 45 900 45 900 68,8 105,5 46 800 46 800 32,0
34,0 65,5 104,1 44 400 44 400 66,9 104,6 45 800 45 800 34,0
36,0 63,6 103,1 42 800 42 800 65,0 103,7 44 400 44 400 67,1 104,3 45 100 45 100 36,0
38,0 61,6 102,1 41 200 41 200 63,0 102,7 42 800 42 800 65,2 103,4 44 600 44 600 38,0
40,0 59,6 100,9 39 600 39 600 61,1 101,6 41 200 41 200 63,2 102,4 43 200 43 200 40,0
42,0 57,5 99,6 38 000 38 000 59,0 100,4 39 700 39 700 61,3 101,3 41 700 41 700 42,0
44,0 55,4 98,3 36 500 36 500 57,0 99,1 38 100 38 100 59,2 100,2 40 300 40 300 44,0
46,0 53,3 96,8 35 000 35 000 54,9 97,7 36 600 36 600 57,2 98,9 38 800 38 800 46,0
48,0 51,0 95,2 33 500 33 500 52,7 96,2 35 100 35 100 55,1 97,5 37 200 37 200 48,0
50,0 48,8 93,5 32 000 32 000 50,4 94,6 33 600 33 600 52,9 96,0 35 800 35 800 50,0
52,0 46,4 91,6 30 600 30 600 48,1 92,8 32 100 32 100 50,7 94,4 34 300 34 300 52,0
54,0 43,9 89,5 29 200 29 200 45,7 90,9 30 700 30 700 48,4 92,6 32 800 32 800 54,0
56,0 41,3 87,3 27 900 27 900 43,2 88,8 29 300 29 300 46,0 90,7 31 400 31 400 56,0
58,0 38,5 84,9 26 500 26 500 40,6 86,5 27 900 27 900 43,5 88,7 30 000 30 000 58,0
60,0 35,6 82,1 25 200 25 200 37,8 84,0 26 600 26 600 40,8 86,4 28 600 28 600 60,0
62,0 32,4 79,1 23 900 23 900 34,8 81,2 25 200 25 200 38,1 83,9 27 200 27 200 62,0
64,0 29,0 75,6 22 700 22 700 31,6 78,0 24 000 24 000 35,1 81,1 25 900 25 900 64,0
66,0 25,0 71,6 21 500 21 500 28,0 74,4 22 700 22 700 31,9 78,0 24 600 24 600 66,0
68,0 20,4 66,6 20 300 20 300 23,9 70,2 21 500 21 500 28,3 74,5 23 300 23 300 68,0
70,0 14,3 59,9 18 400 18 400 19,0 64,9 20 300 20 300 24,3 70,3 22 100 22 100 70,0
72,0 12,2 57,3 18 100 18 100 19,5 65,1 20 900 20 900 72,0
74,0 13,0 57,9 19 200 19 200 74,0
76,0 76,0
78,0 78,0
80,0 80,0
82,0 82,0
84,0 84,0
REFERENCE ONLY!

Manitowoc Cranes 9498-AM, 2017-02-10
Manitowoc, Wisconsin 54220 U.S.A. 19/211
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 66,0 m
75° 70° 65°
m°m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
25,9 25,9
26,0 26,0
28,0 28,0
30,0 30,0
32,0 32,0
34,0 34,0
36,0 36,0
38,0 38,0
40,0 40,0
42,0 42,0
44,0 44,0
46,0 60,9 100,2 41 100 41 100 46,0
48,0 58,8 99,1 39 900 39 900 48,0
50,0 56,8 97,8 38 600 38 600 50,0
52,0 54,6 96,4 37 300 37 300 58,3 97,6 37 200 38 400 52,0
54,0 52,5 94,8 35 900 35 900 56,3 96,3 35 400 37 600 54,0
56,0 50,2 93,2 34 500 34 500 54,1 94,8 33 700 36 500 56,0
58,0 47,9 91,4 33 100 33 100 51,9 93,3 32 100 35 300 58,0
60,0 45,5 89,5 31 700 31 700 49,7 91,6 30 700 34 100 60,0
62,0 43,0 87,4 30 400 30 400 47,3 89,8 29 300 32 900 51,3 91,3 27 500 34 200 62,0
64,0 40,3 85,1 29 000 29 000 44,9 87,8 28 100 31 600 49,0 89,6 26 200 33 200 64,0
66,0 37,5 82,5 27 600 27 600 42,3 85,7 26 900 30 300 46,6 87,8 25 000 32 200 66,0
68,0 34,5 79,7 26 300 26 300 39,6 83,3 25 700 29 000 44,1 85,7 23 900 31 100 68,0
70,0 31,2 76,5 25 000 25 000 36,8 80,7 24 600 27 800 41,5 83,5 22 900 30 000 70,0
72,0 27,6 72,8 23 700 23 700 33,7 77,8 23 600 26 400 38,8 81,1 21 900 28 800 72,0
74,0 23,4 68,5 22 500 22 500 30,4 74,5 22 600 25 200 35,9 78,4 20 900 27 600 74,0
76,0 18,4 63,0 21 300 21 300 26,6 70,7 21 600 24 000 32,7 75,4 20 000 26 400 76,0
78,0 22,3 66,1 20 700 22 700 29,3 71,9 19 200 25 200 78,0
80,0 17,0 60,3 19 800 21 600 25,4 67,9 18 300 24 000 80,0
82,0 8,6 50,9 18 900 20 600 20,9 63,1 17 500 22 800 82,0
84,0 15,0 56,6 16 800 21 700 84,0
REFERENCE ONLY!

9498-AM, 2017-02-10 Manitowoc Cranes
20/211 Manitowoc, Wisconsin 54220 U.S.A.
LJ10
+
B60
175 100 kg
360°
MLC300 ASME B30.5
VPC-MAX S-2
42,0 m 72,0 m
85° 83° 80°
m°m
10,6 m
kg
14,6
kg °m
10,6 m
kg
14,6 m
kg °m
10,6 m
kg
14,6 m
kg m
27,4 73,2 113,1 40 000 40 000 27,4
28,0 72,8 112,9 39 900 39 900 28,0
30,0 71,1 112,2 39 500 39 500 30,0
32,0 69,4 111,5 39 100 39 100 70,6 111,9 38 800 38 800 32,0
34,0 67,7 110,7 38 700 38 700 68,9 111,1 38 500 38 500 34,0
36,0 65,9 109,8 38 300 38 300 67,2 110,3 38 200 38 200 36,0
38,0 64,2 108,8 37 500 37 500 65,5 109,4 37 900 37 900 67,4 110,0 37 100 37 100 38,0
40,0 62,4 107,8 36 300 36 300 63,7 108,4 37 400 37 400 65,6 109,1 36 900 36 900 40,0
42,0 60,5 106,7 35 100 35 100 61,9 107,3 36 400 36 400 63,9 108,1 36 700 36 700 42,0
44,0 58,7 105,5 33 900 33 900 60,1 106,2 35 200 35 200 62,1 107,1 36 500 36 500 44,0
46,0 56,8 104,2 32 700 32 700 58,2 105,0 34 000 34 000 60,2 106,0 35 600 35 600 46,0
48,0 54,8 102,8 31 500 31 500 56,3 103,6 32 800 32 800 58,4 104,7 34 500 34 500 48,0
50,0 52,9 101,3 30 200 30 200 54,3 102,2 31 500 31 500 56,5 103,4 33 300 33 300 50,0
52,0 50,8 99,7 28 900 28 900 52,3 100,7 30 300 30 300 54,5 102,0 32 100 32 100 52,0
54,0 48,7 97,9 27 600 27 600 50,3 99,1 29 000 29 000 52,5 100,5 30 900 30 900 54,0
56,0 46,5 96,1 26 400 26 400 48,1 97,3 27 700 27 700 50,5 98,9 29 600 29 600 56,0
58,0 44,3 94,1 25 100 25 100 45,9 95,4 26 400 26 400 48,3 97,1 28 400 28 400 58,0
60,0 41,9 91,9 23 800 23 800 43,7 93,3 25 100 25 100 46,2 95,2 27 100 27 100 60,0
62,0 39,4 89,5 22 600 22 600 41,3 91,1 23 900 23 900 43,9 93,2 25 800 25 800 62,0
64,0 36,8 86,9 21 300 21 300 38,8 88,6 22 600 22 600 41,5 90,9 24 500 24 500 64,0
66,0 34,0 84,0 20 100 20 100 36,1 86,0 21 300 21 300 39,0 88,5 23 200 23 200 66,0
68,0 31,0 80,8 18 900 18 900 33,2 83,0 20 100 20 100 36,4 85,9 21 900 21 900 68,0
70,0 27,7 77,1 17 800 17 800 30,2 79,7 18 900 18 900 33,5 82,9 20 600 20 600 70,0
72,0 23,9 72,8 16 700 16 700 26,7 75,9 17 800 17 800 30,5 79,6 19 400 19 400 72,0
74,0 19,5 67,6 15 600 15 600 22,8 71,4 16 700 16 700 27,1 75,9 18 300 18 300 74,0
76,0 13,7 60,6 14 700 14 700 18,1 65,8 15 600 15 600 23,2 71,5 17 100 17 100 76,0
78,0 11,7 57,9 14 300 14 300 18,6 66,1 16 100 16 100 78,0
80,0 12,4 58,5 15 100 15 100 80,0
82,0 82,0
84,0 84,0
86,0 86,0
88,0 88,0
90,0 90,0
REFERENCE ONLY!
