Marantz DV12 User manual

DVD Player
DV-12S1
411K855010 MIT
3120 785 22860
First Issue 2002.02
TABLE OF CONTENTS
SECTION PAGE
1. TECHNICAL SPECIFICATIONS ...................................................................................................1
2. CONNECTION FACILITIES .......................................................................................................... 2
3. INFORMATIONS ........................................................................................................................... 3
4. SERVICE HINTS AND TOOLS. .................................................................................................... 4
5. WARNING AND LASER SAFETY INSTRUCTIONS..................................................................... 5
6. TAKING THE DISC OUT OF EMERGENCY ................................................................................. 7
7. SERVICE MODE........................................................................................................................... 8
8. WIRING DIAGRAMS..................................................................................................................... 9
9. BLOCK DIAGRAMS.................................................................................................................... 11
10. SCHEMATIC DIAGRAM.............................................................................................................. 13
11. PARTS LOCATION...................................................................................................................... 31
12. MICROPROCESSOR AND IC DATA........................................................................................... 39
13. EXPLODED VIEW AND PARTS LIST......................................................................................... 45
14. ELECTRICAL PARTS LIST......................................................................................................... 48
DB-VLD101/102 (DVD LOADER FOR MARANTZ)
2.1 EXTERIOR................................................................................................................................ 2-1
2.2 LOARDING MECHANISM ASS’Y............................................................................................. 2-2
2.3 TRAVERSE MECHANISM ASS’Y............................................................................................. 2-3
DB-VPB231/232/233 (DVD PCB MODULE FOR MARANTZ)
3.1 DIAGRAMS (BLOCK, WIRING, SCHEMATIC) ......................................................................... 3-2
3.2 PCB CONNECTION DIAGRAM.............................................................................................. 3-17
3.3 GENERAL INFOMATION (ADJ., ID NUMBER., TEST MODE., TROUBL., IC.)...................... 3-20
3.4 PCB PARTS LIST.................................................................................................................... 3-43
DV12 /A1G/C1G/F1N/L1G/N1G/S1G/U1G
/N1B/U1B
R
DV-12S1
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
Service
Manual
FL OFF STANDBY
PAUSE
POWER
RANDOMDIMMER
PLAY STOP

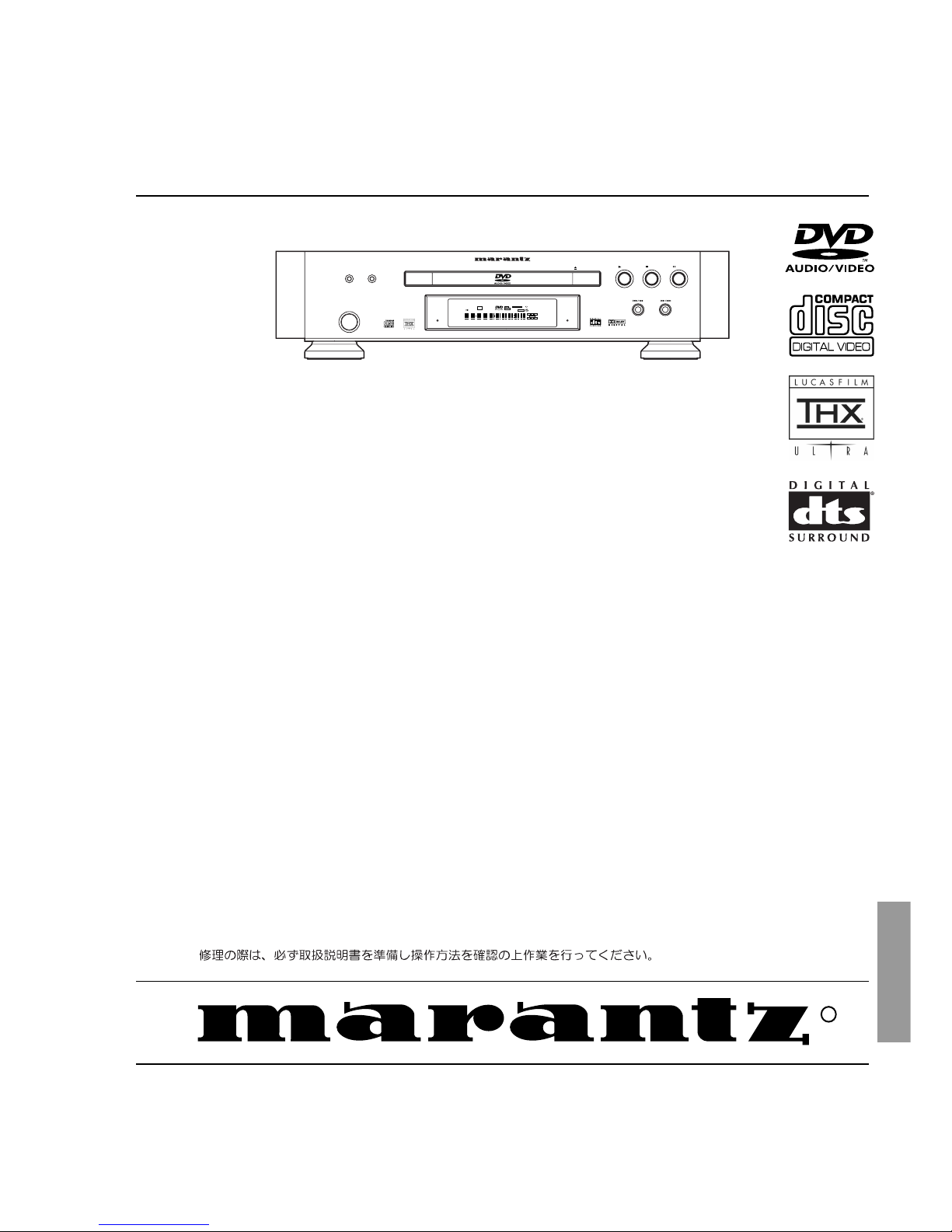

DVD PLAYER DV-12S1
OPEN/CLOSEVIDEO ON/OFF
V-PART DVD
AUDIO
192kHz
96kHz
TRK
CHP TEMAIN
TOTAL
DOLBY D
DIG OFF
GRP
TITLE
VIDEO OFF
L C
LFE
R
LS SRS
PROGRESSIVE LAST MEMO
CONDITION
DOWN MIX

MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verified before it is return to the user/customer.
Ref. UL Standard No. 1492.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
020110MIT
SUPERSCOPE TECHNOLOGIES, INC.
USA
MARANTZ AMERICA, INC
1100 MAPLEWOOD DRIVE
ITASCA, IL. 60143
USA
PHONE : 630 - 741 - 0300
FAX : 630 - 741 - 0301
BRAZIL
PHILIPS DA AMAZONIA IND. ELET. ITDA
CENTRO DE INFORMACOES AO
CEP 04698-970
SAO PAULO, SP, BRAZIL
PHONE : 0800 - 123123 (Discagem Direta Gratuita)
FAX : [phone]
JAPAN Technical
MARANTZ JAPAN, INC.
35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : [phone]
FAX : [phone]
EUROPE / TRADING
MARANTZ EUROPE B.V.
P. O. BOX 8744, BUILDING SILVERPOINT
BEEMDSTRAAT 11, 5653 MA EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2507844
FAX : +31 - 40 - 2507860
TECHNICAL AUDIO GROUP PTY, LTD
558 DARLING STREET,
BALMAIN, NSW 2041,
AUSTRALIA
PHONE : 61 - 2 - 9810 - 5300
FAX : 61 - 2 - 9810 - 5355
CANADA
LENBROOK INDUSTRIES LIMITED
633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936
AUSTRALIA
QualiFi Pty Ltd,
24 LIONEL ROAD,
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677
NEW ZEALAND
WILDASH AUDIO SYSTEMS NZ
14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE : +64 - 9 - 8451958
FAX : +64 - 9 - 8463554
THAILAND
MRZ STANDARD CO., LTD
746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795
TAIWAN
PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415
MALAYSIA
WO KEE HONG ELECTRONICS SDN. BHD.
SUITE 8.1, LEVEL 8, MENARA GENESIS,
NO. 33, JALAN SULTAN ISMAIL,
50250 KUALA LUMPUR, MALAYSIA
PHONE : +60 3 - 2457677
FAX : +60 3 - 2458180
AMERICAS
MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103
AUSTRALIA
KOREA
MK ENTERPRISES LTD.
ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154
SINGAPORE
WO KEE HONG DISTRIBUTION PTE LTD
130 JOO SENG ROAD
#03-02 OLIVINE BUILDING
SINGAPORE 368357
PHONE : [phone]
FAX : [phone]

1
General
System............ DVD system and Compact Disc digital audio system
Power requirements
A Version .............................................................AC 240 V, 50 Hz
C Version .............................................................AC 220 V, 60 Hz
F Version.......................................................AC 100 V, 50 / 60 Hz
K Version .............................................................AC 220 V, 50 Hz
L Version..............................................................AC 110 V, 60 Hz
N Version .............................................................AC 230 V, 50 Hz
S Version ......................................................AC 230 V, 50 / 60 Hz
U Version .............................................................AC 120 V, 60 Hz
Power consumption
F Version................................................................................30 W
Other Version.........................................................................31 W
Weight ........................................................................ 13.2 kg (29 lb)
Dimensions.....................................458 (W) x 392 (D) x 110 (H) mm
(18 (W) x 15 7/16 (D) x 4 3/8 (H) in.)
(Not including protruding cables, etc.)
Operating temperature .............................................+5 °C to +35 °C
Operating humidity .............................5% to 85% (no condensation)
S-Video output
Y (luminance) - Output level ....................................... 1 Vp-p (75 Ω)
C (color) - Output level : NTSC............................ 286 mVp-p (75 Ω )
: PAL ............................... 300 mVp-p (75 Ω )
Jacks ..........................................................................S-VIDEO jack
Video output (2 individual outputs)
Output level................................................................. 1 Vp-p (75 Ω)
Jacks .................................................................................. RCA jack
Component video output
(Y, CB, CR)
Output level.......................................................... Y: 1.0 Vp-p (75 Ω)
CB, CR: 0.7 Vp-p (75 Ω)
Jacks (A, C, F, K, L, S, U Version) ...................................... RCA jack
R / G / B output
Output level..............................................R / G / B : 0.7 Vp-p (75 Ω)
Jacks (N Version)....................................... 21 pin SCART connector
D1/D2 video output (except for N, U Version)
Output level.......................................................... Y: 1.0 Vp-p (75 Ω)
CB, CR: 0.7 Vp-p (75 Ω)
Jacks ................................................................................ D terminal
Audio output (2 individual outputs)
Output level
During audio output .............................. 200 mVrms (1 kHz, –20 dB)
Number of channels ........................................................................ 2
Jacks .................................................................................. RCA jack
Audio output (5.1 Channel)
Output level
During audio output .............................. 200 mVrms (1 kHz, –20 dB)
Number of channels ........................................................................ 6
Jacks .................................................................................. RCA jack
Digital audio characteristics
Frequency response.....................4 Hz to 88 kHz (DVD fs: 192 kHz)
S/N ratio................................................................ more than 115 dB
Dynamic range ..................................................... more than 102 dB
Total harmonic distortion .......................................................0.001%
Wow and flutter............................................... Limit of measurement
(–0.001% W. PEAK) or lower
Digital output
Optical digital output............................................. Optical digital jack
Coaxial digital output .......................................................... RCA jack
Accessories
Audio/Video cord .............................................................................1
System Control cord........................................................................1
Power Cord......................................................................................1
Remote control unit ......................................................................... 1
AAA (R03P) dry cell batteries..........................................................2
Operating Instructions .....................................................................1
Note
The specifications and design of this product are subject to change
without notice, due to improvement.
1.Technical specifications

2
2. CONNECTION FACILITIES
2.1 Video performance (/N1 only)
1 2
2
2
5
5
4
4
3
6
Map of DVD Regions
135791113151719
21
2 4 6 8 10 12 14 16 18 20
2. 1. 1 SCART
Pin No. TV (OUT) Pin No. AUX (IN)
Pin 1 Audio R out : 2Vrms Pin 1 Audio R out : 2Vrms
Pin 2 Audio R in : 2Vrms Pin 2 Audio R in : 2Vrms
Pin 3 Audio L out : 2Vrms Pin 3 Audio L out : 2Vrms
Pin 4 GND Pin 4 GND
Pin 5 GND Pin 5 GND
Pin 6 Audio L in : 2Vrms Pin 6 Audio L in : 2Vrms
Pin 7 Blue out/C in Pin 7 Blue in/C out
Blue : 0.7Vpp ±0.1V into 75 Ohm *1 Blue : 0.7Vpp ±0.1V into 75 Ohm *1
C : 300mVpp ±30 into 75 Ohm *2 C : 300mVpp ±30 into 75 Ohm *2
Pin 8 function switching out <2V : TV Pin 8 function switching in<2V : DVD
>5/<8 : asp.ratio 16 : 9 DVD/AUX >5/<8 : asp.ratio 16 : 9 AUX
>9.5/<12 : asp.ratio 4 : 3 DVD/AUX >9.5/<12 : asp.ratio 4 : 3 AUX
Pin 9 GND Pin 9 GND
Pin 10 not connected Pin 10 not connected
Pin 11 Green out:0.7Vpp ±0.1V into 75 Ohm *1 Pin 11 Green in:0.7Vpp ±0.1V into 75 Ohm
Pin 12 not connected Pin 12 not connected
Pin 13 GND Pin 13 GND
Pin 14 GND Pin 14 GND
Pin 15 Red/C out Pin 15 Red/C in
Red : 0.7Vpp ±0.1V into 75 Ohm *1 Red : 0.7Vpp ±0.1V into 75 Ohm *1
C : 300mVpp ±30 into 75 Ohm *2 C : 300mVpp ±30 into 75 Ohm *2
Pin 16 fast switching out <0.4V into 75 Ohm=CVBS/S-Video Pin 16 fast switching in <0.4V into 75 Ohm=CVBS/S-Video
1</<3 into 75 Ohm=RGB 1</<3 into 75 Ohm=RGB
Pin 17 GND Pin 17 GND
Pin 18 GND Pin 18 GND
Pin 19 CVBS/Y out : 1Vpp ±0.1V *1 Pin 19 CVBS/Y out : 1Vpp ±0.1V *1
Pin 20 CVBS/Y in : 1Vpp ±0.1V *1 Pin 20 CVBS/Y in : 1Vpp ±0.1V *1
Pin 21 GND Pin 21 GND
*1 : 100% White *2 : Burst Level *3 : color bar(chroma level : 75%)
What are "regional codes"?
Motion picture studios want to control the home release of movies in different countries because theater releases arenit
simultaneous (a movie may come out on DVD in the US when itis just hitting screens in Europe). Therefore they have
required that the DVD standard include codes which can be used to lock out the playback of certain discs in certain geo-
graphical regions. Players sold in each region will have that regionis code built into the player. The player will refuse to play
these "region coded" discs which are not allowed in the region. However, regional codes are entirely optional. Discs without
codes will play on any player in any country. Some studios have already announced that only their new releases will have
regional codes. There are six regions:
1. United States and Canada 2. Europe and Japan
3. Far East (except Japan & China) 4. South America and Oceania
5. Africa and the Middle East 6. China (except Hong Kong)

3
REGION CODE
THE DISCS THAT THE DV-12S1 CAN HANDLE
The following discs can be played back with a DV-12S1
Note:The regional code of the discs must meet to the regional
code of the DV-12S1
DVD INFORMATION
Below is a glossary of the new terms related to DVD.
Title:
A disc may have more than one story/movie on it, so each
story/movie is called a
" title " .
For example, if there are 2 movies on the disc, they are
separated into Title 1 and Title 2.
Chapter:
A title may also be separated into chapters.
For example, a movie (title) may be separated into 3 scenes
(chapters).
Subtitles:
DVDs are recorded with up to 32 different subtitle languages.
If a disc has more than one subtitle language, you can select
the subtitle language that you want to read.
Soundtrack language:
DVDs are recorded with up to 8 different soundtrack languages.
If a disc has more than one language, you can select the
soundtrack language that you want to listen to.
Multi-angles:
On some D
Resetting the Player to System Settings:
VDs, scenes have been filmed from different angles
(up to a maximum of 9). On these discs, you can select the
angle that you want to watch. Please refer to the DVD's manual
to see which scenes have multi-angles.
Title 1 Title 2
Chapter
3
Chapter
1
Chapter
2
Chapter
3
Chapter
1
Chapter
2
12 cm (5in.)/
single-sided
12 cm (5in.)/
double-sided
8 cm (3 in.)/
single-sided
8 cm (3 in.)/
double-sided
1 layer
2 layer
1 layer
2 layer
1 layer
2 layer
1 layer
2 layer
Types of playable
discs and their marks
Diameter/
Playable sides Playback time
Digital audio
Digital video
(MPEG 2)
133 min.
242 min.
266 min.
484 min.
VIDEO CD
CD
F-Disc (F only)
Digital audio
Digital video
(MPEG 2)
VIDEO CD
CD
41 min.
75 min.
82 min.
150 min.
VIDEO CD single
CD single
Digital audio
Digital video
(MPEG 1)
Max. 74
minutes
Digital audio
Digital video
(MPEG 1)
Max. 20
minutes
Digital audio
Max. 74
minutes
12 cm (5 in.)/
single-sided
8 cm (3 in.)/
single-sided
12 cm (5 in.)/
single-sided
8 cm (3 in.)/
single-sided
Digital audio
Max. 20
minutes
**
**
VERSION REGION CODE COUNTRY
/UXX 1 USA/CANADA
/CXX 3 KOREA
/LXX 3 TAIWAN
/AXX 4 AUSTRALIA
/KXX 6 CHINA
/FXX 2 JAPAN
/NXX 2 EUROPE
/SXX 3 SINGAPORE/HONGKONG
To reset the player, press and hold [STOP] button on the front
panel when pressing Power switch to turn the power on.
All program memory, saved settings from functions such as
Last Memory and Condition Memory are cleard, and all Setup
screen menus are returned to factory settings.
DVD-RW
12 cm (5in.)/
single-sided
8 cm (3 in.)/
single-sided
Digital audio
Digital video
(MPEG 2)
Max. 360 min.
Max. 100 min.
*
DVD-RW
(JAPAN & USA model only)
DVD-Audio
DVD-Video
DVD-Audio
DVD-Video
DVD-Audio
DVD-Video
The disc format logos shown above are found on disc labels or on disc jackets.
• To prevent malfunction, do not use an 8 cm (3 in.) adaptor (for CDs).
• Discs other than the ones indicated above cannot be played on this unit.
• DVDs that have incompatible region numbers, DVDROM, DVD-RAM, and CD-ROM cannot be
played on this unit. The region number of the player can be found on the rear panel.
* Playing DVD-RW discs (JAPAN & USA model only)
•
You may not be able to play non-finalized DVD-RW discs.
• Copyrighted content originally provided with the permission of one generation and recorded on
• DVD discs cannot be played on this player.
• When playing a DVD-RW disc that was edited on a DVD recorder, you may see scenes from just
before the edited point. This is not a malfunction.
• Up to 20 characters of a title name can be displayed.
** Playing recordable CDs
•
Note that this unit cannot record onto recordable discs.
• This unit can play music-use CD-R and CD-RW discs.
However, depending on the condition of the CD-Recorder and the disc, you may find that not all
discs will play successfully. (For example, if the disc is scratched or dirty, or if the player fs pickup
lens is dirt
y
.
)
3. INFORMATIONS

4
4. SERVICE HINTS AND TOOLS
DVD test disc (NTSC) ALMEDIO TDV-540
SERVICE TOOLS
Audio signals disc 4822 397 30184
Disc without errors (SBC444)+
Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245
Disc (65 min 1kHz) without no pause 4822 397 30155
Max. diameter disc (58.0 mm) 4822 397 60141
Torx screwdrivers
Set (straight) 4822 395 50145
Set (square) 4822 395 50132
13th order filter 4822 395 30204
DVD test disc (PAL) 4822 397 10131

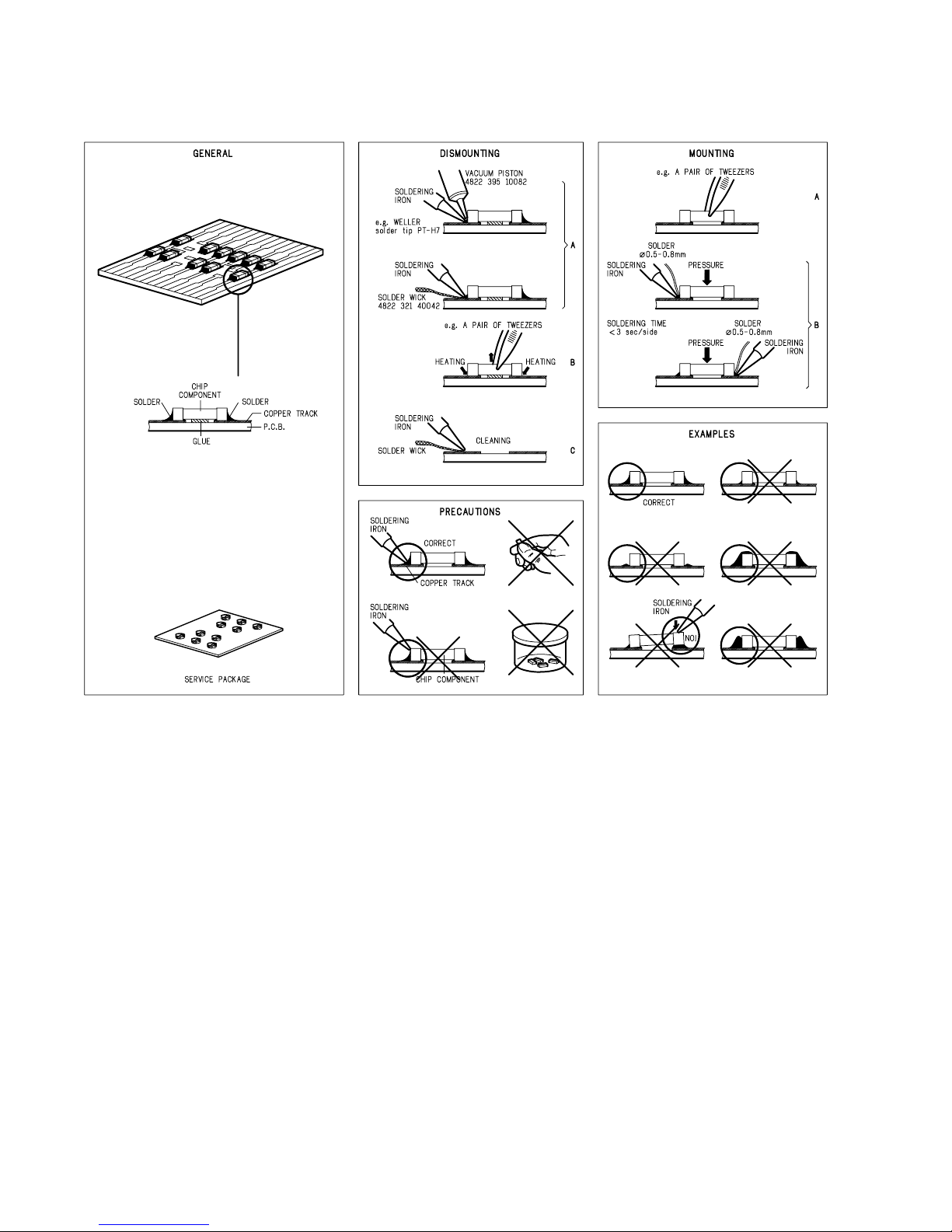

SERVICE HINTS

5
SHOCK, FIRE HAZARD SERVICE TEST:
CAUTION: After servicing this appliance and prior to returning to customer, measure the resistance between
either primary AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the
face or Front Panel of product and controls and chassis bottom,
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC
power is applied, and verified before return to user/customer.
Ref.UL Standard NO.1492.
NOTE ON SAFETY:
Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol
Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard.
FATTENTION
Tous les IC et beaucoup d’autres semi-
conducteurs sont sensibles aux décharges
statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution
n’est prise a leur manipulation.
Lors de réparations, s’assurer de bien être
relié au même potentiel que la masse de
l’appareil et enfiler le bracelet serti d’une
résistance de sécurité.
Veiller a ce que les composants ainsi que les
outils que l’on utilise soient également a ce
potentiel.
DWARNUNG
Alle IC und viele andere Halbleiter sind
empfindlich gegen elektrostatische
Entladungen (ESD).
Unsorgfältige Behandlung bei der Reparatur
kann die Lebensdauer drastisch vermindern.
Sorgen sie dafür, das Sie im Reparaturfall
über ein Pulsarmband mit Widerstand mit
dem Massepotential des Gerätes verbunden
sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls
auf diesem Potential.
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor elektrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie
kan de levensduur drastisch doen
verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevita potrebbe essere fortemente
ridatta in caso di non osservazione della piu
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello
della massa dell’apparecchio tramite un
braccialetto a resistenza.
Assicurarsi che i componenti e anche gli
utensili con quali si lavora siano anche a
questo potenziale.
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce
life drastically.
When repairing, make sure that you are
connected with the same potential as the
mass of the set via a wrist wrap with
resistance.
Keep components and tools also at this
potential.
WARNING
Safety regulations require that the set be restored to its original condition
and that parts which are identical with those specified be used.
Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke
toestand wordt terug gebracht en dat onderdelen, identiek aan de
gespecifieerde worden toegepast.
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten.
Der Originalzustand des Gerats darf nicht verandert werden.
Fur Reparaturen sind Original-Ersatzteile zu verwenden.
Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle
condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli
specificati.
Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et
que soient utilisées les pièces de rechange identiques à celles spécifiées.
“Pour votre sécurité, ces documents
doivent être utilisés par des
spécialistes agrées, seuls habilités à
réparer votre appareil en panne.”
GB NL
I
D
I
F
GB
NL
5. WARNING AND LASER SAFETY INSTRUCTIONS

6
LASER SAFETY
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this
device, due to possible eye injury.
LASER DEVICE UNIT
Type: SemiconductorlaserGaAlAs
Wave length: 650 nm (DVD)
780 nm (VCD/CD)
Output Power: 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence: 60 degree
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EXPOSURE TO BEAM
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player
WARNING LOCATION: INSIDE ON LASER COVERSHIELD
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATI ON WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYO NNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU

7

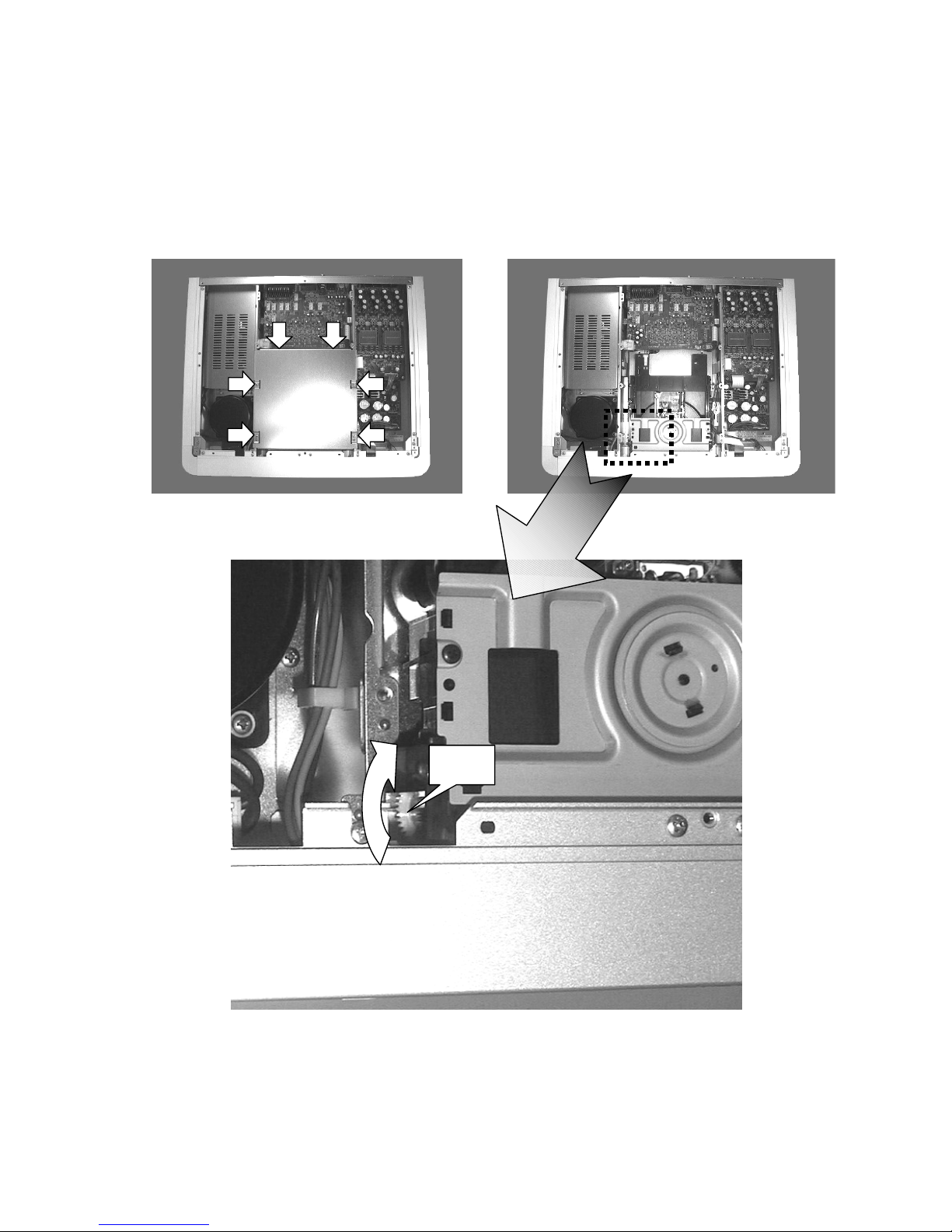

Taking the disc out for EMERGENCY (For example: when It is not possible to turn on the product.
The disc cannot be taken out from the loader.)
1. Removed the top cover with 8 screws.
2. Removed the loader top covers with 6 screws.
3. Turn clockwise the gear by your finger. (See fig.1)
4. Then the tray is moved a little. Pull the tray with your hand at this time.
Fig. 1
Gear
6.TAKING THE DISC OUT OF EMERGENCY

8
7. SERVICE MODE
Press<NEXT >
Press<NEXT >
Press<NEXT >
Press<NEXT >
Press<NEXT >
Press<NEXT >
Press<NEXT > Press<NEXT >
Press<PAUSE>and<STOP>
Press<POWER>while pressing
<PAUSE>and<STOP>
“TEST 1” is displayed
STANDBY LED Light on RED
FL OFF LED Light on RED
All parts of LED is turned on
Each Segment is displayed one by one
Version of Front u-COM
(SYM No.QF01)is displayed
“M VERXXXX” is displayed
Power on without Disc
after
<Fast Forward>and<Fast Reverse>
Region code is displayed
“XXX X” is displayed
MS code is displayed
“MSO X” is displayed
MS code is not necessary for service
Region code is displayed
“XXX X” is displayed
ERROR CODE
Error codes are displayed on the FL display.
FL Display Possible causes Operation of the unit
AV1 VER AV-1 chip is not a match with program of system controller. The sound may not out
with the specific audio.
CPU AERR CPU address error. (Hardware is unusual.) No operation.
DMA AERR DMA address error. (Hardware is unusual.) No operation.
FLASH ID Difference in versions of the internal ROM of the system controller and of the
flash ROM, or bus line failure or reverse installation. No operation.
FLASH WRP Write protect error of the flash ROM. No operation.
FLASH SIG Difference in part number of the flash ROM.
(When the ROM which couldn't be used was used.) No operation.
FLASH SUM Check sum error of the flash ROM (It exceeds the regular size.) or
reverse installation. (Hardware is unusual.) No operation.
FLASH SIZE Size error of the flash ROM. (Use 4 or 8 M-bit.) No operation.
ILLGAL The system controller fetched a code other than an operation code. No operation.
(Hardware is unusual.)
RESERVE Undefined interrupt. (Hardware is unusual.) No operation.
SLOT Inappropriate slot command issued. (Hardware is unusual.) No operation.
“ FL_OFF_LED ” is displayed
“ STB_LED ” is displayed
STANDBY LED and FL OFF LED Light on RED
Check of key When key is depressed,
key name is displayed

9 10
JF07
GND
NAP_SW
525P
VFIL_SW
VIDEO_OFF(V_MUTE)
GND
JP02
JP06
V+12V
V+5V
V-GND
V-GND
V-5V
VMUTE
J950
SAL(L/FL)
A-GND
SAR(R/FR)
J203
L/FL
A-GND
R/FR
JI07
NAPSW
GND
J102
+5VA
D-GND
+5VD
D-GND
-5VA
-9VA
A-GND
+9VA
A-GND
JF02
KEY_OUT_3
KEY_IN_2
KEY_IN_1
KEY_IN_0
JF03
KEY_OUT_3
KEY_IN_2
KEY_IN_1
KEY_IN_0
JP05
M+8V
M+8V
M-GND
M-GND
SW+12V
SW+12V
GND
GND
NC
GND
GND
SW+5V
SW+5V
STBCONT
SW+3.3V
DC+3.5V
SW+3.3V
HEATER
SW+3.3V
-31V
SW+3.3V
SW+3.3V
GND
GND
GND
GND
GND
EV+5V
JV04
+12VV
+5VV
V-GND
V-GND
-5VV
V_MUTE
CN103
VOFF 525P
SQUEEZ LETTER V_SEL1 V_SEL2
XANRON2
XANRN2 CLAMP2
XCOMP
GNDD
(I/P)Y
GNDD GNDD
(I/P)CB
CLMP1
GNDD
XANRH1
(I/P)CR XANRON1
GNDD
V+12D
GNDD
V-12D
GNDD
C
GNDD
Y
JF01
GND NAP_SW 525P VIDEO_OFF GND GND IR IR_SW XREADY LT1 XRESET SSCK S_MUTE VFIL_SW SSI SSO GND E+5V STB_CONT HEATER DC+3.5V -28V N.C. 192/96 STB_CONT GND
JV05
VOFF 525P SQUEEZ LETTER V_SEL1 V_SEL2 XANRON2 XANRN2 CLAMP2 XCOMP GNDD (I/P)Y GNDD GNDD (I/P)CB CLMP1 GNDD XANRN1 (I/P)CR XANRON1 GNDD V+12D GNDD V-12D GNDD C GNDD Y
J406
XMMUTE
ADATA1
CLATCH1
192FS
+3VD
HIBSEL
X48/96
XRESET
CLATCH0
ADATA0
CCLK
BCLK
ADATA2
CDATA
LRCK
XMUTE
D-GND
MCLK
D-GND
+5VD
JF06
N.C. -28V DC+3.5V HEATER STB_CONT E+5V GND SSO SSI SSCK XRESET LT1 XREADY IR_SW IR GND
JI06 D-BUS D-SUBSW D-GND SW+5V DOUT NAPSW TXD RXD DTR CTS D-GND D-GND
J206
PMUTE
SMUTE
D-GND
D-GND
XMUTE
D-GND
LRCLK
D-GND
CDATA
D-GND
BCLK
D-GND
MCLK
CCLK
D-GND
ADATA0
CLATCH0
XRESET
HIBSEL
192FS
JV06
525P
VFIL_SW
V_MUTE
V-GND
J205
192/96
STB
SMUTE
D-GND
JP01
JP03
J601
36/33M GNDD GNDD V+3D V+3D V+3D V+3D V+3D V+3D V+3D V+3D V+3D GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD 20MXCSADSP1
XCSADSP0
XCSSPD
DSPA2 DSPA1 DSPA0
ASDAT0 ASDAT1 ASDAT2 ASDAT3 ASDAT4 ASDAT5 ASDAT6 ASDAT7
ASREQ
XAWR
HADO
XDFSCK
DSPICMD
RESET1
SELMOD
HACK
XDFSI
XRESET
HCS
J602
NC NC GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD DSPEXI24/22M
XDFSO
DIRERR
AO0D
DSPLRCK
AC3
DSPDO0 DSPDO1 DSPDO2
AO2 AO1
DSPBCK
HBCK
HLRCK
RESET2
CN104
IR(D-BUS)
SELIR(D-SUBSW)
GNDD(D-GND)
V+5D(SW+5V)
DOUT
NAPSW
TXD
RXD
DTR
CTS
GNDD(D-GND) GNDD(D-GND)
CN105
12V(N.C.)
-27V(-28V)
AC1(DC+3.5V)
AC2(HEATER)
POWER_ON(STB_CONT)
V+5E(E+5V)
GNDD(GND)
SSO
SSI
SSCK
XRESET
LT1
XRDY(XREADY)
SEL_IR(IR_SW)
IR
GNDD(GND)
JF05
192/96
STB_CONT
SMUTE
GND
CN512 SW2 SW1(GNDS) SPDL- LOAD- SPDL+ LOAD+ SLDRR V+5S SLDEF FG INSIDE GNDS
CN101
+8V(M)_(M+8V)
+8V(M)_(M+8V)
GNDM(M-GND)
GNDM(M-GND)
+12V(A)_(SW+12V)
+12V(A)_(SW+12V)
GND
GND
-12V(A)_(NC)
GND
GND
SW+5V
SW+5V
POWERON(STBCONT)
SW+3.3V
ACA(DC3.5V)
SW+3.3V
ACB(HEATER)
SW+3.3V
-27V(-31V)
SW+3.3V
SW+3.3V
GND
GND
GND
GND
GND
EV+5V
J405
192FS
HIBSEL
XRESET
ADATA0
D-GND
CCLK
D-GND
BCLK
D-GND
CDATA
D-GND
LRCK
CLATCH0
D-GND
XMUTE
D-GND
MCLK
D-GND
SMUTE
PMUTE
J101
AC10.7V GND AC10.7V AC6.2V GND AC6.2V
JI05
TXD
RXD
DTR
CTS
D+5V
D_GND
N.C.
AC10.7V
GND
AC10.7V
AC6.2V
GND
AC6.2V
JP04 NEUTRAL LIV E
CN120
A B2 B1 TRKGRTN VREF(2.5V) B4 B3 C GND RF VCC MPD-VR(650) MPD(650) FOCSDRV 1/2SW GND(650) LD(650) VSHF MPD-VR(780) MPD(780) LD(780) GND(780) FOCSRTN TRKGDRV
CN301
SW2
SW1(GNDS)
SPDL- LOAD- SPDL+ LOAD+ SLDRR
V+5S
SLDEF
FG
INSIDE
GNDS
CN0
A
B2 B1
TRKGRTN
VREF(2.5V)
B4 B3
C
GND
RF
VCC
MPD-VR(650)
MPD(650)
FOCSDRV
1/2SW
GND(650)
LD(650)
VSHF
MPD-VR(780)
MPD(780)
LD(780)
GND(780)
FOCSRTN TRKGDRV
CN121
XMMUTE
ADATA1
XDFCS1(CLATCH1)
192FS
+3VD
HIBIT_SEL(HIBSEL)
96/X48(X48/96)
XDFRST(XRESET)
XDFCS0(CLATCH0)
ADATA0
XDFSCK(CCLK)
BCLK
ADATA2
XDFSO(CDATA)
LRCK
XMUTE
GND(D-GND)
CLK(MCLK)
GND(D-GND)
+5V(+5VD)
CN112
NC NC GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD DSPEXI24/22M
XDFSO
DIRERR
AO0D
DSPLRCK
AC3
DSPDO0 DSPDO1 DSPDO2
AO2 AO1
DSPBCK
HBCK
HLRCK
RESET2
CN111
36/33M GNDD GNDD V+3D V+3D V+3D V+3D V+3D V+3D V+3D V+3D V+3D GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD GNDD 20MXCSADSP1
XCSADSP0
XCSSPD
DSPA2 DSPA1 DSPA0
ASDAT0 ASDAT1 ASDAT2 ASDAT3 ASDAT4 ASDAT5 ASDAT6 ASDAT7
ASREQ
XAWR
HADO
XDFSCK
DSPICMD
RESET1
SELMOD
HACK
XDFSI
XRESET
HCS
J404
+5VA
D-GND
+5VD
D-GND
-5VA
-9VA
A-GND
+9VA
A-GND
JF04
GND
S_MUTE
STB_CONT
N.C.
-28V
DC+3.5V
HEATER
STB_CONT
E+5V
GND
SSO
SSI
NAP_SW
192/96
SSCK
XRESET
LT1
XREADY
IR_SW
IR
GND GND
VIDEO_OFF
VFIL_SW
525P
GND
LIV E
NEUTRAL
JI05
FOR DOWNLOAD SOFTWARE
TO FLASH ROM
DVDM
PV01
PS01
PS02 MECHA
PA01
PA02
PI01 PF03
PF01
PF02
PD01
for N
AUDIO
TRANSF.
BOARD TO BOARD CONNECTORBOARD TO BOARD CONNECTOR
for N
1
2
3
4
5
6
1
2
1
2
3
4
5
6
1
2
3
1 2 3
2 1
1
2
3
4
5
6
7
8
9
1
2
3
4
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
25
14
26
15
27
16
28
17
18
19
20
21
22
23
24
1
2
3
4
5
6
28 27 26 25 24 23 22 21 20 19 18 17 16
4
15
3
14
2
13
1
12 11 10
9 8 7 6 5
12 3 56 78 910
11 12 13 25
4 14
15 16 17 18 19 20 21 22 23 24
26
28 27 26 25 24 23 22 21 20 19 18 17 16
4
15
3
14
2
13
1
12 11 10
9 8 7 6 5
1
23
5
6
7
8
9
10
11
12
13
4
14
15
16
17
18
19
20
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9
10 11 12
1
2
3
5
6
7
8
9
10
11 12
13
4
14
15
16
17
18
19
20
1
2
3
41
2
3
4
1
2
1 2
1 3 5 7 9
11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 4950
48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10
8 6 4 2
1 3 5 7 9
11 13 15 17 19 21 23 25 27 2930
28 26 24 22 20 18 16 14 12 10
8 6 4 2
1 2 3 4 5 6 7 8 9
10 11 12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4
3
2
1
1 2 3 4 5 6 7 8 9
10 11 12
1
2
3
4
5
6
7
8
9
10
11
12
13
25
14
26
15
27
16
28
17
18
19
20
21
22
23
24
1
2
3
5
6
7
8
9
10
11
12
13
4
14
15
16
17
18
19
20
1 2 3 4 5 6
7 6 5 4 3 2 1
1
2
3
4
5
6
1
2
1 2
1
2
3
23
5
6
7
8 9
10 11 12 13 24
4
14 15 16 17 18 19 20
21
22
12 11
10 9 8 7 6 5 4 3 2 1 24 23 22 2 20 19 18 17 16 15 14 13 12 1 21 11 10 9 8 7 6 5 4 3
1
23
5
6
7
8
9
10
11
12
13
4
14
15
16
17
18
19
20
15 14 13 12 11 10 9 8 7 6 5 4 3 2 116
17 18 19 20 21 22 23 24 25 26 27 28 29 30
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 126
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1
2
3
4
5
6
7
8
9
1
2
3 5
6
7
8
9
10
11
12
13 25
4
14
15
16
17
18
19
20
21
22
23
24 26

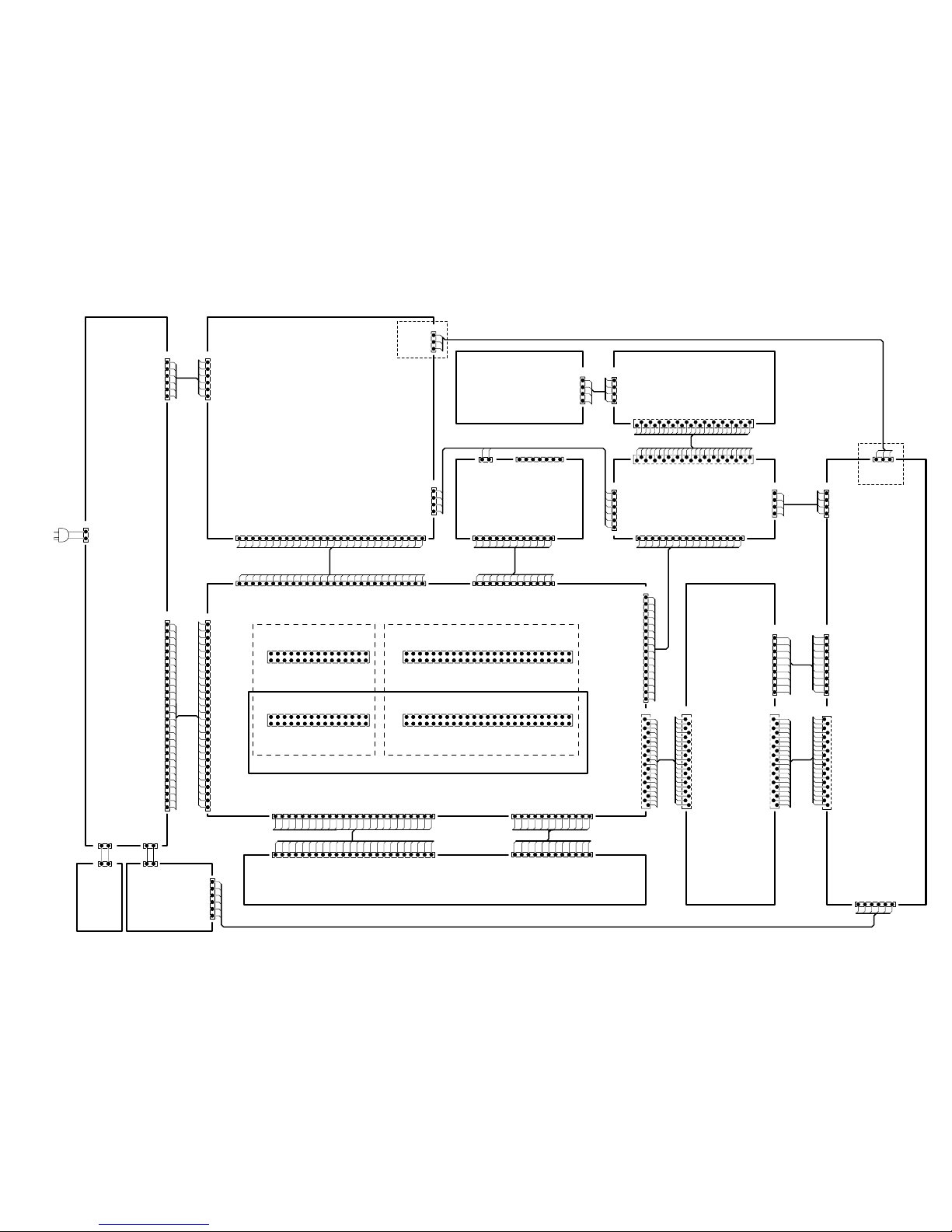

8. WIRING DIAGRAM

1211
:LOW PASS FILTER
RANDOM
PAUSE
KEY NETWORK
RESET
DIMMER
IC
PLAYSTOP
QF01
ZF01
XF01
IR
8MHz
PREV.
OPEN/CLOSE
QF04
MAIN CPU
TMP87PS71F
VF01
VIDEO OFFNEXT
DISPLAY BLOCK
QF03
VFD DRIVER
W001
SP01 T101
AUDIO TRANS.
POWER SUPPLY BLOCK
AC6.2V AC10.7V HEATERDC+3.5V-31VE+5VSW3.3VSW+5VSW+12VV-5VV+5VV+12V M+8V
LP01,CP01,CP02
AC LINE FILTER RECTIFIER
DP01
SNUBBER CIRCUIT
DP02,CP06,RP04,RP05
SWITCHING
CIRCUIT
QP01
PHOTO CUPPLER
QP02
PICK UP
SPDL-M
LOADING MECHA BLOCK
DVD AUDIO BLOCK
DSP1
DSP2
DVD MECHA MODULE BLOCK
SERVO DSP
LC78652W
PE5220A
DVD DECODER MPEG2 DECODER
M65774AFP
PD3410A
System controller VQE3
VQE5
SWITCHING TRANS
TP01
Y
C
Y/G
CB/B
CR/R
RECTIFIERS
DP05,DP06,DP09,DP10,DP14,DP15,DP18
CP13,CP14,CP17,CP19,CP23,CP26 &VOLTAGE REGULATORS
QP05,QP06,QP15
CLAMP1
CLAMP2 VSEL1
SAR,SAL
VSEL2
QV26,QV27
CLAMP
QV03
QV03
QV04
QV05
QB05
QR05
QY14,QY15
QB14,QB15
QC14,QC15
QV06
QB06
QB06
W/O N
for N
ASPECT
I/P
ASPECT
RELAY
L801
L802
L803
L804
L805
L950
L951
VIDEO BLOCK COMPOSITE
S1/S2
COMPONENT
D2
Terminal
for F,A,C,
L,S
for N
AUX-
SCART
TV-
SCART
STBCONT
VMUTE
RECTIFIERS
D101,D102,D151,D152
C101,C102,C103,C104,C151,C152
VOLTAGE REGULATORS
Q104,Q107,Q151
&
HIGH BIT
CIRCUIT
QD01,QD02,
QD03 AUDIO DAC
QD21
AUDIO DAC
QD41
QD61
AUDIO DAC
QD81
AUDIO DAC
AMP&LPF
Q401
AMP&LPF
AMP&LPF
AMP&LPF
AMP&LPF
AMP&LPF
HDAM
Q201
Q251
Q451
Q501
Q551
CURRENT AMP
HDAM
CURRENT AMP
CURRENT AMP
CURRENT AMP
CURRENT AMP
CURRENT AMP
L/FL
R/FR
SURR.L
SURR.R
CENTER
SUB WOOFER
AC10.7V
AC6.2V
+9VA -9VA +5VA +5VD -5VA
Q241
BUFFER
for N
AUDIO BLOCK
DIGITAL OUT BUFFER
QI01
DIG OUT
COAX
DIG OUT
OPT
LI02
DIGITAL OUT BLOCK D-BUS
QV13
LY07
LB07
RC17
RB17
RY17
CLAMP
CLAMP
CLAMP
Y
CB
CR
V
Y
C
R
G
B
QP03
VOLTAGE DETECTOR
V-PART DVD
AUDIO
192kHz
96kHz
TRK
CHP REMAIN
TOTAL
DOLBY D
DIG OFF
GRP
TITLE
VIDEO OFF
L C
LFE
R
LS S RS
PROGRESSIVE LAST MEMO
CONDITION
DOWN MIX
9. BLOCK DIAGRAM

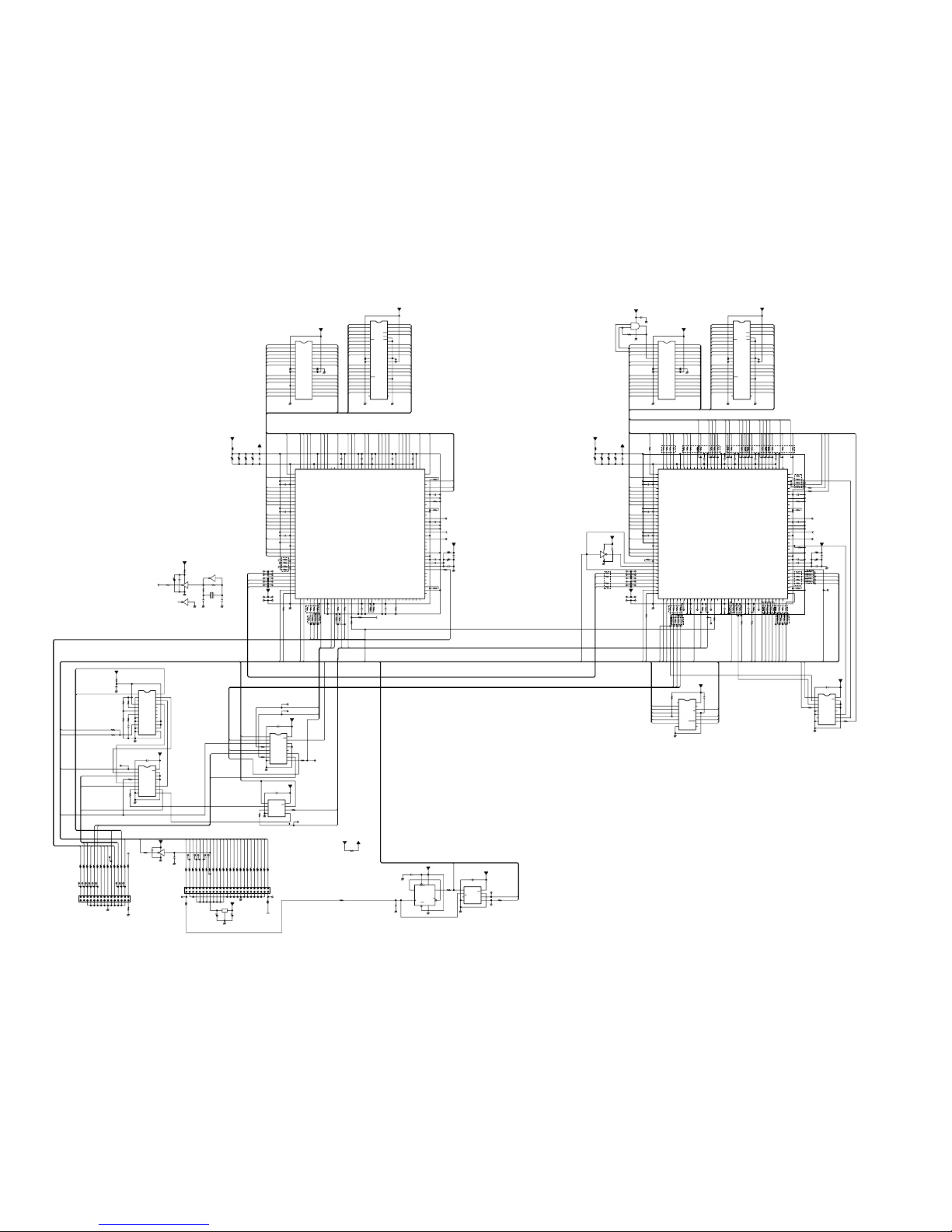

13 14
J602
J601
Q626
TC7WH125FU-TRB
Q627
LC89051V-TBB
Q625
TC74VHC157FT-TBB
C676
100/6.3v
F601
1500p
C677
220/6.3v
TP44
TP45
C667
27p
Q613
TC7SH04FU-TLB
C666
0.1
R656
47
TP46 TP47
TP49
TP50 TP51
R655
0
TP52 TP53 TP54
TP55
TP56 TP57 TP58 TP59 TP60
D-GND
D-GND
D-GND
D-GND
D-GND
D-GND
20M
24/22M
0.1
C672
D-GND
47
R668 47
R669
TP43
D-GND
0.1
C671
47
R667
47
R666
47
R665
TP42
TP41
TP40
Q624
TC74VHC157FT-TBB
D-GND
C670
0.1
R664
47
47
R663
TP61
D-GND
150
R674
C674 0.01
R673 5.1k R672
5.1k
R671 24k
R675
0
R676
(NC)
R670
0
C673
0.1
D-GND
R659
0
R662
0
C675
(NC)
D-GND
C668
0.1
D-GND
R660
47
Q623
TC7WH157FU-TRB
D-GND
C669
0.1
TP38
TP39
R661
47
R629
0
R607
0
TP03
TP19
TP26
R636
47
R627
47
10k
R645
TP06
D-GND
0.1
C636
Q602
XCD56362PV100-P Q601
XCD56362PV100-P
TP08
+3VD
D-GND
R619
47
D-GND
TP18
TP09
D-GND
TP01
R635 10k
C620
0.1
TP10 TP27
TP12
TP62
TP36
0.1
C635
10k
R644
TP14
R616
10k
47
R631
L601
1U
TP34
+3VD
C621
100/6.3v
TP13
D-GND
K6R1008V1C-JC12-TBB
Q604
Q612(3/3)
TC7WU04F-TRB
TP11
R637
10k
0.1
C617
R606
10k
+3VDB
TP17
R603 10k
+3VDB
TP31
R648
0
+3VDA
Q607
K6R1016V1C-TC12-TBB
TP16
0.1
C634
R626
47
0.1
C611
0.1
C614
TP21
TP29
+3VDA
20M
R679
470
C628
0.1
10kR640
R610
10k
C629
47/6.3v
R623
47
Q606
K6R1008V1C-JC12-TBB
0.1
C633
C664
18p
0.1
C603
C656
0.1
L602
1u
TP24
+3VDA
C630
0.1
+3VD
C651
0.1
0.1
C612
R654
1M
C653
0.1
10k
R649
D-GND
+3VD
C643
0.1
0.1
C640
24/22M
0.1
C632
D-GND
C655
0.1
TP15
Q612(2/3)
TC7WU04F-TRB
+3VDA
C663
47/6.3v
C657
0.1
D-GND
R641
10k
20MHz
X601
R608
10k
0.1
C616
K6R1016V1C-TC12-TBB
Q605
C662
0.1
R622
47
R601 47
R677
0
C644
100/6.3v
0.1
C641
20M
TP04
5600p
C631
D-GND
TP02
C658
0.1
0.1
C608 C605
47/6.3v
D-GND
C652
0.1
5600p
C607
R625
47
R638
(NC)
0.1
C601
0.1
C610
C645 (NC)
TP20
TP63
C659
0.1
0.1
C642
R612
10k
0.1
C627
R602
10k
TP05
R624
47
C646
220/6.3v
10k
R618
C654
0.1
0.1
C613
R639
0
TP32
0.1
C639
0.1
C602
+3VDB
0.1
C626
R628
10k C604
0.1
D-GND
TP23
C647 (NC)
D-GND
R643
0
R615
10k
TP07
TP22
D-GND
Q612(1/3)
TC7WU04F-TRB
TP33
R611
0
C624
220/6.3v
0.1
C638
0.1
C625
C623
NC
D-GND
TP28
C606
0.1
0.1
C615
C665
15p
0.1
C618
TP25
R647
10k
R604 10k
10k
R617
D-GND
C622
NC
R605
0
R634
47
TP30
TP35
R620
47
D-GND
R680
(NC)
Q628
TC7SZ08FU-TLB
10k
R646
R614 0
+3VD
0.1
C637
0.1
C609
Q611
TC74VHC157FT-TBB
C661
0.1
D-GND
47
R653
47
R652
R609
47
Q609
TC74VHC595FT-TBB C660
0.1
D-GND
R651
10k
20M
D-GND
C619
0.1
Q608
TC7SH04FU-TLB
+3VDA
0
R650
D-GND
+3VDB
F603
Bead
R678
0
+3VDA
F602
Bead
+3VDA
+3VD
+3VDX
+3VDX
+3VD
+3VD
+3VD
+3VD
+3VD
R613
0
R642
0
+3VD
+3VD
+3VDX
R621
10k
R632
47
R633
10k
F662 0 F664 Bead F666 Bead F668 Baed F682 Bead F684 0 F686 0 F688 0 F690 Bead
F689
Bead
F611
Bead
TP48
Q622
TC7WH74FU-TRB
D-GND
D-GND
F670 0 F672 0 F678 0 F680 0 F676 0 F674 0
F612 0 F614 0 F616 0 F618 Bead F620 0 F622 0 F624 0 F626 Bead F628 0 F630 0 F632 0 F634 0 F636 0 F638 0 F640 0 F642 0 F644 0 F646 0 F648 0 F650 0 F652 0 F654 0 F656 0 F658 0 F660 0
HACK1
HREQ
(LRCK)
(DATA)
(LRCK)
3.1V
0V 0V 0V 0V 0V
1.9V
0V
0V
0V
0V
0V
0V
3.1V 3.1V
0V 3.1V 3.1V 3.1V 3.1V 0V 1.6V 3.1V 3.1V 3.1V 3.1V 3.1V 3.1V
0V
0V
0V
3.1V
3.1V
3.1V
0V
3.1V
3.1V
3.1V
3.1V
0V 0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
3.1V
3.1V
0V
1.6V
1.6V
1.6V
3.1V
1.9V
0V
3.1V
0V 3.1V
0V
3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
0V 0V
3.1V
0V
0V
0V
0V
0V
0V
3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
0V 0V
1.6V
0V
3.1V
3.1V
3.1V
0V 3.1V
0V 0V 0V
0V 3.1V 3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
0V
3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
3.1V
0V 3.1V
3.1V
0V
3.1V
3.1V
0V
0V
3.1V 0V
3.1V
1.6V
0V
PD01
DSPICMD
XDFSI
HCS
XAWR
ASREQ
ASDAT[7] ASDAT[6] ASDAT[5] ASDAT[4] ASDAT[3] ASDAT[2] ASDAT[1] ASDAT[0]
DSPA[0] DSPA[1] DSPA[2]
XCSSPD
XCSADSP0 XCSADSP1
HADO
DSPLRCK
DSPDO0 DSPDO1
DFSCK
SCKT1
FST1
SDI12
SDI02
SDI22
SDO[0]
SDO[1]
SDO[2]
AV1/XDSP1
XEXCKON
AO2
AO1
DATA
HLRCK
HBCK
AO0D
AV1/XDIR
AC3
DIRRST
XRESET
DSP1MUTE
DIRERR
ACI
DAXCK
HCKT
PPD[0]
DSPRD
PD[22]
PPD[7]
MPA[8]
PDSPRD
PPD[2]
PD[19]
DSPLRCK
PA[7]
PD[15]
PPA[2]
PPA[1]
PPD[13]
PDSAA0
PPD[8]
PPA[9]
PD[20]
DSPA[0]
PA[1]
MPA[3]
MPA[13]
SDO[0]
MPA[9]
PPD[12]
PPD[23]
PPA[9]
PD[21]
PPD[3]
PA[10]
PPD[4]
PPD[6]
PA[8]
PPA[8]
PPD[11]
PPD[22]
PPA[11]
PD[22]
DSPA[1]
PPA[10]
PA[11]
PA[11]
PPA[7]
SDO[2]
MPA[10]
PPD[10]
PPA[15]
PD[23]
PPA[0]
PA[2] PA[3]
PA[12]
MPA[0]
PPA[6]
PD[21]
PPD[9]
PDSPWR
PA[0]
DSPA[2]
PD[0]
PPA[11]
PPD[5]
PA[13]
PD[1]
PPD[11]
PPA[5]
SDO[1]
PD[2]
MPA[11]
PA[1]
PA[14]
PD[8]
PPD[10]
MPA[10]
PPA[12]
20M
PA[2]
PPA[4]
HCS
PD[12]
PA[15]
PPA[3]
PPD[9]
MPA[1]
MPA[12]
XDFSI
PA[3]
PPA[12]
PD[13]
PPA[7]
PPD[8]
PPA[13]
PD[10]
PA[4]
PPA[11]
DSPAA1
PPA[6]
PPA[14]
PPD[21]
PPD[7]
DSPAA0
MPA[13]
PA[10]
DSPDO2
PPA[4]
PA[5]
PPA[10]
PPD[16]
PPD[21]
PPA[5]
PPD[20]
PPA[12]
MPA[12]
PA[6]
PPA[9] PPA[3]
20M
PPD[15]
PPD[20]
PPA[4]
PPD[19]
PPA[10]
PD[23]
MPA[14]
XCSADSP0
PA[7]
PPA[8]
DSPAA0
PPA[2]
DSPWR
PPD[14]
PPA[5]
PPD[19]
PPD[18]
MPA[9]
PA[8]
PPA[1]
PPD[13]
PPD[18]
PA[15]
MPA[0]
MPA[15]
DSPDO0
PA[9]
PPD[17]
PPD[12]
DSPAA0
PPA[0]
PPD[17]
ASDAT[0]
PPD[2]
PA[13]
20M
PPD[16]
DFSCK
MPA[1]
DSPAA1
PD[4]
PPD[15]
PA[5]
ASDAT[1]
PPA[13]
MPA[5]
PPD[14]
PD[11]PPA[6]
PDSAA0
MPA[2]
PA[9]
PD[5]
ASREQ
PD[0]
PD[5]
MPA[7]
ASDAT[2]
PD[7]
PD[6] PD[1]
PD[8]
DSPBCK
DSPWR
PPD[1]
MPA[3]
PPA[7]
PD[7] PD[2]
XAWR
PD[9]
XCSADSP1
PA[12]
DSPRD
PPD[0]
ASDAT[3]
DATA
PD[10]
PPA[0]
PD[17]
XDFSO
PPA[15]
MPA[4]
PDSPWR
PD[11]
PD[19]
XDFSI
PPA[14]
PA[14]
ASDAT[4]
PD[12]
PPA[1]
PD[18]
DFSCK
PPA[13]
PD[20]
PPD[23]
PD[3]
PPA[3]
PD[16]
MPA[5]
PD[13]
SCKT1
PPD[22]
FST1
PA[6]
SCKT1
ASDAT[5]
MPA[15]
PD[14]
PPA[14]
XDFSO
PPA[2] PD[9]
PD[14]
MPA[6]
PA[4]
MPA[2]
PD[3]
PPD[6]
PD[15]
PDSPRD
PD[6]
PPD[1]
MPA[6]
FST1
MPA[11]
24/22M
ASDAT[6]
MPA[4]
PPD[5]
PD[16]
SDI22
PPA[15]
DSPWR
MPA[7]
PA[0]
PPD[4]
PD[17]
RESET2
SDI12
MPA[8]
PPA[8]
MPA[14]
DSPRD
PPD[3]
ASDAT[7]
PD[18]
SDI02
DSPAA0
DSPICMD HADO ACI
SELMOD
HACK
XDFSC K
XRESET
XCSSPD
XDFSO
AV1/XDIR
DIRRST
DAXCK
AV1/XDSP1
XEXCKON
DSP1MUTE
TCK
TMS
TRST
SELMOD
PDSAA0
PDSPRD
PDSPWR
DSPBCK
TD
PD[4]
XRESET
HACK
SELMOD
RESET1
RESET2
AO2
AC3
24/22M
RESET1
HLRCK
HBCK
AO1
AO0D
DIRERR
XDFSO
XDFSCK
20M
DSPDO1
DSPDO2
HCKT
TRST
TD
TCK
TMS
VCC
G2
Y1
A2
G1
A1
Y2
GND
ERROR
DATAOUT
LRCK
BCK
FS128
CKOUT
DQSY/LD
SRDT/DO
SWDT/DI
XLAT/CE
SCLK/CL
TEST2TEST1
AVOCK
XMODE
CKSEL
GND
VCO
VIN
R
VDD
R/OUT1
DIN2
DIN1
VCC
ST
4A
4B
4Y
3A
3B
3YGND
2Y
2B
2A
1Y
1B
1A
SELECT
VCC
ST
4A
4B
4Y
3A
3B
3YGND
2Y
2B
2A
1Y
1B
1A
SELECT
VCC
ST
SELECT
Y
A
B
Y
GND
SCK SS HREQ SDO0 SDO1 SDO2 SDI2 VCCS GNDS SDI1 SDI0 FST FSR SCKT SCKR HCKT HCKR VCCQL GNDQ VCCQH HDS HRW HACK HOREQ VCCS GNDS ADO ACI TIO0 HCS HA9 HA8 HAS HAD7 HAD6 HAD5
37:HAD4
38:VCCH
GNDH
HAD3
HAD2
HAD1
HAD0
RESET
VCCP
PCAP
GNDP
GNDP1
VCCQH
AA3
AA2
CAS
DE
GNDQ
EXTAL
VCCQL
VCCC
GNDC
CLKOUT
NC
PINT
TA
BR
BB
VCCC
GNDC
WR
RD
AA1
AA0
BG
A0
A1
VCCA
GNDA
A2 A3 A4 A5
VCCA
GNDA
A6 A7 A8 A9
VCCA
GNDA
A10 A11
GNDQ
VCCQL
A12 A13 A14
VCCQH
GNDA
A15 A16 A17
D0 D1 D2
VCCD
GNDD
D3 D4 D5 D6
D7
D8
VCCD
GNDD
D9
D10
D11
D12
D13
D14
VCCD
GNDD
D15
D16
D17
D18
D19
VCCQL
GNDQ
D20
VCCD
GNDD
D21
D22
D23
MODD
MODC
MODB
MODA
TRST
TDO
TDI
TCK
TMS
MOSI
MISO
SCK SS HREQ SDO0 SDO1 SDO2 SDI2 VCCS GNDS SDI1 SDI0 FST FSR SCKT SCKR HCKT HCKR VCCQL GNDQ VCCQH HDS HRW HACK HOREQ VCCS GNDS ADO ACI TIO0 HCS HA9 HA8 HAS HAD7 HAD6 HAD5
37:HAD4
38:VCCH GNDH
HAD3
HAD2
HAD1
HAD0
RESET
VCCP
PCAP
GNDP
GNDP1
VCCQH
AA3
AA2
CAS
DE
GNDQ
EXTAL
VCCQL
VCCC
GNDC
CLKOUT
NC
PINT
TA
BR
BB
VCCC
GNDC
WR
RD
AA1
AA0
BG
A0
A1
VCCA
GNDA
A2 A3 A4 A5
VCCA
GNDA
A6 A7 A8 A9
VCCA
GNDA
A10 A11
GNDQ
VCCQL
A12 A13 A14
VCCQH
GNDA
A15 A16 A17
D0 D1 D2
VCCD
GNDD
D3 D4 D5 D6
D7
D8
VCCD
GNDD
D9
D10
D11
D12
D13
D14
VCCD
GNDD
D15
D16
D17
D18
D19
VCCQL
GNDQ
D20
VCCD
GNDD
D21
D22
D23
MODD
MODC
MODB
MODA
TRST
TDO
TDI
TCK
TMS
MOSI
MISO
A3
A2
A1
A0
CE
I/O1
I/O2
VDD
GND
I/O3
I/O4
WE
A16
A15
A14
A13 A12
A11
A10
A9
A8
I/O5
I/O6
VDD
GND
I/O7
I/O8
OE
A7
A6
A5
A4
A0
A1
A2
A3
A4
CS
I/O1
I/O2
I/O3
I/O4
VCC
VSS
I/O5
I/O6
I/O7
I/O8
WE
A5
A6
A7
A8
A15
A14
A13
OE
UB
LB
I/O16
I/O15
I/O14
I/O13
VSS
VCC
I/O12
I/O11
I/O10
I/O9
NC
A12
A11
A10
A9
NC NC
A3
A2
A1
A0
CE
I/O1
I/O2
VDD
GND
I/O3
I/O4
WE
A16
A15
A14
A13 A12
A11
A10
A9
A8
I/O5
I/O6
VDD
GND
I/O7
I/O8
OE
A7
A6
A5
A4
A0
A1
A2
A3
A4
CS
I/O1
I/O2
I/O3
I/O4
VCC
VSS
I/O5
I/O6
I/O7
I/O8
WE
A5
A6
A7
A8
A15
A14
A13
OE
UB
LB
I/O16
I/O15
I/O14
I/O13
VSS
VCC
I/O12
I/O11
I/O10
I/O9
NC
A12
A11
A10
A9
NC NC
VCC
ST
4A
4B
4Y
3A
3B
3YGND
2Y
2B
2A
1Y
1B
1A
SELECT
VCC
QA
SER
G
RCK
SCK
SCLR
QH’GND
QH
QG
QF
QE
QD
QC
QB
CLR
D
CLK
VCC
Q
Q
PR GND
1357911131517192123252729
3028262422201816141210
8642 135791113151719212325272931333537394143454749
5048464442403836343230282624222018161412108642
8
7
6
5
1
2
3
4
24
23
22
21
20
19
18
17
16
15
14
1312
11
10
9
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
3
21
24 5
3
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
8
7
6
5
1
2
3
4
4
3
6
5
6
5
2
1
8
7
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
4
3
56
4
3
4
3
6
5
4
3
8
7
2
1
78
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
8
7
62
8
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
22 23
2
1
56
4
3
12
8
7
2
1
6
5
6
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
4
3
6
5
8
7
4
3
4
3
78
17 8
4
6
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
22 23
2
1
8
7
8
7
2
1
78
6
5
34
2
1
4
3
4
3
34
2
1
2
1
2
1
2
1
56
2
1
6
5
6
5
8
7
6
5
6
5
12
8
7
56
35
8
7
2
1
8
7
4
3
12
4
3
8
7
4
3
6
5
2
14
5
3
78
34
6
5
16
15
14
13
12
11
10
98
7
6
5
4
3
2
1
16
15
14
13
12
11
10
98
7
6
5
4
3
2
1
24
5
3
78
56
12
34
12
8
7
2
1
8
2
1
6
3
5
74

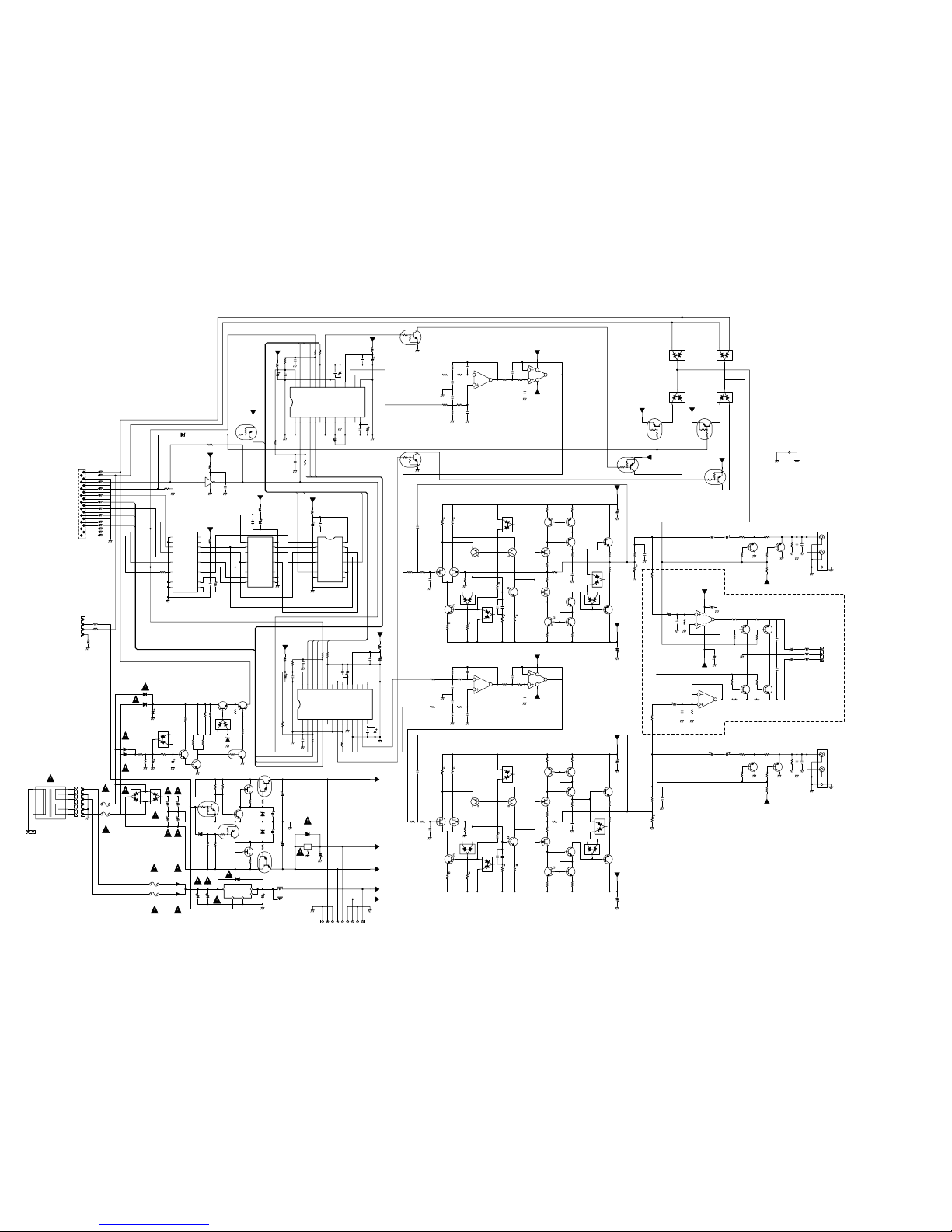

10. SCHEMATIC DIAGRAM

1615
J206
NC
C233
100
R235
2SC4213
Q232
2SC4213
Q231
2.2k R240
220k R238
-5VA
(JUMPER)
C232
220/16v
C231
NJM2114M
Q241
NJM2114M
Q241
100k R242 270p C246
A-GND
22/25v
C241
-9VA
NC
C244
270p C242
100
R246
2SC4213
Q242
2.2k
R249
100
R247
2SC4213
Q243
2.2k R250
Bead
F241 J203
BeadF242
Bead
F243
+9VA
NC
C243
A-GND
270p C292
100
R296
2SC4213
Q244
100
R297
2.2k
R299
2SC4213
Q245
2.2k
R300
A-GND
A-GND
270p C296
A-GND
100k R292
A-GND
A-GND
22/25v
C291
1k
R291
A-GND
NC
C283
A-GND
22k
R287
A-GND
2SC4213
Q282
A-GND
2.2k R290
220k
R288
-5VA
2.2k
R289
2SC4213
Q281
A-GND
100
R286
100
R285
(JUMPER)
C282
220/16v
C281
A-GND
22k
R237
A-GND
A-GND
A-GND
A-GND
2.2k R239
1k
R241
2SC2705
Q229
33
R229
33
R230
220/16v
C221
+9VA
A-GND
A-GND
2SA1145
Q230
2SC3324
Q228
2SC3324
Q226
270
R226
A-GND
220/16v
C222
270
R224
270
R225
2SA1312
Q225
2SA1312
Q223
2SA1312
Q227
47
R228
680p C223
A-GND
270
R223
2SK170
Q221
100
R221
120
R227
100
R222
-9VA
NC
C301
1SS302
D303
2SA1312
Q305
B
C
E
2SC3324
Q306
33k
R306
560
R308
47
R307
2SA1312
Q304
560
R305
240
R303
A-GND
2SK369
Q302
B
C
E
2SC2873
Q303
2SK369
Q301
68
R304 B
C
E
2SC3324
Q224
120
R302
120
R301
A-GND
NC
C211
0
R211
NJM2114M
Q201
-9VA
+9VA
560p C207
3.3k
R208
220p C209
A-GND
3.3k
R207
560p C205
1.2k
R205
1000p
C203
2.4k R203
1000p
C204
1.2k
R206
560p C206 2.4k R204
A-GNDA-GND
3.3k
R202
3.3k
R201
A-GND
220/16v
C271
A-GND
100
R272
47
R357
220/16v
C272
+9VA
33k
R356
A-GND
120
R352
1SS302
D353
A-GND
-9VA
270
R274
0
R261
2SA1312
Q355
68
R354
270
R275
560
R358
2SA1312
Q275
100
R262
A-GND
2SA1312
Q273
B
C
E
2SC3324
Q356
560
R355
2SA1312
Q277
B
C
E
2SC3324
Q274
2SA1312
Q354
47
R278
2SK369
Q351
2SA1145
Q280
680p
C273
A-GND
2SC3324
Q278
A-GND
270
R273
2SC3324
Q276
B
C
E
2SC2783
Q353
2SC2705
Q279
NC
C351
2SK170
Q271
270
R276
270p C260
33
R279
2SK369
Q352
100
R271
33
R280
240
R353
120
R277
120
R351
1SS301
D281
1SS301
D231
1SS301
D282
1SS301
D232
AD1852
QD21
0.1
CD27
100/10v
CD28
A-GND
Bead FD23
D-GND
D-GND
0.1
CD21
1000/10v
CD22
+5VD
100/10v CD26
0.1
CD25
0.1
CD23
100/25v
CD24
+5VA
A-GND
+5VA
0.1
CD47
+5VD
AD1852
QD41
1000/10v
CD42
0.1
CD45
0.1
CD41
100/25v
CD44 0.1
CD43
D-GND
100/10v
CD46
100/10v
CD48
Bead
FD43
D-GND
TC74VHC157FT
QD03
PD0236AM
QD02
TC74VHCT541AFT
QD01
+5VD
D-GND
0.1
CD05
470/10v
CD06
D-GND
470/10v
CD04
0.1
CD03
+5VD
D-GND
+5VD
470/10v
CD02
0.1
CD01
NC
QD31
FD31
NC
+5VD
NC
CD31
F215 Bead
F213 Bead
F211 Bead
F209 Bead
F207 Bead
F205 Bead
F204 Bead
F203 Bead
F202 Bead
F201 Bead
D-GND
F217 Bead
J205
D-GND
0
RD01
J204
EARTH
A-GND
100
R236
22k R284
22k
R234
T101 J101
A-GND
FCH10A15
D101
FRH10A15
D102
U1BC44
D184
U1BC44
D183
R181
1k
R182
22k
A-GND
0.1/50v
C182
A-GND
3.3M
R183
1SS301
D185
10/25v
C183
A-GND
2SC4116
Q181
2SC4116
Q182
A-GND
47k
R184
22k
R185
22k
R186
DTC114TUA
Q185
2200/25v
C101
2200/25v
C102
2200/25v
C104
2200/25v
C103
A-GND
10kR187 10kR188
1SS301
D186
5.6v D187
A-GND
10k
R190
2SC4116
Q183
47k
R189
2SA1586
Q184
2200/25v
C181
A-GND
U1BC44
D182
U1BC44
D181
DTC114EUA
Q101
22k
R101 22k
R102
2SC4116
Q103
2SK246
Q102
100
R103 1k R104
10v
D104
47/16v
C105
470/16v
C106
10v
D105
47/16v
C107
470/16v
C108
DTA114EUA
Q105
3.9v
D103
22k
R105 22k R106
100
R107
2SK246
Q106
2SB1020
Q107 2SD1415
Q104
1k
R108
A-GND
U1BC44
D153
SI-3050C
Q151
1000/10v
C153
D-GND
8.2uH
L101
8.2uH
L102
3300/16v
C152
3300/16v
C151
U1BC44
D151
U1BC44
D152
NJM79L05A
Q108
A-GND
470/10v
C109
A-GND
U1BC44
D106
D-GND
F219 Bead
F220 Bead
J102
A-GND
Bead
F224
BeadF222
BeadF223
Bead FD01
Bead FD02
Bead FD03
Bead
FD41
Bead FD42
Bead FD21
Bead FD22
DTA114EU
Q234
DTA114EU
Q233
+5VD +5VD
DTA114EU
Q283
+5VD
DTA114EU
Q284
+5VD
NJM2114M
Q201
3.3k
R258
3.3k
R251
1.2k
R255
A-GND A-GND
-9VA
1000p
C253
NJM2114M
Q251
1.2k
R256
A-GND
NJM2114M
Q251
3.3k
R252
560p C256 560p
C255
560p
C257
220p
C259
2.4k
R254
A-GND
1000p
C254
+9VA
3.3k
R257
2.4k R253
1SS301
D222
2SJ74
Q222
1SS301
D301
1SS301
D272
2SJ74
Q272
1SS301
D351
RD31
0
270p
C210
100
R212
NC
C261
4.7k
RD32
47/16v
C295
47/16v
C245
F151
250v
T500mA
F152
250v
T500mA
F101
250v
T1.25A
F102
250v
T1.25A
+5VD
+5VA
-5VA
-9VA
+9VA
J202
J201
NCRD21
D-GND
NCRD41
D-GND D-GND
DTC114EU
QD33
D-GND
D-GND
DTC114EU
QD34
D302
1SS302
D221
1SS302
R213
0
C212
NC
A-GND
D352
1SS302
D271
1SS302
R263
0
C262
NC
A-GND
270p C234
A-GND
270p C284
A-GND
33p
C352 33p
C302
3.3v
DD31
NC
QD32
+5VD
1k
RD22
D-GND
1000p
CD30
47pCD29
D-GND
1kRD42
1000p
CD50
47p
CD49
D-GND
D-GND
1k
RD23
10k
RD24
10kRD25
10kRD45
10kRD44
1kRD43
HLRCLK
HDATA
HBCLK
HLRCLK
HBCLK
HDATA
HLRCLK
HBCLK
HDATA
CDATA
CCLK
CDATA CCLK
CDATA
CCLK
CLATCH0
XMUTE1
CLATCH0
CLATCH0
XMUTE1
J405 (PA02)
JF05 (PF03)
J404 (PA02)
DGND DVDD MCLK CLATCH CCLK CDATA NC 192/48 ZEROR DEEMP 96/48 AGND OUTR+ OUTR- FILTR
SDATA
BCLK
LRCLK
PD/RST
MUTE
ZEROL
IDPM0 IDPM1
FILTB
AVDD
OUTL+
OUTL-
AGND
DGND DVDD MCLK CLATCH CCLK CDATA NC 192/48 ZEROR DEEMP 96/48 AGND OUTR+ OUTR- FILTR
SDATA
BCLK
LRCLK
PD/RST
MUTE
ZEROL
IDPM0 IDPM1
FILTB
AVDD
OUTL+
OUTL-
AGND
VDD
XST
4A
4B
4Y
3A
3B
3YGND
2Y
2B
2A
1Y
1B
1A
SELECT
NC
LRCKO
SEL
NC
BCSEL
DASEL
LRSEL
GND
XRST
NC
BCKO
VDD
NC
NC
DATAI
BCKI
DATAOLRCKI
A1
A2
A3
A4
A5
A6
A7
A8
G1
G2
B1
B2
B3
B4
B5
B6
B7
B8
VCC
GND
J101
1PIN:AC6.2V
2PIN:GND
3PIN:AC6.2V
4PIN:AC10.7V
5PIN:GND
6PIN:AC10.7V
1
2
3
5
6
7
8
9
10
11
12
13
4
14
15
16
17
18
19
20
7
6
58
4
1
3
2
1
2
3
7
5
6
1
28
2 3 4 5 6 7 8 9 10 11 12 13 14
27 26 25 24 23 22 21 20 19 18 17 16 15
1
28
2 3 4 5 6 7 8 9 10 11 12 13 14
27 26 25 24 23 22 21 20 19 18 17 16 15
16
15
14
13
12
11
10
98
7
6
5
4
3
2
1
3
5
17
16
1
2
4
9
18
6
7
10
12
13
14
15
811
2
3
4
5
6
7
8
9
1
19
18
17
16
15
14
13
12
11
20
10
24
5
3
1
2
3
4
3
5
6
8
4
7
1
2
1
2
3
4
5
6
1
2
3
4
5
6
12
3
21
5
4
123456789
1
2
34
8
1
3
27
6
54
8
1
2
4
5
3
1
2
4
5
3
XMUTE1
L/FL
A-GND
R/FR
(2/2)
(1/2)
LCH
(2/2)
(1/2)
MCLK
D-GND
XMUTE
D-GND
LRCLK
D-GND
CDATA
D-GND
BCLK
D-GND
CCLK
D-GND
ADATAO
CLATCHO
XRESET
D-GND
HIBSEL
PMUTE
192FS
SMUTE
192/96
STB
D-GND
SMUTE
D-GND D-GND A-GND A-GND
+5VD
+5VA
+9VA
-9VA -5VA
(1/2)
(2/2)
LAH
LAH
FL
FR
RCH
LAP
+3.0V
+1.6V
+1.5V
+1.5V
0V
+3.0V
0V
+4.9V
0V
0V
0V
+2.5V
+2.5V
0V
+4.9V
+2.5V
+2.5V
+2.5V
+2.5V +2.5V
+4.9V
0V
+4.9V
+3.3V
0V
+4.9V
+8.8V
-9.0V
-5.1V
-5.1V -5.1V
-5.1V
-5.0V
-5.0V
-5.0V
-5.0V
+5.0V
+4.9V
+5.0V
+5.0V -5.0V
+4.7V
-5.0V
+4.9V
0V
+8.8V
-9.0V
+8.8V
-9.0V
+8.8V
-9.0V
+4.9V
0V
+4.9V
+4.9V
+3.3V
+14.5V
-5.2V
+5.6V
+5.9V
+5.5V
+0.9V
+0V
+1.3V
+9.7V
+10.1V
+0.7V
+5.5V
+4.8V
-14.5V
+14.5V
+1.4V
-10.2V
+10.1V
-9.0V
-9.0V +8.8V -5.1V +4.9V +4.9V 0V 0V 0V 0V
+7.4V
-5.0V -5.0V
-9.0V +8.8V
0V 0V
0V 0V
N ONLY
-5.0V
-5.0V

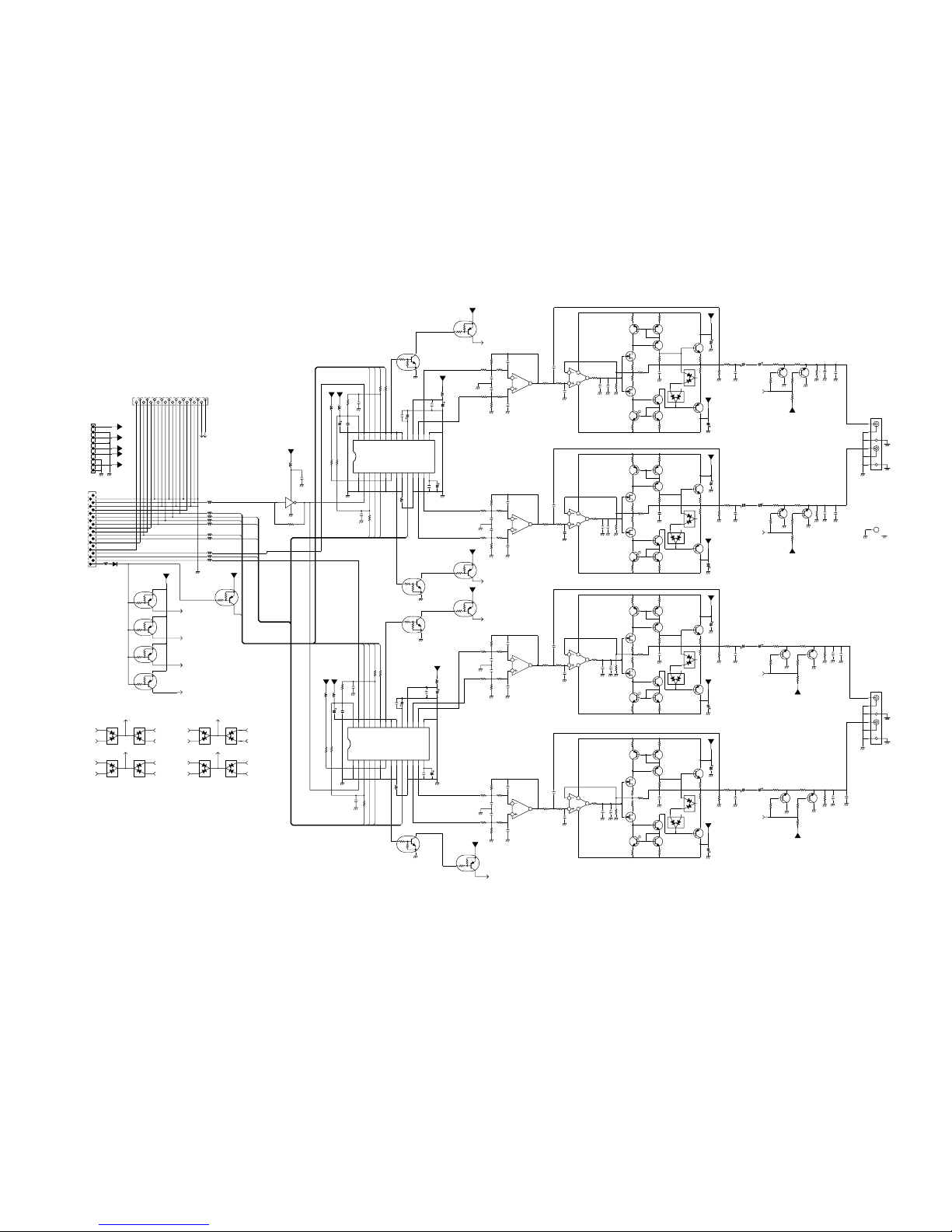

PA01

17 18
0.1
CD67
D-GND
100/25v
CD64
AD1854
QD61
100/25v
CD68
Bead
FD64 0.1
CD65
NC
RD62
100/10v
CD66 0.1
CD63
+5VD
0.1
CD61
A-GND
+5VA
10kRD61
1000/10v CD62
J405
F413 Bead
F412 Bead
F415 Bead
F402 Bead
J406
F404 Bead
F418 Bead
F408 Bead
F403 Bead
F414 Bead
F401
Bead
NC
QD71
D-GND
NC
FD71
+5VD
3.3k
R401
3.3k
R402
A-GND
2.4k R453
A-GND
2.4k
R454
560p C455
3.3k
R452
3.3k
R451
1.2k
R456
560p C456
1.2k
R455
1000p
C453
A-GND
1000p
C454
+5VA
1000p
CD69
D-GND
ZEROSL
ZEROSR
NC
CD71
D-GND
0
RD71
NCRD82
Bead FD84
100/25v
CD84
D-GND
0.1
CD87
D-GND
0.1
CD83
ZEROC
+5VA
1000/10v
CD82
0.1
CD81
+5VD
1000p
CD89
A-GND
10k
RD81
100/10v
CD86
+5VA
100/10v
CD88
AD1854QD81
0.1
CD85
2.4k R554
A-GND
3.3k
R501
A-GND
1000p
C503
2.4k
R503
A-GND
2.4k
R504
A-GND
A-GND
560p C556
3.3k
R551
2.4k
R553
1.2k
R506
1.2k
R555
560p C506
1000p
C554
1.2k
R556
560p C555
3.3k
R552
3.3k
R502
1000p
C553 1000p
C504
A-GND
560p C505
1.2k
R505
D462
1SS301
D461
1SS301
MUTE-SR
XMMUTE2
ZEROSRP-MUTE
S-MUTE
S-MUTE
P-MUTE
D562
1SS301
D561
1SS301
XMMUTE4
MUTE-SW
ZEROSW
S-MUTE
P-MUTE
S-MUTE
D412
1SS301
XMMUTE3
D411
1SS301
ZEROSL
ZEROC
P-MUTE
D512
1SS301
D511
1SS301
MUTE-SL
MUTE-C
XMMUTE1
-5VA
D-GND
-9VA
+9VA
+5VA
+5VD
D-GND
J404
A-GND
DTA114EU
Q415
DTA114EU
Q465
XMMUTE1
DTA114EU
Q515
DTA114EU
Q565
XMMUTE2
XMMUTE3
XMMUTE4
Bead
FD62
Bead FD61
DTA114EUA
Q466
+5VA
DTA114EU
Q416
+5VA
DTA114EUA
Q516
+5VA
+5VA
DTA114EU
Q566
Bead FD81
Bead FD82
S-MUTE
Bead
FD63
Bead FD83
1000p
C403
1000p
C404
A-GND
R404 2.4k
R405
1.2k
R406
1.2k
C406 560p C405
560p
A-GND A-GND
Q401
NIM2114M
(1/2)
R407
3.3k
R408
3.3k
C407 560p
C408 220p
A-GND
R403
2.4k
Q401
NJM2114M
(2/2)
R409
100
C409
10p
A-GND
2SJ74
Q422
1SS302
D421
270
R424
100
R421
47
R428
2SC3324
Q426
1SS301
D422
33
R430
2SA1312
Q423
120
R427
680p C423
2SA1312
Q425
100
R422
A-GND
33
R429
2SC3324
Q428
270
R425
2SA1145
Q430
B
C
E
2SC3324
Q424
270
R423
2SA1312
Q427
270
R426
2SC2705
Q429
2SK170
Q421
-9VA
A-GND
220/16v
C422
+9VA
220/16v
C421
A-GND
A-GND
R434
22k
220/16v
C431 (JUMPER) C432 R435
100
2SC4213
Q431
R439 2.2k
R440 2.2k
2SC4213
Q432
R438
220k
-5VA
MUTE-SL
A-GND A-GND
R436
100
A-GND
R437
22k
C433
NC
A-GND
33
R480
R489 2.2k
220/16v
C471
C457
560p
R485
100
270
R475
1SS301
D472
2SA1312
Q475
A-GND
R459
100
A-GND
C483
NC
R484
22k
270
R473
R488
220k
A-GND
120
R477
B
C
E
2SC3324
Q474
R490 2.2k
MUTE-SR
2SC3324
Q476
C458
220p
2SC4213
Q481
2SC3324
Q478 A-GND
270
R476
1SS302
D471
C459
10p
A-GND
100
R471
2SJ74
Q472
A-GND
A-GND
220/16v
C481
2SA1312
Q473
2SA1145
Q480
220/16v
C472
-5VA
2SC4213
Q482
R457
3.3k
2SK170
Q471
A-GND
Q451
NJM2114M
(2/2)
2SA1312
Q477
A-GND
680p C473
Q451
NJM2114M
(1/2)
A-GND
(JUMPER)
C482
2SC2705
Q479
R458
3.3k
47
R478
100
R472
+9VA
R486
100
R487
22k
-9VA
33
R479
270
R474
680p C523
2SA1145
Q530
220/16v
C521
A-GND
120
R527
C507 560p
Q501
NJM2114M
(1/2)
33
R530
R535
100
B
C
E
2SC3324
Q524
R539
2.2k
A-GND
270
R525
220/16v
C522
(JUMPER)
C532
R540 2.2k
1SS301
D522
-5VA
2SC2705
Q529
MUTE-C
2SA1312
Q525
2SC3324
Q526
R508
3.3k
A-GND
2SC4213
Q532
R509
100
47
R528
C508 220p
A-GND
R507
3.3k
270
R526
C533
NC
2SC4213
Q531
100
R522
100
R521
2SK170
Q521
1SS302
D521
R534
22k
+9VA
2SJ74
Q522
2SC3324
Q528
R536
100
A-GND
270
R523
C509
10p
Q501
NJM2114M
(2/2)
A-GND
R537
22k
A-GND
R538
220k
A-GND
A-GND
-9VA
33
R529
2SA1312
Q527
220/16v
C531
270
R524
2SA1312
Q523
A-GND
2SJ74
Q572
A-GND
R559
100
220/16v
C581
270
R575
47
R578
2SC3324
Q578
270
R574
220/16v
C572
C558
220p
R586
100(JUMPER)
C582
2SA1312
Q573
680p C573
A-GND
A-GND
R590
2.2k
R557
3.3k
2SA1145
Q580
A-GND
270
R573
1SS301
D572
270
R576
C559
10p
C583
NC
-5VA
220/16v
C571
Q551
NJM2114M
(2/2)
2SC2705
Q579
2SC4213
Q581
A-GND
120
R577
MUTE-SW
100
R572
A-GND
2SA1312
Q575
C557 560p
R587
22k
100
R571
Q551
NJM2114M
(1/2)
A-GND
2SK170
Q571
R588
220k
33
R580
2SC3324
Q576
A-GND
1SS302
D571
R585
100
A-GND
R558
3.3k
-9VA
B
C
E
2SC3324
Q574
33
R579
R584
22k
A-GND
2SC4213
Q582
R589
2.2k
2SA1312
Q577
+9VA
A-GND
R410
270
270R460
A-GND
270R510
A-GND
A-GND
270R560
J401
A-GND
J402
A-GND
F409 Bead
P-MUTE
ZEROSW
J403
EARTH
A-GND
+5VA
QD73
DTC114EU
D-GND
QD74
DTC114EU
D-GND
QD75
DTC114EU
D-GND
QD76
DTC114EU
D-GND
R413
0
C411
NC
A-GND
R463
0
C461
NC
A-GND
R513
0
C511
NC
A-GND
R563
0
C561
NC
A-GND
C434 270p
A-GND
A-GND
C484 270p
C534
270p
A-GND
A-GND
C584 270p
A-GND
C410
NC
C460
NC
A-GND
C510
NC
A-GND
C560
NC
A-GND
3.3v
DD71
NC
QD72
+5VA
1kRD63
47P
CD70
D-GND
47p
CD90
D-GND
1kRD83 1kRD64
10kRD65
10kRD66
1kRD84
10kRD85
10kRD86
XMMUTE
XMMUT E
LRCLK
BCLK
LRCLK
BCLK
X48/96
X48/96
S-MUTE P-MUTE
CCLK CDATA
CCLK CDATA
LRCLK
CDATA
BCLK
CCLK
XRESET
X48/96
CLATCH1
XMMUTE
XRESET
XRESET
CLATCH1
CLATCH1
D-GND HIBSEL MCLK CLATCH0 LRCK CCLK D-GND D-GND XRESET D-GND BCLK ADATA O SMUTE D-GND 192FS XMUTE CDATA D-GND
LRCK
CLATCH1
XMUTE
+3VD
CCLK
X48/96
ADATA 2
D-GND
BCLK
192FS
MCLK
XRESET
HIBSEL
D-GND
ADATA 0
XMMUTE
CDATA
CLATCH0
+5VD
ADATA 1
L/R PCB
DIGITAL
PCB
L/R PCB
D-GND
D-GND
+5VD
+5VA
+9VA
A-GND
A-GND
-9VA
-5VA
PMUTE D-GND
SL
SR
C
SW
+4.9V +4.8V
-5.0V
-5.0V
-5.0V
-5.0V
+4.9V
-5.0V
+4.9V
0V
+4.9V
+3.3V +4.9V
+4.9V
+4.9V
+4.9V
+4.9V
+4.9V
-5.0V
-5.0V
-5.0V
+4.9V
0V
0V
0V
+4.9V
+4.9V +3.3V
+5.0V
+5.0V
+8.8V+8.8V+8.8V+8.8V
-9.0V -9.0V -9.0V -9.0V
0V 0V
0V0V
0V0V
0V0V
-5.0V-5.0V
-5.0V-5.0V
-5.0V-5.0V
-5.0V-5.0V
PA02
DGND DVDD MCLK CLATCH CCLK CDATA 384/256 X2MCLK ZEROR DEEMP 48/56 AGND OUTR+ OUTR- FILTR
SDATA
BCLK
LRCLK
PD/RST
MUTE
ZEROL
IDPM0 IDPM1
FILTB
AVDD
OUTL+
OUTL-
AGND
DGND DVDD MCLK CLATCH CCLK CDATA 384/256 X2MCLK ZEROR DEEMP 48/96 AGND OUTR+ OUTR- FILTR
SDATA
BCLK
LRCLK
PD/RST
MUTE
ZEROL
IDPM0 IDPM1
FILTB
AVDD
OUTL+
OUTL-
AGND
1
28
234567891011121314
27 26 25 24 23 22 21 20 19 18 17 16 15
20 19 18 16 15 14 13 12 11 10
9 8
17
7 6 5 4 3 2 1
1
2
3
5
6
7
8
9
10
11
12
13
4
14
15
16
17
18
19
20
24
5
3
1
28
234567891011121314
27 26 25 24 23 22 21 20 19 18 17 16 15
1
2
3
4
5
6
7
8
9
1
3
2
7
6
54
8
7
6
54
8
1
3
2
1
3
2
7
6
54
8
7
6
54
8
1
3
2
3
6
4
1
2
5
3
6
4
1
2
5
J102 (PA01)
CN121
(DVDM)
J206 (PA01)

2019
GND
+5VVI
EARTH
JV03
39
RV38 33 RV39
V-GND
-5VVI
JV02
V-GND
+12VV
HN1C01F
QV06
HN1C01F
QV06
2SA1586
QV05
100
RV30
100
RV28
1K
RV31
2.2k RV29
220
RV32
+5VVI
-5VVI
10/50V
CV44
V-GND
0.01 CV43
V-GND
V-GND
10/50V
CV42
V-GND
0.01 CV41
0
LV13
V-GND
N.C CV49
V-GND
100
RV35
V-GND
HN1C01F
QV08
10/50V
CV48
1K
RV36
+5VVI
-5VVI
2SA1586
QV07
HN1C01F
QV08
V-GND
0.01 CV47
10/50V
CV46
V-GND
2.2K RV34
220
RV37
100
RV33
0.01 CV45
V-GND
100
RV44
V-GND
HN1C01F
QV10
10/50V
CV54
1K
RV45
+5VVI
-5VVI
2SA1586
QV09
HN1C01F
QV10
V-GND
0.01 CV53
10/50V CV52
V-GND
2.2k RV43
220
RV46
100
RV42
0.01 CV51
0
LV15
V-GND
33
RV48
N.C CV55
39
RV47
0
LV14
V-GND
33
RV41
N.C CV50
39
RV40
0.01 CV23
CV17
33p
V-GND
CV19
0
470
RV03
680 RV02
V-GND
V-GND
-5VVI
680 RV05
V-GND
V-GND
CV20 N.C.
100/10V
CV22
N.C.
LV09
CV18 56p
0.01 CV21
2SC4116
QV02
22k RV04
+5VVI
CV15
15p
V-GND
100
RV01
CV14 15p
12
LV07
V-GND
V-GND
+5VVI
2SA1586
QV01
V-GND V-GND
68p CV16
0.01 CV13
12
LV08
V-GND
100
RV49
2SA1586
QV11
CV57
15p
V-GND
CV58
15p
V-GND
2.2k RV53
+5VVI
0.01 CV56
V-GND
12
LV11
CV62
0
68p CV59
470
RV51
+5VVI
0.01 CV65
CV61
56p
V-GND
0.01 CV64
-5VVI
2SC4116
QV12
CV60
33p
V-GNDV-GND
N.C.
LV12
22k
RV52
V-GND
V-GND
CV63
N.C.
12
LV10
V-GND
100/10V CV66
680
RV50
0.01 CV33
TK15420M
QV04
N.C.RV20
470RV24
V-GND
-5VVI
100/10V CV34
470RV19
V-GND
+5VVI
470
RV23
N.C.RV25
0
RV21
N.C.CV37
N.C.
RV26
100/10V CV36 0.01 CV35
2.2k
RV12
V-GND
N.C.CV39
V-GND
V-GND
820RV08
120
RV16
N.C.RV15
+5VVI
V-GND
0.01 CV27 100/10V CV28
120
RV10
0.01 CV25
V-GND
470
RV07
N.C.RV09
TK15420M
QV03
N.C.CV29
V-GND
820RV14
V-GND
-5VVI
470
RV13
100/10V CV26
TK15420M
QV03
N.C.CV31
10/50V
CV24
1M
RV06
V-GND
-5VVI
0.01 CV81
2SC4116
QV18
4.7k RV71
+5VVI
0.01 CV80
V-GND
V-GND
2SA1586
QV19
1SS301
DV02
1000p
CV82
10k
RV67
1SS301
DV01
10k RV68
V-GND V-GND
4.7k
RV69
4.7k
RV70
HN1B01F
QV15
HN1B01F
QV15
+5VVI
-5VVI
2.2k
RV59
2.2k
RV60
HN1B01F
QV16
680
RV62
HN1B01F
QV16
+5VVI
-5VVI
2.2k
RV61
2.2k
RV72
39
RV65 0 LV16
33
RV66
V-GND
N.C CV79
HN1B01F
QV17
680
RV64
HN1B01F
QV17
+5VVI
-5VVI
2.2k
RV63
2SC4116
QV14
2SC4116
QV13
1.8k RV56
+5VVI
2.7k RV57
1kRV58
1.8k RV55
330
RV54
V-GND V-GND
-5VVI
-5VVI
JV05
0
RV79
V-GND
0
RV78
0
RV80
0
RV81
0
RV82
BLM11B102SLV20
BLM11B102SLV22
BLM11B102SLV19
BLM11B102SLV21
BLM11B102SLV18
BLM11B102SLV17
0
RV83
0
RV77
V-GND
SQUEEZE
V_SEL1
V_SEL2
ASPECT
CLMP2
XCOMP
I/P_Y
I/P_Cb
I/P_Cr
SC_V
SC_Y
SC_C
JV06
V-GND
BLM11B102SLV23
BLM11B102SLV24
VFIL_SW
DTC114
QV23
0.01 CV88
DTA114EUA
QV22
V-GND V-GND
+5VVI
1k
RV74
V-GND
+5VVI
V-GND DTA114EUA
QV24
DTC114
QV21
1.2k
RV73
V-GND
470/10V
CV12
V-GND
0.01 CV11
+5VVC
-5VVC
+5VVS
15
LV06
0.01 CV09
V-GND
15
LV05
V-GND
470/10V
CV10
V-GNDV-GND
0.01 CV07
15
LV04
V-GND
15
LV03
V-GND
0.01 CV05
V-GND V-GND
0.01 CV03
15
LV02
V-GND V-GND
15
LV01
0.01 CV01
100/16V
CV02
470/10V
CV04
470/10V
CV06
100/16V
CV08
10k
RV75
0.01
CV78
0.01
CV77
330
RV17 39p CV32
V-GND
V-GND
330
RV11
V-GND
39p CV30
V-GND
N.C.
RV27
V-GND
N.C. CV40
V-GND
470
RV22
V-GND
N.C CV38
V-GND
100p
CV96
100p CV97
100p CV98
100pCV92
V-GND
100pCV93 100pCV94
V-GND
100pCV95
V-GND
100p CV90
V-GND
N.C CV91
0
RV18
CV67
0.1
CV70
0.1
0.01 CV68
V-GND
0.01 CV69
V-GND
0.01CV72
V-GND
0.01 CV71
V-GND
0.01 CV73
V-GND
0.01CV74
V-GND
0.01 CV75
V-GND
0.01 CV76
V-GND
GND EARTH
JV07
GND EARTH
JV08
TK15420M
QV04
JV04
JV01
2SA1586
QV27
2SA1586
QV26
2.2k RV87 N.C. RV88 0.01 CV84
V-GND
V-GND
10p CV83
470 RV86
470
RV85
100
RV84
470 RV89
V-GND
2SA1586
QV25
-5VVI
+5VVI
-5VVI
3.3k RV90
CN103
(DVDM)
JP06 (PS01)
5
2
4
1
3
6
3
5
4
6
2
1
3
5
4
6
2
1
3
5
4
6
2
1
7
5
6
8
7
5
6
8
1
3
2
4
6
2
13
5
4
3
5
4
6
2
1
3
5
4
6
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
25
14
26
15
27
16
28
17
18
19
20
21
22
23
24
1
2
3
4
1
3
2
4
1
2
3
4
5
6
2
1
4
3
CVBS
S2
-AREA INDICATION-
F:Japan
K:China
N:Europe
S:S’Pore
U:UAS and Canada
A:Australia
C:Korea
L:Tiwan
V_MUTE
+12VV
V-GND
V-GND
+5VV
-5VV
XANRON1
XANRH1
CLMP1
GNDD
Y
GNDD
C
GNDD
V-12D
GNDD
V+12D
GNDD
(I/P)CR
GNDD
(I/P)CB
GNDD
(I/P)Y
GNDD
XCOMP
CLAMP2
XANRH2
XANRON2
V_SEL2
V_SEL1
LETTER
SQUEEZ
525P
VOFF
525P
VFIL_SW
V_MUTE
V-GND
for N
for N
+2.2V
+2.8V
+2.8V
+4.8V
+2.1V
+1.8V
-4.5V
-1.2V
+0.1V
+0.1V
+0.1V
+0.1V
-4.5V
+0.4V
+0.1V
+0.2V
-4.5V
+0.4V
-2.9V
+0.4V
+1.0V
+4.8V
+0.4V
-3.5V
+4.8V
+0.4V
+1.0V
-2.9V
-3.5V
+0.4V
+1.0V
+0.4V
-2.9V
-3.5V
+0.4V
+4.8V
+0.4V
+0.4V
+0.4V
+0.4V
+4.8V
+4.8V
+0.1V
+0.1V
0V
+4.8V+0.7V
0V
-4.6V
-4.6V
-4.6V
+0.6V
+0.6V
+4.8V
+4.8V
0V
0V
0V
0V
+4.8V
+1.6V
+2.2V
+0.6V
+2.2V
+4.8V
+2.9V
+3.0V
+2.3V
0V
+4.6V
+5.0V
+4.8V
-4.2V -4.2V
-3.7V-4.5V
0V
0V 0V
0V
+4.8V +4.8V
+4.7V
+4.7V
+13.2V
+4.7V
+4.6V
+4.9V
-4.4V
-4.4V
16:9 : +4.8V
LETTER : +2.2V
4:3 : 0V
PV01-1/3
JF07
(PF03)

21 22
V-GND
JY02
V-GND
100
RY01
2SA1586
QY01
CY02
8p
V-GND
CY03
5p
V-GND
2.2k RY05
+5VVC
0.01 CY01
V-GND
6.8
LY02
CY07
0
33p CY04
470
RY03
+5VVC
0.01 CY11
CY06
27p
V-GND
0.01 CY09
-5VVC
2SC4116
QY02
CY05
15p
V-GNDV-GND
N.C.
LY03
22k
RY04
V-GND
V-GND
CY08
3p
6.8
LY01
V-GND
100/10V
CY10
680
RY02
V-GND
100
RY06
2SA1586
QY03
CY14
15p
V-GND
CY15
15p
V-GND
2.2k RY10
+5VVC
0.01 CY13
12
LY05
CY19
0
68p
CY16
470
RY08
+5VVC
0.01 CY22
CY18
56p
V-GND
0.01 CY21
-5VVC
2SC4116
QY04
CY17
33p
V-GNDV-GND
N.C.
LY06
22k RY09
V-GND
V-GND
CY20
N.C.
12
LY04
V-GND
680
RY07
V-GND
100
RB01
2SA1586
QB01
CB02
8p
V-GND
CB03
5p
V-GND
2.2k RB05
+5VVC
0.01 CB01
6.8
LB02
CB07
0
33p
CB04
470
RB03
+5VVC
0.01 CB10
CB06
27p
V-GND
0.01 CB09
-5VVC
2SC4116
QB02
CB05
15p
V-GNDV-GND
N.C.
LB03
22k RB04
V-GND
V-GND
CB08
3p
6.8
LB01
V-GND
680 RB02
V-GND
100
RB06
2SA1586
QB03
CB12
15p
V-GND
CB13
15p
V-GND
2.2k
RB10
+5VVC
0.01 CB11
12
LB05
CB17
0
68p
CB14
470
RB08
+5VVC
0.01 CB20
CB16
56p
V-GND
0.01 CB19
-5VVC
2SC4116
QB04
CB15
33p
V-GNDV-GND
N.C.
LB06
22k
RB09
V-GND
V-GND
CB18
N.C.
12
LB04
V-GND
680
RB07
V-GND
100
RC01
2SA1586
QC01
CC02
8p
V-GND
CC03
5p
V-GND
2.2k RC05
+5VVC
0.01 CC01
6.8
LC02
CC07
0
33p
CC04
470
RC03
+5VVC
0.01 CC10
CC06
27p
V-GND
0.01 CC09
-5VVC
2SC4116
QC02
CC05
15p
V-GNDV-GND
N.C
LC03
22k
RC04
V-GND
V-GND
CC08
3p
6.8
LC01
V-GND
680 RC02
V-GND
100
RC06
2SA1586
QC03
CC12
15p
V-GND
CC13
15p
V-GND
2.2k RC10
+5VVC
0.01 CC11
12
LC05
CC17
0
68p
CC14
470
RC08
+5VVC
0.01 CC20
CC16
56p
V-GND
0.01 CC19
-5VVC
2SC4116
QC04
CC15
33p
V-GNDV-GND
N.C.
LC06
22k
RC09
V-GND
V-GND
CC18
N.C.
12
LC04
V-GND
680
RC07
39
RB23 0 LB08
33
RB24
V-GND
N.C. CB33
39
RC23
V-GND
N.C. CC33
0
LC08
33
RC24
39
RY23
N.C. CY35
33
RY24
V-GND
0
LY08
4.7k
RY31
1000p
CY37
4.7k
RY30
10k
RY28
0.01 CY38
+5VVC
10k
RY27
2SC4116
QY09
1SS301
DY05
2SA1586
QY10
V-GNDV-GND
V-GND
4.7k
RY29
1SS301
DY04
-5VVC
N.C.RY14
470
RY15
3.9kRY13
N.C.CY30
470
RY12
1M
RY11
V-GND
10/50V
CY25
3.3kRB13
470
RB12
0.01 CB24
V-GND
N.C.CB26
-5VVC
100/10V CB25
0
RB15
3.3kRB14
V-GND
1M
RB11
V-GND
TK15450M
QB06
10/50V
CB23
3.3kRC14
1M
RC11
0
RC15
N.C.CC26
V-GND
470
RC12
3.3kRC13
10/50V
CC23
0.01 CB28
1SS301
DB01
V-GND
1SS301
DY01
V-GND
V-GND
DTC114EUA
QY07
0.01CY32
DTA114EUA
QY08
V-GND
100
RB20
V-GND
HN1C01F
QB08
10/50V
CB32
1K RB21
+5VVC
-5VVC
2SA1586
QB07 HN1C01F
QB08
V-GND
0.01 CB31
10/50V
CB30
V-GND
2.2K RB19
220
RB22
100
RB18
0.01 CB29
N.C. CY36
33
RY26 0
LY09
N.C. CB34
0
LC09
33
RB26
V-GND
39
RB25
33
RC26
V-GND
39
RY25
39
RC25
0
LB09
N.C. CC34
V-GND
220
RC22
10/50V
CC32
100
RC18
1K
RC21
0.01 CC29
100
RC20
V-GND
2.2K RC19
0.01 CC31
10/50V
CC30
V-GND
V-GND -5VVC
2SA1586
QC07
V-GND
+5VVC
HN1C01F
QC08
HN1C01F
QC08
RB17
0
0
RC17
V-GND
V-GND
V-GND
V-GND
100/10V
CY29
470RY19
0.01 CY28
V-GND
470
RY18
N.C.CY33
TK15450M
QY06
-5VVC
V-GND
N.C.
RY21
N.C.RY20
DTC114EUA
QY12
V-GND
+5VVC
2.2k RY33
10k
RY34
I/P_Y
I/P_Cb
I/P_Cr
XCOMP
VFIL_SW
ASPECT
CLMP2
D2_Y
D2_Cr
D2_Cb
QY05
TC4W53F
0.01 CY24
V-GND
0.01 CY23
V-GND
-5VVC
+5VVC
V-GND
QB05
TC4W53F
V-GND
V-GND
+5VVC
0.01 CB21
V-GND
-5VVC
0.01 CB22
0.01 CC21
QC05
TC4W53F
-5VVC
0.01 CC22
V-GND
V-GND
V-GND
+5VVC
V-GND
100/10V
CY12
D2_Y
D2_Cb
D2_Cr
SC_R
SC_B
SC_G
DY02
01ZA8.2
DB02
01ZA8.2
DC02
01ZA8.2
V-GND
N.C. CY31
V-GND
1.2k
RY16
V-GND
N.C. CB27
1.5k
RB16
V-GND
V-GND
N.C. CC27
1.5k
RC16
V-GND
V-GND
N.C. CY34
N.C.
RY22
V-GND
V-GND
0.01 CB35
0
RY17
V-GND
+5VVC
V-GND
100/10V CY27 0.01 CY26
TK15450M
QY06
V-GND
+5VVC
V-GND
100/10V CC25 0.01 CC24
TK15450M
QB06
JY01
+12VV
2SA1586
QY13
100
RY35
-5VVC
470
RY36
470
RY37
V-GND
560 RY41
+5VVC
V-GND
V-GND
1.5k RY39
-5VVC
10p CY39
2SA1586
QY14
N.C. RY40
100
RY38
0.01 CY40
2SA1586
QY15
N.C. RB40
560 RB41
+5VVC
100
RB38
V-GND
0.01 CB40
10p CB39
V-GND
2SA1586
QB14
-5VVC
1.5k RB39
2SA1586
QB15
V-GND
+5VVC
0.01 CC40
2SA1586
QC14
560 RC41
10p
CC39
2SA1586
QC15
100
RC38
-5VVC
N.C. RC40
V-GND
1.5k RC39
V-GND
DY03
01ZA8.2
-5VVC
2SC4116
QC16
680 RC43
+5VVC
-5VVC
+5VVC
2SC4116
QB16
680 RB43
-5VVC
+5VVC
680 RY43
2SC4116
QY16
100
RC42
100
RB42
100
RY42
LY07
ED2-12
LB07
ED2-12
V-GND
CR
Y
CB
for F,S,A,L,C
-AREA INDICATION-
F:Japan
N:Europe
S:S’Pore
U:UAS and Canada
A:Australia
C:Korea
L:Tiwan
Y
GND
Cb
GND
Cr
GND
N.C.
GND
I/P
N.C.
ASPECT
SWG
N.C.
SW
Prog.
Int.
Prog.
Int.
Prog.
Int.
Prog.:H
Int.: L
w/o N
w/o N
for N
+2.2V
+2.9V
+2.8V
+2.1V
+4.7V
+1.9V
+2.6V
+2.5V
+4.7V
+1.9V
+2.0V
+2.7V
+2.6V
+4.7V
+2.0V
+2.0V
+2.7V
+2.6V
+4.7V
+2.0V
+2.0V
+4.7V
+2.6V
+2.7V
+2.0V
+4.7V
+2.0V
+2.6V
+2.7V
+2.0V
0V
+4.6V
+4.9V
+4.7V
-4.2V -4.2V
-4.5V -3.6V
+4.7V
0V
+1.3V
+4.7V
+1.9V
-4.5V
+4.7V
+4.7V
-4.5V -4.5V
+1.9V
+1.3V
+1.2V
+1.8V
+4.7V +4.7V
-1.8V
-4.5V
-1.2V
0V
0V
0V
0V
0V
+4.7V
0V
0V
-4.5V
0V
+0.1V
+0.1V
+4.7V
+0.3V
RGB:3.1V
+12.8V
+12.8V0V
Component:0V
Component:0V RGB:12.8V
-1.2V
-1.8V
-4.5V
+0.1V
+0.1V
-1.8V
-1.2V
-4.5V 0V
0V
0V
Int:+3.1V
16:9 : 4.8V
LETTER : 2.2V
4:3 : 0V
Prog:0V
Prog:+4.8V
Int:0V
0V 0V
0V
+4.6V
+0.6V
-2.7V
-3.3V-4.4V
+4.6V
+0.6V
0V
-2.7V
0V
-4.4V -3.3V
+0.3V +0.3V
+0.3V
+0.3V
+0.3V
0V
+4.7V
+4.7V
+4.7V
TC4W53F
AVDD ch1ch0
41 32
58 67
VSS
COM VEE INH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
3
2
4
3
5
4
6
2
1
6
2
1
3
5
4
1
3
2
4
1234
5678
1234
5678
1234
5678
7
5
6
8
7
5
6
8
3
2
1
6
4
5
810
35
129
14
810
35
129
14
+
-
+
-
PV01-2/3

2423
J801
J801
A-GND
V-GND
V-GND
V-GND
V-GND
GND
V-GND
A-GND
V-GND
V-GND
V-GND
GND
0.01 C950
1SS301
D950
A-GND
0.01 C951
A-GND
1SS301
D951
0.01 C805
V-GND
1SS301
D802
0.01 C806
V-GND
1SS301
D803
0.01 C807
V-GND
1SS301
D804
0.01 C808
V-GND
1SS301
D805
+12VV
A-GND
330p
C953
100
R950 0 R952
100
R954 0 R956
100
R951 0 R953
100
R955 0 R957
39
R817 33 R818
39
R819 33 R820
39
R821 33 R822
39
R823 33 R824
V-GND
0.01 C804
1SS301
D801
DTA114EUA
Q807
DTC114EUA
Q806
+12VV
V-GND
SC_C
SC_Y
V_SEL1
V_SEL2
SC_V
SC_G
SC_B
SQUEEZE
SC_R
56k
R809
DTC114EUA
Q804
+12VV
0.1
C803
+12VV
V-GND
4.7K
R807
4.7k R808
V-GND
1.5k
R811
2SC4116
Q805
V-GND
10/50V
C801
2SC4116
Q803
V-GND
DTC114EUA
Q801
0.1 C802
22k R801
2SA1586
Q802
V-GND
V-GND
+5VVS
1k
R802
+5VVS
22k
R803
V-GND
J950
A-GND
V-GND
D806
01ZA8.2
V-GND
V-GND
D807
01ZA8.2
D808
01ZA8.2
V-GND
D809
01ZA8.2
V-GND
D810
01ZA8.2
1.5k
R810
1.5k
R812
220
R804
220
R806
220
R805
39
R813 33 R814
39
R815 33 R816
A-GND
330p C956
A-GND
330p
C958
A-GND
330p
C957
A-GND
330p
C959
A-GND
330p
C955
A-GND
330p
C954
A-GND
330p
C952
L950
ED2-12
L951
ED2-12
L802
ED2-12
L803
ED2-12
L804
ED2-12
L805
ED2-12
L801
ED2-12
22k
R958
V-GNDV-GND
22k
R959
J203
(PA01)
AR-OUT
AUX-SCART
TV-SCART
1
2
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21
/2
/1
AR-IN
N.C.
A-GND
V-GND
AL-IN
B-OUT/C-IN
F-SW
V-GND
G-OUT
N.C.
V-GND
R/C-OUT
V-GND
V-GND
V-GND
CV/Y-OUT
RGB-SW
AL-OUT
CV/Y-IN
GND
AL-OUT
CV/Y-OUT
V-GND
A-GND
F-SW
CV/Y-IN
RGB-SW
B-IN/C-OUT
GND
V-GND
AR-OUT
AL-IN
V-GND
R/C-IN
G-IN
AR-IN
N.C.
N.C.
V-GND
V-GND
V-GND
SAR
A-GND
SAL
+3.1V
0V
+4.2V
+4.9V
+4.9V
0V
+12.7V+12.7V
+12.0V +12.7V
+12.7V
RGB/CVBS:+12.6V
0V
+3.1V
+12.7V
RGB:+2.5V(75 OHM READ)
CVBS/YC:0V
4:3 : +12V
16:9 : +5.5V
Standby : 0V
YC:0V
1
2
3
5
6
7
8
9
10
11 12
13
4
14
15
16
17
18
19
20
21
2
1
2
3
810
35
129
14
810
35
129
14
810
35
129
14
810
35
129
14
810
35
129
14
810
35
129
14
810
35
129
14
+
-
+
-
+
-
+
-
+
-
+
-
+
-
PV01-3/3 (N only)

25 26
JI04
47p
CI17
JI02
JI03
RI15 (NC)
D-GND
220RI14
D-GND
75
RI13
LI02
TPS247MN-0386AN
22
RI21
100
RI11
4700p CI18
D-GND
47/16V
CI20
0.1
CI16
D-GND
D-GND
220p CI12
D-GND
D-GND
D-GND
D-GND
CI13
0.1
0.022
CI19
RI12 (NC)
0.01 CI10
D-GND
D-GND
QI01
TC74HCT04AF
0.01
CI15
+5VD
JI05
+5VD
0.01
CI22
D-GND D-GND
JI07
JI06
D-GND
D-GND
0RI08
0RI07
0RI06
0RI05
0RI04
0RI03
BLM11B102SRI09
SI01
D-GND
D-GND
0RI02
0RI01
0RI10
+5VD
LI01
15
100/10V
CI11
D-GND
N.C.CI01 N.C.CI02
CI03 N.C.
N.C.CI04 N.C.CI05 N.C.CI06 N.C.CI07 N.C.CI08
N.C.CI09
D-GND
D-GND
+5VD
0.01 CI21
D-GND
JI01
DIGITAL OUT
OPT OUT
-AREA INDICATION-
F:Japan
K:China
N:Euro
S:S’Pore
U:USA and Canada
A:Australia
C:Korea
L:Tiwan
TXD
RXD
DTR
CTS
D+5V
D-GND
N.C.
D-BUSD-BUS
D-BUS SWD-BUS SW
D-GND
SW+5V
DOUT
NAPSW
TXD
RXD
DTR
CTS
D-GND
D-GND
D-GND
NAPSW
+5.0V
+5.0V
+5.0V
GP1F32T
REMOTE
CONTROL
IN/OUT
REMOTE
CONTROL
(D-BUS) SW
EXTERNAL
INTERNAL
PI01
CN104
(DVDM)
JF07
(PF03)
GND
VCC
INPUT
321
1
3
2
6
43
2
1
1234567
141312111098
1
2
3
4
5
6
7
1
2
1
2
3
4
5
6
7
8
9
10
11
12
321
1
2
4
5
3

2827
JP05
M-GND
V-GND
LP01
LF-4D-223
SP01
ESB92S17B
QP02
PC123F2
QP01
STR-G6651
VIN
D
S
OCP/FB
GND
QP06
SI-3050C
DP01
S1WB(A)60
QP12
DTC114EU
QP13
DTA114EU
JP01
JP08
JP07
FP01
JP03
JP02
M1818-A
CP01
0.1/250v
RP01
CP02
0.1/250v
CP03 CP04
GND GND
CP05
RP02
82k 2w
CP08
150p
2kv
CP10
GND
RP08
680
CP09
470p
RP03
0.47 2w
CP11
47/50v
RP06
0
RP07
NC
DP02
ERA22-10
CP33
NC
RP05
68k 3W
RP04
68k 3w
CP06
0.047
250v
RP09
3.3k
CP12
0.1
RP14
NC
CP30
0.1
RP15
10k
GND
QP03
TL431
RP10
150 RP11
3.3k
RP12
1.5k
RP13
2.2k
GND
FP07
250V
T400mA DP15
SFPL52
CP26
1000/16v
V-GND
LP03
22
CP27
220/10v
V-GND
QP14
2SC4672
RP33
1k
CP29
220/10v
RP32
2.2k
RP31
2.2k
V-GND
V-GND
CP28
220/10v
RP29
680
RP30
NC
QP11
2SA1797
RP28
1k
QP10
DTC114EU
QP09
2SA1797
CP25
220/16v
V-GND
RP27
10k
GND
CP24
1000/16v
GND
RP26
3.3k
RP25
3.3k
RP24
3.3k
GND
RP23
10k
CP23
1000/16v
GND
DP14
EK19
FP06
250V
T400mA
QP08
DTC114EU
RP20
1.5k RP21
1.5k GND
CP19
1000/16v
QP07
2SA1797
CP22
220/16v
RP19
10k
FP05
250V
T1.25A DP10
RK46
GND GND
GND
CP20
220/10v
QP05
SI-8033S
GND
CP18
1000/10v
CP17
1000/10v
GND
DP09 RK46
DP08
13v
DP07
5.6v
RP18
560
RP17
4.7k
QP04
2SC4672
CP16
0.01
GND
M-GND
RP22
10k
GND
CP21
220/10v
GND
CP14
220/10v
DP06
SFPL52
CP15
0.01
GND
FP03
T250mA
250v
RP16
10k
GND
CP13
47/50v
GND
DP05
SFPL52
FP02
T250mA
250v
GND
M-GND
DP03
1SS301
DP04
1SS301
JP11JP10
JP09
EARTH EARTH EARTH
JP06
M-GNDV-GNDGND
TP01
QP15
78L05
GND
DP16
1SS301
RP35
NC
RP34
1.5K
RP36
3.3K
RP37
NC
CP31
470p
QP16
PC123F2
RP38
1.5k
QP17
DTC114EU
GND
DP17
1SS301
JP04
CP07
150p 2kv
DP18 RK46
DP19
RB060L-40
GND
GND
LP04
47
FP08
250V
T400mA
CP32
NC
RP39 A
RP40 C
RP41 F
RP42 L
RP43 N
RP44 S
RP45 U
RP46
3.3
CP34
0.1
GND
LN
AC INLET
-31V
Heater
DC+3.5V
STB CONT
EV+5V
GND
GND
GMD
GND
GND
SW+3.3V
SW+3.3V
SW+3.3V
SW+3.3V
SW+3.3V
SW+5V
SW+5V
GND
GND
NC
GND
GND
SW+12V
SW+12V
M-GND
M-GND
M+8V
M+8V
V+12V
V+5V
V-GND
V-GND
V-5V
VMUTE
SYM Ver.F,L,U Ver.A,C,K,N,S
FP01
CP03,04
CP05
RP01
1.25A/125V
470p/250V
220/200V
2.2M
220p/250V
1.25A/250V
120/400V
1M
PS02
PS01
4700p/250V
Ver. otherVer. USYM
CP10 220p/250V
16.4V
+7.9V
+6.9V
+2.5V
+1.1V
-4.8V
+4.8V
+12.8V
+12.8V
+12.1V
+7.2V
+7.9V
+4.9V
+5.2V
-16.2V
-15.6V
-16.3V
-33.7V
+5.0V
+3.3V
+4.9V +4.9V
+8.0V
+4.2V
0V
+4.9V
+4.8V
-4.0V
-4.7V -4.7V
PS01 CN101
(DVDM)
JV04
(PV01)
1
2
3
4
5
6
7
8
9
10
11
12
13
25
14
26
15
27
16
28
17
18
19
20
21
22
23
24
1
23
4
1
2
41
32
4
1
2
5
3
3
12
5
4
1
2
34
2
1
1
2
21
1
2
3
2
35
1
4
1
2
3
4
5
6
12
11
6
2
5
4
3
1
13
9
10
8
7
14
1
32
41
32
1
2
-AREA INDICATION-
F:Japan
K:China
N:Euro
S:S’Pore
U:USA and Canada
A:Australia
C:Korea
L:Tiwan
