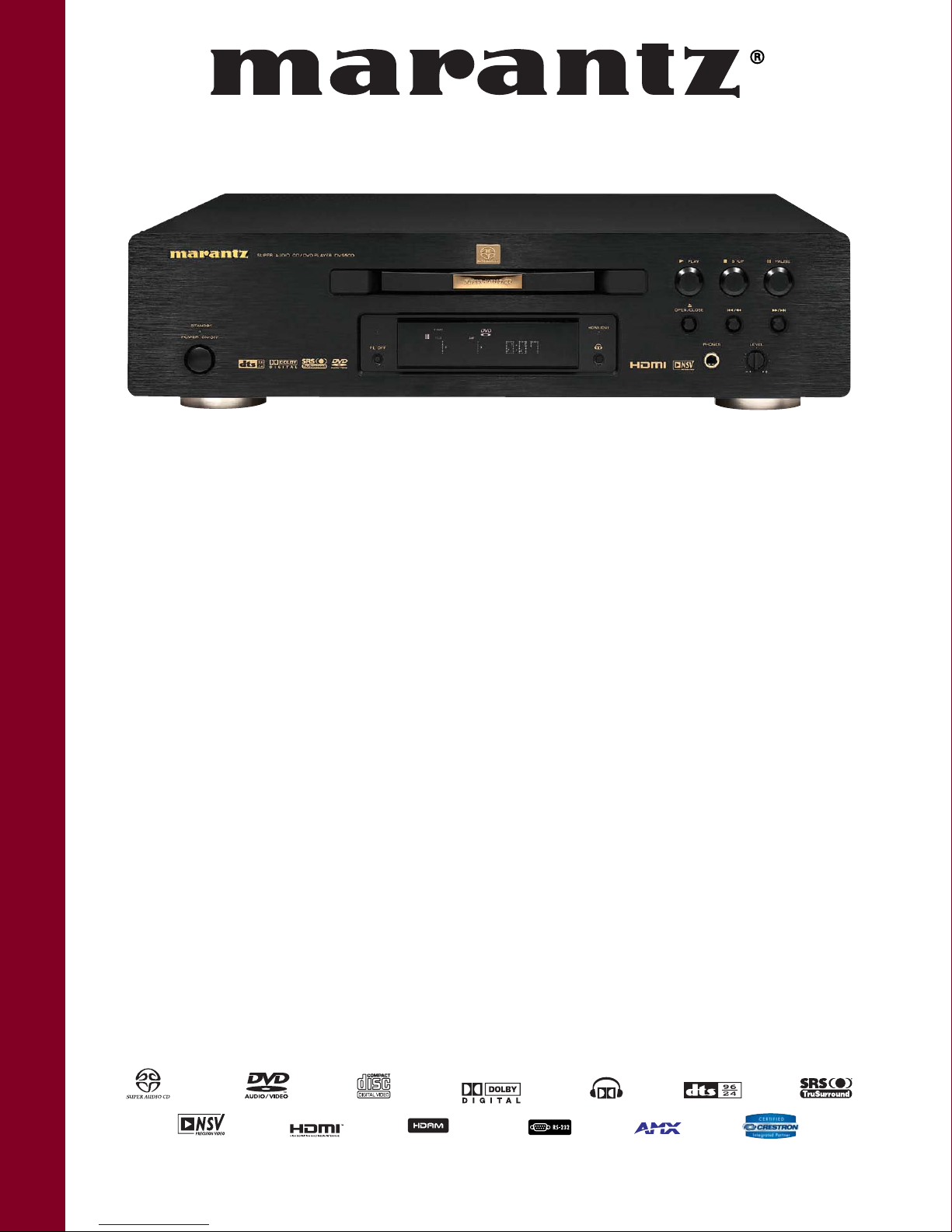

DV9500 Progressive Scan Universal DVD Player
The DV9500 includes many examples of Marantz’s best engineering and refined circuitry with carefully chosen internal components. It
supports DVD, DVD-A, SACD (stereo and multi-channel), CD, CD-R, CD-RW, VCD 2.0, SVCD, and MP-3 discs with built-in Dolby Digital and
dts decoders and true DSD processing for all SACDs. A dual-transformer power supply separates circuits to eliminate interference. Analog
audio circuitry includes unique high current HDAM modules mounted on a separate circuit board for extra isolation. The chassis includes a
double-layer bottom plate to minimize vibrations and the transport mechanism is highly damped to minimize tracking problems that can affect
both picture and sound. Video circuitry includes a separate progressive-scan 10-bit video processing in addition to the main 216MHz/14-Bit
video decoding. NSV (Noise Shaped Video) circuits further reduces video noise for extraordinary reproduction. Conveniences abound. There’s
a customizable start-up screen, parental controls, an HDMI video output. And an RS232 port for total system control. The DV9500. Proof that
Marantz values your total satisfaction.
• Plays Back DVD-Video/Audio, SACD-
Stereo/Multi-channel,
DVD-R/RW, CD, CD-R/RW, SVCD, VCD,
MP3 and JPEG Discs
• 216MHz/14-Bit Video
D/A Converter
• 192kHz/24-Bit Audio
D/A Converters
• HDMI Output
• Built-in 10-Bit Progressive Scan (w/3:2
Pull Down)/Scaler for 1080i, 720p and
480p Output
• NSV Technology for Optimization of
Video Signal
• Newly Developed High Precision
Mechanism
• HDAM®Audio Output Circuits
• Bass Management for Both SACD and
DVD-A w/Delay
• Lip Sync Control
• Fine Video Adjustments
• DTS 96/24 Decoder
• Dolby Digital®/ DTS Decoder
• Dolby Headphone
• DSD Based SACD
• Simultaneous Live Video Outputs
• Video/Digital Circuit Off Mode
• Exclusive Power Transformer for Audio
Circuit
• Zero-impedance Copper Ground Plate for
6 Channel Analog
Output Jacks
• Double Layer Bottom Plate
• Customizable Start Up Screen
• Parental Control
• On Screen Display
• Component, S-Video and x2 Composite
Outputs
• 5.1 ch Analog Audio Output
• Stereo Analog Audio Output
• Digital Audio Outputs
(coaxial, optical)
• RS232C Terminal for System Control
• D-BUS (RC-5 In/Out)
Remote Connection
Compatible
®
