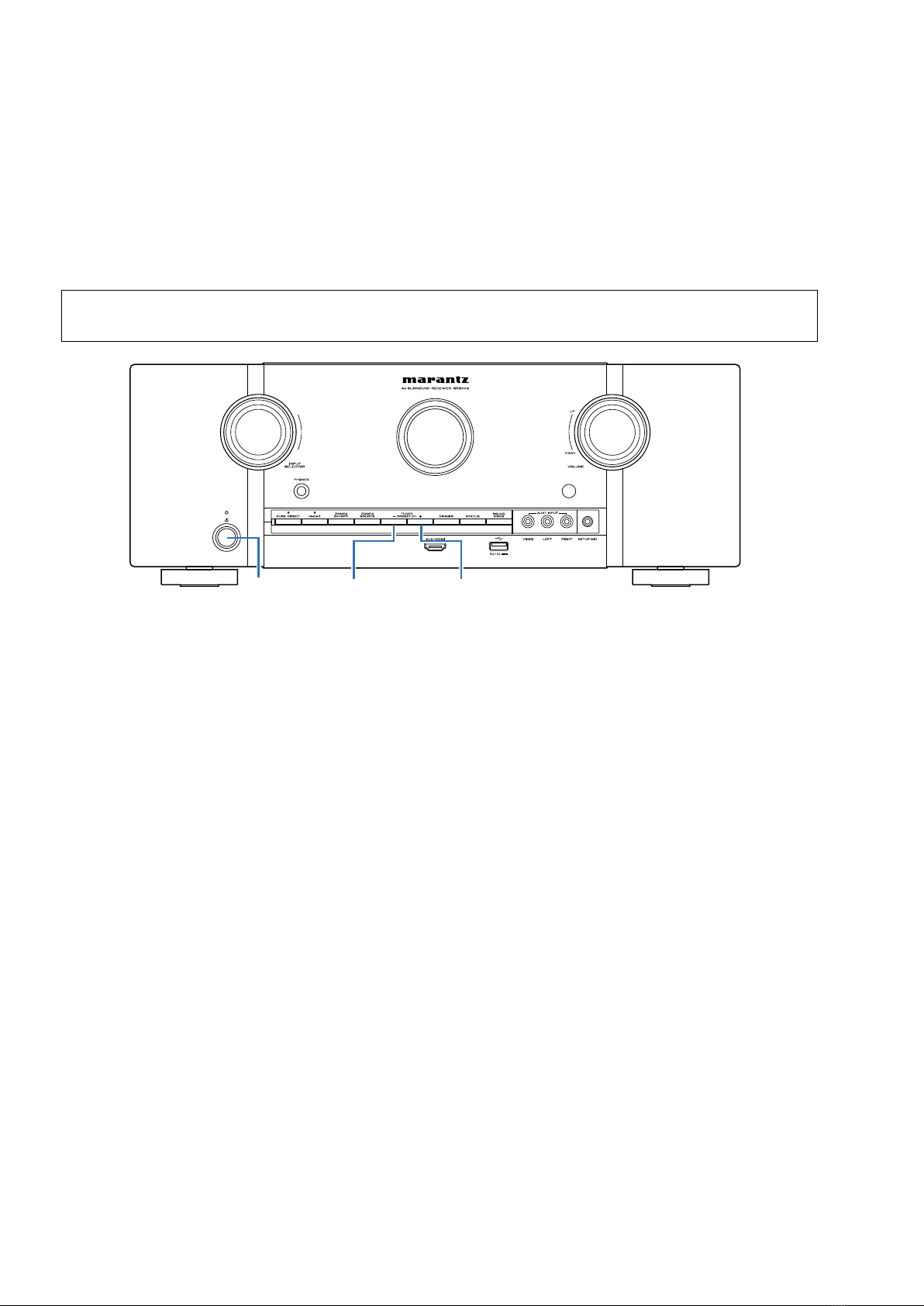

Marantz SR5009/U1B User manual

AV SURROUND RECEIVER
SR5009 /U1B/N1B/N1SG
/K1B
SR5009
S0899-0V03DM/DG1409
Copyright 2014 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
Ver. 3
•Some illustrations using in this service manual are slightly different from the actual set.
•Please use this service manual with referring to the operating instructions without fail.
•For purposes of improvement, specications and design are subject to change without notice.
Please refer to the
MODIFICATION NOTICE.
Service
Manual

Contents
ABOUT THIS MANUAL.............................................................3
What you can do with this manual ............................................3
Using Adobe Reader (Windows version) ..................................4
SAFETY PRECAUTIONS ..........................................................6
NOTE FOR SCHEMATIC DIAGRAM.........................................7
NOTE FOR PARTS LIST ...........................................................7
TECHNICAL SPECIFICATIONS................................................9

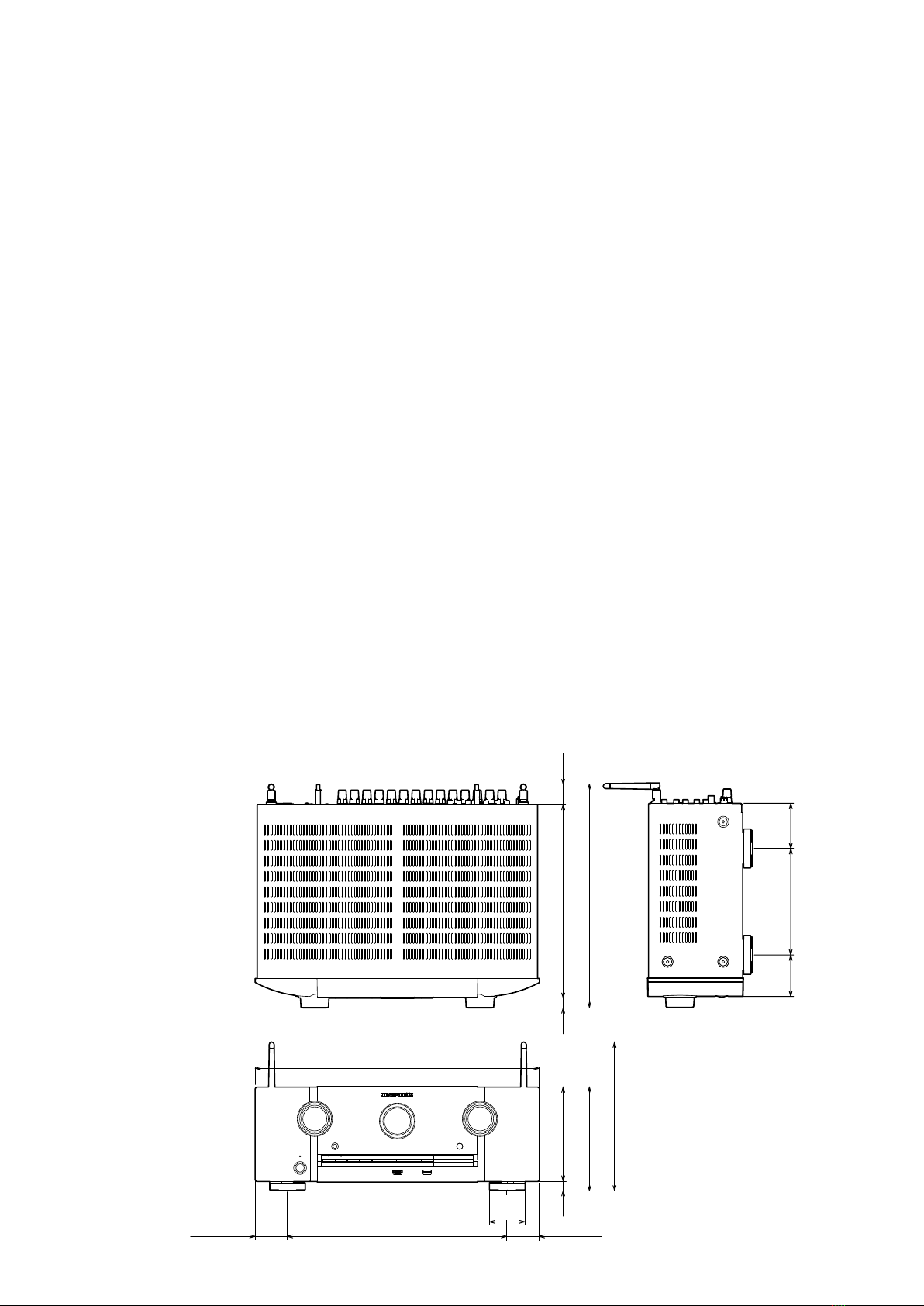

DIMENSION ...............................................................................9
Precautions During Service...................................................10
Initializing This Unit .................................................................10
Service Jigs.............................................................................10

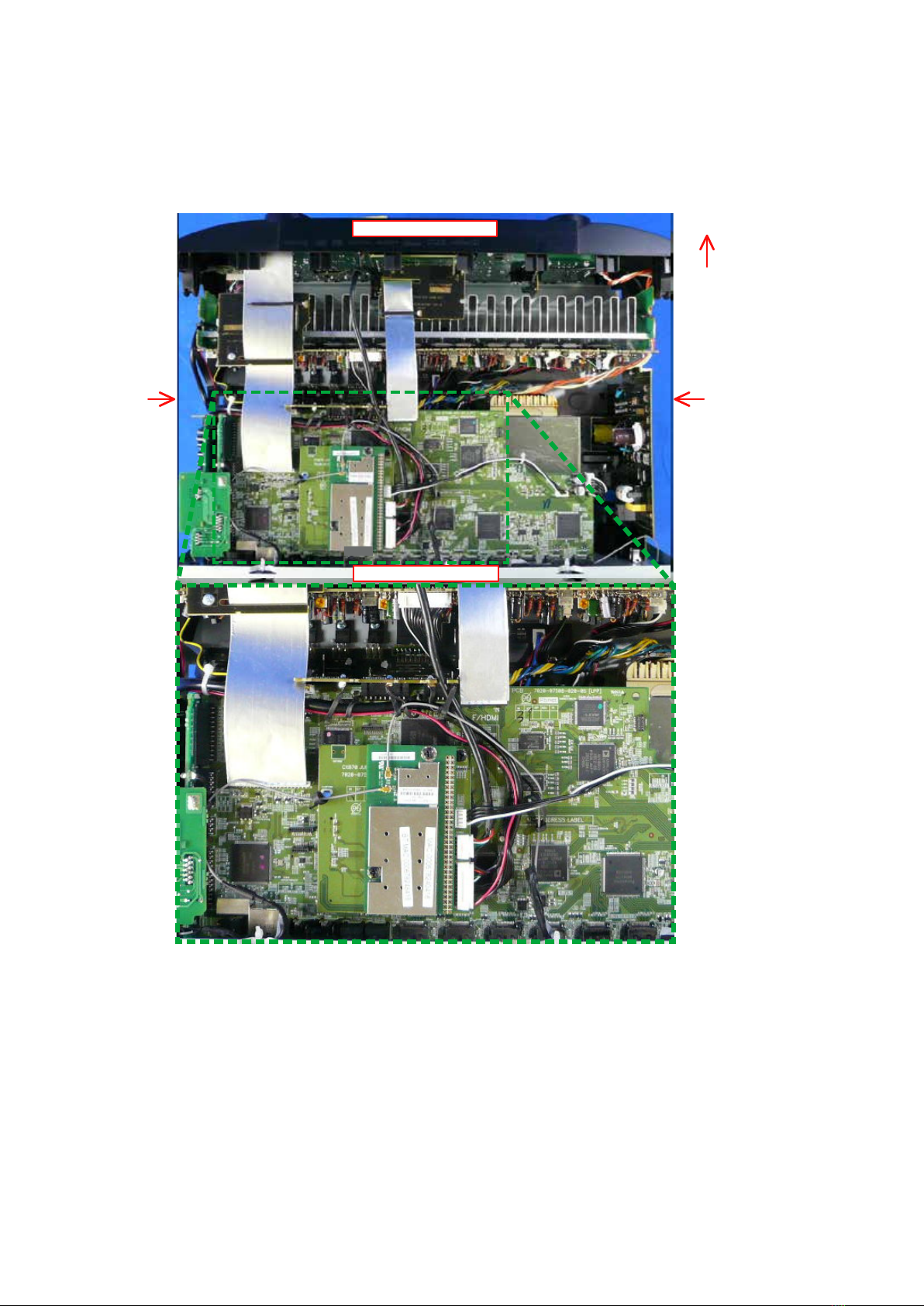

DISASSEMBLY........................................................................11
1. FRONT PANEL ASSY ........................................................13
2. RADIATOR ASSY...............................................................14
3. HDMI PCB..........................................................................15
4. VIDEO PCB........................................................................16
5. PREOUT PCB....................................................................16

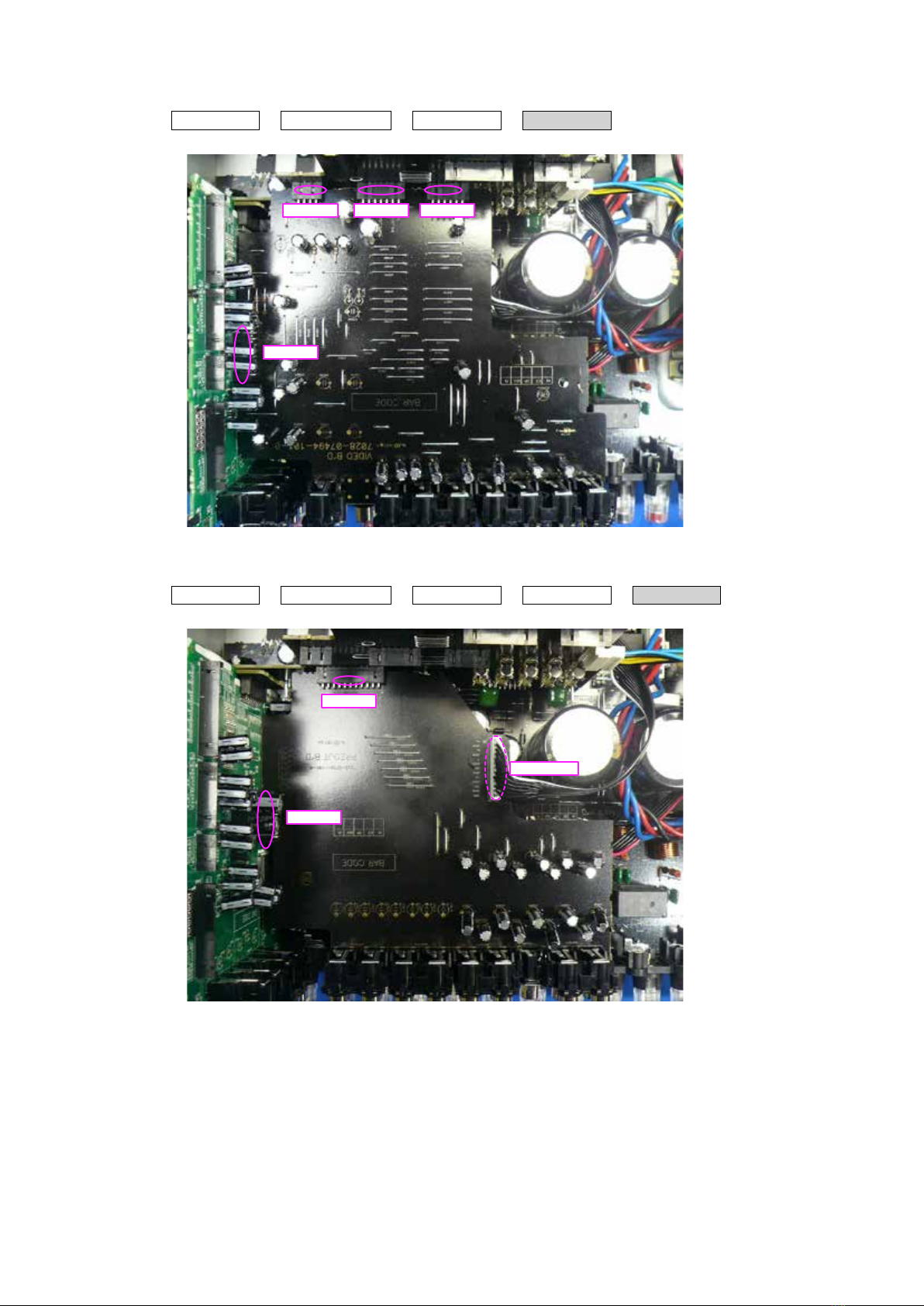

6. MAIN PCB.........................................................................17
7. SMPS PCB.........................................................................18
8. TRANS POWER ................................................................18
SPECIAL MODE ......................................................................19

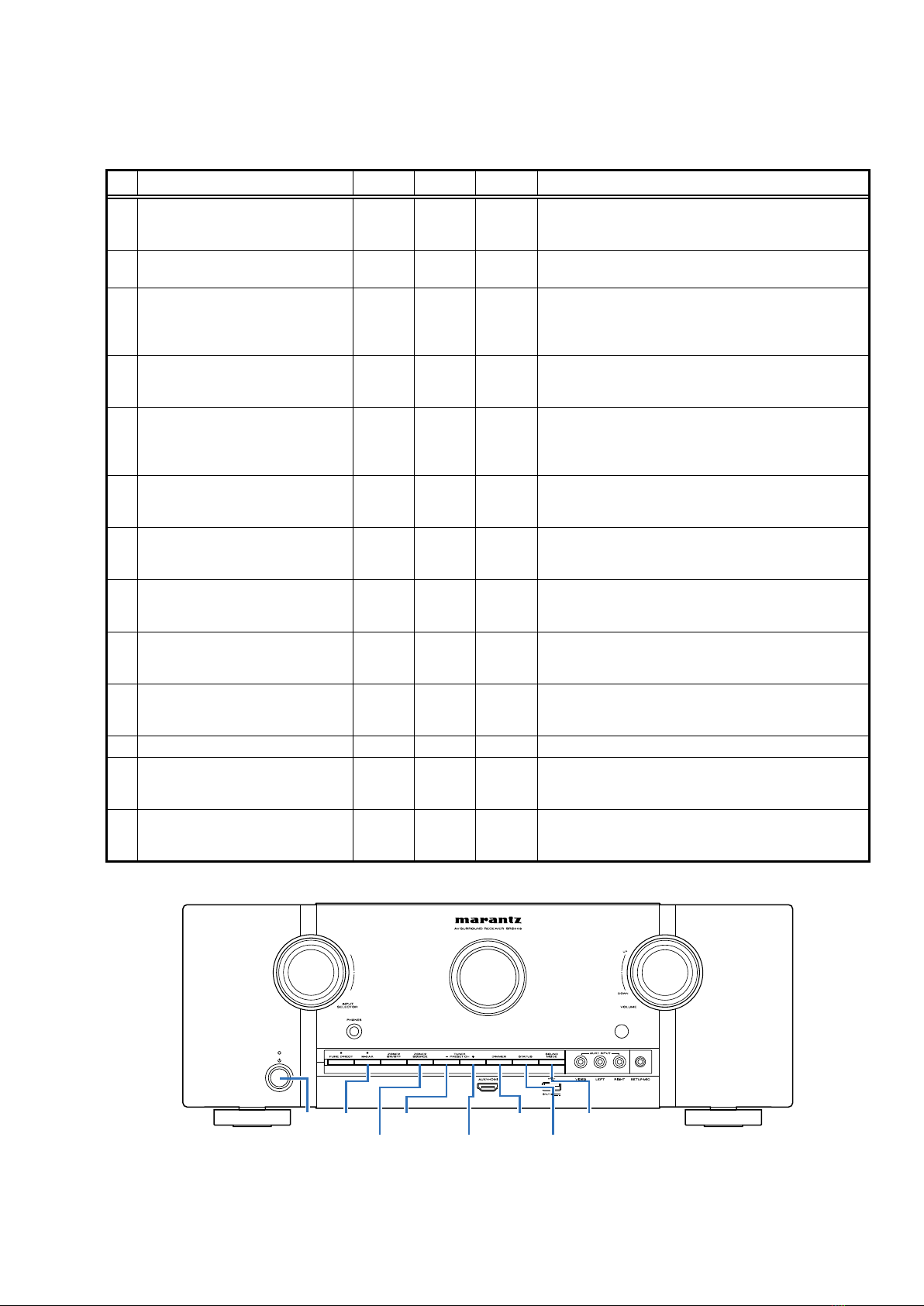

Special Mode Conguration Buttons.......................................19
1. Version Display Mode ........................................................20
2. PANEL / REMOTE LOCK Selection Mode.........................23
3. Selection Modes for Service-related Operations................24
DIAGNOSTIC PATH DIAGRAM..............................................27
4. Protection Pass Mode........................................................51
5. CX870 / CY920 Reboot mode............................................51
6. CX870 / CY920 Initialization mode ....................................52
JIG FOR SERVICING ..............................................................53
Procedure after Replacing the Microprocessor, etc. ..........56
Firmware Update Procedure..................................................56
1. Updating by USB................................................................56
2. Updating by DPMS.............................................................65
ADJUSTMENT.........................................................................72
SURROUND MODES AND PARAMETERS............................73
TROUBLE SHOOTING............................................................75
1. POWER..............................................................................75
2. Analog video ......................................................................76
3. HDMI/DVI...........................................................................80
4. AUDIO................................................................................82
5. Network/Bluetooth/USB .....................................................85
6. SMPS.................................................................................90
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK .............93
LEVEL DIAGRAM....................................................................94
BLOCK DIAGRAM.................................................................100
POWER DIAGRAM................................................................101
WIRING DIAGRAM................................................................102
PRINTED WIRING BOARDS.................................................103
SCHEMATIC DIAGRAMS (1/32) ...........................................110
01-HDMI SW1 .......................................................................110
02-HDMI SW2 ....................................................................... 111
03-NET_PHY.........................................................................112
04-BlueTooth .........................................................................113
05-CPU_LEVEL_CHG ..........................................................114
06-DIGITAL_CNT..................................................................115
07-CPU .................................................................................116
08-Sub_CPU .........................................................................117
09-FRONT_HDMI .................................................................118
10-DSP..................................................................................119
11-ADV8003..........................................................................120
12-ADV8003_DDR................................................................121
13-D.SUPPLY........................................................................122
14-HDMI_TX .........................................................................123
15-DIR_A.PLD ......................................................................124
16-V.PLD ...............................................................................125
17-MAIN_DAC ......................................................................126
18-ADV7850..........................................................................127
19-CX870JUNCTION............................................................128
20-INPUT ..............................................................................129
21-VIDEO_ZONE2................................................................130
22-VIDEO_FCNT ..................................................................131
23-VIDEO_RC5.....................................................................132
24-AMP1 ...............................................................................133
25-AMP2 ...............................................................................134
26-MAIN_SPK.......................................................................135
27-MAIN_TUNER_REG........................................................136
28-MAIN_RS232-CNT...........................................................137
29-FRONT.............................................................................138
30-SMPS...............................................................................139
31-HDAM ..............................................................................140
31-PREOUT ..........................................................................141
EXPLODED VIEW .................................................................142
PACKING VIEW .....................................................................143
SEMICONDUCTORS .............................................................144
1. IC's ...................................................................................144
2. FL DISPLAY .....................................................................163
2

Jump to the target of a schematic
diagram connector
Click the Ref. No. of the target connector in the red
box around a schematic diagram connector.
•The screen jumps to the target connector.
•Pagemagnicationstaysthesameasbeforethe
jump.
CP401
CP106
v
ABOUT THIS MANUAL
Read the following information before using the service manual.
What you can do with this manual
Search for a Ref. No. (phrase)
(Ctrl+Shift+F)
You can use the search function in Acrobat Reader to
search for a Ref. No. in schematic diagrams, printed
wiring circuit diagrams, block diagrams, and parts
lists.
1.Press Ctrl+Shift+Fonthekeyboard.
• The Search window appears.
2.EntertheRef.No.youwanttosearchforinthe
Search window, and then click the Search button.
•A list of search results appears.
3.Click an item on the list.
• The screen jumps to the page for that item, and the
searchphraseisdisplayed.
Ctrl
Shift
F
3

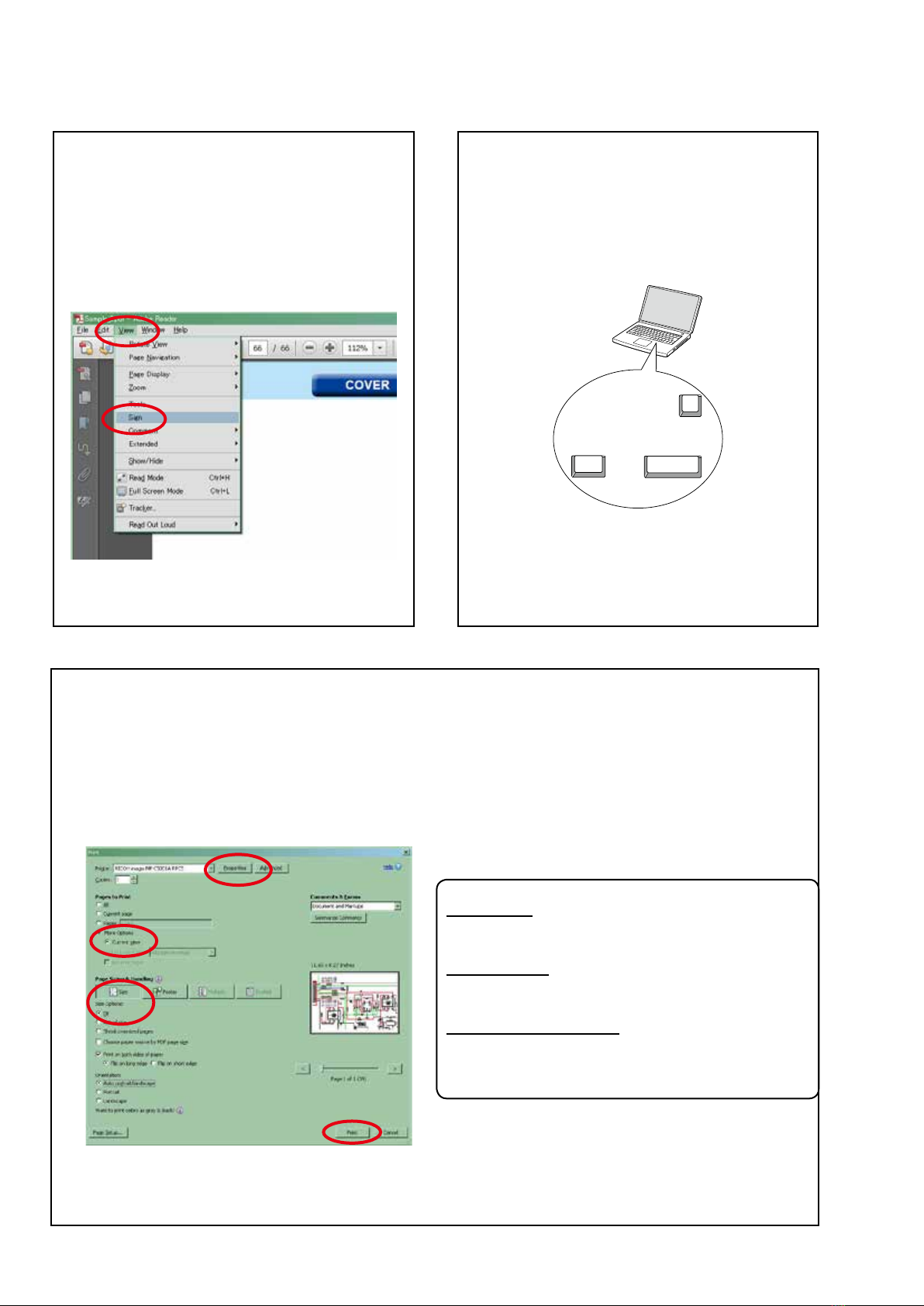

Using Adobe Reader (Windows version)
• Properties
Click this button and check that the printer is set to a
suitable paper size.
• Page to print
Select the following checkbox.
"More Options" : "Current View"
• Page Sizing & Handling
Select the following checkbox.
"Size" / "Size Options" : "Fit"
Add notes to this data (Sign)
TheSignfunctionletsyouaddnotestothedatain
this manual.
Savetheleonceyouhavenishedaddingnotes.
[Example using Adobe Reader X]
On the "View" menu, click "Sign".
• The Sign pane appears.
[Example using Adobe Reader 9]
On the "Document" menu, click "Sign".
Magnify schematic / printed circuit
board diagrams - 1
(Ctrl+Space, mouse operation)
Press Ctrl+Spaceonthekeyboardanddragthe
mousetoselecttheareayouwanttoview.
• Theselectedareaismagnied.
• Whenyouwanttomovetheareashown,hold
down Space and drag the mouse.
• Whenyouwanttoshowafullpageview,press
Ctrl+0onthekeyboard.
Ctrl Space
0
Print a magnied part of the manual
ThePropertiesdialogboxandfunctionswillvarydependingonyourprinter.
1. Dragthemousetomagnifythepartyouwanttoprint.
2. On the "File" menu, click "Print".
3. CongurethefollowingsettingsinthePrintdialogbox.
4. Click the Print button to start printing.
4

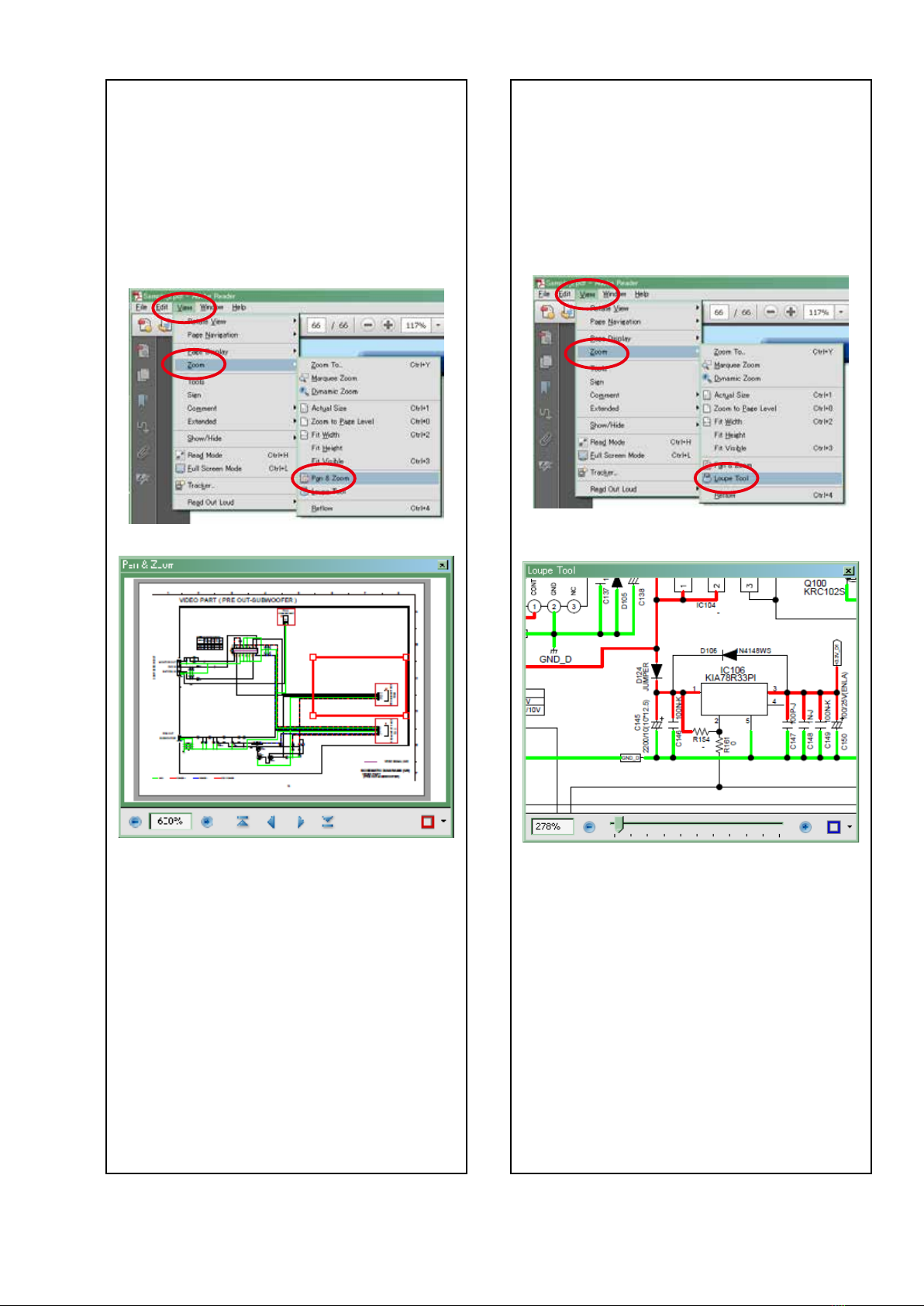

Magnify schematic / printed circuit
board diagrams - 2
(Pan & Zoom function)
ThePan&Zoomfunctionletsyouseewhichpartof
amagnieddiagramisbeingshowninaseparate
window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Pan & Zoom".
• The Pan & Zoom window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Pan & Zoom Window".
Magnify schematic / printed circuit
board diagrams - 3
(Loupe Tool function)
TheLoupeToolfunctionletsyoumagnifyaspecic
part of a diagram in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Loupe Tool".
• The Loupe Tool window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Loupe Tool Window".
5

SAFETY PRECAUTIONS
The following items should be checked for continued protection of the customer and the service technician.
leakage current check
Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the set is defective.
Be sure to test for leakage current with the AC plug in both polarities, in addition, when the set's power is in each state
(on,offandstandbymode),ifapplicable.
CAUTION Please heed the following cautions and instructions during servicing and
inspection.
◎Heed the cautions!
Cautions which are delicate in particular for servicing
are labeled on the cabinets, the parts and the chassis,
etc. Be sure to heed these cautions and the cautions
described in the handling instructions.
◎Cautions concerning electric shock!
(1) AnACvoltageisimpressedonthisset,soifyou
touch internal metal parts when the set is energized,
youmaygetanelectricshock.Avoidgettingan
electricshock,byusinganisolatingtransformer
and wearing gloves when servicing while the set is
energized,orbyunpluggingthepowercordwhen
replacing parts, for example.
(2) Therearehighvoltagepartsinside.Handlewith
extra care when the set is energized.
◎Caution concerning disassembly and
assembly!
Through great care is taken when parts were
manufacturedfromsheetmetal,theremaybeburrson
theedgesofparts.Theburrscouldcauseinjuryifngers
are moved across them in some rare cases. Wear gloves
toprotectyourhands.
◎Use only designated parts!
Theset'spartshavespecicsafetyproperties(re
resistance,voltageresistance,etc.).Besuretouseparts
which have the same properties for replacement. The
burrs have the same properties. In particular, for the
importantsafetypartsthatareindicatedbythezmark
on schematic diagrams and parts lists, be sure to use
the designated parts.
◎Be sure to mount parts and arrange the wires
as they were originally placed!
Forsafetyseasons,somepartsusetapes,tubesorother
insulatingmaterials,andsomepartsaremountedaway
from the surface of printed circuit boards. Care is also
takenwiththepositionsofthewiresbyarrangingthem
andusingclampstokeepthemawayfromheatingand
highvoltageparts,sobesuretoseteverythingbackas
itwasoriginallyplaced.
◎Make a safety check after servicing!
Check that all screws, parts and wires removed or
disconnected when servicing have been put back in their
original positions, check that no serviced parts have
deteriorate the area around. Then make an insulation
check on the external metal connectors and between
the blades of the power plug, and otherwise check that
safetyisensured.
(Insulationcheckprocedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and on the power. Using a 500V
insulation resistance tester, check that the insulation
resistancevaluebetweentheinplugandtheexternally
exposedmetalparts(antennaterminal,headphones
terminal,inputterminal,etc.)is1MΩorgreater.Ifitis
less, the set must be inspected and repaired.
Manyoftheelectricandthestructuralpartsusedinthe
sethavespecialsafetyproperties.Inmostcasesthese
propertiesaredifculttodistinguishbysight,andtheuse
ofreplacementpartswithhigherratings(ratedpower
andwithstandvoltage)doesnotnecessarilyguarantee
thatsafetyperformancewillbepreserved.Partswith
safetypropertiesareindicatedasshownbelowonthe
wiring diagrams and the parts list in this service manual.
Be sure to replace them with the parts which have the
designated part number.
(1) Schematicdiagrams.......Indicatedbythez mark.
(2) Partslists.......Indicatedbythezmark.
The use of parts other than the
designated parts could cause electric
shocks,resorotherdangerous
situations.
CAUTION Concerning important
safety parts
6

NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Partsindicatedbythezmarkhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer.
CAUTION:
Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassisresistancecheck.
If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the
set is defective.
WARNING:
DONOTreturnthesettothecustomerunlesstheproblemisidentiedandremedied.
NOTICE:
ALLRESISTANCEVALUESINOHM.k=1,000OHM/M=1,000,000OHM
ALLCAPACITANCEVALUESAREEXPRESSEDINMICROFARAD,UNLESSOTHERWISEINDICATED.PINDICATESMICRO-MICRO
FARAD.EACHVOLTAGEANDCURRENTAREMEASUREDATNOSIGNALINPUTCONDITION.CIRCUITANDPARTSARESUBJECT
TOCHANGEWITHOUTPRIORNOTICE.
NOTE FOR PARTS LIST
1.Partsindicatedby"nsp" on this table cannot be supplied.
2.Whenorderingapart,makeacleardistinctionbetween"1"and"I"(i)toavoidmis-supplying.
3.Apartorderedwithoutspecifyingitspartnumbercannotbesupplied.
4.Partindicatedby" ★" mark is not illustrated in the exploded view.
WARNING:Partsindicatedbythezmarkhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer.
INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS AND OPTICAL UNIT
Electrostaticbreakdownofthesemi-conductorsoropticalpickupmayoccurduetoapotentialdifferencecausedby
electrostatic charge during unpacking or repair work.
1. GroundforHumanBody
Besuretowearagroundingband(1MΩ)thatisproperlygroundedtoremoveanystaticelectricitythatmaybe
chargedonthebody.
2. GroundforWorkbench
Besuretoplaceaconductivesheetorcopperplatewithpropergrounding(1MΩ)ontheworkbenchorothersurface,
wherethesemi-conductorsaretobeplaced.Becausethestaticelectricitychargeonclothingwillnotescapethrough
thebodygroundingband,becarefultoavoidcontactingsemi-conductorswithyourclothing
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA
7

Personal notes:
8

TECHNICAL SPECIFICATIONS
nAudio section
• Power amplifier
Rated output :
Front :
100W+100W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
140W+140W(6Ω, 1kHz with 0.7% T.H.D)
Center :
100W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
140W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
100W+100W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
140W+140W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
100W+100W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
140W+140W(6Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 4 - 16Ω
nAnalog section
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz - 100 kHz — +1, -3 dB(Direct mode)
S/N : 100 dB(IHF-A weighted, Direct mode)
nVideo section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input sensitivity/Input impedance : Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz - 60 MHz — 0, -3 dB
nTuner section
FM
Reception frequency range : FM 87.5 MHz - 107.9 MHz(for U)
FM 87.5 MHz - 108.0 MHz(for N, K)
AM 520 kHz - 1710 kHz(for U)
AM 522 kHz - 1611 kHz(for N, K)
Effective sensitivity : FM 1.2μV(12.8dBf)
AM 18 μV
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N: MONO ― 70 dB (IHF-A weighted, Direct mode)
STEREO ― 67 dB (IHF-A weighted, Direct mode)
Distortion : MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
nWireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 - 11 ch (for U)
1 - 13 ch (for N, K)
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
nBluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10 m 2 in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
nGeneral
Power supply : (for U) : AC 120 V, 60 Hz
(for N) : AC 230 V, 50 Hz / 60Hz
(for K) : AC 220 V, 50 Hz
Power consumption : 650W
Power consumption in standby mode : 0.2W
Power consumption in CEC standby mode : 0.5W
Power consumption in network standby mode : 2.7W
For purposes of improvement, specications and design are subject to
change without notice.
DIMENSION
Unit： Unit : in. (mm) Weight： 22 lb 11 oz (10.3 kg)
6 1/2 (165)
2 33/64
(64)
2 23/32
(69)
17 21/64 (440)
33/64
(13)
5 53/64 (148) 6 11/32 (161)
9 1/16 (230)
11 47/64 (298)
13 5/8 (346)
5/8
(16)
1 17/64
(32)
13 25/64 (340)1 31/32 (50) 1 31/32(50)
2 11/64
(55)
9

PRECAUTIONS DURING SERVICE
Initializing This Unit
Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer, or the digital PCB.
1. Press the power button to turn off the power.
2. Hold down buttons "TUNER PRESET CH -" and "TUNER PRESET CH +" at the same time and press the power but-
ton to turn on the power.
3. Release the buttons after conrming that the display ashes in intervals of approximately 1 second.
＊The unit is initialized.
NOTE：• If the status in step 3 does not occur, start again from step 1.
• Initializing the device restores settings congured by the user to the factory settings. Take note of your settings beforehand
and recongure them after initialization.
Service Jigs
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
8U- 110084S : EXTENSION UNIT KIT : 1 Set
(See 53 page)
TUNER
PRESET CH +
XTUNER
PRESET CH -
10
