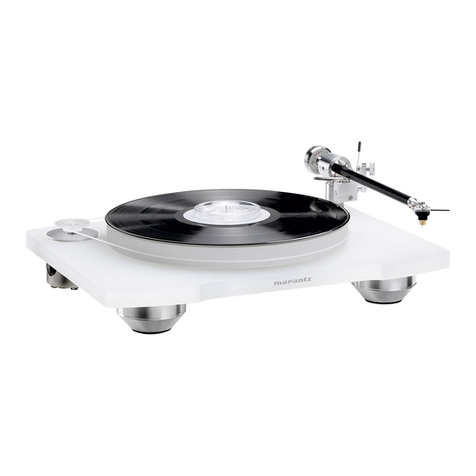

Marantz TT-15S1 User manual

Model
TT-15S1
User Guide
Turntable

NOTE:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN I
•
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER {OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
WARNING
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions
in
the literature accompanying the product.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOC ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU' AU FOND.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant
to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television
reception, which
can be determined by tuning the equipment off
and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or
an experienced radio/TV technician
for help.
NOTE:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
NOTE TO CATV SYSTEM INSTALLER:
This reminder is provided to call the CATV (Cable-TV) system installer's attention to Section 820-40 of the NEG which provides guidelines
for proper grounding and,
in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.

IMPORTANT SAFETY
INSTRUCTIONS
READ BEFORE OPERATING EQUIPMENT
This product
was
designed
and
manufactured
to
meet strict quality
and
safety standards. There are, however, some installation
and
operation
precautions which
you
should
be
particularly aware
of.
1.
Read Instructions -All the safety and operating instructions
should
be
read
before the product
is
operated.
2.
Retain Instructions -The safety and operating instructions
should
be
retained for future reference.
3.
Heed Warnings -All
warnings
on the product and in the
operating instructions should
be
adhered
to.
4.
Follow Instructions-
All
operating
and
use
instructions should
be
followed.
5.
Cleaning -Unplug this product from the wall outlet before
cleaning.
Do
not
use
liquid cleaners
or
aerosol cleaners. Use a
damp cloth for cleaning.
6.
Attachments -
Do
not
use
attachments
not
recommended
by
the
product manufacturer
as
they may cause hazards.
7.
Water and Moisture -
Do
not use this product near water-for
example, near a bath tub, wash bowl, kitchen sink, or laundry
tub,
in
a wet basement, or near a swimming pool,
and
the like.
8.
Accessories -
Do
not place this product
on
an
unstable cart,
stand, tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table
recommended
by
the manufacturer,
or
sold with the product. Any
mounting of the product should follow the manufacturer's
instructions,
and
should
use a
mounting
accessory
recommended
by
the manufacturer.
9.
A product and cart combination should
be
moved with care.
Quick stops, excessive force,
and
uneven surfaces
may
cause
the product
and
cart combination to overturn.
10.
Ventilation -Slots and openings
in
the cabinet
are
provided for
ventilation
and
to ensure reliable operation of
the
product
and
to
protect it from overheating, and these openings must not
be
blocked or covered. The openings should never
be
blocked
by
placing
the
product
on
a
bed,
sofa,
rug,
or
other similar surface.
This product should not
be
placed
in
a built-in installation such
as
a bookcase or rack unless proper ventilation
is
provided or the
manufacturer's instructions have been adhered
to.
11
. Power Sources -This product should
be
operated only from the
type of power source indicated
on
the marking label.
If
you
are
not sure of the type of power supply to your
home,
consult your
product dealer or local power company.
For
products intended
to operate from battery power, or other sources, refer to the
operating instructions.
12.
Grounding or Polarization -This product
may
be
equipped with a
polarized alternating-current line plug
(a
plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This
is
a safety feature.
If
you
are unable
to
insert the
plug fully into the outlet, try reversing the plug.
If
the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet.
Do
not defeat the safety purpose of the polarized plug.
AC
POLARIZED PLUG
13.
Mains Cord Protection -Mains cord should
be
routed so that
they
are
not likely
to
be
walked
on
or pinched
by
items placed
upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit
from the product.
14.
Protective Attachment Plug -The product
is
equipped with
an
attachment plug having overload protection. This
is
a safety
feature. See Instruction Manual for replacement or resetting of
protective device. If replacement of the plug
is
required,
be
sure
the
service technician has used a replacement plug specified
by
the manufacturer that has the same overload protection
as
the
original plug.
15.
Outdoor Antenna Grounding -If an outside antenna or cable
system
is
connected to the product,
be
sure the antenna or cable
system
is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire
to
an
antenna discharge
unit, size of grounding conductors, location
of
antenna-discharge
unit, connection to grounding electrodes, and requirements for
the grounding electrode. See Figure
1.
16.
Lightning -For added protection for this product during a
lightning storm, or when it
is
left unattended
and
unused for long
periods of time, unplug it from the wall outlet
and
disconnect the
antenna or cable system. This will prevent damage to the
product due
to
lightning and power-line surges.
17.
Power Lines -
An
outside antenna system should not
be
located
in
the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing
an
outside antenna system, extreme
care should
be
taken to keep from touching such power lines or
circuits
as
contact with them might
be
fatal.
18.
Overloading -
Do
not overload wall outlets, extension cords, or
integral convenience receptacles
as
this
can
result
in
a risk of fire
or
electric shock.
19.
Object and Liquid Entry -Never push objects of any kind into
this product through openings
as
they may touch dangerous
voltage points or short-out parts that could result
in
a fire or
electric shock. Never spill liquid of any kind
on
the product.

20. Servicing - Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.
21. Damage Requiring Service -Unplug this product from the wall
outlet and refer servicing
to qualified service personnel under the
following conditions:
a. When the Mains cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered
by the
operating instructions
as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a distinct change in performance -
this indicates a need for service.
22. Replacement
Parts- When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result
in fire,
electric shock, or other hazards.
23. Safety Check- Upon completion of any service or repairs to this
product, ask the service technician
to perform safety checks to
determine that the product is in proper operating condition.
24. Wall or Ceiling Mounting -The product should be mounted to a
wall or ceiling only as recommended
by the manufacturer.
25. Heat -The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
FIGURE 1
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
GROUND CLAMPS
GROUND
CLAMP
ANTENNA
LEAD
IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION
81 0-20)
~,..,---...;;;;::... GROUNDING CONDUCTORS
(NEC SECTION 810-21)
..... ___ ~POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART
H)
NEC -NATIONAL ELECTRICAL CODE
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de
Ia Classe Best conforme a Ia norme
NMB-003
du Canada.

CONTENTS ..........................................,.................................................................................................1
BEFORE USE .........................................................................................................................................2
ACCESSORIES ......................................................................................................................................3
ASSEMBLING AND ADJUSTING...........................................................................................................5
NAMES AND FUNCTIONS...................................................................................................................10
CONNECTIONS AND OPERATION.....................................................................................................
11
TROUBLE SHOOTING .........................................................................................................................12
SPECIFICATIONS AND EXTERNAL DIMENSIONS DIAGRAM ..........................................................13
OTHERS ...............................................................................................................................................14
1

This section must be read before any connection
is
made to
the mains supply.
• Equipment Main Power Setting
Your Marantz product has been prepared to comply with the
household power and safety requirements that exist
in
your
area.
TT-15S1 can be powered by 120V AC only.
• Copyright
Recording
and
playback
of
any
material
may
require
consent. For further information refer
to
the following:
-Copyright Act 1956
-Dramatic and Musical Performers Act 1958
-Performers Protection Acts 1963 and 1972
-Any subsequent statutory enactments and orders
• Do Not Locate
in
the Following
Places
To
ensure long-lasting use, do not locate the TI-15S1 where:
• Exposed to direct sunlight.
• Near to sources of heat such
as
heaters.
• Highly humid or poorly ventilated.
• Dusty.
• Subjected to mechanical vibrations.
•
On
wobbly, inclined or otherwise unstable surfaces
• Radiated heat
is
blocked such as
in
cramped audio racks.
To
ensure
proper
heat
radiation,
ensure
the
below
clearance from walls and other equipment.
Front
0.2m
Side
0.2m
0.2m 0.2m
• Caution: Do not lose the bearing.
(View from underneath the turntable chassis)
~
,'~
I
I
Turntable chassis
Center shaft hole
Bearing
I
Center
shaft~
There
is
a bearing located inside the center shaft hole
in
the
turntable chassis. When the turntable leaves the factory, the
center shaft hole
is
covered with tape to prevent the bearing
from falling out. Sometimes after removing the tape, the
bearing falls out when the turntable is turned over. If the
center shaft is inserted when there is no bearing
in
the
center shaft hole, the turntable will not rotate. Therefore,
make sure that the bearing does not fall out of the center
shaft hole when assembling the turntable.
Furthermore,
if
the
turntable
is
disassembled
for
transportation etc. cover the center shaft hole with tape etc.
to prevent the bearing from falling out.
• Before using
• Thoroughly remove dust or dirt from the
stylus point and record.
If
you play records when there
is
dirt/dust
on
the stylus,
not only will the stylus have poor contact with the record
causing poor sound quality, it will also increase the rate
of wear of both the stylus and record. Gently remove
dirt/dust by brushing with a soft tipped brush from the
base of the stylus to the tip. Also wipe the record with a
good quality record cleaner.
• Install the turntable chassis and turntable
so that they are level.
It
is
possible to adjust the height of the legs by rotating
them. However, as there are only 3 legs, the height may
not be adjustable
in
some cases.
In
such cases, adjust the rack itself so that it
is
horizontal.
• About howling and hum
Howling occurs
when
sound from
the
speaker
or
vibration
is
transmitted
to
the
player
and
is
picked
up
by
the
cartridge
again. If howling occurs when the volume
is
increased,
check the positions of the speakers and turntable,
and
move
them
to
locations where neither vibration nor
sound
is
transmitted
to
the
turntable.
Hum
noise occurs because
of
electromagnetic waves that are generated from other
electronic devices. Check the position
of
other electronic
devices that are near to the turntable, especially the
amplifier. Also,
hum
or noise occurs if the ground
is
not
connected correctly. Check that
the
ground wire
is
securely
connected
to
the
GND
terminal
on
the amp/mixer. 2

Before using the turntable, please make sure that you have all of the following accessories.
1.
Turntable chassis
5.
Motor
2.
Center shaft
6.
Motor pulley (for 60Hz areas)
3.
Tone
arm
7.
Gloves (pair)
4.
Turntable
8.
Ground wire
3

9.
2 Drive belts
(1
spare belt)
10. Bearing oil
11. Turntable sheet
12. 3 Allen wrenches (large/medium/small)
1 adjustment screwdriver
\
13. Record clamp ("Clever clamp" produced
by
Southern Engineering)
14. Counter weight
15. Tone arm height adjustment sheet
16. Cartridge (MM type) by Clearaudio
4

1. Installing the ground wire
Connect the ground wire to the turntable shaft base.
Turntable shaft base
Ground wire
2.
Inserting the center shaft
Insert the center shaft into the turntable chassis.
~Center
shaft
1 Turntable chassis
3.
Installing the turntable
Place the turntable onto the center shaft.
Center shaft
5
4.
Attaching the tone arm
a)
Pass the Phono cable that
is
connected
to
the tone arm
through the tone arm attachment hole.
b)
Determine the height and direction of the tone arm
attachment position.
b-1) Height
Bear
in
mind that the height position of the tone
arm
is
different depending on whether or not the turntable
sheet is used.
• When using the turntable sheet
The
correct
height
position
is
achieved
when
the
counter weight and tone arm height adjustment sheet
are placed beneath the arm lifter.
With turntable sheet
Tone arm height
adjustment sheet
• When not using the turntable sheet
The correct height position is achieved when just the
counter weight
is
placed beneath the arm lifter.
(Tone arm height adjustment sheet
is
not used.)
No turntable sheet
Counter weight

b-2) Direction
The direction position
is
correct when the tone arm is
parallel with the side of the turntable base.
I I
Based side
: : of turntable
Parallel
b-3) When
you
have determined the height and direction of
the tone arm attachment position, tighten the tone arm
fixing screw using the Allen wrench (large).
After fixing the tone arm
in
place, remove the counter
weight and tone arm height adjustment sheet.
5.
Attaching the cartridge
a)
Use the Allen wrench (medium) to remove the head
shell from the tone arm.
Head shel
b)
Attach the cartridge to the head shell.
Head shell
Cartridge
• When attaching the cartridge that was included with the
turntable,
use
the
aluminum
screw
and
slotted
screwdriver that are also included.
• When attaching a different cartridge, choose a cartridge
that
is
compatible with the cartridge weight range for the
tone arm.
Compatible cartridge weight: 3-18g
6

c)
Attach the cartridge that you attached
in
the previous
step
to
the tone arm.
• When using the included cartridge
Attach
to
the front attachment hole position
on
the tone
arm.
• When using a different cartridge
Attach the cartridge so that it
is
32mm from the stylus
tip.
32mm
d)
Connect
the
4
tone
arm
wires
to
their
respective
terminals
on
the attached cartridge.
For
the
included
cartridge
White~Red
Blue~Green
When using a different cartridge, refer
to
the cartridge
instruction manual to connect the wires.
Caution:
7
Be
careful when connecting the wires,
as
they are thin
and break easily.
It
is easy
to
connect the wires if
you
use tweezers etc.
6. Adjusting arm balance
a)
Remove the anti-skating adjustment screw.
Anti-skating
adjustment screw
b)
Attach the counter weight
to
the back of the arm.
c)
Remove the cartridge cover.
~Cartridge
cover
Caution:
Make sure that the cartridge stylus tip does not touch the
turntable
etc. and
that
the
stylus
tip
does
not
get
damaged.

d)
Lower the lifter lever, and rotate the counter weight to
balance the tone arm so
that
it is parallel with the
turntable.
Tone
arm
...
Counter
weight
)
Find
the
balance
e)
After finding the balance, raise the lifter lever and attach
the anti-skating adjustment screw.
Anti-skating
adjustment
screw
7.
Stylus pressure adjustment
Adjust to the
recommended
stylus pressure of the
cartridge being used.
When the tone arm is balanced, rotate the counter
weight
in
the direction of the arrow using the counter
weight
"0"
point display as a reference point.
Refere~ce
point
Counter
weight
Rotating the counter weight by 1 scale graduation adds
0.1
g of pressure. Therefore, as the counter weight has
5
graduations,
one
complete
turn will add 0.5g of
pressure.
As the recommended stylus pressure for the included
cartridge
is
2.2g, rotate the counter weight 4 complete
turns and 2 scale graduations from the reference point
at
balance
adjustment
to reach
the
correct
stylus
pressure position.
Rotate 4 complete turns and
2 graduation points
from the reference point.
~
Stylus pressure 2.2g
When using a different stylus, check the recommended
stylus
pressure
and
adjust
to
the
correct
stylus
pressure.
8.
Anti-skating adjustment
Adjust the anti-skating adjustment screw
in
line with the
stylus pressure of the cartridge being used.
For the included cartridge, adjust so that the screw
position
is
approximately half way out.
Screw half
way
position
Anti-skating
adjustment
screws
8

9.
Attaching the motor pulley
Attach the motor pulley to the motor.
Using the adjustment screwdriver included to fix the
pulley's 3 plastic screws.
Be
careful not to turn the screws with too much force,
as they are made from plastic and can break easily.
When attaching the pulley, fix with approximately 3mm
space between the pulley and motor.
(
(
I I
3m
m
1
O.lnstalling the motor
From
underneath the turntable chassis, place the motor
in
the hole section
at
the back left
of
the turntable chassis.
(Do not fix it to the turntable base)
Does not touch
Caution:
9
When installing the motor, in order to prevent motor
vibrations from being transmitted to the turntable base,
install the motor so that it does not touch the base.
11.1nstalling the belt
Use one of the belts included and attach it between the
motor pulley and turntable.
When attaching the belt, hook it over the central slot.
(There are 2 belts included with the turntable. Please
keep one
as
a spare.)
The positions for attaching the motor pulley belt are
different when playing
45
or 33
rpm
records.
Change the position of the belt to suit the record that
you want to play.
33 rpm 45 rpm
Caution:
When changing the position of the belt, use the gloves
included, and
be
careful not to damage the belt
in
any
way.

w
@---®
®
I
I
I
CD
Power switch (OFF, ON)
When
it
is
switched ON, the turntable rotates.
@Pulley
This
is
changed to suit the rpm speed of the record to be
played.
33
1/3
rpm
record ....................................[Lower side]
45
rpm record ..........................................[Upper side]
®Belt
@Turntable
®Turntable sheet
®Cartridge
(})Tone arm
®Lifter lever
This
is
used to raise and lower the tone arm.
@
®
®
(j)
®Anti-skating knob
When a record
is
being played, a certain amount of force
is
exerted on the stylus that pulls it towards the center.
This knob
is
used to perform adjustments that cancel out
that force.
@Counter weight
This
is
used to balance the toner arm and to adjust the
stylus pressure.
@Record clamp
This
is
effective
in
holding the record when records are
being played without a turntable sheet, or when playing
warped records.
Use it
as
shown
in
the diagram.
10

• Connections
Make sure that the power supply to both this turntable and
the amplifier are OFF before you start connecting.
1. Connect the PHONO cables (L: white, R: red) that are
connected to the toner arm to the corresponding L and
R [PHONO] input terminals
on your amplifier.
2. Connect both the ground wire that is connected to the
bottom of the turntable and GND cable that is
connected to the toner arm to the GND terminal (ground
terminal)
on your amplifier.
3. Plug the motor power cord into an AC 120V outlet.
Caution
If your amplifier etc. has power outlets on the back panel,
plug the turntable into one of these outlets.
In this case,
refer to the instruction manual for amplifier, etc. and
check that the power outlet has enough power capacity.
• Operation
• Starting to play records
1. Plug the turntable power cable into an AC outlet.
2. Turn on the amplifier, and select input to [PHONO].
Also, set the amplifier phono equalizer to either [MM] or
[MC] to suit the attached cartridge. (If you are using the
included cartridge, set to [MM])
3. Set a record on the turntable.
* If you are playing an EP record, use a commercially
available
EP adapter.
4. Attach the belt to the motor pulley in the correct position
for the chosen record.
5. Switch the power button ON.
The turntable will begin to rotate at the speed selected
in operation 4 above.
Caution
In order to reduce noise, the motor torque has been set
to the minimum level
in this turntable. Therefore, the
turntable sometimes does not rotate when the power
is
switched on. If this happens, gently rotate the turntable a
little
in the clockwise direction by hand.
11
Amplifier
-----
0 @ 0
~
@
~ ~
~
@ 0 0
:@.
6. Lift the lifter lever, then use the head shell finger hook to
move the tonearm
to the play position of the record.
7. Lower the lifter lever.
The tonearm slowly lowers the stylus onto the record,
and the record starts to play.
Caution
• Do not allow the turntable to be jolted or vibrated while
playing a record.
• Always stop the turntable when changing records.
• Always turn down the amplifier volume when placing the
stylus
on or removing it from the record.
• When the record has finished
1. Gently raise the lifter lever.
The tone arm raises, and the stylus separates from the
record.
2. Return the tone arm to the arm rest using the head shell
finger hook.
3. Lock the tone arm in the arm rest.
4. Switch the power button OFF.
The turntable stops rotating.

If you think a malfunction has occurred, first check the
points listed below.
• Are each of the connections correct?
• Are you operating the turntable correctly
as described
in
this instruction manual?
If the turntable does not operate correctly, check all of the
items
in
the following table.
However,
if
none
of
the
items
in
the
following
table
correspond to the problem, it
is
possible there
is
a fault with
your turntable.
In
this case, turn off the power, un-plug the
power cord from the AC outlet, and contact your dealer.
If you do not remember where you bought this turntable,
contact the Marantz Authorized Service Center.
• About the included cartridge
You
cannot
replace
the
stylus
in the
cartridge
that
is
included with this turntable.
If you wish to exchange the cartridge itself, contact the
Marantz Authorized Dealer.
• Check Items
The stylus won't lower onto the record.
•
Is
the tone arm height adjusted correctly?
•
Is
the stylus pressure adjusted correctly?
•
Is
the arm balanced correctly?
There is no sound.
• Are the cartridge and head shell connected correctly?
•
Is
the output cord connected to the amplifier correctly?
• Are the amplifier knobs adjusted and switched correctly?
A humming noise is emitted.
•
Is
the output cord ground wire connected
to
the
amplifier?
•
Is
the output cord plug connected securely?
•
Is
the head shell fixed securely with the lock nut?
The stylus jumps.
• Is the stylus pressure adjusted to the correct stylus
pressure?
•
Is
the record warped or scratched?
•
Is
there a lot of dust collected
on
the stylus?
The arm stops progressing half way through
the record.
•
Is
the record scratched?
•
Is
there something touching the arm?
The sound is too quiet. Or too loud.
•
Is
the amplifier connection switching suitable for the type
of cartridge being used (MC/MM)?
12

440
• Turntable section
RPM ................................................33 1/3 rpm, 45 rpm
Drive system..........................................Belt drive system
Turntable ............................................High density acrylic
Turntable depth ......................................................28 mm
RPM deviation .......................................................±0.2
°/o
S/N ratio...................................................................80 dB
• Tone Arm section
Arm type ........................................2 point radial tone arm
Effective length......................................................239mm
Overhang ................................................................17mm
Stylus pressure adjustable
range .... 0-5g(1 Graduation = 0.1 g)
Compatible cartridge weight ......33-18g (excluding head shell)
13
350
•Included Cartridge (Ciearaudio)
Frequency response................................... 20Hz- 20kHz
Output voltage (1kHz, 5cm/s)............................ -3.6 mV
Channel separation ............................................ > 30 dB
Channel balance..................................................
< 0.2 dB
Recommended stylus pressure................................ 2.2 g
Impedance............................................................0.66
kn
Cantilever..........................................................Aluminum
Cartridge weight....................................................... 6.0 g
• General Specifications
Power supply............................................AC120V, 60Hz
Power consumption .....................................................5W
Dimensions
....Width 440mm x depth 350mm x height
11 Omm
(Excluding tone arm)
Net weight ......................8.9kg(including tone arm/motor)

The section describes the care and maintenance tasks that
must be performed to optimize the operation of your
Marantz equipment.
• Cleaning external surfaces of
equipment
The exterior finish of your unit will last indefinitely with
proper care and cleaning, Never use scouring pads, steel
wool, scourging powders or harsh chemical agents (e.g., lye
solution), alcohol, thinner, benzine, insecticide or
other
volatile substances as these wil mar the finish of the
equipment. Likewise, never use cloths containing chemical
substances. If the equipment gets dirty, wipe the external
surfaces with a soft, lint-free cloth.
If the equipment becomes heavily soiled:
• dilute some neutral
detergents suitable for acrylic
material.
• dip a soft, lint-free cloth
in the solution and wring the
cloth till
it is damp.
• wipe the equipment with the damp cloth.
• dry the equipment by wiping it with a dry cloth.
• Repairs
In the unlikely event your TT -15S1 should need adjustment
or repairs, contact a Marantz Authorized Service Center.
Their factory trained technicians have the knowledge,
facilities, and access to replacement parts needed for repair
and calibration of your turntable. After the warranty period
has expired, repairs will be performed for a charge if the
equipment can be returned to normal operation.
In the event of difficulty, refer to your Marantz Authorized
Dealer or Marantz Authorized Service Center.
If writing, please include the model and serial number of the
equipment together with a full description of what you think
is abnormal about the equipment's behaviour.
You can find your Marantz Authorized Dealer or Service
Center
on our website "www.marantz.com".
• Approximately every two years you can lubricate (only if
you will recognize speed variations) the bearing of the
center shaft with the delivered oil. In this case it is
enough to put 4 or 5 drops into the center shaft hole in
the turntable chassis.
Be careful not to add too much oil.
0
!
14

www.marantz.com
You
can find your nearest Marantz Authorized Showcase Reference Dealer on our website.
U.S.A. Marantz America, Inc. 100 Corporate Drive, Mahwah,
NJ
07430, U.S.A.
1ft
a
tea
n I z
®
is a registered trademark.
Printed
in
USA Printed
on
Recycled Paper 3/2012 OOM31BW851250 mzh-d

For U.S.A.
tnaPantz®
Limited Warranty
for Reference Series Products -
Marantz America, LLC ("Marantz") warrants the
following Marantz Products for the periods indicated:
All
Marantz Reference models
sold
on
or
after April 1, 2009
come with a 5
yearwarranty with the following exceptions:
1. Super Audio CD Players ("SACD")
a)
Optical Pick-ups and/or CO-Drive Mechanisms are only warranted for
3 years. After that
time.
Marantz will reimburse for the labor required
to
replace the part for
the
remaining duration ofthe 5 year
warranty.
The customer will be responsible forthe
actual
cost ofthe part.
b)
All
other components
are
covered for both parts and laborfor
the
5 year period.
2.
Turntables
a)
Needles
and/or
cartridges
carry
a
30
daywarranty
on
the part only-
no
warranty
covering
labor
charges
is
provided
on
the
needle
or
cartridge.
b)
Since the part
is
userreplaceable, the purchaser is responsible for
any
associated labor charges
to
replace this
part.
c)
Defective needles and/or cartridges must
be
returned
to
Marantz
as
proofofdefect
in
order for the replacement
to
be
issued during
the warranty window.
What
is
covered and what
is
not covered
Except as specified below and above, this warranty covers parts and
labor to correct all defects in materials and workmanship. The following
are not covered by the warranty:
1. Damage, deterioration, malfunction or failure to meet performance
specifications resulting from:
a) Accidental acts
of
nature, misuse, abuse, neglect or unauthorized
product modification.
b)
Improper installation, removal or maintenance, or failure to follow
instructions supplied with the product.
c) Repair or attempted repair by anyone not authorized by
Marantz to repair the product.
d) Any shipment
of
the product (claims must be presented to
the carrier).
e) Any cause other than a product defect.
2. Cleaning, initial set-up, check-ups with no defects found, or
charges incurred for installation, removal or reinstallation
of
the product.
3. Any product on which the serial number has been defaced,
modified or removed.
4.
Batteries.
5.
Accessories, including but not limited to, batteries, cables,
mounting hardware and brackets, cleaning accessories,
antenna and detachable power cords.
