Marimba One WAVE Xylophone User manual

for
3.5 octave
and
4.0 octave
www.marimbaone.com
tel [phone]
fax [phone]
WAVE Xylophone
OWNER'S MANUAL

100320 - Rev. A Page 1 of 11
ASSEMBLY INSTRUCTIONS
& OWNER'S MANUAL
™
Accidental
Resonators
Natural Bars
Accidental Bars
Natural Resonators
Center Support
Rails
Accessory Bar
FOR ASSEMBLY,
YOU WILL NEED:
1
KEEP These instructions for future reference
CAREFULLY UNPACK YOUR CRATE
Compare the components as shown on this page.
• A large open space with carpet (or a blanket to cover the oor)
•An assistant to help you with assembly
Treble Frame
Bass Frame

3
2
4
100320 - Rev. A Page 2 of 11
Push WAVE-lock levers into open position.
ARRANGE FRAME COMPONENTS
In a large open space with carpeting (or a blanket), arrange the frame components.
Treble Frame
Bass Frame
Girder
LOOSEN KNOBS
Turn knobs counterclockwise.
Bass Frame Treble Frame
OPEN WAVE-LOCK LEVERS
Bass Frame Treble Frame

8
9 10
11
ATTACH GIRDER PLATE
SECURE GIRDER PLATE
Tighten frame knobs rmly.
Lower girder plate notches onto frame knobs.
VERIFY CLAMPS AND KNOBS
ARE SECURELY TIGHTENED
REPEAT PROCESS FOR
TREBLE FRAME
CENTER SUPPORT
65
100320 - Rev. A Page 3 of 11
7SECURE DIAGONAL BRACE
Push WAVE-lock lever
into closed position.
ATTACH DIAGONAL BRACE
Have assistant hold bass frame upright.
Lift brace into
open position.
diagonal
brace
LIFT DIAGONAL BRACE
Lower slot onto clamp rod.

1
2
3
4
RESONATORS
12 With your assistant, carefully lift the natural resonator bank.
INSTALL NATURAL RESONATOR BANK
Bass Frame
Treble Frame
Slide bass end into slots.
Set treble end on block.
13 INSTALL ACCIDENTAL RESONATOR BANK
Repeat steps for the second resonator bank.
14 Rail number is located on top side of
rail at bass end.
Rail jacks are spaced
slightly wider at bass end.
IDENTIFY RAILS 1 – 4 15 IDENTITFY RAIL SLOTS 1 – 4
Bass Frame
Bass End
RAILS
100320 - Rev. A Page 4 of 11

16
17
Lower Rail 1 into slots and onto pegs.
INSTALL RAIL 1
REPEAT FOR RAILS 2 – 4
Make sure the rail is fully
engaged onto the exible pegs.
Bass Frame
Treble Frame
Bass Frame
Treble Frame
1
1
2
3
4
1
2
3
4
100320 - Rev. A Page 5 of 11

20
21
22
KEYBOARDS
100320 - Rev. A Page 6 of 11
POSITION BARS ON RAILS
Place bars between rail jacks.
Set cord into slots on rail jacks.
SECURE BARS TO RAIL
At bass end, pull cord evenly taut and hook cord around corner jacks.
Hook springs together to secure cord.
bass end close-up
FOLLOW SIMILAR PROCEDURE FOR ACCIDENTAL BARS
NOTE: For accidental bars, bars are only placed over resonators with a plug.
treble end close-up
corner jacks
rail jacks
tuning arch
treble end close-up
18 19
POSITION NATURAL KEYBOARD SECURE TREBLE END
Holding cords, lift keyboard, and lay
keyboard onto rails 1 and 2.
Slide cord around hooks on treble end.

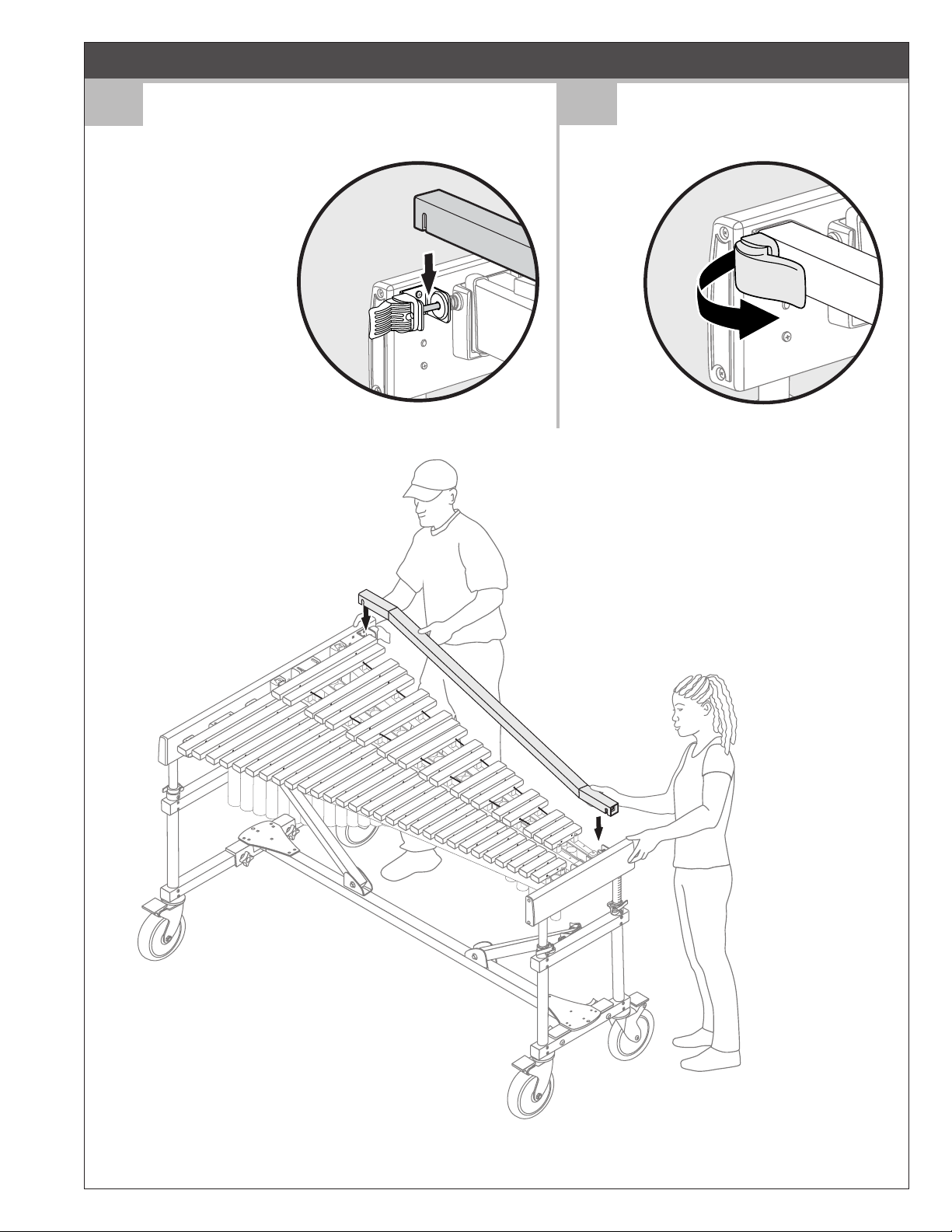

ACCESSORY BAR
23 24
INSTALL ACCESSORY BAR SECURE BAR
Push WAVE-lock levers into
closed position.
With an assistant, lower slotted ends
of accessory bar onto clamp-rods.
100320 - Rev. A Page 7 of 11

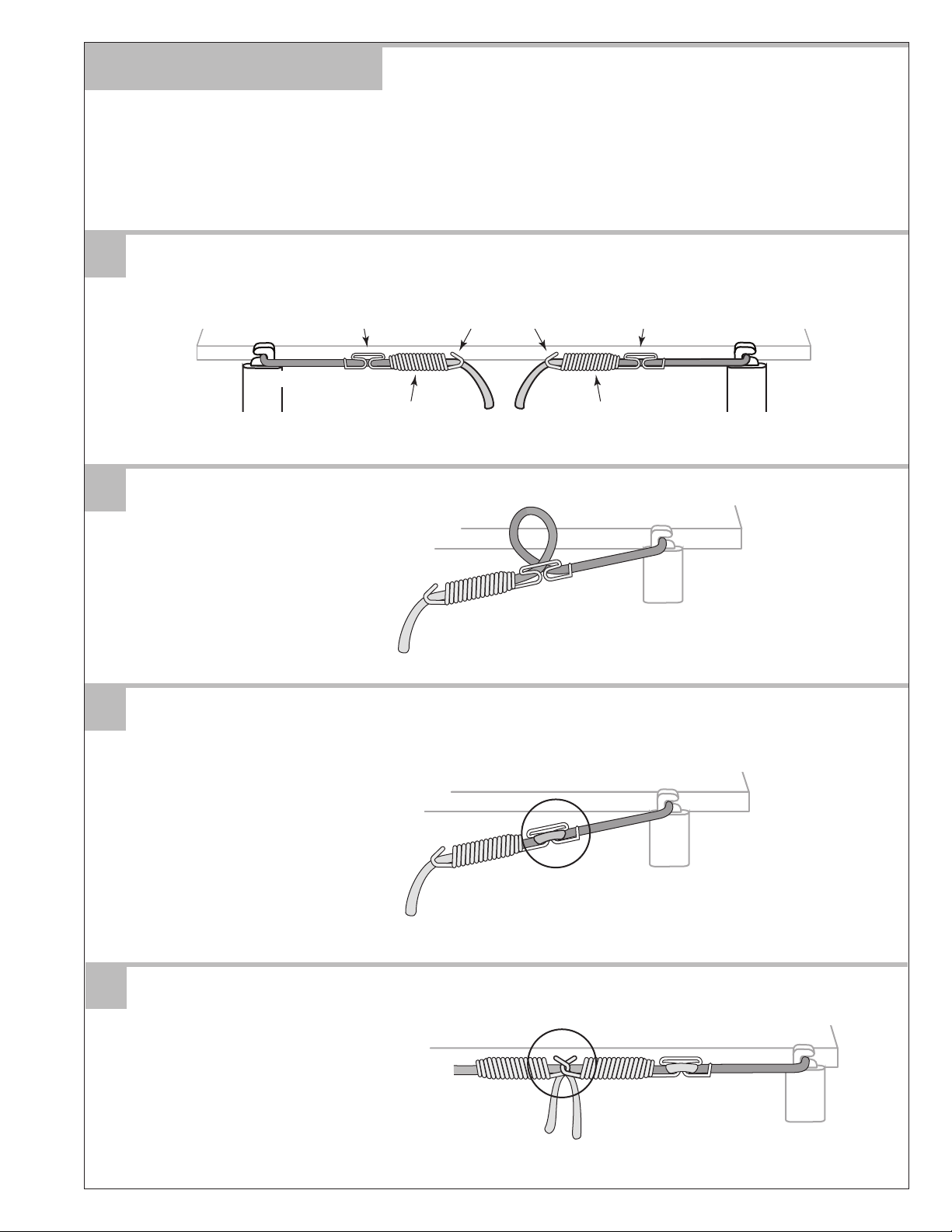

bar cord tension
1
2
3
4
100320 - Rev. A Page 8 of 11
Over time, as you play your instrument, the cord that suspends the
bars may loosen and need to be adjusted. To increase tension in the
bar cord, use the cleats behind the springs to hold the slack in the cord.
cleat cleat
hooks
spring
(bar cord)
UNHOOK SPRINGS
spring
NOTE:
In time, the cord may become
loose again.
Do not exceed a maximum of
THREE loops around each cleat.
RE-HOOK SPRINGS
Slip the loop down around the cleat.
Pull the cord taut.
FORM LOOP IN CORD
SLIP LOOP OVER CLEAT
At cleat, pull cord to make
enough slack to form a loop.

100320 - Rev. A Page 9 of 11
height adjustment
RELEASE LEVERS ONE
AT A TIME.
1
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
86
87
88
89
90
CAUTION!
To prevent damage, always adjust the
height of the marimba with all rails,
resonators and bars INSTALLED.
DO NOT RELEASE LEVERS
AT THE SAME TIME.
2 3 4 5
Locate the height
gauges on the inside
edges of frame.
Raise or lower
the end frame.
Use gauges to ensure that
both ends are always at
the same height.
Close levers when
desired height is
achieved.

height adjustment warnings

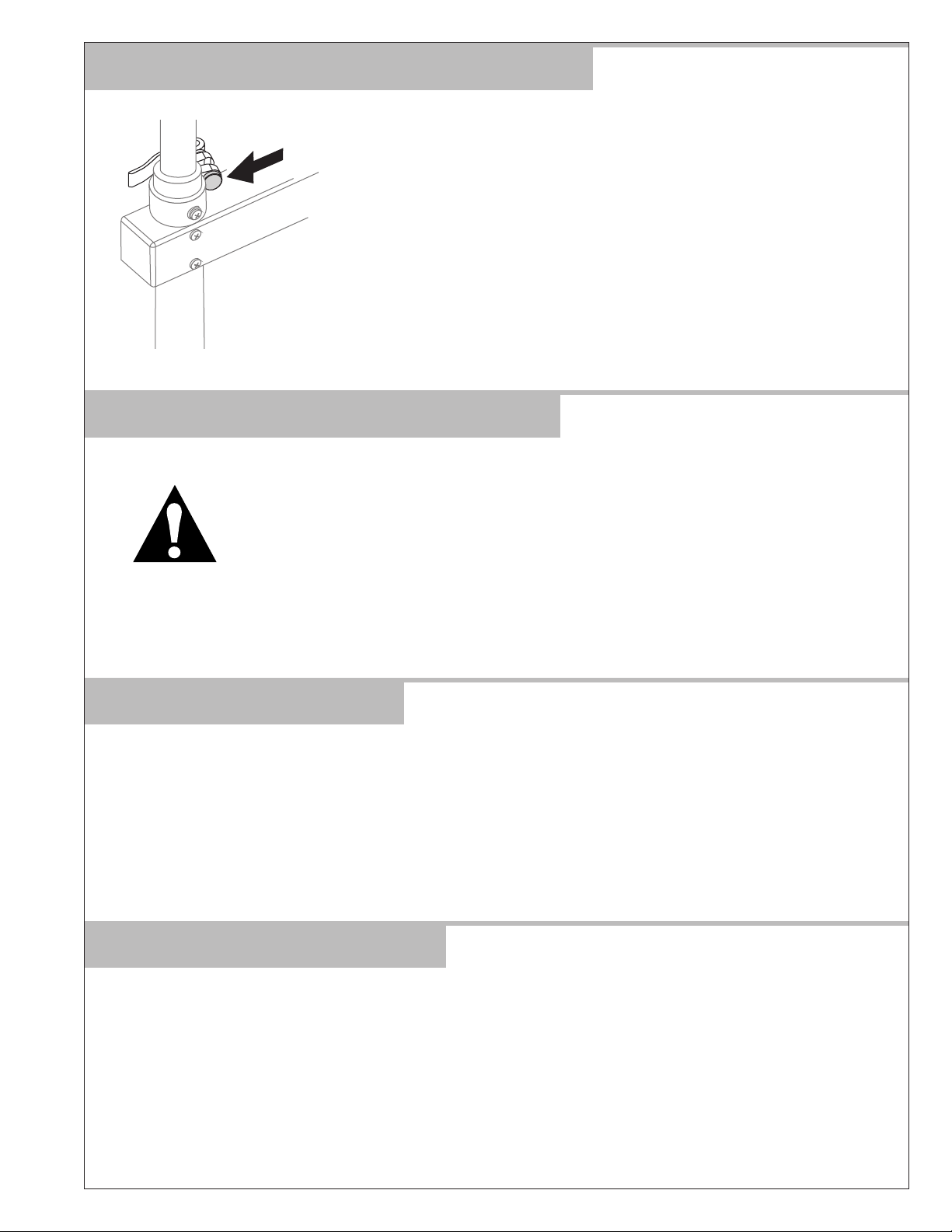

clamping pressure adjustment
marimba cleaning
moving the marimba
100320 - Rev. A Page 10 of 11
To increase clamping pressure turn wheel clockwise.
To decrease clamping pressure turn wheel counter-clockwise.
• Always adjust the height of the marimba with rails, resonators and bars installed.
• Release the levers one end at a time.
• Always keep marimba ends at equal heights.
• Do not release the end levers at the same time.
USE A SOFT COTTON RAG OR TOWEL DAMPENED WITH WATER ONLY.
DO NOT USE FURNITURE POLISH on your marimba!
Most of this type of product contains silicone, which will damage the nish and
contaminate the wood.
THE MARIMBA SHOULD ONLY BE LIFTED BY THE END FRAMES.
• Lifting by the rails will cause the rails to come out of their slots.
• When the marimba is moved, pass VERY SLOWLY through
doorways, over doorjambs, electrical cords, and uneven surfaces.

100320 - Rev. A Page 11 of 11
WARRANTY
YOU ARE THE OWNER OF ONE OF THE FINEST MARIMBAS IN THE WORLD.
THE FOLLOWING WARRANTY PROTECTS YOUR INVESTMENT.
PLEASE READ IT CAREFULLY.
Manufacturer of World-Class Marimbas
MARIMBA ONE WARRANTS ONLY TO THE ORIGINAL PURCHASER
THAT THIS INSTRUMENT IS FREE FROM DEFECTS IN MATERIALS
AND/OR WORKMANSHIP AS FOLLOWS:
1. During a period of twelve (12) months from the date of receiving your instrument, Marimba One will
pay all labor and materials necessary to repair any defective instrument or part thereof. We will repair
a defective instrument or part at the location of our factory. The purchaser must pay all shipping
charges to and from our factory in advance.
2. During a period of twelve (12) months from the date of receiving your instrument, Marimba One will
replace at no charge any bar that fails to perform according to acceptable musical standards. Marimba
One will replace any defective bar upon request by the purchaser. The purchaser must return the
defective bar to the location of our factory upon receipt of the replacement bar. The purchaser must
pay all shipping charges to and from our factory in advance.
3. During a period of twenty-four (24) months from the date of receiving your instrument, Marimba
One will provide one free retuning of the entire keyboard of your instrument. Retuning will be at the
location of our factory. The purchaser must pay all shipping charges to and from our factory in
advance.
4. Natural variation occurring in colors, grains, or textures of wood and other materials which do not
affect the musical performance of the instrument shall not be considered defects, Marimba One
reserves the right to inspect any instrument claimed to be defective to determine if the cause is a
manufacturing defect. Excluded from this warranty are all defects other than manufacturing defects.
Specifically excluded are defects occurring as a result of use other than normal use, any unauthorized
alteration or repair of the instrument, defects occurring in the course of shipping, and other similar
defects not related to the manufacture of the instrument.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE PURCHASER, MARIMBA ONE SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
IS LIMITED IN DURATION AND SCOPE TO THE DURATION AND SCOPE OF THIS
WARRANTY. THIS WARRANTY IS NONTRANSFERABLE AND VALID ONLY TO THE
ORIGINAL PURCHASER.
Telephone: [phone]
Fax: [phone]
FACTORY LOCATION MAILING ADDRESS
901 O Street, Arcata, CA 95521 -U.S.A. Post Office Box 786, Arcata, CA 95518 -U.S.A.
INSTRUMENT SERIAL NO.: Rev.B
