Marimba One WAVE User manual

Please register your marimba for warranty service at
www.marimbaone.com/ordering/owners-registration
www.marimbaone.com
[email protected]
tel [phone]
fax [phone]
Marimba One
901 O St, Suite D
Arcata, CA 95521
USA
OWNER’S MANUAL
for
Four Inch Wheel Marimba
and
Eight Inch Wheel Marimba

121018 - REV. A PAGE 1 0F 13
Bass Frame
Treble Frame
Sway Block
Rail #1
Rail #2
Rail #3
Rail #4
Accidental Resonator Bank
Natural Bars Accidental Bars
Natural Resonator Bank
Girder
Girder
FOR ASSEMBLY,
YOU WILL NEED:
1  �
KEEP These instructions for future reference
ASSEMBLY INSTRUCTIONS
& OWNER'S MANUAL

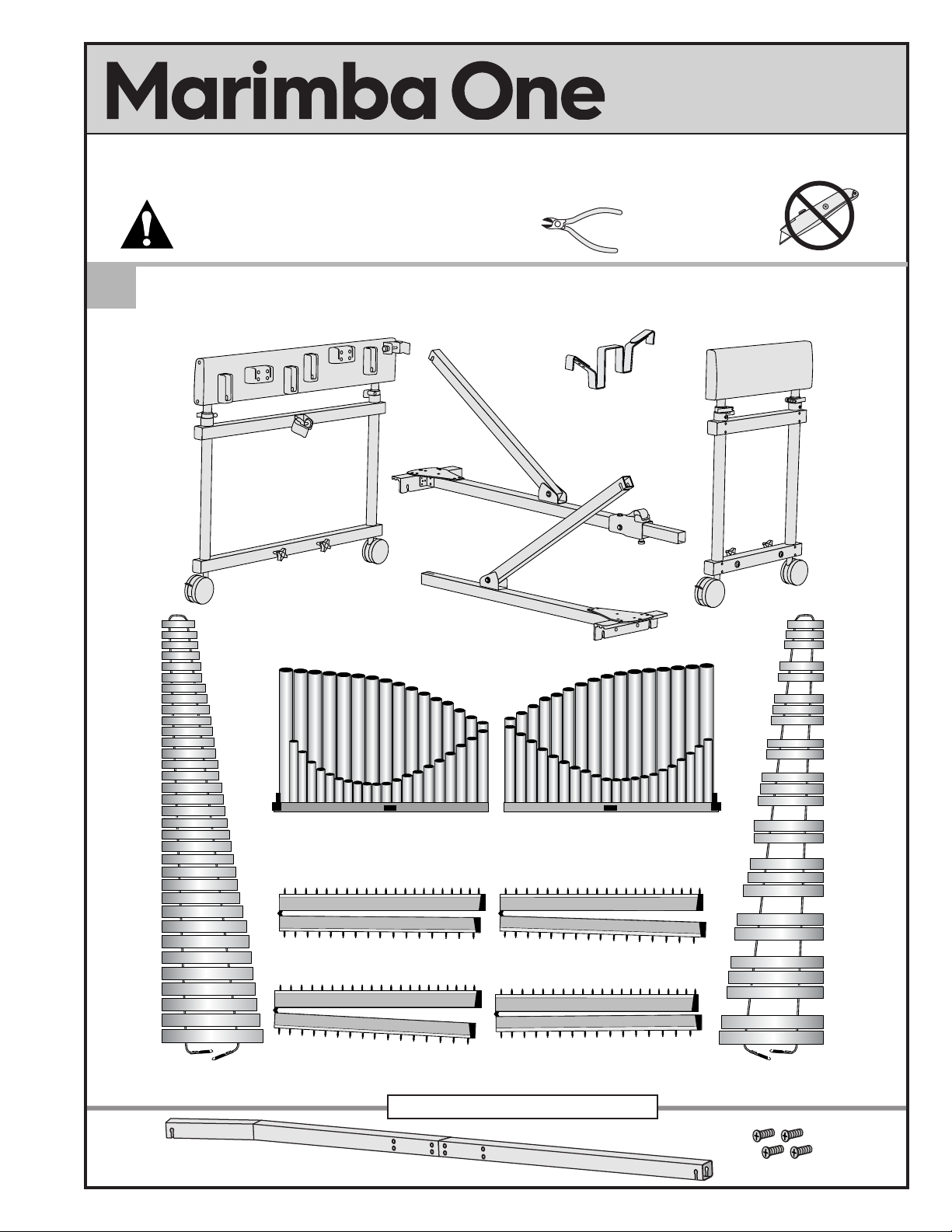

CAREFULLY UNPACK YOUR CRATE
Compare the components to this page.
•A large open space with carpet (or a blanket to cover the oor)
•An assistant to help assemble the heavy items
AVOID INJURY – When opening crate,
use wire cutters or scissors to cut zip ties.
OPTIONAL (sold separately)
Accessory Bar

3  �
4  �
2  �
5  �
121018 - REV. A PAGE 2 0F 13

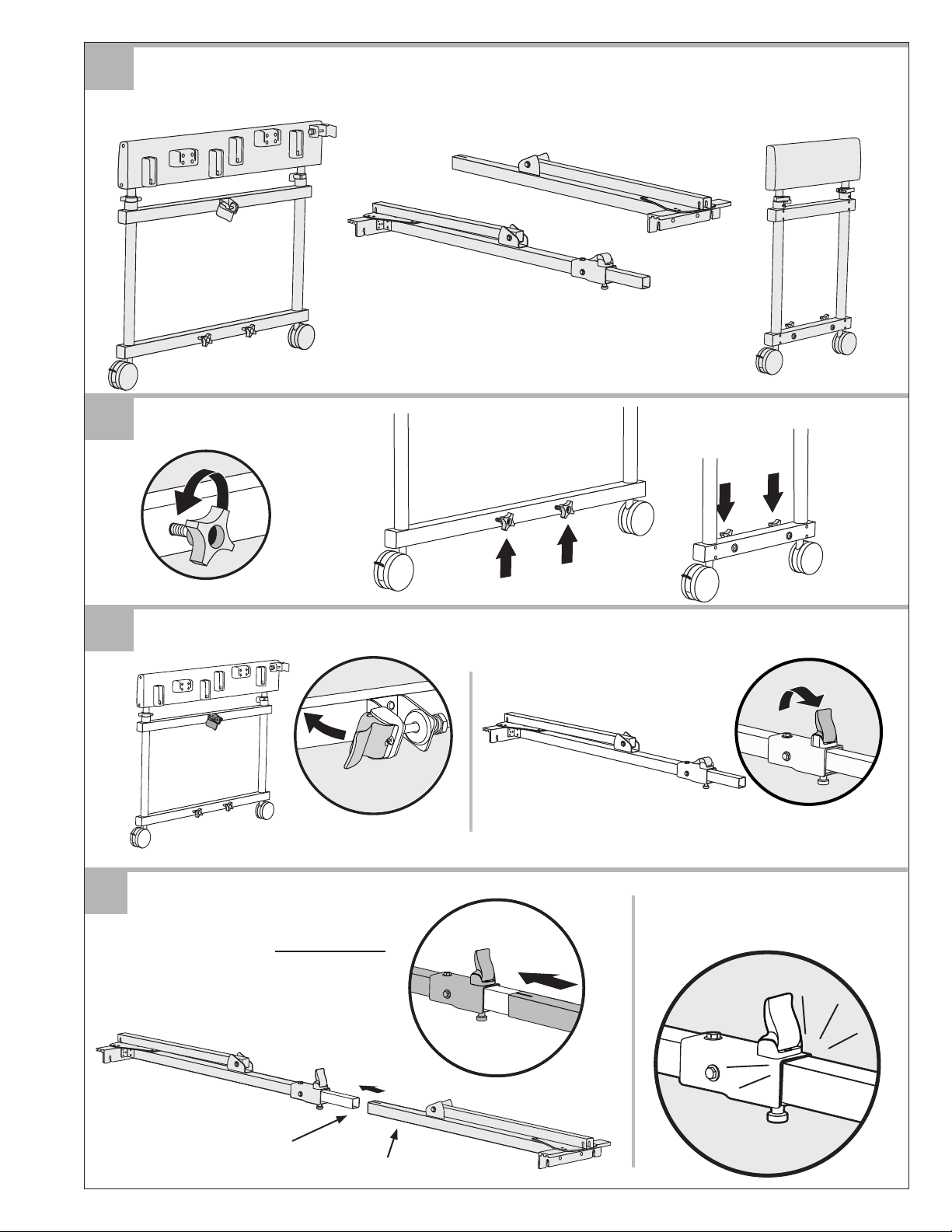

ARRANGE FRAME COMPONENTS
In a large open space with carpeting (or a blanket), arrange the frame components.
Treble Frame
Bass Frame
Girders
LOOSEN KNOBS
Turn knobs counterclockwise.
Push clamp-levers into open position.
Bass Frame
Treble Frame
Bass Frame
Girder
OPEN CLAMP-LEVERS
When you hear or feel the
girder tubes touch, the
girders are fully engaged.
CONNECT GIRDERS
On a at surface, align girders
as shown. Slide slotted end over
metallic end until fully engaged.
metallic end
slotted end

9 �
1 1  �
12 �
10 �
6  �
7  � 8  �
121018 - REV. A PAGE 3 0F 13
ATTACH GIRDER PLATE SECURE GIRDER PLATE
VERIFY CLAMPS AND KNOBS ARE SECURELY TIGHTENED
Tighten frame knobs rmly.
Lower girder plate notches
onto frame knobs.
REPEAT PROCESS FOR TREBLE FRAME
SECURE GIRDERS
Push clamp-lever
into closed position. NOTE: Clamp-lever will not close if
girder ends are not fully engaged.
Have assistant hold bass
frame upright.
ATTACH DIAGONAL BRACE
Holding diagonal brace, lift
girder. Diagonal brace will
swing into open position.
Lower slotted end
of diagonal brace
onto clamp-rod.
SECURE BRACE
Push lever into
closed position.
diagonal
brace

14  � 1 3  �
15  �
16 �
121018 - REV. A PAGE 4 0F 13
The natural resonator bank has a plug
inside every tube.
The accidental resonators are missing a
plug inside every 3rd or 4th tube.
CAUTION:
The resonators are heavy. You will
need an assistant to help move the
resonators into place.

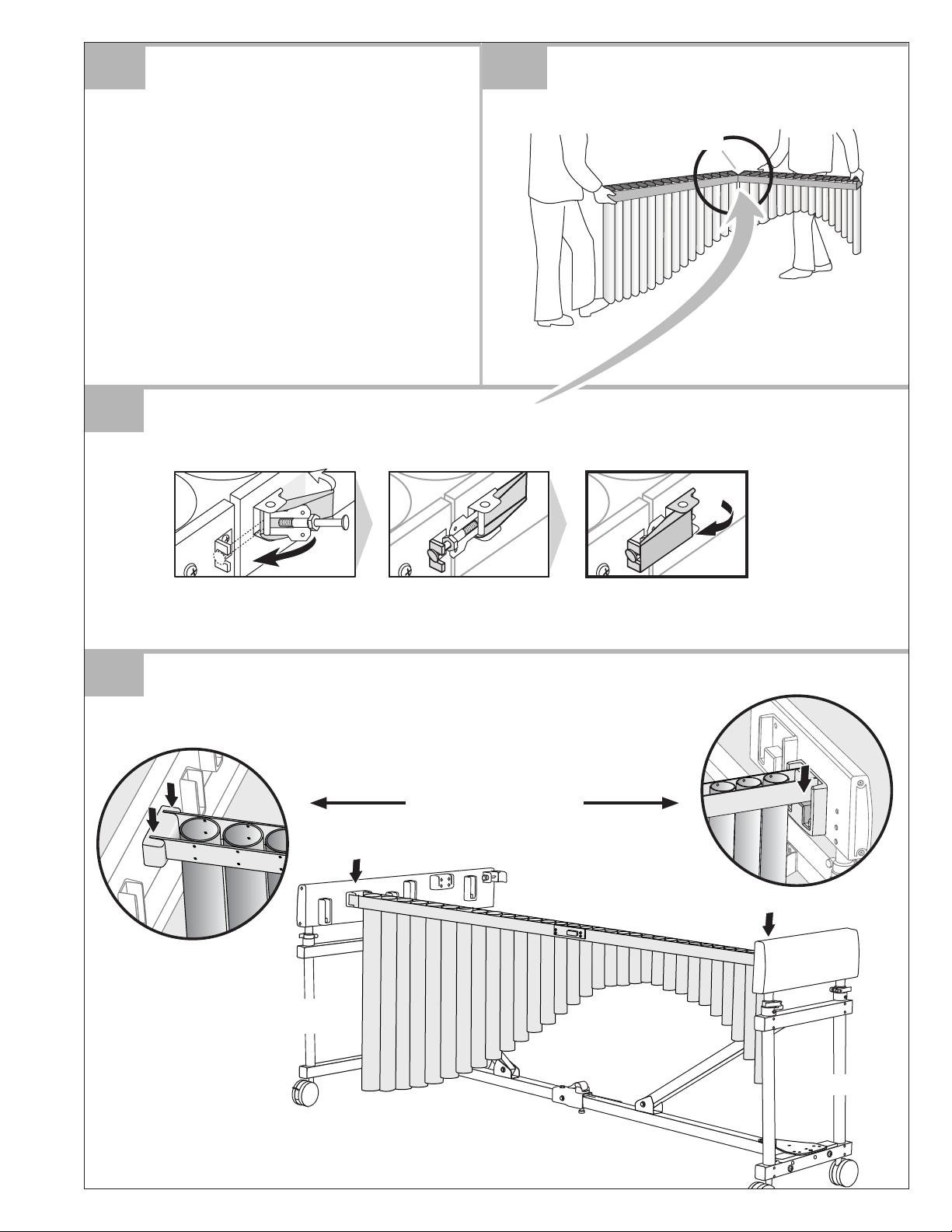

CLOSE SAFETY LOCK
Lock is located at hinge point on resonator bank.
IDENTIFY NATURAL
RESONATOR BANK
UNFOLD RESONATOR
safety lock
With your assistant, carefully lift the natural resonator bank.
INSTALL NATURAL RESONATOR BANK
Bass Frame
Treble Frame
Slide bass end into slots. Set treble end on block.

17 �
18 �
19 � 20 �
21 �
1234
121018 - REV. A PAGE 5 0F 13
INSTALL SWAY BRACE
Slide ends of sway brace into brackets on resonator banks.
Numbers are engraved on the
lower right side on treble end.
Rails are placed in positions with
corresponding rail numbers, as
shown below.
IDENTIFY RAILS 1 – 4UNFOLD RAILS
With your assistant, unfold the rail while
supporting each end.
NOTE: Gaps between the rail jacks
are wider on the bass end of rail.
INSTALL ACCIDENTAL RESONATOR BANK
Repeat steps for the second resonator bank.
sway brace slots
sway brace
PREPARE TO INSTALL RAILS
bass
treble
bass
treble
treble end
Bass Frame

22  �
23  �
1
naturalnatural
accidental
121018 - REV. A PAGE 6 0F 13
Lower rail 1 into slots
and onto pegs.
INSTALL RAIL 1
REPEAT FOR RAILS 2 – 4
2
3
1
4
naturalnatural
accidental
Make sure the rail is fully engaged onto the exible pegs.
Bass Frame
Bass Frame
Treble Frame
Treble Frame

25  �
26  �
24  �
121018 - REV. A PAGE 7 0F 13
2
1
naturalnatural
accidental
Bass Frame
Treble Frame
INSTALL NATURAL BARS
Carefully unroll heaviest bar bundle.
With your assistant at one end and
you at the other. Place natural bars
over rails #1 and #2.
POSITION BARS ON RAILS
Place each bar over a resonator
tube. Bars should be separated
by a pair of Jacks.
Cord should rest on Rail Jacks.
Wrap the bar cord around
Corner Jacks at the treble end.
SECURE BARS TO RAILS
Once all bars are in place, from
bass end, pull cord taut (pulling
evenly on each end of the cord
at the same time), loop cord
around corner jacks and hook
springs together.
bass frame end close-up
FOLLOW SAME PROCEDURE FOR ACCIDENTAL BARS
NOTE: Bars are placed ONLY on resonator tubes that have a plug.
When you look from the top you can see the oor through
the resonators without bars over them.
treble end close-up
corner jacks
rail jacks
tuning arch
bar cord

1  �
2  �
3  � 4  �

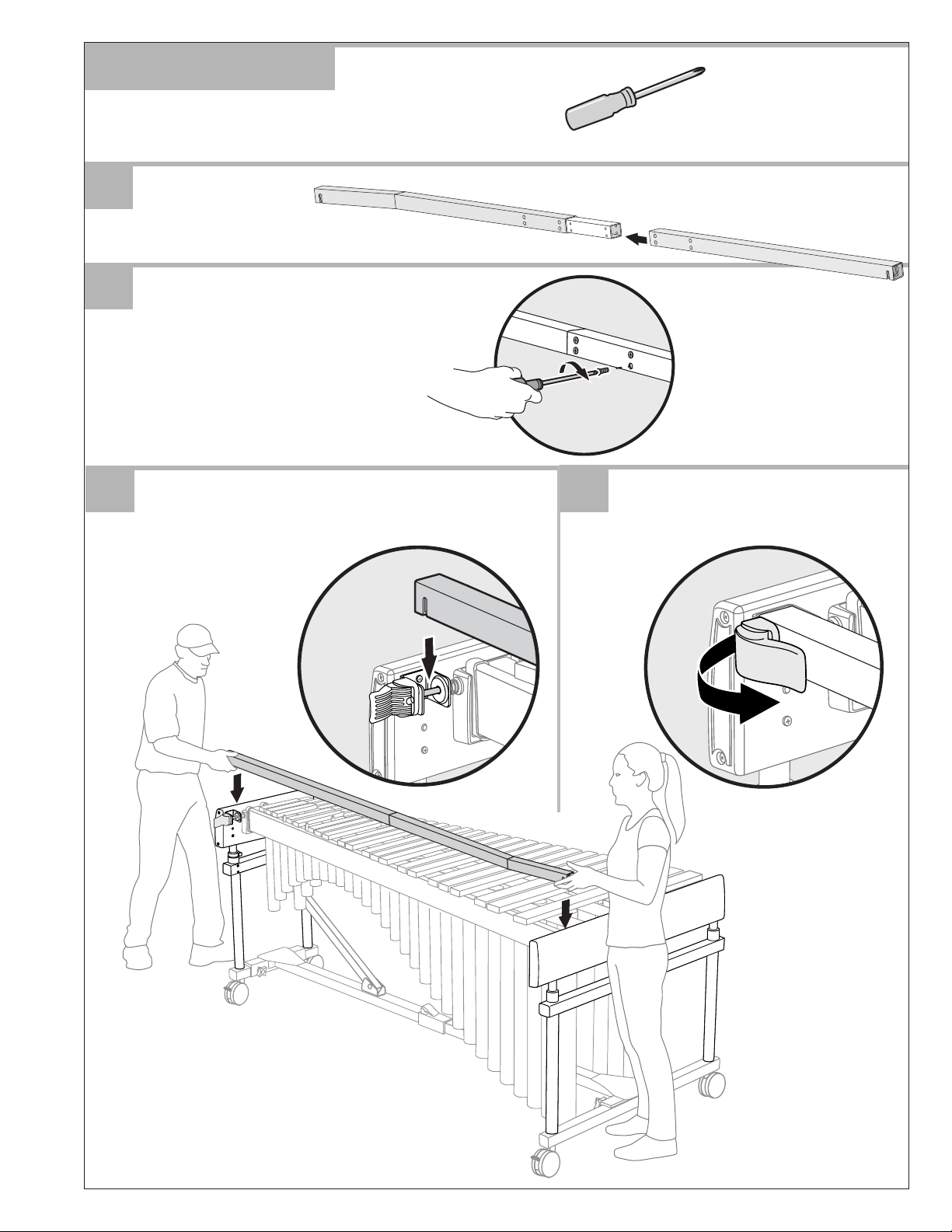

CONNECT TUBES
SECURE TUBES
INSTALL ACCESSORY BAR SECURE BAR
Accessory Bar
Push clamp-levers into
closed position.
121018 - REV. A PAGE 8 0F 13
You will need a #2 Phillips head screwdriver.
Slide tubes together.
Insert screw into hole on straight tube.
Using screwdriver, turn screw clockwise
to tighten.
Repeat for all four screws.
With an assistant, lower slotted ends
of accessory bar onto clamp-rods.

bar cord tension
1  �
2  �
3  �
4  �
121018 - REV. A PAGE 9 0F 13

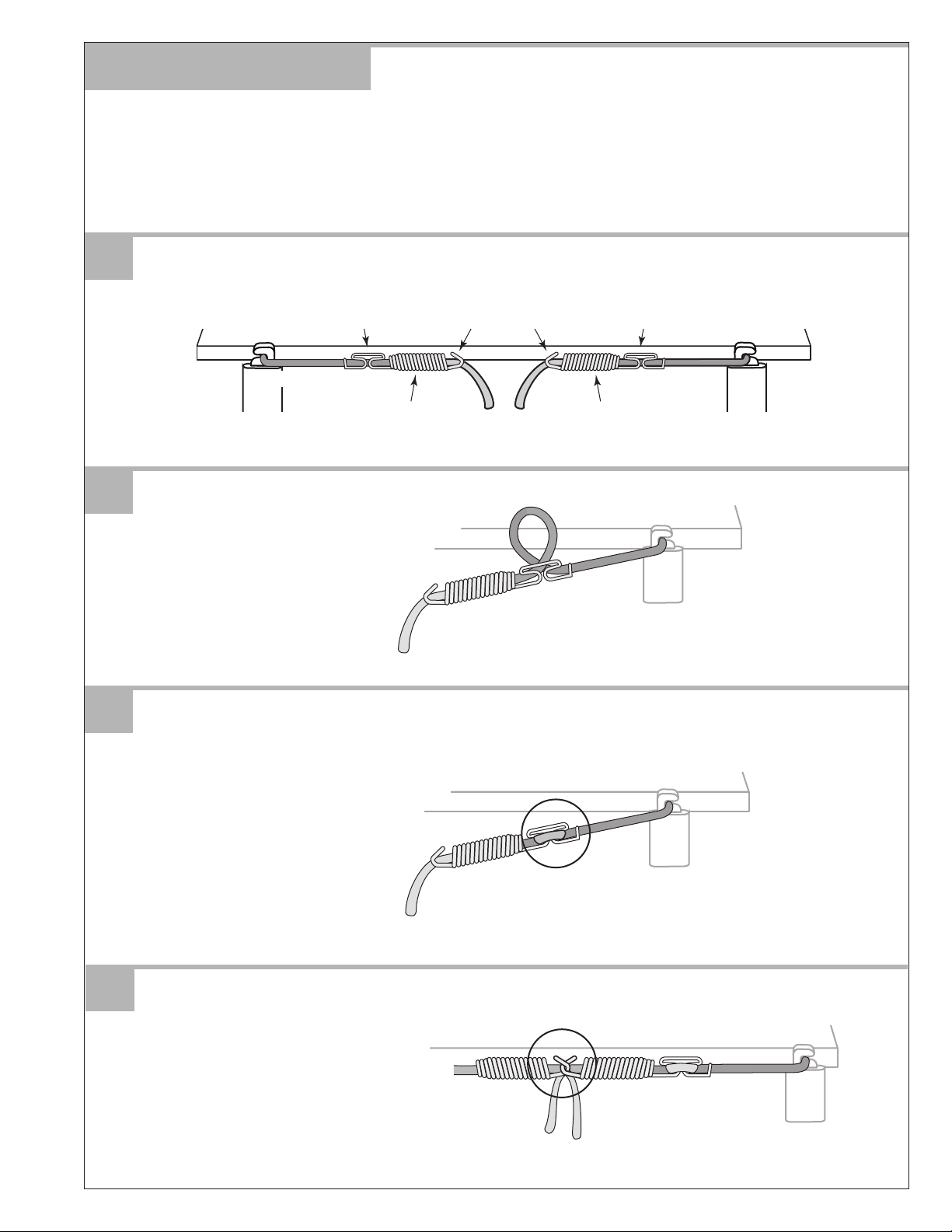

Over time, as you play your instrument, the cord that suspends the
bars may loosen and need to be adjusted. To increase tension in the
bar cord, use the cleats behind the springs to hold the slack in the cord.
cleat cleat
hooks
spring
(bar cord)
UNHOOK SPRINGS
spring
NOTE:
In time, the cord may become
loose again.
Do not exceed a maximum of
THREE loops around each cleat.
RE-HOOK SPRINGS
Slip the loop down around the cleat.
Pull the cord taut.
FORM LOOP IN CORD
SLIP LOOP OVER CLEAT
At cleat, pull cord to make
enough slack to form a loop.

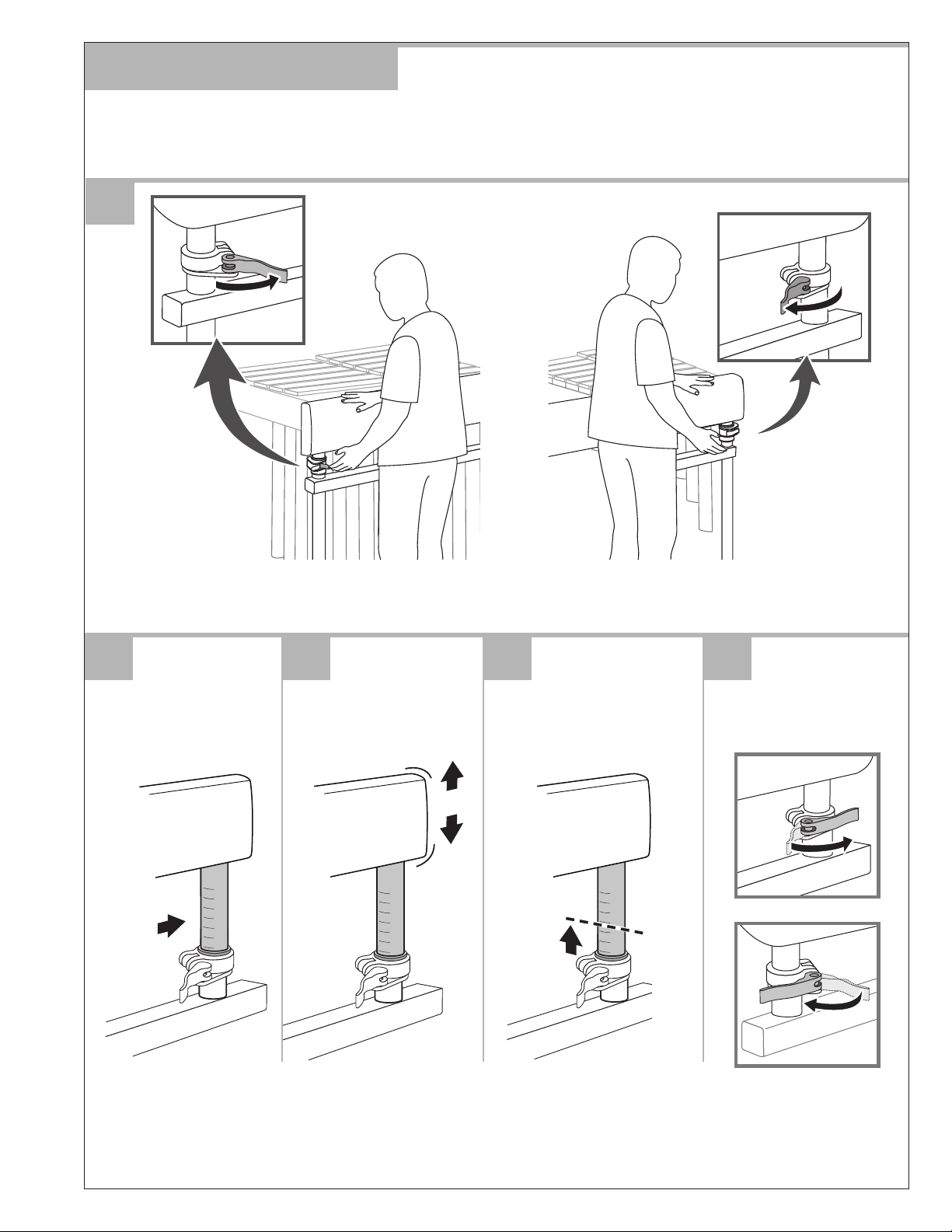

height adjustment
2  � 3  � 4  � 5  �
RELEASE LEVERS ONE
AT A TIME.
ALWAYS KEEP MARIMBA ENDS AT EQUAL HEIGHTS.
Locate the height
gauges on the inside
edges of frame.
1  �
Raise or lower
the end frame.
Use gauges to ensure that
both ends are always at
the same height.
Close levers when
desired height is
achieved.
86
87
88
89
90
91
92
86
87
88
89
90
91
92
86
87
88
89
90
91
92
121018 - REV. A PAGE 10 0F 13

2
1
natural
height adjustment warnings
marimba cleaning
moving the marimba
121018 - REV. A PAGE 11 0F 13
• Locate the height gauges on the inside
of each end-frame (audience side).
• Use these gauges to ensure that both
end frames are always at the same height.
USE A SOFT COTTON RAG OR TOWEL DAMPENED WITH WATER ONLY.
DO NOT USE FURNITURE POLISH on your marimba!
Most of this type of product contains silicone, which will damage the nish and
contaminate the wood.
THE MARIMBA SHOULD ONLY BE LIFTED BY THE END FRAMES.
• Lifting by the rails will cause the rails to come out of their slots.
• When the marimba is moved, pass carefully through doorways, over
doorjambs, electrical cords, and uneven surfaces.
HEIGHT
GAUGE

121018 - REV. A PAGE 12 0F 13
C2
D2
E2
F2
G2
A2
B2
C3
D3
E3
F3
G3
A3
B3
C4 (Mid C)
D4
E4
F4
G4
A4
B4
C5
D5
E5
F5
G5
A5
B5
C6
D6
E6
F6
G6
A6
B6
C7
D7
E7
F7
C#2
D#2
F#2
G#2
A#2
C#3
D#3
F#3
G#3
A#3
C#4
D#4
F#4
G#4
A#4
C#5
D#5
F#5
G#5
A#5
C#6
D#6
F#6
G#6
A#6
C#7
D#7
BASS END
TREBLE END
Octave 1 Octave 2 Octave 3 Octave 4 Octave 5
4 1/3 Octave Marimba A2 to C7
BAR CHART
Do you need a bar replaced? Please
contact us to schedule the replacement
and refer to the bars as shown on this bar
chart and include your serial number in
your correspondence.
Keep your old bars until you receive new
ones from us. That way, you’re never
without a bar on your marimba.
Remember: your bars are under warranty
for the first year and we’ll replace them
at no cost (shipping not included).
Beyond the first year, contact us for bar
replacement pricing.
Shipping Address
Marimba One
901 “O” St
Suite D
Arcata CA 95521
Email
[email protected]
Telephone
707.822.9570
5 Octave Marimba C2 to C7 5 1/2 Octave Marimba C2 to F7

WARRANTY
YOU ARE THE OWNER OF ONE OF THE FINEST MARIMBAS IN THE WORLD.
THE FOLLOWING WARRANTY PROTECTS YOUR INVESTMENT.
PLEASE READ IT CAREFULLY.
Manufacturer of World-Class Marimbas
MARIMBA ONE WARRANTS ON LY TO THE ORIGINAL PURCHASER
THAT THIS INSTRUMENT IS FREE FROM DEFECTS IN MATERIALS
AND/OR WORKMANSHIP AS FOLLOWS:
1. During a period of twelve (12) months from the date of receiving your instrument, Marimba One will
pay all labor and materials necessary to repair any defective instrument or part thereof. We will repair
a defective instrument or part at the location of our factory. The purchaser must pay all shipping
charges to and from our factory in advance.
2. During a period of twelve (12) months from the date of receiving your instrument, Marimba One will
replace at no charge any bar that fails to perform according to acceptable musical standards. Marimba
One will replace any defective bar upon request by the purchaser. The purchaser must return the
defective bar to the location of our factory upon receipt of the replacement bar. The purchaser must
pay all shipping charges to and from our factory in advance.
3. During a period of twenty-four (24) months from the date of receiving your instrument, Marimba
One will provide one free retuning of the entire keyboard of your instrument. Retuning will be at the
location of our factory. The purchaser must pay all shipping charges to and from our factory in
advance.
4. Natural variation occurring in colors, grains, or textures of wood and other materials which do not
affect the musical performance of the instrument shall not be considered defects, Marimba One
reserves the right to inspect any instrument claimed to be defective to determine if the cause is a
manufacturing defect. Excluded from this warranty are all defects other than manufacturing defects.
Specifically excluded are defects occurring as a result of use other than normal use, any unauthorized
alteration or repair of the instrument, defects occurring in the course of shipping, and other similar
defects not related to the manufacture of the instrument.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE PURCHASER, MARIMBA ONE SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
IS LIMITED IN DURATION AND SCOPE TO THE DURATION AND SCOPE OF THIS
WARRANTY. THIS WARRANTY IS NONTRANSFERABLE AND VALID ONLY TO THE
ORIGINAL PURCHASER.
Telephone: [phone]
Fax: [phone]
FACTORY LOCATION MAILING ADDRESS
901 O Street, Arcata, CA 95521 - U.S.A. Post Office Box 786, Arcata, CA 95518 - U.S.A.
INSTRUMENT SERIAL NO.:
Rev.B
