1 •Introduction
This user manual provides all the information required to operate and test
the sMRT V100/V100X. The following symbols and conventions are used
to indicate important information. Always observe these instructions.
Ensure you read the ‘Warnings & safety information’ section of this
manual before first use of the device.
WARNINGS: Instructions that, if ignored, could result in serious
personal injury or death. These must be observed for safe
operation.
CAUTIONS: Instructions that, if ignored, could result in personal
injury or material damage caused by incorrect operation of the
equipment. These must be observed for safe operation.
IMPORTANT NOTE: Important instructions that should be
adhered to during system operation.
Typographic conventions
1. sMRT V100/V100X hardware features are displayed in bold
upper case letters, e.g. SWITCH LOCK.
2. sMRT V100/V100X operation states are displayed in bold
uppercase letters surrounded by square brackets, e.g. [READY].

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
4
Using your sMRT V100/V100X for the first time
Carefully read the ‘Warnings & safety information’ section in this manual
prior to using the sMRT V100/V100X for the first time. To operate
correctly, the sMRT V100/V100X should be professionally fitted to an
MRT approved PFD by an authorised MRT service centre.
Prior to first use, perform a full system test (see instructions on pages 19
& 20 of this manual).
WARNINGS:
sMRT V100/V100X record of ownership
As a responsible manufacturer of life saving man overboard
devices, MRT maintains an ownership registration database to
provide contact details to Government Search and Rescue (SAR)
authorities in the event of an emergency.
CAUTIONS: The sMRT V100/V100X should only be used in an
emergency.
DELIBERATE MISUSE MAY INCUR A SEVERE PENALTY.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
5
2 •Glossary of terms & acronyms
AIS Automatic Identification System
AMSA Australian Maritime Safety Authority
DSC Digital Selective Calling
ECDIS Electronic Chart Display and Information System
EPIRB Emergency Position Indicating Radio Beacon
FCC Federal Communications Commission
IS Intrinsically Safe
MAYDAY Voice distress priority message
MMSI Maritime Mobile Service Identity
MRT Marine Rescue Technologies
MSLS Maritime Survivor Locating System
mW Milliwatt
PFD Personal Flotation Device
PLD Personal Locating Device
RTCM Radio Technical Commission for Maritime Services
SAR Search and Rescue
USCG Coast Guard
VHF Very High Frequency radio band
WWatt

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
6
3 •Warnings & safety information
WARNINGS:
• The sMRT V100/V100X is a local area Personal Locating Device
(PLD), that transmits emergency messages via VHF DSC and AIS.
• Before first use perform a full system test to confirm that the
device functions correctly.
• After deployment into active service, a full system test of the
sMRT V100/V100X should be performed every 3 months. Do
not test the device more than once per month to avoid affecting
battery performance in an emergency.
• The sMRT V100/V100X should ONLY be used in an emergency.
DELIBERATE MISUSE MAY INCUR A SEVERE PENALTY.
• Annual inspection and recertification of the sMRT V100/V100X by
MRT Ltd. or an authorised MRT service agent is mandatory
every 12 months.
• Do not dismantle the sMRT V100/V100X as it contains no user
serviceable parts. MRT Ltd. and authorised service agents offer
a full and comprehensive service and repair facility for
recertification of units and battery replacement.
• The high intensity strobe light on the unit may cause discomfort
if it is viewed for long periods. Avoid staring directly at it when
operational.
• The sMRT V100/V100X uses positional data derived from its
internal GPS antenna to define the location of a man overboard.
A clear view of the sky is required to obtain a GPS position.
Please note that the device is only as accurate as the positional
data it receives.
The GPS system is currently managed and maintained by the US
Government, who can from time-to-time alter its effective accuracy.
• Contains lithium batteries; do not puncture, deform, short-circuit,
recharge or incinerate the sMRT V100/V100X.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
7
PFD & PERSONAL PROTECTIVE EQUIPMENT (PPE) USAGE
WARNINGS:
• The sMRT V100/V100X must only be fitted to PFDs
approved by MRT Ltd.
• Only MRT approved attachment kits and pouches are to be
used to fix the unit to the PFD.
• The sMRT V100/V100X must only be fitted according to MRT
instructional procedures or by an approved service centre
authorised by MRT.
• The PFD is to be serviced according to the manufacturer's
specifications.
• It is the user's responsibility to ensure that any ancillary
equipment, such as survival suits/harnesses, PPE, clothing etc.,
does not interfere with the operation of the sMRT V100/V100X.
CAUTION:
• Do not paint the sMRT V100/V100X or clean it with aggressive
detergents or solvents. Some cleaning materials may damage
the seals and affect the integrity of the device.
• To ensure the sMRT V100/V100X operates as intended in an
emergency:
o Avoid dropping the unit.
o Avoid leaving the unit unnecessarily in direct sunlight where
it may be exposed to excessively high temperatures.
o Inspect the device periodically for signs of wear and tear,
visible cracks or other damage.
The sMRT V100/V100X could save your life, treat it with respect at all
times.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
8
4 •sMRT V100/V100X overview
The sMRT V100/V100X is a multi-system Personal Locating Device
designed to RTCM Standard 11901.1 specifications for use during a man
overboard emergency.
The integration of VHF DSC and AIS technologies equips mariners in
distress with life-saving technology to vastly improve the likelihood of rapid
location and recovery by a vessel or Search and Rescue (SAR) authorities.
How the sMRT V100/V100X works
The sMRT V100/V100X uses the marine VHF radio band to
transmit DSC distress alerts and updated GPS positions regularly
from the casualty in the water to VHF DSC radios, as well as AIS
equipped vessels within range.
A 10 second delay period prior to activation is designed to avoid
the device being activated accidentally.
The sMRT V100/V100X transmits AIS and emergency VHF DSC
transmissions after activation. AIS transmissions take precedence
over VHF DSC transmissions and will be transmitted first. The
sMRT V100/V100X uses an internal GPS receiver to acquire a
position within approximately one minute of activation. The
device then sends VHF DSC and AIS transmissions containing the
device’s current position.
Some marine radios are able to output a waypoint of the GPS
position embedded within distress alerts to chart plotters. AIS
alerts are routinely displayed on Electronic Chart Display and
Information Systems (ECDIS). Compatible chart plotters or ECDIS
can use the AIS data to provide the direction and rate of drift of
the casualty, as well as range and bearing information.
Emergency alerts operate on a timing schedule and are repeated
at regular intervals to update rescue teams and assist in tracking
the survivor in the water. The STROBE light on the device flashes
once per second after activation and assists with visual homing at
night or in poor weather conditions.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
9
Prevention of accidental activation
The flush-mounted design of the SWITCH LOCK, ARMING
SWITCH and ACTIVATION TAB prevents the device from being
accidentally activated. In addition, manual activation is a three
stage process, requiring the user to remove the SWITCH LOCK
and slide the ARMING SWITCH to the [READY] position to
arm the device. The user must also remove the ACTIVATION TAB
to activate the device.
If the device is accidentally activated, the deliberate warning
period after automatic activation enables the user to switch the
device [OFF] before transmissions commence.
To help prevent false alarms:
Keep the device away from young children and educate all
users in device operation and the ramifications of false alarms.
0 5 10 15 20 25 30 40
GPS Position Acquired
Initial
Activation
Time in minutes
1W AIS transmissions commence after GPS is acquired and continue every minute thereafter.
500mW VHF DSC transmission immediately after activation, then after GPS position acquired,
then every 5 mins for 30 mins, then every 10 mins until DSC acknowledgement or battery expires.
Open loop transmissions until DSC Acknowledgement received.
2 minute VHF DSC receiver activation period after VHF-DSC transmissions; VHF radio
acknowledgement may be received by sMRT V100/V100X.
sMRT V100/V100X Transmissions

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
10
sMRT V100 Product Range
There are two versions of the sMRT V100 available for different marine
operating environments. This manual is applicable to both these versions.
V100: General Purpose
• 24/7 Monitoring
• Activates automatically on inflation of PFD,
immersion in water or manually
• Indicates GPS position in less than 45 seconds
• Updates GPS position via AIS every minute
• Tracks multiple targets simultaneously
• Individual MMSI identification
• Designed to be integrated into the SOLAS
approved sMRT PFD
• Enables every vessel nearby to become a SAR asset
• Works with existing VHF DSC and AIS equipment
• 150 mile transmission range with worldwide satellite
coverage*
V100X: ATEX/IECEx Zone 1
• IECEx Zone 1 approved
• 24/7 Monitoring
• Activates automatically on inflation of PFD,
immersion in water or manually
• Indicates GPS position in less than 45 seconds
• Updates GPS position via AIS every minute
• Tracks multiple targets simultaneously
• Individual MMSI identification
• Designed to be integrated into the SOLAS
approved sMRT PFD
• Enables every vessel nearby to become a SAR asset
• Works with existing VHF DSC and AIS equipment
• 150 mile transmission range with worldwide satellite
coverage*
*Environmental conditions dependent

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
11
4.1 •sMRT V100/V100X features
1 FLEXIBLE ANTENNA
2 LEDs
3 GPS ANTENNA
4 STROBE LIGHT
5 ACTIVATION TAB
6 LANYARD ATTACHMENT HOLE
7 WATER SENSOR
8 SWITCH LOCK
9 ARMING SWITCH
10 TEST SPOT (Side)
3
4
1
6
5
8
9
10
2
7

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
12
Water Activation Sensor
The sMRT V100/V100X features an automatic WATER SENSOR.
After the PFD inflates and the WATER SENSOR is submerged
continuously for 2seconds, the device will automatically activate
after a 10 second time delay.
Test Spot
A TEST SPOT is located on the left side of the sMRT V100/V100X.
Place the TEST MAGNET over the TEST SPOT to activate a full
device test and verify GPS acquisition is functioning.
For more information see pages 19-21 of this manual.
Device Label (V100X only)
The rear of the unit features a label indicating all relevant device
and safety information as well as compliances.
Marine Rescue Technologies Ltd Made in China
Permanent Disable
and/or Disposal
Model: sMRT V100X
www.mrtsos.com
Compass Safe
0.5m (1.5ft)
Storage temperature:
-30˚ to +70˚ (-22˚ to +158˚F)
Operating temperature:
-20˚ to +55˚ (-4˚ to +131˚F)
TRAC13ATEX0032X
IECEx TRC 13.0012X
The battery
pack shall not
be replaced in
the hazardous
area
Must be returned if activated or before Battery Exp.
N
EW
S
Serial VA02782422 Part MOA-40000 MMSI: 972413000
Marine Rescue Technologies Ltd, 3 Zarya Court, Beverley, East Yorkshire HU17 0JG
2ABF7SMRTV100
N14238
0891
II 2 G Ex ib IIB T4 Gb

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
13

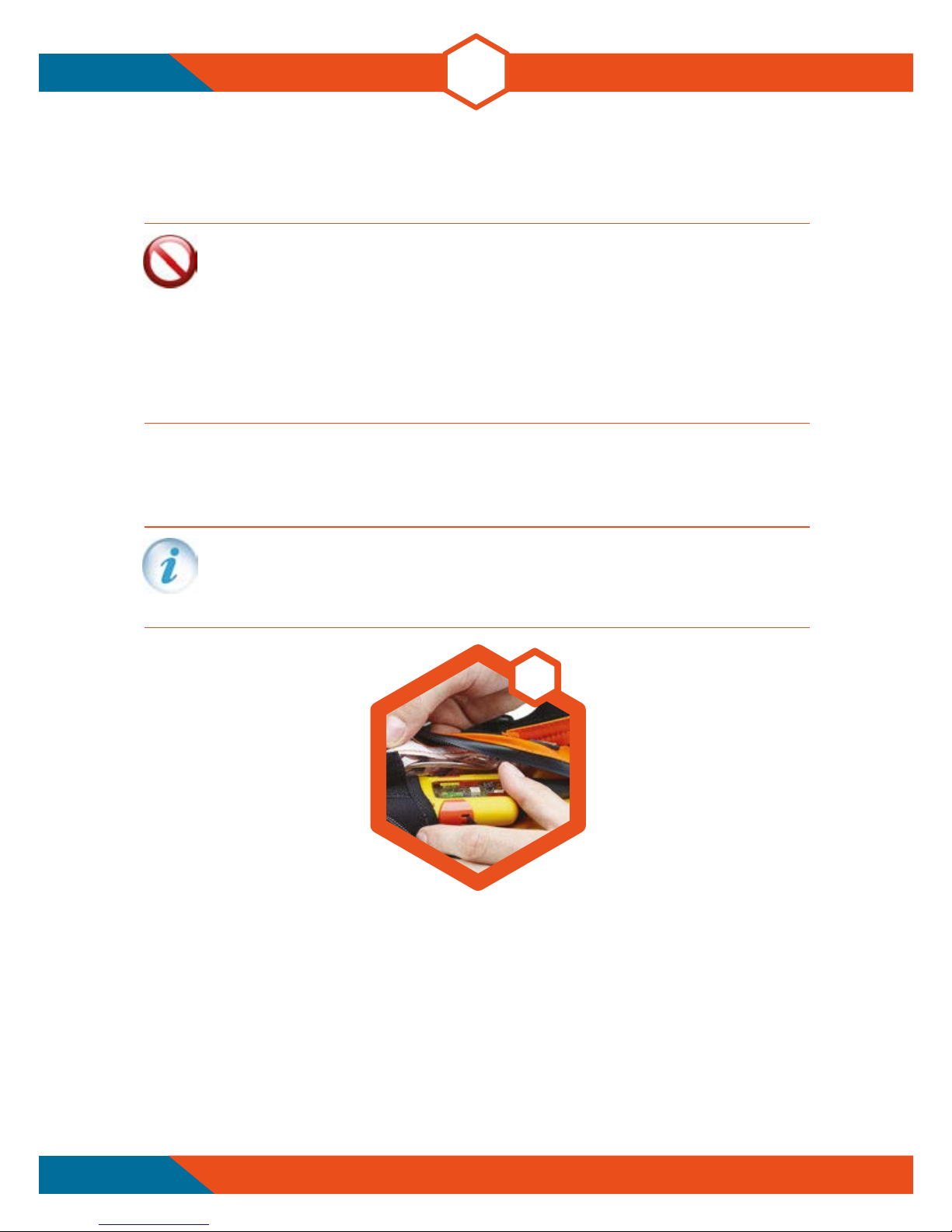

5 •sMRT V100/V100X Operation
WARNING: DO NOT unzip the main PFD zip. Use the sMRT
V100/V100X access point zip in thePFD to prepare the sMRT
V100/V100X for use.
The ACTIVATION TAB is attached to the PFD. DO NOT remove
the ACTIVATION TAB from the sMRT V100/V100X during setup
as this will activate the device when it is in the [READY] position
and send distress alerts.
The sMRT V100/V100X must be professionally fitted to an MRT
approved PFD to operate correctly, this ensures the device is in the most
effective position for water activation and emergency transmissions.
IMPORTANT NOTE: See the MRT website www.mrtsos.com for
specific instructions on accessing the sMRT V100/V100X inside
the sMRT PFD.
1
Open the device access point zip in the PFD.
The SWITCH LOCK is attached to the PFD to prevent it being lost.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
14

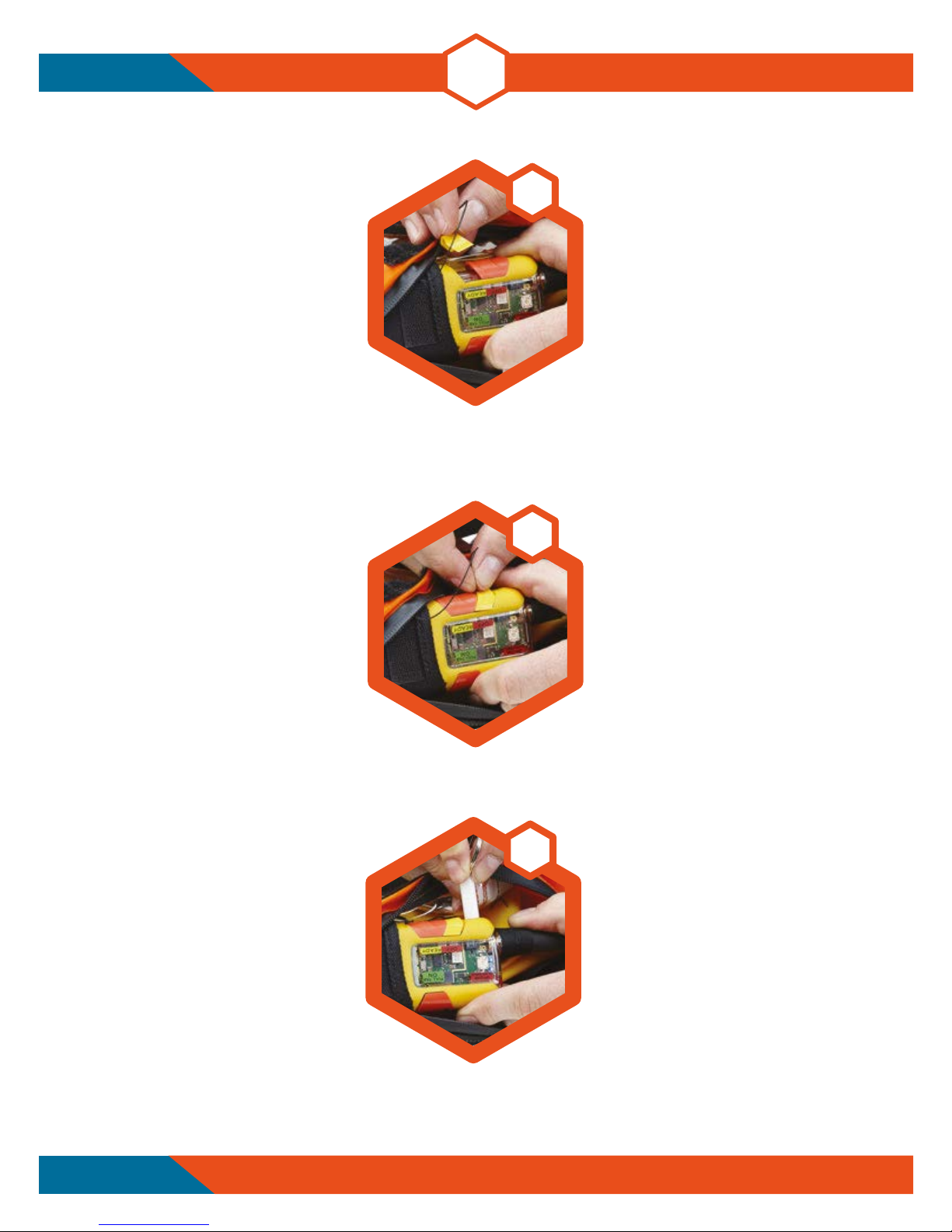

2
Remove the yellow SWITCH LOCK from the device and slide the red
(V100) or black (V100X) ARMING SWITCH to the [READY] position.
Both LEDs will turn solid blue for 5 seconds to confirm it is in [READY] mode.
3
Reinsert the SWITCH LOCK above the ARMING SWITCH to lock it in
the [READY] position.
4
Conduct a self test using the test procedure.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
15
5
Close the access point zip securely.
The sMRT V100/V100X and PFD is now ready for use.
WARNING: After arming the unit it can remain in the PFD for 12
months until the PFD and PLB unit require annual servicing and
recertification. Before returning the unit for servicing and
recertification it must be made safe:
1. Remove the SWITCH LOCK if it is in place and slide the
ARMING SWITCH from [READY] to the [OFF] position.
2. Replace the SWITCH LOCK to ensure the device remains
inactive while transported.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
16
How to activate the device when armed
When the sMRT V100/V100X is armed in the [READY] position, it
can activate as follows:
1. Automatically via the water sensor after 2seconds of
continuous immersion.
2. Automatically when the PFD inflates in an emergency.
Note: When the PFD inflates it removes the ACTIVATION
TAB from the sMRT V100/V100X and automatically activates
the device.
3. Manually by removing the ACTIVATION TAB from the device.
Device indications after activation
When activated, the sMRT V100/V100X features a 10 second
warning period, during which:
1. The PIEZO beeps initially for two seconds (excluding V100X), and
2. The LEFT LED blinks blue and RIGHT LED illuminates solid
blue.
After the 10 second warning period the sMRT V100/V100X will
commence AIS and emergency VHF DSC transmissions. The
internal GPS receiver will acquire a position within approximately
one minute of activation and the device can then send VHF DSC
and AIS transmissions containing the casualty’s current position.
The STROBE light on the device flashes once per second to assist
with visual homing at night or in poor weather conditions.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
17
sMRT V100/V100X LED indications
During operation, the LEFT LED indicates device status and the
RIGHT LED indicates GPS status.
The LEDs may display the following indications:
LEFT LED LED Colour RIGHT LED LED Colour
Warning period
immediately following
device activation
Short blue
blinks
GPS position
acquired
Solid green
Radio transmission
error
Solid red
DSC acknowledge
received
Solid green
Less than 12 hours
battery life
Magenta
Alert transmission OK Solid blue
No GPS position
acquired
Solid blue

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
18
5.1 •Cancelling alerts
Cancelling the distress alert after recovery of a
man overboard or accidental activation
To deactivate the device and cancel the distress alert:
1. Remove the SWITCH LOCK if it is in place and slide the
ARMING SWITCH from [READY] to the [OFF] position.
Then insert the SWITCH LOCK to ensure the device remains
inactive.
2. Use a VHF radio to broadcast an “all stations” voice message
cancelling the alert over the emergency VHF marine channel
in your region (channel 16 in most regions).
Example of message to cancel the distress alert:
ALL SHIPS ALL SHIPS ALL SHIPS
THIS IS {vessel call sign repeated 3 times}
CANCEL DISTRESS ALERT FROM {MMSI number}
3. Contact the Coast Guard or Search and Rescue Coordination
Centre serving your region at the earliest possible
opportunity to advise them that you have cancelled the alert.
IMPORTANT NOTE: If you do not have access to a VHF marine
radio, contact your search and rescue authority by telephone.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
19
5.2 •Testing
A full system test is performed prior to the sMRT V100/V100X being
installed into an MRT approved PFD. The device is [OFF] when shipped in
a PFD and needs to be configured to the [READY] state prior to use. A full
system test should also be performed.
After deployment into active service, a regular full system test of the sMRT
V100/V100X should be performed every 3 months. Do not test the device
more than once per month as this could affect battery performance in an
emergency. MRT mandates each device is returned to MRT, or an
authorised MRT service agent, for annual servicing and recertification.
WARNINGS:
1. DO NOT unzip the PFD. Use the device access point to prepare
the sMRT V100/V100X for use. DO NOT remove the
ACTIVATION TAB during setup as this will activate the device
and send distress alerts.
2. Ensure the device has a clear view of the sky during testing to
receive a GPS signal.
3. If the sMRT V100/V100X fails any element of a self-test or any
full system test, take it out of service immediately.
4. If the battery test indicates less than 12 hours of battery life
remaining, return the device to MRT or an authorised MRT
service agent for battery replacement.
5. DO NOT ignore a low battery warning as the device may not
operate to full capacity in a man overboard emergency.

sMRT V100/V100X User Manual v1.0
MRT Ltd. © 2014
20
Self-test
The sMRT V100/V100X performs a self-test when the ACTIVATION
SWITCH is moved from the [OFF] position to [READY]. Self-test
LED indications are displayed for several seconds at this point
and may display as follows:
The LEFT LED indicates device test status and the RIGHT LED
indicates GPS test status.
Full system test
1. The ARMING SWITCH can be in the [OFF]
or [READY] positions when performing a
full system test.
2. Open the sMRT V100/V100X access
point zip of the PFD. Insert the TEST
MAGNET and hold it over the TEST
SPOT for three seconds to activate
test mode.
LEFT LED LED Colour RIGHT LED LED Colour
Battery critically low
or VHF transmitter
error; remove device
from service
Solid red GPS error; remove
device from service
Solid Red
Less than 12 hours
battery life; remove
device from service
Magenta
VHF Self Test OK Solid Blue GPS self test OK Solid Blue
