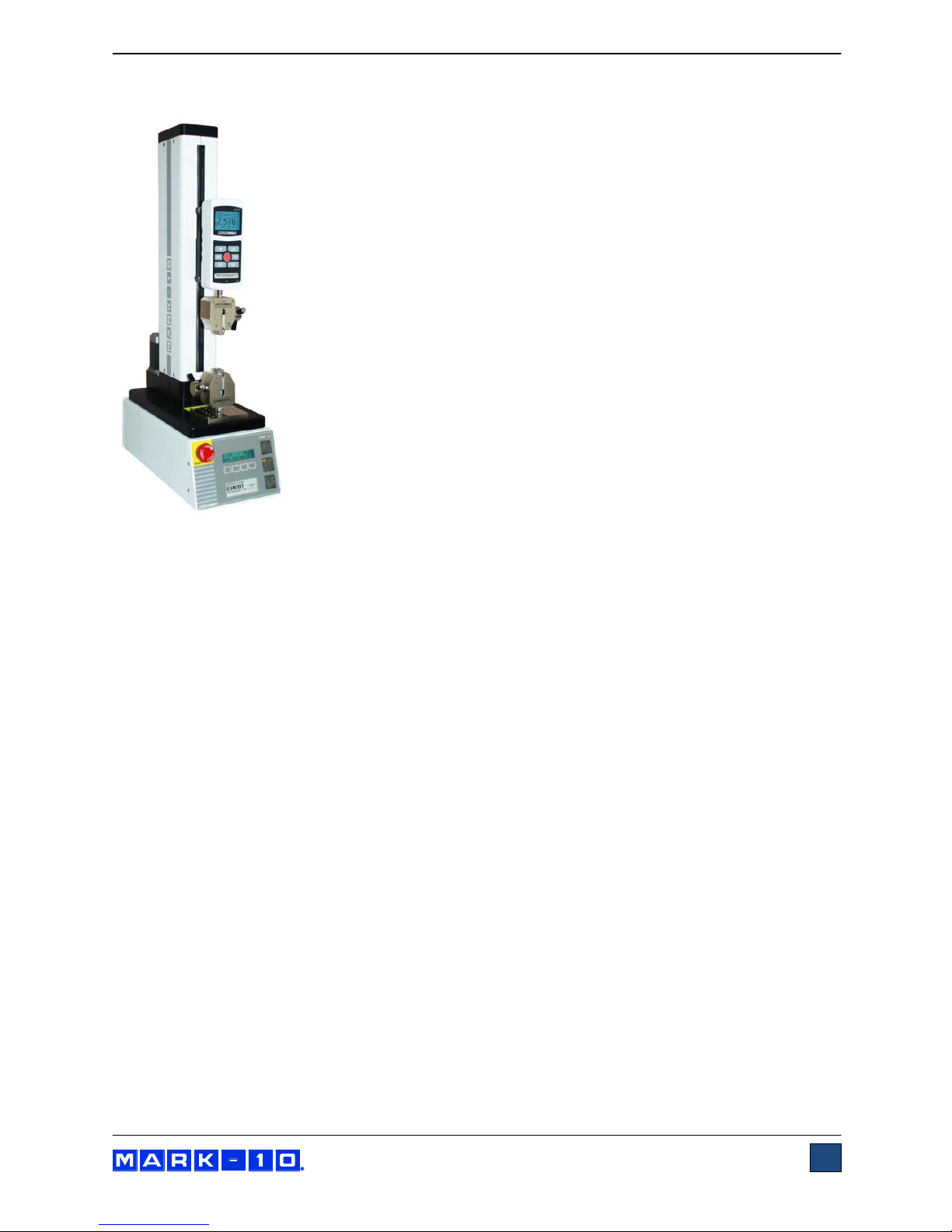

Mark-10 ESM301 User manual

Force Test Stand Model ESM301 / ESM301L
Version 2
User’s Guide

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
2
Thank you…
Thank you for purchasing a Mark-10 ESM301 / ESM301L Version 2 Force
Test Stand, designed for producing up to 300 lbF (1.5 kN) of tension or
compression force. The ESM301 is an essential component of a force testing
system, typically also comprising a force gauge and grips.
With proper usage, we are confident that you will get many years of great
service with this product. Mark-10 test stands are ruggedly built for many
years of service in laboratory and industrial environments.
This User’s Guide provides setup, safety, and operation instructions.
Dimensions and specifications are also provided. For additional information or
answers to your questions, please do not hesitate to contact us. Our technical
support and engineering teams are eager to assist you.
Before use, each person who is to use the test stand should be fully
trained in appropriate operation and safety procedures.
TABLE OF CONTENTS
OVERVIEW.......................................................................................... 3
MECHANICAL SETUP AND SAFETY................................................ 4
OPERATION BASICS ......................................................................... 6
TEST PARAMETER SETUP ......................................…………………7
OPERATING MODES........................................................................ 16
COMMUNICATION WITH MESURTMGAUGE SOFTWARE ............. 23
FEATURE ACTIVATION ................................................................... 23
TROUBLESHOOTING....................................................................... 24
MAINTENANCE AND SERVICE....................................................... 25
SPECIFICATIONS ............................................................................. 26
DIMENSIONS .................................................................................... 26

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
3
1 OVERVIEW
1.1 List of included items
Qty. Description
1 ESM301 or ESM301L test stand
4 Force gauge mounting thumbscrews
2 Limit switch thumbscrews (same as above, supplied in a separate package)
1 Power cord
1 Cable, controller to test frame 12” (longer cables are optional)
1 Cable, USB to RJ11 (for optional integrated travel indication)
1 ESM301-002-X column extension (optional)
1 ESM301-003 bench mounting kit (optional)
1 09-1162 multi-function cable (optional)
1 09-1056 serial cable (optional)
1 Accessories kit (small hook, medium hook, 2” diameter compression plate, 2” extension
rod, #10-32 coupler, tool kit)
1.2 Overview
Note: Unless otherwise indicated, all references to the model ESM301 also apply to the ESM301L.
The ESM301 has three functional modes:
1. OPERATING MODE
This is the operating mode in which testing sequences can be started and stopped.
2. TEST PARAMETER SETUP
In this mode, test parameters are configured, such as rate of speed, number of cycles, password
editing, and other parameters.
3. FEATURE ACTIVATION SETUP
This facility allows the user to enable features not originally purchased through a code activation
process.
DEMO MODE
The ESM301 is shipped in Demo Mode, during which time all available features are
temporarily activated for 160 hours of operation. At power-up, a counter displays the
number of hours remaining, as follows:
Press the STOP button to continue.
At the end of this period, any features not originally purchased will be deactivated.
Demo Mode can be suspended at any time by pressing and holding STOP while
turning on power to the test stand. This mode can be re-enabled in the same
manner, and will be active for the remaining time period.
Refer to the Feature Activation Setup section for instructions for field activation.
R EMA I N I NG D EMO
T I ME : 1 6 0 H O URS

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
4
2 MECHANICAL SETUP AND SAFETY
2.1 Safety / Proper Usage
Typical materials able to be tested by the ESM301 include many manufactured items, such as springs,
electronic components, fasteners, caps, films, mechanical assemblies, and many others. Items that
should not be used with the ESM301 include potentially flammable substances or products, items that
can shatter in an unsafe manner, and any other components that can present an exceedingly hazardous
situation when acted upon by a force.
1. Using Grips & Fixtures with the ESM301
Ensure that the grip or fixture is positioned to ensure axial load with respect to the loading shaft of
the force gauge. When using a grip, ensure that it secures the sample in such a way that it is
prevented from slipping out during a test, preventing a potential safety risk to the operator and
others in the vicinity. If using a grip or fixture from a supplier other than Mark-10, ensure that it is
constructed of suitably rugged materials and components.

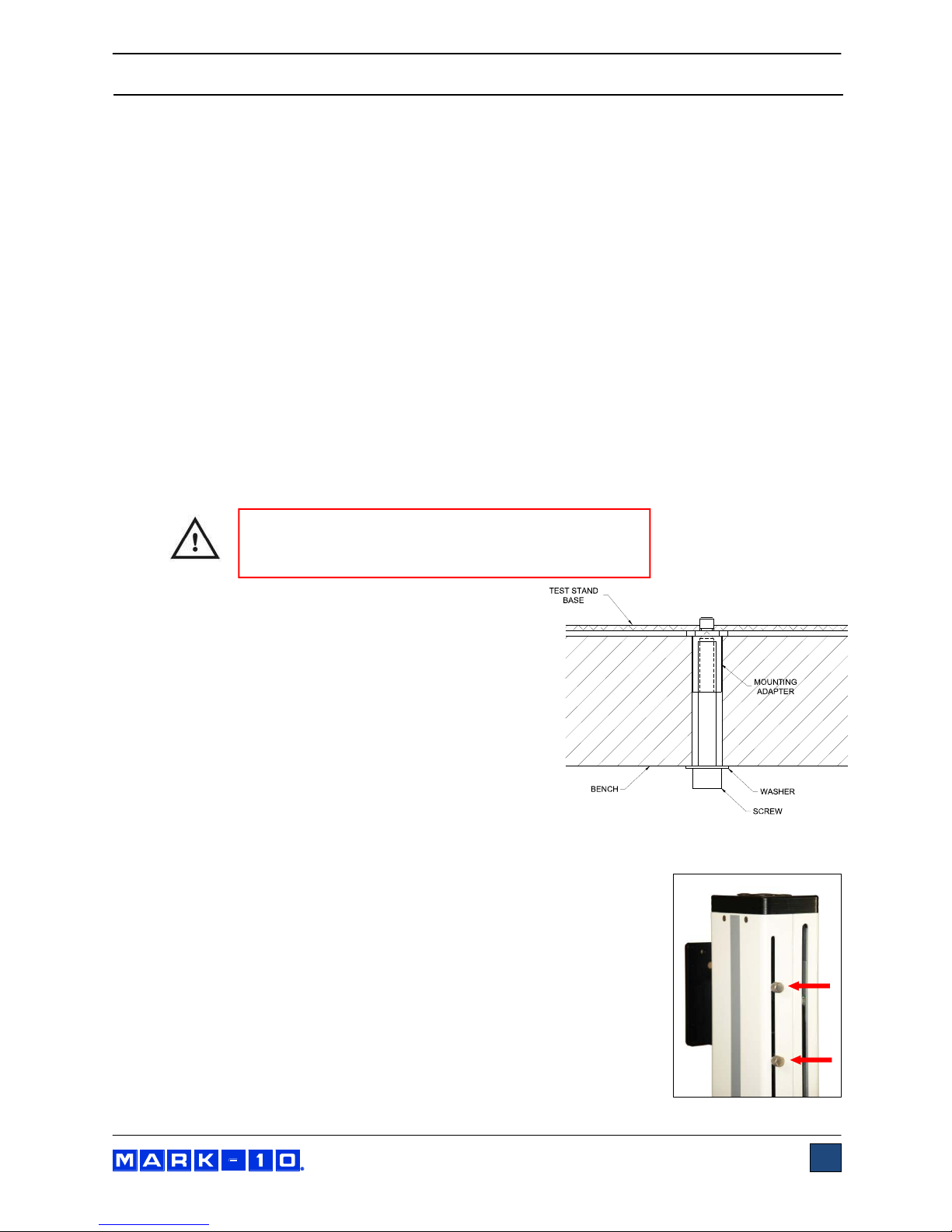

2. Mounting
Place the stand on a clean, flat and level work area free from vibration. If desired, the stand can
be secured to the work area with 1/4-20 screws fastened into the underside of the base. Failure
to properly mount the test stand may make it more vulnerable to tipping, causing a hazardous
situation.
The test stand can also be mounted using the
ESM301-003 mounting kit. Screws of various
lengths are supplied with this kit to accommodate a
range of bench thicknesses. Refer to the following
illustration at right proper assembly:
In general, the ESM301 can be mounted at any angle, although extra care should be taken during
installation and operation.
Once the test stand is in a stable and secure position, install a force
gauge with four thumb screws (provided). Mark-10 gauges mount
directly without adapters. Grips can be mounted onto the force gauge
and test stand base.
3. Installing the limit switches
Upper and lower limit switches are provided to stop crosshead travel at
user-designated positions. Each limit switch consists of an internal
block riding along a rail, and an external thumbscrew. The
thumbscrews are shipped in a separate bag to avoid damage in transit.
Refer to the illustration at right for proper installation:
IMPORTANT: Do not fasten any screws more than
0.25 in [6 mm] into the base of the test stand, or
damage to internal components can occur.

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
5
2.2 Setting up the Controller
The power plug and controller cable must be connected to the rear of the controller, as shown in the
illustration below:
1. Fuse
2. Controller Cable Connector
Plug one end of the cable into this connector, and the other end into the connector as shown in
the illustration on the right.
3. PC Output Connector
Outputs force only or force and travel data via RS-232. Also allows for PC control, if appropriate
features are enabled. Plug one end of the 09-1056 serial cable into this connector, and the other
end into a serial connector on a computer.
4. Power Plug Receptacle
Plug the power cord in here.
5. Travel Indication Connector
Plug one end of the USB/RJ11 cable into this connector, and the other end into the mini USB
connector in the rear of the crosshead.
6. Force Gauge Cable Connector
Interfaces with a Series 5 or 4 force gauge. Plug one end of the 09-1162 cable into this
connector, and the other end into the gauge.
2.3 Connecting Power
Plug one end of the power cord into its receptacle at the rear of the controller and the other end into a
wall outlet with local earth ground (3-prong connector).
Before turning on power, the following safety checks and procedures should be performed:
1. Never operate the test stand if there is any visible damage to the power cord or the test stand
itself. The ESM301 is powered by 110V/220V. Any contact with this high voltage can cause
serious injury or even death.
2. Ensure that the test stand is kept away from water or any other electrically conductive liquids
2
1
43 5 6

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
6
at all times.
3. Make sure the electrical outlet powering the test stand has local earth ground (3-prong
connector).
4. The test stand should be serviced by a trained technician only. Power must be disconnected
before the controller is opened.
After the above safety checks and procedures have been performed, the test stand may be powered on
and is ready for operation.
3 OPERATION BASICS
3.1 Operational Safety
The following safety checks and procedures should be performed before and during operation:
1. Always consider the characteristics of the sample being tested before initiating a test. A risk
assessment should be carried out beforehand to ensure that all safety measures have been
addressed and implemented.
2. Wear eye and face protection when testing, especially when testing brittle samples that have the
potential to shatter under force. Although the ESM301 has relatively slow moving mechanisms, be
aware of the dangers posed by potential energy that can accumulate in the sample during testing.
Extra bodily protection should be worn if a destructive failure of a test sample is possible.
3. Keep away from moving parts of the test stand. Loose articles of clothing should not be worn, and
long hair should be covered to avoid being caught in any moving parts. A Crush Hazard warning

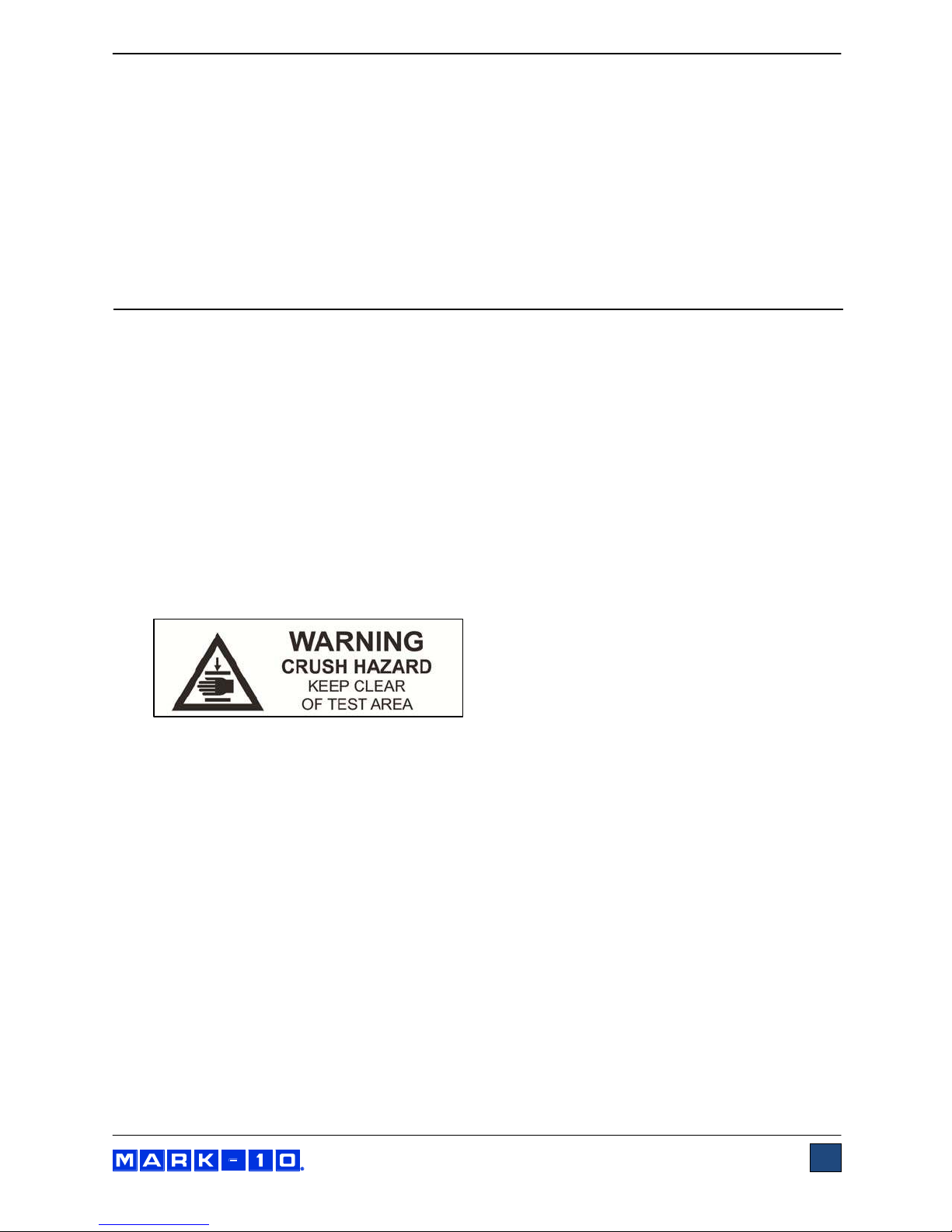

label is located on the base of the test stand. It appears as follows:
Definition: Keep any body parts and clothing clear of the area between the base of the test stand and the
moving crosshead.
4. In certain applications, such as the testing of brittle samples that can shatter, or other applications
that could lead to a hazardous situation, it is strongly recommended that a machine guarding
system be employed to protect the operator and others in the vicinity from shards or debris.
5. When the test stand is not in use, ensure that the power is turned off to prevent accidental
engagement of any of the controls.

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
7

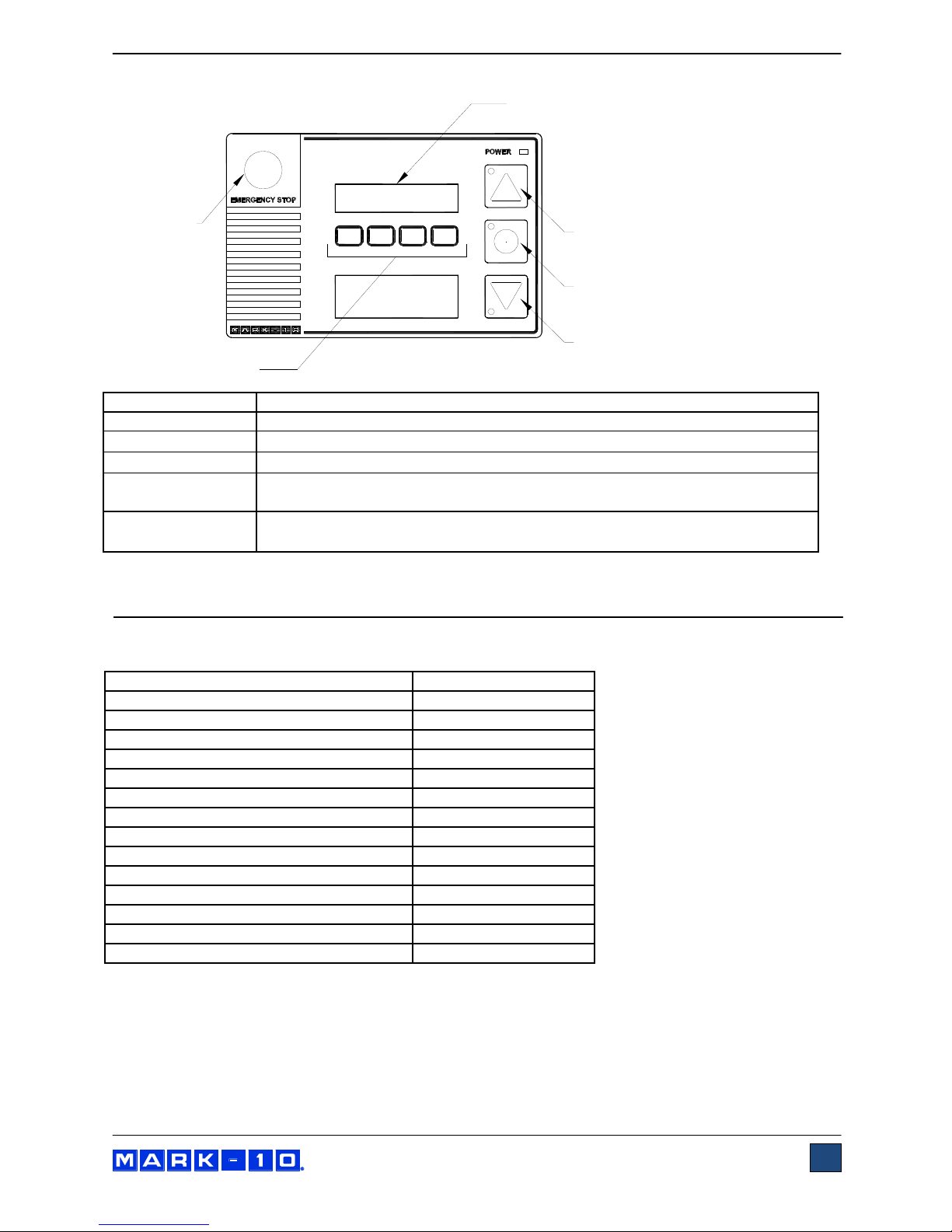

3.2 Controls
Key Primary Function
SOFT KEYS Functions are determined by the corresponding text on the display.
UP Commences movement in the up direction.
DOWN Commences movement in the down direction.
STOP / ZERO
TRAVEL DISPLAY
Stops crosshead movement / zeroes travel display (if travel indication is
enabled).
EMERGENCY
STOP Stops crosshead movement and disables the test stand until reset.
4 TEST PARAMETER SETUP
This section provides configuration instructions for each test parameter. Parameters include:
Parameter Standard / Optional
Speed (same for both directions) Standard
Independent up and down speeds Optional
Auto return Optional
Cycling with dwell time Optional
Programmable travel limits Optional
Overload protection Optional
Preload Optional
Load Holding Optional
Break Detection Optional
PC control Optional
Communication parameters Standard
Units of speed Standard
Programmable button configuration Standard
Password protection Standard
All ESM301 test stands are shipped in Demo Mode, as explained in Section 1.2. After Demo Mode
expires, only installed features will be displayed in Test Parameter Setup. The initial Test Parameter
Setup screen appears as follows:
EMERGENCY
STOP
SOFT KEYS
UP
STOP /
ZERO TRAVEL DISPLAY
DOWN
DISPLAY

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
8
Label Description
ESC Exits Test Parameter Setup, reverts to Operating Mode
< – Scrolls to the previous parameter
– > Scrolls to the next parameter
ENTR Selects the parameter, allowing it to be modified
When the parameters have been configured as desired and are ready to be saved, press ESC to exit
Test Parameter Setup. The screen will show SAVE CHANGES? Pressing YES will save the changes and
the display will revert to current status. Pressing NO will not save the changes and return to the Test
Parameter Setup menu.
Note: Changes can be made to an unlimited number of settings before saving.
The following is a flow chart for the menu structure:
MENU
SAVE CHANGES
UP SP.
DOWN SP.
AUTO RETURN
CYCLES
HI DWELL
LO DWELL
HI LIMIT
OVERLD
PRELOAD
OPERATING MODE
ENTR
ESC
ENTR
+ (inc) - (dec) ignore
save
ENTR
ESC
ENTR
ignore
save
ENTR
ESC
ENTR
+ (on) - (off)
ignore
save
ENTR
ESC
ENTR
ignore
save
ENTR
ESC
ENTR
ignore
save
ENTR
ESC
ENTR
ignore
save
ENTR
ESC
ENTR
ignore
save
ENTR
ESC
ENTR
ignore
save
ENTR
ESC
ENTR
OFF ignore
save
ENTR
ESC
ENTR
ignore
save
+ (inc) - (dec)
+ (inc) - (dec)
+ (inc) - (dec)
+ (inc) - (dec)
+ (inc) - (dec)
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
save
ignore
ENTR
ESC
ENTR
LOAD HOLDING
ESC
save
ignore
ENTR
ESC
ENTR
BREAK DETECT
ESC
+ (PC) - (CONSOLE)
save
ignore
ENTR
ESC
ENTR
CONTROL
ESC + (inc) - (dec)
save
ignore
ENTR
ESC
ENTR
BAUD RATE
ESC + (inc) - (dec)
save
ignore
ENTR
ESC
ENTR
STOP & PAR
ESC
save
ignore
ENTR
ESC
ENTR
UNITS
ESC MAINTAINED
save
ignore
ENTR
ESC
ENTR
KEYS
ESC + (inc) - (dec)
save
ignore
ENTR
ESC
ENTR
DEFAULT SETTINGS
ESC + (inc) - (dec)
save
ignore
ENTR
ESC
ENTR
NEW PASSWORD
LO LIMIT
+ (in) - (mm)
+ (inc) - (dec)
MARK-10
OTHER 2V
OTHER 4V
STOP
STOP, ZERO
ZERO, GO
OFF
+ (on) - (off)
+ (on) - (off)
COMP OVERLD ENTR
ESC
ENTR
ignore
save
+ (inc) - (dec)
ESC
TEN OVERLD ENTR
ESC
ENTR
ignore
save
+ (inc) - (dec)
ESC
AUTO
MOMENTARY
S P E E D : 10 . 0 0
E S C < −−> E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
9
4.1 Speed, Up Speed, Down Speed (SPEED, UP SPEED, DOWN SP)
If the independent up and down speed option has not been enabled, the up and down speeds will be the
same, and is programmed in the SPEED parameter. If independent up and down speeds are enabled, UP
SPEED and DN SPEED parameters will be present, and may be set individually.
Default setting: 10 in/min
Available settings: 0.02 – 45 in/min
4.2 Auto Return (AUTO RETURN)
With this feature, the crosshead moves to a limit switch or soft limit (force set point, distance limit,
preload, or break detection), whichever occurs first, and stops. Then, the crosshead returns to the other
limit and stops. The test speed is dictated by the SPEED setting or the UP SPEED and DOWN SP
settings. The return speed is always maximum speed. The maximum speed depends on whether or not
the optional high speed range has been enabled.
Default setting: off
Available settings: off, on
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
Note: If AUTO RETURN is turned on, CYCLING is automatically turned off and the KEYS parameter is
automatically set to MAINTAINED mode. See following pages for details on the CYCLING and KEYS
parameters.
U P S P E E D : 1 0 . 7 3
E S C −+ E N T R
Label Description
+
Increments the speed setting by .01 in or .5 mm.
Holding down +will increment at an increasingly faster
rate.
–
Decrements the speed setting by .01 in or .5 mm.
Holding down –will decrement at an increasingly
faster rate.
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
AU T O R E T URN o f f
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
10
4.3 Cycling (CYCLES)
This setting allows the user to configure the number of up and down cycles through which the crosshead
will sequence. One cycle consists of the crosshead moving to a limit switch or soft limit, whichever occurs
first, at the specified speed, stopping for the specified amount of dwell time, and returning to the other
limit at the specified speed. If the independent up and down speed feature is not enabled, the speed will
be the same in both directions.
Default setting: 00000 (off)
Available settings: 00000 – 99999
4.4 Upper Limit Dwell Time and Lower Limit Dwell Time (HI DWELL and LO DWELL)
This setting corresponds to the amount of time, in seconds, for which the crosshead stops at the limit
during a cycle sequence.
Note: The dwell time setting is unavailable for an auto return sequence.
Default setting: 0 (no dwell time)
Available settings: 0 – 9999.9
Label Description
+
Increases dwell time in increments of .1. Holding down +will increment at an
increasingly faster rate. If 9999.9 is reached the next number will be 0 and
continue incrementing.
–
Decreases dwell time in increments of .1. Holding down –will decrement at
an increasingly faster rate. If 0 is reached the next number will be 9999.9
and continue decrementing.
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
C Y C L E S : 0 0 0 0 0
E S C −+ E N T R
Label Description
+
Increases the number of cycles in increments of 1. Holding down +
will increment at an increasingly faster rate. If 99999 is reached
the next number will be 00000 and continue incrementing.
–
Decreases the number of cycles in increments of 1. Holding down
–will decrement at an increasingly faster rate. If 00000 is reached
the next number will be 99999 and continue decrementing.
Press and hold
+ and –
simultaneously
If pressed and held for 2 seconds or longer the number of cycles
will change to 0.
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
H I D
W
E L L : 0 0 0 0 . 0
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
11
4.5 Upper and Lower Travel Limits (UPPER LM and LOWER LM)
This setting corresponds to the travel distance the crosshead moves before stopping or cycling. Upper
and lower limits are programmed individually. The programmed distances are relative to the zero position
of the crosshead. The travel indicator can be zeroed by pressing and holding STOP for 3 seconds.
Default settings: +12.000 in, -12.000 in
Available settings: From -19.000 to +19.000 in
Label Description
+ Increases the travel limit setting by .001 in or .02 mm.
Holding down + will increment at an increasingly faster rate.
–Decreases the travel limit setting by .001 in or .02 mm.
Holding down –will increment at an increasingly faster rate.
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.6.1 Overload Protection (OVERLD)
The ESM301 protects a force gauge from overload by measuring incoming analog voltage and stopping
crosshead travel when the programmed percentage of full scale has been reached (see Section 4.7). The
default setting is for Mark-10 gauges (±1V), however, the setting may be changed to ±2V or ±4V to
accommodate other force gauges.
Default setting: OFF
Available settings: MARK-10, OTHER 2V, OTHER 4V, OFF
4.6.2 Compression and Tension Overload Settings (COMP OVERLD and TEN OVERLD)
This setting corresponds to the percentage of force gauge full scale at which crosshead travel stops. For
example, a setting of 80% for a 50 lbF capacity force gauge would stop crosshead travel when
approximately 40 lbF is reached.
Note: When the crosshead is moving in the UP direction, only the tension overload setting applies. When
the crosshead is moving in the DOWN direction, only the compression overload setting applies.
Default setting: 100%
Available settings: 20% - 100% (10% increments)
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
H I L I MI T : 2 . 0 5 8
E S C −+ E N T R
OV E R L D : MA RK - 1 0
E S C −+ E N T R
COMP O V E R L D : 1 0 0
%
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
12
4.7.1 Preload (PRELOAD)
This setting corresponds to the test stand’s response to an initial load, referred to as a preload. The
crosshead can stop and/or zero the travel display when the preload has been reached. This function is
useful for applications such as spring testing, elongation testing, and tensile and compression testing of
various materials. For details about setting the preload value, refer to Section 4.7.2.
Default setting: OFF
Available settings: STOP, STOP/ZERO, ZERO/GO, OFF
Label Description
+ or – Cycles through the available settings listed below:
STOP Crosshead stops when preload has been reached
STOP, ZERO Crosshead stops when preload has been reached, then zeroes the travel display
ZERO, GO Travel display is zeroed when preload has been reached, crosshead does not stop
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.7.2 Preload Value (PRELD %FS)
This setting corresponds to preload value, defined as a percentage of the force gauge’s full scale in lbF
units. The test stand’s response, as described in the previous section, occurs when this value has been
reached.
Note: In low force applications, consider test stand vibration and crosshead acceleration, as they can be
prominent enough to produce a force exceeding the preload value.
Default setting: 1%
Available settings: 0 – 100%
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.8 Load Holding
This setting directs the test stand to dynamically adjust the crosshead position to maintain a programmed
force. The force is programmed as a set point in a Series 5 force gauge (refer to the user’s guide for
details). If the CYCLING option has been enabled, load holding will be active for the period of time as
defined in the Upper Dwell and Lower Dwell settings. If CYCLING has not been enabled, load holding will
continue indefinitely.
Default setting: OFF
Available settings: ON, OFF
P R E L OAD : Z E RO , GO
E S C −+ E N T R
P R E L D
%
F S : 0 1 . 0
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
13
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.9.1 Break Detection
This setting directs the test stand to stop when a sample break has occurred. The test stand is triggered
when the force has decreased to a specified percentage of peak. For details about programming the
percentage of peak, refer to Section 4.9.2.
Default setting: OFF
Available settings: ON, OFF
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.9.2 Break Detection Percentage Drop
This setting corresponds to the force trigger for break detection, defined as a percentage of peak force.
For example: A sample is pulled until 50 lbF, then breaks. The break detection percentage drop setting is
50%. After the sample breaks, the force rapidly decreases to 25 lbF (50% of peak), then triggers the test
stand to stop.
Default setting: 80%
Available settings: 10% - 90% (10% increments)
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.10 Control Source (CONTROL)
This setting corresponds to the source of test stand control. The default value CONSOLE sets the test
stand to accept commands only from the console (front panel). Any external commands received through
the serial port are ignored, except for the following: Request Load, Request Travel, Zero Gauge, Zero
Travel, Clear Peaks (refer to Section 5.8 for details).
PC refers to external control via serial communication. If any parameters are changed on the front panel,
these settings will be ignored, except for Auto Return or Cycling. If either of these parameters are turned
on, PC control will be turned off.
L OAD HO L D I NG : ON
E S C −+ E N T R
BR E AK D E T E C T : ON
E S C −+ E N T R
BR E AK D E T E C T : ON
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
14
Default setting: CONSOLE
Available settings: CONSOLE, PC
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.11 Baud Rate (BAUD RATE)
This setting corresponds to the baud rate setting of the computer program controlling the test stand.
Default setting: 115200
Available settings: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
4.12 Stop Bits and Parity (STOP & PAR)
This setting corresponds to the stop bits and parity settings of the computer program controlling the test
stand.
Default setting: 8-1n
Available settings:
8-1E 8 stop bits, 1 stop bit, even parity
8-1o 8 stop bits, 1 stop bit, odd parity
8-1n 8 data bits, 1 stop bit, no parity
8-2n 8 data bits, 2 stop bits, no parity
7-1E 7 data bits, 1 stop bit, even parity
7-1o 7 data bits, 1 stop bit, odd parity
7-2E 7 data bits, 2 stop bits, even parity
7-2o 7 data bits, 2 stop bits, odd parity
7-2n 7 data bits, 2 stop bits, no parity
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.13 Units of Speed (UNITS)
This setting corresponds to units of speed measurement.
Default setting: in/min
Available settings: in/min, mm/min
CON T ROL : CON SO L E
E S C −+ E N T R
BAUD RA T E : 1 1 5 2 0 0
E S C −+ E N T R
S T OP & P AR : 8 - 1 n
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
15
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.14 Programmable Button Function (KEYS)
Three button function modes are available:
1. Maintained
The crosshead will move continuously once the button has been pressed and held.
Subsequently pressing the UP, DOWN, or STOP during a test will stop crosshead motion.
2. Momentary
The crosshead will move only if the button is held down. Releasing the button will stop
movement immediately.
3. Auto
Holding down the button for more than 0.5 seconds will enter momentary mode, at which time
an audible indicator will sound and the LED indicator on the button pushed will be illuminated.
A short tap on the button will operate the test stand in maintained mode. Pressing UP,
DOWN, or STOP during maintained mode will stop crosshead motion.
Default setting: maintained
Available settings: maintained, momentary, auto
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.15 Return to Default Settings (DEFAULT SETTINGS)
This setting provides a quick return to factory settings, as follows:
SPEED: 10 in/min
UP SPEED: 10 in/min
DOWN SP: 10 in/min
AUTO RETURN: off
CYCLING: 00000 (off)
HI LIMIT: +12.000
LO LIMIT: -12.000
OVERLD: off
PRELOAD: off
LOAD HOLDING: off
BREAK DETECT: off
CONTROL: CONSOLE
BAUD RATE: 115200
STOP & PAR: 8-1n
UN I T S : i n /
m
i n
E S C −+ E N T R
K E Y S : MA I N T A I N ED
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
16
UNITS: in/min
KEYS: maintained
PASSWORD: 0000 (off)
Default setting: off
Available settings: off, on
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
4.16 Password (NEW PWORD)
If desired, a password can be set to prevent unwanted changes to test parameters. The password can be
set to any number between 0000 and 9999. The default setting of 0000 indicates that the password is
disabled, and that the user can freely enter the Test Parameter Setup menu. If misplaced or forgotten, the
password may be reset through a code activation process. Details on this may be found in Section 9.
Default setting: 0000 (off)
Available settings: 0000 – 9999
Label Description
+ or – Cycles through the available settings
ENTR Returns to the Test Parameter Setup menu
ESC Exits the parameter without saving changes
5 OPERATING MODES
5.1 Mode Overview
The ESM301 can be operated in several modes, including combinations of these modes:
1. Basic Mode
Manual control of crosshead motion.
2. Auto Return Mode
Crosshead moves to a limit switch or force set point, travel distance, preload, or sample
break (referred to as soft limits), whichever occurs first. Then, it reverses and moves at
maximum speed to the other limit, whichever occurs first.
3. Cycling Mode
Crosshead cycles between limits at the selected speed(s), and pauses at each limit or set
point for a selected period of time.
4. Preload Mode
Crosshead moves until the preload has been reached, and performs the action programmed
in the setting. An auto-return, cycle/dwell time, or break detection sequence may follow.
D E F AUL T ? : NO
E S C −+ E N T R
N E
W
P
W
ORD 0 0 0 0
E S C −+ E N T R

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
17
5. Load Holding Mode
Crosshead moves to a force set point, stops, then dynamically adjusts position to maintain
the programmed force. An auto-return or cycle/dwell time sequence may follow.
6. Break Detection
Crosshead stops when a sample break has been detected. An auto-return or cycle/dwell time
sequence may follow.
7. PC Mode
Test stand is controlled through a serial connection with a PC.
The Operating Mode home screen appears as follows:
If the travel indication option is enabled, the screen appears as follows:
The item selected will be capitalized, as shown in the figure above. The set speed can be changed in
Test Parameter Setup. If enabled, the up and down speeds can be configured independently of each
other (UP SPEED and DN SPEED). Otherwise, the SPEED setting corresponds to crosshead speed in
both directions.
5.2 Menu Navigation
At power-up, the display will show the operation screen for whichever mode was used last. The display
will appear as one of the following:
1. Basic & Auto Return Modes (travel indication not enabled):
2. Basic & Auto Return Modes (travel indication enabled):
S P E ED : 0 . 0 0
me n u m i n max S E T
1 . 2 7 5 0 . 0 0
me n u m i n ma x S E T
S P E ED : 0 . 0 0
me n u m i n ma x S E T
1 . 2 7 5 0 . 0 0
me n u m i n ma x S E T
TRAVEL SPEED
TRAVEL SPEED

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
18
3. Cycling Mode (travel indication not enabled):
Note: The min and max keys will not appear when a password has been set.
4. PC Mode
Appears the same as in Basic and Auto Return modes.
Label Description
menu Enters Test Parameter Setup
min Sets speed to minimum speed. Will not appear when a
password has been set.
max Sets speed to maximum speed. Will not appear when a
password has been set.
set Sets speed to the programmed SPEED, UP SPEED, or
DN SPEED setting
Pressing menu will enter Test Parameter Setup. If a password has been programmed, the
display will prompt the following:
The password is a four digit number. The first digit in the password will be flashing, signifying that
it is active and can be incremented by pressing +. To advance to the next digit, press –>. Change
subsequent digits in the same fashion. Once the complete password has been entered, press
ENTR. If correct, the display will enter Test Parameter Setup Mode.If the password is incorrect,
the words INCORRECT PASSWORD will flash, and the display will revert to Operating Mode.
5.3 Basic Mode
The crosshead moves upward when UP is pressed, and downward when DOWN is pressed. When the
crosshead is in motion, an LED indicator on the button pushed will be illuminated. The KEYS setting
controls how crosshead movement responds to the push of the UP and DOWN buttons. The three
settings are:
1. Maintained (default)
The crosshead will move continuously once the button has been pressed. Subsequently
pressing STOP during a test will stop crosshead motion.
2. Momentary
The crosshead will move only if the button is pressed and held. Releasing the button will
stop movement immediately.
3. Auto
Holding down the button for more than 0.5 seconds will enter Momentary mode, at which
time an audible indicator will sound and the LED indicator on the button pushed will be
illuminated. A short tap on the button will operate the test stand in Maintained mode.
Pressing STOP during Maintained mode will stop crosshead motion. To resume the test,
press UP or DOWN again.
Pressing EMERGENCY STOP will immediately stop crosshead motion in any mode. To release, twist the
C Y C L E S : 0 0 0 2 4
m
e n u
m
i n
m
a x S E T
P A S S
W
ORD 0 0 0 0
E S C −+ E N T R
TRAVEL CYCLES REMAINING

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
19
button counter-clockwise until it assumes its original position. To resume the test, press UP or DOWN.
Crosshead movement will take place until a limit has been reached. If the crosshead has stopped at a
soft limit, the limit condition may be overridden by pressing and holding UP or DOWN.
5.3.1 Travel Indication
If enabled, travel indication is displayed in the upper left corner of the display. The displayed units are the
same as programmed in the UNITS parameter. Indicated travel is a relative value. To zero out travel
distance, ensure that the crosshead is not moving, then press and hold STOP.
If the cable connecting the crosshead to the rear of the controller is unplugged, the position value will not
change when the crosshead moves.
5.3.2 Limit Switch Operation
Limit switches allow the operator to set a location along the column at which
point the crosshead will stop moving. Limit switches are located at the rear of
the test stand column, as shown in the image to the left. Adjust the switches’
positions by loosening, repositioning, and re-tightening the thumb screws. The
thumb screws must be installed after unpacking. They are shipped separately
to avoid damage in transit.
5.3.3 Overload Protection
The 09-1162 cable is required for overload protection of a Mark-10 force gauge. If overload protection is
enabled, the crosshead will stop when the programmed percentage of full scale of the force gauge has
been reached.
When overload protection is enabled, if the 09-1162 cable is disconnected, and/or if the force gauge is
turned off, an error message will appear. Plug in the cable and/or turn on the force gauge to clear the
message.
Note: When the crosshead is moving in the UP direction, only the tension overload setting is active.
When the crosshead is moving in the DOWN direction, only the compression overload setting is active.
5.4 Auto Return Mode
In this mode the crosshead moves to whichever limit it encounters first and stops. Then, the crosshead
returns at maximum speed to the other limit, whichever occurs first, and stops. The speed at which the
crosshead travels is dictated by the SPEED setting or UP SPEED and DN SPEED settings (if
independent speeds are enabled). Press UP or DOWN to initiate an Auto Return sequence.
The crosshead can be stopped at any time during an Auto Return sequence by pressing STOP. To
resume the test, press UP or DOWN.
Note: If the crosshead has stopped at a soft limit, the limit condition may be overridden by pressing and
holding UP or DOWN for two seconds.
5.5 Cycling Mode
This mode cycles the crosshead between limits, whichever occurs first. One cycle consists of the
following steps:
1. Crosshead moves to a limit at the specified speed.
2. Crosshead stops for the specified amount of dwell time.

Model ESM301 / ESM301L Version 2 Test Stand User’s Guide
20
3. Crosshead reverses direction, returns to the other limit at the specified speed, and stops for
the specified amount of dwell time.
A cycling sequence can be initiated from any position and can start in either direction. If the crosshead is
at a limit, however, cycling can only be started in the direction of the other limit. To initiate a cycle
sequence, press UP or DOWN. During a cycle sequence, a counter will be displayed, indicating the
number of cycles remaining, as shown below:
As in Basic Mode, the min, max, and set soft keys are active during crosshead movement.
When the cycling sequence and the crosshead has stopped at a soft limit, the limit condition may be
overridden by pressing and holding UP or DOWN.
5.5.1 Dwell time
Dwell time is the amount of time, in seconds, for which the crosshead stops at a limit during a cycle
sequence. When the crosshead has reached a limit, a counter will be displayed, shown as follows:
If the DWELL U and/or DWELL L settings are set to 0, the crosshead will immediately reverse direction
upon reaching the corresponding limit, and no counter will be displayed.
The cycle sequence may be interrupted before it has been completed by pressing STOP. A soft key
labeled RESET will appear as follows:
At this point, there are two options:
1. Canceling the cycle sequence:
Press RESET to stop and reset the cycle sequence. The cycle counter will revert to the
number of cycles originally programmed.
2. Resuming the cycle sequence:
Press UP or DOWN to resume.
Once the sequence has been completed, the screen will revert to the number of cycles programmed
originally. To begin another cycle test, press UP or DOWN.
Travel indication and limit switch operation is the same as in Basic Mode.
5.5 Preload Mode
In this mode, the crosshead moves at an approach speed of 10 in/min (250 mm/min) until the
programmed preload value has been reached. If moving in the up direction, a tension preload is required.
If moving in the down direction, a compression preload is required. When the preload is reached, the
sequence of events programmed in the Preload setting occurs (see Section 4.7.1). If the ZERO,GO
setting is selected, the crosshead speed will revert to the set speed after travel indicator is zeroed.
Note 1: Before the start of a preload sequence, the crosshead must be positioned at either the upper or
C Y C L E S 0 0 0 2 4
me n u m i n ma x S E T
D
W
E L L : 0 0 0 1 . 5
me n u m i n ma x S E T
C Y C L E S : 0 0 0 2 4
R E S E T
