marposs Testar Quick Read User manual

QUICK-READ - 1
TRANSDUCERS AND
MEASUREMENT TRANSMISSIONS
BORE GAUGES LINEFORKS AND RING GAUGESBENCH GAUGES
INDICATORS AND ELECTRONIC
DISPLAY UNITS
INTERFACE BOXES
FOR DATA ACQUISITION
SOFTWARES
8 mm
(.03")
95 mm
(3.74")
110 mm
(4.33")
50° 50°
69 mm
(2.72")
M5
L= 2 m
(78.74")
12 mm
(.47")
110 mm
(4.33")
61 mm
(2.40")
50° 50°
69 mm
(.2.72")
M5
L= 300 mm
(11.81")
12 mm
(.47")
110 mm
(4.33")
61 mm (2.40")
50° 50°
69 mm
(2.72")
12 mm
(.47")
BUILT-IN PROBE VERSION REMOTE PROBE VERSION MICROCOLUMN VERSION
gital displays, and easily program-
med via local keypad.
UNIQUE CLEAR DISPLAY
The 3-colour (green, yellow and
COMPACT ELECTRONIC
DISPLAY UNIT
Quick Read™family is made up
of three slim, compact versions,
each complete with analog and di-
red) analog display and 8-digit al-
phanumeric display provide clear
definition and easy reading of the
meas-urement results.
PROGRAMMABLE
PARAMETERS
Using the local keypad, the Quick
Read™can be easily programmed
to set the digital display resolution,
measuring unit, tolerance limits,
master deviation, full scale, meas-
urement multiplying coefficient,
absolute or comparative reading of
the measurement result and the
data format for serial transmission.
SERIAL OUTPUT
The RS232 output port allows for
connection to a PC, statistical printer
or data collector for SPC purposes,
and to a PLC (data can be sent in
ASCII or binary format).

QUICK-READ - 2
SOFTWARES
INTERFACE BOXES
FOR DATA ACQUISITION
INDICATORS AND ELECTRONIC
DISPLAY UNITS
BENCH GAUGESFORKS AND RING GAUGESBORE GAUGES LINE
TRANSDUCERS AND
MEASUREMENT TRANSMISSIONS

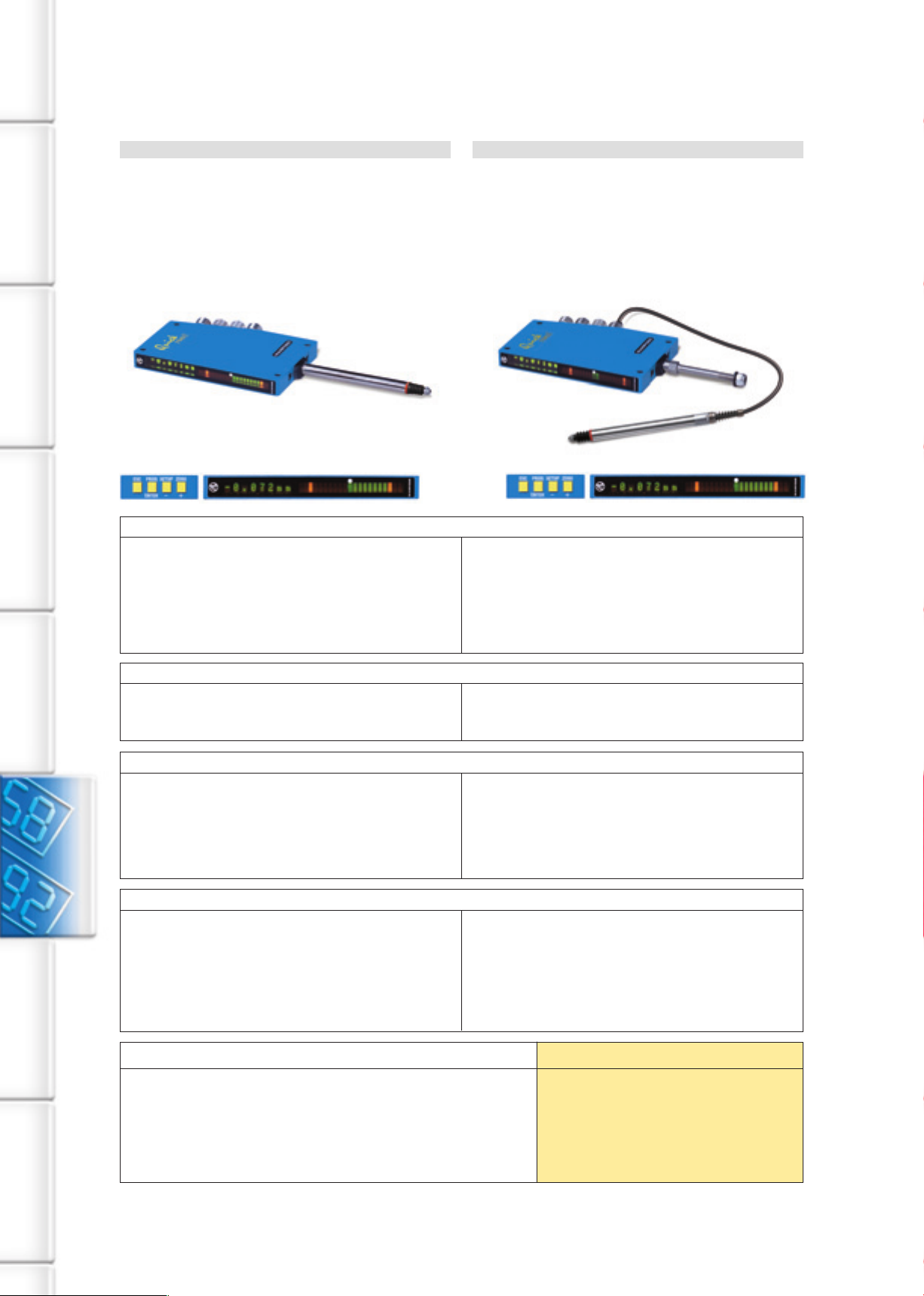

BUILT-IN PROBE VERSION
Having the measuring probe directly integrated into the
main structure makes it suitable for single, simple im-
plementation and multi-dimensional applications whe-
re the measuring locations are close to each other.
REMOTE PROBE VERSION
The pencil probe in this version is attached to the main
structure by means of a standard 2 m (78.7”) cable.
This allows location of the display away from the mea-
sur-ing device. In multi-dimensional applications, all the
Quick Read displays can be mounted to a standard base
structure so that they are located in one common area.
DESCRIPTION ORDER CODE
BUILT-INPROBE VERSION (Probe ø 8 mm) 0E01992106
BUILT-INPROBE VERSION (Probe ø 3/8”) 0E01992103
REMOTE PROBE VERSION (Probe ø 8 mm) 0E01991614
REMOTE PROBE VERSION (Probe ø 3/8”) 0E01991615
WRENCH TO ADJUST THE PROBE PRETRAVEL 1320709000
POWER SUPPLY 7 - 7,5 Vdc ± 5% (300 mA)
PROTECTION LEVEL (CEI/IEC 529 - DIN VDE 0470-1) IP50
ACCURACY ± (1% reading value + resolution)
MEASUREMENT THERMAL DRIFT max 0,25 µm/°C
OUTPUT RS232
WORKING TEMPERATURE 0 ÷50 °C
STORAGE TEMPERATURE - 40 ÷50 °C
GENERAL SPECIFICATIONS
AVAILABLE SCALES auto; 0,010 mm (.00050”); 0,020 mm (.00100”);
0,050 mm (.00250”); 0,100 mm (.00500”); 0,250 mm (.01000”);
0,500 mm (.02500”); 1,000 mm (.04000”)
RESOLUTION 1/10 of the programmed scale, from 0,001 mm (.00005”)
to 0,100 mm (.00500”)
TYPE 21 three colour LEDs (green, yellow, red)
ANALOG DISPLAY
RESOLUTION 0,0001/0,001 mm (.00001”/.00005”)
TYPE 8 alphanumeric digits
MEASUREMENT MULTIPLYING COEFFICIENT -2 to +2 with 0,01 step
DIGITAL DISPLAY
PRESTROKE 1,5 mm (adjustable)
OVERSTROKE 1,5 mm
MEASURING RANGE ± 1 mm (.04”)
CLAMPING DIAMETER 8h6 mm or 3/8”
CONTACT carbide, Ø 3 mm, interchangeable, M 2,5 or 4-48 UNF
MEASURING FORCE 0,75 N ± 25%
REPEATABILITY (2,77 σ) < 0,25 µm
MEASURING PROBE
NN
NN
NOTEOTE
OTEOTE
OTE::
::
: One User manual is supplied with each Quick Read.

QUICK-READ - 3
TRANSDUCERS AND
MEASUREMENT TRANSMISSIONS
BORE GAUGES LINEFORKS AND RING GAUGESBENCH GAUGES
INDICATORS AND ELECTRONIC
DISPLAY UNITS
INTERFACE BOXES
FOR DATA ACQUISITION
SOFTWARES

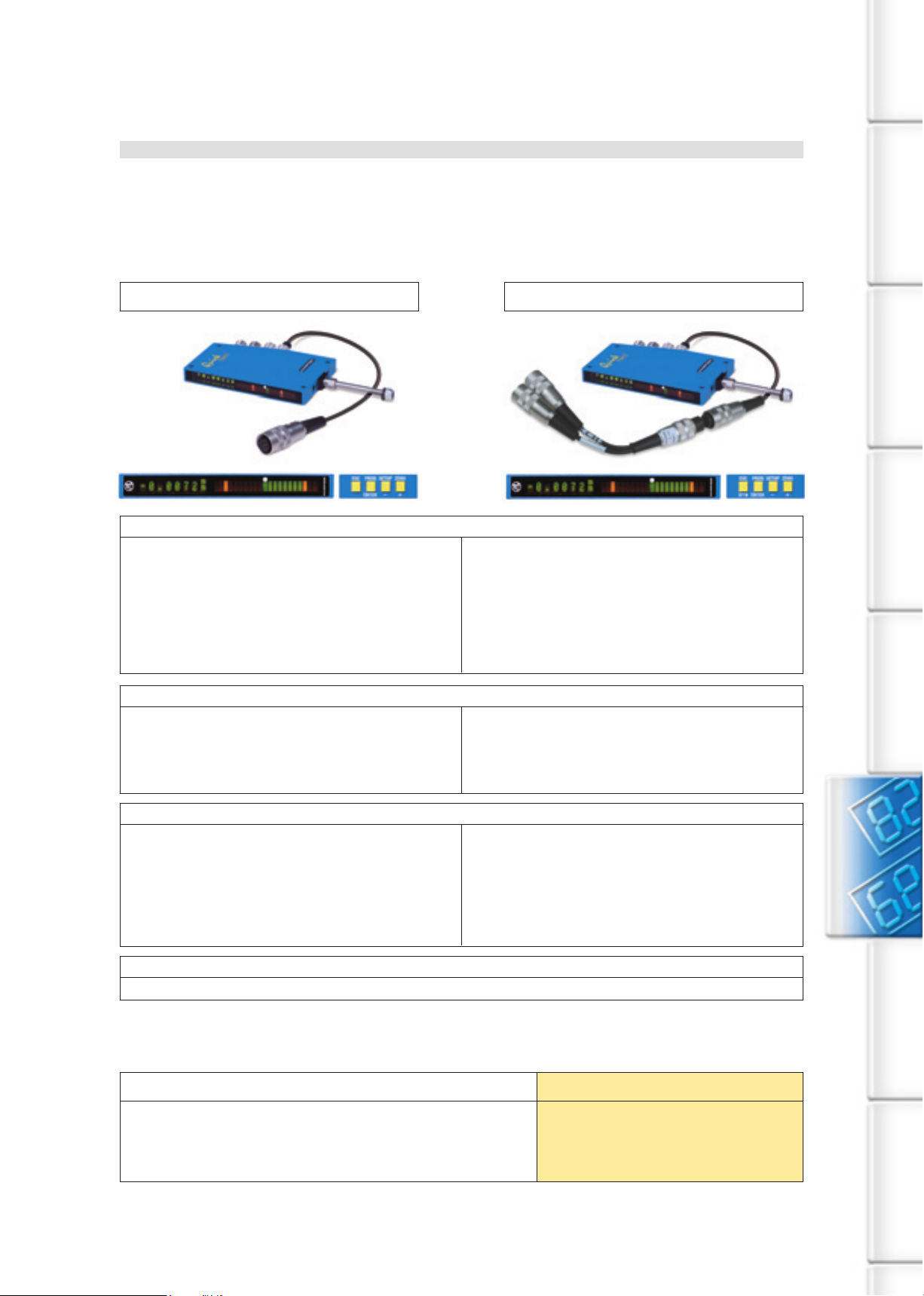

MICROCOLUMN VERSION
This version incorporates half-bridge technology (HBT) and allows to connect TESTAR /MARPOSS standard
sensors with half-bridge transducer ranging from ± 0,25 mm (.010”) to ± 5 mm (.200”).
Two versions are available :
• For connection of one sensor to carry out one static measurement .
• For connection of one or two sensors to carry out one static or dynamic measurement [Hold, Max, min, Max-
min, (Max- min)/2, (Max+min)/2]. To connect two sensors the specific Y-cable is needed.
POWER SUPPLY 7 - 7,5 Vdc ± 5% (300 mA)
PROTECTION LEVEL (CEI/IEC 529 - DIN VDE 0470-1) IP50
ACCURACY ± (1% reading value + resolution)
MEASUREMENT THERMAL DRIFT 0,1 µm/°C for range up to ± 1 mm (.04000”);
0,2 µm/°C for range ± 2,5 mm (.10000”) and ± 5 mm (.20000”)
OUTPUT RS232
WORKING TEMPERATURE 0 ÷ 50 °C
STORAGE TEMPERATURE - 40 ÷ 50 °C
GENERAL SPECIFICATIONS
(*) HBT standard TESTAR/MARPOSS. For third parties transducer compatibility please contact the nearest MARPOSS office.
AVAILABLE SCALES auto; 0,010 mm (.00050”); 0,020 mm (.00100”);
0,050 mm (.00250”); 0,100 mm (.00500”); 0,250 mm (.01000”);
0,500 mm (.02500”); 1,000 mm (.05000”); 2,5 mm (.10000”);
5 mm (.25000”); 10 mm (.50000”)
RESOLUTION 1/10 of the programmed scale,
from 0,001 mm (.00005”) to 1,000 mm (.05000”)
TYPE 21 three colour LEDs (green, yellow, red)
ANALOG DISPLAY
RESOLUTION 0,0001/0,001 mm (.00001”/.00005”) for measuring range up
to ± 1 mm (.04000”); 0,001 mm (.00005”) for range
± 2,5 (.10000”) and ± 5 mm (.20000”)
TYPE 8 alphanumeric digits
MEASUREMENT MULTIPLYING COEFFICIENT -2 to +2 with 0,01 step
DIGITAL DISPLAY
1 or 2 half-bridge (*) with Lumberg SV50/6 connector
MANAGEABLE TRANSDUCER
DESCRIPTION ORDER CODE
MICROCOLUMN VERSION FOR ONE SENSOR (ONE STATIC MEASUREMENT) 0E01991613
M ICROCOLUMN V ERSION FOR ONE OR TWO SENSORS ( ONE STATIC OR DYNAMIC MEASUREMENT ) 0E01991612
Y- CABLE FOR CONNECTION OF TWO SENSORS 6735532001
NN
NN
NOTEOTE
OTEOTE
OTE::
::
: One User manual is supplied with each Quick Read.
FOR CONNECTION OF ONE SENSOR
ONE STATIC MEASUREMENT
FOR CONNECTION OF ONE OR TWO SENSORS
ONE STATIC OR DYNAMIC MEASUREMENT

QUICK-READ - 4
SOFTWARES
INTERFACE BOXES
FOR DATA ACQUISITION
INDICATORS AND ELECTRONIC
DISPLAY UNITS
BENCH GAUGESFORKS AND RING GAUGESBORE GAUGES LINE
TRANSDUCERS AND
MEASUREMENT TRANSMISSIONS
CCCC
A
AB C D1/D2
EH
M
ED1/D2
I
FG

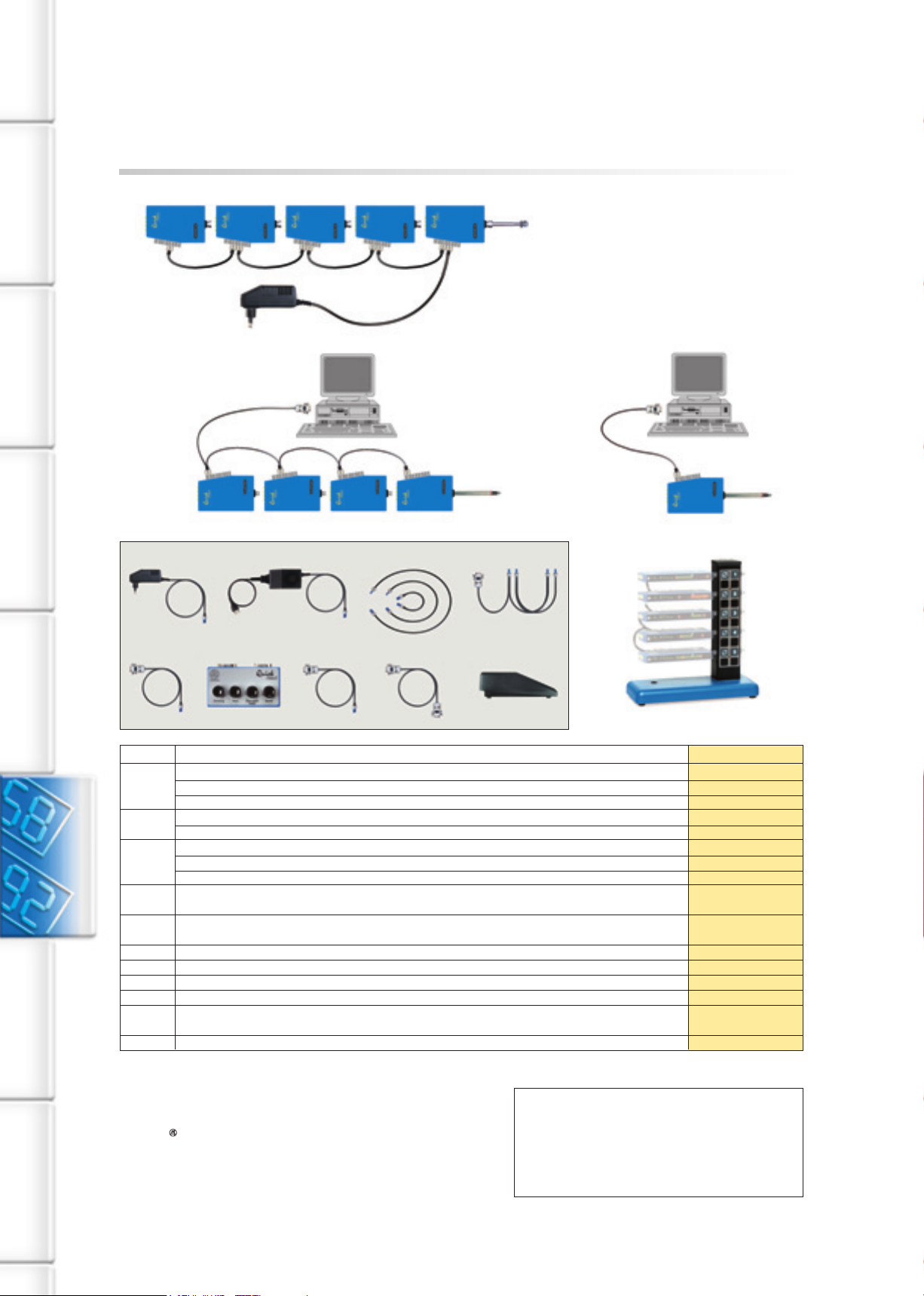

ACCESSORIES
E
F
G
H
I
M
REF.
A
B
C
D1
D2
DESCRIPTION
POWER SUPPLY UNIT FOR MAX. 5 QUICK READ, WITH EU PLUG
POWER SUPPLY UNIT FOR MAX. 5 QUICK READ, WITH U.S.A. PLUG
POWER SUPPLY UNIT FOR MAX. 5 QUICK READ, WITH U.K. PLUG
POWER SUPPLY UNIT FOR MAX. 5 QUICK READ, WITH EU MAINS CABLE
POWER SUPPLY UNIT FOR MAX. 5 QUICK READ, WITH U.S.A. MAINS CABLE
POWER JUMPER CABLE L = 150 mm
POWER JUMPER CABLE L = 300 mm
POWER JUMPER CABLE L = 600 mm
CHAIN SERIAL CABLE (L = 4 m) FOR CONNECTION OF UP TO 4 QUICK READ TO PUSHBUTTON BOX, FOOTSWITCH
OR PC (9 PINS); DISTANCE BETWEEN QUICK READ = 300 mm
CHAIN SERIAL CABLE (L = 4 m) FOR CONNECTION OF UP TO 4 QUICK READ TO PUSHBUTTON BOX, FOOTSWITCH
OR PC (9 PINS); DISTANCE BETWEEN QUICK READ = 600 mm
S ERIAL CABLE (L = 2 m) FOR CONNECTION OF ONE Q UICK R EAD TO PUSHBUTTON BOX , FOOTSWITCH OR PC (9 PINS)
P USHBUTTON BOX FOR REMOTE CONTROL OF ZEROING , DYN . CYCLE AND DATA TRANSMISSION TO PC
POWER SUPPLY CABLE (L = 2 m) FOR PUSHBUTTON BOX (POWER FEED IS FROM QUICK READ)
SERIAL CABLE (L = 3 m) TO CONNECT PUSHBUTTON BOX TO PC (9 PINS)
FOOTSWITCH WITH 1,5 m CABLE FOR CONNECTION TO PUSHBUTTON BOX OR TO QUICK READ (INTHIS CASE CABLE
EE
EE
EIS NEEDED)
S TAND FOR REMOTE PROBE OR MICROCOLUMN VERSION ( IT HOLDS UP TO 10 UNITS )
ORDER CODE
6871140067
6871140068
6871140069
6871140070
6871140071
6739696138
6739696128
6739696129
6739696299
6739696300
6739696157
6139013100
6739696301
6737957002
6738099030
2919916500
For a full list of address locations, please consult the Marposs official website
D6Q00204G0 -Edition 09/2007 - Specifications are subject to modifications
