Marquis E-series User manual

WELCOME TO THE ULTIMATE HOT TUB EXPERIENCE!
We sincerely hope your spa life is a pleasant experience. If problems should
arise, contact your authorized Marquis®dealer. Or contact Marquis Corp. at
any of the following:
Email: [email protected]
Web: www.marquisspas.com
Marquis Corp.
596 Hoffman Road
Independence, OR 97351, USA
This manual is provided to enhance your enjoyment of your spa and to
prevent non-warranty situations. It is your sole responsibility to read, under-
stand and comply with the instructions in the owner’s manual. Please save
your original sales receipt for reference in case of a future warranty claim.
Failure to use, maintain or install the spa in compliance with this owner’s
manual could result in loss of warranty coverage.
SERIAL NUMBER LOCATION
You will find the serial number on the tag in the equipment area.
PLEASE FILL OUT AND KEEP FOR FUTURE REFERENCE
Name of Purchaser_________________________________________________________
Date of Purchase ________________________________________________________
Address _________________________________________________________________
City _________________________________State _________Zip Code ____________
Telephone ______________________________________________________________
Spa Model/Color ________________________________________________________
Spa Serial # _____________________________________________________________
Pack Serial # ____________________________________________________________
Dealer’s Name __________________________________________________________
Dealer’s Address ________________________________________________________
City ____________________________________State_______Zip Code_____________
Telephone ________________________________________________________________
Every effort has been made to ensure the accuracy of this manual. However,
Marquis®reserves the right to improve its product without notice. This could
create a minor variation between this manual and the actual product you
receive. We apologize for any inconvenience this may cause.
OWNER’S MANUAL
1

IMPORTANT SAFETY INSTRUCTIONS•
120V, Cord Connected Models ............................................................................ 3
240V, Permanently Installed or Converted Models ...........................................4
All Spa Models ......................................................................................................... 4-5
Personal Safety ........................................................................................................6-7
INSTALLATION INSTRUCTIONS•
Location .................................................................................................................... 8-9
Filter Cartridges ....................................................................................................... 10
Electrical Requirements ......................................................................................... 11-13
STARTING YOUR HOT TUB• ...............................................................................13-15
MARQUIS HOT TUB MODELS•
Show™.......................................................................................................................16-18
Epic™ ........................................................................................................................ 19-20
Euphoria™................................................................................................................. 21-23
Wish™........................................................................................................................ 24-26
Reward™...................................................................................................................27-28
Resort™..................................................................................................................... 29-30
Promise™ 1-Pump....................................................................................................31-32
Promise™ 2-Pump.................................................................................................. 33
Spirit™........................................................................................................................ 34-35
Mirage™.................................................................................................................... 36-37
Rendezvous™.......................................................................................................... 38
MARQUIS SPA CONTROL OPERATION•
All Models.................................................................................................................. 39-45
Aroma Infusions........................................................................................................46
AdagioTM Audio System...........................................................................................47
MARQUIS EQUIPMENT DIAGRAMS•
Mirage, Rendezvous, Spirit.....................................................................................48
Promise 1 & 2 Pump................................................................................................ 49
Epic, Euphoria, Wish.................................................................................................49
Reward, Resort.........................................................................................................50
Show........................................................................................................................... 51
MARQUIS TROUBLESHOOTING•
LCD Diagnostic Messages..................................................................................... 52-54
E-SERIES HOT TUB INSTALLATION, CONTROL.• ...................................... 55-60
E-SERIES HOT TUB MODELS•
750............................................................................................................................. 61-62
660............................................................................................................................. 63-64
545............................................................................................................................. 65-66
524............................................................................................................................. 67
435............................................................................................................................. 68-69
425............................................................................................................................. 70-71
322............................................................................................................................. 72-73
E-SERIES EQUIPMENT DIAGRAMS• ............................................................... 74-77
E-SERIES TROUBLESHOOTING........................................................................... 78-79•
MAINTENANCE ALL MODELS• ........................................................................ 80-84
SPA CARE AND ENJOYMENT GUIDE ALL MODELS• ............................... 85-90
WATER TROUBLESHOOTING ALL MODELS• .............................................. 91-92
DURAWOOD STEP ASSEMBLY INSTRUCTIONS• ....................................... 93
MARQUIS OWNER’S PROTECTION PLAN• ................................................... 94-98
E-SERIES OWNER’S PROTECTION PLAN• ....................................................99-102
MARqUiS OWNER’S MANUAL iNdEx
2

The following instructions contain important safety information. We strong-
ly encourage you to read and apply them.
IMPORTANT SAFETY
INSTRUCTIONS
WHEN INSTALLING AND USING THIS ELECTRICAL EQUIP-
MENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED, INCLUDING THE FOLLOWING:
1. READ AND FOLLOW ALL
INSTRUCTIONS
2. WARNING: To reduce the risk of injury, do not permit children to use
this product unless closely supervised at all times.
3. DANGER: RISK OF CHILD DROWNING. Extreme caution must be
exercised to prevent unauthorized access by children. To avoid acci-
dents, ensure that children cannot use the spa or hot tub unless they
are supervised at all times.
120 VOLT, CORD CONNECTED MODELS
4. DANGER: RISK OF INJURY. Connect only to a grounded source.
5. Do not bury the power cord.
6. WARNING: To reduce the risk of electric shock, replace a damaged cord
immediately.
7. A ground terminal (pressure wire connector) is provided on the surface
of the control box inside the equipment compartment. This connector
should be bonded with a minimum No. 8 AWG (8.42mm2) (No. 6 AWG
in Canada) solid copper wire between this unit and any metal ladders,
metal water pipes, metal enclosures of electrical equipment, conduit, or
metal equipment within five feet (1.52m) of the spa. If the spa is located
on a reinforced concrete pad, the reinforcing steel should also be bond-
ed to the ground terminal.
8. WARNING: Your spa may be equipped with a Ground Fault Circuit
Interrupter (GFCI) on the end of the power supply cord. Before each use
of the spa, with the plug connected to the power supply and the unit
operating, press the “test” button. The unit should stop operating and the
GFCI power indicator will go out. Wait thirty seconds and then reset the
GFCI by pressing the “Reset” button. The GFCI power indicator will turn
on, restoring power to the spa. If the interrupter does not perform in this
manner, it is an indication of an electrical malfunction and the possibility
of an electric shock. Disconnect the plug from the receptacle until the
fault has been identified and corrected.
SAfEty iNStRUctiONS
3

240 VOLT, PERMANENTLY INSTALLED OR CONVERTED MODELS
9. A ground terminal is provided on the control box. To reduce the risk of
electric shock, connect this terminal to the grounding terminal of your
electrical service or supply panel with a continuous green, insulated cop-
per wire. The wire must be equivalent in size to the circuit conductors
supplying the equipment. In addition, a bonding terminal (pressure wire
connector) is provided on the outside of the control box for bonding to
local ground points. To reduce the risk of electric shock, this connector
should be bonded with a No. 8 AWG (8.42mm2) (No. 6 AWG in Canada)
solid copper wire to any metal ladders, water pipes, or other metal within
five feet (1.52m) of the spa to comply with local requirements.
10. Your spa uses ground fault circuit interrupters in the electrical sub-panel.
Before each use of the spa and with the unit operating press the Test
button on each breaker. The switch should click over to the “Trip”
position. Wait thirty seconds and reset each GFCI breaker by switching
it completely off and then completely on. The switch should then stay
on. If either of the interrupters does not perform in this manner, it is an
indication of an electrical malfunction and the possibility of an electric
shock. Disconnect the power until the fault has been identified and corrected.
ALL SPA MODELS
11. Install the spa so proper drainage is provided.
12.DANGER: RISK OF ELECTRIC SHOCK. Install the spa at least five
feet (1.52m) away from metal surfaces, in accordance with the National
Electric Code ANS/NMFPA70-1993. Each metal surface must be
permanently connected to a minimum No. 8 (8.42mm2) (No. 6 AWG in
Canada) solid copper conductor attached to the wire bonding connec-
tor on the terminal box provided for this purpose.
13. DANGER: RISK OF ELECTRIC SHOCK. Do not permit any appliance,
such as a light, telephone, radio, or television, etc. within five feet (1.52m)
of the spa or hot tub.
14.WARNING: To reduce the risk of injury:
• Watertemperaturesbetween100°F(38°C)and104°F(40°C)are
considered safe for a healthy adult. Lower water temperatures are
recommended for extended use (exceeding 10 minutes) and for young
children.
• Sinceexcessivewatertemperatureshaveahighpotentialforcausing
fetal damage during the early months of pregnancy, pregnant or
possibly pregnant women should limit spa water temperatures to
100°F(38°C).
• Beforeenteringaspa,theusershouldmeasurethewatertemperature
with an accurate, waterproof, fever thermometer since the tolerance of
temperature-regulatingdevicesmayvaryasmuchas+/-5°F(3°C).
• Theuseofdrugs,alcohol,ormedicationbeforeorduringspausemay
lead to unconsciousness with the possibility of drowning.
• Personssufferingfromobesityorwithamedicalhistoryofheart
disease, low or high blood pressure, circulatory system problems, or
diabetes should consult a physician before using the spa.
SAfEty iNStRUctiONS
4

• Personsusingmedicationsshouldconsultaphysicianbeforeusinga
spa since some medication may induce drowsiness while other
medication may affect heart rate, blood pressure, and circulation.
15.DANGER: TO REDUCE THE RISK OF INJURY TO PERSONS. Do
not remove the suction fittings.
16.DANGER: RISK OF INJURY: Never operate a spa if the suction
guard(s) is broken or missing. Never replace a suction guard with one
rated less than the flow rate marked on the original suction guard. The
suction guard(s) in the spa are sized to match the specific water flow
created by the pump. Should the need arise to replace the suction
guard(s) or the pump, be sure that the flow rates are compatible.
17. DANGER: Children are especially sensitive to hot water. At no time
should children have unsupervised access to the spa. Children must not
be allowed to climb onto the spa cover. All Marquis spas are equipped
with a locking cover that meets the ASTM F1346-91 Standard for Safety
Covers. Always lock the child resistant locks after using the spa for your
children’s safety.
18.
SAVE THESE INSTRUCTIONS.
WARNING: Do not permit electric appliances (such as a light, telephone,
radio, or television) within five feet (1.52m) of the spa or hot tub.
WARNING: Children should not use spas or hot tubs without adult
supervision.
WARNING: Do not use spas or hot tubs unless all suction guard(s) are
installed to prevent body and hair entrapment.
WARNING: Do not use drugs or alcohol before or during the use of a
spa or hot tub to avoid unconsciousness and possible drowning.
WARNING: People using medications and/or having an adverse
medical history should consult a physician before using a spa.
WARNING: The use of alcohol, drugs, and medication can greatly
increase the risk of fatal hyperthermia.
WARNING: Before entering the spa or hot tub measure the water
temperature with an accurate thermometer.
WARNING:Watertemperatureinexcessof104°F(40°C)maybe 
injurious to your health.
WARNING: Prolonged immersion in a spa or hot tub may be injurious to
your health.
WARNING: People with infectious diseases should not use a spa.
WARNING: Pregnant or possibly pregnant women should consult a
physician before using a spa or hot tub.
WARNING: To avoid injury, exercise care when entering and exiting the
spa or hot tub.
WARNING: Do not use a spa or hot tub immediately following
strenuous exercise.
WARNING: Maintain water chemistry in accordance with manufacturer’s
instructions.
SAfEty iNStRUctiONS
5

SAFETY INSTRUCTIONS FOR FRENCH SPEAKING SPA OWNERS
AVERTISSEMENT: Ne pas placer d’appareil électrique (luminaire, télé-
phone, radio, téléviseur, etc.) moins de 1.52 m de cette cuve de relaxation.
AVERTISSEMENT: Ne pas laisser les enfants utiliser une cuve de relaxation
sans surveillance.
AVERTISSEMENT: Pour éviter que les cheveux ou une partie du corps
puissent être aspirés, ne pas utiliser une cuve de relaxation si les grilles de
prise d’aspiration ne sont pas toutes en place.
AVERTISSEMENT: Pour éviter l’évanouissement et la noyade éventuelle,
ne prendre ni drogue ni alcool avant d’utiliser une cuve de relaxation ni
quand on s’y trouve.
AVERTISSEMENT: Les personnes qui prennent des médicaments ou ont
des problemès de santé devraient consulter un médecin avant d’utiliser une
cuve de relaxation.
AVERTISSEMENT: La consommation d/alcool ou de drogue augmente
considérablement les risques d’hyperthermie motrelle dans une cuve de
relaxation.
AVERTISSEMENT: Avant d’utiliser une cuve de relaxation mesurer la
température de l’eau l’aide d’un thermométre précis.
AVERTISSEMENT: Il peut être dangereux pour la santé de se plonger dans
del’eauplusde40°C.
AVERTISSEMENT: L’utilisation prolongée d’une cuve de relaxation peut
être dangereuse pour la santé.
AVERTISSEMENT: Les personnes atteintes de maladies infectieuses ne
devraient pas utiliser une cuve de relaxation.
AVERTISSEMENT: Les femmes enceintes, que leur grossesse soit con-
firmée ou non, devraient consulter un médecin avant d’utiliser une cuve de
relaxation.
AVERTISSEMENT: Pour éviter des blessures, user de prudence en entrant
dans une cuve de relaxation et en sortant.
AVERTISSEMENT: Ne pas utiliser une cuve de relaxation immédiatement
aprés un exercice fatigant.
ATTENTION: La tenteur de l’eau en matières dissoutes doit être conforme
aux directives du fabricant.
PERSONAL SAFETY
Prolonged immersion in hot water can result in HYPERTHERMIA, a dan-
gerous condition which occurs when the internal temperature of the body
reachesalevelabovenormal(98.6°F,37°C).Thesymptomsofhypertherm-
ia include dizziness, fainting, drowsiness, lethargy, and a body temperature
above98.6°F(37°C).Thephysicaleffectsofhyperthermiaincludeunaware-
ness of impending hazard, failure to perceive heat, failure to recognize the
need to exit the spa, physical inability to exit the spa, fetal damage in preg-
nant women, and unconsciousness resulting in a danger of drowning.
SAfEty iNStRUctiONS
6

Other booklets about spa safety are: “Children Aren’t Waterproof,” “Pool
and Spa Emergency Procedures For Infants and Children,” “Layers of Pro-
tection” and “The Sensible Way to Enjoy Your Spa” published by Association
of Pool & Spa Professionals.
WARNING: The use of alcohol, drugs, or medication can greatly increase
the risk of fatal hyperthermia in hot tubs and spas.
Persons taking medications which induce drowsiness such as tranquilizers,
antihistamines, or anticoagulants should not use the spa. Pregnant women
and persons with a medical history of heart disease, diabetes, or high blood
pressure should consult a physician before using the spa.
PERSONAL SAFETY DOs:
• Besureyourspaisconnectedtothepowersupplycorrectly – only use
a licensed electrical contractor.
• Shutoffpowersupply(unplug120Vmodels)beforedrainingthespa
or servicing the electrical components.
• TesttheGroundFaultCircuitInterrupter(GFCI)monthly.
• Alwaystestthewatertemperaturewithanaccuratethermometerbe-
fore entering the spa to be sure that it’s a safe temperature.
• Donotusethespaifwatertemperatureisoutsideofsettemperature.
Remember that wet surfaces can be very slippery. Take care when
entering and exiting the spa.
• LocktheDuraCover™whenthespaisnotinuse,whetheritisemptyor
full of water.
• Keepthewatercleanandsanitizedwithcorrectchemicalcare.
• TurnonthejetswhenaddingANYchemicalstothespawater.
• Cleantheltercartridge(s)monthlytoremovedebrisandmineral
buildup which affects the performance of the hydrotherapy jets, limits
the flow, or trips the high limit thermostat which will turn off the entire spa.
PERSONAL SAFETY DO NOTs:
• Don’tusethespawiththeequipmentcompartmentdoorremoved.
• Don’tusethespaformorethan10minutesoftimeatwatertempera-
turesinexcessof102°F(39°C).
• Don’tallowthejetpump(s)tooperateforanextendedperiodoftime
with the cover in place. Extended pump operation causes a slow heat
buildup due to water friction. The spa equipment controls are equipped
with a built-in safety timer that automatically shuts off the jet pump(s)
after 15 minutes of continuous operation should it have been left on
inadvertently.
• Don’toperatethespaatanytimewiththeltercartridgesremoved.
• Don’tliftordragthecoverbyusingthetie-downstraps;alwaysliftand
carry by using the external handles.
• Don’tstorechemicalsinthespa’sequipmentcompartment.
• Don’thesitatetocallyourauthorizeddealerwithanyquestionsormain-
tenance concerns.
SAfEty iNStRUctiONS
7

LOCATION
For your portable spa to function properly and safely, it must be located on a
hard, flat, level surface. Inground spas require special installation techniques
and should be planned in conjunction with your authorized Marquis®dealer.
Improper installation can result in structural damage to the spa and the void-
ing of your spa warranty. Items to discuss with your dealer include: Local
construction codes, electrical service requirements, serviceability of equip-
ment present underground obstructions such as gas, water, and telephone
lines, safety measures such as fences and locks, and visibility of the spa
installation from the home, street, and neighbors.
Do not shim your spa. If your pad is not level you must pour a top cap: con-
tact a professional.
 
equipment and support structure. This includes indoor installations.
 -

 
spa MUST be installed to permit access for servicing the equipment

allow adequate room for service. To facilitate repairs, Marquis Corp. or its
agent may require access to spa equipment. It is your responsibility to
provide unencumbered access. See spa diagrams for location of power
supply.
 

cord.
 
Check for power cords, tools, and hoses that may be caught under-
neath the spa. Do not apply power to the spa before it is completely

 



allowed to happen, including warping and blistering of the surface. Dam-
age, that occurs as a result of this exposure, is not covered under the
warranty.
• Never try to move a spa that has not been fully drained. To
do so could result in damage to the spa and physical injury to the mover.

transport or support of the spa are not covered under the warranty.
installation instructions
8


To install the spa outdoors, we recommend a reinforced concrete pad at


If you place the spa on the ground, even temporarily, place the spa empty of
water on concrete pavers under the entire bottom of the spa. The concrete
pavers should be a least two inches thick and level across the entire sur-
face. The spa will inevitably settle and not remain level on this surface, thus
it’s important to get the spa onto a solid foundation as soon as possible.

If you are using a prefabricated spa pad for a foundation, please use the fol-
lowing guidelines:
 
the ground is flat and level.
 
outdoor deck screws, build a frame large enough for the prefabricated

 
 
 
in the gravel by pushing the straight lumber across the frame. Fill in any
low areas with more gravel and re-level using the straight piece of lumber.
 
to add more gravel to bring the level back up to the top of the frame. If
so, please re-level and re-compact until you have a hard, flat level sur-
face that is even with the top of the frame.
 
not to disturb the hard, flat, level surface.
 
of the framing.
 




foot.

There are special requirements if you place your spa indoors. Flooring mate-



for details.
outdoor & patio installation
9


-


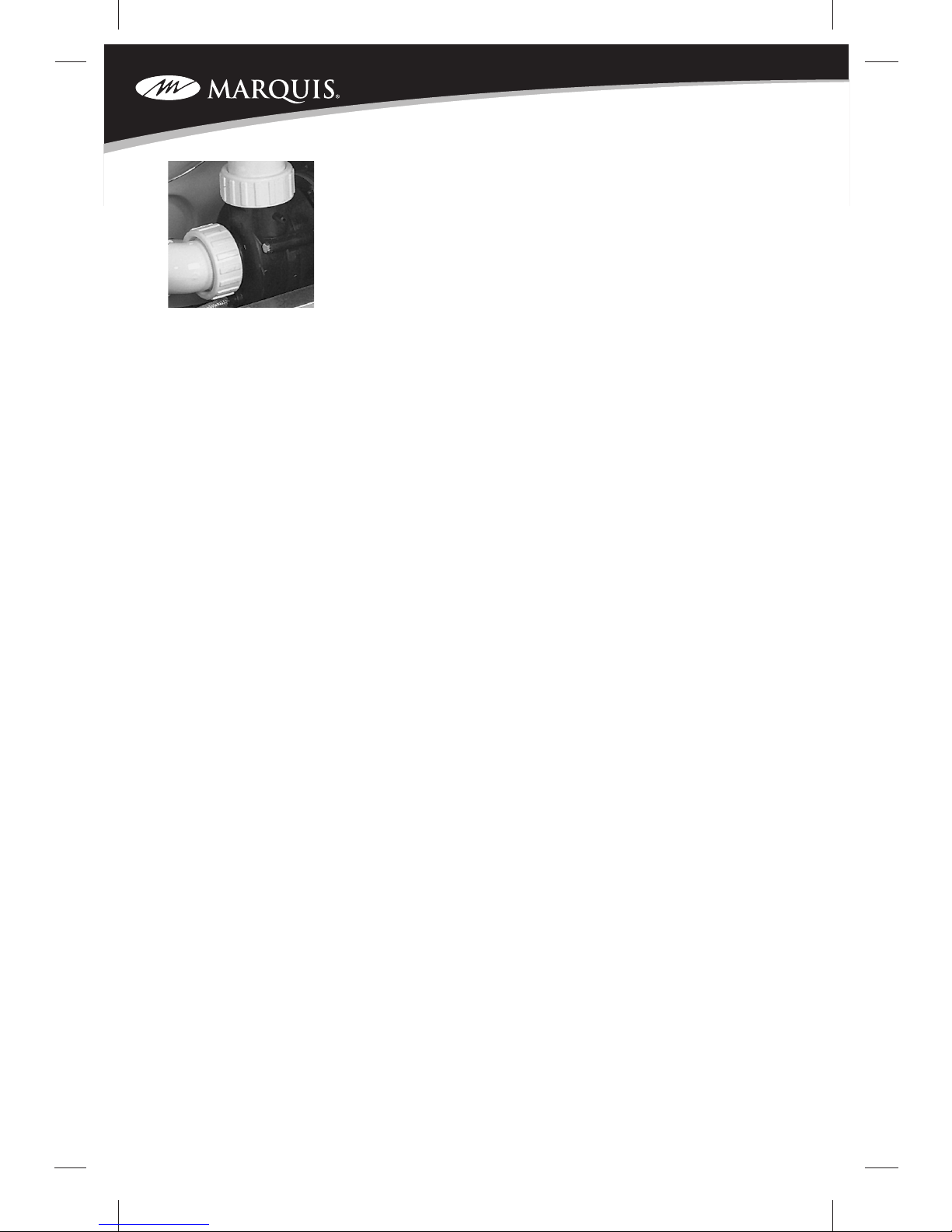

equipment system for authorized Marquis®dealer

been serviced, may have the shut-off valves partially
closed which can restrict the water flow and hinder jet



when the temperature in the heater housing drops to

In areas with extremely cold winter conditions, your

operating temperatures. For extra protection see your
dealer for an optional freeze sensor. If you plan to turn



In the case of extended hot weather, the spa water


temperature and the full insulation in the spa cabinet.


for available options.

-
-

 It is very important that the components of

proper part of the spa.
 

 

to overtighten as damage may occur to

  

in place.
 


installation instructions
10




-

gets blocked, air will be induced causing the pump

blockage is removed, normal operation will resume.




especially to small children or people with long hair.
-

should be restrained. Never allow long hair to float


-
tings to vary from strong to barely noticeable.

It is the responsibility of the spa owner to ensure that

electrician in accordance with all national, state, and
local electrical codes in effect at the time of installa-
tion. Fuses are covered to be free of defect at time of
installation only.



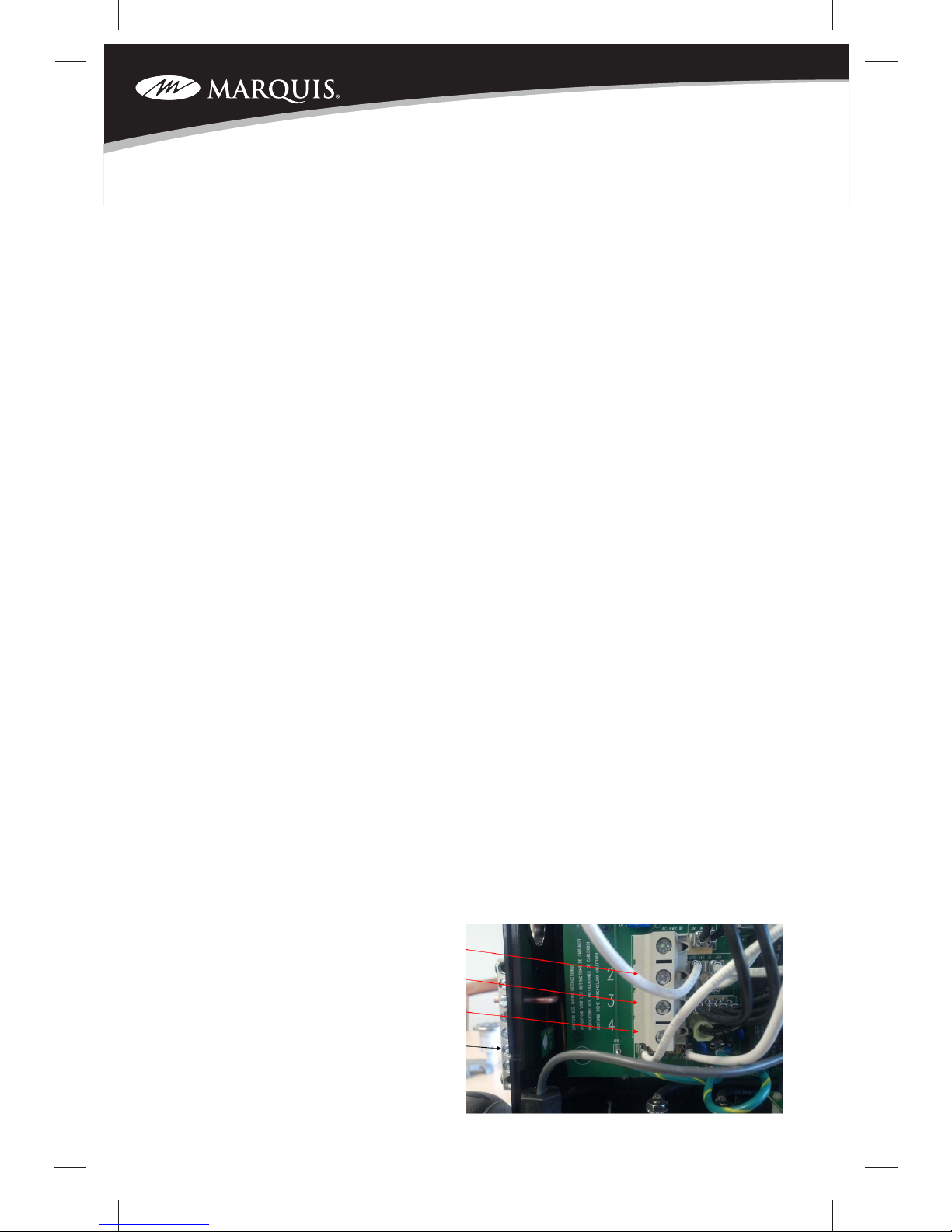

wiring diagram found on the inside of the control box
cover. Connections must be made with copper con-
ductors only – do NOT use aluminum wire.-

be sized in accordance to the total amperage load as

Improperly wired spas can cause irreversible damage
resulting in blown fuse and melted terminal block, and

to components or equipment caused by high or low
voltage, brown outs or electric surges is not covered
under warranty.
 
 
 
 
 
 
from the inside walls of the spa.
 
 



installation instructions
11




other components that consume power, such as lights, televisions, radios,
computers, or other electronic devices. These could cause your spa to mal-
function by any of the following: unusual text on the control panel, slow heating,
poor jet action, tripping house breaker, or blown fuses. Failure to follow these
instructions could lead to premature failure of spa components that would not
be covered under the warranty. The dedicated circuit shall meet the following









-

regional electric codes.
 -
nect cord end from terminal block and ground bar inside equipment
box.
 
to do this will result in a blown transformer.
 


 
 
mounted disconnect.




exterior bonding lug.
installation instructions




12

Improperly wired spas are beyond Marquis Corp. control and are not covered

not limited to, damage resulting from: improper connections; accidents; failure
®printed instruc-
tions; cleaning agents; and natural occurrences including but not limited to
rodent or insect infestation, mold, lightning and other acts of nature.






system is functioning.


 
 
 
Keep the drain valve closed at all times except when draining the

result in damage to the drain valve due to freezing water.
 
 
 
openings. The use of a Fill Filter is recommended, especially in areas with
high mineral content in the water.






 -

Do not expect hot water immediately from the jets; the heater will take
several hours to heat the water.

starting your spa
13


from the jets. If the pump has not primed and the
water is not flowing from the jets after two minutes

the pumps by slightly opening the pump unions

the power on again, the spa initiates a new priming


of water flow to determine the water temperature.



-




panel to set the water temperature to the desired

-
ture depending on the water temperature and
voltage of your spa.

make sure the adjustable jets are open. Simply turn
the jet face to open or close the jets.
Test the water for the proper chemical balance and
adjust as necessary. SpaCare products are recom-

 for your
safety and the longevity of your spa.
starting your spa


14



retain the water’s heat and to keep out dirt, leaves, etc.
For your safety and convenience, the cover is equipped with adjustable
straps, safety locks, and handles. Use the exterior handles to remove and
replace your cover. Never attempt to open or remove the cover by grasping
or pulling on the cover skirting or cover lock straps as the skirting will tear.
Marquis suggests you use the safety locks to help keep out unintended
users, prevent covers from being blown off in windy conditions and to

system are not recommended for use in wind conditions reaching above

additional cover lock straps may be necessary to minimize cover damage.
 Marquis’ exclusive DuraCover is designed for optimum protection of
the spa shell. Using an aftermarket cover will not provide the same protec-
tion and will void the shell warranty.

 
 
to break the cover’s vacuum seal. Do not use cover handles to break
vacuum seal.
 
 Unlock and release all cover locks before attempting to open cover.
Damage caused by attempting to open the cover while locked or by wind
is not covered under warranty. Do not walk, stand, climb, or sit on the vinyl
cover or retractable cover system. Do not use hard, sharp, or metal objects,
such as a windshield scraper, to remove ice. Such objects can cut, mar, or
puncture the cover’s vinyl surface.

 
 

 

of the manufacturer’s recommended methods. Do not attempt to open the
cover in any other way. Damage caused by improper opening or closing of
the cover is not covered under the warranty.
Fading, staining, torn stitching of the spa cover and broken foam cores are
not covered under the warranty for any reason. Spa covers do not qualify
for labor coverage under the warranty. These parts can be purchased or
exchanged under warranty at your authorized Marquis®dealer.
starting your spa
15

4
4
4
4
4
4
4
4
44
44
14
15
44
444
4
4
4
4
2
s
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
22
2
2
2
2
2
2
4
4
4
4
22
2
2
3
3
3
33
3
3
7
7
7
7
7
8
9
9
9
10
10
10
6
6
10
11
13
12
12
2
2
2
2
17
18
18
2
3
MARQUIS MARQUIS
5
Z3
Z3
Z3
NJ
NJ
NJAC
AC
WF
AC
20
20
20
20
0
0
2
6
2
7
2
5
24
0
0
1
0
0
# Component Identification Qty.
0 HK™8 Neck Jets 6
1 HK™8 Jets 18
2 HK™12 Jets 25
3 HK™16 Jets 7
4 HK™40 Jets 26
5 Light 1
6 Air Controls 3
7 Suction Fittings 5
8 Floor Drain 1
9 Jet Selectors 3
10 Neck Jet Valves 3
11 Bather’s Control Panel 1
12 Filter Canisters 2
13 Spa Frog®1
14 Spa Frog®Return Fitting 1
15 Ozone Injector Fitting 1
17 Waterfall Valve 1
18 AdagioTM Speakers (option) 2
19 ConstellationTM (option) 16
20 Cushioned Headrests 4
22 Water Features 2
23 Cooler 1
24 TV (option) 1
25 Auxiliiary Jet Control 1
26 Aroma Infusions (option) 1
27 Aroma Infusions Fitting (option) 1
Physical Specifications Size
Dimensions 90” x 94”
Height 35”
Corner Radius 17”
Seating Capacity/Positions 5/5
Weight Dry/Lbs. 1100
Weight Full/Lbs. 5062
Water Capacity/Gallons 475
Total Therapy Jets 82
THE SHOW™
16

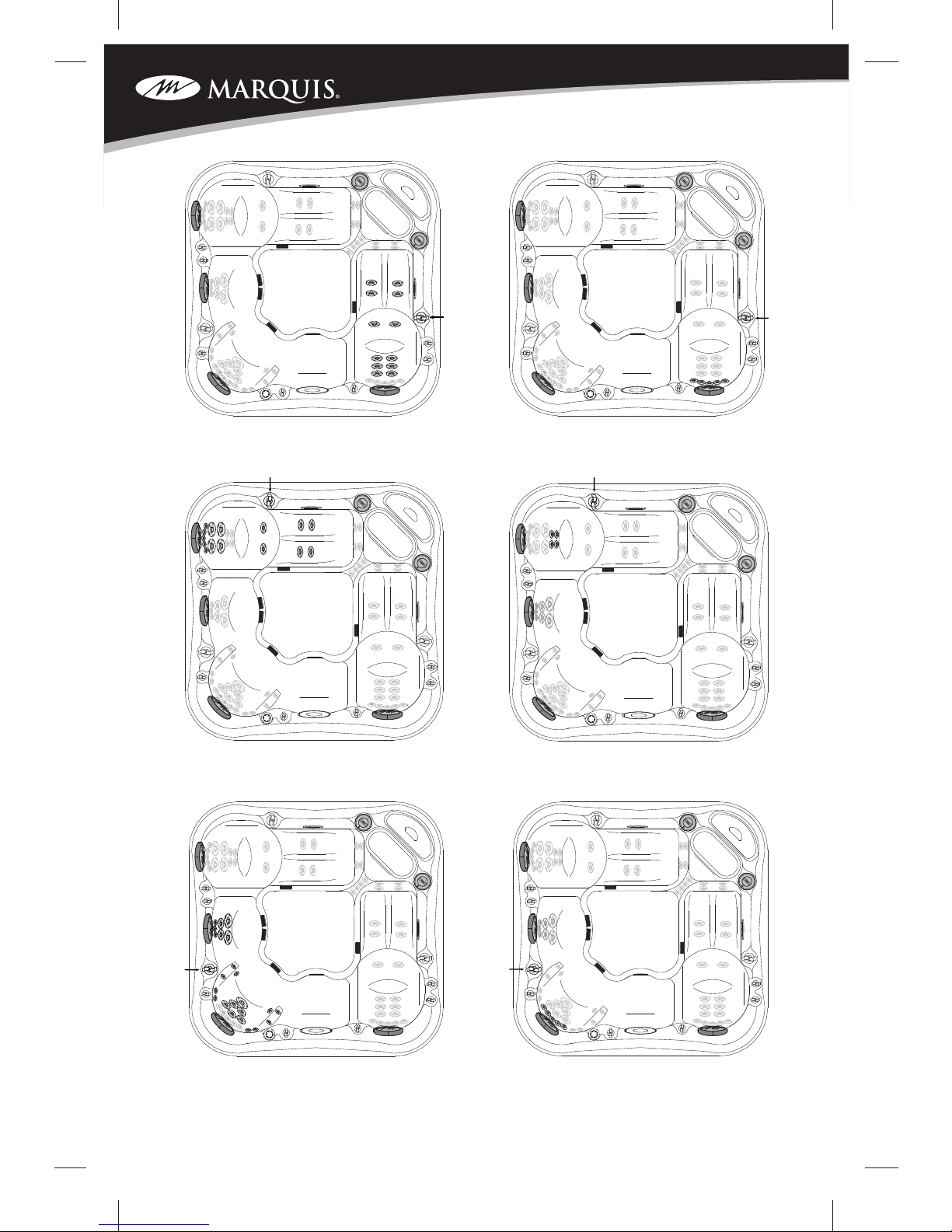

SHOW™ THERAPY CONTROL
ZONE 1 (JETS 1)
Adirondack A: all back, hips, legs
and feet
ZONE 2 (JETS 2)
Adirondack B: upper- and mid-
back, hips and feet
ZONE 3 (JETS 3)
Captain’s chair: mid- and lower-
back, arms, knees and wrists. Seat:
all back
ZONE 4 (JETS 1)
Adirondack A: upper-back
ZONE 5 (JETS 2)
Adirondack B: lower-back
ZONE 6 (JETS 3)
Captain’s chair: upper-back
17

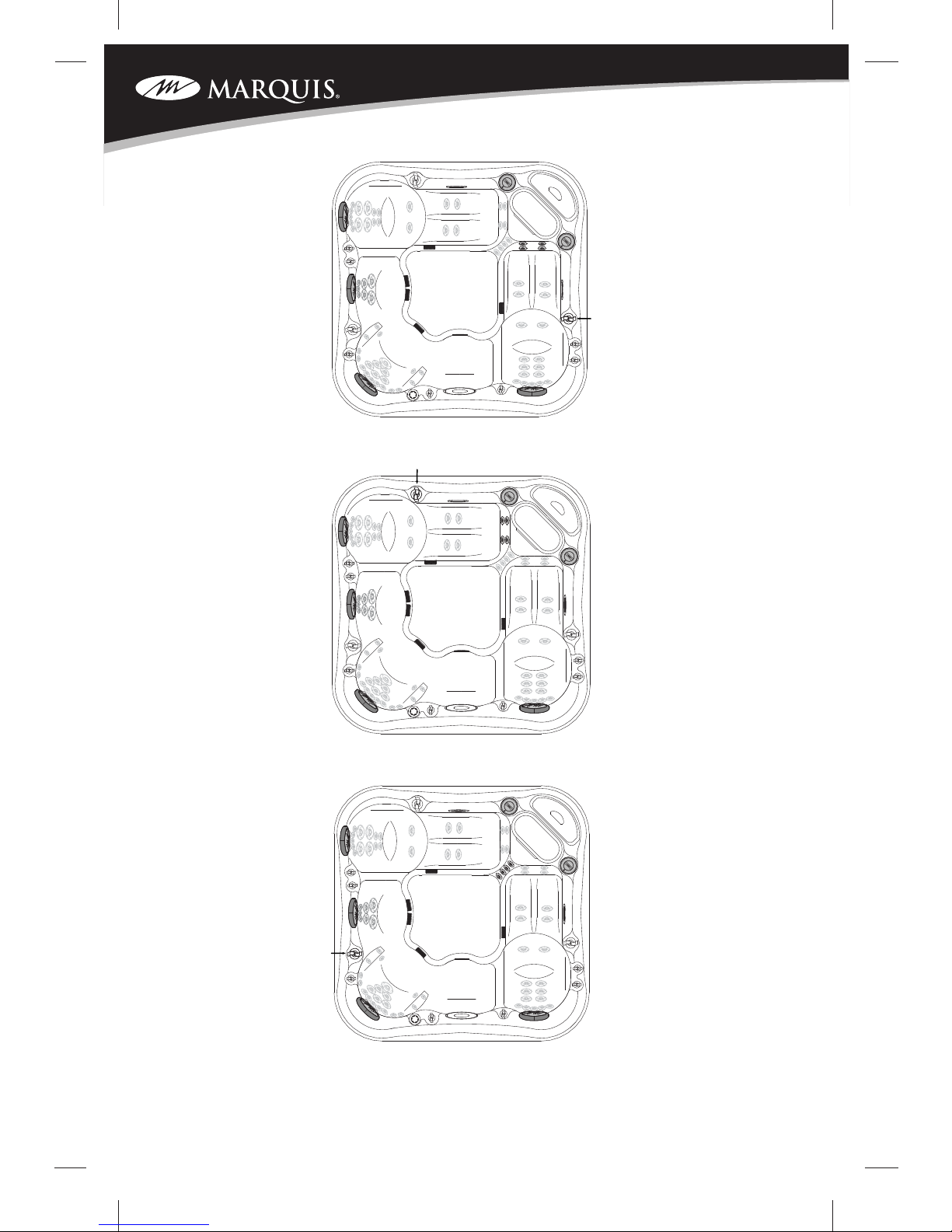

SHOW™ THERAPY CONTROL
ZONE 7 (JETS 1)
Adirondack A: feet
ZONE 8 (JETS 2)
Adirondack B: feet
ZONE 9 (JETS 3)
Therapy pillar: legs and feet
18

THE EPICTM
# Component Identification Qty.
0 HK™8 Neck Jets 4
1 HK™8 Jets 12
2 HK™12 Jets 20
3 HK™16 Jets 17
4 HK™40 Jets 10
5 Geyser Jets 2
6 Light 1
7 Air Controls 2
8 Suction Fittings 3
9 Floor Drain 1
10 Tri-Zone Controls 2
11 Neck Jet Valves 2
12 Bather’s Control Panel 1
13 Filter Canisters 2
14 Spa Frog®1
15 Spa Frog®Return Fitting 1
16 Ozone Injector Fitting 1
17 Waterfall Features 2
18 Waterfall Valve 1
19 AdagioTM Speakers (option) 2
20 Cushioned Headrests 3
21 Auxiliary Seat Controls 2
22 Aroma Infusions 1
23 Aroma Infusions Fitting 1
Physical Specifications Size
Dimensions 90” x 90”
Height 35”
Corner Radius 12”
Seating Capacity/Positions 5/6
Weight Dry/Lbs. 850
Weight Full/Lbs. 4603
Water Capacity/Gallons 450
Total Therapy Jets 65
MARQUIS
MARQUIS
17
17
13
13
5
5
4
4
4
4
4
3
33
3
33
33
3
3
3
4
4
4
4
4
2
2
22
22
22
2
2
2
2
3
3
14
111
1
8
8
8
2
2
2
2
2
2
223
3
3
3
22
11
18
13
6
9
1919
23
1
10
7
21
10
7
21
12
1
R e fe re n c e # F ittin g D escrip tio n Q ty H o le s a w s iz e
"61/312104KH1
"2/1161stejseires0022
61thgiartss
"61/3202stejseires0033
81thgiartss
0nipsp
2trop-itlumm
"8/5271stejseires0044
41thgiartss
3nipsp
"4/332teJresyeG5
"8/512erutaefretaWpupoP6
"2/133noitcuSMPG6527
"4/111niarDiniMPMC8
"8/130rotceleSteJyaw-29
"2/132rotceleSteJyaw-301
"61/122e
vlaVteJkceN11
"8/512lortnoCriA21
"61/121evlaVllafretaW31
"2/121)lanoitpo(snelthgiL41
1 5 C o ns te llatio n L ig hti ng (optio na l) 1 8 3 /8 "
giJesU1lenaPnottuB8008-PT61
1 7 S i ng le b utto n p a ne l (p um p 1 c o ntro l) 1 1 1 /4 "
1 8 S i ng le b utto n p a ne l (p um p 2 c o ntro l) 1 1 1 /4 "
"4/311)lanoitpo(snoisufnIamorA91
"61/91)lanoitpo(rotcejniamorA02
"31gnisuoHgorF12
"72retliFxetroV22
2 3 " M a rq uis " P op-up s peak e rs 2 4 7 /8 "
2 4 3 3 /4 " S urfa c e M ountSpeak e rs (o p tio na l) 0 2 7 /8 "
tib"8/16snottubwolliP52
NJ
NJ
WF
AC
AC
Z3
Z3
0
00
20
11
1
1
0
20 20
1
1
1
1
19

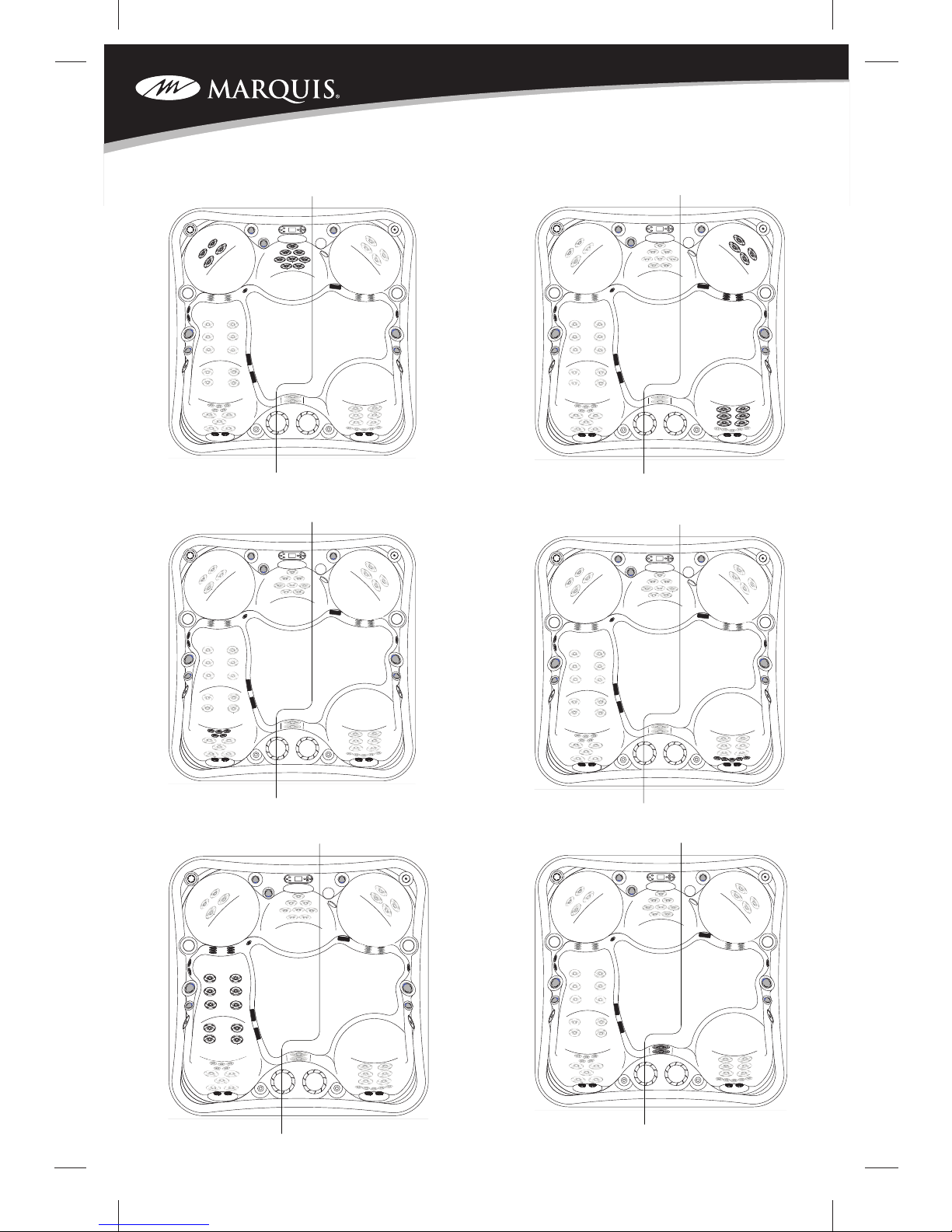

ZONE 2B
H.O.T. Zone shoulder*
ZONE 1 B
H.O.T. Zone lumbar lounge*
ZONE 2 C
Geyer Jets*
*HK8 neck jets operate in every zone
ZONE 1 A
Upper- mid- and lower-back jets*
ZONE 2 A
Upper- mid- lower-back, foot
jets*
ZONE 1 C
Lounge leg and foot jets*
EPICTM THERAPY CONTROL
MARQUIS
MARQUIS
2
NJ
NJ
WF
AC
AC
Z3
Z3
MARQUIS
MARQUIS
NJ
NJ
WF
AC
AC
Z3
Z3
MARQUIS
MARQUIS
NJ
NJ
WF
AC
AC
Z3
Z3
MARQUIS
MARQUIS
NJ
NJ
WF
AC
AC
Z3
Z3
MARQUIS
MARQUIS
NJ
NJ
WF
AC
AC
Z3
Z3
MARQUIS
MARQUIS
NJ
NJ
WF
AC
AC
Z3
Z3
20
