Marquis Vector21 Series User manual

Vector21 Swim Spas
2023 Owner’s Manual
®
1

WELCOME TO THE ULTIMATE SWIM SPA EXPERIENCE!
We sincerely hope your spa life is a pleasant experience. If problems should
arise, contact your authorized Marquis®dealer. Or contact Marquis at any of
the following:
Email: [email protected]
Web: www.MarquisSpas.com
Marquis Hot Tubs, LLC.
472 N Lamb Ave
Las Vegas, NV 89115
This manual is provided to enhance your enjoyment of your spa and to
prevent non-warranty situations. It is your sole responsibility to read, under-
stand and comply with the instructions in the owner’s manual. Please save
your original sales receipt for reference in case of a future warranty claim.
Failure to use, maintain or install the spa in compliance with this owner’s
manual could result in loss of warranty coverage.
SERIAL NUMBER LOCATION
You will find the serial number on the tag in the equipment area.
PLEASE FILL OUT AND KEEP FOR FUTURE REFERENCE
Name of Purchaser_________________________________________________________
Date of Purchase ________________________________________________________
Address _________________________________________________________________
City _________________________________State _________Zip Code ____________
Telephone ______________________________________________________________
Spa Model/Color ________________________________________________________
Spa Serial # _____________________________________________________________
Pack Serial # ____________________________________________________________
Dealer’s Name __________________________________________________________
Dealer’s Address ________________________________________________________
City ____________________________________State_______Zip Code_____________
Telephone ________________________________________________________________
Every effort has been made to ensure the accuracy of this manual. However,
Marquis®reserves the right to improve its product without notice. This could
create a minor variation between this manual and the actual product you
receive. We apologize for any inconvenience this may cause.
OWNER’S MANUAL
2

• IMPORTANT SAFETY INSTRUCTIONS
240V, Permanently Installed Models ....................................................................3-7
Personal Safety ........................................................................................................7
• INSTALLATION INSTRUCTIONS
Location .................................................................................................................... 8-9
Filter Cartridges ....................................................................................................... 10
Electrical Requirements ......................................................................................... 11-12
• STARTING YOUR SWIM SPA.............................................................................13-14

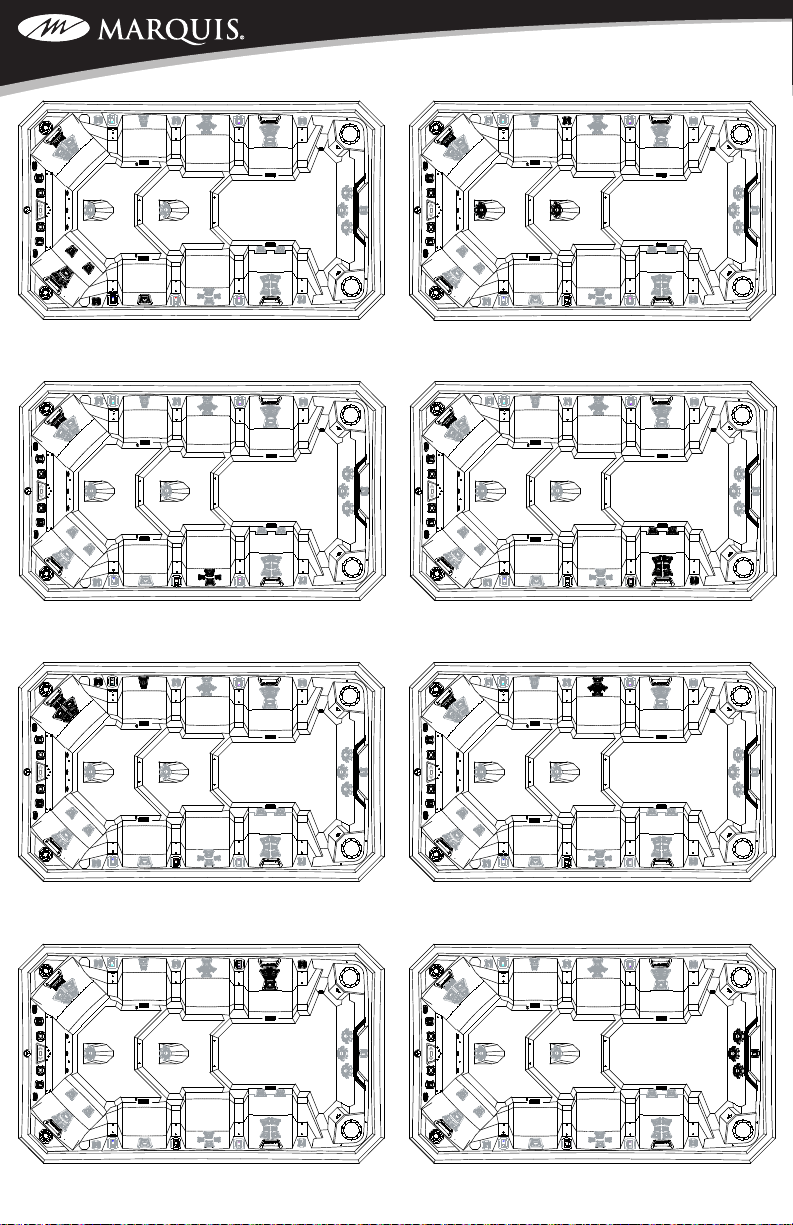

• VECTOR21 SWIM SPA MODEL
V150P..........................................................................................................................15-16
V150W........................................................................................................................ 17-18
V174S......................................................................................................................... 19-20
V174K......................................................................................................................... 21-22
• VECTOR21 SWIM SPA CONTROL OPERATION
V150P & V150W........................................................................................................ 23-25
Cosmic Audio System.............................................................................................26
V174S & V174K......................................................................................................... 27-40
• VECTOR21 TROUBLESHOOTING
V174S & V174K Message Buttons.........................................................................41-43
V150P & V150W LCD Diagnostic Messages....................................................... 44-45
• VECTOR21 EQUIPMENT DIAGRAM
V150P & V150W........................................................................................................ 46
V174S & V174K......................................................................................................... 47
• MAINTENANCE .................................................................................................... 48-52
•
• SWIM SPA CARE AND ENJOYMENT GUIDE.............................................. 53-60
• WARRANTY............................................................................................................61-64
VECTOR21 OWNER’S MANUAL INDEX
3

The following instructions contain important safety information. We strong-
ly encourage you to read and apply them.
IMPORTANT SAFETY
INSTRUCTIONS
WHEN INSTALLING AND USING THIS ELECTRICAL EQUIP-
MENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED, INCLUDING THE FOLLOWING:
1. READ AND FOLLOW ALL
INSTRUCTIONS
2. WARNING: To reduce the risk of injury, do not permit children to use
this product unless closely supervised at all times.
3. DANGER: RISK OF CHILD DROWNING. Extreme caution must be
exercised to prevent unauthorized access by children. To avoid acci-
dents, ensure that children cannot use the spa or swim spa unless they
are supervised at all times.
SAFETY INSTRUCTIONS
4

240 VOLT, PERMANENTLY INSTALLED MODELS
4. A ground terminal is provided on the control box. To reduce the risk of
electric shock, connect this terminal to the grounding terminal of your
electrical service or supply panel with a continuous green, insulated cop-
per wire. The wire must be equivalent in size to the circuit conductors
supplying the equipment. In addition, a bonding terminal (pressure wire
connector) is provided on the outside of the control box for bonding to
local ground points. To reduce the risk of electric shock, this connector
should be bonded with a No. 8 AWG (8.42mm2) (No. 6 AWG in Canada)
solid copper wire to any metal ladders, water pipes, or other metal within
five feet (1.52m) of the spa to comply with local requirements.
5. Your spa uses ground fault circuit interrupters in the electrical sub-panel.
Before each use of the spa and with the unit operating press the Test
button on each breaker. The switch should click over to the “Trip”
position. Wait thirty seconds and reset each GFCI breaker by switching
it completely off and then completely on. The switch should then stay
on. If either of the interrupters does not perform in this manner, it is an
indication of an electrical malfunction and the possibility of an electric
shock. Disconnect the power until the fault has been identified and corrected.
6. Install the spa so proper drainage is provided.
7. DANGER: RISK OF ELECTRIC SHOCK. Install the spa at least five
feet (1.52m) away from metal surfaces, in accordance with the National
Electric Code ANS/NMFPA70-1993. Each metal surface must be
permanently connected to a minimum No. 8 (8.42mm2) (No. 6 AWG in
Canada) solid copper conductor attached to the wire bonding connec-
tor on the terminal box provided for this purpose.
8. DANGER: RISK OF ELECTRIC SHOCK. Do not permit any appliance,
such as a light, telephone, radio, or television, etc. within five feet (1.52m)
of the spa or swim spa.
9. WARNING: To reduce the risk of injury:
• Water temperatures between 100°F (38°C) and 104°F (40°C) are
considered safe for a healthy adult. Lower water temperatures are
recommended for extended use (exceeding 10 minutes) and for young
children.
• Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, pregnant or
possibly pregnant women should limit spa water temperatures to
100°F (38°C).
• Before entering a spa, the user should measure the water temperature
with an accurate, waterproof, fever thermometer since the tolerance of
temperature-regulating devices may vary as much as +/- 5°F (3°C).
• The use of drugs, alcohol, or medication before or during spa use may
lead to unconsciousness with the possibility of drowning.
• Persons suffering from obesity or with a medical history of heart
disease, low or high blood pressure, circulatory system problems, or
diabetes should consult a physician before using the spa.
SAFETY INSTRUCTIONS
5

• Persons using medications should consult a physician before using a
spa since some medication may induce drowsiness while other
medication may affect heart rate, blood pressure, and circulation.
10.DANGER: TO REDUCE THE RISK OF INJURY TO PERSONS. Do
not remove the suction fittings.
11. DANGER: RISK OF INJURY: Never operate a spa if the suction
guard(s) is broken or missing. Never replace a suction guard with one
rated less than the flow rate marked on the original suction guard. The
suction guard(s) in the spa are sized to match the specific water flow
created by the pump. Should the need arise to replace the suction
guard(s) or the pump, be sure that the flow rates are compatible.
12. DANGER: Children are especially sensitive to hot water. At no time
should children have unsupervised access to the spa. Children must not
be allowed to climb onto the spa cover. All Marquis spas are equipped
with a locking cover that meets the ASTM F1346-91 Standard for Safety
Covers. Always lock the child resistant locks after using the spa for your
children’s safety.
13.SAVE THESE INSTRUCTIONS.
WARNING: Do not permit electric appliances (such as a light, telephone,
radio, or television) within five feet (1.52m) of the spa or swim spa.
WARNING: Children should not use spas or swim spas without adult
supervision.
WARNING: Do not use spas or swim spas unless all suction guard(s) are
installed to prevent body and hair entrapment.
WARNING: Do not use drugs or alcohol before or during the use of a
spa or swim spa to avoid unconsciousness and possible drowning.
WARNING: People using medications and/or having an adverse
medical history should consult a physician before using a spa.
WARNING: The use of alcohol, drugs, and medication can greatly
increase the risk of fatal hyperthermia.
WARNING: Before entering the spa or swim spa measure the water
temperature with an accurate thermometer.
WARNING: Water temperature in excess of 104°F (40°C) may be
injurious to your health.
WARNING: Prolonged immersion in a spa or swim spa may be injurious
to your health.
WARNING: People with infectious diseases should not use a spa.
WARNING: Pregnant or possibly pregnant women should consult a
physician before using a spa or swim spa.
WARNING: To avoid injury, exercise care when entering and exiting the
spa or swim spa.
WARNING: Do not use a spa or swim spa immediately following
strenuous exercise.
WARNING: Maintain water chemistry in accordance with manufacturer’s
instructions.
SAFETY INSTRUCTIONS
6

PERSONAL SAFETY
Prolonged immersion in hot water can result in HYPERTHERMIA, a dan-
gerous condition which occurs when the internal temperature of the body
reaches a level above normal (98.6°F, 37°C). The symptoms of hypertherm-
ia include dizziness, fainting, drowsiness, lethargy, and a body temperature
above 98.6°F (37°C). The physical effects of hyperthermia include unaware-
ness of impending hazard, failure to perceive heat, failure to recognize the
need to exit the spa, physical inability to exit the spa, fetal damage in preg-
nant women, and unconsciousness resulting in a danger of drowning.
SAFETY INSTRUCTIONS
7

Other booklets about spa safety are: “Children Aren’t Waterproof,” “Pool
and Spa Emergency Procedures For Infants and Children,” “Layers of Pro-
tection” and “The Sensible Way to Enjoy Your Spa” published by Association
of Pool & Spa Professionals.
WARNING: The use of alcohol, drugs, or medication can greatly increase
the risk of fatal hyperthermia in swim spas and spas.
Persons taking medications which induce drowsiness such as tranquilizers,
antihistamines, or anticoagulants should not use the spa. Pregnant women
and persons with a medical history of heart disease, diabetes, or high blood
pressure should consult a physician before using the spa.
PERSONAL SAFETY DOs:
• Be sure your spa is connected to the power supply correctly – only use
a licensed electrical contractor.
• Shut off power supply before draining the spa or servicing the electrical
components.
• Test the Ground Fault Circuit Interrupter (GFCI) monthly.
• Always test the water temperature with an accurate thermometer be-
fore entering the spa to be sure that it’s a safe temperature.
• Do not use the spa if water temperature is outside of set temperature.
• Remember that wet surfaces can be very slippery. Take care when
entering and exiting the spa.
• Lock the DuraCover™ when the spa is not in use, whether it is empty or
full of water.
• Keep the water clean and sanitized with correct chemical care.
• Turn on the jets when adding ANY chemicals to the spa water.
• Clean the filter cartridge(s) monthly to remove debris and mineral
buildup which affects the performance of the hydrotherapy jets, limits
the flow, or may affect the sensor reading which will turn off the entire
spa.
PERSONAL SAFETY DO NOTs:
• Don’t use the spa with the equipment compartment door removed.
• Don’t use the spa for more than 10 minutes of time at water tempera-
tures in excess of 104°F (39°C).
• Don’t allow the jet pump(s) to operate for an extended period of time
with the cover in place. Extended pump operation causes a slow heat
buildup due to water friction. The spa equipment controls are equipped
with a built-in safety timer that automatically shuts off the jet pump(s)
after 15 minutes of continuous operation should it have been left on
inadvertently.
• Don’t operate the spa at any time with the filter cartridges removed.
• Don’t lift or drag the cover by using the tie-down straps; always lift and
carry by using the external handles.
• Don’t store chemicals in the spa’s equipment compartment.
• Don’t hesitate to call your authorized dealer with any questions or main-
tenance concerns.
SAFETY INSTRUCTIONS
8

LOCATION
For your vessel to function properly and safely, it must be located on a
hard, flat, stable, and level surface on a 6” to 8” (152mm to 203mm) thick
concrete pad that can support 200lbs. per square inch. Inground vessels
require special installation techniques and should be planned in conjunc-
tion with your authorized dealer. Improper installation can result in structural
damage to the vessel and the voiding of your vessel warranty. Items to
discuss with your dealer include: Local construction codes, electrical ser-
vice requirements, serviceability of equipment present underground ob-
structions such as gas, water, and telephone lines, safety measures such
as fences and locks, and visibility of the vessel installation from the home,
street, and neighbors.
Do not shim your vessel. If your pad is not level you must pour a top cap:
contact a professional.
• Allow for sufficient water drainage around the vessel to help preserve
the equipment and support structure. This includes indoor installations.
• A filled vessel can weigh up to 25,000 LB (11 340 KG) and the location
should support the weight of the filled vessel.
• The vessel contains equipment on both ends. Your vessel MUST be
installed to permit access for servicing the equipment above and/or
below any decks or floors. Access is essential and must allow adequate
room for service. To facilitate repairs, Manufacturer or its agent may
require access to vessel equipment. It is your responsibility to provide
unencumbered access. See vessel diagrams for location of power
supply.
• Leave access to the circuit breakers in the sub panel.
• Be sure the vessel is level and in the final position BEFORE filling with
water. Check for power cords, tools, and hoses that may be caught
underneath the vessel. Do not apply power to the vessel before it is
completely filled with water. Damage to the pumps, heater and sensors
may result.
• IMPORTANT: DO NOT LET AN EMPTY VESSEL REMAIN EX-
POSED TO DIRECT SUNLIGHT.
Vessel surface temperatures can reach in excess of 180°F (82°C) if left
exposed to the sun. Significant damage can occur if this is allowed to
happen, including warping and blistering of the surface. Damage, that
occurs as a result of this exposure, is not covered under the warranty.
• CAUTION: Never try to move a vessel that has not been fully drained.
To do so could result in damage to the spa and physical injury to the
mover. Cracks in the vessel surface, exterior siding or base due to
improper transport or support of the vessel are not covered under the
warranty.
INSTALLATION INSTRUCTIONS
9

OUTDOOR INSTALLATION
To install the vessel outdoors, a flat level concrete reinforced pad at a mini-
mum thickness of 6” - 8” or 152mm - 203mm is required.
Placement of the vessel on pavers, gravel, or dirt is not approved and will
void the warranty. The reinforcing material should be attached to a #8 AWG
bonding wire per national and local electrical code (#6 AWG in Canada).
INDOOR INSTALLATION
There are special requirements if you place your vessel indoors. A flat level
concrete reinforced pad at a minimum thickness of 6” - 8” or 152mm -
203mm is required. Flooring material must provide adequate traction when
wet. Proper drainage is essential to prevent water puddling. Proper venti-
lation to the area is required. The addition of a ventilation system is recom-
mended. Please see your contractor for details.
OUTDOOR & PATIO INSTALLATION
10

SHUT-OFF VALVES
Your spa is equipped with shut-off valves (see EQUIP-
MENT DIAGRAM) that shut off the water flow to the
equipment system for authorized Marquis®Dealer
service. At times, a new spa or one that has recently
been serviced, may have the shut-off valves partially
closed which can restrict the water flow and hinder jet
performance. Be sure the valves are fully open.
FREEZE PROTECTION
When a freeze condition is detected (which occurs
when the temperature in the heater housing drops to
55°F, (13°C) the jet pump(s) is automatically activated.
In areas with extremely cold winter conditions, your
spa should be fine as long as it is left running at normal
operating temperatures. For extra protection see your
dealer for an optional freeze sensor. If you plan to turn
the spa off, follow the instructions in this manual (see
SUSPENDED USE OR WINTERIZING YOUR SPA).
OVERHEATING
In the case of extended hot weather, the spa water
temperature may reach and maintain 104°F to 106°F
(40°C to 41°C) or higher. This is due to the ambient
temperature and the full insulation in the spa cabinet.
You have the option of changing when or how long
the pumps will run. See SPA CONTROL OPERATION
for available options.
FILTER CARTRIDGES
Your portable spa is equipped with the Constant-
Clean™ Filtration system. It features two Vortex filters.
NOTE: It is very important that the components of
these filtration systems be installed properly in the
proper part of the spa.
1. Hold the Vortex filter cartridge and center it in
the opening of the filter housing.
2. Use the filter handle and turn the filter cartridge
clockwise to screw it in place. (Use caution not
to overtighten as damage may occur to
threads and is not covered under warranty.)
3. Replace the filter cover.

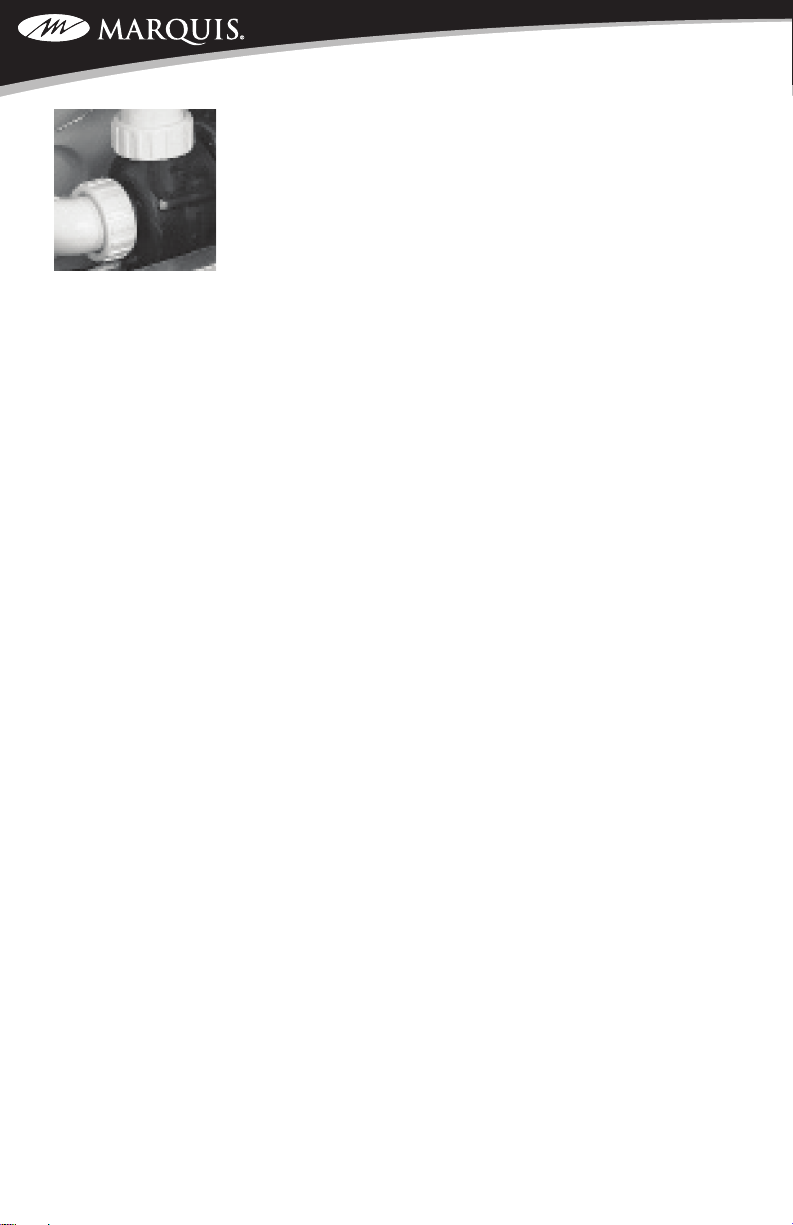

Shut-off valve in
open position
INSTALLATION INSTRUCTIONS
11

SUCTION GUARDS
The suction guard(s) in the footwell of your spa is an
opening through which the jet pump(s) draws water. The
suction fittings have an integrated vacuum release built into
them. In the event that a suction fitting gets blocked, air will
be induced causing the pump to cavitate and the water
flow interrupted. Once the blockage is removed, normal
operation will resume. Suction fittings are equipped with
a safety guard. Suction through the fittings can be strong.
The safety guard(s) must remain in place and undamaged.
A fitting with a damaged guard(s) can be dangerous, espe-
cially to small children or people with long hair. Should any
part of the body become drawn to a fitting, turn the jet pump(s) off immedi-
ately. Long hair should be restrained. Never allow long hair to float freely in the
spa. Replace any missing or damaged suction guard(s).
NOTE: It is normal for the flow rates of the suction fittings to vary from
strong to barely noticeable.
ELECTRICAL REQUIREMENTS
It is the responsibility of the spa owner to ensure that all electrical connections
are made by a qualified electrician in accordance with all national, state, and
local electrical codes in effect at the time of installation. Fuses are covered to
be free of defect at time of installation only.
240 Volt
All connections must be made in accordance with the wiring diagram found
on the inside of the control box cover. Connections must be made with
copper conductors only – do NOT use aluminum wire. All conductors, circuit
breakers, and fuses and the GFCI must be sized in accordance to the total
amperage load as specified below.
Improperly wired spas can cause irreversible damage resulting in blown fuse
and melted terminal block, and to other electrical components. Also, dam-
age caused to components or equipment caused by high or low voltage,
brown outs or electric surges are not covered under warranty.
Safety guard of
suction fitting must
remain in place.
INSTALLATION INSTRUCTIONS
12

• Permanently connected (Hard wired).
• Rated 240V, 60Hz, 50A, three wires (#6 copper) plus ground (#8 copper
(8.42mm2)), [4 wires total].
• Circuit breaker or fuse size: 50A.
• A disconnecting means must be installed within sight from the equipment
and at least 5 feet (1.52m) from the inside walls of the spa.
• Connect only to a circuit protected by a Class A ground Fault Circuit Inter-
rupter (GFCI).
STARTUP PROCEDURE
Your spa is equipped with solid-state Comfort Controls specific to your spa
model. (See SPA CONTROL OPERATION for your specific spa model.)
NOTE: Your spa has been filled and test-run at the factory. The first time
your spa is filled with water, some discoloration from residual test water may
appear. This will disappear when the spa is completely filled and the filtration
system is functioning.
INSTALLATION INSTRUCTIONS
13

THERAPY PUMP(S)
Startup procedure for all models
1. Place spa on a hard, flat, level surface. Make sure
the power supply is off.
2. Make sure the suction guard(s) in the footwell are in
place and undamaged.
3. Open the equipment door. Tighten all disconnects and
open all shut-off valves.
NOTE: Keep the drain valve closed at all times except
when draining the spa (do not rely on the cap to stop the flow of water). Not
doing so could result in damage to the drain valve due to freezing water.
4. Install filter cartridges. (See INSTALLATION
INSTRUCTIONS, Filter Cartridges.)
5. Fill the spa with water to two-thirds of the way up the Vortex skimmer
openings. The use of a Fill Filter is recommended, especially in areas with
high mineral content in the water.
6. Turn the power on.
WARNING: Spa must be completely filled with water before turning on power.
7. Your spa is now in “pump priming” mode and a “RUN PMPS PURG AIR”
message displays in the LCD window of the control panel. While in this
mode the spa appears idle, which lasts approximately four to five minutes if
not exited manually. To exit manually, press the TEMP+/- pad.
8. Allow the spa to circulate on high-speed (see SPA CONTROL OPERA-
TION) for four to five minutes to discharge air from the plumbing system.
Do not expect hot water immediately from the jets; the heater will take
several hours to heat the water.
9. At this time the spa should have water flowing from the jets. If the pump
has not primed and the water is not flowing from the jets after two min-
utes TURN OFF POWER TO THE SPA and vent air from the pumps by
slightly opening the pump unions located behind the equipment door.
After turning the power on again, the spa initiates a new priming mode.
Repeat steps above.
10. The system requires approximately two minutes of water flow to de-
termine the water temperature. After two minutes of water flow, the
temperature is displayed as actual water temperature. After you have
manually exited the priming mode (or allowed the spa to automatically exit)
the LCD window momentarily displays 100°F (38°C) and then the display
switches to - - °F.
11. The factory default setting for water temperature is 100°F (38°C). Use
the TEMP pad on the control panel to set the water temperature to the
desired level. (See SPA CONTROL OPERATION.) It takes up to 24 hours
to heat the water to desired temperature depending on the water tem-
perature and voltage of your spa.
Test the water for the proper chemical balance and adjust as neces-
sary. SpaCare products are recommended. (See WATER TREATMENT.)
PROPER CHEMICAL BALANCE IS IMPORTANT for your safety and the
longevity of your spa.
STARTING YOUR SPA
Vent air by slightly
opening pump unions.
14

DURACOVER®
When the spa is not in use, the DuraCover®should be kept on the spa to
retain the water’s heat and to keep out dirt, leaves, etc.
For your safety and convenience, the cover is equipped with double-
stitched straps, safety locks, and handles. Use the exterior handles to
remove and replace your cover. Never attempt to open or remove the
cover by grasping or pulling on the cover skirting or cover lock straps as the
skirting may tear.
Marquis®suggests you use the safety locks to help keep out unintended
users, prevent covers from being blown off in windy conditions and to
maximize heat retention/energy efficiency. The cover and retractable cover
system are not recommended for use in wind conditions reaching above
25 miles per hour. If your spa is located in an area susceptible to high winds,
additional heavy-duty wind straps may be necessary to minimize cover
damage.
NOTE: Marquis®’ exclusive DuraCover®is designed for optimum protec-
tion of the spa shell. Using an aftermarket cover will not provide the same
protection and will void the shell warranty.
Open the spa cover:
1. Unfasten all cover lock straps.
2. Place one hand under the cover skirting, between the spa and cover,
to break the cover’s vacuum seal. Do not use cover handles to break
vacuum seal.
3. Fold the front half of the cover over onto the back half.
NOTE: Unlock and release all cover locks before attempting to open cover.
Damage caused by attempting to open the cover while locked or during
windy conditions are not covered under warranty. Do not walk, stand, climb,
or sit on the vinyl cover or retractable cover system. Do not use hard, sharp,
or metal objects, such as a windshield scraper, to remove ice. Such objects
can cut, mar, or puncture the cover’s vinyl surface.
Close the spa cover:
1. Slide folded cover onto one half of spa.
2. Unfold the cover by lifting the handle located on the top (front) half of
the cover. Allow the unfolded half to fall gently down onto the spa.
3. Secure the cover lock straps to the spa and lock them.
NOTE: When opening a cover with a cover removal mechanism, use one
of the manufacturer’s recommended methods. Do not attempt to open the
cover in any other way. Damage caused by improper opening or closing of
the cover is not covered under the warranty.
Fading, staining, torn stitching of the spa cover and broken foam cores are
not covered under the warranty for any reason. Spa covers do not qualify
for labor coverage under the warranty. These parts can be purchased or
exchanged under warranty at your authorized Marquis®Dealer.
STARTING YOUR SPA
15

N
N
N
N
N
2s
2s
4r
4r
5s
5s
4s
2s
4s
2s 2s
4r
4s 4s
2s
2s
5c
4c
4c
2c 2c
4s 4s
4s
4s
2s
2s
5s
4s 4s
4s
4s
5r
4s
4s
6.1 6.1
6.2
6.2
6.2
7
7
8
8
8
8
9
10
1010
10 10
11
13
12
12 12 12
12
14
14
14
14
14
14s
14s 14s 14s 14s
14s
14s
14s
14s
14s
15
16
16
17
17
18
18
19
19
19
20
20
20
20
19
21
22
23
23
1z
1f
2c
2022 V150P Components
1-6-22
12
24
24
1f
14 14s
14s
14s
14s 14 14s
RED HANDLE
Reference # Fitting Description Qty Holesaw size
1z Ozone Wall Fitting 1 1 1/4"
1f Frog Wall Fitting (OPTIONAL) 2 1 1/4"
2 200 series Vector Jet 12 1 1/2"
s straight 9
c cone 3
4 400 series Vector Jet 19 2 5/8"
s straight 14
c cone 2
r rotator 3
5 500 series Vector Jet 5 3 3/4"
s straight 3
c cone 1
r rotator 1
6 White Water 4 Jet 5 2 5/8"
6.1 1in orifice 2
6.2 3/4in orifice 3
7 Vector Pop up Waterfeature 2 1 5/8"
8 256 GPM Suction 4 3 1/2"
9 CMP Mini Drain 1 1 1/4"
10 Vector Control Valve 5 3 1/8"
11 Vector Neck Jet Valve 1 2 1/16"
12 Vector Air Control 6 1 5/8"
13 Vector Waterfall Valve 1 2 1/16"
14 Vector LED (standard) 11 3/8"
s Vector LED (Starlight option) 25 3/8"
15 TP-600 w/6 button Vector Overlay 1 2 1/2"
16 Frog Housing (optional) 2 3"
17 Vortex Filter 2 7 3/8"
18 Vector Surface Mount Speakers (optional) 2 2 1/16"
19 Pillow buttons 8 1/8" bit
20 Vector Pillow 4
21 Swim Tether Plate 1 1 1/16"
22 Grab Rail 1 3/8"
23 Exercise Attachment Hook 2 1 1/2"
24 Rowing Attachment 2 11/64"
# Component Identification Qty.
1z Ozone fittings 1
1f Spa Frog wall fitting (optional) 2
2s Directional Jetpod 9
2c Conal Jetpod 3
4s Directional Jetpod 14
4c Conal Jetpod 2
4r Orbital Jetpod 3
5s Directional Jetpod 3
5c Conal Jetpod 1
5r Orbital Jetpod 1
6 Whitewater-4 jet 5
7 Pop up water feature 2
8 Suction fitting 4
9 Floor drain 1
10 V3control valve 5
11 Neck Jet valve 1
12 Air control valve 6
13 Waterfall valve 1
14 LED lights 11
14s Starlights™ LED (option) 25
15 Control panel 1
16 In-line canister (option) 2
17 Vortex filters 2
18 Surface mount speakers (option) 2
19 Headrest buttons 8
20 Headrests 4
21 Swim tether plate 1
22 Grab rail 1
23 Exercise attachment hook 2
24 Rowing attachment 2
Physical Specifications Size
Dimensions 150” x 90”
Height 51”
Seating capacity/positions 8/8
Weight dry lbs. / full lbs. 1,800/9,723
Water capacity/gallons 950
Total therapy Jetpods 36
THE V150P
16

THE V150P ZONES
ZONE 1A ZONE 1B
ZONE 1C ZONE 1D
ZONE 1E ZONE 1F
ZONE 1G ZONE 2
17

# Component Identification Qty.
1z Ozone fittings 1
1f Spa Frog wall fitting (optional) 2
2s Directional Jetpod 5
4s Directional Jetpod 8
4c Conal Jetpod 2
4r Orbital Jetpod 3
5s Directional Jetpod 2
5r Orbital Jetpod 1
6 Whitewater-4 jet 4
7 Pop up water feature 2
8 Suction fitting 4
9 Floor drain 1
10 V3control valve 2
11 Neck Jet valve 1
12 Air control valve 4
13 Waterfall valve 1
14 LED lights 11
14s Starlights™ LED (option) 20
15 Control panel 1
16 In-line canister (option) 2
17 Vortex filters 2
18 Surface mount speakers (option) 2
19 Headrest buttons 4
20 Headrests 2
21 Swim tether plate 1
22 Grab rail 1
23 Exercise attachment hook 4
24 Rowing attachment 2
Physical Specifications Size
Dimensions 150” x 90”
Height 51”
Massage Seats 4
Weight dry lbs. / full lbs. 1,700/11,720
Water capacity/gallons 1,200
Total therapy Jetpods 25
THE V150W
NN
19
16
2s
2s
5s
4r
5s 4r
20
12 10
24
14s 14s 8
14s
14
14
17
23
9
6
6
6
6
12
12
14
14
17
23
14s 8
14s
1z
8
14s
24
10
12
16
19
20
4s
4s
5r 4s
4s
18
13
14s
7
21
15
14
7
11
18
14s
14s
14s
1f
1f
14
14
2022 V150W Components
1-6-22
8
14s
14s
2s
2s
2s
4c 4c
4s 4s
4s
4r
4s
Reference # Fitting Description Qty Holesaw size
1z Ozone Wall Fitting 1 1 1/4"
1f Frog Wall Fitting (OPTIONAL) 2 1 1/4"
2 200 series Vector Jet 5 1 1/2"
s straight 5
c cone 0
4 400 series Vector Jet 13 2 5/8"
s straight 8
c cone 2
r rotator 3
5 500 series Vector Jet 3 3 3/4"
s straight 2
c cone 0
r rotator 1
6 White Water 4 Jet (3/4in orifice) 4 2 5/8"
7 Vector Pop up Waterfeature 2 1 5/8"
8 256 GPM Suction 4 3 1/2"
9 CMP Mini Drain 1 1 1/4"
10 Vector Control Valve 2 3 1/8"
11 Vector Neck Jet Valve 1 2 1/16"
12 Vector Air Control 4 1 5/8"
13 Vector Waterfall Valve 1 2 1/16"
14 Vector LED (standard) 11 3/8"
s Vector LED (Starlight option) 20 3/8"
15 TP-600 w/6 button Vector Overlay 1 2 1/2"
16 Frog Housing (optional) 2 3"
17 Vortex Filter 2 7 3/8"
18 Vector Surface Mount Speakers (optional) 2 2 1/16"
19 Pillow buttons 4 1/8" bit
20 Vector Pillow 2
21 Swim Tether Plate 1 1 1/16"
22 Grab Rail 1 3/8"
23 Exercise Attachment Hook 4 1 1/2"
24 Rowing Attachment 2 11/64"
18

THE V150W ZONES
ZONE 1A ZONE 1B
ZONE 2
19

# Component Identification Qty.
1z Ozone fittings 1
1f Spa Frog wall fitting (optional) 2
2s Directional Jetpod 5
4s Directional Jetpod 8
4c Conal Jetpod 2
4r Orbital Jetpod 3
5s Directional Jetpod 2
5r Orbital Jetpod 1
6 Whitewater-4 jet 6
7 Pop up water feature 2
8 Suction fitting 6
9 Floor drain 1
10 V3control valve 2
11 Neck Jet valve 1
12 Air control valve 4
13 Waterfall valve 1
14 LED lights 13
14s Starlights™ LED (option) 18
15 Control panel 1
18 Vortex filters 2
19 Surface mount speakers (option) 2
20 Headrest buttons 4
21 Headrests 2
22 Swim tether plate 2
23 Grab rail 1
24 Exercise attachment hook 4
25 Rowing attachment 2
Physical Specifications Size
Dimensions 174” x 90”
Height 56”
Massage Seats 4
Weight dry lbs. / full lbs. 2,325/15,669
Water capacity/gallons 1,600
Total therapy Jetpods 27
THE V174S
NN
1f
1z
1f
2s
2s 5s
5s 4r
4r
4s
2s
10
12
4c 4c
4s 4s
4r
2s 2s
4s
4s
4s
5r
4s
4s
15
16
66
6
6
6
6
9
7
7
11
19
19
13
14s
14
14s
14s 14s
14s
14s
14s
14s
14s
14s
888
8
88 18
18
12
12
22
24
24
23
14
14
14
14
12
10
25
25
14 14
14
14
20
