Before Use
Application Methods
Catalog
Maintenance Operations
Product Specification
Designation of Each Part//////// //Front/////// /Back/// I/Filter• • • • • • • • • 2
Specification • • • • • • • • • • • • • • • • • • • • • • • • • • ·•• • • • • • • • • • • • • • 3-4
About Setup • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 5
Device Operation Instructions • • • • • • • • • • • • • • • • • • • • • • • • • • 6
Dust Sensor· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 7
About Sensor • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • · • • • • • • • 8
Filter Cleaning · • • • • • • • • • • • • • · • • · • • • • • • • · · • • • • • • • • • • • 9
Filter Replacement • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 10
Safety Precautions • • • • • • • • • • • • • • • • • • • · • • · • • • • • • • • • • • 11
Frequently Asked Questions(FAQ) · · • · • • · · • · • • · • • · • • · • • • • 12
Filter Removal And Installation Before Use • • • • • • • • • • · • • • • • • 13
Warranty And After-sales Service • • • • • • • • • • • • • • • • • • • • • • • • 14
......

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
On/Off Button
Air Inlet Panel
---
- -
--
---..-..---
..-------
-~---- ~
---
----
..-__, -
-----
------
____,_,
·-------
--~-
---
----
---
----
---
---....-
----
------
---
--.,..._.,_
--.-..
.._.__
---
------
---
----
-----....----
------
---
.--___, ----
--...-
-- -
___
-....____
-- -
---
---
--
_..., ,-. __,
---
---
-- -
--.-..., _, ---
... ---.-...-
-
........_,,.._
..,__...-----
...---......
-
........--..._,_,
-
---
........---.._ ----::..:~~-:
-- -
----
-----......·
._.,._,_, __.
----
-------.
-------------........
----
-----
-----
------·
-------
-----·
------
.----·
--..-~-
----·
----
----·
___,_, ___ ~
----.---•
------
-------·
_.__, __
-.---•
--------
--------
------..,..
---~-
__.~-
.-----·
---------
__.
-- -
---
---
-- -
---
__.
-- -
_... .....-----...-
·--'-'.-'.'." ---
._,.... ....
--
~- ---
-----.....
-
--------
----------,,,
-~-....--
-- -·
_,_. --------
--
-----.....--
------·--'
-------- ~
--
--
Front
Display Panel
Handle • • Sensor Cover
Filter Cover Handle •
Air Outlet
Back

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
..
Filter Removal
And Installation Before Use
Open The Filter Cover
Put the hand on the filter cover
handle, slightly down and pull
out to open (Pie 1, Pie 2
Pull up the filter cover as the
arrow direction to remove it
{Pie 3).
Pie 3
Pie 1
-
Pie 2
Unlock The Filter
To unlock the filter in the device, rotate the filter lock
handle to right side till the position shown in picture 5
(Pic4, Pic5 ).
Pic4 Pie 5
Pull down on the filter
cover handle (Pic 1 and
2) to open

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
Take the filter out from the PE bag
Remove the filter out of purifier, use scissors or other
tools to cut open the plastic bag which packs the filter
(Pie 6. Pie 7
Pie 6 Pie 7
Filter Installation
Install the filter with the pull-out strip towards the
operator, back into the purifier. (Pie 8).
Pie 8
Filter Lock
Rotate the filter lock handle to the left side as picture 9 shown.
fix it in the purifier. Pie 9, Pic10
Pie 9
Install Filter Cover
Install the filer cover hook into
the slot (Pie 11).
Pie 11
-
--
Pie 10
Press the filter cover handle to insert
the cover into the purifier slot, then it
locks automatically (Pie 12).
Pie 12

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
About Setup
In order to acquire original performance of
the air purifier, please keep a proper
distance from the wall when using
(as shown in right picture).
Distance to th
Wall above 30~rn
Distance to the ceiling
keeps above 120cm
------------
--- --------"'
---------- --
·--------------·
-----------
·--------------·
----.-- -------
---- --- -----
------ - - ----.
------------
-------- ----
------------
·----- -------
------------
------- ------·
------------
------ -------·
------------
------ ------·
--------------
------ -------
-----------·
------------·
-----------
------ ------·
-------------
·-----------·
------------
------ ------·
------------
------------·
.--:_-_-=--------~-=-_....
----- --
.., --------- -·
-------..----.
--------...- ------·
------------
---------- -·
------ - -- ----·
--=--- - - --_.,..
--------- __
• ____________ .#
___._. _______,..
..__________..,,,..
----------.---· .
..-.....------- ---- -- ---____.....
.._--- -- __
...____---- _......
.._____---~--'
------
Dista nee to th
Wall above 30~rn
keep the product 30cm from the wall and
at least 120cm from the
ceiling to ensure optimum performance

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
Function Touch switch-·-------++
Switch Operation Mode
Negative Ion Touch switch----~
(Negative Ion On/ Off)
---- Display Panel (PM2.5 Value Display)
Gear Display
Auto Touch switch
Auto On/Off
Sleep Touch switch
SI eep On/Off
Power Touch switch ________ __.,.~~==----,._____ _ Child Lock Touch switch
H ON/OFF"Device button power is "ON/OFF'' S imut aneous I y Pr es s '' Fu nct i on + A ut o''

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification

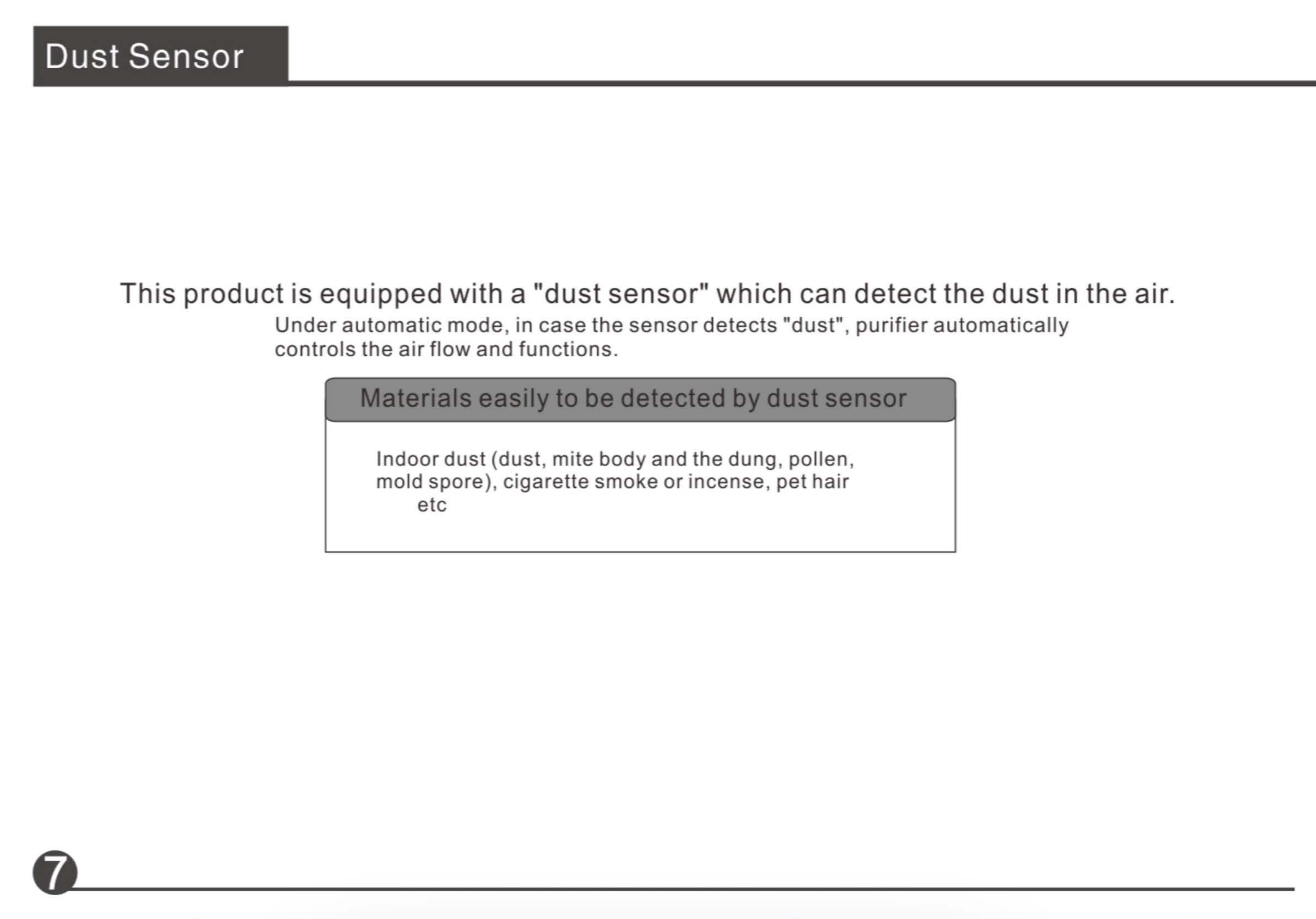

This product is equipped with a ''dust sensor 1' which can detect the dust in the air.
Under automatic mode, in case the sensor detects "dust", purifier automatically
controls the air flow and functions.
Indoor dust (dust, mite body and the dung, pollen,
mold spore), cigarette smoke or incense, pet hair
and etc

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
• I-
t ..
-
I= -
-Sensor
===-----
-
--==-----
-----==
-
--------
-----==
::.==-----

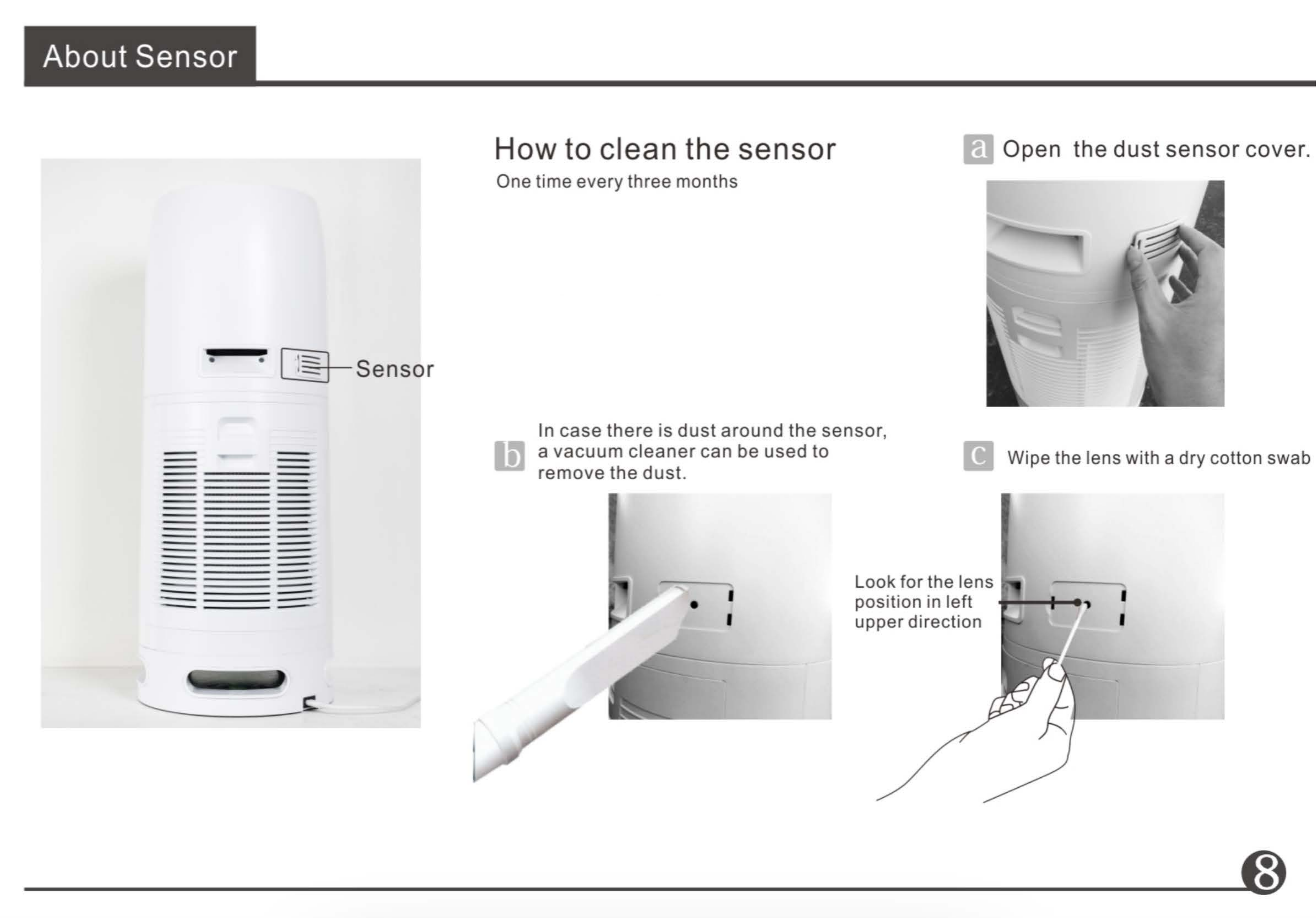

Howto clean the sensor - Open the dust sensor cover.
One time every three months
While the lens part which is for detecting
the air is soiled by moisture or cigarette
smoke, the sensitivity is lowered. Please
follow below steps to clean the sensor.
In case there is dust around the sensor,
1 a vacuum cleaner can be used to
remove the dust.
,. • "
I
I
Look for the lens
position in left
upper direction
'
Wipe the lens with a dry cotton swab
I
I
This lens is responsible for detecting
pollutants. Follow the steps on how to
clean it

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification

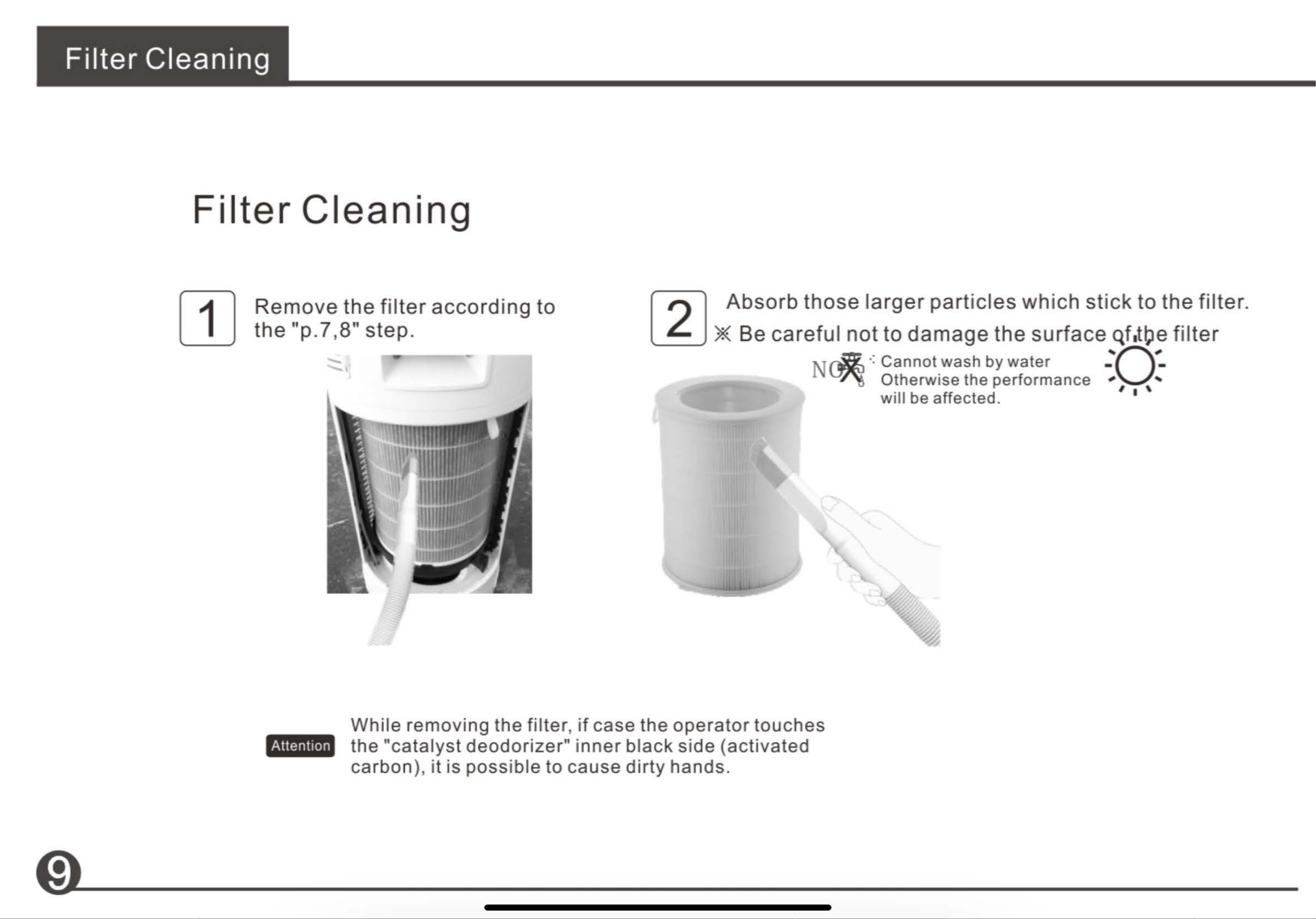

Filter Cleaning
Remove the filter according to
the "p.7,8" step.
.._
..._
Absorb those larger particles which stick to the filter.
__ *Be careful not to damage the surface qf,tbe filter
"' ,
N_,, •:Cannot wash by water _ _
Otherwise the performance , ~"'
will be affected. ' 1 '
Attention While removing the filter, if case the operator touches
the "catalyst deodorizer" inner black side (activated
carbon), it is possible to cause dirty hands.

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
er re ace
Standard is one time every one year
About filter replacement time
Replacement duration differs according to the operation methods and
application place; standard is"1 year". While in heavy pollution environment,
the replacement may require move up.
In case deodorizing effect isweakened, please only remove the "catalyst
deodorizer" , keep it under good light and ventilation for some time, the
purifier restores the deodorization performance e (but not guaranteed to
be same as new one).
For adsorption and purification of toxic gases, the filter contains a formula
of activated carbon components, slight acidity may occur,
which isnormal.
The replacement time may vary according to the method of use and the location where the product is set at. The standard time for
replacement is every year.When it is used in places with heavy air pollution, the replacement will be sooner
.
* The catalytic deodorization device can be dismantled when the deodorization
effect is weakened. And the deodorization performance can be restored by removing the catalytic deodorization device to a place
of good light and ventilation for a certain time (but it is not guaranteed that the deodorization performance can be restored to that
of a new product.)
* To absorb and purify the harmful gases, the formula activated carbon
contained in the filter element may produce smell of slight acidity, which is a normal phenomenon.

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
Safety Precautions
Transportation
installation
Power Notices
AC Power Cable
Using
Service Restrictions
While moving, please make sure that the purifier stops running and power plug is pulled out.
Enclasp the purifier flank side buckle, so as to avoid the excessive vibration or falling.
Do not start the device, in order to avoid danger.
The device air inlet should be at least 20cm away from the wall or other object.
Do not over pinch, bend or reverse the AC power cable, otherwise the inner cord may be
exposed or broke off.
While disconnecting the power, do not drag the cable.
Do not use inappropriate AC outlet.
Do not use this subjected AC power cable on any other device.
Please apply the AC cable and socket according to following instructions to avoid fire,
electric shock or damage;
Must be connected to the AC power supply socket which matches with device cable.
Please use only supplied power cable, do not use any other brand.
In case maintaining or removing the air purifier, please disconnect the power from the outlet.
If any abnormal sound, peculiar smell, high temperature or fan irregular rotation occurs,
please stop running immediately.
Do not put the finger or foreign matter into the protective part, the movable part, the air inlet and outlet.
Do not put any hair, fabric and etc into the protective part, the movable part, air inlet and outlet.
Do not sit on, lean on or tilt the purifier.
When used together with burning devices, please ventilate to avoid carbon monoxide poisoning.
Do not use the purifier under the following circumstances, otherwise electric shock, fire or
other damage may occur:
Easy dumping and other unstable places.
Bathroom or other room with high temperature, humidity or possible fire.
*In case damage of the power cable, to avoid danger, it must be replaced by professional technician from the manufacturer,
its maintenance department or similar department
*While cleaning dust sensor or any other part of the purifier, the power must be cut off.

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification

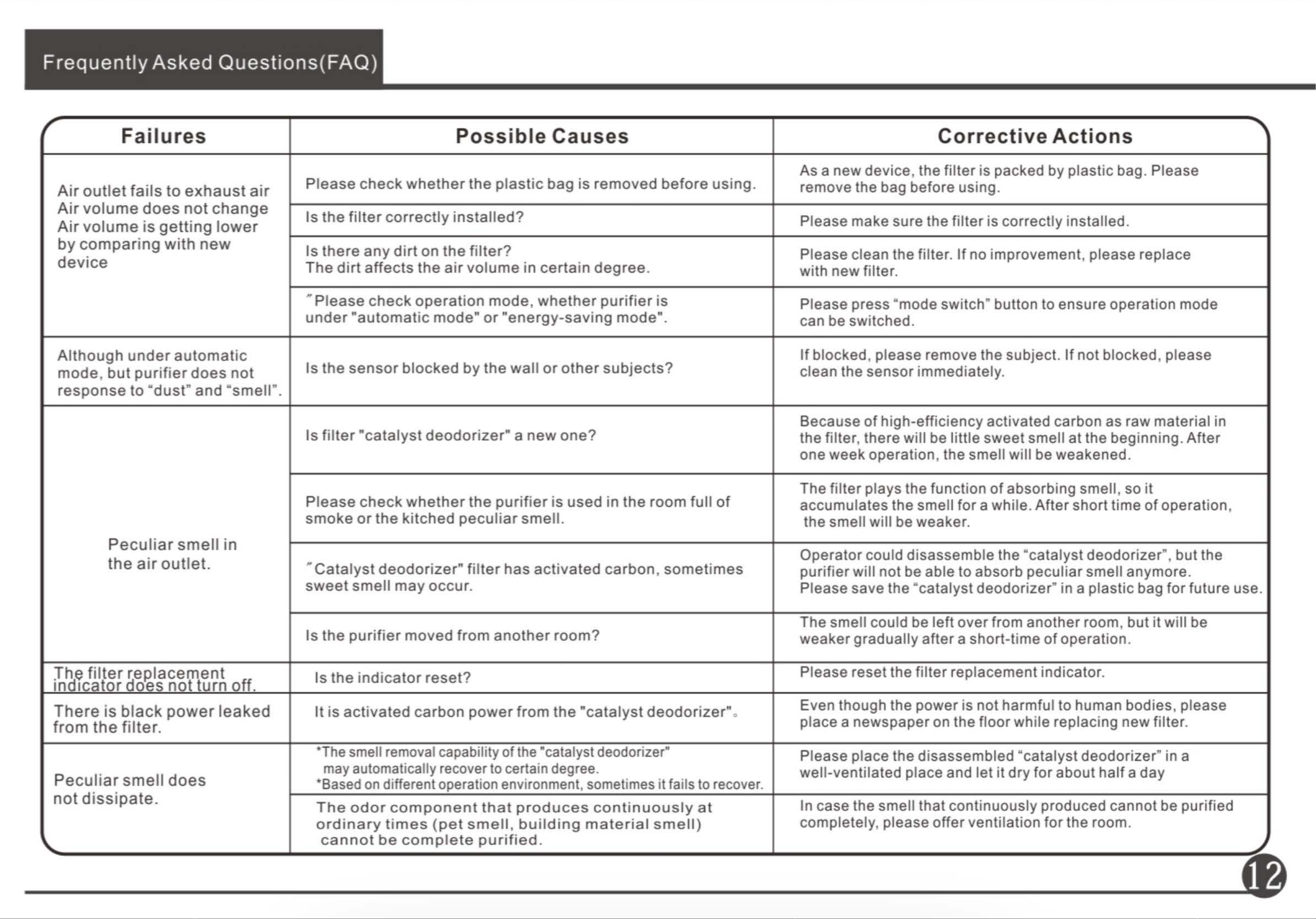

r Failures Possible Causes Corrective Actions "'
As a new device, the filter is packed by plastic bag. Please
Air outlet fails to exhaust air Please check whether the plastic bag is removed before using. remove the bag before using.
Air volume does not change Is the filter correctly installed? Please make sure the filter is correctly installed.
Air volume is getting lower
by comparing with new Is there any dirt on the filter? Please clean the filter. If no improvement, please replace
device The dirt affects the air volume in certain degree. with new filter.
;,Please check operation mode, whether purifier is Please press "mode switch" button to ensure operation mode
under "automatic mode" or "energy-saving mode". can be switched.
Although under automatic If blocked, please remove the subject. If not blocked. please
Is the sensor blocked by the wall or other subjects? clean the sensor immediately.
mode, but purifier does not
response to "dust" and 0sme11•.
Because of high-efficiency activated carbon as raw material in
Is filter "catalyst deodorizer" a new one? the filter, there will be little sweet smell at the beginning. After
one week operation, the smell will be weakened.
Please check whether the purifier is used in the room full of The filter plays the function of absorbing smell, so it
accumulates the smell for awhile. After short time of operation,
smoke or the kitched peculiar smell. the smell will be weaker.
Peculiar smell in Operator could disassemble the "catalyst deodorizer", but the
the air outlet. "Catalyst deodorizer" filter has activated carbon, sometimes purifier will not be able to absorb peculiar smell anymore.
sweet smell may occur. Please save the "catalyst deodorizer" in a plastic bag for future use.
Is the purifier moved from another room? The smell could be left over from another room, but it will be
weaker gradually after a short-time of operation.
The filter replacement
indicator does not turn off. Is the indicator reset? Please reset the filter replacement indicator.
There is black power leaked It is activated carbon power from the "catalyst deodorizer" o Even though the power is not harmful to human bodies, please
place a newspaper on the floor while replacing new filter.
from the filter. *Thesmellremovalcapabilityofthe"catalystdeodorizer" Please place the disassembled "catalyst deodorizer" in a
Peculiar smell does mayautomaticallyrecovertocertaindegree. well-ventilated place and let it dry for about half a day
*Basedondifferent operationenvironment,sometimesit failsto recover.
not dissipate. The odor component that produces continuously at In case the smell that continuously produced cannot be purified
ordinary times (pet smelt, building material smell) completely, please offer ventilation for the room.
\. cannot be complete purified.

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
Model
Color
Power
KJ-850
White/Black (Customization)/Black(Rubber Texture) (Customization)
220V/50Hz
CADR 483m3/h
Negative Ion Over3M/cm3
Cove rage 60m2
Net Weight 9KG
Gross Weight 11KG
Noise Leve I ~65dB
Rated Frequency SOHZ
Product Dimension 310*310*810mm
Air VoIume 600m3 /h
Generation Y
600

AIR PROTECTED
MARS PURIFIER
THE specialist in air purification
Warranty and After-sale Service
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
• • • • • • • • • • • ■ ■ • • • • • • ■ I • • • • • • • • • ■ • • ■ • • • • ■ ■ •
Product Warranty Card (Kept by Company)
User'sName:
Address:
PostalCode:
ContactNo.:
-------------
Distributor:
-------------
Address:
·-------------
PostalCode:
-----------------
ContactNo.:
-----------------
SaIe Date:
-------------
MateriaIsofProductPurchased:
-------------
Nameof Product:
-------------
Modet:
-------------
DateofManufacture:
-------------
PurchaseDate:
-----------------
ManufactureSerialNo.:
-----------------
Note:
1.Thiswarrantycardonlyappliestoairpurifier;
2.RepairserviceisonlyvalidinChina;
3.Thewholemachineisguaranteedforoneyearandthemotorforfiveyears.
4.Thiscard
needstobecompletedbythevendingunit.
5.Whenyouneedtoshowyourrepaircardandinvoice,pleasekeepthemproperly
•
• User Information Feedback Card •
• •
• User Information: •
• Name: Gender: Telephone: •
• E-mail: •
•
• Monthly Family Income: □ Less than RMB 1,000 □ Between •
• 1,000 and 3,000
□ Above 3,000 •
• Vocation: □ worker □ administrative staff □ individual
•
business □ farmer D
• •
Home Address: ________________ •
• Family Members: 02 Persons 03 Persons 04 Persons O •
• Persons
■ Use: □ Domestic use □ Newly Married □ Public Use □ Used
as Gift
• Dear User:
•
•
•
• If you have any other valuable opinions and suggestions on this
■
• product, please write them down and send them back to our •
• company with this feedback card. We will give prizes according
to the degree of opinions adoption. Thank you! •
• Your comments and suggestions: ___________ •
• •
• •
• •
• •
• ------------------------•
■ This card should be filled in clearly and sent back to our after-sales
service department for registration within three months after purchase. •
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
14

Tutorial - Tuya Smart APP Software
0 
 



















  
 
--
I
 
-
  HVAC
•
 Wea ck a1
-
0 •
  
 l(BlE+WF  

I
  
 

•
12

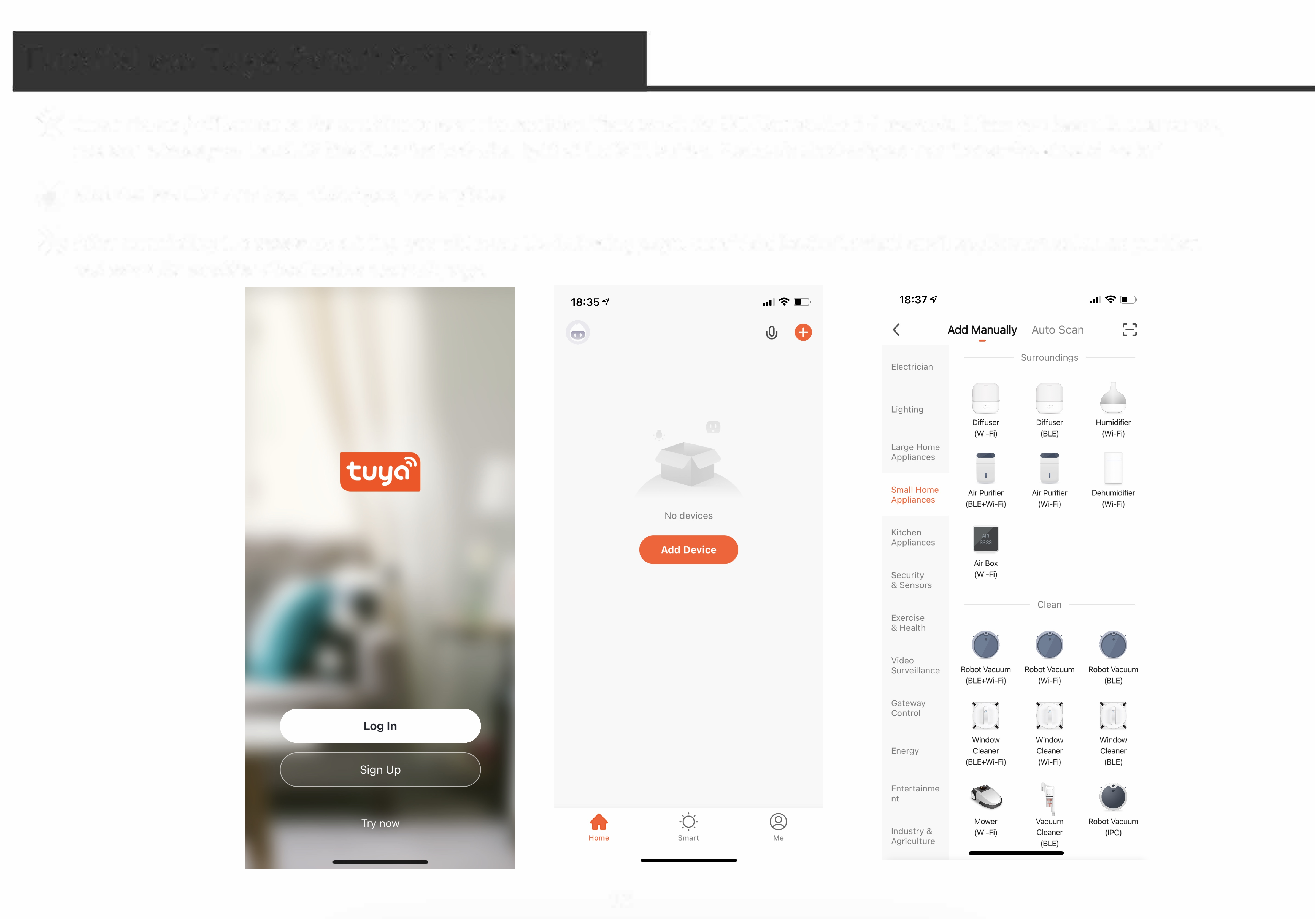

Tutorial - Tuya Smart APP Software
e Follow the on screen instructions
.
Add Device

 





your 1s 
4GHz  

• •
V
� 2.
 
 

13

 
Cancel


Scan
devices
1%

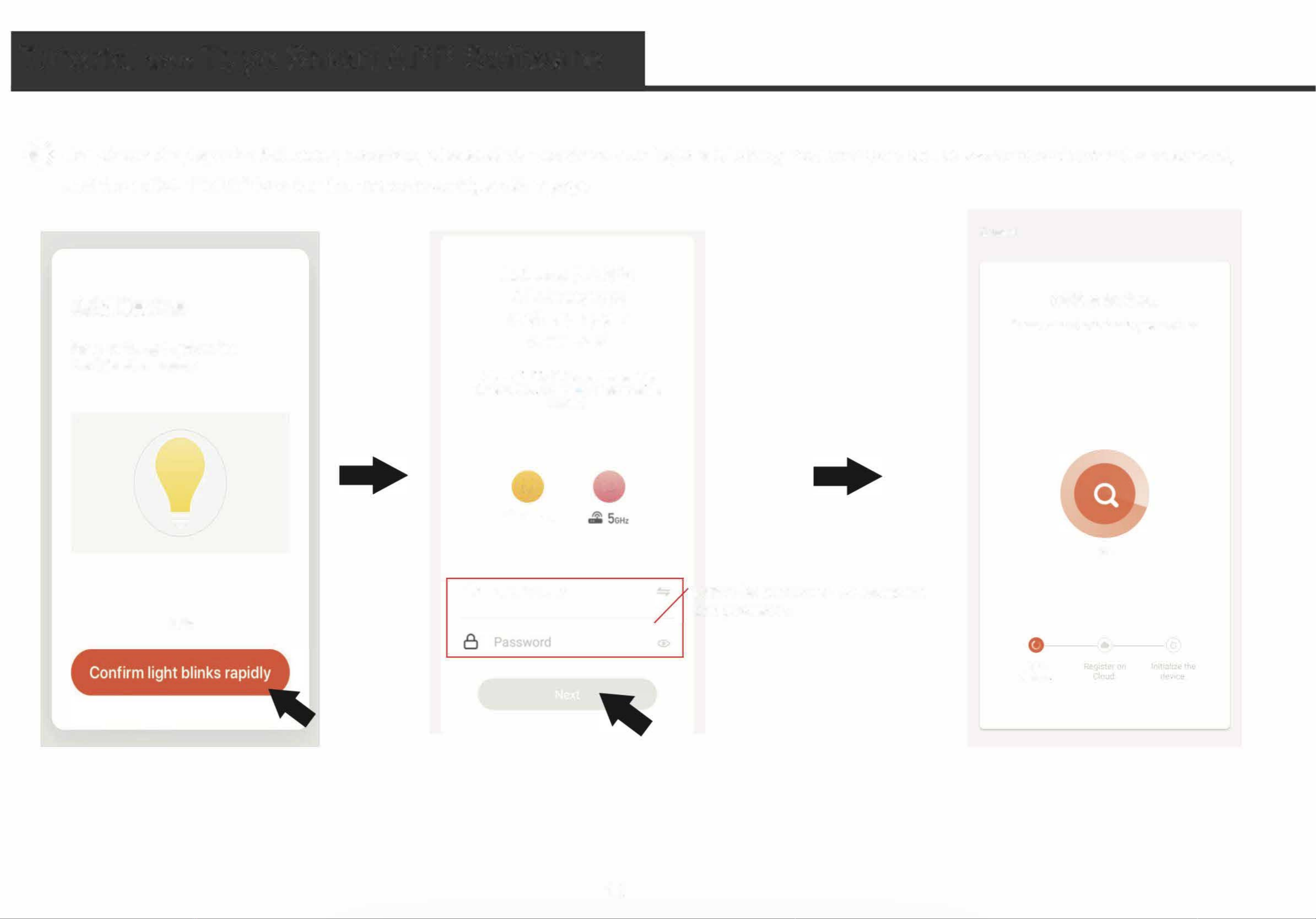

Tutorial - Tuya Smart APP Software
0 
Cancel
Added successfully
PC-LR3083 
    


14
   


