Martin Yale BM-101 User manual

Model BM101 - Booklet Maker
Thank you for purchasing the BM101 Booklet Maker. This product will
prove to be a great value and allow you to efficiently produce booklets of up to
40 pages (10 sheets) inside your choice of cover material for many years.
Dimension of Unit: 153/4” x 193/4” x 51/2”
Weight of Unit: 34 lbs.
Voltage: 120V
Paper Capacity: 10 sheets of 20 lb bond with cover
Paper Sizes: 81/2” x 11”, 81/2” x 14”, 11” x 17”,
A3, A4, B4 and B5
Staplers (2): 4 position - used standard staples
Specifications:
Item# Description
M-S025052 65T double-sided belt
M-S033073 Illuminated ON/OFF switch
200 Martin Yale Roller Cleaner
Replacement Parts:
Call 1-800-225-5644
Trouble Shooting / Technical Assistance
Booklet Making In 4 Easy Steps
Center the paper on the grid Bring the lever down to activate both staplers
Reverse the lever to activate folder Remove finished booklet
Step 1
Step 3
Step 2
Step 4
251 Wedcor Avenue
Wabash, IN. 46992
www.martinyale.com
[email protected]
Contact Information:
WARNING! Never connect power to the model BM101 booklet maker until you are ready to set up and operate
the machine. This machine contains moving parts. During setup, operation, and maintenance; keep hands, hair,
loose clothing, and jewelry away from all moving parts. Serious bodily injury could result. Service or disassembly
of the unit should only be performed by qualified personnel with the power disconnected and locked out.
M-S027913

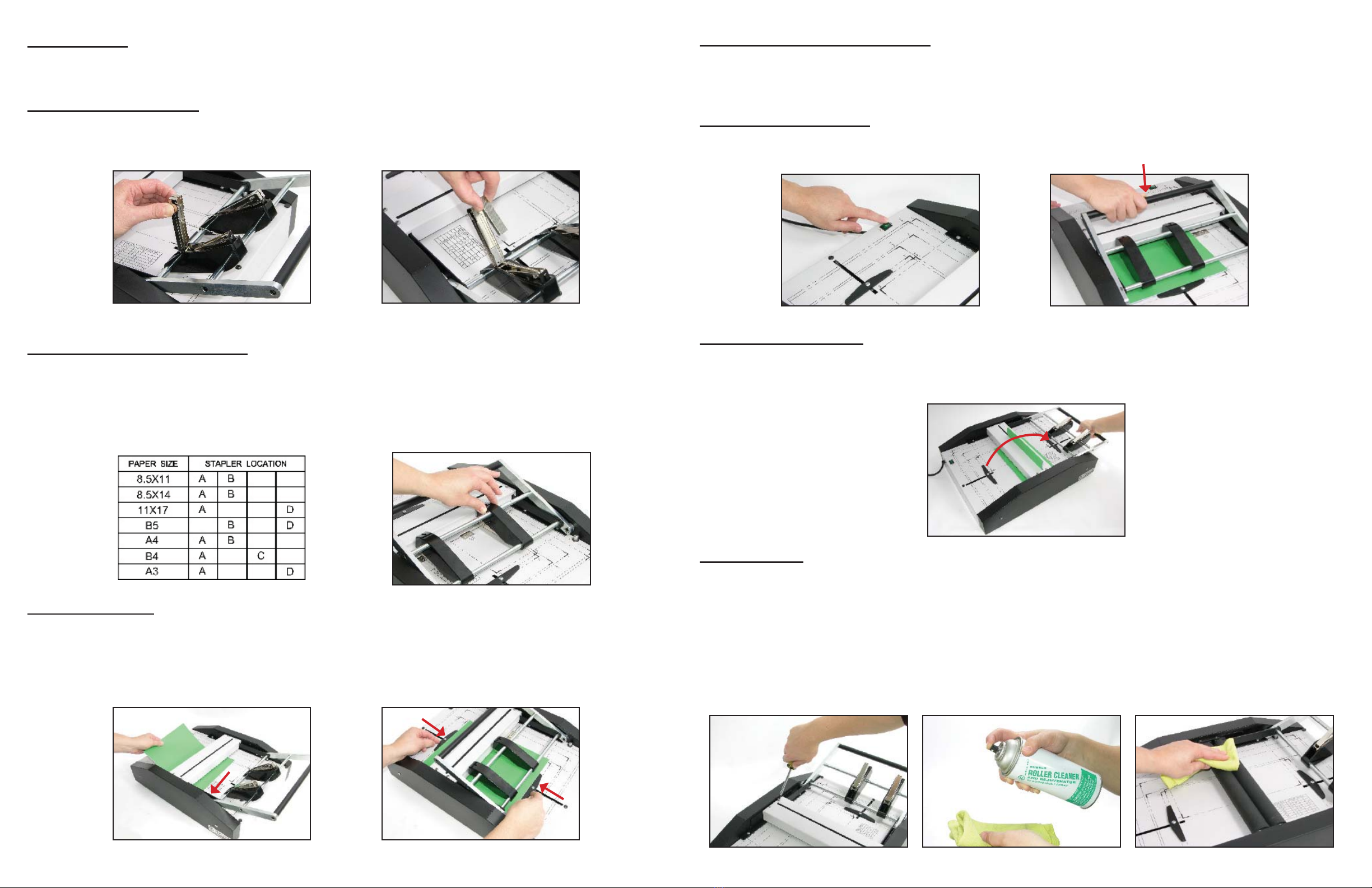

PREPARATION:
After unpacking your NEW Booklet Maker, select a flat and stable surface of a comfortable working height
and position the unit near a power outlet. Securely insert power cord into the 120V outlet.
LOADING THE STAPLERS:
Firmly pull the stapler bottom away from it’s main housing (see Fig. 1) and swing open until the spring
loaded slide fully retracts. Insert standard staples into the stapler (see Fig. 2) and close the unit. Use
caution and keep fingers away from end of stapler when closing to prevent being punctured by staples.
Fig. 1 Fig. 2
POSITIONING OF THE STAPLERS:
The chart located on top of the unit to the right of center (see Fig. 3) will designate the positions of the
staplers for that specific paper size.
Grasp the top of the stapler housing (see Fig. 4) and position the stapler over the correct letter designation
until you feel the stapler click into position on the locator rod.
Fig. 4
PAPER POSITIONS:
Insert your collated sheets into the unit (see Fig. 5) with your cover sheet on top. Place the stack against the
frame rail and both paper guides.
Adjust the paper guides until firmly against each side of the paper stack (see Fig. 6). The stack will automati-
cally be positioned due to the synchronized self-centering paper guides.
Fig. 5 Fig. 6
POWER TO THE BOOKLET MAKER:
The power switch is located at the top left corner of your unit. Press “ON” to supply power to the unit (see
Fig. 7). The switch will illuminate when power is on. If switch does not illuminate check the power cord to the
outlet. Turn the unit “OFF” when not in use.
STAPLING THE BOOKLET:
Place your hand on the top handle bar and midpoint between the stapler heads (see Fig. 8). Press
downward firmly until the staples have been fully inserted through the paper stack.
Fig. 7 Fig. 8
FOLDING THE BOOKLET:
After the sheets have been stapled, rotate the handle and firmly press downward. Your booklet will be folded
and will be ejected (see Fig. 9). Releasing the handle and/or returning it to the stapling position will stop the
folding motor.
Fig. 9
MAINTENANCE:
With extended usage, the folding rollers may become contaminated with inks and/or paper dust and will
require cleaning.
Before performing any maintenance, turn the power switch to the “OFF” position, remove the (4) screws
from the top of the roller cover (see Fig. 10) and remove cover.
For cleaning ink contamination, the Martin Yale Roller Cleaner is recommended. Spray a clean cloth
liberally with the cleaner (see Fig. 11) and clean the roller surface using firm strokes (see Fig. 12). Replace
roller cover before use.
Fig. 10 Fig. 11 Fig. 12
Fig. 3
