Overall depth including handle:
Overall depth NOT including handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
26 3/8"
24 1/4"
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"

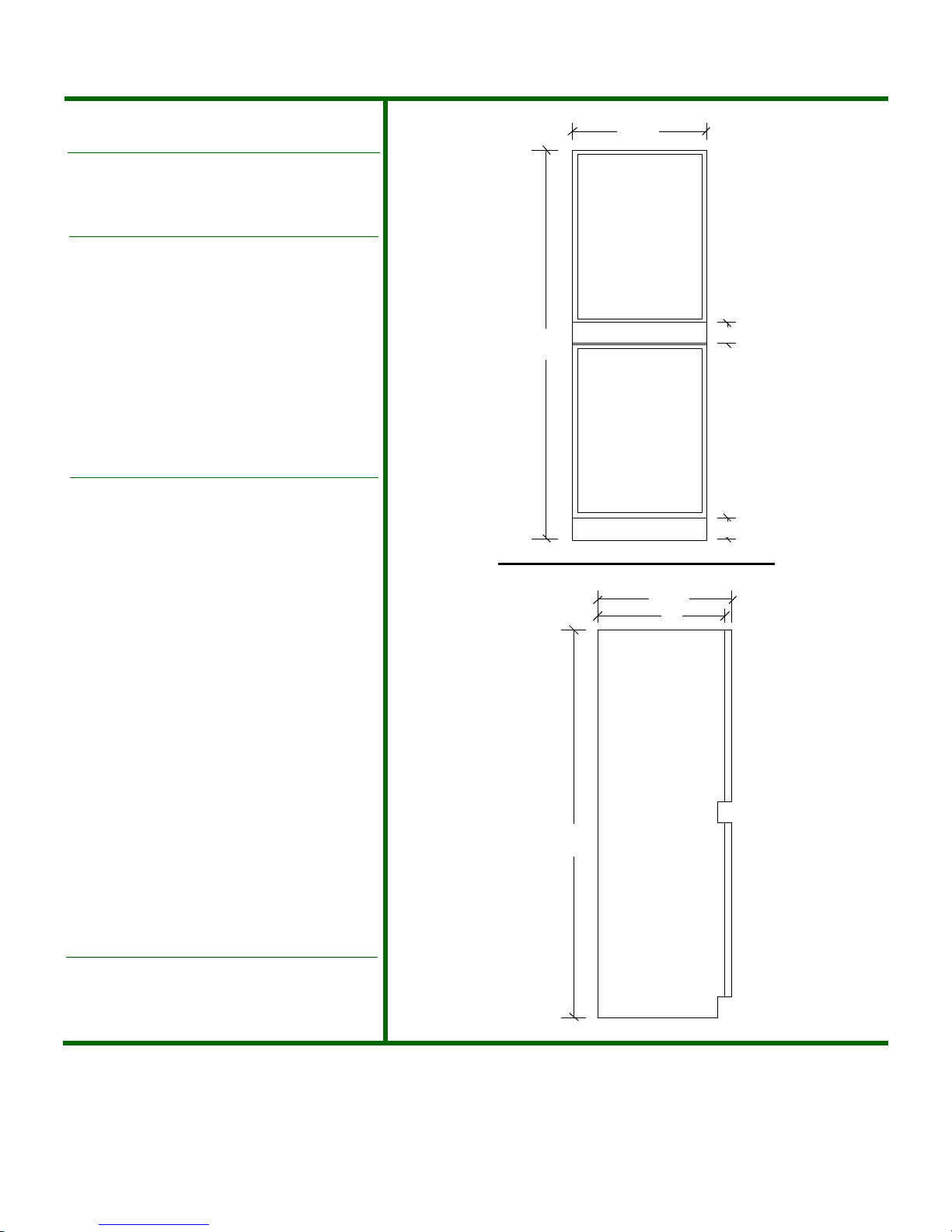

Front View
(not to scale)
Side View
(not to scale)
3"
69 1/8" Max
68 1/8" Min
24 1/8"
24 1/4"
22"
3"
69 1/8" Max
68 1/8" Min
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Door must open a minimum of 90° to allow wine racks
to pull out.
• Shipping weight: 270 pounds.
• U.L. Listed.
• Does not accept custom panels.
• 66SWCE-WW-G : White cabinet, white frame glass
doors, white center grille.
• 66SWCE-BB-G : Black cabinet, black frame glass
doors, black center grille.
• 66SWCE-BS-G : Black cabinet, stainless finish frame
glass door, stainless center grille.
• All models have shelf fronts of clear, solid maple
(unfinished).
Accessories:
• Shelf front kits in gloss finish white or black and
brushed stainless steel.
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Chateau Collection Wine Cellar:
66SWCE-WW-G, 66SWCE-BB-G and 66WSCE-BS-G
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
