Marvel 66WCM-BN User manual

Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"

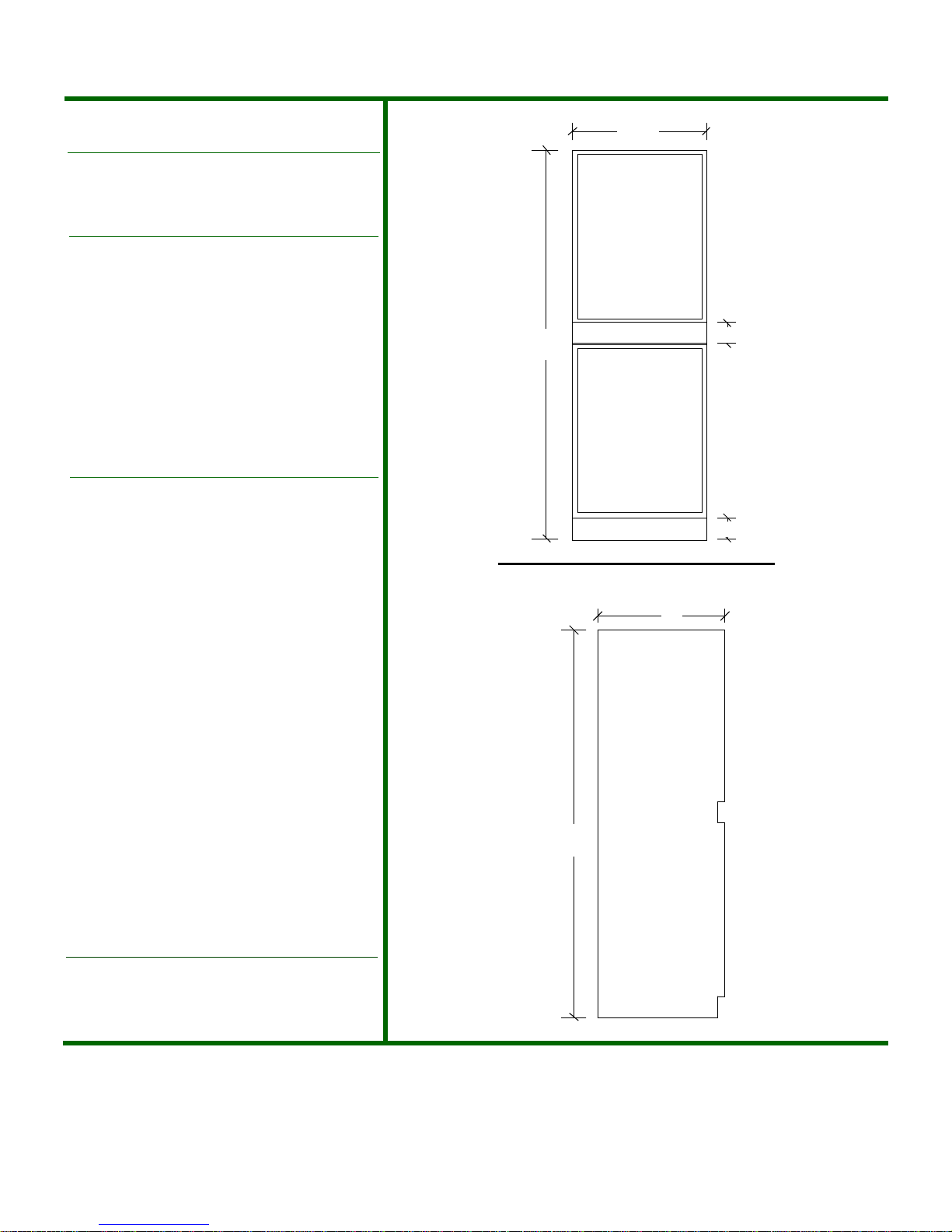

Front View
(not to scale)
Side View
(not to scale)
3"
69 1/8" Max
68 1/8" Min
24 1/8"
22"
3"
69 1/8" Max
68 1/8" Min
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• 66WCM-BN: Black cabinet, no door. Door option sold
separately. See page 2. REQUIRES TWO DOORS.
• When recessed, unit does not require additional air
space for top, sides or rear
• MicroSentryTM refrigeration monitor controls
refrigeration system's performance to maintain a
constant and precise temperature
• Each section (upper and lower) has its own cooling
system and MicroSentry TM monitor to ensure wines
are kept at proper storage temperature
• Wine racks may be extended at 90° door opening
• Wine racks have front trim of clear, solid maple
(unfinished)
• Lighted and inclined display shelf displays up to four
wine bottles in each section.
• Capacity: 90 wine bottles, including magnums
• Shipping weight: 100 pounds.
• U.L. Listed.
See pages 2-3 for additional information
www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Luxury Series Wine Cellar
without door (door ordered separately)
66WCM-BN
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
This Data Sheet Includes Information On
BN • A318B149C150 • • 070511 • 13499 • 30452
• Additional Information •
318
Marvel

Door options:
1) Overlay Glass Door: P/N 42246488. Accepts customer supplied
wood frame overlay and handle, see below. Unit requires two doors.
Add 1 3/8” to depth for door without wood frame overlay or handle.
2) Overlay Solid Door: P/N 42246489 black with black liner. Accepts
customer supplied wood overlay panel and handle, see page 3. Unit
requires two doors. Add 1 3/8” to depth for door without overlay panel
or handle.
3) Full Wrap Glass Door with professional style bar handle: P/N
42246486 black frame with black handle or P/N 42246487 stainless
frame with stainless handle. Unit requires 2 doors. Add 2 1/4” to depth
for door and 2 1/8” for bar handle.
Accessories:
• Humidrawer Cigar Storage Compartment: P/N 42242728.
• Designer full-length bar handle in stainless steel (P/N 42244405),
black (P/N 42245084) or white (P/N 42245085).
1 3/4" min
1 3/4" min
1 3/4"
min
1 3/4" min
Front View
Custom Overlay Glass Door Frame Dimensions
(not to scale)
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
23 7/16"
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Additional Information:
