Maschinenfabrik Reinhausen TAPCON 230 expert User manual

Voltage Regulator
TAPCON® 230 expert
Quick Guide
3552824/00 EN

© All rights reserved by Maschinenfabrik Reinhausen
Dissemination and reproduction of this document and use and disclosure of its content are
strictly prohibited unless expressly permitted.
Infringements will result in liability for compensation. All rights reserved in the event of the
granting of patents, utility models or designs.
The product may have been altered since this document was published.
We reserve the right to change the technical data, design and scope of supply.
Generally the information provided and agreements made when processing the individual
quotations and orders are binding.
The original operating instructions were written in German.

Table of contents
3
Table of contents
1Introduction.............................................................................. 5
1.1 Manufacturer ............................................................................. 5
1.2 Completeness............................................................................ 5
1.3 Supporting documents............................................................... 5
1.4 Safekeeping............................................................................... 6
2Safety........................................................................................ 7
3Hardware .................................................................................. 8
3.1 Operating controls ..................................................................... 8
3.2 Display elements ..................................................................... 10
4Functions and settings ......................................................... 15
4.1 Setting the language................................................................ 15
4.2 NORMset................................................................................. 16
4.3 Control parameters.................................................................. 19
4.3.1 Setting desired value 1...3 ..................................................................... 19
4.3.2 Selecting a desired value....................................................................... 20
4.3.3 Setting delay time T1 ............................................................................. 21
4.3.4 Setting control response T1 ................................................................... 22
4.3.5 Setting delay time T2 ............................................................................. 23
4.4 Information about device ......................................................... 24

Table of contents
4
5Overview of parameters........................................................ 26

1 Introduction
5
Introduction
This technical file contains information for quick start-up
of the product. It does not provide comprehensive operat-
ing instructions.
This technical file is intended solely for specially trained
and authorized personnel.
Manufacturer
The product is manufactured by:
Maschinenfabrik Reinhausen GmbH
Falkensteinstraße 8
93059 Regensburg, Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Further information on the product and copies of this
technical file are available from this address if required.
Completeness
This technical file is incomplete without the supporting
documentation.
Supporting documents
The following documents apply to this product:
1
1.1
1.2
1.3

1 Introduction
6
Also observe generally valid legislation, standards and
guidelines as well as specifications on accident preven-
tion and environmental protection in the respective coun-
try of use.
Safekeeping
This technical file and all supporting documents must be
kept ready at hand and accessible for future use at all
times.
1.4

2 Safety
7
Safety
This technical file does not replace the operating instruc-
tions for the voltage regulator. The quick reference guide
contains information that will provide a rapid introduction
to operating the voltage regulator.
▪ For detailed operation and safety information
please read carefully through the voltage regulator
operating instructions.
▪ Pay particular attention to the information in the
chapter on safety in the operating instructions.
2

3 Hardware
8
Hardware
Operating controls
The device has 15 pushbuttons. The illustration below is
an overview of all the device's operating controls .
3
3.1

3 Hardware
9
Figure 1: Operating controls
RAISE key: Sends control command for raise tap-
change to the motor-drive unit in manual mode.
LOWER key: Sends control command for lower tap-
change to the motor-drive unit in manual mode.
REMOTE key: Activate/deactivate "Remote" operating
mode. When you deactivate this operating mode, the
"Local" operating mode is automatically activated.
MANUAL key: Activate "Manual mode" operating mode.
AUTO key: Activate "Auto mode" operating mode.
PREV key: Change measured value display and switch
to previous parameters.

3 Hardware
10
NEXT key: Change measured value display and switch
to next parameters.
ENTER key: Confirm selection and save modified pa-
rameters.
ESC key: Escape current menu and select previous
menu levels.
MENU key: Select main menu.
F1 to F5 function keys: Select functions displayed on the
screen.
Display elements
The device has a graphics display and 15 LEDs , which
indicate the various operating statuses or events.
3.2

3 Hardware
11

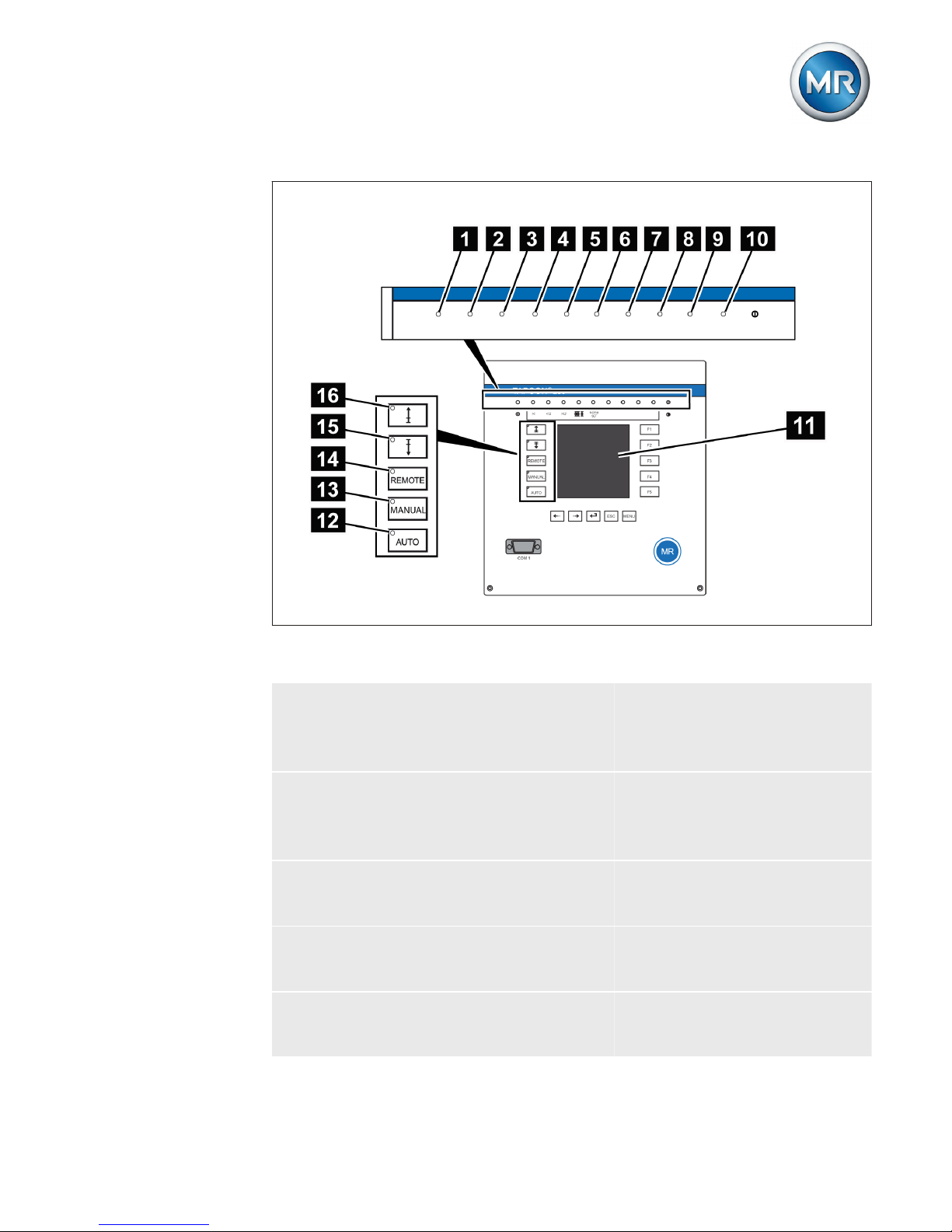

Figure 2: Indicator elements
1Operating status LED,
green
9 LED 3, function can be
freely assigned, yellow/
green
2Overcurrent blocking
LED, red
10 LED 4, function can be
freely assigned,
yellow/red
3Undervoltage blocking
LED, red
11 Graphics display
4Overvoltage blocking
LED, red
12 Auto operating mode ac-
tive LED
5Parallel operation active
LED, green
13 Manual operating mode
active LED

3 Hardware
12
6NORMset active LED ,
green
14 Remote operating mode
active LED
7 LED 1, function can be
freely assigned, yellow
15 Lower tap-change active
LED
8 LED 2, function can be
freely assigned, yellow
16 Raise tap-change active
LED

3 Hardware
13
Display

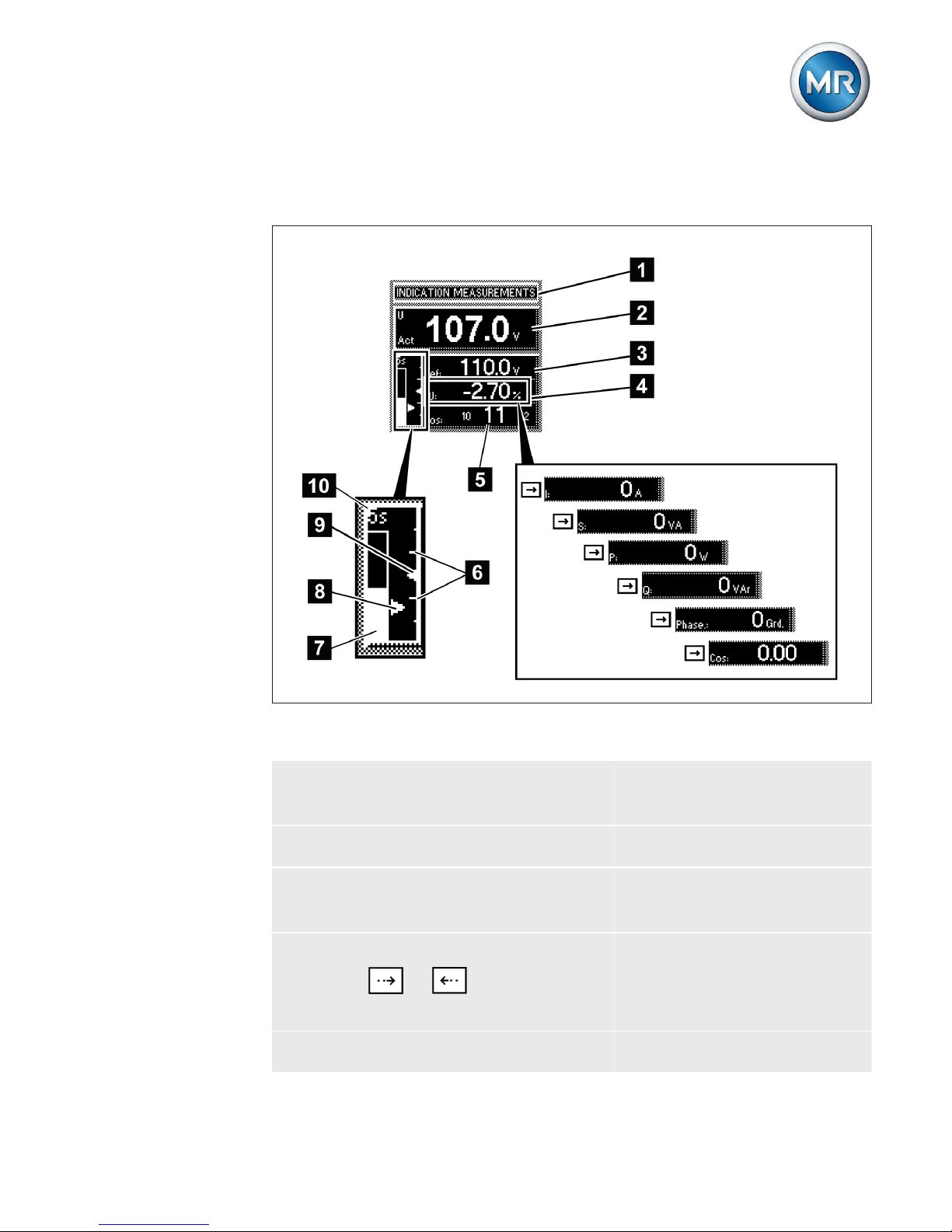

Figure 3: Display
1 Status line 6 Bandwidth (upper and
lower limit)
2 Measured voltage Uactual 7 Time bar for delay time T1
3 Desired voltage Udesired 8 Mark for measured volt-
age Uactual
4 Other measured values
(use or to switch
between them)
9 Mark for desired voltage
Udesired
5 Tap position n-1; n; n+1 10 Remaining delay time T1

3 Hardware
14
Other measured values
In auto mode and manual mode the measured value dis-
play can be set using the or keys. The follow-
ing measured values can be displayed:
Unit Measured value
dU Control deviation
I Current
S Apparent power
P Active power
Q Reactive power
Phase Phase angle
Cos Active factor: Cosine φ [phi] (output factor)
Table 1: Measured value display
Status line
Current messages and events are displayed in the status
line . You can find more information about messages
and events in the operating instructions.

4 Functions and settings
15
Functions and settings
This chapter gives a short summary of all important func-
tions and possible settings of the voltage regulator. For
details, see the voltage regulator's operating instructions.
Before carrying out the parameterization, proceed as fol-
lows:
1. If necessary, press and at the same time to
deactivate the key lock.
2. Press to select manual mode.
3. Press to select the main menu.
ðThe parameters can be set.
Setting the language
You can use this parameter to set the display language
for the device. The following languages are available:
English Italian
German Portuguese
French Russian
Spanish
To set the language, proceed as follows:
4
4.1

4 Functions and settings
16
1. > Configuration > General.
ðLanguage
2. Press or to select the required language.
3. Press .
ðThe language is set.
NORMset
NORMset mode is used for quickly starting voltage regu-
lation. In NORMset mode, the bandwidth and delay time
parameters are automatically adapted to the require-
ments of the grid.
Line drop compensation cannot be performed in
NORMset mode.
Set the following parameters to operate the device in
NORMset mode.

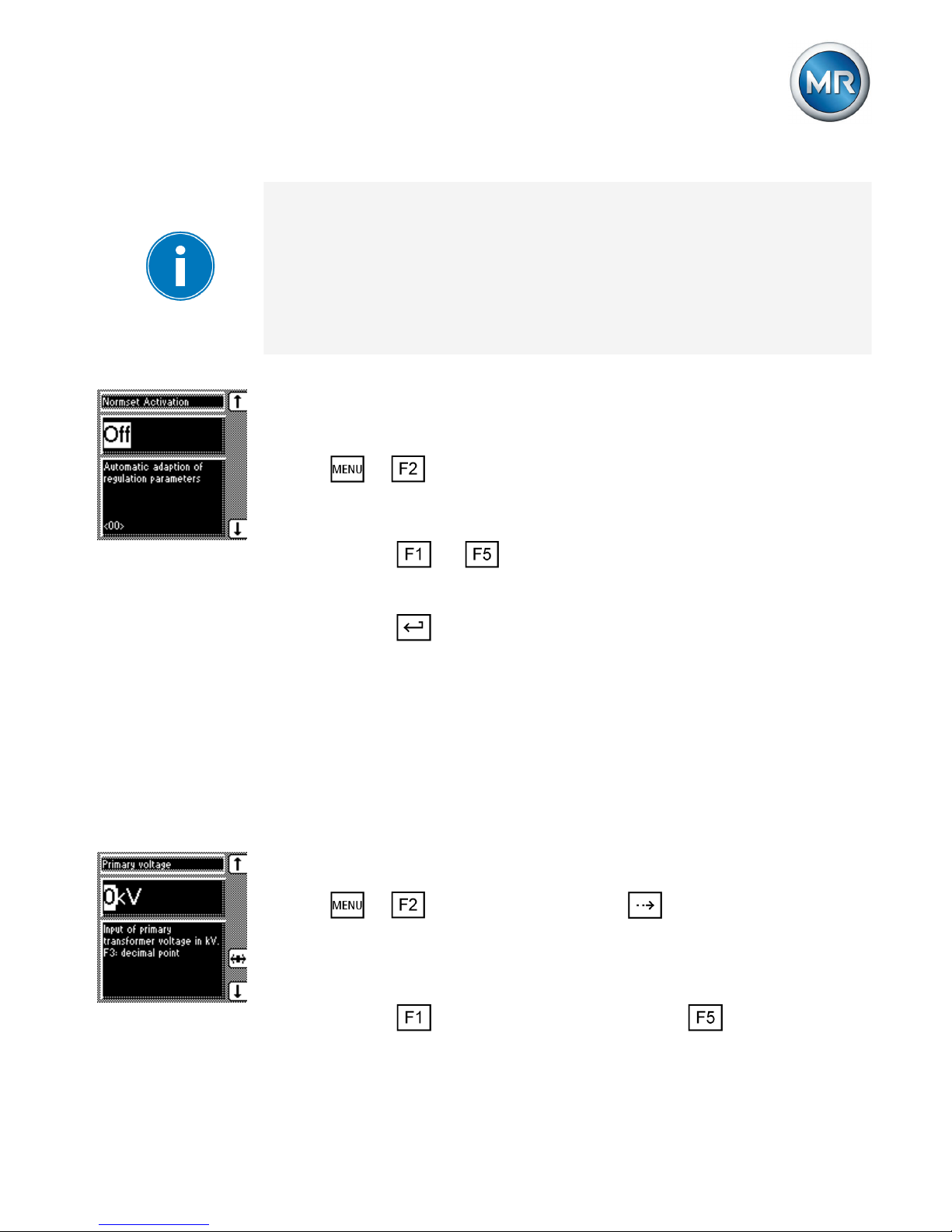

Activating/deactivating NORMset
You can use this parameter to activate NORMset mode.
4.2

4 Functions and settings
17
A manual tap-change operation is required to activate
NORMset. This is how the voltage regulator determines
the bandwidth required.
If the transformer is switched off, another manual tap-
change operation is required.
Proceed as follows to activate/deactivate NORMset
mode:
1. > NORMset
ðNORMset activation.
2. Press or to activate NORMset by selecting
On or to deactivate NORMset by selecting Off.
3. Press .
ðNORMset is activated/deactivated.
Setting the primary voltage
With this parameter, you can set the voltage transform-
er's primary voltage.
Proceed as follows to set the primary voltage:
1. > NORMset > Press until the desired
parameter is displayed.
ðPrimary voltage.
2. Press to increase the value or to reduce it.

4 Functions and settings
18
3. Press .
ðThe primary voltage is set.

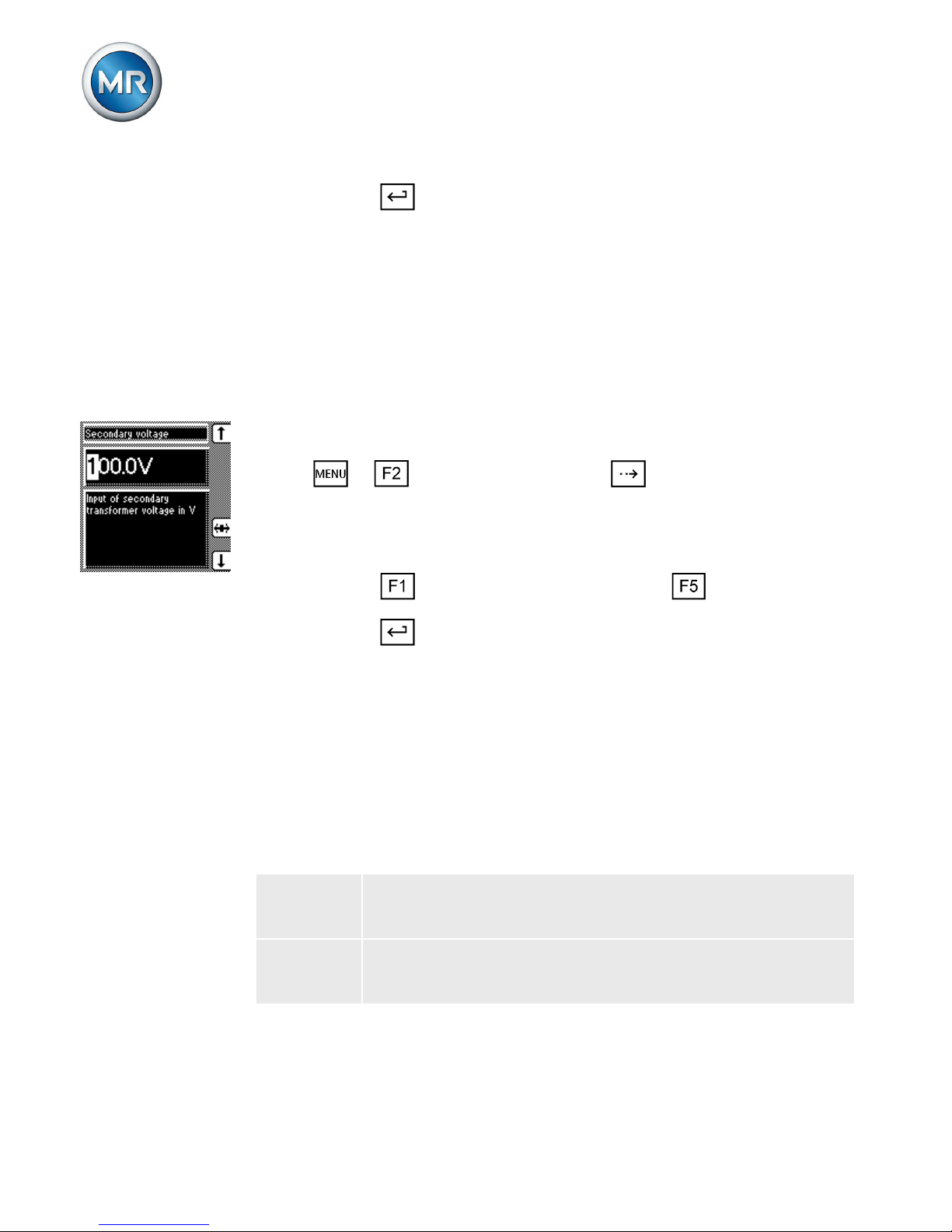

Setting the secondary voltage
With this parameter, you can set the voltage transform-
er's secondary voltage.
Proceed as follows to set the secondary voltage:
1. > NORMset > Press until the desired
parameter is displayed.
ðSecondary voltage.
2. Press to increase the value or to reduce it.
3. Press .
ðThe secondary voltage is set.
Setting desired value 1
With this parameter, you can set the desired value for au-
tomatic voltage regulation. You can enter the desired val-
ue as follows:
In V The value relates to the secondary voltage of the
voltage transformer.
In kV The value relates to the primary voltage of the volt-
age transformer.
Table 2: Desired value setting

4 Functions and settings
19

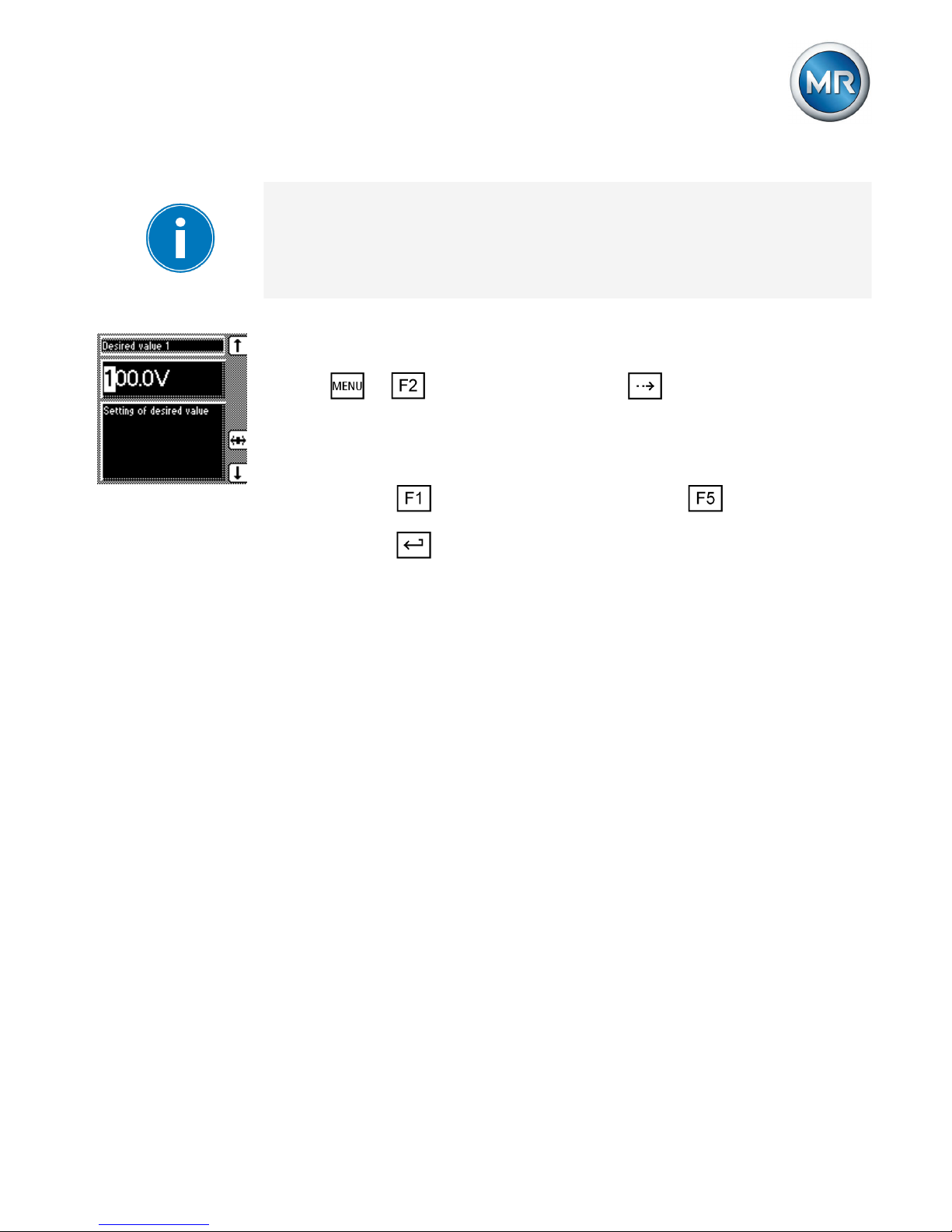

Settings in kV are only possible if you have previously
entered the parameters for primary and secondary volt-
age.
Proceed as follows to set the desired value:
1. > NORMset > Press until the desired
parameter is displayed.
ðDesired value 1.
2. Press to increase the value or to reduce it.
3. Press .
ðThe desired value is set.
Control parameters
Setting desired value 1...3
You can set up to 3 desired voltage values. Desired val-
ue 1 is the default desired value. Desired values 2 and 3
are activated if there is a continuous signal at factory-pre-
set control inputs 4:17 or X4:18.
4.3
4.3.1

4 Functions and settings
20

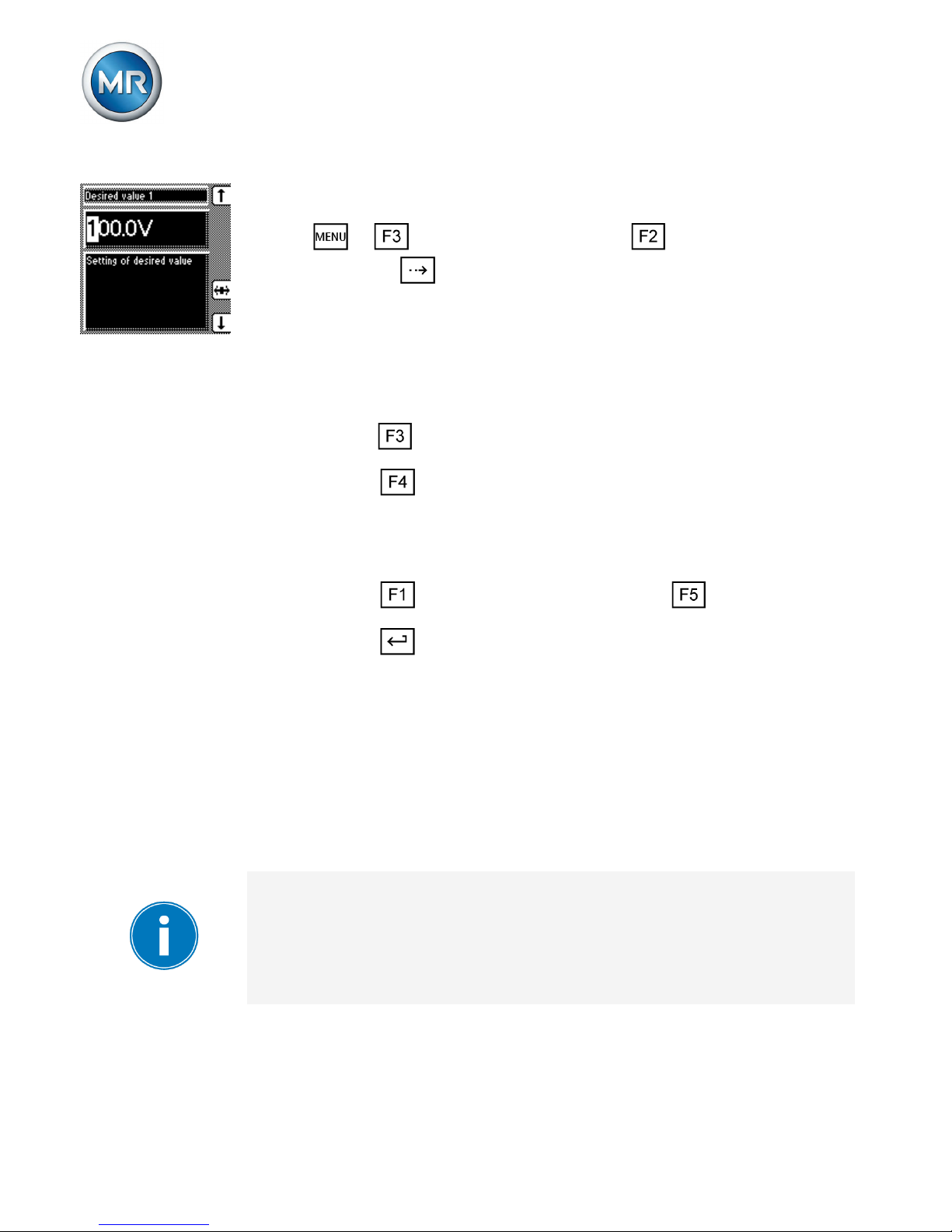

Proceed as follows to set the desired value:
1. > Control parameter > voltage regulator
> Press until the desired parameter is dis-
played.
ðDesired value 1/Desired value 2/Desired val-
ue 3.
2. If you have already entered the transformer data,
press to select the unit you want: "V" or "kV".
3. Press to highlight the position.
ðThe desired position is highlighted and the
value can be changed.
4. Press to increase the value or to reduce it.
5. Press .
ðThe desired value is set.
Selecting a desired value
You can use this parameter to select the active desired
value 1, 2 or 3.
If you select the desired value using appropriately con-
figured GPIs, this parameter's setting is ignored. Refer
to the operating instructions for more information about
GPI configuration.
4.3.2
