MASSAGGIO Ricco User manual

Massaggio Ricco
User manual

01
CONTENTS
Safety and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Name and function of components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Method of usage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
02
04
05
06
12
Thanks for purchasing this product. Please read this manual instruction carefully in
order to know how to use this product correctly before operation. Please pay more
attention to some important safety warning and keep this manual book properly for
future use.
Note: Our Company reserves the right to revise the design and description of this
product without any further notice. Please refer to the actual color of this product.

02
1. Important Safety Warning.
Don’t allow children to touch moveable part of this product.
Please use well-grounding power supply suited to this product.
Please pull out the plug after use or before cleaning to avoid injury or
damage to the product.
Please operate this product according to this manual instruction.
Don’t use accessories which are not recommended.
Don’t use this product outdoors.
Please read this manual instruction carefully before operation.
Any other usage that is not listed in this manual instruction is forbidden.
20 minutes of usage each time is recommended.
Please don’t use it if the leather is broken or damaged.
Please don’t use it if the cover or leather is damaged.
Please don’t use it if the radiator hole is covered or blocked.
Please don’t drop anything into this product.
Please don’t fall asleep while using this product.
Please don’t use it if drunk or feel unwell.
Please don’t use it within one hour after having meal.
Please don’t make the massage function too strong for avoiding Injury.
2. Environment for usage.
Please don’t use it under high temperature and moist environment such as
bathroom.
Please don’t use it immediately while the environmental temperature
changes sharply.
Please don’t use it under heavy-dusty or caustic environment.
Please don’t use it where there is not enough space or not good ventilation.
3. People who are not suitable to use this product.
People who are suffering from osteoporosis are not suitable to use this product.
People who are suffering from heart disease or carrying electronic medical
equipment such as heart pacemaker are not suitable to use this product.
People who are suffering from fever are not suitable to use this product.
Pregnant women or women that are in menses period are not suitable to use this
product.
People who got injured or skin disease are not suitable to use this product.
Children under 14-year old or people mentally unbalanced without being
Supervised are not allowed to use this machine.
People who are told by doctor to have rest or people who feel unwell are not
suitable to use this product.
People whose bodies are wet are forbidden to use this product.
Safety and maintenance
4. Safety.
Check the voltage if it is suitable to the specification of this product.
Don’t use wet hand to pull the plug.
Don’t make water go inside this product to avoid electric shock or cause damage
to this product.
Don’t damage the wires or change the circuit of this product.

03
SAFETY WARNING
The chair is not too heavy, children climb on it or
stand on it and jump is forbidden, or else it would
be cause the chair over load one side and
damage the chair or personal injuries.
Safety and maintenance
5. Maintenance.
This product should be maintained by certain appointed agents, users are
prohibited to disassemble or maintain by themselves.
Please don’t forget to cut the power after usage.
Don’t use this product if the socket looses.
If this product will be left unused for long, please curl up the wires and reserve this
product in dry and dustless environment.
Don’t reserve this product under high temperature or near fire and avoid longtime
direct sunshine.
If the detachable cord / supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard.
Please clean this product by dry cloth. Don’t use thinner, benzene or alcohol.
The mechanical components of this product are specially designed and made, it is
not necessary to be specially maintained.
Don’t use edged res to thrust this product.
Don’t roll or pull this product above uneven ground, it should be lifted before moving.
Please use it intermittently; don’t make this product work continuously for long.
6. Solution of ordinary malfunctions.
It is nature movement voice if the motor sounds while in usage.
If the controller can’t work normally, please check the plug and socket if they are
connected strongly and make sure the switch is turned on.
If the rated working time is over, the product will automatically activate the power-
off button; If this product works continuously for long, the temperature protector
will make the product automatically power-off, it should be used again after half
an hour's rest.
Don’t use wet cloth to clean the electric parts such as switch and plug.
Be away from this product under power cut state to avoid injury if the power
comeback suddenly.
Stop using this product while it works abnormal, and please consult local agent
immediately.
Stop using this product if you feel unwell, and please consult health care doctor.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its Service
agent or similarly qualified persons in order to avoid a hazard.

04
Name and function of components
1
49
5
11
10
16 17 18
14
15
7
12
FUSE: F4AL 250V
POWER INPUT ON/OFF
13
6
2
38
1. Pillow pad
2. Control board
3. Tea-tray
4. Seat cushion
5. Footrest frame
6. Front cover
7. Bluetooth digital audio
8. Backrest cushion
9. Armrest
10. Backrest cover
11. USB socket
12. Tea-tray sticker
13. Convenient pocket
14. Power cord and plug
15. Caster
16. Power cord socket
17. Power switch
18. Fuse box

05
This product is designed with 2 sets massage mechanism hands. One set is
specially designed for neck which can be adjusted up and down. The other set
massage mechanism can move up and down, four-wheel drive and muted design.
Set with 3 simulation massage methods: kneading, tapping, sync with kneading
and tapping.
Set with auto massage function: auto I, auto II, auto III and demo four auto modes.
Set with massage mechanism hands can manually adjust position. Can positioning
massage according to your needs. Have kneading and tapping function with 3
levels speed optional.
Set with neck kneading massage independently: Have bidirectional kneading、one-
way kneading optional. Can manually adjust neck & shoulder massage hands position.
Set with air pressure massage function: Air pressure to the calf, 3 levels optional.
Neck & shoulder heating function, use carbon fiber as infrared heating source.
Mobile USB charger is designed in front of the tea-tray
It is designed with timing display function.
The footrest can be revered 180° manually, can choose leg air bag massage
according to user's demands.
It can play music by connecting to Intelligent equipment through blue tooth
There are two 3D digital audio on both sides of the shoulder place on the massage chair
SL type super-long curved rail offers close massage from shoulder to thigh
Massage mechanism can return back to original position once shutting the power off.
Function

06

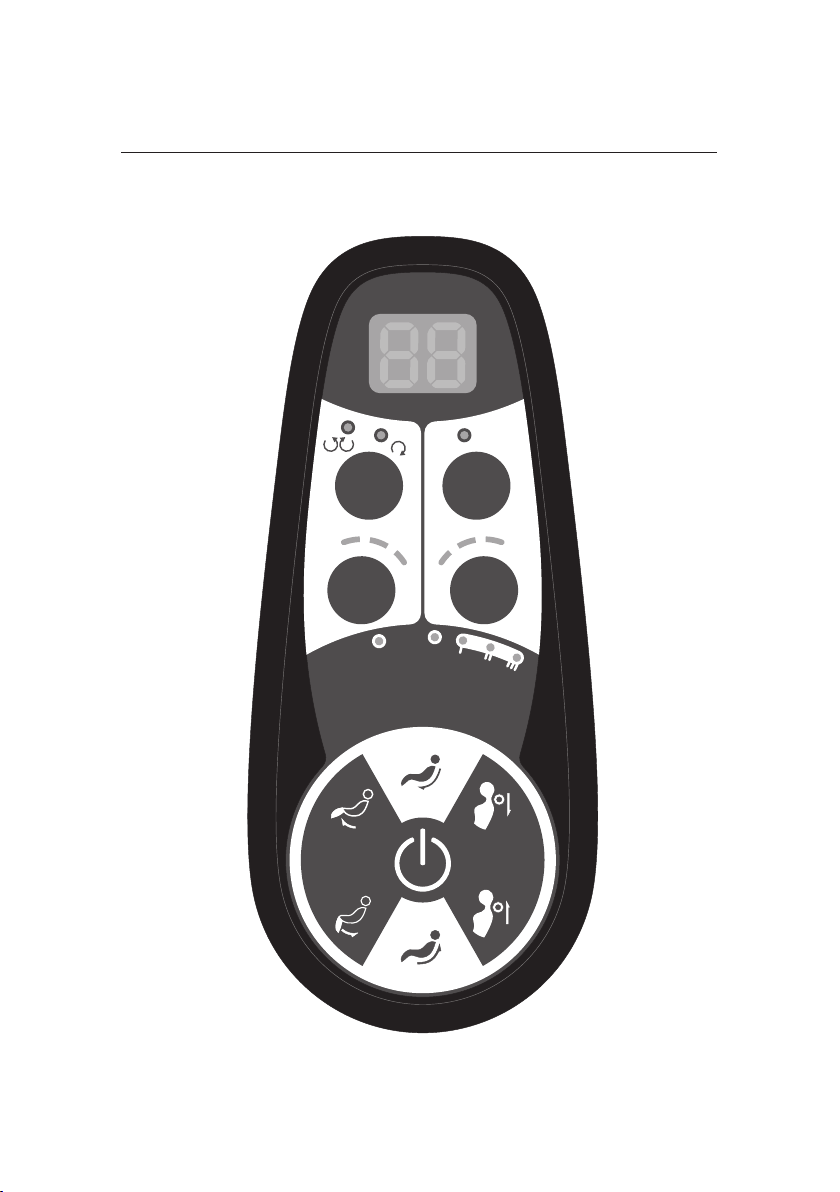

Note: See details on actual product buttons light.
NECK &
SHOULDER
AIR
PRESSURE
HEAT
KNEADING
TAP
AUTO
DEMO
Method of usage

07
1. Switch on the machine
Connect method figure Switch position of the machine
FUSE: T4AL 250V
POWER INPUT ON/OFF
2. Start to massage.
A) Auto massage
Massage Features Display Button
Description
Auto
massage
Auto I: Whole body massage, relax sore spot.
Auto I: Focus massage on neck and back.
Auto III: Focus massage on waist, buttocks
and thigh.
Demo: Set with 5 minutes fast experience
massage.
See the
buttons light
See the
buttons light
B)Manual massage
Massage Features Display Button
Description
Function
Massage
position
adjustment
Press this button to open or close the
kneading massage function.
Press this button to open or close the tapping
massage function.
Three levels optional: weak, medium and
strong.
Massage hands move up.
Massage hands move down.
KNEADING
AUTO
Method of usage
See the
buttons light
See the
buttons light
See the
buttons light
See the
buttons light
·Press the red button to start massage.
·Enter to AutoⅠmode automatically. You can choose other modes.

08
E) Skeleton rack position adjustment:
Operational Method:
·Enter the Smart Device Menu , Turn on "Setting" --Choose "Bluetooth" --Turn
on "Blue tooth" -- Auto Searching new Blue tooth devices.
·The Smart Device will find the relevant Blue tooth model as (IMCM-0066) , and
ask if connect , Choose "YES"or "CONFIRM".
·Enter the password "0000 or 1234", Then "CONFIRM" to fin ish the match.
·Open your music player on the smart device and choose the music to play .
Attention : Every Blue tooth model is subject to the actual searched model , as
"IMCM-0066or IMCM-0061 or IMCM-0088…etc", Every Bluetooth is unique .
3. The manual of bluetooth speaker
Massage Features
Button
Description
Footrest
recline
button
Press this button continuously and the footrest will
recline slowly, it will stop when release the button. When
the footrest reaches highest point, it will stop reclining
Footrest
decline
button
Press this button continuously and the footrest will
decline slowly, it will stop when release the button. When
the footrest reaches lowest point, it will stop declining
D)Buttocks air pressure massage.
C)Neck & shoulder massage
See the
buttons light
See the
buttons light
See the
buttons light
Massage Features Display
Button
Description
Function
Neck &
shoulder
heating
Neck &
shoulder
Heating
Massage
position
adjustment
Press this button to turn on bidirectional
kneading, one-way kneading or turn off
kneading massage.
Press this button to open or close
heating function.
Neck & shoulder massage hands
move up.
Neck & shoulder massage hands
move down.
Massage Features Display Button
Description
Air
pressure
Air pressure massage on buttocks,
3 intensity adjustments: strong,
medium and weak.
AIR
PRESSURE
Method of usage

09
FUSE: F4AL 250V
POWER INPUT ON/OFF
4. Turn off power, stop massage
·In massage process, press red button, or the time is out, all the massage function
will stop, and the massage hand restore.
·After the restoration, turn off the power
Figure (Turn off the power)
Position of the power switch Turn off method figure
·Take out the upper cover of the tea-tray from the accessory bag, aim the slot of
the upper cover to the limit board, prepare to insert (Figure 3)
·Press the upper assembly down hardly to insert it into the limit board and make
sure it is installed in correct position (Figure 4)
5. Tea-tray installation method
·Take the chair out of the packing carton (Figure 1)
·Take out the cup holder mounting plate from the accessory bag, align with the
mounting screw hole reserved for the right armrest, then screw the 2 M4X10
screws into the lock with the cross screwdriver, and pull out the male head of USB
line from the right armrest of the massage chair (Figure 2).
Figure 1 Figure 2
Figure 3 Figure 4
Tea-tray upper slot
Tea-tray limit board
Tea-tray
upper assembly
Massage chair right side armrest
USB male wire
Tea-tray support board
M4x10 screw
Method of usage

10
Method of usage
·After confirming the tea-tray upper assembly is installed well, twist 2 M4*10 screws
with cross screwdriver and fix the tea-tray upper assembly on the right side of the
armrest (Figure 5)
·Connect the USB male wire to the USB female wire which is on the tea-tray upper
assembly (Figure 6)
Tea-tray upper assembly
M4x10 screw
Figure 5
USB female wire
USB male wire
Figure 6
·Take out the tea-tray lower assembly from the accessory bag, aim the tea-tray
lower assembly to the screw hole of the tea-tray upper assembly, twist 3 ST2.9*10
self tapping screw tightly and make sure both of them are installed well (Figure 7)
·When tea-tray is installed well, find out the M4*10 thread hole under the tea-tray,
twist 1 M4*10 screw tightly by using the cross screwdriver in the accessory bag,
installation finish. After installation is done, shake the tea-tray by hand to see if it
is installed tightly (Figure 8)
Tea-tray lower assembly
ST2.9x10 self
tapping screw
Figure 7 Figure 8

11
Method of usage
7. Floor protection
·Put the heavy massage chairs on the wood floor for a longtime may damage the floor,
so please place a carpet or other object to avoid this damag
CAUTION
Do not move the chairs with its casters on bumpy ground or in a
narrow space. Two people are required to lift the chair, and main
lift point on the front cover board and back cover for moving.
8. Method of movement
CAUTION
Make sure that the power off and take off the power line
before moving
While moving the massage chair, make sure that all power lines are far above the
ground. Tilt backrest down to certain angle, with the gravity center resting on the
casters (around 25 degrees). Push the chair forward or backward with your hands
and finally resume the chair to the normal angle.
25°

12
Product specification
Model: Massaggio Ricco
Configure: 2
Name: Massage Chair
Rated voltage: 220-240V~ 50Hz/60Hz
Rated power input: 60W
Noise:55dB
Rated time: 20Min
Safety structure: Class I
Material introduction: PVC, PA, steel parts and electric & electron parts
MATERIAL PU LEATHER CLOTH WOOD
Bluetooth frequency range and power of 2.5 mW
Manufacturer's declaration: Product is compliant with Directive: 2014/53/EU.
Full text of declaration of conformity is available online
https://restlords.com/en/declaration/.

SAVE THESE INSTRUCTIONS
Dear user, you can contribute to environmental protection.
Be environmentally responsible and return your used equipment to the relevant
collection point designated by your local administration. The materials used to
manufacture the device may be valuable recyclable resources and, if disposed of
incorrectly, can pose a risk to the natural environment.
Remember - do not dispose of the device together with your household waste.
