Mastech MS8221 User manual

CONTENTS
1. SAFETYINFORMATION .1
2. DESCRIPTION ..4
3. SPECIFICATIONS .6
4. OPERATINGINSTRUCTION ..9
4.1Voltagemeasurement ...10
4.2Current measurement 10
4.3Resistancemeasurement .....12
4.4Diodetest .12
4.5Continuitytest .13
4.6Temperaturemeasurement ...13
4.7Batterytest ..14
4.8Transistormeasurement 14
5. MAINTENANCE ...15
User'sManual
Mastech MS8221

1. SAFETYINFORMATION
WARNING
To ensuresafeoperation,and inorderto
exploittothefullthefunctionalityofthemeter,
please followthedirectionsinthissection
carefully.
Thismultimeterhasbeen designed according to
IEC-1010 concerning electronicmeasuring instruments
withanovervoltagecategoryCATII 1000V,CATIII
600Vandpollution 2.
Followall safetyand operating instructionstoensure
thatthemeterisused safelyand iskeptingood
operating condition.
Withproperuseandcare, thedigitalmeterwill giveyou
yearsofsatisfactoryservice.
1.1PRELIMINARY
-Whenusing themeter,theusermustobserveall
normalsafetyrulesconcerning:
Protection against thedangersofelectricalcurrent.
Protection ofthemeteragainst misuse.
-Whenthemeterisdelivered,checkthatithasnot
been damagedintransit.
-Whenpoorconditionunderharshpreservation or
shipping conditionscaused,inspectandconfirmthis
meterwithout delay.
-Testleadsmustbeingood condition.Beforeusing
-1-

verifythattheinsulation ontestleadsisnot
damagedand/ortheleadswireisnotexposed.
-Full compliancewithsafetystandardscanbe
guaranteed onlyifused withtestleadssupplied.If
necessary,theymustbereplaced withthesame
modelorsameelectricratings.
1.2DURINGUSE
-Beforeusing,you mustselecttherightinputjack,
functionand range.
-Neverexceed theprotectionlimitvaluesindicated in
specificationsforeachrangeofmeasurement.
-Whenthevaluescaletobemeasured isunknown
beforehand,settherangeselectoratthehighest
position.
-Donotmeasurevoltageifthevoltageonthe
terminalsexceeds1000Vaboveearthground.
-Alwaysbecarefulwhenworkingwithvoltagesabove
60VDC or30VACrms,keepfingersbehind the
probebarrierswhilemeasuring.
-Beforerotatingthetransformswitchtochange
functionsand ranges, disconnect test leadsfromthe
circuit undertest.
-Neverperformresistance,temperature,transistor,
diodeand continuitymeasurementsonlivecircuits.
-Neverusethemeterunderthecondition ofthe
explosiveair, steamordirt.
-Ifanyfaultsorabnormalitiesareobserved, themeter
-2-

cannotbeused anymoreandithastobechecked
out.
-Neverusethemeterunlesstherearcaseisinplace
and fastened fully.
-Pleasedonot storeorusemeterinareasexposed to
directsunlight, high temperature,humidityor
condensation.
1.3SYMBOL
1.4MAINTENANCE
-Pleasedonotattempttoadjustorrepairthemeterby
removingtherearcasewhilevoltageisbeingapplied.
Atechnician whofullyunderstandsdangerinvolved
shouldonlycarryout suchactions.
-Beforeopening thebatterycoverorcaseofthemeter,
alwaysdisconnect test leadsfromall tested circuits.
-Toavoidthewrong reading causingelectricityattack,
when themeterdisplays“
”,youmustchangethe
Caution:refertotheinstruction manual.
Incorrectusemayresultindamagetothe
deviceoritscomponents.
Earth
Thisinstrument hasdoubleinsulation.
Fuse: F200mA/250V
-3-

battery.
-Forcontinueprotectionagainstfire,replacefuseonly
withthespecified voltageand currentratings:F
200mA/250V (quickacting).
-Donotuseabrasivesorsolventsonthemeter,usea
dampclothandmilddetergent only.
-Alwaysset thepowerswitchtotheOFF positionwhen
themeterisnot inuse.
-If themeteristobestored foralong period of time,the
batteriesshouldberemoved toprevent damagetothe
unit.
2. DESCRIPTION
-Thismeterisaportableprofessionalmeasuring
instrument withhandsomeLCDeasilyreading.
-Singleoperationofatransformswitchmakes
measurementconvenient. Overload protection and
lowbatteryindicationareprovided,thismeteris
idealforuseinthefields,workshop,school,hobby
and homeapplications.
-Thismeteriswiththefunctionsofdatahold.

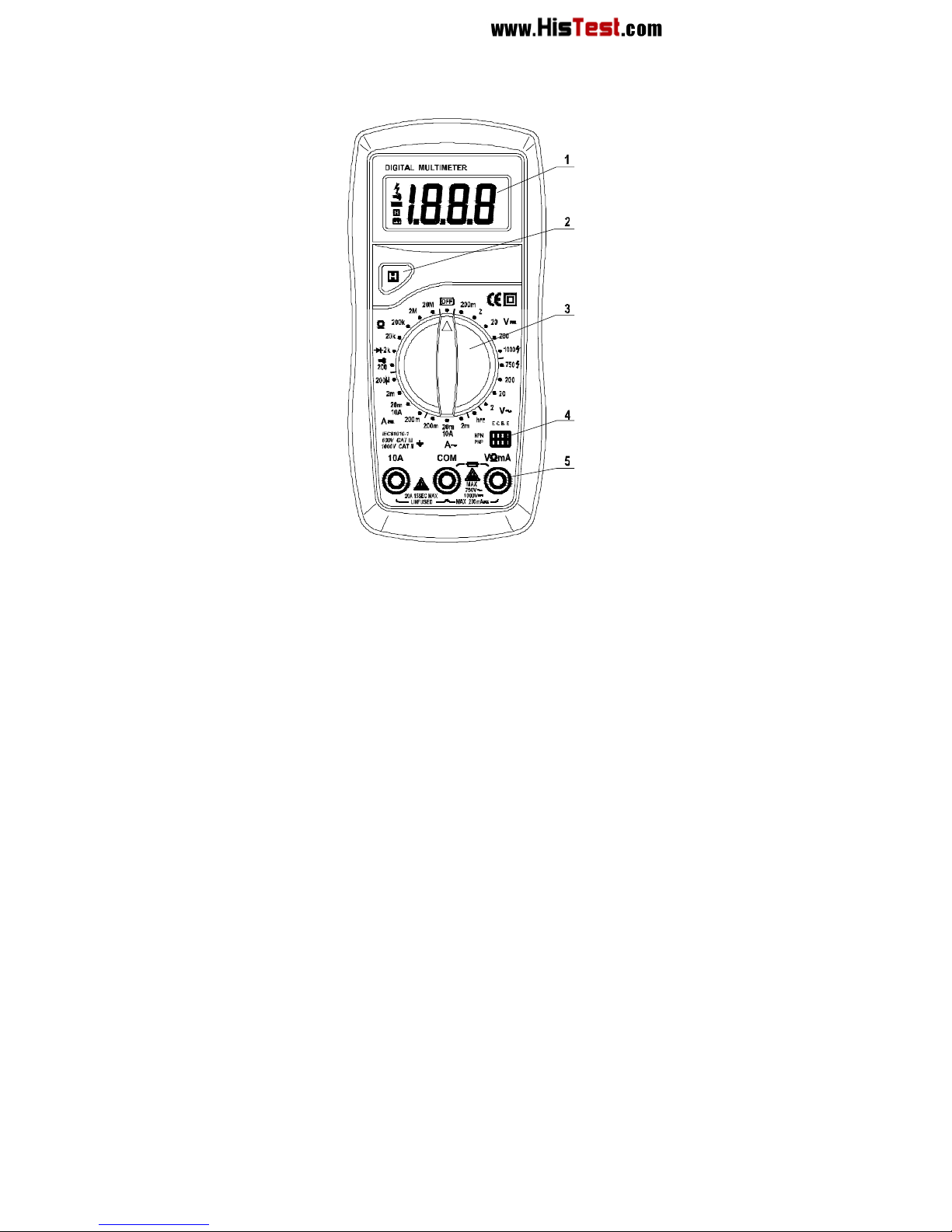

NAMEOFCOMPONENTS
1. LCD display
2. Holdkey
3. Rotaryswitch
-4-

4. hFE socket (exceptMS8221D)
5.Terminals
-5-

3. SPECIFICATIONS
3.1GENERALSPECIFICATIONS
-Environment conditions:
600V CAT.III and 1000V CAT.
Pollution degree: 2.Altitude<2000m.
-Operating temperature:
0~40OC(32 to104 ), (<80% RH, non-condensing)
-Storagetemperature:
-10~50 OC(14 to122 ), (<70% RH, batteryremoved)
-TemperatureCoefficient:
0.1×(specifiedaccuracy)/OC(<18OCor>28OC)
-MAX. Voltagebetween terminalsand earthground:
750VACrmsor1000V DC
-FuseProtection: mA:F200mA/250V ∅5×20,
10A: unfused.
-Display: LCD, 1999counts, updates2-3/sec.
-OverRangeindication: LCD will display"1".
-Lowbatteryindication:
The" "isdisplayed ontheLCD.
-Polarityindication: "−"displayed automatically.
-Powersource: 4.5V
-Batterytype:AAA1.5V
-Dimensions: 158(L)×74(W)×31(H) mm.
-Weight: 220g.Approx. (batteryincluded).
3.2Measurementspecifications
Accuracy: ±(%ofreading+numberofdigits)at 18°Cto
28°C(64°Fto82°F)withrelativehumidityto80%.
-6-

(Accuracyisspecifiedforaperiodoneyearafter
calibration)
3.2.1DC VOLTAGE Accuracy
Range
Resolution
MS8221A/8221D
MS8221B/8230B
0.2V 0.1mV ±0.5%±2
2V 1mV ±0.5%±3
20V 0.01V
200V
0.1V
±0.5%±1
±0.8%±3
1000V
1V ±0.8%±2 ±0.8%±5
-Input impedance:MS8221A/MS8221D: 10MΩ
MS8221B/MS8230B: 1MΩ
-Max. input voltage: 200mV range: 250VDCorACrms
2V -1000V ranges: 1000VDC or750V rms
3.2.2ACVOLTAGE Accuracy
Range
Resolution
MS8221A/8221D
MS8221B/8230B
2V 1mV -
20V 10mV -
200V
0.01V ±0.8%±3
750V
1V ±1.2%±3 ±1.2%±5
-Input impedance:MS8221A/MS8221D: 10MΩ
MS8221B/MS8230B: 1MΩ
-Max. input voltage: 200mV range: 250VDCorACrms
2V -1000V ranges: 1000VDC or750V rms
-Frequencyrange:MS8221A/MS8221D: 40Hz-1000Hz
MS8221B/MS8230B: 40Hz-400Hz
-Response:Average, calibrated inrmsofsinewave.
-7-

3.2.3DC CURRENT Accuracy
Range
Resolution
MS8221A/8221D
MS8221B/8230B
200uA
0.1uA
2mA 1uA ±1.0%±2
20mA
10 uA ±0.8%±1
200mA
100uA ±1.2%±1 ±1.5%±2
10A 10mA ±2.0%±5 ±3.0%±2
Overload protection:F250mA/250Vfuse(10Arange
unfused).
Max. Input Current: mAJack: 200mA, 10AJack: 10A
3.2.4ACCurrent(MS8221A/MS8221D)
Range Resolution
Accuracy
2mA 1µA
20mA 10µA ±1.2%±3
200mA 0.1mA ±2.0%±3
10A 10mA ±3.0%±7
Overload protection:F250mA/250Vfuse(10Arange
unfused).
Max. input current: mA: 200mAdcor200mAacrms
10A: 10Acontinuous, 20A15 sec. Max
FrequencyRange: 40Hz-1kHz
Indication:Average(rmsofsinewave)
3.2.5TransistorhFE (ExceptMS8221D)
Display:read approximatehFEvalue(0~1000)of
transistorundertest (ALLTYPE).
Testcondition:basecurrentapprox.10µA(MS8221A)

or2µA(MS8221B/MS8230B).
V
CE: approx. 2.8V
3.2.6Resistance Accuracy
Range
Resolution
MS8221A/8221D
MS8221B/8230B
200Ω
0.1Ω±0.8%±3 ±1.0%±3
2KΩ1Ω
20KΩ
10Ω
200KΩ
100Ω
2MΩ1kΩ
±0.8%±1 ±1.0%±2
20MΩ
10kΩ±1.0%±2 -
Overload protection: 250V DCor250VACrms.
3.2.7Diodetest
Display: read approximateforwardvoltageofdiode
ForwardDCCurrent: approx. 1mA
Reversed DCVoltage:approx. 2.8V
Overload protection: 250V DC or250VACrms
3.2.8Audiblecontinuitytest
Built-inbuzzersoundsifresistanceisless than
approx. 50Ω.
Opencircuit voltage:approx. 2.8V
Overload protection: 250V DC or250VACrms
3.2.9Temperature(OnlyMS8221B)
Range Resolution Accuracy
-20℃to0℃±5.0%±4
0℃to400℃1℃±1.0%±3
-8-

400℃to1000℃
±2.0%±3
-Overload Protection: 250V DC orrmsAC
3.2.10 BatteryTest(OnlyMS8221D)
Range Accuracy Dischargecurrent
1.5V 100mA
9V ±0.8%±1 6mA
Overload protection: 1.5V: F250mA/250V fuse
9V: 250Vdcor250Vacrms
4.OPERATINGINSTRUCTION
4.1Voltagemeasurement
-Set rotaryswitchtothedesired V orV~range.
-Connecttheblackand redtestleadstotheCOMand
V terminalsrespectively.
-Connect thetest leadstothecircuit being measured
-Readthedisplayedvalue.Thepolarityofredtestlead
connectionwillbeindicatedwhenmaking aDCV
measurement.
-Whenonlythefigure “1”isdisplayed,itindicates
overrangesituationandthehigherrangehastobe
selected.
Toavoidelectricalshock and/or damageto
theinstrument,do notattempttotake any
voltagemeasurementthatmightexceeds
1000Vdcor 750Vacrms.Donotapplymore
than1000Vdcor 750Vac rmsbetweenthe
common terminal and theearthground.
-9-

4.2Currentmeasurement
-Set therotaryswitchtothedesired A orA~range.
-ConnecttheblacktestleadtotheCOMterminaland
thered test leadstothemAterminalforamaximumof
200mA. Foramaximumof10A, movethered test
lead tothe10Aterminal.
-Connecttestleadsinserieswiththeload inwhichthe
current istobemeasured.
-Read thedisplayed value. Thepolarityofred test lead
connectionwill beindicatedwhenmakingaDCA
measurement.
-Whenonlythefigure"1"displayed,itindicates
overrangesituationand thehigherrangehastobe
selected.
*MS8221B/MS8230Bdon’thave ACAmeasurement
function.
Toavoiddamagetothemeter, use theproper
terminals,function,and rangefor your
measurement.
NOTE:
-Whenonlythefigure ‘OL’isdisplayed,itindicates
overrangesituation andthehigherrangehastobe
selected.
-Whenthevaluescaletobemeasured isunknown
beforehand,settherangeselectoratthehighest
position.
- “ ” meansthesocket of INPUTmaximumcurrentis
200mA, overcurrentwill destroythefuse.10A’s
-10 -

maximumcurrent is10A, nofuseprotection.
4.3Resistancemeasurement
-Connect theblacktest lead totheCOMjackand the
redtest lead tothe Ωjack.
-Set thetransformswitchat the Ωrangeposition.
-Connecttestleadsacrosstheresistanceunder
measurement.
-Youcangetreading fromLCD.
Toavoidelectricalshock and/or damageto
theinstrument,disconnectcircuitpowerand
dischargeall high-voltagecapacitorsbefore
measuring resistance.
NOTE:
-Formeasuring resistanceabove1MΩ,themetermay
takeafewsecondstostabilizereading.Thisisnormal
forhigh resistancemeasuring.
-Iftheresistancebeing measured exceedsthe
maximumvalueoftherangeselected ortheinputis
notconnected,anoverrangeindication "1"will be
displayed..
4.4Diodetest
-Set therotaryswitchto range.
-Connecttheblackand redtestleadstotheCOMand
Ωterminalsrespectively.
-Connect theredtest lead totheanode, blacktest lead
tothecathodeofthediodeundertesting.
-Themeterwill showtheapprox. forwardvoltageofthe
-11-
-12 -

diode.Ifthelead connectionisreversed,onlyfigure
"1"displayed.
Toavoidelectricalshock and/or damageto
theinstrument,disconnectcircuitpowerand
dischargeall high-voltagecapacitorsbefore
testing diodes.
4.5Continuitytest
-Set therotaryswitchto range.
-Connecttheblackand redtestleadstotheCOMand
Ωterminalsrespectively.
-Connectthetestleadstotheresistanceinthecircuit
being measured.
-Whenthetestleadtothecircuitisbelow50Ω,a
continuousbeeping will indicateit.
Toavoidelectricalshock and/or damageto
theinstrument,disconnectcircuitpowerand
dischargeall high-voltagecapacitorsbefore
testing for Continuity.
4.6Temperaturemeasurement(OnlyMS8221B)
-Set thetransformswitchat theTEMPrangeposition.
-TheLCDdisplaywill showthecurrentenvironment
temperature.
-Whenmeasuring thetemperaturewiththermocouple,
‘K’typeprobeforthismetercanbeused.Insertthe
blackplug totheCOMjackand thered onetothe
TEMPjack, touchtheend ofthetemperaturesensor
-13 -

tothearea orsurfaceof theobjectformeasurement.
-Youcangetreading fromLCD.
To avoidelectricalshock,donotconnectthe
thermocouples withtheelectriferouscircuit.
4.7Batterytest(onlyMS8221D)
-Set therotaryswitchtodesired BATT range.
-Connecttheblackand redtestleadstotheCOMand
VΩterminalsrespectively.
-Connectthetestleadsacrossthebatteryterminals
undermeasurement.
-Read LCDdisplayanddetermineifthebatteryisOK.
4.8Transistormeasurement
-Set therotaryswitchtohFE range.
-DeterminewhetherthetransistortobetestedisNPN
orPNPtypeandlocatetheEmitter,Baseand
Collectorleads.
-InsertleadsofthetransistorintoproperholesofthehFE
socket.
-Themeterwill showtheapprox.hFEvalueattest
conditionofbasecurrent 10μAandVce2.8V.
Toavoidelectrical shock and/ordamagetothe
instrument,beforeattemptingtoinsert
transistorsfortesting,alwaysbesurethattest
leadshavebeendisconnectedfromany
measurementcircuits．

5.MAINTENANCE
5.1GeneralMaintenance
Periodicallywipethecasewithadampclothandmild
detergent. Donotuseabrasivesorsolvents.
Dirtormoistureintheterminalscanaffect readings.
Tocleantheterminals:
¥Turnthemeteroffand removeall test leads.
¥Shakeoutanydirt that maybeintheterminals.
¥Soakanewswab withacleaning and oilingagent
(suchasWD-40).
¥Worktheswabaround ineachterminal.Theoiling
agentinsulatestheterminalsfrommoisture-related
contamination.
Toavoidelectricalshockordamagetothe
meter,donotgetwaterinsidethecase.
Removethetestleadsand anyinputsignals
beforeopeningthecase
5.2Fuse replacement
ToreplacetheMeter'sfuse(seetheFigure):
-Set therotaryswitchto OFF range.
-Disconnect test leadsfromanyinputsterminals.
-Useascrewdrivertounscrewthetwoscrewssecured
on thebatterycover.
-Separatethebatterycoverfromthebottomcase.
-Replacethefuseonlywithspecified ratings:
F200mA/250V ∅5×20 (quickacting).
-Replacethebatterycoverand securebythetwo
screws.
-14 -
-15 -

Beforereplacing thefuse,disconnecttest
leadsfromanycircuitundertest.
Topreventdamageor injury,replace thefuse
onlywithspecifiedratings.
5.3Batteryreplacement
Toreplacethebattery(see theFigure):
-Whenthebatteryvoltagedrop belowproperoperation
rangethe symbolwill appearontheLCD display
and thebatteryneed tobereplaced.
-Turnthemeteroff and removeall test leads.
-Useascrewdrivertounscrewthetwoscrewssecured
on thebatterycover,and removethebatterycover.
-Replacethebatterywiththree new1.5Vbattery
(AAA).
-Reinstall thebatterycoverandsecurebythetwo
screws.
Beforereplacing thebattery,disconnecttest
leadsfromanycircuitundertest,turn the
meteroff and remove testleadsfromthe
inputterminals.
ACCESSORIES
⑴
Test Leads oneset
⑵
Battery:1.5V,AAA threepieces
⑶
InstructionManual onepiece
⑷
Thermocouple(K type)(OnlyMS8221B)
onepiece
-16 -

CAUTION
Using thisapplianceinanenvironmentwitha
strong radiatedradio-frequency electromagnetic
field(approx.3V/m),may influence itsmeasuring
accuracy.Themeasuring resultcanbestrongly
deviating fromtheactualvalue.
-17 -
