Master Bilt QMVM-36L User manual

ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
CONSTRUCTION
• Standard electronic controller with
these features:
– Ability to monitor defrost functions
from the front panel interface
– Audible and visual alarm
– Eliminates room thermostat,
defrost termination/fan delay
control, defrost timer and digital
thermometer or other temperature
indicator
• 24 gauge painted textured galva-
nized steel exterior and interior
• Stainless steel oor pans (removable
for easy service)
• Shelves adjustable in 1" increments
• Two lighted tiers of two-position
shelving standard
• Perforated interior back wall and top
for better air ow
• Price tag molding
• 2" foamed-in-place “zero ODP”
urethane insulation
REFRIGERATION
• Refrigerant: R-134a
• Front air intake and rear air discharge
• Self-contained, bottom mount
refrigeration system
• Minimum of 6" clearance between
cabinet back and wall and a clear-
ance of 10" at top
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efciency
rating): 17.24
• Drain plumbing hookup
recommended. Condensate pan
available if there is no access
to drain plumbing. Condensate
pan must be eld installed and
requires a dedicated 15 amp,
120 volt circuit.
WARRANTY
• Standard limited three year extend-
ed compressor and two year limited
parts and labor
FEATURES
QMVM-36L
QMVM-L SERIES
Quantum Series
Medium Temp Low Prole
Open Display
Merchandisers
OPTIONS
❑ Custom exterior and interior
colors
❑ Condensate evaporator drain pan
NOTE: Must be eld installed and
requires a dedicated 20A, 120v
circuit.
❑ Condensate pump
❑ Product hooks
❑ Extra shelves (non-lighted)
❑ 1" vinyl bumper in choice of
black, blue, brown, green, red or
white
MODELS
❑ QMVM-36L
❑ QMVM-48L
Standard
white
Black also
available
NEW
STANDARD TEXTURED FINISH

908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
QMVM-L SERIES
QUANTUM SERIES MEDIUM TEMP LOW PROFILE
OPEN DISPLAY MERCHANDISERS
TECHNICAL SPECIFICATIONS
1082-1/12-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
All specications subject to change without notice.
LISTINGS
HOOKUP
BID SPECIFICATIONS
Item no. QMVM-_______L
Provide__________( ) Quantum Series
Medium Temp Low Prole Open Display
Merchandiser(s), Master-Bilt model no.
QMVM-_______L.
Merchandiser to be constructed of 24 gauge
painted textured galvanized steel interior and
exterior and will be equipped with an elec-
Electrical hookup: 115v
Plumbing hookup: Requires connection
to customer’s drain
tronically controlled monitoring system.
Merchandiser to have two-position
shelves adjustable in 1" increments, perfo-
rated interior back wall, independent shelf
lighting and price tag molding. Merchan-
diser will also contain 2" foamed-in-place
“zero ODP” urethane insulation.
The refrigeration system is to be self-
contained, with front condenser air intake
and rear air discharge and use R-134a refrig-
erant. The temperature range is 34° to 41°F
(1° to 5°C). Merchandiser to have standard
limited three year extended compressor
warranty and two year limited parts and
labor warranty. It is also to be UL and C-UL
listed and UL EPH classied.
RECOMMENDED OPERATING CONDITIONS
• Merchandisers designed to hold product
in the 34° to 41°F (1° to 5°C) range
• Designed to operate in air-conditioned
stores where the maximum temperature is
75°F and the maximum relative humidity
is 55%
• Should not be installed in direct sunlight
• Should not be installed near HVAC vents,
fans or doorways that will disrupt airow
and compromise the function of the air
screen inside the case
• Bottom shelf should not be loaded such
that the front air intake is obstructed
• Floor drain should be properly trapped
• Factory installed controls should not
be altered, removed or replaced without
consent of the factory
• Product must not be displayed in the cold
air curtain
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS AMPS*
UNIT
H.P.
NO. OF
SHELVES
STANDARD
SHELF
SIZE
(in inches)
CAP.
CU.
FT.
SHIP
CU.
FT.
SHIP
WT.
LB/KGL D H L D H
QMVM-36L 36 30 60 914 762 1524 115 14.8 1/2 2 14 x 311/811.2 67.0 490/223
QMVM-48L 48 30 60 1219 762 1524 115 14.9 3/4 2 14 x 431/815.4 81.0 580/264
*If condensate evaporator pan accessory is used, it must be eld installed
and requires a dedicated 20 amp, 120 volt circuit.

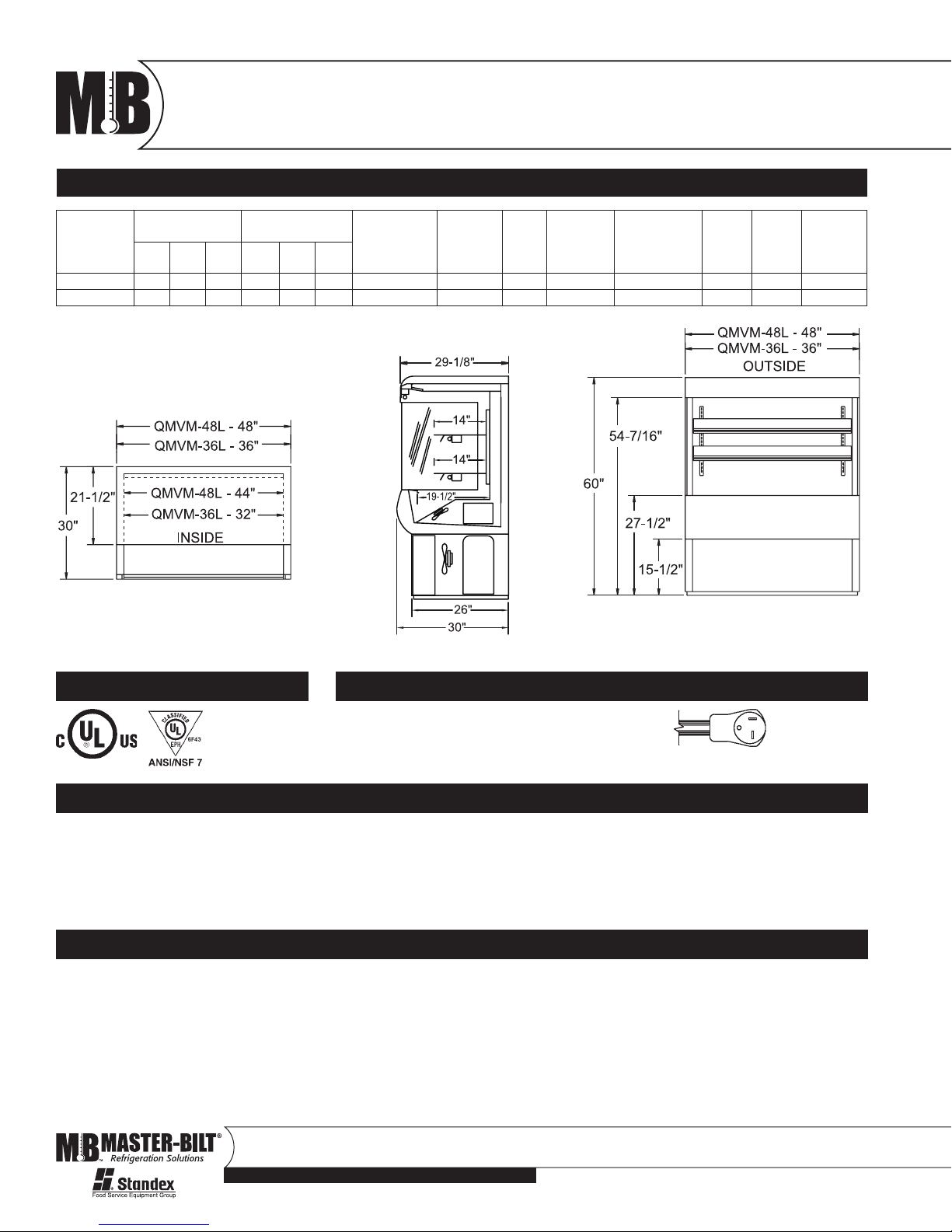

PLAN VIEW SIDE VIEW ELEVATION VIEW
NEMA 5-20P
