CONSTRUCTION
• 24 gauge painted textured steel inte-
rior and exterior
• Removable two tier stainless steel
display deck
• Stainless steel oor
• Full length 83/4" wide laminated
white formica counter top
• Front bumper guard
• Automatic defrost
• On/off power switch on
MPM-36 and MPM-48
• Cord and plug on MPM-36 and
MPM-48
• Black vinyl trim
• 2" foamed-in-place “zero ODP” ure-
thane insulation
REFRIGERATION
• Refrigerant: R-134a
• Front air intake and rear discharge
• Forced air ducted ow
• Self-contained, bottom mount refrig-
eration system
• Minimum of 6" clearance between
cabinet back and wall and a clear-
ance of 10" at top
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efciency rating):
17.24
• Slide-out refrigeration system
• Drain plumbing hookup recom-
mended. Condensate pan available
if there is no access to drain plumb-
ing. Condensate pan must be eld
installed and requires a dedicated
15 amp, 120 volt circuit.
WARRANTY
• Standard limited three year
extended compressor and two year
limited parts and labor
FEATURES
MPM-48
MPM SERIES
Medium Temp
Open Display
Merchandisers
OPTIONS
❑ Add sufx “SS” for stainless steel
interior and exterior
❑ Custom colors
❑
Night curtain kit (factory installed)
❑ Light kit (factory installed)
❑ Night curtain & light kit
(factory installed)
❑ Casters
❑ Sandwich racks
❑ Sandwich rack dividers
❑ Condensate evaporator drain pan
NOTE: Must be eld installed and
requires a dedicated 20A, 120v
circuit.
MODELS
❑ MPM-36
❑ MPM-48
❑ MPM-72
Standard
white
Black also
available
NEW
STANDARD TEXTURED FINISH

908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
MPM SERIES
MEDIUM TEMP OPEN DISPLAY MERCHANDISERS
TECHNICAL SPECIFICATIONS
LISTINGS
HOOKUP
BID SPECIFICATIONS
Item no. MPM-_______________
Provide_______________( ) Medium
Temp Open Display Merchandiser(s), Mas-
ter-Bilt model no. MPM-__________.
Merchandiser to be constructed of 24
gauge painted textured galvanized steel in-
terior and exterior with removable two tier
315-1/12-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
MPM-36 and MPM-48 via plug-in, 9 foot
long, exible three wire 14/3 cord with
molded plug. MPM-72 model hardwired.

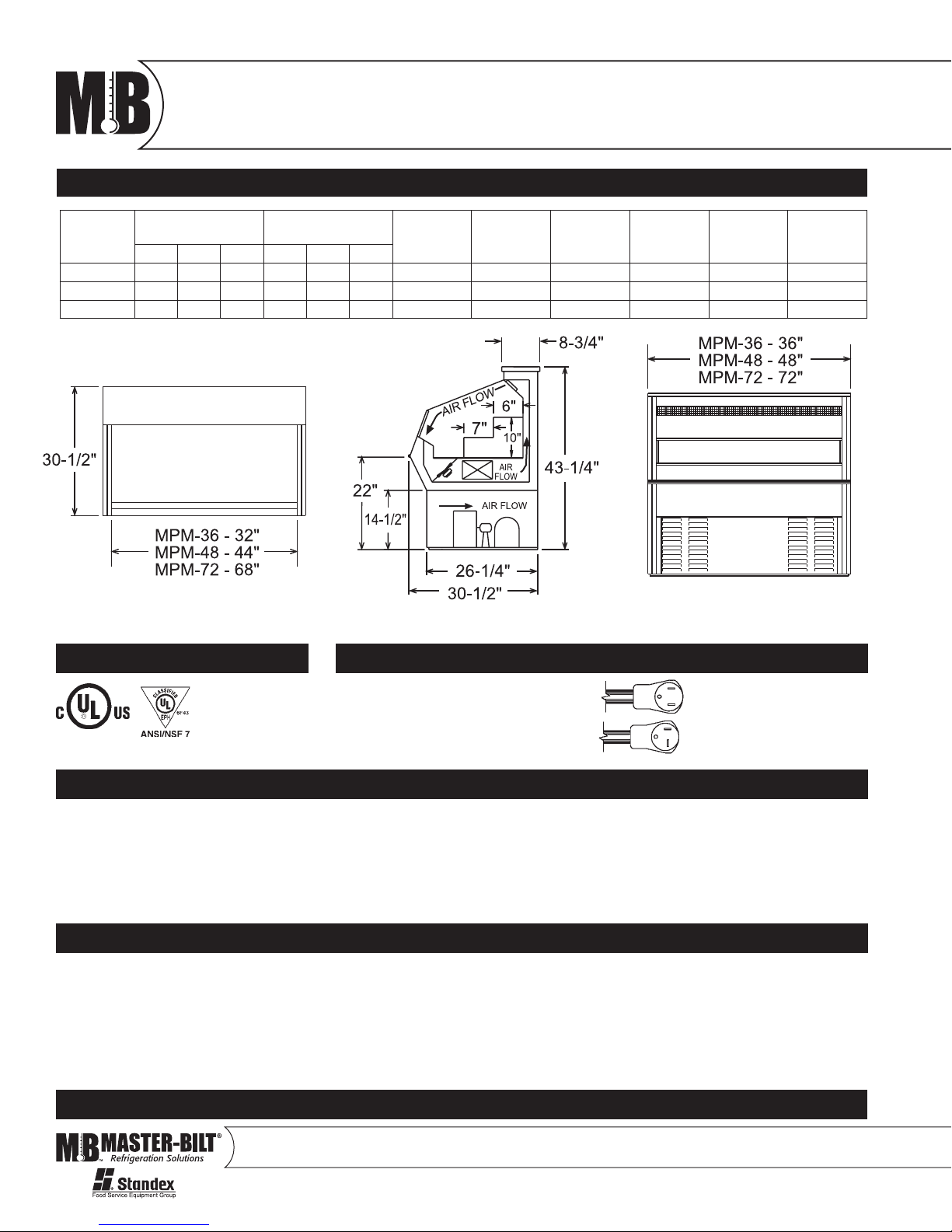

PLAN VIEW SIDE VIEW ELEVATION VIEW
stainless steel display deck and stainless
steel oor. Other standard features include
full length 83/4" wide laminated white
formica counter top, front bumper guard,
automatic defrost, on/off power switch
(MPM-36 and MPM-48 only), black vinyl
trim and have foamed-in-place “zero ODP”
urethane insulation. The temperature range
of the merchandiser will be 34° to 41°F (1°
to 5°C). Merchandiser to have standard lim-
ited three year extended compressor war-
ranty and two year limited parts and labor
warranty. Merchandiser to be UL and C-UL
listed and UL EPH classied.
NEMA 5-15P (MPM-36)
NEMA 5-20P (MPM-48)
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
CAP.
CU. FT.
SHIP
CU. FT.
SHIP
WT.
LB/KGL D H L D H
MPM-36 36 301/2431/4914 787 1099 115 10.3 1/3 3.7 41.0 310/141
MPM-48 48 301/2431/41219 787 1099 115 15.5 1/2 5.1 53.0 410/220
MPM-72 72 301/2431/41829 787 1099 115 15.8 3/4 7.9 86.0 590/268
NOTE: All specications subject to change without notice.
RECOMMENDED OPERATING CONDITIONS
• Merchandisers designed to hold product
in the 34° to 41°F (1° to 5°C) range
• Designed to operate in air-conditioned
stores where the maximum temperature
is 75°F and the maximum relative
humidity is 55%
• Should not be installed in direct sunlight
• Should not be installed near HVAC vents,
fans or doorways that will disrupt airow
and compromise the function of the air
screen inside the case
• Bottom shelf should not be loaded such
that the front air intake is obstructed
• Factory installed controls should not
be altered, removed or replaced without
consent of the factory
• Product must not be displayed in the cold
air curtain
