Master Gardner S-90 User manual

REV060717 BS0900
90 lb. CAPACITY
BROADCAST SPREADER
Model S-90

- 2 -
Table of Contents
General Warnings and Rules ................................................................................. 3
Hazard Signal Word Definitions.............................................................................. 4
Component & Hardware ......................................................................................... 5
Assembly Instructions............................................................................................. 6
Operation Instructions ........................................................................................ 7, 8
Spreading Instructions...................................................................................... 9, 10
Maintenance and Storage .................................................................................... 11
Specification ......................................................................................................... 11
Parts Drawing & Parts List........................................................................ 12, 13, 14

- 3 -
GENERAL WARNINGS
READ and UNDERSTAND this manual completely before using Push Spreader.
Operator must read and understand all safety and warning information, operating instructions,
maintenance and storage instructions before operating this equipment. Failure to properly operate and
maintain the push spreader could result in serious injury to the operator or bystanders.
Operation Warnings
Do not at any time carry passengers sit or stand on the spreader.
Do not allow children to play on, stand upon or climb in the spreader.
Always inspect the spreader before using to assure it is in good working condition.
Replace or repair damaged or worn parts immediately.
Always check and tighten hardware and assembled parts before operation.
Do not exceed equipment maximum load capacity of 90lb.
Avoid large holes and ditches when transporting loads.
Be careful when operating on steep grades (hill) the spreader may tip over.
Do not push close to creeks, ditches and public highways.
Do not use spreader on windy days when spreading grass seed or herbicides.
Always use caution when loading and unloading spreader.
Never tow the spreader with a motorized vehicle.
.
Crush and Cut Hazards
Always keep hands and feet clear from moving parts while operating the equipment.
Always clear and keep work area clean when operating.
Always wear safety gear, eye protection, gloves and work boots when operating the spreader.
.
WARNING
The warnings, cautions, and instructions outlined in this instruction manual cannot cover all
possible conditions or situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product and must be supplied
by the operator.
PROP 65 WARNING
This product contains chemicals known to the state of California to cause cancer, birth defects, or
other reproductive harm.
Assembly Is Required
This product requires assembly before use. See “Assembly” section for instructions. Because of the
weight and/or size of the push spreader, it is recommended that another adult be present to assist
with the assembly. INSPECT ALL COMPONENTS closely upon receipt to make sure no components
are missing or damaged.

- 4 -
Hazard Signal Word Definitions
ABOUT YOUR PUSH SPREADER
This push spreader is designed to spread a wide range of materials (Fertilizer, Grass Seed and Ice melt).
Materials such as Powders, Manure, Top Soil, Gravel, and Mulch have the wrong physical characteristics
and should not be used with this spreader.Never exceed the rated load capacity of 90lbs when
operating the spreader.
Your spreader needs to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster
speeds will change the spread patterns. Wet spreading material will also change the spread pattern and
flow rate. Clean your spreader thoroughly after each use. Wash between the shut off plate and bottom of
the hopper.
Technical specifications on the push spreader are provided in the “Specifications” section of this manual.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
si
tuation which, if not avoided, could result in
death or serious injury.
WARNING
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
CAUTION

- 5 -

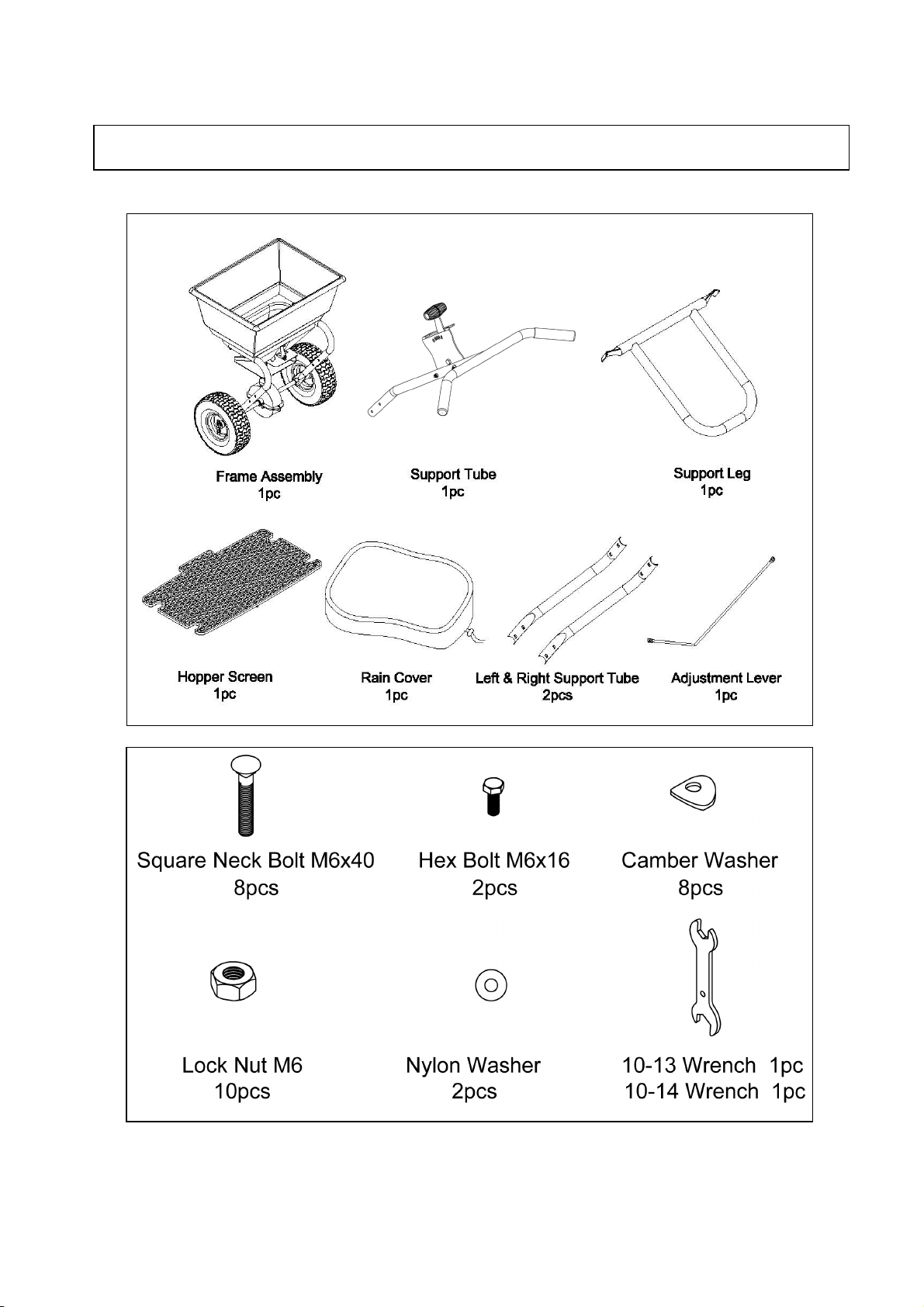

COMPONENT PARTS

- 6 -
STEP 1: Installing the Support Leg
1. Attach the support leg (#29) to the installation tube assembly (#14) using square neck bolt M6x40
(#28), camber washer (#21) and nylon lock nut M6 (#13).
2. Attach the left and right support tube (#27) to the installation tube assembly (#14) using square
neck bolt M6x40 (#28), camber washer (#21) and nylon lock nut M6 (#13). ONLY lightly tighten
the nuts.
STEP 2: Installing the Handle
1. Attach the handle connecting tube (#31) to the left and right support tube (#27) using square neck
bolt M6x40 (#28), camber washer (#21) and nylon lock nut M6 (#13). Tighten all the nuts.
2. Connect the lower adjustment lever (#30) to the connecting rod fixed plate (#12) using hex bolt
M6x16 (#11), nylon washer (#2) and nylon lock nut M6 (#13). Tighten the nuts, then back a circle,
the nut lower than bolt. Repeat the step of upper adjustment lever (#30) to the handle (#40).
Assembly Instructions

- 7 -
WARNING
Before using the push spreader, review the instructions below and safety information. Failure to
follow these instructions may result in property damage or injury to the operator or bystanders.
USING YOUR SPREADER
1. Inspect your spreader before each use. Make sure the wheels turn easily, and the gearbox moves
when the spreader is pushed. The hopper should be clean and free from cracks.
2. Spreader is designed to spread a range of materials (Fertilizer, Grass Seed and Ice melt).
Materials such as Powder, Manure, Top Soil, Gravel, and Mulch have the wrong physical
characteristics and should not be used with your spreader
3. Do not use spreader on windy days when spreading grass seed or herbicides.
4. Determine approximate square footage of the area to be covered and estimate amount of material
required. Please refer to fertilizer manufacturer’s recommendation. Break up any lumpy fertilizer
as you fill the hopper.
5. Before filling the hopper, make sure that the flow control lever is in the“0”position and the flow
control plate is closed.
6. Set the adjustable stop with the flow control lever always in the“0”position. Every time you are
ready to stop or turn back, close the flow control plate to stop dispersing the material and continue
one more stride. This reduces waste and avoids damaging the lawn with oversaturated product
coverage.
7. Follow fertilizer manufacturer’s recommended coverage rate for each product
8. To maintain the same coverage when walking at a different speed, adjust the flow rate. Reduce the
flow setting for slower speeds and increase the flow setting for higher speeds.
9. Keep the impeller plate horizontal when operating the spreader. Tilting the spreader will result in
uneven coverage.
10. Make sure the R pin is installed in the hopper before starting the spreader.
11. Always start walking prior to opening the closure plate.
12. Always close the flow control plate before turning or stopping the spreader.
13. If spreading material is accidentally deposited too heavily in a small area, soak the area thoroughly
with a garden hose or sprinkler to prevent burning of the lawn.
14. To insure consistent coverage, make sure each broadcast pattern slightly overlaps the previous
broadcast pattern.
15. When broadcasting spreading material, make sure the broadcast pattern does not hit evergreen
trees, flowers or shrubs.
16. Do not over apply spreading material. Follow the recommended coverage rate for each product.
Over application will lead to lawn damage and contamination.
Operation Instructions

- 8 -
ADJUSTING THE FLOW
CONSISTENT COVERAGE
To insure consistent coverage, make sure each broadcast pattern slightly overlaps the previous broadcast
pattern as shown in figure below. The approximate broadcast widths for different materials are shown in
the application chart.
WARNING
Do not over apply spreading material. Follow the recommended coverage rate for each product.
Over application will lead to damage and contamination. If spreading material accidentally hits or
deposits too heavily, soak the area thoroughly with a garden hose or sprinkler to prevent burning.
CAUTION
The spreader settings are guidelines only. The spreader should be calibrated prior to application to
ensure accuracy.
If you have a Push Spreader or Tow Spreader the settings are based on a walking speed of under
3MPH or towing speed of 5MPH. Walking or towing faster or slower will alter the spread application
rate. Exact rates depend upon the spreader itself and the accuracy of the equipment operating it.
Operation Instructions

- 9 -
CALCULATING AMOUNT OF MATERIAL NEEDED
To calculate the amount of fertilizer you will need to cover your lawn, divide the coverage amount listed on
the label by the weight of the fertilizer bag. For example a 10LB. bag of fertilizer with coverage of 10,000
square feet will distribute 1LB. of fertilizer every 1,000 square feet at full rate or 1/2LB. of fertilizer every
1,000 square feet at half rate. For pre-calculated rates see Chart A (Example: 25LB. bag with 15,000 sq. ft.
coverage = 1.7LB./1,000 sq. ft.). Use Chart B to find the closest spreader setting (Example: 1.7LB./1000
sq. ft. = Spreader Setting of 2).
Chart A - Square Foot Coverage per Bag*
LBS/1,000 SQ. FT
Weight of Bag (LBS.)
5,000 SQ. FT COVERAGE
10,000 SQ. FT COVERAGE
15,000 SQ. FT COVERAGE
5
1.0 LB.
0.5 LB.
0.3 LB.
10
2.0 LB.
1.0 LB.
0.7 LB.
15
3.0 LB.
1.5 LB.
1.0 LB.
20
4.0 LB.
2.0 LB.
1.3 LB.
25
5.0 LB.
2.5 LB.
1.7 LB.
30
6.0 LB.
3.0 LB.
2.0 LB.
35
7.0 LB.
3.5 LB.
2.3 LB.
40
8.0 LB.
4.0 LB.
2.7 LB.
45
9.0 LB.
4.5 LB.
3.0 LB.
50
10.0 LB.
5.0 LB.
3.3 LB.
*These are only estimates actual amounts may vary.
Chart B - 4 Easy Spreader Settings/Spread Widths
MULTI-
USAGES
LBS/1,000
SQ. FT
SPREADER
SETTING
•
SMALL
PARTICLE
SPREAD
•
MEDIUM
PARTICLE
SPREAD
•
LARGE
PARTICLE
SPREAD
FERTILIZER
GRASS
SEEDS
ICE M E LT
1
1
5-6 FT.
6-9 FT.
9-12 FT.
2 to 5
2
5-6 FT.
6-9 FT.
9-12 FT.
6 to 9
3
5-6 FT.
6-9 FT.
9-12 FT.
10
4
5-6 FT.
6-9 FT.
9-12 FT.
NOTE: DO NOT USE SALT. Using salt in this spreader will damage the mechanism and shorten the life of the
machine.
Spreading Instructions

- 10 -
ADDITIONAL SPREADER SETTING INSTRUCTIONS
For materials that DO NOT use a typical 5,000 Sq. Ft, 10,000 Sq. Ft. & 15,000 Sq. Ft. coverage value.
To obtain the proper spreader settings follow the steps below:
1) Find the total weight in lbs. of the product from the product label on the bag of material.
2) Find the coverage amount in square feet that the product is rated for from the product label on the
bag of material.
3) Divide the bag weight rated in lbs. by the square feet coverage rated on the bag.
4) Take this result and multiply it by 1000.
5) This final number is the lbs. of material to be spread per 1000 square feet.
6) Use the spreader setting number in Chart B for the proper setting.
As an example:
1) The fertilizer bag weighs 10 lbs.
2) The coverage value is rated at 2000 square feet.
3) 10 lbs. / 2000 square ft. = 0.005
4) 0.005 × 1000 = 5 lbs. per 1000 sq. ft.
5) Using this number in Chart B, you would obtain a spreader setting of 2.
4 Easy Spreader Settings/Spread Widths
MULTI-
USAGES
LBS /1,000
SQ. FT
SPREADER
SETTING
•
SMALL
PARTICLE
SPREAD
•
MEDIUM
PARTICLE
SPREAD
•
LARGE
PARTICLE
SPREAD
FERTILIZER
GRASS
SEEDS
ICE MELT
1
1
5-6 FT.
6-9 FT.
9-12 FT.
2 to 5
2
5-6 FT.
6-9 FT.
9-12 FT.
6 to 9
3
5-6 FT.
6-9 FT.
9-12 FT.
10
4
5-6 FT.
6-9 FT.
9-12 FT.
*These are only estimates actual spreader settings and spread widths may vary depending on material.
Spreading Instructions

- 11 -
WARNING
Improper maintenance and storage of the push spreader may void your warranty.
MAINTENANCE
•After each use clean material out of hopper and off of the impeller.
•Rinse/dry inside and outside of the spreader after each use.
•Before operating make sure the tires have the RECOMMENDED TIRE PRESSURE 20 PSI.
•Periodically check all fasteners for tightness.
•Annually clean and lightly lubricate parts.
•Use a glossy enamel spray paint to touch up scratched or worn painted metal surfaces.
•Never exceed load capacity rating of 90lbs it will damage the spreader.
IMPORTANT:
If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement
parts that do not meet specifications may result in a safety hazard or poor operation.
STORAGE
•Never allow material to remain in the hopper for extended periods of time.
•Before storing make sure the spreader is clean and dry for years of trouble free service.
•Store indoors or protected area during severe weather and winter months.
Load Capacity........................................................................................................................90lb
Spreader Type ............................................................................................................. Broadcast
Hopper Material .....................................................................................................Polypropylene
Hopper Dimensions .................................................................................22.76” x 16.93”x 11.97”
Overall Dimensions......................................................................................... 42” x 22.6” x 34.6”
Wheel size ..............................................................................................................................10’’
Tire Pressure (PSI) .................................................................................................................. 20
Unit Weight ............................................................................................................................24lb
Maintenance and Storage
Specifications

- 12 -
Parts Drawing & Parts List

- 13 -
Ref#
Drawing No.
Description
Qty
1
NB03-00001-HO
Hopper
1
2
BS125T-00009
Nylon Washer
6
3
9104-06040-BXG
Inner Hex Screw M6x40
4
4
9504-05013-YH
Open Type Blind Rivet M5x13
4
5
9301-05000-BXG
Flat Washer Ø5
4
6
9504-05008-YH
Open Type Blind Rivet M5x8
2
7
N512-00009
Revolving Shaft Sleeve
1
8
BS125T-00001-PG
Fixed Adjustable Plate
1
9
BS125T-00002-PG
Active Adjustable Plate
1
10
N512-00023-CD
Torsional Spring Fixed Plate
1
11
9101-06016-CD
Hex Bolt M6x16
2
12
BS125T-00013-CD
Connecting Rod Fixed Plate
1
13
9206-06000-CD
Hex Lock Nut M6
18
14
BS070T-00003
Installation Tube
1
15
N514-00004
Impeller
1
16
BS070T-03000
Wheel
2
17
9404-03030-CD
Cotter Pin Ø3x30
2
18
9301-16000-CD
Flat Washer Ø16
2
19
9701-06000
Oil Cap M6
2
20
BS125T-00004-CD
Hex Wheel Axle Sleeve
2
21
BS125T-00014-CD
Camber Washer Ø6.5x Ø18
10
22
N575-00014
Thin Washer
1
23
N565-00009
R Pin
1
24
9110-04020-CD
Screw M4X20
1
25
9101-06040-CD
Hex Bolt M6x40
3
26
BS070T-04000
Gear Box
1
27
BS070T-00001
Left & Right Support Tube
2
28
9114-06040-CD
Square Neck Bolt M6x40
8
29
BS070T-02000
Support Leg
1
30
BS125T-00005
Adjustment Lever
1
Parts Drawing & Parts List

- 14 -
Ref#
Drawing No.
Description
Qty
31
BS070T-01000
Handle Connecting Tube
1
32
BS070T-00002
Handle Sleeve
2
33
9302-06000-CD
Big Flat Washer Ø6
3
34
N512-00025-CD
To r sional Spring
1
35
9101-08035-CD
Hex Bolt M8x35
1
36
BS125T-00011
Graduated Plate
1
37
NC65-00023-CD
Spring
1
38
9302-08000-CD
Big Flat Washer Ø8
1
39
9206-08000-CD
Hex Lock Nut M8
1
40
BS125T-05000
Handle
1
41
N570-00015
Adjustable Handle B
1
42
9118-04018-CD
Screw M4x18
1
43
N570-00014
Adjustable Handle A
1
44
NB03-00006
Screen
1
45
BS090T-00001
Rain Cover
1
46
9101-06020-CD
Hex Bolt M6x20
1
Thank You for purchasing the S-90 Master Gardner Spreader.
Please do not return this to the store and If you have any issues or questions, please call us at (864)
574-7868 or [phone].
The Master Gardner Company
5770 North Blackstock Rd.
Spartanburg, SC 29303
www.mastergardner.com
