Master Spas Trainer 12 User manual

WATER TO THE EXTREME
swimming l tness l therapy l family fun l premium line of jetted swim spas
WATER TO THE EXTREME
by Master Spas
OWNER’S MANUAL

1DO NOT DIVE.
OWNER’S MANUAL
Welcome To Ultimate Relaxation!
Thank you for choosing your new swim spa built by Master Spas. Please read the entire Owner’s
Manual before installing and using your new swim spa. The goal of this manual is to provide you
with safety and operational information plus some tips that will help you enjoy your swim spa to
its fullest.
At the time of print, this manual is accurate in its information. Master Spas reserves the right to
change or improve its product without prior notice. To check on updates or for other information,
please visit www.masterspas.com and follow the links to the customer service section.
Record Of Ownership
Name��������������������������������������������������������������������������������
Address������������������������������������������������������������������������������
City ��������������������������������������������������������� State ������ Zip ���������
Phone # (������)��������-���������� Date Purchased ������ /������ /�������
Model ��������������������������������� Serial #���������������������������������������
Dealer Name �������������������������������������������������������������������������
Service Tech Rep ����������������������������������������������������������������������
*Serial Number Location
The serial number for you swim spa is located on the listing plate on the front skirting panel, on
the swim spa system control pack, and on the frame behind the right front removable corner. It
will start with “H” followed by a 6-digit number. Ex. H130000
6927 Lincoln Parkway
Fort Wayne, Indiana 46804
800-860-7727
www.masterspas.com

2DO NOT DIVE.
TABLE OF CONTENTS
Important Safety Instructions ..................................................................................................... 3-10
Glossary of Swim Spa Terminology........................................................................................... 11-13
Electrical Installation Requirements.......................................................................................... 14-15

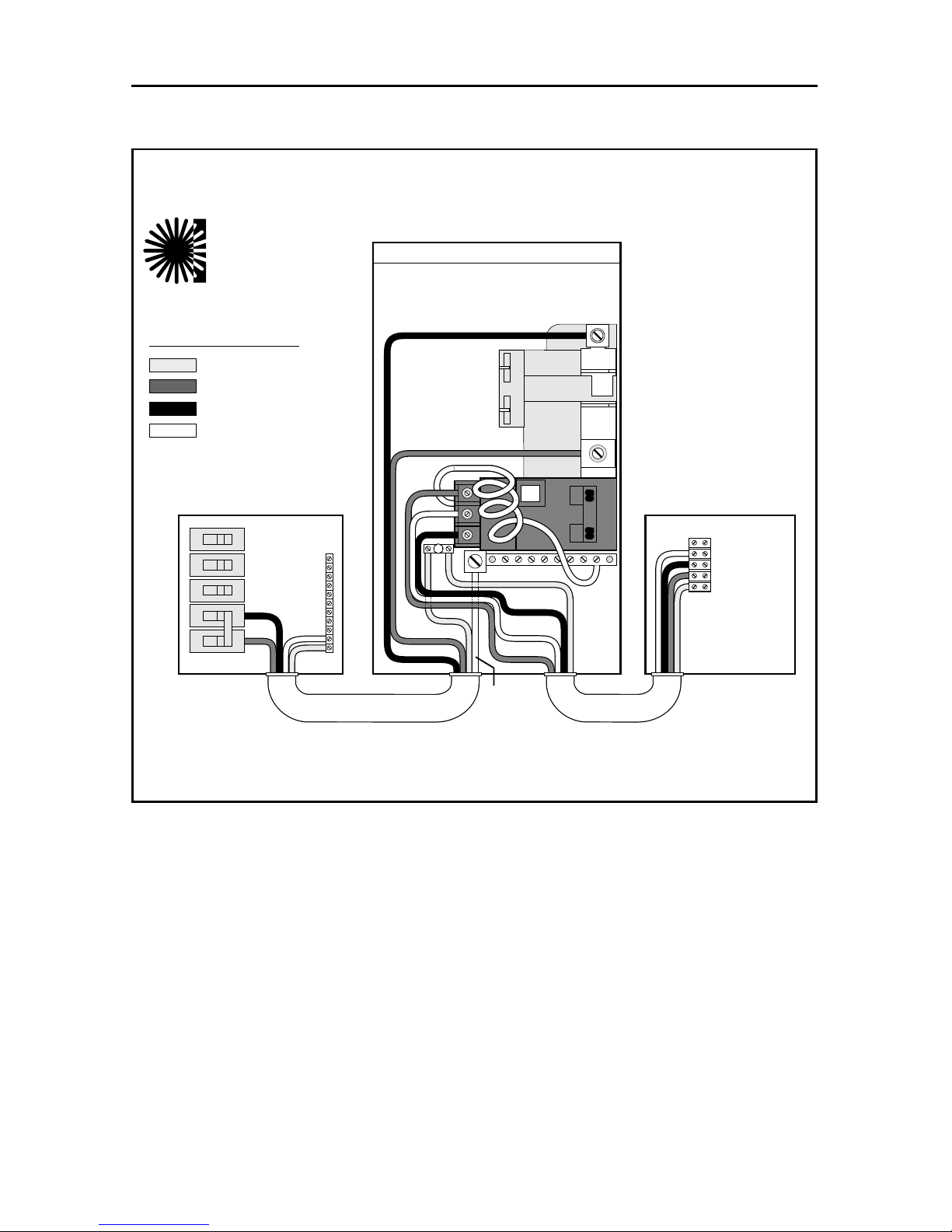

Wiring Schematic..................................................................................................................... 16
Site Preparation / General Guidelines....................................................................................... 17
Installation Instructions ............................................................................................................ 18
Water Chemistry Terms ............................................................................................................ 19-20
The Advantages of Eco Pur Filtration ............................................................................................ 21
Water Quality Maintenance Start-Up ............................................................................................. 22
Water Quality Maintenance Schedule........................................................................................ 23-24
Swim Spa Water Maintenance Trouble-Shooting Guide .................................................................. 25
Why Chemicals are Important........................................................................................................ 26
Maintenance Recommendations ............................................................................................... 27-28
Winterizing Your Swim Spa ........................................................................................................... 29
Swim Spa Specifications................................................................................................................ 30
Optional Exercise Equipment ................................................................................................... 31
Main Menus ............................................................................................................................ 32
Fill It Up................................................................................................................................... 33
Swim Spa Behavior.................................................................................................................. 34
Temperature & Temp Range.................................................................................................... 35
Mode – Ready and Rest........................................................................................................... 36
Flip (Invert Display)................................................................................................................... 37
Adjusting Filtration .................................................................................................................. 37
General Messages.................................................................................................................... 38
Heater-Related Messages......................................................................................................... 39
Sensor-Related Messages......................................................................................................... 40
Miscellaneous Messages .......................................................................................................... 40
System-Related Messages ........................................................................................................ 41
Standard Fusion Audio System ...................................................................................................... 42
Deluxe Fusion Audio System..................................................................................................... 43-44
Swim Spa Trouble Shooting Guide............................................................................................ 45-46
Regular Maintenance Procedures.............................................................................................. 47-48
Swim Spa Care and Maintenance Records................................................................................. 49-52

3DO NOT DIVE.
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Included with your new swim spa is a safety sign. The sign is for you and your guest’s
protection and is suitable for outdoor use in wet locations. The sign should be placed in
a location visible to all users of the swim spa.
Please take time to point out the physical location of the safety sign and the importance of
the safety precautions displayed on the safety sign to all of your guests. Remember, your safety
and the safety of anyone who enjoys the use of your swim spa is our utmost concern.
The sign should be mounted with screws or another type of permanent fastener. Additional
or replacement signs can be obtained from your dealer or direct from the factory.
INTRODUCTION
It’s time to relax! You now have your very own portable swim spa by Master Spas, Inc. By fully
understanding the operation of each of the features of your new swim spa, you will be assured of
many years of hassle-free, hot water therapy and fun.
Your safety is of paramount importance to the Master Spas family. We urge you to read and
become thoroughly familiar with all safety aspects addressed in this manual.
Through reading and totally understanding the important information in your owner’s manual, you
will realize that you now own THE ULTIMATE RELAXATION MACHINE!

4DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should
be observed including the following:
READ AND FOLLOW ALL
INSTRUCTIONS
WARNING – To reduce the risk of injury, do not permit children to use this product
unless they are closely supervised at all times.
A wire conductor is provided on this unit to connect a minimum 6 AWG
(13.302mm2) solid copper conductor between this unit and any metal equipment,
metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet
(1.5m) of the unit
(For cord-connected/convertible units)
DANGER – Risk of injury.
a) Replace damaged cord immediately.
b) Do not bury cord.
c) Connect to a grounded, grounding type receptacle only.
(For units intended for indoor use only)
WARNING – For indoor use only. This unit is not intended for outdoor use.
(For units intended for outdoor use only)
WARNING – For outdoor use only. This unit is not intended for indoor use.

5DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
(For units with GFCI)
WARNING – This product is provided with a ground-fault circuit interrupter
located on the front panel of selected swim spas and on the power cord of
120 volt convertible swim spas. The GFCI must be tested before each use.
With the product operating, open the service door. When the product stops
operating, this merely indicates that the door is equipped with an electrical
interlock. Next, push the test button on the GFCI and close the service door.
The product should not operate. Now open the service door, push the reset
button on the GFCI and close the service door. The product should now
operate normally. When the product fails to operate in this manner, there
is a ground current flowing indicating the possibility of an electric shock.
Disconnect the power until the fault has been identified and corrected.
DANGER – Risk of Accidental Drowning. Extreme caution must be exercised to
prevent unauthorized access by children. To avoid accidents, ensure that children
cannot use this swim spa unless they are supervised at all times.
DANGER – Risk of Injury. The suction fittings in this swim spa are sized to match
the specific water flow created by the pump. Should the need arise to replace the
suction fittings or the pump, be sure that the flow rates are compatible.
Never operate swim spa if the suction fittings are broken or missing. Never replace a
suction fitting with one rated less than the flow rate marked on the original suction
fitting.
DANGER – Risk of Electric Shock. Install at least 5 feet (1.5m) from all metal sur-
faces. As an alternative, a swim spa may be installed within 5 feet of metal surfac-
es if each metal surface is permanently connected by a minimum 8AWG (8.4mm2)
solid copper conductor to the wire connector on the terminal box that is provided
for this purpose.
DANGER – Risk of Electric Shock. Do not permit any electric appliance, such as a
light, telephone, radio, or television, within 5 feet (1.5 m) of a swim spa.
WARNING – To reduce the risk of injury:
a) The water in a swim spa should never exceed 40˚C (104˚F). Water tem-
peratures between 38˚C (100˚F) and 40˚C are considered safe for a healthy
adult. Lower water temperatures are recommended for young children
and when swim spa use exceeds 10 minutes.

6DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
b) Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly preg-
nant women should limit swim spa water temperatures to 38˚C (100˚F).
c) Before entering a swim spa, the user should measure the water tempera-
ture since the tolerance of water temperature- regulating devices varies.
d) The use of alcohol, drugs, or medication before or during swim spa use
may lead to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high
blood pressure, circulatory system problems, or diabetes should consult a
physician before using a swim spa.
f) Persons using medication should consult a physician before using a swim
spa since some medication may induce drowsiness while other medication
may affect heart rate, blood pressure, and circulation.
(For swim spas with a gas heater)
WARNING – Risk of Suffocation. This swim spa is equipped with a gas heater
and is intended for outdoor use only unless proper ventilation can be pro-
vided for an indoor installation.
HYPERTHERMIA
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperature of 98.6° F.
THE SYMPTOMS OF HYPERTHERMIA INCLUDE:
• Dizziness • Fainting • Drowsiness • Lethargy
• Increase in Internal Body Temperature
THE EFFECTS OF HYPERTHERMIA INCLUDE:
Unawareness of Impending Hazard • Failure to Perceive Heat • Failure to
Recognize the Need to Exit Swim Spa • Physical Inability to Exit Swim Spa •
Fetal Damage in Pregnant Women • Unconsciousness Resulting in a Danger
of Drowning

7DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
DANGER – To reduce the risk of injury to persons, do not remove the suction
grate. Suction through drains and skimmers is powerful when the jets in the swim
spa are in use. Damaged covers can be hazardous to small children and adults
with long hair. Should any part of the body be drawn into these fittings, turn off
the swim spa immediately. As a precaution, long hair should not be allowed to
float in the swim spa.
WARNING – Install the swim spa so that water can be easily drained out of the
compartment containing electrical components so as not to damage equipment.
When installing the swim spa make sure to allow for an adequate drainage sys-
tem to deal with any overflow water. Please allow for at least 2 feet of clearance
around the perimeter of the swim spa to provide enough room to access for servic-
ing. Contact your local dealer for their specific requirements.
WARNING – The swim spa should be covered with an approved locking cover
when not in use, to prevent unauthorized entry and injuries.
WARNING – People with infections, sores or the like should not use the swim spa.
Warm and hot water temperatures may allow the growth of infectious bacteria if
not properly disinfected.
CAUTION – Safe temperatures for swimming or aquatic exercise is around 80˚F.
CAUTION – Risk of Electrical Shock. Do not leave audio compartment open.
Audio controls are not to be operated while inside the swim spa.
CAUTION – Replace components only with identical components.
WARNING – Risk of Electric Shock. Do not connect any auxiliary components (for
example, additional speakers, headphones, additional audio/ video components
etc.) to the system. These units are not provided with an outdoor antenna.
Do not service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
If the power supply cord(s) are damaged, water is entering the speaker, audio
compartment, or any other component in the electrical equipment compartment
area, the protective shield is showing signs of deterioration, or there are signs of
other potentially hazardous damage to the unit, turn off the circuit breaker from
the wall and refer servicing to qualified personnel.

8DO NOT DIVE.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS (CONT.)
The unit should be subjected to periodic routine maintenance once every quarter to
make sure that the it is operating properly.
DANGER – Risk of Electric Shock. A green colored terminal or a terminal marked
G, GR, Ground, Grounding or the symbol shown in Figure 14.1 of UL 1563 is locat-
ed inside the supply terminal box or compartment. To reduce the risk of electric
shock, this terminal must be connected to the grounding means provided in the
electric supply service panel with a continuous copper wire equivalent in size to the
circuit conductors supplying this equipment.
At least two lugs marked “Bonding Lugs” are provided on the external surface or
on the inside of the supply terminal box or compartment. To reduce the risk of
electric shock, connect the local common bonding grid in the area of the swim spa
to these terminals with an insulated or bare copper conductor not smaller than
8AWG.
All field installed metal components such as rails, ladders, drains, or other similar
hardware within 3m of the swim spa shall be bonded to the equipment grounding
bus with copper conductors not smaller than 8AWG.
SAVE THESE INSTRUCTIONS

9DO NOT DIVE.
SAFETY INSTRUCTIONS
WARNING: CHILDREN SHOULD NOT USE SWIM SPAS OR HOT TUBS WITHOUT ADULT
SUPERVISION
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER UNE CUVE DE RELAXATION
SANS SURVEILLANCE
WARNING: DO NOT USE SWIM SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE
INSTALLED TO PREVENT BODY AND HAIR ENTRAPMENT.
AVERTISSEMENT: POUR ÉVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS
PUISSENT ÊTRE ASPIRES, NE PAS UTILISER UNE CUVE DE RELAXATION SI LES GRILLES DI PRISE
D’ASPIRATION NE SONT PAS TOUTES EN PLACE
WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL HIS-
TORY SHOULD CONSULT A PHYSICIAN BEFORE USING A SWIM SPA OR HOT TUB.
AVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MÉDICAMENTS OU ONT
DES PROBLÉMES DE SANTÉ DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE CUVE
DE RELAXATION
WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SWIM SPA OR HOT
TUB
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFECTIEUSES NE
DEVRAIENT PAS UTILISER UNE CUVE DE RELAXATION
WARNING: TO AVOID INJURY EXERCISE CARE WHEN ENTERING OR EXITING THE SWIM
SPA OR HOT TUB.
AVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN ENTRANT
DANS UNE CUVE DE RELAXATION ET EN SORTANT
WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SWIM
SPA OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING
AVERTISSEMENT: POUR ÉVITER L’ÉVANOUISSEMENT ET LA NOYADE ÉVENTUELLE, NE
PRENDE NI DROGUE NI ALCOOL AVANT D’UTILISER UNE CUVE DE RELAXATION NI QUAND ON S’Y
TROUVE
WARNING: PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD CONSULT A PHYSI-
CIAN BEFORE USING A SWIM SPA OR HOT TUB.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE SOIT CONFIRMÉE
OU NON, DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE CUVE DE RELAXATION
WARNING: WATER TEMPERATURE IN EXCESS OF 38˚C MAY BE INJURIOUS TO YOUR
HEALTH
AVERTISSEMENT: IL PEUT ÊTRE DANGEREUX POUR LA SANTÉ DE SE PLONGER DANS
DE L’EAU A PLUS DE 38˚C
WARNING: BEFORE ENTERING THE SWIM SPA OR HOT TUB MEASURE THE WATER TEM-
PERATURE WITH AN ACCURATE THERMOMETER
AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION MESURER LA
TEMPÉRATURE DE L’EAU À L’AIDE D’UN THERMOMÉTRE PRÉCIS

10DO NOT DIVE.
SAFETY INSTRUCTIONS
WARNING: DO NOT USE A SWIM SPA OR HOT TUB IMMEDIATELY FOLLOWING STRENU-
OUS EXERCISE
AVERTISSEMENT: NE PAS UTILISER UNE CUVE DE RELAXATION IMMÉDIATEMENT
APRÉS UN EXERCISE FATIGANT
WARNING: PROLONGED IMMERSION IN A SWIM SPA OR HOT TUB MAY BE INJUROUS TO
YOUR HEALTH
AVERTISSEMENT: L’UTILISATION PROLONGÉE D’UNE CUVE DE RELAXATION PEUT
ÊTRE DANGEREUSE POUR LA SANTÉ
WARNING: DO NOT PERMIT ELECTRIC APPLIANCES (SUCH AS LIGHT, TELEPHONE, RADIO,
OR TELEVISION) WITHIN 1.5 M OF THIS SWIM SPA OR HOT TUB
AVERTISSEMENT: NE PAS PLACER D’APPAREIL ÉLECTRIQUE (LUMINAIRE, TÉLÉPHONE,
RADIO, TÉLÉVISEUR, ETC) À MOINS DE 1.5 M DE CETTE CUVE DE RELAXATION
CAUTION: MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH MANUFACTURER’S
INSTRUCTION
ATTENTION: LA TENEUR DE L’EAU EN MATIÉRES DISSOUTES DOIT ÊTRE CONFORME AUX
DIRECTIVES DU FABRICANT
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees
above the normal body temperature of 37˚C. The symtoms of hyperthermia include drowsiness,
lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia
include
(a) unawareness of impending hazard;
(b) failure to perceive heat;
(c) failure to recognize the need to exit swim spa;
(d) physical inability to exit swim spa;
(e) fetal damage in pregnant women; and
(f) unconsciousness and danger of drowning.
WARNING: THE USE OF ALCOHOL OR DRUGS CAN GREATLY INCREASE THE RISK OF
FATAL HYPERTHERMIA IN HOT TUBS AND SWIM SPAS
LA CONSOMMATION D’ALCOOL OU DE DROGUE AUGMENTE CONSIDÉRABLEMENT LES
RISQUES D’HYPERTHERMIE MORTELLE DANS UNE CUVE DE RELAXATION.

11DO NOT DIVE.
GLOSSARY OF SWIM SPA TERMINOLOGY
1. THERAPY JETS
Your new swim spa features a variety of jet styles. All jets, regardless of style
return the water to the swim spa. Air is mixed with the water by using the air
controls creating a gentle to most vigorous massage. Water flow is adjusted
by simply turning the outer face of the jet.
2. JET DIVERTER VALVE
Located on the topside of the swim spa, this valve physically diverts the
flow of water from one jet zone of the swim spa to another jet zone.
Be sure that no sand or particles are brought into the swim spa as they
can cause the diverter to seize up. It is best to turn the diverter valve
only when the pump is turned off.
3. AIR CONTROL VALVES
These are located around the top of your swim spa. You may increase
or decrease the force of your jets by opening or closing the air control
valves. Typically, one dial controls the air to water ratio and mix to one
group of jets. When not in use the air controls should be kept in the
closed position, as air bubbles tend to cool the water.
4. TOPSIDE CONTROL PANEL
You may safely control all functions from inside or outside your swim spa using the
Topside Control Panel. This Panel is used to control the water temperature, pumps, the swim
spa light, automatic filtration cycles and other advanced functions. The digital display will
give you a constant temperature readout and will notify you in case of certain malfunctions.
Several user programmable functions are also available.
5. SWIM JETS
The swim jets are operated by directing the water flow from the pumps to the jets located in
the swim end of the swim spa by turning the diverter valves.
6. PERSONAL REMOTE CONTROL
Your swim spa has an additional remote which allows the user to con-
trol the stand up jet therapy cove. By pressing the control one time, you
will activate the pump. Press the pad again to turn the pump off.
7. EQUIPMENT ACCESS PANEL
Located behind the side panel below the Topside Control Panel, this area houses the major
components responsible for the swim spas operation. Those components include the pumps,
heater, control panel box, Ozonator, and LED light system. Pump and equipment placement
may vary by model.

12DO NOT DIVE.
GLOSSARY OF SWIM SPA TERMINOLOGY

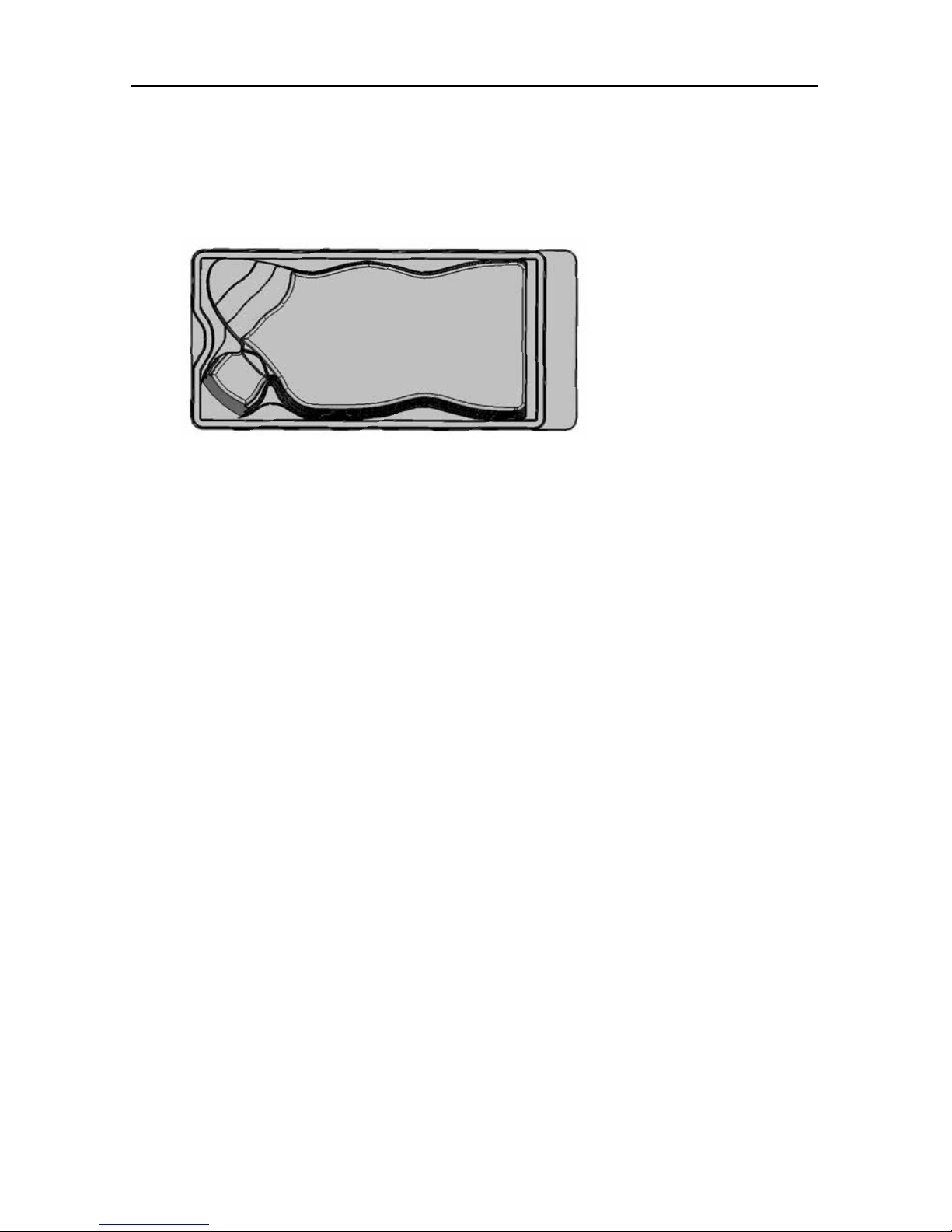

8. ACCESS PANELS
These are located on all four sides of the swim spa. All of the panels are removable should
service be required.
NOTE: Note: The above drawing illustrates the panel placement on the swim spa.
WARNING: Do Not Remove Access Panels Without Turning Off Power To The Swim Spa.
9. DRAINING YOUR SWIM SPA
Due to the physical size of the swim spa, we recommend draining your swim spa with a
submersable sump pump. Draining your swim spa with a conventional swim spa drain is not a
reasonable option.
10. WEIR GATE
The weir gate is the horizontal door located in front of the filters that trap debris in the filter
area.
11. SWIM SPA LIGHT
Your swim spa lights are designed for safety and are located on the interior walls of your
swim spa. The on/off switch is located on the topside control panel.
12. EQUIPMENT CONTROL SYSTEM
This houses the wiring and electrical components necessary to operate the swim spa.
13. SWIM SPA HEATER
This element is an electric heater housed in a stainless steel tube. It is thermostatically con-
trolled and equipped with a high-limit temperature safety shut-off sensor. The high-limit sen-
sor cannot be reset until the temperature within the heater assembly drops several degrees
below the shut-off temperature of 108° - 110° F. Should the high-limit switch trip repeat-
edly, contact your dealer or qualified service representative to diagnose the problem. Your
swim spa will heat approximately 1˚- 2˚ per hour, on average when the cover is closed. These
times may vary and the swim spa should have a cover installed.
Panel “B”
Panel “H” Panel “G” Panel “F”
Panel “E”
Panel “A”
Panel “C” Panel “D”

13DO NOT DIVE.
GLOSSARY OF SWIM SPA TERMINOLOGY

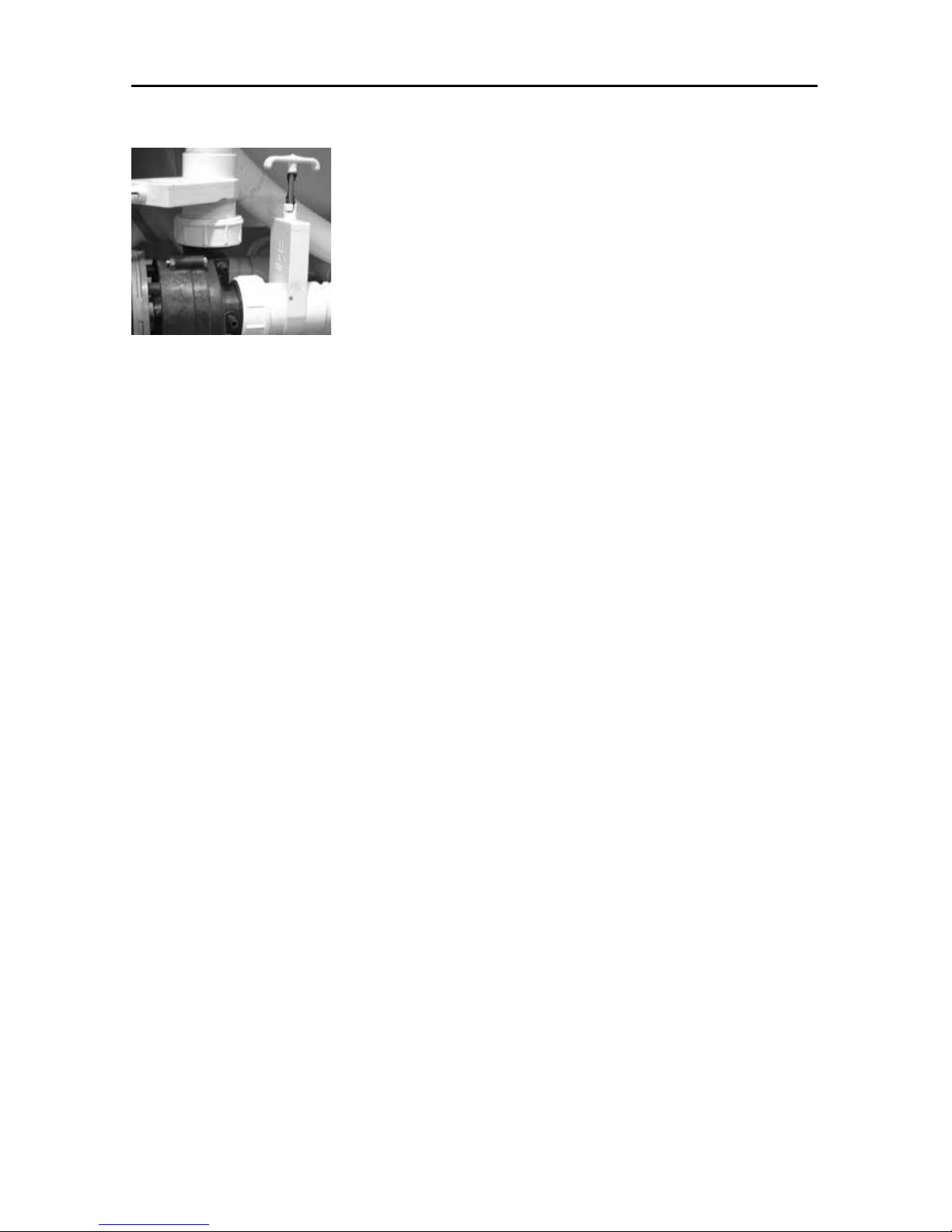

14. SLICE VALVES
These valves are used by service personnel to shut off water to the
heater, main pump system and secondary pump system so that the
water does not need to be drained should the swim spa require
service.
*NOTE: Slice valves must be completely open during normal
operation.
15. MAIN PUMP
The main pump produces water flow through the jets and has a high and low speed. Low
speed will produce efficient water circulation during filtration and gentle jet action. High
speed should be used for maximum jet action. The water flow may be directed to different
areas of the swim spa depending on the position of the diverter controls.
16. SECONDARY PUMP
This pump produces water flow through the stand up jet system.It also supplies water flow
to the swim jets or therapy jets depending on the position of the diverter valve. The second
pump can be controlled by the topside panel and also the personal remote mounted on the
surface of the swim spa.
17. PUMP UNION
These are used by service personnel to easily service the pumps.
18. HEATER UNION
These are used by service personnel to easily service the heater.
19. OZONATOR
Your onzonator will operate in conjunction with the filter system. Ozone is a powerful gas
that oxidizes contaminates in the water.

14DO NOT DIVE.
ELECTRICAL INSTALLATION REQUIREMENTS
ELECTRICAL INSTALLATION REQUIREMENTS
!! TRAINER 12, 14, 17, 18 !!
HAVE YOUR ELECTRICIAN READ THE FOLLOWING INFORMATION
BEFORE INSTALLATION BEGINS
Electrical connections made improperly, or the use of wire gauge sizes for incurring
power which are too small, may continually blow fuses in the electrical equipment
box, may damage the internal electrical controls and components, may be unsafe
and in any case will void your warranty.
It is the responsibility of the swim spa owner to ensure that electrical connections
are made by a qualified electrician in accordance with the National Electrical Code
and any local and state electrical codes in force at the time of installation.
These connections must be made in accordance with the wiring diagrams found
inside the control box. This equipment has been designed to operate on 60Hz.
alternating current only, 240 volts are required. Make sure that power is not
applied while performing any electrical installation. A copper bonding lug has been
provided on the electrical equipment pack to allow connection to local ground
points. The ground wire must be at least 8 AWG copper wire and must be con-
nected securely to a grounded metal structure such as a cold water pipe. All Master
Spas equipment packs are wired for 240 VAC only. The only electrical supply
for your swim spa must include a 50 AMP switch or circuit breaker to open all
non-grounded supply conductors to comply with section 422-20 of the National
Electrical Code. The disconnect must be readily accessible to the swim spa occu-
pants, but installed at least five feet from the swim spa. A Ground-Fault Circuit
Interrupter (GFCI) must be used to comply with section 680-42 of the National
Electrical Code. A ground fault is a current leak from any one of the supply con-
ductors to ground. A GFCI is designed to automatically shut
off power to a piece of equipment when a ground fault is detected.
Power hook-up to the swim spa must be 240 volt 3 wire plus ground (6 AWG
copper) 8 AWG copper ground.
Route the cable into the equipment area for final hook-up to terminals inside the
control panel. The swim spa must be hooked up to a “dedicated” 240 volt, 50 amp
breaker and GFCI. The term “dedicated” means the electrical circuit for the swim
spa is not being used for any other electrical items (patio lights, appliances, garage
circuits, etc.). If the swim spa is connected to a non-dedicated circuit, overloading
will result in “nuisance tripping” which requires resetting of the breaker switch at
the house electrical panel. Rev. 11/11
Permanently Connected Equipment Assembly with Pump(s), Heaters, Luminaine, Ozone, Swim Spa
Side Control(s), Pump shut off device, and Audio/Video Components.
Note: Some of the above components may be optional or not available with every swim spa model.

15DO NOT DIVE.
ELECTRICAL INSTALLATION REQUIREMENTS
ELECTRICAL INSTALLATION REQUIREMENTS
!! TRAINER 19 !!
HAVE YOUR ELECTRICIAN READ THE FOLLOWING INFORMATION
BEFORE INSTALLATION BEGINS
The Trainer 19 swim spa requires two separate electrical power supplies.
A 50 amp dedicated electrical service using #6 AWG copper wire with #8 AWG
ground wire should be ran to the Spa Control Pack in the swim spa. This electrical
supply should have an external GFCI installed. (See electrical hook-up diagram on
page 16).
A 30 amp dedicated electrical service using #8 AWG copper wire with #10 AWG
ground wire should be ran to the Swim Control Pack in the swim spa. This electri-
cal supply must be protected by an external GFCI (see electrical hook-up diagram
on page 16).

16DO NOT DIVE.
WIRING SCHEMATIC
WIRING FOR MODELS THAT REQUIRE A SEPARATE GFCI BREAKER
* Actual wiring of GFCI will vary by manufacturer of GFCI. The GFCI shown is a Square D.
Improper wiring of GFCI may result in permanent damage to swim spa system box. Repair /
replacement of swim spa system box is not covered under warranty when damage results from
improper wiring.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
50 5050
TEST
50
1
2
3
4
5
WHITE (NEUTRAL)
BLACK (HOT)
RED (HOT)
GREEN (GROUND)
Instruments
Balboa
Incorporated
Wire Key
House Breaker Box
G.F.C.I Breaker Box
Spa System Box
Green (Ground)
Red (Hot)
Black (Hot)
White (Neutral)
NOTE: For a 240 V
dedicated hook-up, the
white neutral wire is
not required between
the G.F.C.I. and the
system box.
GRN
GRN (GROUND)
RED (HOT)
BLK (HOT)
BLK (HOT)
RED (HOT)
RED (HOT)
WHT (NEUTRAL)
WHT
WHT
BLK (HOT)
GRN (GROUND)
TB1
IDF00007.mac 6/17/97
Junction Box

17DO NOT DIVE.
SITE PREPARATION / GENERAL GUIDELINES
Swim spa installation is simple when properly planned. It is important that you read the following
information carefully and consult with your Master Spas dealer.
1. Access - The actual dimensions of your new swim spa will determine the amount of space that
is needed in moving the swim spa from curbside to its final installation area. Be sure to measure
side yard dimensions, gates or doors and vertical obstructions such as roof overhangs and over-
head cables. Any other space limiting obstacles such as trees or shrubs must be evaluated.
2. Surface/Pad Requirements - When your new swim spa is filled with water and bathers, it may
weigh as much as several tons. It is imperative that the base beneath the swim spa can support
the entire weight. The swim spa must be on a uniformly firm, continuous, and level surface. The
recommended foundation is a concrete pad with a minimum thickness of four (4) inches with
steel reinforcement bars crossed throughout the pad.
IMPORTANT
Be sure to locate your swim spa so that the equipment remains above grade and is not subject
to flooding.
The equipment side(s) of the swim spa must be accessible in the event that future service is need-
ed. In the event that service is required, your dealer will need at least 2 feet of clearance around
the perimeter of the swim spa. Periodical maintenance checks require entry into the equipment
bay. When possible, it is wise planning for the future to leave access, to all sides of the swim spa in
the event your swim spas plumbing requires maintenance. Your swim spa warranty does not cover
the cost of providing access for service.
GENERAL CONSIDERATIONS FOR OUTDOOR INSTALLATION
Proper planning will increase your total enjoyment factor with your new swim spa. Listed below are
some additional items to consider when planning your installation.
• How swim spa will complement landscaping and vice versa
• View from inside swim spa and view of swim spa from inside of home
• Exposure to sunlight and shading from trees
• Privacy
• Getting to swim spa from house and return
• Proximity to dressing rooms and bathrooms
• Storage for swim spa chemicals
• Local building codes (if applicable)
• Power cable
NOTE: The Swim Spa is to be used in private, residential use only. Operating an Swim Spa for
commercial use will void the warranty.

18DO NOT DIVE.
INSTALLATION INSTRUCTIONS
1. Put swim spa in final position that allows for access to equipment and swim spa components.
2. Remove front skirt panel "A" to access the electrical connections.
3. Be sure all pump and heater unions are secure. Each pump has 2 unions and the heater has
2 unions. A newly delivered swim spa may have loose unions caused in transporting the swim
spa. Check that all slice valves are open, in the up position. The slice valves may become
closed during transportation of the swim spa.
Airlock
Pump Union
Slice Valve
4. Fill the swim spa to the “minimum safe water level” sticker.
5. Turn on power to the swim spa. If your swim spa is equipped with two electrical supplies,
make sure that they are both turned on. The swim spa will go through its priming mode. This
lasts approximately 5 minutes. The purpose of the priming mode is to help insure that the jet
pumps have been primed with water and are ready to operate. It may be necessary in some
instances to bleed air from the jet pumps in your swim spa, if after the priming mode the
swim spa pumps run but do not move water the pump may have an air lock.
Due to the nature of water flow and hydro-therapy pumps, please be advised that air locking
of pumps may occur. Master Spas, Inc. has taken measures to reduce the possibility of this,
but it still may occur, especially after filling the swim spa. This is not a service covered by the
warranty and service charges may apply.
To relieve an airlock situation, loosen the pump union on the discharge of the pump. This
pump union is indicated by an arrow in the picture below. Water should leak out of the
union once the air has been removed. Tighten the union and test the pump for proper opera-
tion. Repeat this process if needed.
6. Be sure the jets in your Swim spa are open. See 47 page for removal instructions.
7. Adjust water chemistry according to the instructions provided in the Swim Spa “Water Quality
Maintenance” Section.
8. Your swim spa water will heat approximately 1° - 2° per hour, on average. Times may vary.
