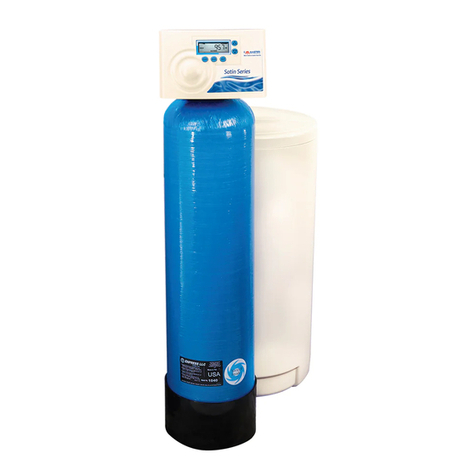

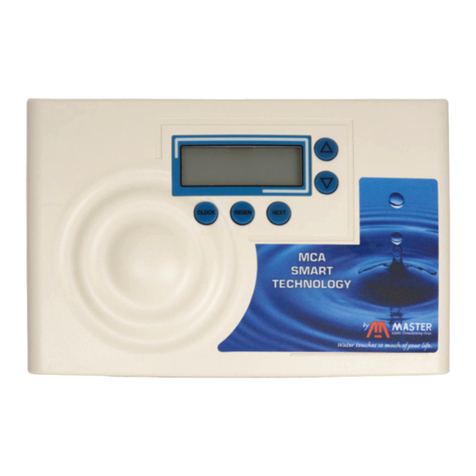

Master Water’s Satin Series softens water while protecting
appliances and fixtures from hard water mineral deposits.
Needing less water to drain, these efficient water softeners
reduce scale while improving flow in pipes, require low salt
usage and are capable of high capacity with a small footprint.
APPLICATION GUIDE
Highly efficient water conditioning
Satin Series
Our systems are available in the
following configurations:
• MP (Single Tank) Standard high efficiency model
• RS (Twin Alternating) 24/7 treated water, treated
water regeneration, no wasted capacity
• MP2 (Parallel Units) 24/7 treated water, treated
water regeneration, twice the flow
Options available on all configurations:
• Brine Recovery
• Separate Source Regeneration
• Feed Pump Operation
Water Issue: Hardness, Iron/Manganese, Lead, Copper, Radium1
Model Number Gallons to Drain
MP-MCA-30T 41.64 Gallons
MP-MCA-45T 45.6 Gallons
MP-MCA-60T 59.56 Gallons
Model Number Rated Flow Rate
MP-MCA-30T 16.8 GPM
MP-MCA-45T 15.5 GPM
MP-MCA-60T 17.3 GPM
Model Number Capacity @ 4322 grains
MP-MCA-30T 19,400 gr @ 4.5 lbs
MP-MCA-45T 29,200 gr @ 6.75 lbs
MP-MCA-60T 38,900 gr @ 9 lbs
LESS WATER TO DRAIN
HIGHER SERVICE FLOW
HIGHER EFFICIENCY
Product Versions Mineral Tank Size Brine Tank Size Backwash Flow Service Flow
MP-MCA-30T 10” x 40” 18” x 33” 1.7 16.8
MP-MCA-45T 10” x 54” 18” x 40” 1.7 15.5
MP-MCA-60T 12” x 48” 18” x 40” 2.7 17.3
RS-MCA-30T 10” x 40” 18” x 33” 1.7 16.8
RS-MCA-45T 10” x 54” 18” x 40” 1.7 15.5
RS-MCA-60T 12” x 48” 18” x 40” 2.7 17.3
MP2-MCA-30T 10” x 40” 18” x 33” 1.7 33.6
MP2-MCA-45T 10” x 54” 18” x 40” 1.7 31.0
MP2-MCA-60T 12” x 48” 18” x 40” 2.7 34.6
1 Water Softeners are certified for hardness removal only.
Product tested and certified by WQA to
meet the requirement of NSF/ANSI 44
MP DUPLEX

www.masterwater.comMade in USA
1. Will the Satin Series Water Softener fit within the allocated
space in my home?
Check table for space required
2. Will the Satin Series Water softener meet my flow demand?
DEPTH
HEIGHT
WIDTH
Satin Series
Systems:
MP – Provides treated water except during regeneration.
RS – Provides continuous treated water and treated water cleaning. One unit is “On Line” while the second
unit is in “Standby”.
MP2 – Provides double the flowrate of a single tank system, continuous treated water and treated water cleaning.
Both units are always “On Line” except during a regeneration.
Options:
Brine Recovery – Saves salt which would normally go to drain.
Separate Source – System can regenerate with water from a separate source.
Feed Pump – Compatible metered feed pump operation without an external meter.
• Local conditions can influence system performance
• Water must be clear when drawn
• Water Softeners are certified for hardness removal only
APPLICATION GUIDE
SATIN SERIES
SYSTEMS MP/RS/MP2-MCA-30T MP/RS/MP2-MCA-45T MP/RS/MP2-MCA-60T
Efficiency Salt <1 ppm Iron (Fe) <1 ppm Iron (Fe) <1 ppm Iron (Fe)
Setting Limits <0.25 ppm Manganese (Mn) <0.25 ppm Manganese (Mn) <0.25 ppm Manganese (Mn)
for ≤5 People <13 gpg Hardness <22 gpg Hardness <31 gpg Hardness
salt setting @ 4.5 lbs salt setting @ 6.75 lbs salt setting @ 9 lbs
High Salt <5 ppm Iron (Fe) <5 ppm Iron (Fe) <5 ppm Iron (Fe)
Setting Limits <1 ppm Manganese (Mn) <1 ppm Manganese (Mn) <1 ppm Manganese (Mn)
for ≤5 People <13 gpg Hardness <28 gpg Hardness <43 gpg Hardness
salt setting @ 15 lbs salt setting @ 22.5 lbs salt setting @ 30 lbs
Service Flow 16.8 gpm MP/RS-MCA-30T 15.5 gpm MP/RS-MCA-45T 17.3 gpm MP/RS-MCA-60T
Capability 33.6 gpm MP2-MCA-30T 31 gpm MP2-MCA-45T 34.6 gpm MP2-MCA-60T
Capacity 19,400 gr @ 4.5 lbs salt 29,200 gr @ 6.75 lbs salt 38,900 gr @ 9 lbs salt
33,700 gr @ 15 lbs salt 50,500 gr @ 22.5 lbs salt 67,400 gr @ 30 lbs salt
MP-MCA-30T MP-MCA-45T MP-MCA-60T
31”W x 19”D x 48”H 31”W x 19”D x 62”H 33”W x 19”D x 56”H
Total RS-MCA-30T RS-MCA-45T RS-MCA-60T
Dimensions 44”W x 19”D x 48”H 44”W x 19”D x 62”H 48”W x 19”D x 56”H
MP2-MCA-30T MP2-MCA-45T MP2-MCA-60T
65”W x 19”D x 48”H 65”W x 19”D x 62”H 69”W x 19”D x 56”H
If above parameters cannot be used to determine a system, contact Master Water Conditioning.
Brine
Tank
