MasterCraft Pro Star User manual

ProStar
Welcomeaboard!
Many years of ownership enjoyment
are ahead for boat owners who carefully
review and follow the guidance provided
in the Owners Manual that accompanied
delivery of your boat. In addition to the
detailed information provided in that publi-
cation, this supplemental guide offers some
model-specic information pertaining to
your ProStar boat.
Please take a few minutes to review all
the material supplied. The information has
been developed to ensure optimum enjoy-
ment and safe operation, as well as provid-
ing the proper maintenance for years of
boating enjoyment.
If you are unsure about any aspect of
your boat or its operation, please discuss
your concerns and questions with an autho-
rized MasterCraft dealer before operating
the boat.

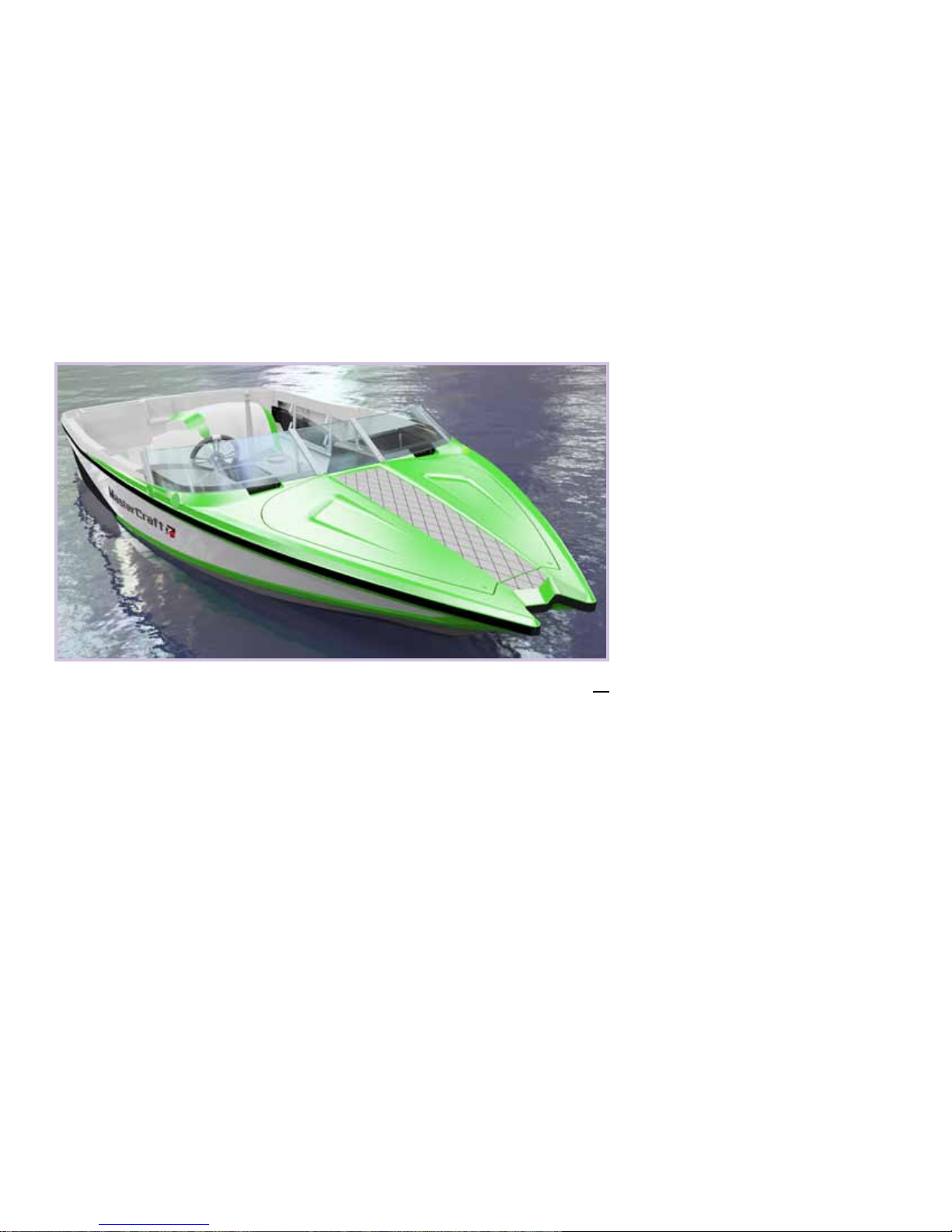

MASTERCRAFT PROSTAR
ProStar
Length of Boat.............................20’
Width Amidship..........................96”
Boat Weight ................... 3,000 lbs.
Length of Boat w/Platform ..22’2”
Towing Length.......................25’10”
Towing Width..............................99”
Fuel Capacity................. 25 gallons
Maximum Capacity .........................
7 people or 1,341 lbs. (650 kg.)
.............Bow: 2 people or 300 lbs.
26 = Stern cleat (where equipped)
27 = Stern light receptacle (if equipped with
tower, the light will be in center aft
of tower)
28 = Aft seating (where equipped)
29 = Automatic re extinguisher (inside engine
compartment)
30 = Center drain plug (inside engine compart-
 mentondeckoor)
31 = Ski pylon
32 = Amp (where equipped, beneath observer
seat)
33 = Hand-held re extinguishers (beneath
observer seat)
34 = Bow cleat (where equipped)
35 = MTS Ballast System (where equipped,
beneath observer seat)
36 = Navigation light
37 = Glovebox
38 = iPod interface (where equipped, inside
glovebox)
39 = Stereo CD Player (inside glove box,
where equipped)
40 = Sirius Satellite Radio (where equipped)
41 = Heater (where equipped)
42 = Bow seating (where equipped)
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
1 = Bow hatch (where equipped)
2 = Drop-in walk-thru door
3 = Folding walk-thru seat
4 = Storage compartment
5 = Circuit breaker panel, including battery ON-
OFF switch (side panel, walk-thru)
6 = Adjustable mirror
7 = Bilge thru-hull outlet
8 = Navigation light
9 = Instrument panel (details follow)
10 = Bow cleat (where equipped)
11 = Steering wheel
12 = Shift-throttle control
13 = Fire suppression unit manual override
14 = In-oor storage compartment
15 = Engine compartment
16 = Aft seating (where equipped)
17 = Fuel tank ller
18 = Stern cleat (where equipped)
19 = Aft storage compartment
20 = Transom drain plug (center beneath swim
platform)
21 = Transom rail with tow eye (where equipped)
22 = Engine exhaust (two below swim platform)
23 = Swim platform
24 = Aft storage compartment
25 = Battery (beneath storage door)
Page 9-2 2014 MasterCraft Owners Manual • ProStar Supplement

MASTERCRAFT PROSTAR
1
2
34
5678910 11
12
13 14 15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
35 34 33
32 30
31
36
37
38
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-3
42
41
40 39

MASTERCRAFT PROSTAR
Page 9-4 2014 MasterCraft Owners Manual • ProStar Supplement
ProStar
VideoScreen
Operations
7”Screen
The ProStar 7” video touch screen is a
multi-functional tool that provides GPS
tracking, multi-media display, cruise con-
trol, rider proles, and enables equipment
operators to view a wide range of engine,
ballast, transmission parameters and ser-
vice codes.
CareandMaintenance
Only basic cleaning should be required
to maintain the 7” video touch screen at its
best. A soft cloth can be used for cleaning
the units. Typical window cleaner or rub-
bing alcohol can also be used to clean the
glass portion of the video screen display.
Do not use harsh or abrasive cleaners on
the unit.
Avoid contact between sharp or hard ob-
jects and the video touch screen because
this can result in scratches or other perma-
nent marks on the screen. Clean only with a
sof cloth, using window cleaner or rubbing
alcohol only. Never use harsh or abrasive
cleaners on the unit, as this may result in
damage to the unit that is not covered un-
der warranty.
BasicNavigation Features
All features are easily accessible through
the quick access keys, touch point com-
mands and menus.
QuickAccessKeys
The following controls are accessed via
the Quick Access Keys: Audio, Ballast/
Trim, Gauges, Video, Settings Menu, GPS,
User Proles, Cruise ON/OFF, Increase
Value and Decrease Value. They are called
Quick Access Keys because a new screen
can be called up quite fast by pressing the
key.
Touch Point Commands
After the desired screen is accessed, nav-
igation within the screen is controlled with
Touch Point Commands. These are execut-
ed by touching the screen in areas that are
outlined with a highlighted bezel.
In addition, there are areas where sliding
a nger up or down can adjust settings. For
example, on the Ballast and Tabs screen,
sliding the nger on the screen on the in-
side of the tank area adjusts the ballast set-
ting.

MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-5
There are also areas in which sliding a
nger from side to side will scroll through
a list.
When the slider bar on top of the screen
is visible, sliding the nger across it will
change screens.
NOTE: While the slide area may appear
to be curved, it is, in fact, a straight line.
Audio
The Audio screen can be ac-
cessed by pressing the Quick Ac-
cess Key. Press any Quick Access
Key to exit this screen.
The stereo display and functionality
is supported by JL Audio Media Master.
Please see the JL owner’s manual.
BallastandTrim
The Ballast and Trim screen can
be accessed by pressing the Quick
Access Key. Press any Quick Ac-
cess Key to exit this screen.
This screen displays the current state of
the ballasts and trim tabs. Refer to the in-
formation following for actions using the
Touch Commands on this screen.
Touch Commands
Function and Description
Touch to turn cruise control OFF or ON.
Touch to stop all activity on this screen.

name the new prole and the new prole
process is launched. (SeeProlesformore
information.)
Touch to ll all ballasts.
Touch to empty all ballasts.
Touch and slide your nger to the de-
sired Ballast Tank level, or touch the UP
DOWN Arrows to obtain the level.
Touch and slide your nger to the desired
Touch to turn AUTO LAUNCH/EXIT
ON or OFF. When Auto Launch is on, it
automatically controls the center tab. When
speed is above the Auto Launch speed the
center tab will be retracted to 0% or if a
prole is selected, it deploys the center tab
to the prole setting. If the speed is above
the Auto Launch speed and then deceler-
ated below the Auto Launch speed, the tab
deploys to 100.
Touch to save the settings to the current
rider prole.
NOTE: If no rider prole is selected,
does nothing.
Touch to save these settings to a new
rider prole. A keyboard is displayed to
Trim Tab position.
Gauges
The Gauges screen can be ac-
cessed by pressing the Quick Ac-
cess Key. Press any Quick Access
Key to exit this screen.
Gauge Screen Gage Display
• Speedometer (MPH)
• Water Depth (FT)
• Air Temperature (F°)
• Water Temperature (F°)
• Battery Voltage (Volts)
• Engine Run Time (Hours)
MASTERCRAFT PROSTAR
Page 9-6 2014 MasterCraft Owners Manual • ProStar Supplement

Touch Commands
Description
Touch to turn cruise control ON or
OFF.
Video
The Video screen can be ac-
cessed by pressing the Quick Ac-
cess Key. Press any Quick Access
Key to exit this screen.
Touch Commands
Description
Touch to turn cruise control ON or OFF.
Touch to view the Tower video source.
Press the Video Quick Access Key to go
back.
Touch to view the Aux Video source.
Press the Video Quick Access Key to go
back.
Touch to view the Media video source.
Press the Video Quick Access Key to go
back.
HeaterandLights
The Heater and Lights screen can
be accessed by pressing the Quick
Access Key. Press any Quick Ac-
cess Key to exit this screen.
MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-7

Touch Commands
Description
Touch to turn cruise control ON or OFF.
Touch to turn ON or OFF.
Touch again to choose a High or Low
temperature setting.
Touch to turn ON or OFF.
Profiles
e Proles screen can be ac-
cessed by pressing the Quick Access
Key.
is feature displays rider/user
proles for cruise controls based on user
preferences for Set Speed, Ballast, and Tab
settings. Up to 16 rider/user proles can be
created and stored.
To scroll through the available Proles,
slide nger across
the information
slide bar or press
the Quick Access
Keys and to view the list.
Touch Commands
Description
Touch to turn cruise control ON or OFF.
Touch to delete the selected rider aer
conrmation warning.
Touch to activate the user displayed in
that event with all settings activated.
Touch to edit existing user or event
name.
MASTERCRAFT PROSTAR
Page 9-8 2014 MasterCraft Owners Manual • ProStar Supplement

Touch to add a new rider. See the process
in the next section.
A new rider prole can be setup using
the touch screen. To create a new prole,
press the [Prole] Quick Access Key:
Touch [ADD NEW] to create a new prole.
Type a name for the new prole using the
touch keypad and touch [DONE].
Touch [NEXT] to continue.
Touch the [UP] or the [DOWN] arrow
to Set the speed for this prole.
Touch [Change] to set 3 Event Type.
Touch [Next] to continue.
Set the tab by either sliding the nger
down the ridged area or by touching the
[UP] and [DOWN] arrows. Touch [NEXT]
to continue.
MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-9

Touch to highlight the Pull Type; touch
the arrows to change the setting.
Touch the Toggle +/- to set ON or OFF.
Touch to highlight the Wait Time; touch
the arrows to change the setting.
Set the ballast tanks by touching and
sliding the nger up the tank area or by
touching the [UP] and [DOWN] arrows
alongside the tank area. Touch [NEXT] to
continue.
Final Save prole or edit screen. Review
the Prole settings. Touch [SAVE] to save
the prole and return to the Proles screen
with the new prole displayed.
New rider activates Screen with New
name listed above the Activate button.
Touch [ACTIVATE] to activate the settings
for this prole.
MASTERCRAFT PROSTAR
Page 9-10 2014 MasterCraft Owners Manual • ProStar Supplement

On the 3 Event Screen, everything is ac-
tivated.
DeleteCurrentProfile
Touch [DELETE] to delete the current
prole. A conrmation overlay is displayed.
Touch [CANCEL] to abort the process and
[YES] to conrm delete.
Touch [OK] to return to the Proles
screen. Now the Prole screen has no rider
prole.
EditCurrent User
Touch [EDIT] to modify the user prole.
Touch [EDIT] to retype the name, touch
[NEXT] to continue or [CANCEL] to re-
turn to the Proles Screen.
Follow the same steps as creating a new
prole touch [NEXT] to continue to the next
screen without change. Remember to click the
Save on the nal screen to save the changes.
MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-11

MASTERCRAFT PROSTAR
Page 9-12 2014 MasterCraft Owners Manual • ProStar Supplement
Tournament Events
e 3 Event screen can be ac-
cessed by pressing the Quick Ac-
cess Key. is feature provides
a way to keep a boat within the
strict guidelines of the event it is tracking
and provide a visual display of the track and
the progress of the skier.
Tournament and Training Modes
ere are two modes for the 3-Event
feature, Tournament and Training. On the
3-Event Screen touch [Change Event] to
access the pop-up list.
Tournament Mode Training Mode
Slalom Tournament Slalom Training
Jump Tournament Jump Training
Trick
e Tournament Mode is limited to the
set speed of the event.
e Training Mode operates like the
Tournament Mode without the set speed
limitation.
Slalom Screen—
Tournament or Training
e screen illustrates the display avail-
able when the event being tracked is the
Slalom event; the three-event feature is
turned on and is in tournament mode. e

MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-13
Touch Commands aid in setting up, con-
trolling and tracking the Slalom event.
Touch Commands
Description
Cruise - Touch to turn cruise control
ON or OFF. (or press the Quick Access Key
from this screen.)
Settings – Select to set the Buzzer Vol-
ume, Prop Type, Timing Recap, and Slalom
wait time. See Slalom Tournament Settings.
Save New – Select to setup a new rider
prole. See Proles.
Change Event – Touch to select an event
from a list.
Course Manager – Allows you to map a
course. See Course Manager.
Pull Type –Touch to select a pull type
from a list.
Plus-Factor - Touch to select ON or OFF
from the pop-up. is setting is for addi-
tional throttle when entering the rst gate.
Event Times -Display the event times as
the skier passes the mapped points. (Touch

MASTERCRAFT PROSTAR
Page 9-14 2014 MasterCraft Owners Manual • ProStar Supplement
the numbers to view the previously record-
ed times; Timing Recap.)
Slalom Settings–
Tournament or Training
On the 3 Event Screen, touch the Settings
touch command to
access the pop-up
list. Touch each op-
tion to view or change the setting. When
available, touch the arrows to change the
setting.
Touch [Settings]. On the Pop-up, touch
the arrows to change the Slalom Wait Time.
Touch [Settings]. Touch [Buzzer Vol-
ume]. On the Pop-up, touch the arrows to
turn Buzzer Volume UP or DOWN.
Touch [Exit] to return to close the pop-
up.
Touch [Exit] to return to close the pop-
up. Touch [Settings]. Touch [Prop Type].
On the Pop-up, touch to change from 3
blade or 4 blade.
Touch [Settings]. Touch [Timing Re-
cap]. e pop-up displays current and pre-
vious event times.
Course Manager–
All Slalom and Jumping Events
On the 3 Event screen, touch the [Course
Manager] in the bottom of the screen to
start mapping a course.

MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-15
Touch the arrows to select a course that
is not mapped. Touch [Map Course].
NOTE: Additional Details on Course
List: e blue lettering above the course
list displays the mapped information for
the course selected. Always highlight a
course on the list page before mapping a
new course. When mapping a course, the
program assigns the mapping to whatever
name is highlights on the course list. For
example, if Course1 was previously mapped
and is highlighted when a new course is
mapped, the new mapping will overwrite
the original.
Touch the arrows to select a course type:
Jump, Slalom 4-Buoy or Slalom 8-Buoy.
Touch [Continue.]
Allow the program time to load.
Press the [Start Gate] to begin Mapping.
NOTE: For Slalom, press the [Start Gate]
button when the GPS puck crosses the start
gate.
For Jump, press the [Start Gate] button
when the ski pylon crosses the start gate.
If necessary, touch [Cancel] to cancel the
current mapping and return to the course list.
Press the [End Gate] to complete Map-
ping.
Course Mapping Successful will appear
on the screen.

MASTERCRAFT PROSTAR
Page 9-16 2014 MasterCraft Owners Manual • ProStar Supplement
Type the name of the course. Touch
[Done]. is saved your changes.
e new name is highlighted. Touch
[Done].
NOTE: Additional Options on the
Course List pop-up.
• Auto Detect – Touch to select ON or OFF.
Auto Detect ON–the display automati-
cally selects the nearest mapped course, based
on the longitude/latitude that is the same
event type the user is in (slalom or jump).
Auto Detect OFF–e user must select a
course before running it.
• Edit Name – Touch to go back and edit a
previously saved course.
• Map Course – Touch to map another course.
• Exit – touch to return to the 3 Event
screen.
• List of Courses - Touch UP and DOWN
arrows to scroll the list and choose a course.
Jump Screen–
Tournament or Training
e screen illustrates the display avail-
able when the event is Jump Tournament;
the three-event features are in tournament
mode and ready for settings. Use the Touch
Commands in setting up, controlling and
tracking the Jump event.
Touch Commands
Description
Cruise - Touch to turn cruise control
ON or OFF. (or press the Quick Access Key
from this screen.)
Settings – Select to set the Buzzer Vol-
ume, Prop Type, Timing Recap, and Jump
Switch Timeout.
Save New – Select to setup a new rider
prole. See Proles.
Change Event – Touch to select an event
from a list.

MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-17
Course Manager – Allows you to map a
course. See Course Manager.
Jump Letter –Touch to select a Jump
Letter, Weight, and Distance using the ar-
rows to change the values. Touch [Accept]
to save or [Cancel] to close pop-up.
RTB - Touch to select ON or OFF from
the pop-up.
Event Times - Display the event times as
the skier passes the mapped points. (Touch
the numbers to view the previously record-
ed times; Timing Recap.)
Jump Settings—
Tournament or Training
On the 3 Event Screen, touch the Settings
touch command to
access the pop-up
list. Touch each op-
tion to view or change the setting. When
available, touch the arrows to change the
setting. Touch [Exit] to close the pop-up.
Touch [Settings]. Touch [Buzzer Vol-
ume]. On the Pop-up, touch the arrows to
set a value at high speed and low speed.
Touch [Settings]. Touch [Prop Type].
On the Pop-up, touch to set at 3 blade or 4
blade.

MASTERCRAFT PROSTAR
Page 9-18 2014 MasterCraft Owners Manual • ProStar Supplement
Touch [Settings]. Touch [Timing Re-
cap]. e pop-up displays current and pre-
vious event times.
Touch [Settings]. Touch [Jump Switch
Timeout]. On the Pop-up, touch the ar-
rows to change the value.
NOTE: ZeroO recommends keeping
the default value of 1.8, (only changing in
extreme conditions).
Trick Screen
e screen illustrates the display avail-
able when the event is Trick Tournament;
the three-event features are in tournament
mode and ready for settings. Use the Touch
Commands in setting up, controlling and
tracking the Trick event.
Touch Commands
Description
Cruise - Touch to turn cruise control
ON or OFF (or press the Quick Access Key
from this screen.)
Settings – Select to set the Buzzer Vol-
ume, Prop Type, and River Mode.
Save New – Select to setup a new rider
prole. See Proles.
Change Event – Touch to select an event
from a list.

MASTERCRAFT PROSTAR
2014 MasterCraft Owners Manual • ProStar Supplement Page 9-19
Course Manager – Allows you to map a
course. See Course Manager.
Pull Type –Touch to select a Pull Type
on the pop-up.
Plus-Factor - Touch to select ON or OFF
from the pop-up. In the ON position, the
system will react sooner to both increase
and decrease in speed deviation. Used for
trick setting or additional throttle when en-
tering the rst gate.
Trick Settings–
Tournament or Training
On the 3 Event Screen, touch the Settings
touch command to
access the pop-up
list. Touch each op-
tion to view or change the setting. When
available, touch the arrows to change the
setting. Touch [Exit] to close the pop-up.
Touch [Settings]. Touch [Buzzer Vol-
ume]. On the Pop-up, touch the arrows to
set a value at high speed and low speed.
Touch [Settings]. Touch [Prop Type].
On the Pop-up, touch to set at 3 blade or 4
blade.
Touch [Settings]. Touch [River Mode]
to select ON or OFF. With River Mode
ON, touch to set the River Dir Oset UP
and DOWN values using the arrows.
