CHAIN DRIVE GARAGE DOOR OPENER
INSTRUCTION
MANUAL
IMPORTANT:
• Please read this manual and enclosed safety materials carefully!
• Safety infrared sensor MUST BE INSTALLED and aligned properly.
• Periodically testing the opener is required to ensure safe operation.
• Save this manual for future reference.
• This equipment meets or exceeds all federal, provincial and UL325
safety requirements.
• DO NOT RETURN this to the store
• Please call: 1-800-689-9928.
model no. 046-0265-2

headline bars
continuation tabs
notes
warnings

headline bars
continuation tabs
notes
warnings
3
TABLE OF CONTENTS
TABLE OF CONTENTS
Introduction 5
Pre-Installation Checklist 6
What is Included 7-9
Important Instructions 10-11
Assemble The T-Rail 12-17
Install The Header Bracket 18-21
Hang The Opener 22-23
Install The Door Bracket 24-25
Install The Door Arms 26-28
Install The Wall Console 29-30
Connect The Opener To Power 31-32
Install Safety Beam Sensor 33-37
Programming Guide 38-41
Safety Tests 42
Operation 43-46
Maintenance 47-48
Troubleshooting 49-51
Optional: Programming 52
Accessories 53
FCC 54
Limited Warranty 55
NOTE:
• If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at
1-800-689-9928.

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 046-0265-2 | contact us 1-800-689-9928
TABLE OF CONTENTS
BLANK PAGE (ON PURPOSE)

headline bars
continuation tabs
notes
warnings
5
INTRODUCTION
headline bars
continuation tabs
notes
warnings
INTRODUCTION
Congratulations on purchasing the Mastercraft® Chain Drive Garage Door Opener – a garage
door opener with many innovative features. Features include: extremely quiet operation with
DC motor; automatic force adjustment so the door can be closed with just the right amount
of force, not overpowered; and a state-of-the-art safety reversal system that protects your
family and property near the door.
Important Safety Information
The documentation provided with your opener has been carefully designed and organized
to make the assembly, operation and continued maintenance of your product as easy and
safe as possible. Assuring an extended life of this product is based upon the installation,
operation, maintenance and testing in strict accordance with the instructions and warnings
stated in this manual. Read and follow all guidelines and operating instructions before using
this product. Store the manual in a safe and easily-accessible location for future use.
Safety Symbol Overview
 WARNING
This type of warning symbol is used to indicate possible mechanical hazards that may cause
serious injuries or death.
 CAUTION
This type of warning symbol is used to indicate the possibility of damage to the garage door
or opener.

headline bars
continuation tabs
notes
warnings
PRE-INSTALLATION CHECKLIST
model no. 046-0265-2 | contact us 1-800-689-9928
6
PRE-INSTALLATION CHECKLIST
Check the following items before assembling the opener:
•Identify the door type: sectional door or one-piece jamb door.
•Ensure your garage door is balanced and is not sticking or binding.
•Here is how to check the door balance:
◊ From outside the garage, slowly open the door all the way and close it all the way –
DOOR SHOULD NOT BIND OR RUB.
◊ Raise the door halfway up – DOOR SHOULD STAY IN PLACE, SUPPORTED ENTIRELY BY
ITS SPRING.
•IMPORTANT: IF THE GARAGE DOOR FAILS EITHER OF THESE TESTS, HAVE A QUALIFIED
GARAGE DOOR PROFESSIONAL ADJUST OR REPAIR THE DOOR.
•If the garage door is lightweight (made with frame and skin, not solid), it must be braced
or reinforced before installing the opener (including the door frame). Check with a qualified
service professional for a door reinforcement kit.
•If you do not have an access door in addition to the garage door, you should install an
emergency key release kit.
•If your door is more than 7' (2.1 m) high, you will need a rail extension kit (sold separately).
•With the garage door closed, check alignment of door and garage floor. The gap, if any,
should be no more than 1/4" (6 mm). If the gap is larger than this, repair floor or door
before installing opener.
Sectional Door One-piece Jamb Door

headline bars
continuation tabs
notes
warnings
7
WHAT IS INCLUDED
Safety Beam Unit
Keyless Entry

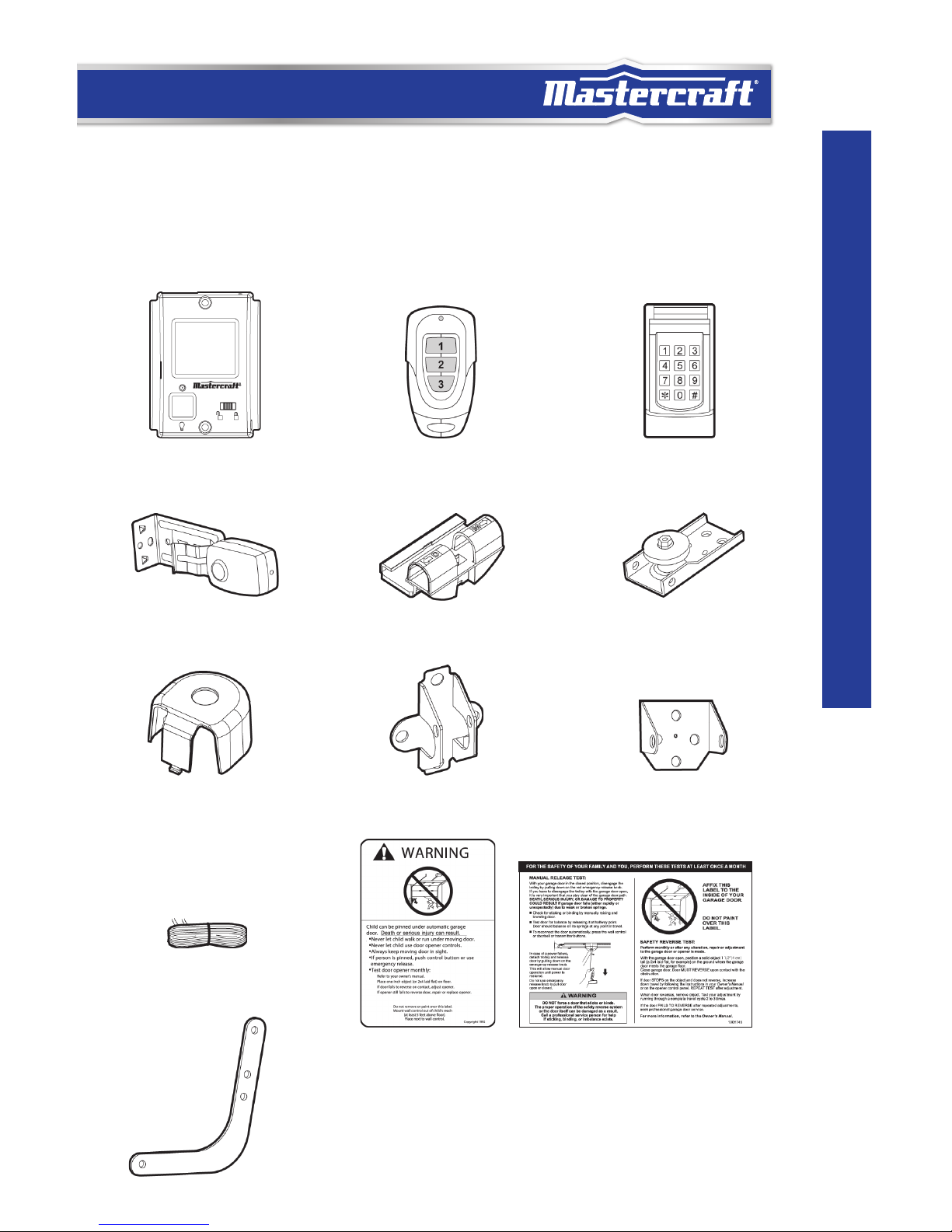

WHAT IS INCLUDED
The garage door opener and all accessories are packaged in one carton.
Note that accessories will depend on the model you purchased. If anything is missing,
carefully check the packing material.
Bell Wire
Curved Arm
Door Bracket Head Bracket
Keychain Remote
Pulley Assembly
Sprocket Cover
Trolley
Wall Console
Safety Labels

8
headline bars
continuation tabs
notes
warnings
model no. 046-0265-2 | contact us 1-800-689-9928

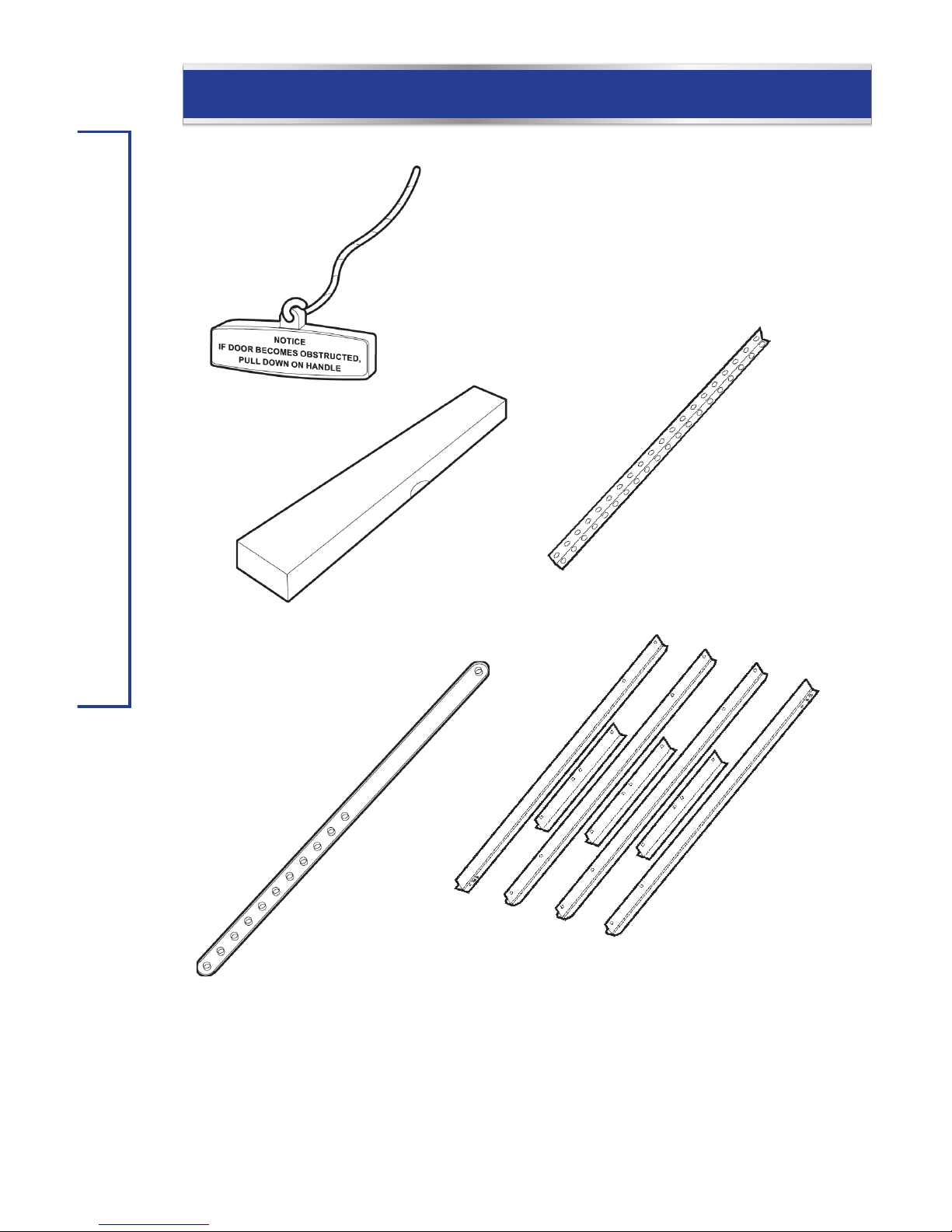

WHAT IS INCLUDED
Straight Arm Rail Sections
Chain and Cable
Assembly
Hanging
Bracket
Emergency Release
Rope

9

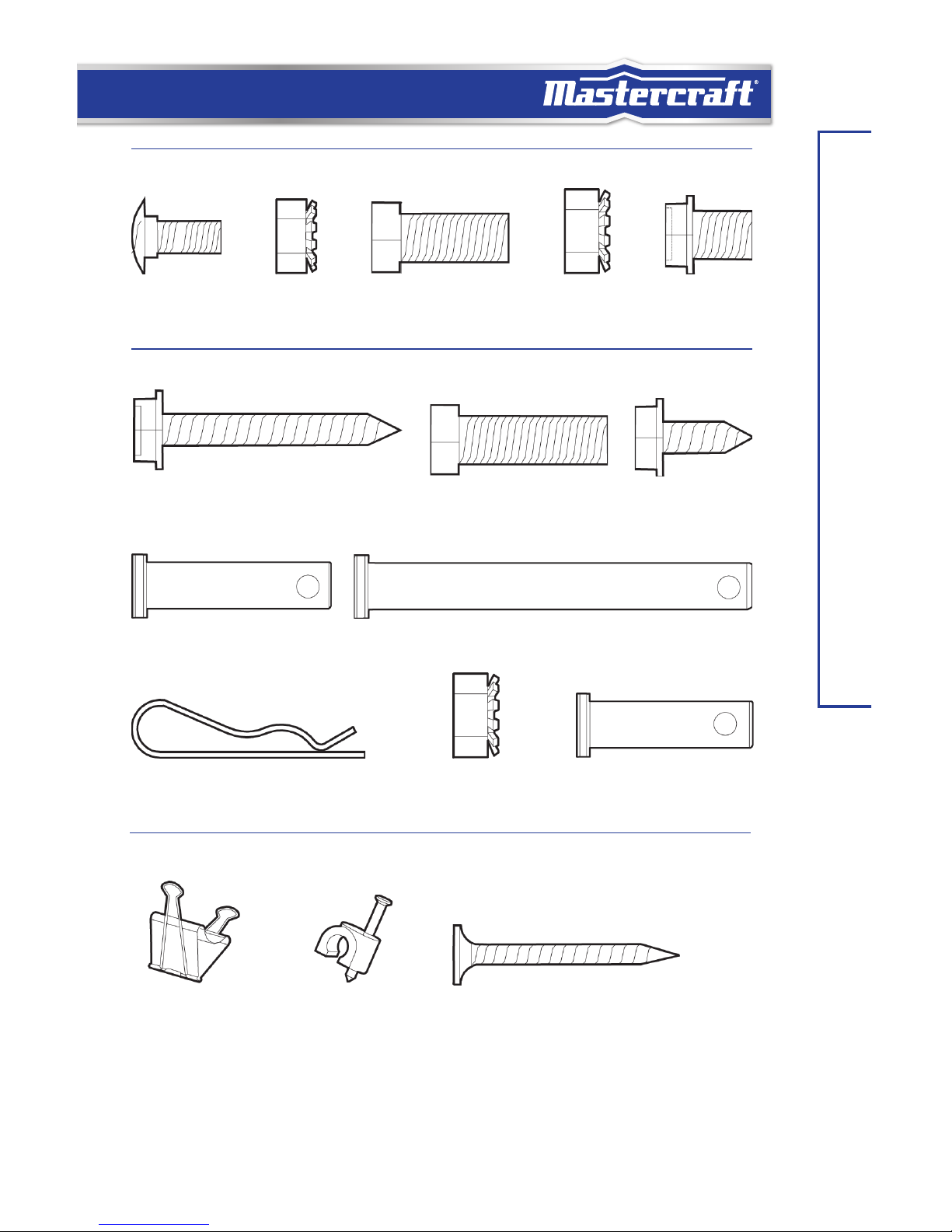

WHAT IS INCLUDED
headline bars
continuation tabs
notes
warnings
C2 x 4
Wire Clip
C3 x 20
Wire Holder
C5 x 4
Wood Screw
BAG C
BAG B
B6 x 3
Hitch Pin
B8 x 4
Locknut
B9 x 1
Clevis Pin
B1 x 4
Lag Screw
B2 x 4
Bolt
B3 x 2
Self-tapping Screw
B4 x 1
Clevis Pin
B5 x 1
Clevis Pin
BAG A
A1 x 12
Carriage Bolt
A2 x 12
Locknut
A3 x 2
Bolt
A4 x 3
Locknut
A5 x 3
Flange Bolt

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
IMPORTANT INSTRUCTIONS
model no. 046-0265-2 | contact us 1-800-689-9928
10
IMPORTANT INSTRUCTIONS
 WARNING
To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Check with the door manufacturer to determine if additional reinforcement is required to
support the door prior to installation of the garage door opener.
3. Install garage door opener only on a properly balanced garage door. An improperly
balanced door could cause serious injury. Have a qualified service professional make
repairs to garage door cables, spring assemblies and other hardware before installing
the opener.
4. Remove all ropes and disable all locks connected to the garage door before installing
opener.
5. Mount the emergency release handle 6' (1.8 m) above floor.
6. Do not connect the opener to source of power until this manual instructs you to do so.
7. Locate the wall console or wall console:
I Within sight of the garage door.
II Out of reach of children at minimum height of 5' (1.5 m).
III Away from all moving parts of the door.
8. Place entrapment warning label on wall next to garage door wall control.
9. Install the Emergency Release Handle on the emergency release rope.
10. Place manual release/safety reverse test label in plain view on inside of garage door.
11. Upon completion of the installation, the door must reverse when it comes in contact with
a 1 1/2" (3.8 cm) high object on the floor (or a 2x4 laid flat at the centre of the door) and
when the infrared safety beam is blocked.

11
headline bars
continuation tabs
notes
warnings
IMPORTANT INSTRUCTIONS
headline bars
continuation tabs
notes
warnings

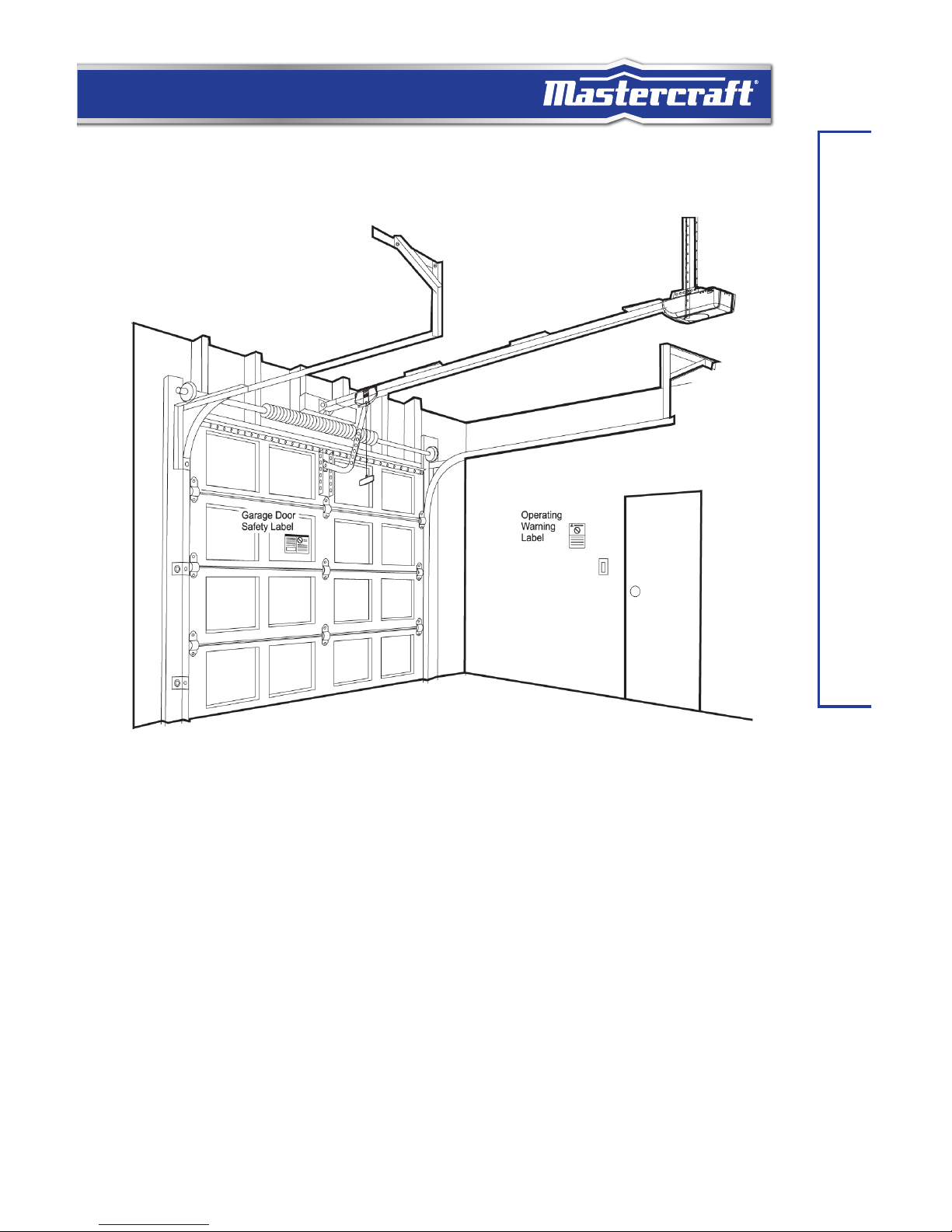

An overall view of a completed garage door opener system installed on a sectional door. The
arrangement is similar for a one-piece jamb door (except for differences described later in
this manual).

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
ASSEMBLE THE T-RAIL
model no. 046-0265-2 | contact us 1-800-689-9928
12
ASSEMBLE THE T-RAIL
Connect the T-Rail Sections
Align the 4 T-Rail sections on the floor. Connect these rails together with the rail couplers as
shown.
All rail pieces must be aligned properly.

13
headline bars
continuation tabs
notes
warnings
ASSEMBLE THE T-RAIL
headline bars
continuation tabs
notes
warnings
Attach the Pulley Bracket
Attach the pulley bracket assembly to the end of the
front rail with 2 nuts and bolts.
Align the pulley bracket and rail.
Install the Trolley
Please note the arrow and “M” marking which
indicates this side to the motor unit.
Ensure this side of the trolley is on the
stop bolt hole side of the rail.
Slide the trolley from the back of the
T-rail assembly.
Stop Bolt Hole.
To Motor Unit (Back)

14
headline bars
continuation tabs
notes
warnings
model no. 046-0265-2 | contact us 1-800-689-9928
ASSEMBLE THE T-RAIL
Attach the T-Rail to the Opener
Raise the pulley end of the rail so the rail can sit on the motor unit properly. Attach the rail
to the motor unit by tightening 2 screws. Insert a bolt to the stop bolt hole and secure it with
nut.
Apply the Safety Label

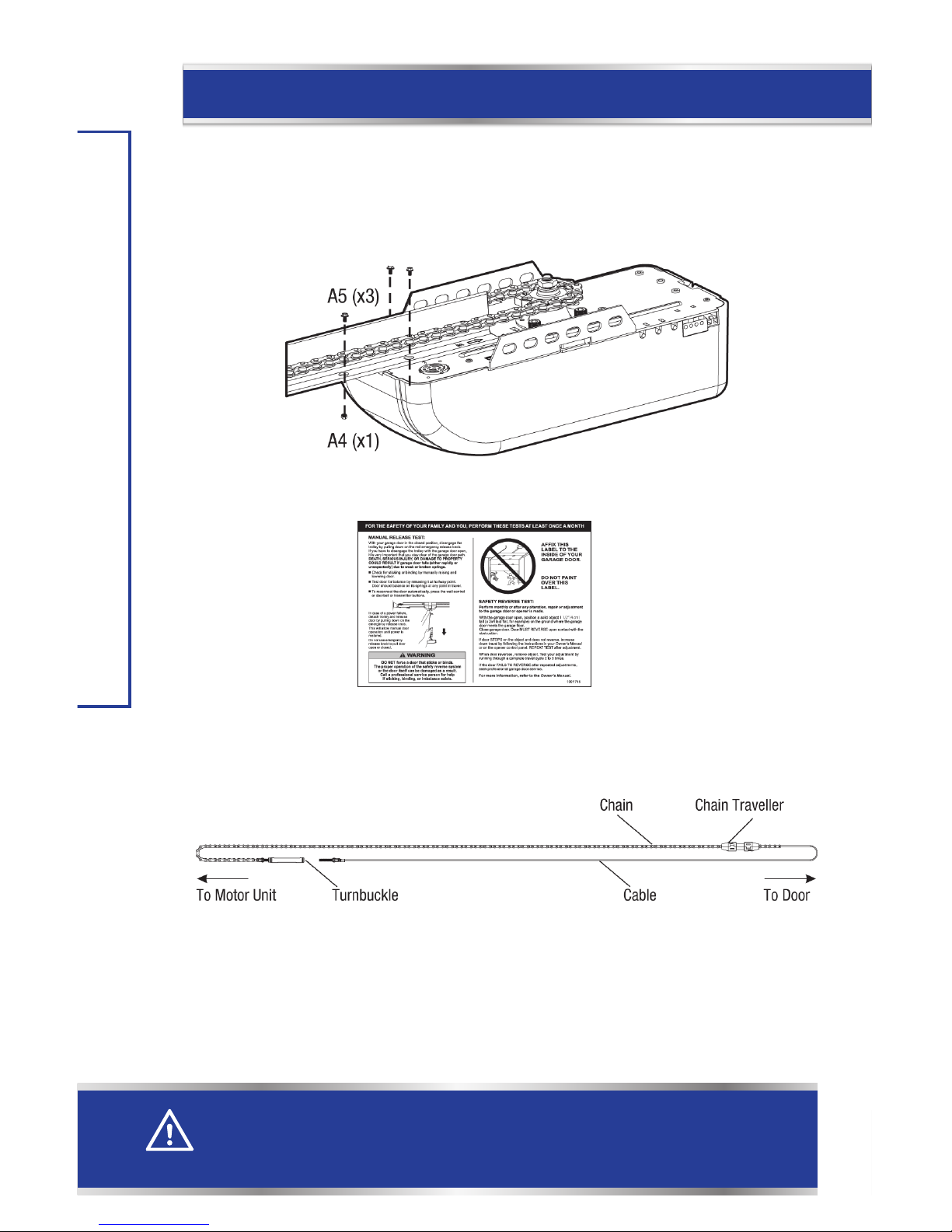

Prepare the Chain
Lay down the chain on the floor, as shown. Do not twist the chain or cable.
CAUTION
• Use only the specified bolts to attach the T-rail to the opener. Any other bolts will cause serious damage
to the opener.
FPO

15
headline bars
continuation tabs
notes
warnings
ASSEMBLE THE T-RAIL
Align the Chain on the Sprocket
Start aligning the chain by placing the turnbuckle 10" (25 cm) from the sprocket. Wrap the
chain around the sprocket. The sprocket teeth must engage the chain as shown.
Place the Cable on the Pulley
Place the cable around the pulley at the end of the rail.
Start from Here
10" (25 cm)
NOTE:
• Ensure chain/cable passes through the trolley guides. Insert the trolley guides into the chain traveller until
you hear a click when the chain traveller is completely seated into the trolley.

Do not rotateDo not rotate
16
headline bars
continuation tabs
notes
warnings
model no. 046-0265-2 | contact us 1-800-689-9928
ASSEMBLE THE T-RAIL

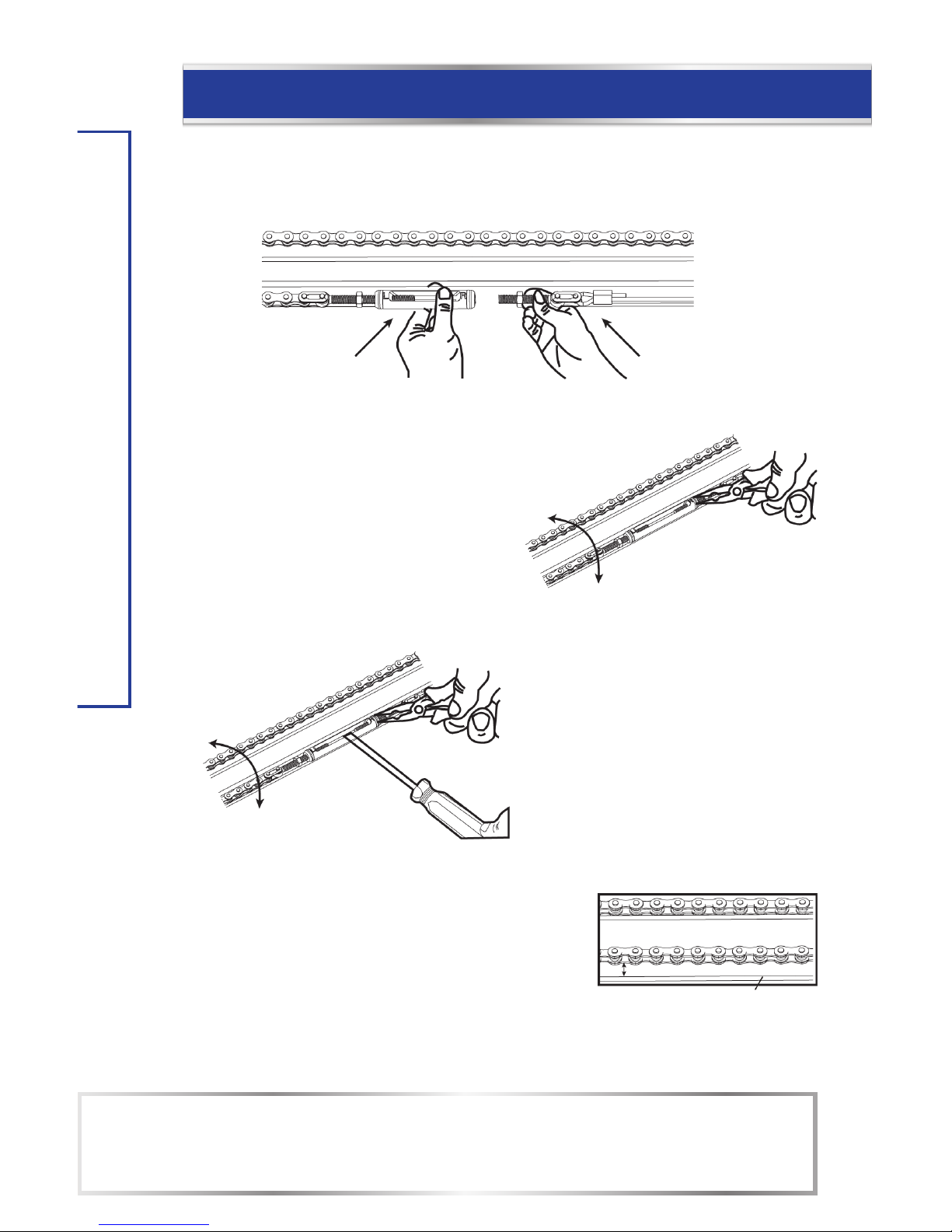

Tighten the Chain and Cable
Connect the 2 ends of the chain assembly together at the turnbuckle.
To connect the turnbuckle and threaded
shaft, hand tighten the turnbuckle by rotating
the turnbuckle only.
Do not rotate the threaded shaft to avoid
twisting the cable.
Twist the turnbuckle to tighten the chain tension until
the chain is 1/3" (8 mm) above the base of the T-rail.
To avoid twisting the cable, use pliers to
hold the threaded shaft while tightening
the turnbuckle with a flat screwdriver.
NOTE:
• After completing the installation, you may notice some chain drop with the door fully closed. The chain
should return to the position as shown when the door is open.
• Too much or too little tension will cause excessive noise.
Locknuts
Tighten
Locknuts Loosen
Tighten the locknuts
once the desired
tension is achieved.
Chain Loosen
Chain Tighten
Base of Rail
1/3" (8 mm)

17
headline bars
continuation tabs
notes
warnings
ASSEMBLE THE T-RAIL
Attaching the Sprocket Cover
Squeeze the cover slightly and insert the 2 tabs on the cover in the slots on the motor unit.
WARNING
• Always keep hand clear of sprocket and chain while operating opener.
• Securely attach sprocket cover before operating.
FPO

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
INSTALL THE HEADER BRACKET
model no. 046-0265-2 | contact us 1-800-689-9928
18
INSTALL THE HEADER BRACKET

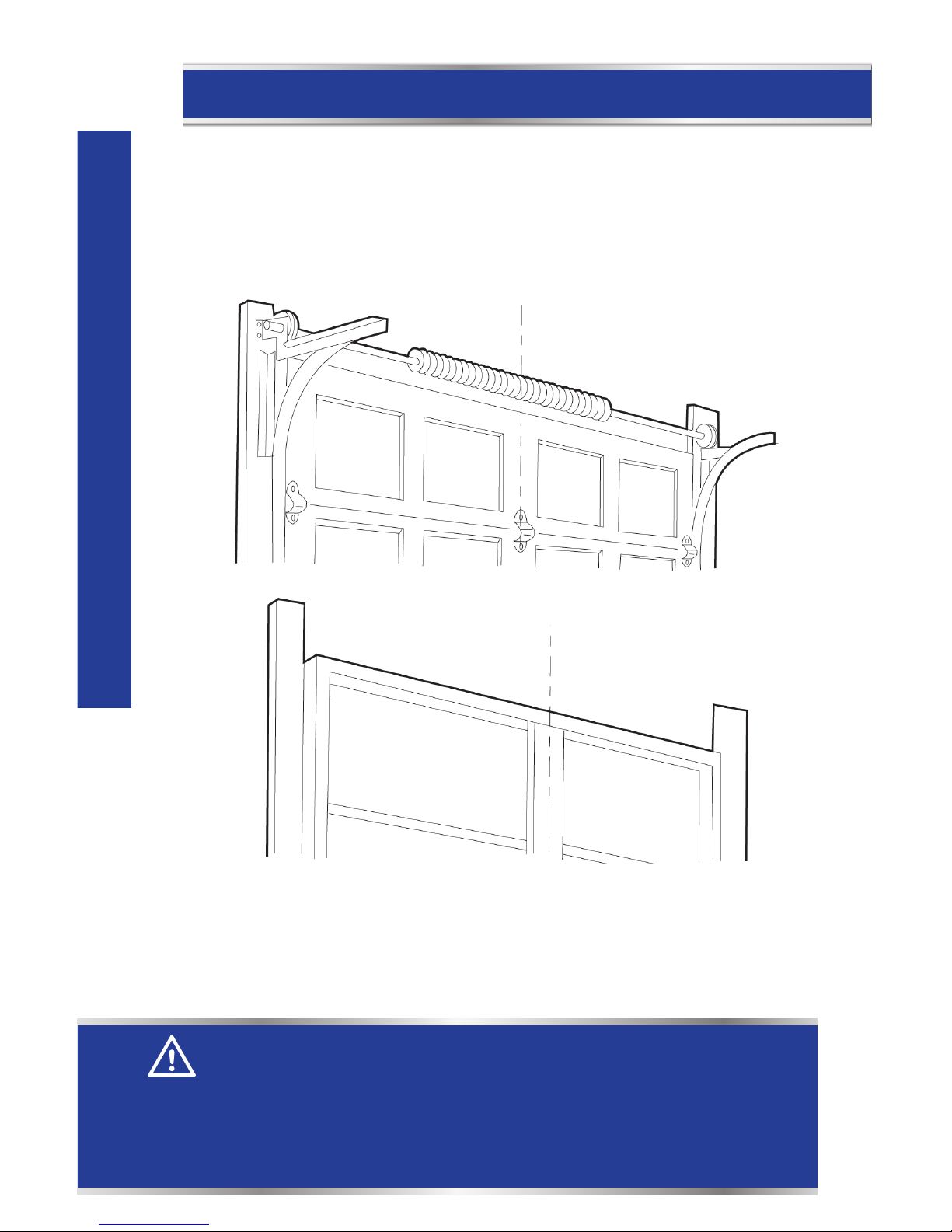

Mark the Door Centerline
Close the door from inside the garage and mark the vertical centreline of the door on the wall
and the top door panel.
Sectional Door
One-piece Jamb Door
WARNING
• Header bracket must be secured to structural supports. If appropriate support does not exist, install a
new support using 2x4 board on drywall or between 2 studs with lag screws (not included). DO NOT
install header bracket over drywall.
• Concrete anchors must be used if mounting header bracket or 2x4 into masonry.
• Always call a trained door systems technician if garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when required.
FPO

19
headline bars
continuation tabs
notes
warnings
INSTALL THE HEADER BRACKET
headline bars
continuation tabs
notes
warnings
Attach a 2x4 (if necessary)
If the calculated header bracket is above the door header, attach a 2x4 between two studs to
install the header bracket.
Door header
Use lag screws (not included) to attach
the 2x4.
Mark Above the Highest Point of Travel
Mark a spot on the
centreline of the garage
door, 1 1/4" (3 cm) above
the highest point of travel
of the garage door.
Mark a spot on the
centreline of the
garage door, 7”
(18 cm) above the
highest point of travel
of the garage door.
One-Piece Jamb Door
Highest point of travel
1 1/4" (3 cm) above
highest point of travel.
Sectional Door
7" (18 cm) 1 1/4" (3 cm)

20
headline bars
continuation tabs
notes
warnings
model no. 046-0265-2 | contact us 1-800-689-9928
INSTALL THE HEADER BRACKET
Attach the Header Bracket
Place the bottom edge of the bracket on the line marked above the highest point of travel.
Note the orientation of the header bracket. Do not mount it upside down.
Ceiling Installation
The header bracket may be mounted to the
ceiling if there is minimal clearance above the
door. If so, extend the centreline to the ceiling.
The back edge of the bracket must not be
further than 5" (12.7 cm) from the header wall.
1 1/4" (3 cm) Above Sectional Door/
7" (18 cm) Above One-piece Jamb Door
Highest Point of Travel
Mark the 2 holes with
a pencil.
Drill two 3/16" (5 mm) pilot holes. Attach the header bracket with
2 lag screws provided.
5" (12.7 cm)
