BELT DRIVE
GARAGE DOOR OPENER
INSTRUCTION
MANUAL
IMPORTANT:
• Please read this manual and enclosed safety materials carefully.
• Safety infrared sensor MUST BE INSTALLED and aligned properly.
• Periodic checks of the opener are required to ensure safe
operation.
• Save this manual for future reference.
• This equipment meets or exceeds all federal, provincial and
UL325 safety requirements.
DO NOT RETURN THIS TO THE STORE
Please call: 1-800-689-9928.
model no. 046-0266-0

headline bars
continuation tabs
notes
warnings

headline bars
continuation tabs
notes
warnings
3
TABLE OF CONTENTS
NOTE:
• If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at
1-800-689-9928.
TABLE OF CONTENTS
Introduction 5
Pre-Installation Checklist 6
What is Included 7-9
Important Instructions 10-11
Assemble The T-Rail 12-16
Install The Header Bracket 17-20
Hang The Opener 21-22
Install The Door Bracket 23-24
Install The Door Arms 25-27
Install The Wall Console 28-29
Connect The Opener To Power 30-31
Install Safety Beam Sensor 32-36
Programming Guide – Wall Console 37-39
Programming Guide – Garage Door Opener 40-42
Safety Tests 43
Operation 44-46
Maintenance 47-48
Backup Battery 49-51
Troubleshooting 52-54
Optional: Programming 55
Accessories 56
FCC 57
Limited Warranty 58

headline bars
continuation tabs
notes
warnings
4
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
TABLE OF CONTENTS
BLANK PAGE (ON PURPOSE)

headline bars
continuation tabs
notes
warnings
5
INTRODUCTION
headline bars
continuation tabs
notes
warnings
INTRODUCTION
Congratulations on purchasing the Mastercraft® Belt Drive Garage Door Opener — a garage door
opener with many innovative features. Features include: extremely quiet operation with DC motor;
automatic force adjustment so the door can be closed with just the right amount of force, not
overpowered; and a state-of-the-art safety reversal system that protects your family and property near
the door.
Important Safety Information
The documentation provided with your opener has been carefully designed and organized to make
the assembly, operation and continued maintenance of your product as easy and safe as possible.
Assuring an extended life of this product is based upon the installation, operation, maintenance and
testing in strict accordance with the instructions and warnings stated in this manual. Read and follow all
guidelines and operating instructions before using this product. Store the manual in a safe and easily-
accessible location for future use.
Safety Symbol Overview
 WARNING
This type of warning symbol is used to indicate possible mechanical hazards that may cause serious
injuries or death.
 CAUTION
This type of warning symbol is used to indicate the possibility of damage to the garage door or opener.

headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
6
PRE-INSTALLATION CHECKLIST
PRE-INSTALLATION CHECKLIST
Check the following items before assembling the opener:
• Identify the door type: sectional door or one-piece jamb door.
• Ensure your garage door is balanced and is not sticking or binding.
• Here is how to check the door balance:
◊ From outside the garage, slowly open the door all the way and close it all the way—DOOR
SHOULD NOT BIND OR RUB.
◊ Raise the door halfway up — DOOR SHOULD STAY IN PLACE, SUPPORTED ENTIRELY BY ITS
SPRING.
• IMPORTANT: IF THE GARAGE DOOR FAILS EITHER OF THESE TESTS, HAVE A QUALIFIED GARAGE DOOR
PROFESSIONAL ADJUST OR REPAIR THE DOOR.
• If the garage door is lightweight (made with frame and skin, not solid), it must be braced or reinforced
before installing the opener (including the door frame). Check with a qualified service professional for
a door reinforcement kit.
• If you do not have an access door in addition to the garage door, you should install an emergency key
release kit.
• If your door is more than 7' (2.1 m) high, you will need a rail extension kit (sold separately).
• With the garage door closed, check alignment of door and garage floor. The gap, if any, should be no
more than 1⁄4” (6 mm). If the gap is larger than this, repair floor or door before installing opener.
Sectional Door One-piece Jamb Door

Backup Battery
Bell Wire
headline bars
continuation tabs
notes
warnings
7
WHAT IS INCLUDED
Safety Beam Unit
WHAT IS INCLUDED
The garage door opener and all accessories are packaged in one carton. Note that accessories will
depend on the model you purchased. If anything is missing, carefully check the packing material.
Door Bracket Head Bracket
Pulley Assembly
Sprocket Cover
Trolley
Wall Console
Curved Arm
Keyless EntryKeychain Remote
Safety Labels

8
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
WHAT IS INCLUDED
Straight Arm Rail Sections
Hanging
Bracket
Chain and Cable
Assembly
Emergency Release
Rope

C2 x 4
Wire Clip (Optional)
C3 x 20
Wire Holder
C5 x 4
Wood Screw
BAG C
B6 x 3
Hitch Pin
B8 x 4
Locknut
B4 x 1
Clevis Pin
B5 x 1
Clevis Pin
B9 x 1
Clevis Pin
9
WHAT IS INCLUDED
headline bars
continuation tabs
notes
warnings
BAG B
B1 x 4
Lag Screw
B2 x 4
Bolt
B3 x 2
Self-tapping Screw
BAG A
A1 x 12
Carriage Bolt
A2 x 12
Locknut
A3 x 2
Bolt
A4 x 3
Locknut
A5 x 3
Flange Bolt

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
10
IMPORTANT INSTRUCTIONS
IMPORTANT INSTRUCTIONS
 WARNING
To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Check with the door manufacturer to determine if additional reinforcement is required to support
the door prior to installation of the garage door opener.
3. Install garage door opener only on a properly balanced garage door. An improperly balanced door
could cause serious injury. Have a qualified service professional make repairs to garage door
cables, spring assemblies and other hardware before installing the opener.
4. Remove all ropes and disable all locks connected to the garage door before installing opener.
5. Mount the emergency release handle 6' (1.8 m) above floor.
6. Do not connect the opener to source of power until this manual instructs you to do so.
7. Locate the wall console or wall console:
I Within sight of the garage door.
II Out of reach of children at minimum height of 5' (1.5 m).
III Away from all moving parts of the door.
8. Place entrapment warning label on wall next to garage door wall control.
9. Install the emergency release handle on the emergency release rope.
10. Place manual release/safety reverse test label in plain view on inside of garage door.
11. Upon completion of the installation, the door must reverse when it comes in contact with a 1 1/2"
(3.8 cm) high object on the floor (or a 2x4 laid flat at the centre of the door) and when the infrared
safety beam is blocked.

11
headline bars
continuation tabs
notes
warnings
IMPORTANT INSTRUCTIONS
headline bars
continuation tabs
notes
warnings
An overall view of a completed garage door opener system installed on a sectional door. The
arrangement is similar for a one-piece jamb door (except for differences described later in this manual).

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
12
ASSEMBLE THE T-RAIL
ASSEMBLE THE T-RAIL

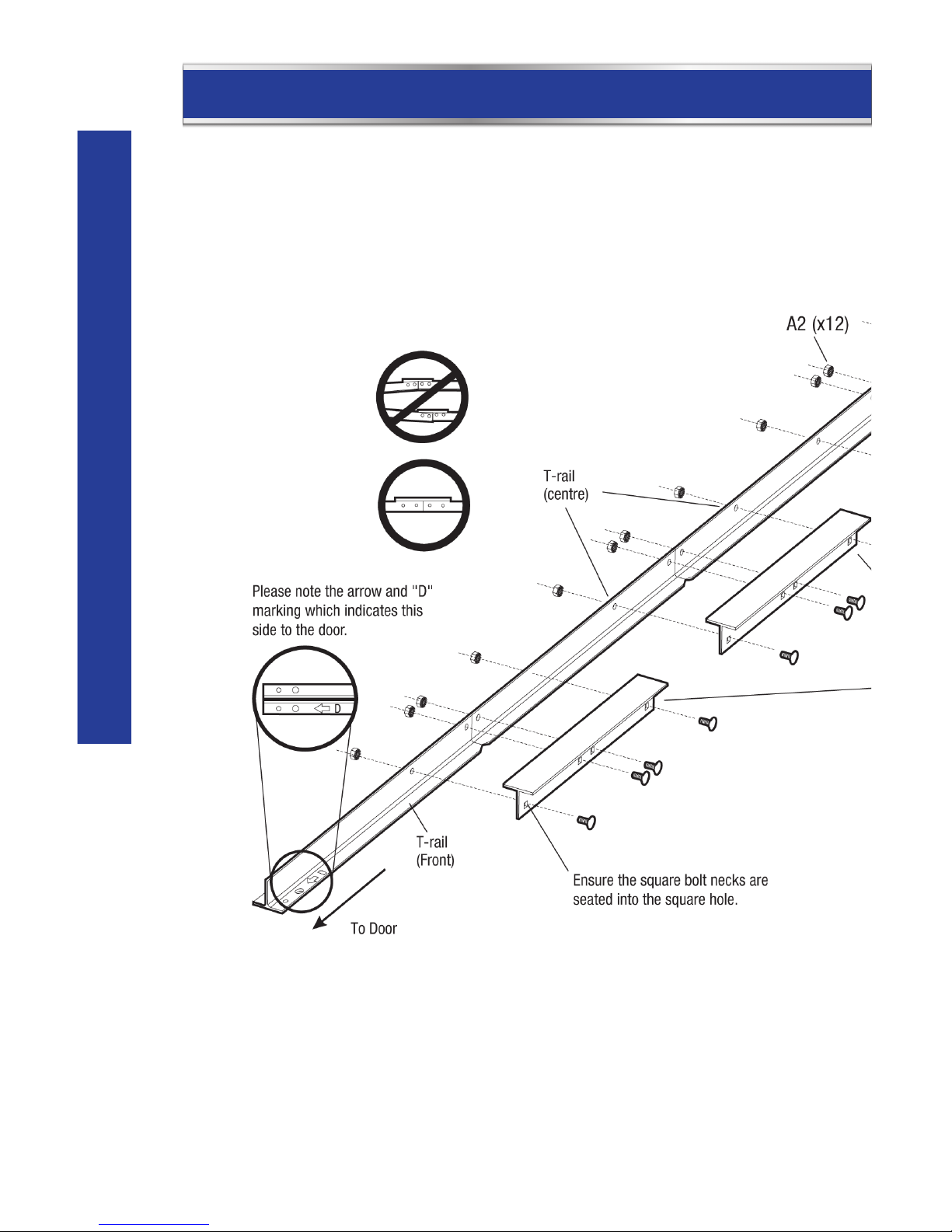

Connect the T-Rail Sections
Align the 4 T-Rail sections on the floor. Connect these rails together with the rail couplers as shown.
All rail pieces must be aligned properly.

13
headline bars
continuation tabs
notes
warnings
ASSEMBLE THE T-RAIL
headline bars
continuation tabs
notes
warnings

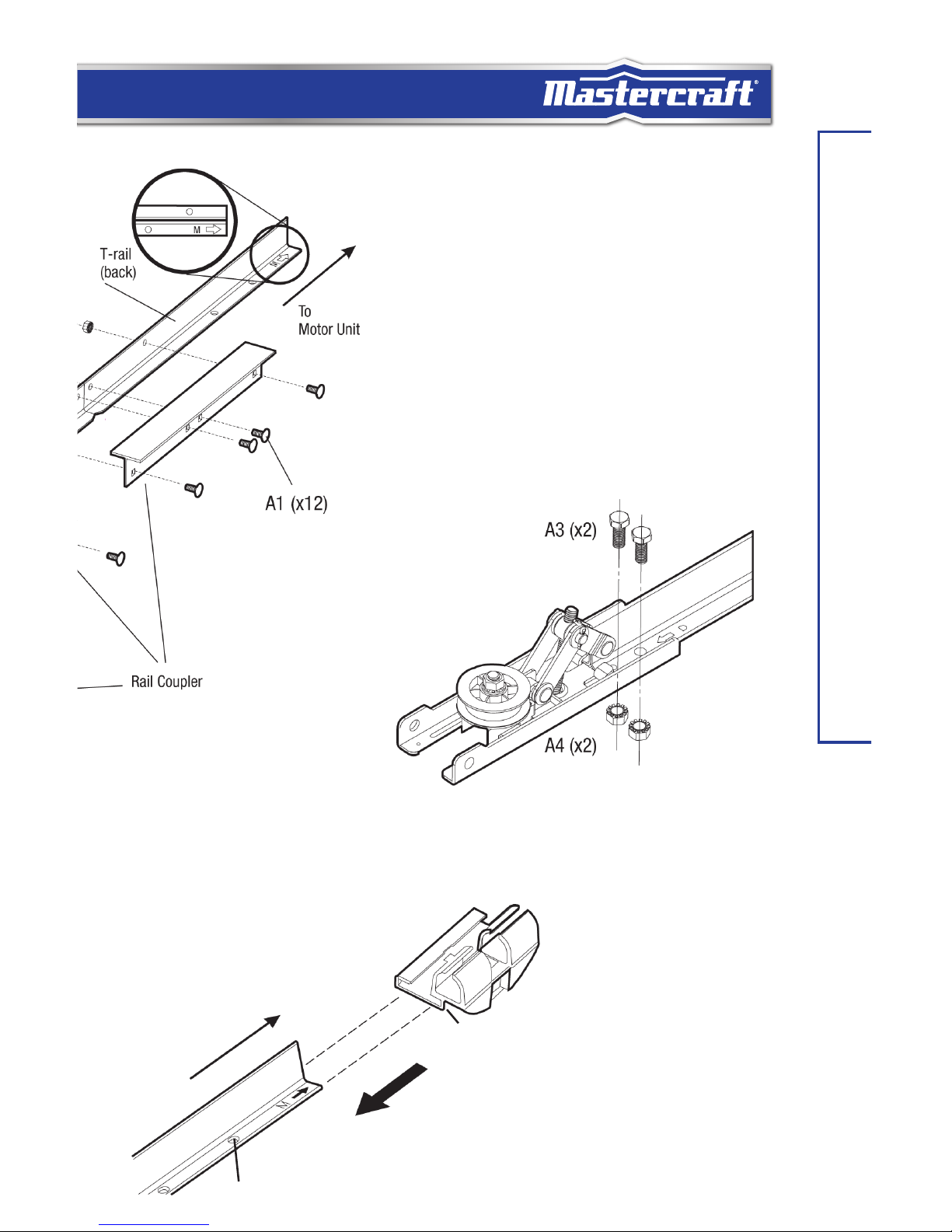

Attach the Tensioner Pulley Assembly
Attach the tensioner pulley assembly to the end of the front
rail with 2 nuts and bolts.
Align the tensioner pulley assembly
and rail.
Install the Trolley
Please note the arrow and “M” marking which
indicates this side to the motor unit.
Ensure this side of the trolley i. on the stop bolt
hole side of the rail.
Slide the trolley from the back of the
T-rail assembly.
Stop Bolt Hole.
To Motor Unit (Back)

14
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
ASSEMBLE THE T-RAIL
Attach the T-Rail to the Opener
Raise the pulley end of the rail so the rail can sit on the motor unit properly. Attach the rail to the motor
unit by tightening 2 screws. Insert a bolt to the stop bolt hole and secure it with nut.
Apply the Safety Label
Prepare the Belt
Lay the belt down on the floor as shown. Do not twist the belt.
Belt Belt Traveller
To Motor Unit To Door
CAUTION
• Use only the specified bolts to attach the T-rail to the opener. Any other bolts will cause serious damage
to the opener.
FPO

15
headline bars
continuation tabs
notes
warnings
ASSEMBLE THE T-RAIL
Align the Belt on the Sprocket
Start aligning the belt by placing the turnbuckle 10” (25 cm) from the sprocket. Wrap the belt around the
sprocket. The sprocket must engage the belt as shown.
Place the Belt on the Pulley
Place the belt around the pulley at the end of the rail.
Tighten the belt at the mid-point, approximately 1/2" (13 mm) above the base of the T-rail. DO NOT
over-tighten the belt.

headline bars
continuation tabs
notes
warnings
16
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
ASSEMBLE THE T-RAIL
Attaching the Sprocket Cover
Squeeze the cover slightly and insert the 2 tabs on the cover in the slots on the motor unit.
WARNING
• Always keep hand clear of sprocket and belt while operating the opener.
• Securely attach sprocket cover before operating.
FPO

Sectional Door
One-piece Jamb Door
headline bars
continuation tabs
notes
warnings
17
INSTALL THE HEADER BRACKET
headline bars
continuation tabs
notes
warnings
INSTALL THE HEADER BRACKET
Mark the Door Centreline
Close the door from inside the garage and mark the vertical centreline of the door on the wall and the
top door panel.
WARNING
• Header bracket must be secured to structural supports. If appropriate support does not
exist, install a new support using 2x4 board on drywall or between 2 studs with lag
screws (not included). DO NOT install header bracket over drywall.
• Concrete anchors must be used if mounting header bracket or 2x4 into masonry.
• Always call a trained door systems technician if garage door binds, sticks, or is out of
balance. An unbalanced garage door might not reverse when required.
FPO

18
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
INSTALL THE HEADER BRACKET
Attach a 2x4 (if necessary)
If the calculated header bracket is above the door header, attach a 2x4 between two studs to install the
header bracket.
Mark Above the Highest Point of Travel
Mark a spot on the
centreline of the garage
door, 1 1/4” (3 cm) above
the highest point of travel
of the garage door.
Mark a spot on the
centreline of the garage
door, 7” (18 cm) above
the highest point of
travel of the garage
door.
One-Piece Jamb Door
Highest point of travel
1 1/4” (3 cm) above highest
point of travel
7” (18 cm) 1 1/4” ( 3 cm)
Sectional Door
Door header
Use lag screws (not included) to
attach the 2x4.

19
headline bars
continuation tabs
notes
warnings
INSTALL THE HEADER BRACKET
1 1/4” ( 3 cm)
Attach the Header Bracket
Place the bottom edge of the bracket on the line marked above the highest point of travel.
Ceiling Installation
The header bracket may be mounted to the ceiling
if there is minimal clearance above the door. If so,
extend the centreline to the ceiling. The back edge
of the bracket must not be further than 5" (12.7 cm)
from the header wall.
1 1/4" (3 cm) Above Sectional Door/
7" (18 cm) Above One-piece Jamb
Door
Highest Point of Travel
Mark the 2 holes with a pencil.
Drill two 3/16" (5 mm) pilot holes. Attach the header bracket with
2 lag screws provided.
NOTE:
• Note the orientation of the header bracket. Do not mount it upside down.
5" (12.7 cm)

headline bars
continuation tabs
notes
warnings
20
headline bars
continuation tabs
notes
warnings
model no. 046-0266-0 | contact us 1-800-689-9928
INSTALL THE HEADER BRACKET
Connect the T-Rail to the Header Bracket
Position The Opener
Position the pulley bracket against the header bracket.
Position the opener on the floor with
packaging material as protective
base.
Align the bracket holes and join with a
clevis pin and hitch pin as shown.
