Masterpro MHP-190-KFA Training manual
Model Numbers
MHP-135-KFA / MHP-190-KFA / MHP-215-KFA
© 2013 Pinnacle Products International, Inc.
668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free (800)-641-6996
Fax: (215)-891-8461 :HEZZZPDVWHULQGXVWULDOSURGXFWVFRP(PDLOLQIR#SLQQDFOHLQWFRP
701000112-13
*(1(5$/+$=$5':$51,1*
5($'$1'81'(567$1'$//2)7+(,16758&7,216,17+,60$18$/
%()25($66(0%/,1*67$57,1*256(59,&,1*7+(+($7(5Be sure to comply with the
instructions and warnings provided with this heater. Failure to comply can result in fire or explosion
that can cause property loss, bodily injury, or loss of life. Only persons who can follow and
understand these instructions should operate or service this heater. If you need heater info; such as
an operating manual, labels, etcetera, contact Pinnacle Products International at 800-641-6996.
DANGER
127)2586(,15(6,'(17,$//,9,1*$5($625,1(1&/26('63$&(6
:,7+287$'(48$7(9(17,/$7,2172%(86(',1:(//9(17,/$7('
&200(5&,$/,1'8675,$/2&&83$1&,(6This is an unvented portable heater that uses
air (Oxygen) from within the area in which it is used. Failure to provide adequate combustion and
ventilation air will result in asphyxiation, carbon monoxide poisoning, bodily injury or death. Refer to
“Ventilation” on Page 6.
DANGER
8VHU¶V0DQXDO2SHUDWLQJ,QVWUXFWLRQV
&21680(55($'$1'6$9(7+(6(,16758&7,216
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
1
7DEOH2I&RQWHQWV
SafetyInformation.............................................1-2
)HDWXUHVDQG6SHFL¿FDWLRQV
135 / 190 / 215-KFAAssembly.........................4-5
Operation..........................................................6-7
Ventilation.............................................................6
Maintenance...................................................8-10
Wiring Diagram..................................................10
Troubleshooting Guide.......................................11
Exploded View...................................................12
Parts List............................................................13
Warranty.............................................................14
6DIHW\,QIRUPDWLRQ
Look for this icon throughout the manual for helpful tips on how to
assemble, use and clean your KFA Heater.
),5(%851,1+$/$7,21$1'(;3/26,21+$=$5'Keep combustibles such
as; building materials, paper or cardboard a safe distance away from the heater
as recommended by these instructions. Never use the heater in spaces which contain products
such as; gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles or any
unknown chemicals. This is an unvented portable heater. It uses air (Oxygen) from the area in
which it is used. Adequate combustion and ventilation air must be provided. Refer to “Ventilation” on
page 7. Bulk fuel storage should be a minimum of 25 feet from heater.
WARNING
'212723(5$7(7+,6+($7(5817,/<28+$9(5($'$1'7+2528*+/<
81'(567$1'7+(6(6$)(7<$1'23(5$7,1*,16758&7,216
Failure to comply with the precautions and instructions provided with this heater can result in death,
serious bodily injury, property loss or damage from the hazards of fire, soot production, explosions,
burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and understand
these instructions should use or service this heater.
WARNING
0$66$&+86(7765(6,'(176Massachusetts state law prohibits the use of this heater in
any building which is used in whole or in part for human habitation. Use of this heating device in
Massachusetts requires local fire department permit (M.G.L.C. 148, Section 10A).
1(:<25.&,7<5(6,'(176The New York City Fire Code prohibits the storage, handling
and use of kerosene fueled heaters for space heating. Any person violating that provision may be
punished by a fine up to $10,000 and a term of imprisonment of up to 6 months.
'212767$577+(+($7(5:+(1(;&(662,/+$6$&&808/$7('
WARNING
'212767$577+(+($7(5:+(17+(&+$0%(5,6+27
WARNING
7+(,167$//$7,212)7+,6+($7(56+$//&203/<:,7+7+(5(*8/$7,2162)7+(
$87+25,7,(6+$9,1*-85,6',&7,21
&$/,)251,$5(6,'(176This product contains chemicals, including lead, known
to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
2
6DIHW\,QIRUPDWLRQ
The products described in this manual are
NHURVHQHGLUHFW¿UHGIRUFHGDLUKHDWHUV
Kerosene forced air heaters are primarily
intended for use for temporary heating of
buildings under construction, alteration or repair.
'LUHFW¿UHGPHDQVWKDWDOORIWKHFRPEXVWLRQ
products of the heater enter the heated space.
This appliance is rated at 98% combustion
HI¿FLHQF\EXWGRHVSURGXFHVPDOODPRXQWVRI
carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning
UHVHPEOHWKHÀX6\PSWRPVRILPSURSHU
ventilation / carbon monoxide poisoning are:
Headache 'L]]LQHVV Nausea 'U\0RXWK
Sore Throat %XUQLQJRI1RVHDQG(\HV
If you experience any of these symptoms:
*(7)5(6+$,5$721&(Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
8VHWKLVKHDWHULQRQO\ZHOOYHQWLODWHGDUHDV
3URYLGHDWOHDVWDWKUHHVTXDUHIRRW
VTFPRSHQLQJRIRXWVLGHDLUIRU
HYHU\%WX+UKHDWHUUDWLQJ5HIHUWR
³9HQWLODWLRQ´RQSDJHIRUIXUWKHULQVWUXFWLRQV
ALWAYS use only the electrical power (voltage and
frequency) specified on the model plate of the heater.
ALWAYS use only three-prong, grounded outlet and
extension cord.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
NEVER use fuels such as gasoline, benzine, paint
thinners or other oil compounds in this heater.
NEVER refill the heater’s fuel tank while the
heater is operating or still hot. This heater is
EXTREMELY HOT while in operation.
NEVER block air inlet (rear) or air outlet (front).
NEVER use duct work in front or rear of heater.
NEVER move or handle heater while still hot.
NEVER transport heater with fuel in tank.
NEVER use with an external fuel tank.
Keep all combustible materials away from this heater.
0LQLPXP&OHDUDQFH)URP&RPEXVWLEOHV
135-KFA 190-KFA 215-KFA
7RS IW IW IW
Sides IW IW IW
Front IW IW IW
ALWAYS locate heater on a stable and level surface.
If your heater is equipped with a thermostat,
once it is plugged in, it can start at anytime in
accordance with the thermostat setting.
5,6.2),1'225$,5
32//87,21
WARNING
&$5%210212;,'(32,621,1*
0$</($'72'($7+
DANGER
5,6.2)%8516),5($1'
(;3/26,21
WARNING
5,6.2)(/(&75,&6+2&.
WARNING
&$87,21+27:+,/(,1
23(5$7,21'2127728&+
.((3&+,/'5(1$1,0$/6&/27+,1*$1'
&20%867,%/(6$:$<)520+($7(5
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
3
6SHFL¿FDWLRQV
Features
Model #
MHP-135-KFA MHP-190-KFA MHP-215-KFA
Rating: Btu/Hr 135,000 190,000 215,000
Fuel Consumption: Gal/Hr 1.00 1.42 1.63
Fuel Tank Capacity: Gallons
10.0 13.0 13.0
Pump Pressure: psi 5.5 8.5 9.0
Volts: AC/Hz
120VAC / 60Hz 120VAC / 60Hz 120VAC / 60Hz
Amps 2.3 2.7 2.92
Phase Single Single Single
6SHFL¿FDWLRQVVXEMHFWWRFKDQJHZLWKRXWQRWLFH
Models: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA
Figure 1
Front Handle
Wheel Support Frame
Wheel
Fuel Cap
Fuel Gauge
Fuel Tank
Lower Shell
Hot Air Outlet Upper Shell
Power Cord
Drain Plug
Cord Wrap
Rear Handle
Power Switch
Digital Display
Thermostat Knob
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
4
- Remove the heater and all packaging
materials from the shipping carton. Tools Needed:
- Phillips Head Screw Driver
- 8 mm open end wrench
- 19 mm open end wrench
Assembly Instructions
Models: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA

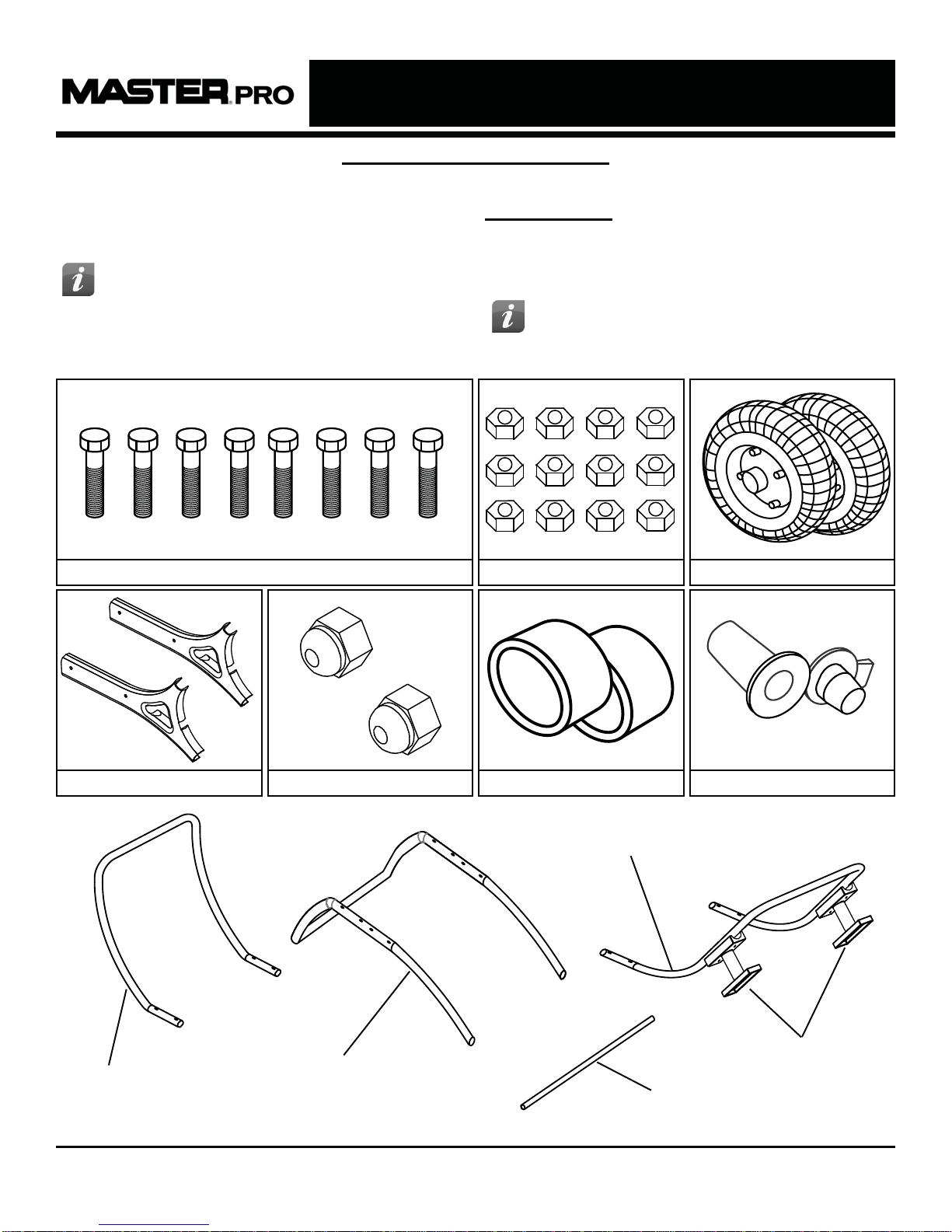

:KDW¶V,Q7KH%R[
50 mm Screws (8) 8 mm Nuts (12) Tires (2)
Y-Bracket (2) Axle Nuts (2)
Spacers (2)
Spare Drain Plug (1)
0LVVLQJ3DUWV"3OHDVH&DOO)RU$VVLVWDQFH
Front Handle Axle
Rear Handle
Wheel Support Frame
Tip: Be sure to remove the axle from the
side of the Styrofoam packaging. Tip: Use a power screwdriver and
locking wrench for easier assembly.
Cord Wraps
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
Assembly Instructions
Models: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA
1. Insert axle through holes in wheel support.
2. Slide washer, then spacer onto axle.
3. Slide wheel onto axle with the air valve facing
out and hold in place with the axle nuts. (See
Figure 2).
4. Place heater on wheel support and line up
holes on the fuel tank lip.
5. Attach front handle with (4) long screws
(50 mm) and (4) nuts through the first and
second hole from the front on both sides of
the tank lip and wheel support frame and
tighten firmly. Make certain all (4) screws are
secure.
6. Attach rear handle with (4) long screws
(50 mm) and (4) nuts through the first second
hole from the rear of the heater on both sides
of the tank lip and wheel support frame and
tighten firmly. Make certain all (4) screws are
secure. (See Figure 3)
7. Place Y-bracket over wheel support frame
and handles. Attach with (2) short screws.
8. Repeat step 7 for opposite side.
Figure 2
Axle
Axle Nut
Spacer
Tire
Wheel Support Frame
5
Figure 3
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
2SHUDWLRQ
)XHOLQJ7KH+HDWHU
Kerosene (1-K)
For optimal performance of this heater, it is
strongly suggested that 1-K kerosene be used.
.NHURVHQHKDVEHHQUH¿QHGWRYLUWXDOO\
eliminate contaminants, such as sulfur, which can
cause a rotten egg odor during the operation of
the heater. Using diesel fuel can cause excess
soot production. Do not use Bio-Diesel as this
IXHOZLOOGDPDJH\RXUKHDWHU¶VVHDOVDQG¿OWHU
&6$FHUWLILHGIRUXVHZLWK.NHURVHQH
QRQRGLHVHO-3-HW$)XHO
QRDQGQRIXHORLO
DO NOT use any fuel that is not approved above.
- NEVER use fuel such as, benzene, alcohol, white
glass, camp stove fuel, paint thinners, or other oil
compounds in this heater. THESE ARE VOLATILE
FUELS THAT CAN CAUSE A FIRE OR
EXPLOSION.
- NEVER store kerosene in the living space.
Kerosene should be stored in a well ventilated area
outside the living area.
- NEVER store kerosene in direct sunlight or near a
source of heat.
- NEVER use kerosene that has been stored from
one season to the next. Kerosene deteriorates
over time. OLD KEROSENE WILL NOT BURN
PROPERLY IN THIS HEATER.
127(.HURVHQHVKRXOGRQO\EHVWRUHGLQDEOXH
FRQWDLQHUWKDWLVFOHDUO\PDUNHG³.HURVHQH´
1HYHUVWRUHNHURVHQHLQDUHGFRQWDLQHU5HGLV
DVVRFLDWHGZLWKJDVROLQH
9HQWLODWLRQ
5LVNRILQGRRUDLUSROOXWLRQDQG&DUERQ
0RQR[LGH3RLVRQLQJ8VHKHDWHURQO\LQZHOO
YHQWLODWHGDUHDV
5HIHUWR6DIHW\,QIRUPDWLRQRQSDJHVIRU
LQIRUPDWLRQDERXW&DUERQ0RQR[LGH3RLVRQLQJ
- $/:$<6 provide a fresh air opening in the heated
space of at least three square feet (2,800 sq. cm)
for each 100,00 Btu / Hr. of heater output. Provide
a larger opening if more heaters are being used.
As an example, a 135-KFA will require:
- Atwo car garage door open 6 inches or
- Asingle car garage open 9 inches, or
- Two (2) 32” windows open 15”
0LQLPXP9HQWLODWLRQ2SHQLQJ1HHGHG
135-KFA 190-KFA 215-KFA
3.8 ft.² 5.3 ft.² 6.5 ft.²
3480 cm² 3760 cm² 5990 cm²
1(9(5),//7+()8(/7$1.
,1'2256$/:$<6),//
7+(7$1.287'2256%(685(7+$7
7+(+($7(5,621/(9(/*5281':+(1
)8(/,1*$1'1(9(529(5),//7+(7$1.
CAUTION
1(9(55()8(/7+,6+($7(5
:+,/(,7,6+2725
23(5$7,1*),5(25(;3/26,21&28/'
5(68/7
DANGER
&$5%210212;,'(32,621,1*
0$</($'72'($7+
DANGER
6
'212786(*$62/,1(25
&5$1.&$6('5$,1,1*6
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
2SHUDWLRQ
6WDUWLQJWKH+HDWHU,JQLWLRQ
1. Fill the tank with kerosene or other approved
fuel until needle on fuel gauge points to “F”.
2. Replace fuel cap and tighten firmly.
3. Connect the heater to a three prong
(grounded) power source. You must use a
three prong (grounded) extension cord that
is at least 6 feet long and is a minimum of 14
AWG rating.
4. Turn thermostat control knob to desired
temperature setting. The thermostat set range
is from 40 ºF to 110 ºF.
5. Move power switch to “On” position. The
power indicator light and room temperature
display will illuminate and heater will ignite.
(See Figure 4)
'LJLWDO'LVSOD\
- The digital display will show the room
temperature and running time of the heater.
6HH¿JXUH
127(,ILIWKHKHDWHUVWLOOGRHVQRWLJQLWHUHIHUWR
³7URXEOHVKRRWLQJ*XLGH´RQSDJH
The room temperature display will indicate the
following:
- When the temperature is less than 0 ºF the
display says “LO”.
- When the temperature is more that 99 ºF the
display says “HI”.
- Between 0 °F and 99 °F the display shows
actual temperature.
6WRSSLQJ5HVWDUWLQJ+HDWHU
- To stop the heater, move the power switch to the
“Off” position and unplug the power cord.
- To restart the heater; wait 10 seconds and follow
ignition steps.
Power Switch
Thermostat Knob
Digital Display
Figure 4
7
TIP: If the heater does not ignite; move
switch to “Off” position, check steps 1-3
above and then move switch to “On” position.
TIP: If the heater does not ignite, the
thermostat may be set too low. Turn
the control knob to a higher setting until the
heater ignites. If the heater does not ignite;
move switch to “Off” position, check steps 1-3
above and then move switch to “On” position.
Figure 5
Run Time
Temperature
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual

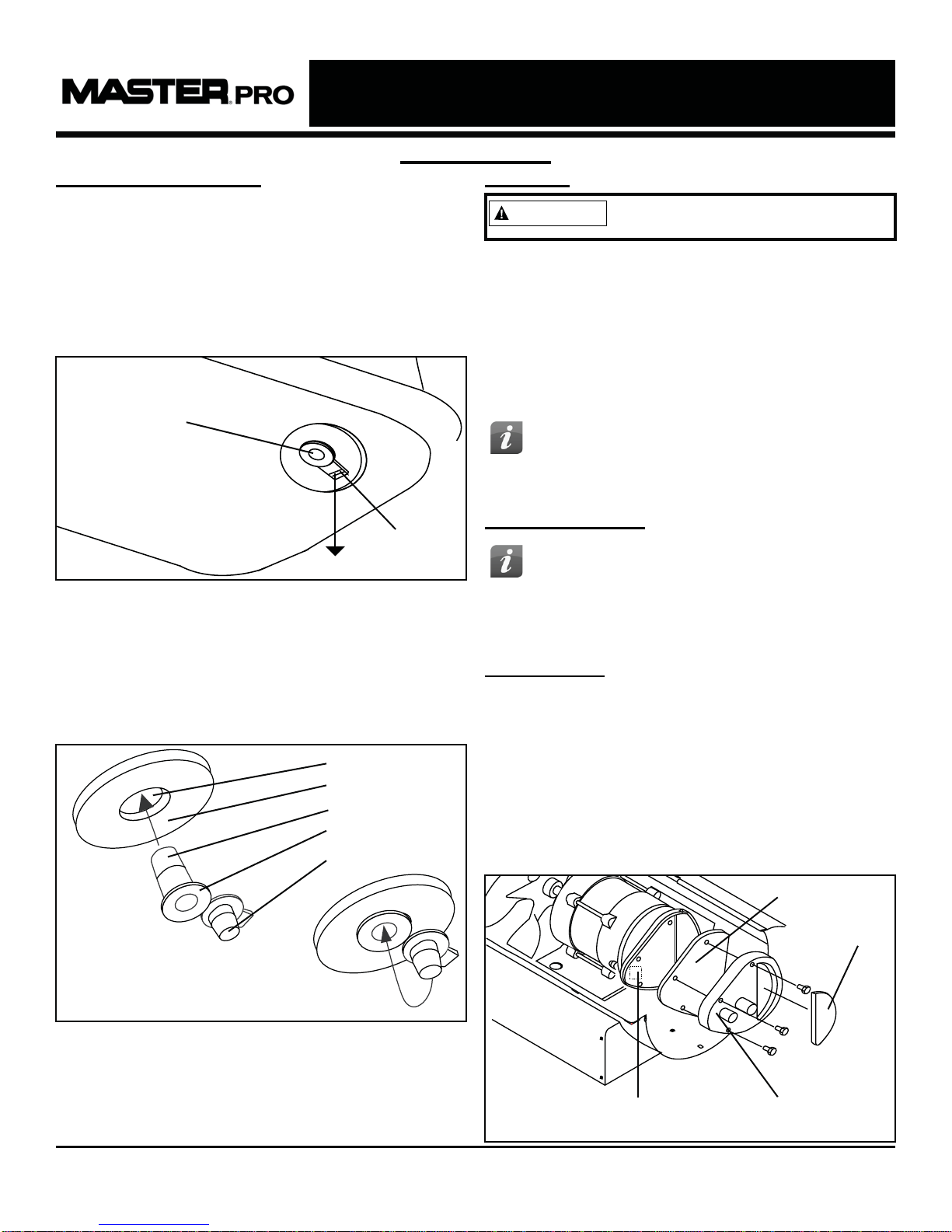

Maintenance
/RQJ7HUP6WRUDJH
Models 135-KFA / 190-KFA / 215-KFA:
1. Drain fuel through the drain plug in the bottom
of the fuel tank.
2. To remove the drain plug, pull the plug grip
downward and remove the seal head from the
drain hole in the tank. (See Figure 6)
3. Using a small amount of kerosene, rinse and
swirl the kerosene inside of the fuel tank,
empty the tank fully.
4. To replace the drain plug; push the drain head
fully into the drain hole and secure by pushing
the seal cap fully into the head hole.
(See Figure 7)
5.
,03257$171HYHUVWRUHOHIWRYHUNHURVHQHEHWZHHQ
VHDVRQVXVLQJROGIXHOFDQGDPDJHKHDWHU
6HUYLFH
DO NOT TAMPER WITH THE UNIT. HAVE
A COMPETENT SERVICEMAN MAKE ANY
NECESSARYADJUSTMENT OR REPAIRS.
Use only original equipment parts. The use of
alternate or third party components can cause unsafe
operating conditions and will void your warranty.
We suggest following a maintenance schedule as follows:
)8(/)8(/7$1.
Flush tank every 200 hours of operation or as needed.
'2127ÀXVKZLWKZDWHUXVHIUHVK.NHURVHQHRQO\
$,5),/7(56
7KHDLULQWDNH¿OWHUVKRXOGEHUHSODFHGRUZDVKHG
with soap and water and dried thoroughly every 500
hours of operation or less depending on conditions.
7KHRXWSXWDQGOLQW¿OWHUVVKRXOGEHUHSODFHG
every 500 hours of operation or less depending
on conditions.
127(8VHRIGLHVHOIXHOPD\UHTXLUH
additional maintenance
Drain Plug
Drain Plug Grip
(Pull Down)
Figure 6
Figure 7
Drain Plug
Fuel Tank
Seal Head
Head Flange
Seal Cap
Air Output Filter
Intake Filter
Lint Filter End Filter
Figure 8
8
TIP: To order OEM parts call (800)-641-6996
TIP: Follow the long term storage
LQVWUXFWLRQVWRÀXVKWKHWDQN
1HYHUVHUYLFHKHDWHUZKLOHLWLV
SOXJJHGLQRUKRW
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual

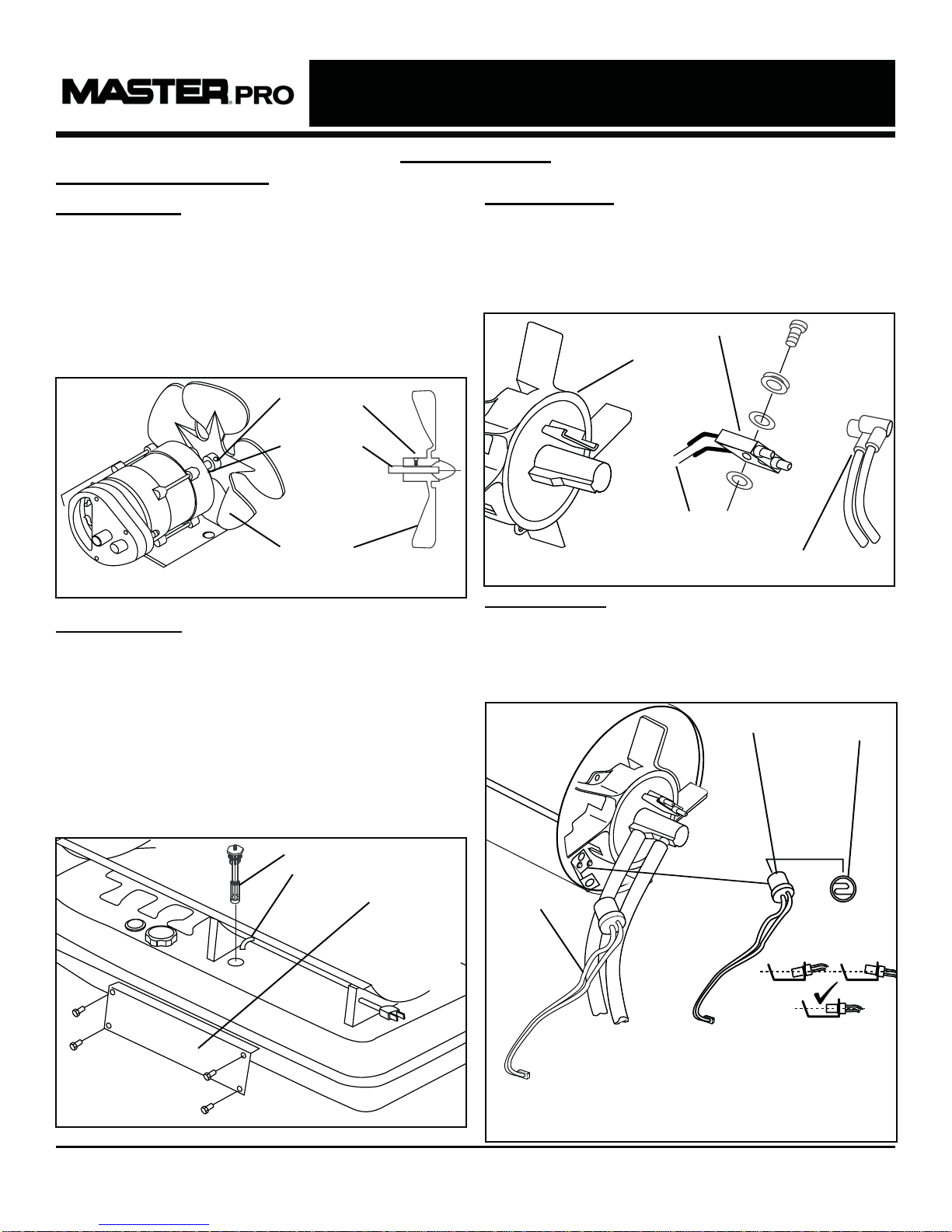

Maintenance
6HUYLFH&RQWLQXHG
)$1%/$'(6
Blades should be cleaned at least once per
heating season, depending on conditions.
Remove all accumulated dust and dirt with a
damp cloth, taking care not to bend any of the
fan blades. Be sure the blades are dry before
re-starting the heater. For fan assembly removal
see Figure 9.
)8(/),/7(5
The fuel filter should be cleaned at least twice
per heating season. Clean the filter by rinsing
it in clean 1-K Kerosene. Contaminated fuel
could make cleaning the fuel filter necessary
immediately.
127(7RUHPRYHWKHILOWHUIURPPRGHOV
.)$WXUQILOWHUFRXQWHUFORFNZLVH
6HH)LJXUH
63$5.3/8*
Clean and re-gap every 600 hours of operation, or
replace as needed. After removing the spark plug,
clean the terminals with a wire brush. Re-gap the
terminals to 0.140” (3.5mm) See Figure 11.
3+272&(//
The photocell should be cleaned using a cotton
swab dipped in alcohol or water at least once
per heating season, or more depending on
conditions. See Figure 12.
Figure 9
Fan Blade
Motor Shaft
Set Screw
Figure 10
Fuel Filter
Fuel Line Side Cover
Figure 11 Ignitor Wire
Spark Plug
Gap
Burner Head
XX
Figure 12
Photocell Photocell lens
Photocell Wire
9
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
:LULQJ'LDJUDP
CAPACITOR
SPARKPLUG
BLUE
EARTH
GREEN
AC 120V 60Hz
POWER
PLUG
CN2
BLUE
BLUE
WHITE
BLACK
BLACK
(TEMP.CONTROL)
THERMOSTAT
BLACK
BLACK
SWITCH
POWER
PHOTO CELL
CD5
SENSOR
ROOM
CN3
CONTROL
LIMIT
5A/250VAC
ACN1
BLACK
FUSE
R-TH
MOTOR02
ACN2
WHITE
GREEN
EARTH
CONTROL PCB
RUN
TIMER
MOTOR01
CN1 IGNITOR
BLACK
BLUE
BLUE
MOTOR
PUMP
BLUE BLACK
RED
EMPTY
FULL
CN4
LEVEL
SWITCH
CON4
Maintenance
380335(6685(
While heater is operating, turn adjusting screw
clockwise to increase, counter-clockwise to
decrease pressure. Correct pump pressure is as
follows:
Model Number 3XPS3UHVVXUH
MHP-135-KFA 5.0 PSI
MHP-190-KFA 7.5 PSI
MHP-215-KFA 9.0 PSI
Tolerance ± 10%
12==/(6
Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel could
make this necessary immediately. To clean dirt
from nozzle, blow compressed air through nozzle
front. It may be necessary to soak the nozzle in
1-K kerosene to loosen any dirt particles.
Figure 13 Adjusting Screw
Pressure Valve
Figure 14
Nozzle
Nozzle Face
Burner Head
10
Figure 15: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
11
7URXEOHVKRRWLQJ*XLGH
Problem Possible Cause Solution
Heater Ignites, but main PCB shuts
off after a short period of time.
/DPSÀLFNHUVDQG/('GLVSOD\
shows “E1”.
1. Incorrect pump pressure.
2. 'LUW\LQSXWRXWSXWRUOLQW¿OWHU
3. 'LUW\IXHO¿OWHU
4. Nozzle is dirty.
5. Photocell lens is dirty.
6. Photocell not installed properly.
7. Photocell is defective.
8. Improper electrical connection
between main PCB and photocell.
1. Adjust pump pressure.
2. &OHDQUHSODFHDLURUOLQW¿OWHU
3. &OHDQUHSODFHIXHO¿OWHU
4. Clean / replace Nozzle.
5. Clean / replace photocell.
6. Adjust photocell position
7. Replace photocell
8. Check wiring connections
(see wiring diagrams on page 10).
Heater will not operate or motor
runs for a short time.
/DPSÀLFNHUVDQG/('GLVSOD\
shows “E1”.
1. Incorrect pump pressure.
2. Corroded spark plug or incorrect
plug gap.
3. 'LUW\IXHO¿OWHU
4. Dirty nozzle.
5. Moisture in fuel tank.
6. Improper electrical connection
between transformer and circuit
board.
7. Ignitor wire not connected to spark
plug.
8. Defective ignitor.
1. Adjust pump pressure.
2. Clean / replace spark plug.
3. &OHDQUHSODFHIXHO¿OWHU
4. Clean / replace nozzle.
5. Rinse fuel tank with clean, fresh
kerosene.
6. Inspect all electrical connections.
(See wiring diagrams on page 10.)
7. Re-attach ignitor wire to spark plug.
8. Replace ignitor.
Fan does not operate when heater
is plugged in and power switch is
in the “ON” position. The lamp is
ÀLFNHULQJRUDQG/('GLVSOD\VKRZV
“E1” or “E2”.
1. Thermostat is set too low.
2. Broken electrical connection
between main PCB and motor.
1. Rotate thermostat to a higher
setting
Inspect all electrical connections
(see wiring diagrams on page 10).
/DPSLVÀLFNHULQJDQG/('GLVSOD\
shows “E3”. 1. Thermostat switch has failed. 1. Replace thermostat switch (see
Wiring diagrams on page 10).
+HDWHUZLOOQRW¿UH/(''LVSOD\
shows E4 1. No kerosene in the fuel tank. 1. Fill tank with fresh kerosene.
Poor combustion and / or excess
soot production. 1. 'LUW\LQSXWRXWSXWRUOLQW¿OWHU
2. 'LUW\IXHO¿OWHU
3. Poor quality of fuel.
4. PSI is too high or too low.
1. &OHDQUHSODFHDLURUOLQW¿OWHU
2. &OHDQUHSODFHIXHO¿OWHU
3. Flush fuel tank and refuel heater.
4. Use proper pressure.
Heater does not turn on and the
lamp is not lit. 1. Temperature limit sensor has
overheated.
2. No electrical power.
3. Fuse is blown.
4. Improper electrical connection
between temperature limit sensor
and circuit board.
1. Push power switch to “OFF and
allow heater to cool for 10 minutes.
Restart heater.
2. Check power cords for proper
connection and test the power
supply.
3. Check / replace the fuse.
4. Inspect all electrical connections
(see wiring diagrams on page 10).
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
([SORGHG9LHZ
12
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
13
3DUWV/LVW
# MHP-135-KFA MHP-190-KFA MHP-215-KFA
1 Fuel Tank Assembly 70-002-0610 70-002-0620 70-002-0620
2 Drain Plug 70-002-0105 70-002-0105 70-002-0105
3 Fuel Gauge Assembly 70-007-0210 70-007-0210 70-007-0215
4 Fuel Filter Assembly 70-003-0200 70-003-0200 70-003-0200
5 Fuel Cap 70-006-0120 70-006-0120 70-006-0120
6 Power Cord 70-034-0200 70-034-0200 70-034-0200
7 Power Switch 70-038-0100 70-038-0100 70-038-0100
8 Electronic Fuel Gauge Assembly 70-007-0450 70-007-0450 70-007-0450
9 Thermostat Control Knob 70-031-0130 70-031-0130 70-031-0130
10 Lower Shell 70-001-2315 70-001-2325 70-001-2325
11 Air Line 70-035-0520 70-035-0525 70-035-0530
12 Thermostat Limit Control 70-019-0100 70-019-0100 70-019-0200
13 Combustion Chamber Assembly 70-011-0520 70-011-0525 70-011-0530
14 Photocell Bracket 70-010-0101 70-010-0101 70-010-0101
15 Fuel Line 70-036-0520 70-036-0525 70-036-0530
16 Photocell Assembly 70-016-0100 70-016-0100 70-016-0100
17 Burner Head Assembly 70-014-0300 70-014-0400 70-014-0500
18 Nozzle Kit 70-015-0300 70-015-0400 70-015-0500
19 Spark Plug Kit 70-052-0200 70-052-0200 70-052-0200
20 Motor and Pump Assembly 70-020-0555 70-020-0560 70-020-0560
21 Motor 70-021-0510 70-021-0520 70-021-0520
22 Pump Body 70-020-0101 70-020-0101 70-020-0401
23 Rotor Kit 70-022-0100 70-022-0100 70-022-0200
24 Vein 70-022-0230 70-022-0230 70-022-0230
25 Output Filter 70-020-0102 70-020-0102 70-020-0102
26 Pump Adjustment Kit 70-054-0101 70-054-0101 70-054-0101
27 Lint Filter 70-054-0102 70-054-0102 70-054-0102
28 Intake Filter 70-023-0100 70-023-0100 70-023-0100
29 End Filter Cover 70-020-0103 70-020-0103 70-020-0103
30 Nipple 70-014-0104 70-014-0104 70-014-0104
31 Capacitor 70-020-0200 70-020-0201 70-020-0201
32 Fan Assembly 70-024-0300 70-024-0300 70-024-0300
33 Ignitor 70-037-0300 70-037-0300 70-037-0300
34 Right Side Cover 70-008-0775 70-008-0780 70-008-0780
35 Left Side Cover 70-009-0515 70-009-0520 70-009-0525
36 Fan Guard 70-016-0715 70-016-0715 70-016-0715
37 Main PCB 70-027-0860 70-027-0860 70-027-0860
38 Fuse 70-027-0101 70-027-0101 70-027-0101
39 Clip Nut 70-001-0105 70-001-0105 70-001-0105
40 Upper Shell 70-001-2310 70-001-2320 70-001-2320
41 Y Bracket 70-043-0561 70-043-0561 70-043-0561
42 Y Bracket 70-043-0570 70-043-0570 70-043-0570
43 Handle Grommet 70-043-0570 70-043-0570 70-043-0570
44 Air Pressure Gauge 70-025-0100 70-025-0100 70-025-0100
45 Cord Bushing 70-033-0200 70-033-0200 70-033-0200
46 Front Handle 70-043-0520 70-043-0520 70-043-0525
47 Rear Handle 70-043-0530 70-043-0530 70-043-0535
48 Wheel Support Frame 70-043-0505 70-043-0510 70-043-0510
49 Wheel Axle 70-043-0550 70-043-0550 70-043-0555
50 Wheel 70-041-0520 70-041-0520 70-041-0520
51 Wheel Nut 70-041-0550 70-041-0550 70-041-0550
52 Spacer 70-041-0108 70-041-0108 70-041-0108
53 Cord Wraps 70-032-0200 70-032-0200 70-032-0200
54 Top Cover 70-009-0550 70-009-0550 70-009-0550
55 Filter Kit 70-054-0100 70-016-0715 70-016-0715
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
/,0,7(':$55$17<
Pinnacle Products International, Inc. warrants this heater
to the original retail purchaser only, to be free from defects
in material and workmanship for a period of one (1) year
from the date of initial purchase. This product must be
properly installed, maintained and operated in accordance
with the instructions provided.
Pinnacle Products International, Inc. requires reasonable
proof of your date of purchase from an authorized retailer
or distributor. Therefore, you should keep your sales slip,
invoice or cancelled check from the original purchase.
This Limited Warranty shall be limited to the repair or
replacement of parts, which prove defective under normal
use and service within the warranty period, and which
Pinnacle Products International , Inc. shall determine at
its reasonable discretion.
This warranty does not apply to products purchased for
rental use.
This Limited Warranty does not cover any failures or
RSHUDWLQJGLI¿FXOWLHVGXHWRQRUPDOZHDUDQGWHDUDFFLGHQW
abuse, misuse, alteration, misapplication, improper
installation or improper maintenance and service by you
or any third part. Failure to perform normal and routine
maintenance on the heater, shipping damage, damage
related to insects, birds or animals of any kind, and damage
due to weather conditions are also not covered.
In addition, the Limited Warranty does not cover damage
WRWKH¿QLVKVXFKDVVFUDWFKHVGHQWVGLVFRORUDWLRQUXVWRU
other weather damage, after purchase.
All transportation costs for the return of damaged product
or parts will be the responsibility of the purchaser.
Upon receipt of damaged item, Pinnacle Products
International, Inc. will examine the item and determine if
defective. Pinnacle Products International, Inc. will repair
or replace and return the item, freight pre-paid.
If Pinnacle Products International, Inc. ¿QGVWKHLWHPWR
be in normal operating condition, or not defective the item
will be returned freight collect. This Limited Warranty is in
lieu of all other express warranties. Pinnacle Products
International, Inc. disclaims al warranties for products that
are purchased from sellers other than authorized dealers or
distributors.
AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS
WARRANTY EXPIRES, Pinnacle Products International,
Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
APPLICATION. FURTHER, Pinnacle Products International,
Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER
OR ANY THIRD PARTY FRO ANY SPECIAL, INDIRECT, PUNITIVE
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle
Products International, Inc. assumes no responsibility for
any defects caused by third parties. This Limited Warranty
JLYHVWKHSXUFKDVHUVSHFL¿FOHJDOULJKWVDSXUFKDVHUPD\
have other rights depending upon where he or she lives.
Some states do not allow the exclusion or limitation of
special, incidental or consequential damages, or limitations
on how long a warranty lasts, so the above exclusion and
limitations may not apply to you.
Pinnacle Products International, Inc. does not authorize
any person or company to assume for it any other
obligation or liability in connection with the sale, installation,
use, removal, return or replacement of its equipment, and
no such representations are binding on Pinnacle Products
International, Inc.
Always be sure to specify the model number and serial
number when making any claim with Pinnacle Products
International, Inc. For your convenience, use the space
provided below to list this information.
Register Your Product Online at: http://www.masterindustrialproducts.com/Product_Registration.php
Model #:________________________________
Serial #:________________________________
Date of Purchase: ________________________
14
/RFDWLQJ<RXU6HULDO1XPEHU
Your serial number can be found on a white label on the right side cover of your heater. It will begin with 2
digits, the letter “H” followed by 6 digits. For Example: 13H123456. Have your Serial Number ready before
calling customer service at 800-641-6996.
Serial Number Label
XX-X-XXXXXX
© 2013 Pinnacle Products International, Inc.
668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free (800)-641-6996
Fax: (215)-891-8461 :HEZZZSLQQDFOHLQWFRP(PDLOLQIR#SLQQDFOHLQWFRP
Numéros de Modèles
MHP-135-KFA / MHP-190-KFA / MHP-215-KFA
© 2013 Pinnacle Products International, Inc.
668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free (800)-641-6996
Fax: (215)-891-8461 :HEZZZPDVWHULQGXVWULDOSURGXFWVFRP(PDLOLQIR#SLQQDFOHLQWFRP
701000112-13
Manuel de L’utilisateur et Instructions D’utilisation
&/,(17&216(59(5&(0$18(/3285&2168/7$7,218/7e5,(85(
127('¶$9(57,66(0(17*e1e5$/
9(8,//(=/,5((7&2035(1'5(7287(6/(6,16758&7,216'(&(
0$18(/$9$17'¶$66(0%/(5'(0(775((10$5&+(28'()$,5(())(&78(5'(6
5e3$5$7,216685&(7$33$5(,/9HXLOOH]WRXMRXUVYRXVDVVXUHUGHYRXVFRQIRUPHUDX[
LQVWUXFWLRQVHWDX[DYHUWLVVHPHQWVIRXUQLVDYHFO¶DSSDUHLO/HQRQUHVSHFWGHFHVGLUHFWLYHV
SRXUUDLWHQWUDvQHUGHVULVTXHVG¶LQFHQGLHRXG¶H[SORVLRQSRXYDQWFDXVHUGHVpULHX[
GRPPDJHVjODSURSULpWpGHVEOHVVXUHVRXPrPHODPRUW6HXOHVOHVSHUVRQQHVSRXYDQW
VXLYUHHWFRPSUHQGUHFHVLQVWUXFWLRQVGHYUDLHQWRSpUHURXUpSDUHUFHWDSSDUHLOGHFKDXIIDJH
6LYRXVGpVLUH]SOXVGHUHQVHLJQHPHQWVPDQXHOG¶RSpUDWLRQpWLTXHWWHVHWFYHXLOOH]
contacter PinnacleProducts International au 800.641.6996.
1(3$687,/,6(5'$16'(6=21(65e6,'(17,(//(628'$16'(6
(63$&(6&/266$169(17,/$7,21$'e48$7(328586$*('$16'(6
=21(6&200(5&,$/(628,1'8675,(//(6'27e(6'(9(17,/$7,21$'e48$7(
&HFLHVWXQDSSDUHLOGHFKDXIIDJHSRUWDWLIQRQUDFFRUGpXWLOLVDQWO¶DLUR[\JqQHDPELDQWGH
O¶HVSDFHRLOHVWXWLOLVp8QHLQVXIILVDQFHG¶DLUSRXUODFRPEXVWLRQHWODYHQWLODWLRQFDXVHUD
O¶DVSK\[LHO¶LQWR[LFDWLRQSDUR[\GHGHFDUERQHGHVOpVLRQVFRUSRUHOOHVRXODPRUW9RLUOD
UXEULTXH©9HQWLODWLRQªjODSDJH
DANGER
NE JAMAIS LAISSER LE RADIATEUR SANS SURVEILLANCE
ALORS QU’IL EST EN MARCHE OU QU’IL EST RACCORDÉ
À UNE SOURCE D’ALIMENTATION.
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
1
7DEOHGH0DWLères
Informations sur la Sécurité..............................1-2
Caractéristiques...................................................3
135 / 190 / 215-KFAAssemblage.....................4-5
Fonctionnement................................................6-7
Ventilation.............................................................6
Entretien..........................................................8-10
Schéma de Câblage...........................................10
Dépannage.........................................................11
Vue Éclatée des Pièces.....................................12
Liste des Pièces.................................................13
Garantie..............................................................14
,QIRUPDWLRQVVXUOD6écurité
5,648('¶,1&(1',('(%5Ó/85(6'¶,1+$/$7,21(7'¶(;3/26,21
*DUGHUOHVPDWpULDX[FRPEXVWLEOHVWHOVTXHPDWpULDX[GHFRQVWUXFWLRQSDSLHU
RXFDUWRQjXQHGLVWDQFHVpFXULWDLUHGHO¶DSSDUHLOGHFKDXIIDJHVHORQOHVUHFRPPDQGD-
WLRQVGHFHVLQVWUXFWLRQV1¶XWLOLVH]MDPDLVO¶DSSDUHLOGDQVGHVHQGURLWVTXLFRQWLHQQHQWGHV
SURGXLWVFRPPHHVVHQFHVROYDQWVGLOXDQWVjSHLQWXUHSRXVVLqUHVVXEVWDQFHVFRPEXV-
WLEOHVYRODWLOHVRXDpURSRUWpHVRXWRXWSURGXLWFKLPLTXHGHQDWXUHLQFRQQXH,OV¶DJLWG¶XQ
DSSDUHLOGHFKDXIIDJHQRQUDFFRUGp,OXWLOLVHO¶DLUR[\JqQHGHOD]RQHGDQVODTXHOOHLOHVW
XWLOLVp8QHTXDQWLWpDGpTXDWHG¶DLUGHFRPEXVWLRQHWGHYHQWLODWLRQGRLWrWUHIRXUQLH9RLUOD
UXEULTXH©9HQWLODWLRQªjODSDJH7RXWVWRFNDJHGHFRPEXVWLEOHHQYUDFGRLWVHWURXYHUj
XQPLQLPXPGHPqWUHVSLHGVGHO¶DSSDUHLOGHFKDXIIDJH
1(3$687,/,6(5&(7$33$5(,/'(&+$8))$*($9$17'¶$92,5/8(7
3$5)$,7(0(17&2035,6&(6&216,*1(6'(6e&85,7e(7'¶23e5$7,21
/HQRQUHVSHFWGHVSUpFDXWLRQVHWLQVWUXFWLRQVIRXUQLHVDYHFFHWDSSDUHLOSHXWHQWUDvQHUOD
PRUWGHVEOHVVXUHVFRUSRUHOOHVJUDYHVODSHUWHRXGHVGRPPDJHVDX[ELHQVFDXVpVSDUOHV
ULVTXHVG¶LQFHQGLHODSURGXFWLRQGHVXLHGHVH[SORVLRQVGHVEUOXUHVO¶DVSK\[LHRXXQHPSRL-
VRQQHPHQWDXPRQR[\GHGHFDUERQH6HXOHVOHVSHUVRQQHVTXLSHXYHQWOLUHHWFRPSUHQGUHOHV
SUpVHQWHVGLUHFWLYHVGHYUDLHQWXWLOLVHURXIDLUHO¶HQWUHWLHQGHFHWDSSDUHLOGHFKDXIIDJH
AVERTISSEMENT
5e6,'(176'80$66$&+86(776 La législation de l’État du Massachusetts interdit l’utilisation de ce
radiateur dans tout édifice utilisé en tout ou en partie à des fins d’habitation. L’utilisation de cet appareil de
chauffage dans le Massachusetts exige un permis du service d’incendie local (M.G.L.C. 148. section 10A).
5e6,'(176'(/$9,//('(1(:<25. : Le Code de prévention des incendies de la ville de
New York interdit l’entreposage, la manipulation et l’utilisation de radiateurs à kérosène pour le
chauffage localisé. Toute personne contrevenant à cette disposition peut encourir une amende
allant jusqu’à 10 000 dollars et une peine d’emprisonnement allant jusqu’à 6 mois.
Recherchez cette icône dans le manuel pour des conseils utiles sur la façon
d’assembler, d’utiliser et de nettoyer votre appareil de chauffage KFA.
1(3$60(775((10$5&+(/¶$33$5(,//25648¶,/<$$&&808/$7,21
'¶+8,/(
AVERTISSEMENT
1(3$60(775((10$5&+(/¶$33$5(,//25648(/$&+$0%5('(
&20%867,21(67&+$8'(
/¶,167$//$7,21'(&(7$33$5(,/'(&+$8))$*('2,75(63(&7(5/$
5e*/(0(17$7,21'(6$8725,7e6$<$17-85,',&7,21
5e6,'(176'(/$&$/,)251,(Ce produit contient des produits chimiques, dont
le plomb, connue à I'État de Califormie pour causer des malformations congénitales ou
d'autres troubles de la reproduction. Se laver les mains aprés manipulation.
NE JAMAIS LAISSER LE RADIATEUR SANS SURVEILLANCE
ALORS QU’IL EST EN MARCHE OU QU’IL EST RACCORDÉ
À UNE SOURCE D’ALIMENTATION.
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
2
Les produits décrits dans ce manuel sontdes
générateurs de chaleur à feu direct et à air pulsé
alimentés au kérosène. Les appareils à air forcé au
kérosène sont principalement destinés au chauffage
temporaire des bâtiments en cours de construction ou
GHUpQRYDWLRQ)HXGLUHFWVLJQL¿HTXHWRXVOHVSURGXLWV
de combustion du radiateur entrent dans l’espace
chauffé. Cet appareil est évalué à 98 % de rendement
de la combustion, mais il produit de petites quantités
de monoxyde de carbone.
Le monoxyde de carbone est toxique.Les êtres
humains peuvent tolérer de petites quantités de
monoxyde de carbone, des précautions doivent donc
être prises pour assurer une ventilation adéquate.
Une ventilation non adéquate, en violation des con-
signes figurant dans ce manuel, peut entraîner la
mort. Les premiers symptômes d’un empoisonnement
au monoxyde de carbone ressemblent à ceux de la
grippe.
Les personnes atteintes de problèmes respiratoires
devraient consulter un médecin avant d’utiliser cet
appareil.
Les premiers signes d’intoxication au monoxyde de
carbone ressemblent aux symptômes de la grippe.
Ces symptômes d’une mauvaise ventilation ou d’un
empoisonnement au monoxyde de carbone sont:
0DOGH7rWH 9HUWLJHV Nausée %RXFKH6qFKH
0DOGH*RUJH1H]HW<HX[4XL%UOHQW
Si vous ressentez un ou plusieurs de ces symptômes
: SORTEZ IMMÉDIATEMENT RESPIRER DE L’AIR
FRAIS! Faites vérifier ou réparer votre appareil et
vérifiez que la ventilation est adéquate. Certaines
personnes sont plus affectées que d’autres par le
monoxyde de carbone. Celles-ci incluent : les femmes
enceintes, les personnes ayant des problèmes
cardiaques ou pulmonaires, souffrant d’anémie ou
qui se trouvent sous l’influence de l’alcool ou à haute
altitude.
1¶XWLOLVH]FHUDGLDWHXUTXHGDQVGHV]RQHVELHQ
DpUpHV8QHRXYHUWXUHG¶XQPLQLPXPGHFPð
WURLVSLHGVFDUUpVVXUO¶DLUH[WpULHXUGHYUDLWH[LVWHU
SRXUFKDTXH%78KUGXUpJLPHQRPLQDOGH
O¶DSSDUHLO9RLUODUXEULTXH©9HQWLODWLRQªjODSDJH
SRXUSOXVGHGpWDLOV
TOUJOURS utiliser uniquement l’alimentation électrique
(tension et fréquence) indiquée sur la plaque signalétique de
l’appareil de chauffage.
TOUJOURS utiliser seulement des prises ou des rallonges à
trois broches et avec mise à la terre.
TOUJOURS utiliser seulement des rallonges cotées 14 AWG
ou mieux.
TOUJOURS débrancher l’appareil de chauffage lorsqu’il
n’est pas en service.
TOUJOURS installer l’appareil dans un endroit où il
n’est pas directement exposé au vent, à la pluie, aux
gouttes ou aux éclaboussures d’eau.
NE JAMAIS utiliser de carburant comme de l’essence,
du benzène, des diluants à peinture ou autres composés
d’huile dans cet appareil.
NE JAMAIS remplir le réservoir de carburant de cet
appareil alors qu’il est en marche ou encore chaud. Cet
appareil est EXTRÊMEMENT CHAUD lorsqu’il est en
opération.
NE JAMAIS bloquer la circulation de l’air, soit à l’entrée (à
l’arrière) ou à la sortie (à l’avant).
NE JAMAIS utiliser de gaines ou conduits d’air à l’avant
ou à l’arrière de l’appareil.
NE JAMAIS déplacer ou manipuler l’appareil lorsqu’il est
encore chaud.
NE JAMAIS transporter l’appareil lorsqu’il y a du
carburant dans le réservoir.
NE JAMAIS utiliser avec un réservoir de carburant
externe.
Garder tous les matériaux combustibles à l’écart de cet
appareil de chauffage.
'pJDJHPHQW0LQLPDO3DU5DSSRUW$X[&RPEXVWLEOHV
135-KFA 190-KFA 215-KFA
7RS IW IW IW
Sides IW IW IW
Front IW IW IW
Placez toujours l’appareil sur une surface stable et plane. Si
votre appareil est équipé d’un thermostat, une fois qu’il est
branché, il peut se mettre en marche à tout moment selon le
réglage du thermostat.
5,648('(32//87,21'(
/¶$,5,17e5,(85
/¶(032,6211(0(17$8
0212;<'('(&$5%25(3(87
(175$Ì1(5/$0257
DANGER
5,648(6'(%5Ó/85(6
'¶,1&(1',('¶(;3/26,21
5,648('(&+2&e/(75,48(
0,6((1*$5'(&+$8'
'85$17/¶23e5$7,211(
3$6728&+(5*$5'(5+256'(/$
3257e('(6(1)$176(7'(6$1,0$8;
(7¬/¶e&$57'(69Ç7(0(17628'(
72870$7e5,$8&20%867,%/(
,QIRUPDWLRQVVXUOD6écurité
NE JAMAIS LAISSER LE RADIATEUR SANS SURVEILLANCE
ALORS QU’IL EST EN MARCHE OU QU’IL EST RACCORDÉ
À UNE SOURCE D’ALIMENTATION.
© 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual
3
&DUDFWpULVWLTXHV
Modèle #
MHP-135-KFA MHP-190-KFA MHP-215-KFA
Classement: Btu/Hr 135,000 190,000 215,000
Consommation de
Carburant: 1.00 1.42 1.63
Capacité du Réservoir (G)
10.0 13.0 13.0
Pression de Pompage: psi 5.5 8.5 9.0
Volts: AC/Hz
120VAC / 60Hz 120VAC / 60Hz 120VAC / 60Hz
Amps 2.3 2.7 2.92
Moteur Monophasé Unique Unique Unique
Spécifications sujettes à modification sans préavis
Modèles: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA
Figure 1
Poignée Avant
Cadre de Support
des Roues
Pneus
Boucho de
Combustible
Jauge à Combustible
Eveloppe
Inférieure
Sortie D’air Chaud
Cordon D’Alimentation
Bouchon De Vidange
Enroulement de
Cordon Prolongateur
Interrupteur
D’alimentation
Bouton du
Thermostat
Réservoir de
Combustible
Eveloppe
Supérieure
Poignée Arrière
$I¿FHKHXU
Numérique de
Température
This manual suits for next models
2
Table of contents
Languages:
Other Masterpro Heater manuals
Popular Heater manuals by other brands
Comfort Glow
Comfort Glow CGP150 manual
EINHELL
EINHELL HKL 2000 operating instructions
Klarstein
Klarstein Cosmic Beam Smart 24 manual
Tecnosystemi
Tecnosystemi Apply air AirFor3 FRONT user manual
EOS
EOS Cubo 2 Installation and operating instructions
London Cool
London Cool Santorini Flame Gas Patio operating instructions
