Mastervac 054-0246-8 User manual

INSTRUCTION
MANUAL
model no. 054-0246-8
STAINLESS STEEL
WET/DRY VACUUM
IMPORTANT:
Read and understand this instruction manual thoroughly before
using the product.

3
Read and understand this instruction manual thoroughly before using
the product. It contains important information for your safety as well as
operating and maintenance advice.
Keep this instruction manual for future use. Should this product be passed
on to a third party, then this instruction manual must be included.
If any parts are missing or damaged, or if you have any questions, please call our toll-
free helpline at 1-800-689-9928.
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIFICATIONS 4
EXTENSION CORDS 4
SAFETY WARNINGS 5
LOCATION OF PARTS 8
GENERAL ASSEMBLY INSTRUCTIONS 9
DRY VACUUM OPERATION 12
WET VACUUM OPERATION 14
BLOWER OPERATION 16
MAINTENANCE 17
TROUBLESHOOTING 19
ACCESSORIES 20
EXPLODED VIEW 21
PARTS LIST 22
WARRANTY 23

45
model no. 054-0246-8 | contact us 1-800-689-9928
SPECIFICATIONS
EXTENSION CORDS
SAFETY WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Household Type
SAVE THIS MANUAL FOR FUTURE REFERENCE.
• Read all instructions before using this appliance.
• Read and understand this instruction manual and all labels on the Wet/Dry Vacuum
before using.
• Safety is a combination of common sense, staying alert and knowing how this Wet/Dry
Vacuum works. Use this Wet/Dry Vacuum only as described in this manual. To reduce
the risk of personal injury or damage to the Wet/Dry Vacuum, use only recommended
accessories.
CAUTION!
If safety information is not followed, someone may be injured.
WARNING!
If safety information is not followed, someone could be seriously injured or killed.
If safety information is not followed, someone will be seriously injured or killed.
Tank size: 15 L (4 U.S. gallons / 3 1/2 Imperial gallons)
Peak horsepower: 2.5 HP
Power: 120 V, 60 Hz, 5.5 A
Tank: Stainless steel
Power cord: 6’ (1.8 m)
Hose: 1 1/4” x 6' (3.2 cm x 1.8 m)
Water lift: 50" (127 cm) at end of hose
Air flow: 53 CFM at end of hose
Noise: 74 dBA
Filters: Cloth filter, foam filter
Weight: 7 lb 15 oz (3.6 kg)
When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the
required AWG wire size. Before using the cleaner make sure the power cord and extension cord are
in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use
extension cords that are rated for outdoor use.
Length of Extension Cord
110 V – 120 V 25’ (7.5 m) 50’ (15.25 m) 100’ (30.5 m) 150’ (45.7 m)
Amps AWG Wire Size
0 – 6 18 16 16 14
7 – 10 18 16 14 12
11 – 12 16 16 14 12
13 – 16 14 12 Not recommended
When using this Wet/Dry Vacuum follow basic safety precautions including the following:
To reduce the risk of fire, electric shock or injury:
•Do not run the Wet/Dry Vacuum unattended.
• Do not vacuum, or use this Wet/Dry Vacuum near liquids, gases, or explosive vapours like gasoline or
similar fuels, lighter fluid, cleaners, oil-based paints, natural gas or hydrogen. Do not vacuum or use
this Wet/Dry Vacuum near explosive dusts like coal dust, magnesium dust, grain dust, or gunpowder as
sparks inside the motor can ignite flammable vapours or dust.
• Do not vacuum burning or smoking items such as cigarettes, matches, or hot ashes.
• Keep the cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use if the cord, plug or other parts are damaged.
• If the Wet/Dry Vacuum is not working correctly or has missing parts, has been dropped or damaged, left
outdoors or dropped in water, return it to an independent service centre.
• Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the cord, or pull the
cord around sharp edges or corners.
• Do not run the Wet/Dry Vacuum over the cord.
• Do not handle the plug or the Wet/Dry Vacuum with wet hands.
Understanding Safety Terminology

67
model no. 054-0246-8 | contact us 1-800-689-9928
• To reduce the risk of health hazards from vapours or dust, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Wet/Dry Vacuum with a torn filter or without installing the filter except when vacuuming
liquids as described in the operation section of this manual.
• Do not use the Wet/Dry Vacuum as a toy. Pay particularly close attention when it is being used by or near
children.
• To reduce the risk of injury from the Wet/Dry Vacuum accidentally starting, unplug the power cord before
changing or cleaning the filter.
• Do not leave the Wet/Dry Vacuum unattended when it is plugged in. Unplug it from the power outlet
when not in use and before servicing. Turn off the Wet/Dry Vacuum before unplugging.
• Do not put any objects into the ventilation openings. Do not vacuum with any ventilation openings
blocked.
• Keep free of dust, lint, hair or any other items that may reduce the air flow.
• Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts.
• To reduce the risk of falling, use extra care when cleaning on stairs.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system. Use only
identical replacement parts. Read the servicing instructions before servicing the Wet/Dry Vacuum.
Use this Wet/Dry Vacuum only as described in this manual.
Observe the following warnings that appear on the motor housing of this Wet/Dry Vacuum.
DOUBLE-INSULATED. GROUNDING NOT REQUIRED.
WHEN SERVICING USE ONLY IDENTICAL
REPLACEMENT PARTS.
SAFETY WARNINGS
CAUTION!
Do not vacuum drywall dust or cold fireplace soot or ash with a standard wet/dry
filter. This dust is very fine and hence will not be captured by the filter and may
cause damage. Refer to the operation section for proper filter selection.
WARNING!
To reduce the risk of electric shock, do not expose to rain. Store indoors.
CAUTION!
To reduce the risk of injury from moving parts, unplug before servicing.
WARNING!
For your own safety, read and understand this instruction manual. Do not operate
unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes, coals, toxic,
fammable or other hazardous materials. Do not use near explosive liquids or
vapours.
SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM.
In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided instead of grounding.
No method of grounding is provided on a double-insulated appliance, nor should one be added.
Servicing a double-insulated Wet/Dry Vacuum requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts for a double-insulated
Wet/Dry Vacuum must be identical to the parts that are being replaced. This Wet/Dry Vacuum
is marked with the words ‘DOUBLE INSULATED’ and the symbol may also be marked on the
appliance.
• For household use only.
• To reduce the risk of electric shock, unplug before cleaning or servicing.
• DO NOT use without filters in place.
• To reduce the risk of electric shock, use indoors only.
POLARIZATION
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other).
This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the
plug in any way. Double insulation eliminates the need for a three-wire, grounded power cord and
grounded power supply system.
SAFETY WARNINGS

89
model no. 054-0246-8 | contact us 1-800-689-9928

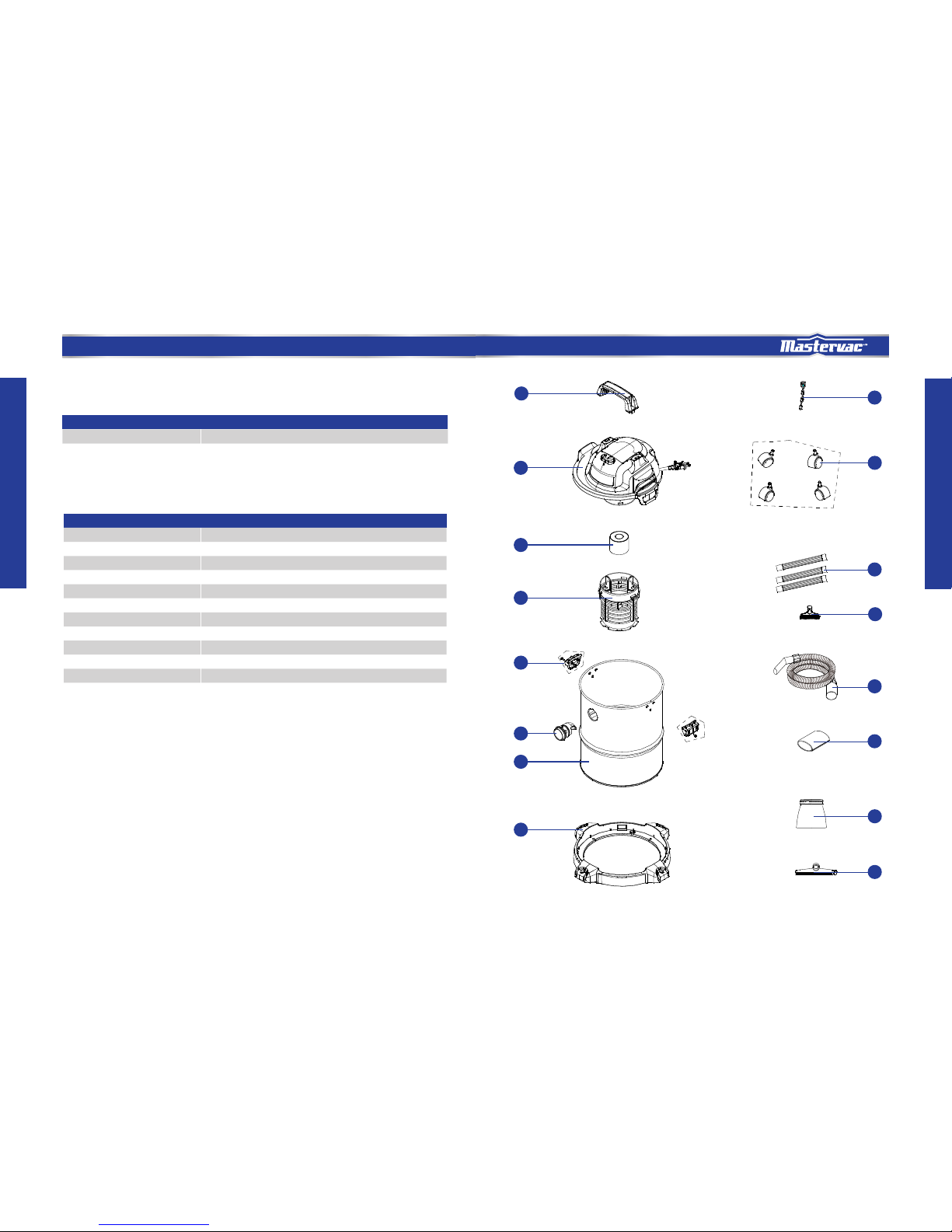

No. Description No. Description
1 Handle 9 Foam sleeve / wet filter
2 Top section 10 Extension wands (x 3)
3 Blower connection 11 Switch
4 Filter basket 12 Clasp (x 2)
5 Safety float valve 13 Vacuum hose connector
6 Casters (x 4) 14 Tank
7 Floor nozzle 15 Hose set
8 Dry reusable filter 16 Utility nozzle
Verify that the power cord is disconnected from the
outlet.
Lift the top section off the container.
Undo the clasps.
Remove the contents from inside the container.
LOCATION OF PARTS

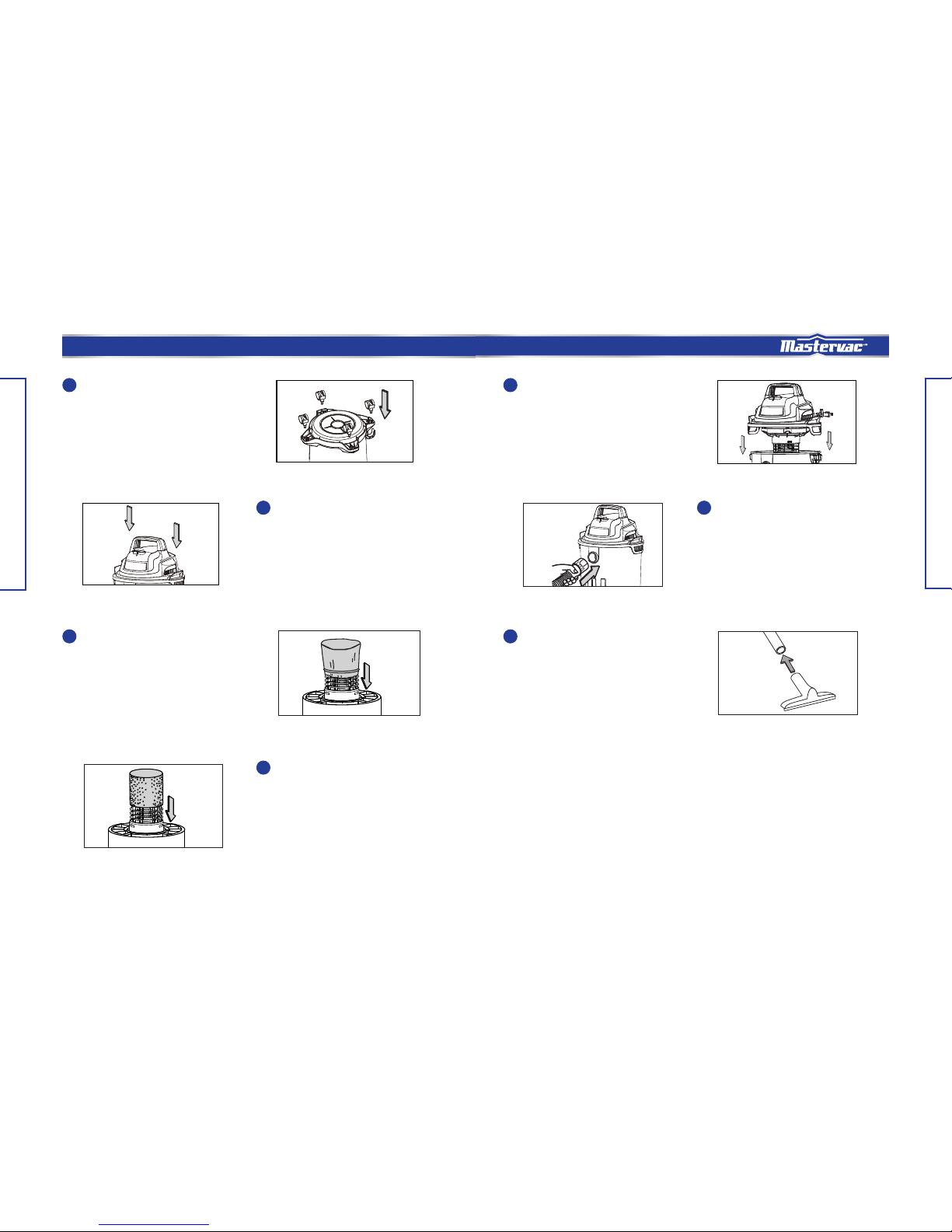

GENERAL ASSEMBLY INSTRUCTIONS
11
2
4
3
11
12
13
14
16
15
2
3
4
5
7
6
8
9
10

10 11
model no. 054-0246-8 | contact us 1-800-689-9928
For dry vacuuming, install the supplied dust
filter.
For wet vacuum cleaning, install the supplied
foam filter.
Choose the desired accessories and push onto
the suction tube.
Insert the large end of the hose into the front
inlet of the container.
GENERAL ASSEMBLY INSTRUCTIONS
GENERAL ASSEMBLY INSTRUCTIONS
Place the top section on the container.
Align the top section with the clasps and snap
into place by applying pressure until clasps click.
Turn the tank upside down, and insert the
casters on to the four feet of the tank.
Ensure that they are mounted correctly. Do not
over-tighten.
Insert the handle into the slots on the power
head.
6 10
8
5 9
117

12 13
model no. 054-0246-8 | contact us 1-800-689-9928

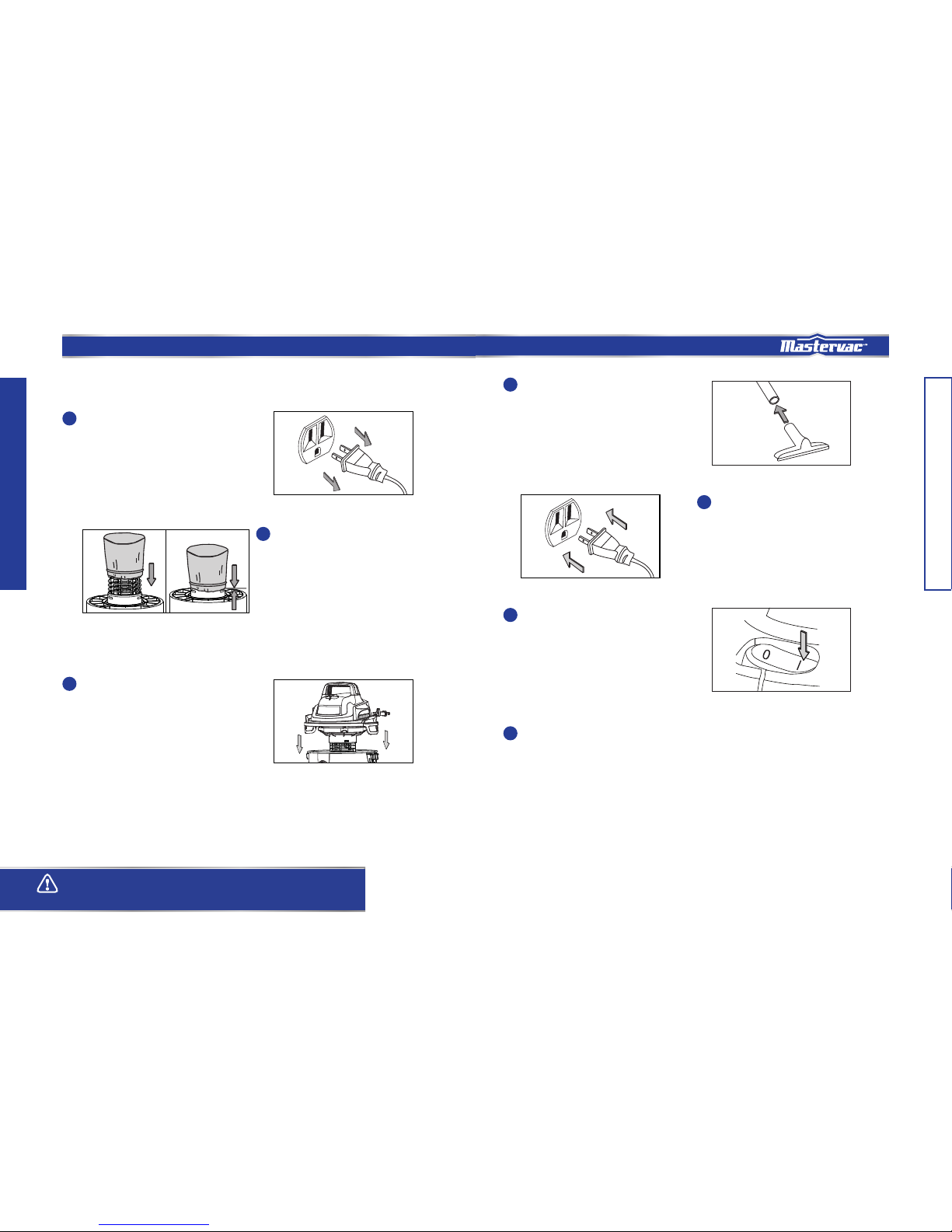

OPERATING INSTRUCTIONS – DRY VACUUMING
Verify that the power cord is disconnected from
the outlet.
Place the top section back on the container, and
secure it in place using the clasps.
In order to prepare your vacuum for dry
vacuuming, verify that the dust filter is clean
and dry. Place the dust filter over the filter
basket and centre it. Push down until the
mounting ring of the dust filter is positioned
against the ribs of the top section.
Verify that the dust filter completely covers the
filter basket. Also verify that all edges of the
dust filter are secure under the mounting ring.
Insert the larger end of the hose into the front
inlet on the tank and lock it in place.
Push the required attachment onto the free end
of the hose or extension.
Plug the power cord into the outlet.
Turn the motor on by flipping the switch to the “I”
position.
Once you have finished vacuuming, flip the switch to the “O” position and unplug the power cord
from the power outlet.
DO NOT USE THE DUST FILTER FOR LIQUID VACUUMING.
WARNING!
Before starting please read, understand, and apply the safety instructions in Section 1.
Reminder: DO NOT vacuum hazardous substances.
DRY VACUUM OPERATION
DRY VACUUM OPERATION
O = OFF I = ON
1
4
6
7
3
2
5

14 15
model no. 054-0246-8 | contact us 1-800-689-9928
OPERATING INSTRUCTIONS – WET VACUUMING
Verify that the power cord is disconnected from
the outlet. Verify that the container is clean and
free of dust and dirt.
Fit the desired nozzle onto the vacuum hose.
Remove the dust filter, and install a foam filter
over the filter basket, and place the top section
back on the container.
DO NOT USE dust filter for wet materials.
Verify that the switch is in the “O” position
before plugging the power cord into the outlet.
WARNING!
Before starting, be sure to read, understand, and apply Section 1, entitled “Safety Warnings”. Reminder: DO
NOT vacuum hazardous substances.
REMEMBER!
The foam filter must be removed after wet vacuuming, and a cartridge filter must be installed before dry
vacuuming again.
After use, flip the switch to the “O” position and
unplug the power cord, then empty and dry the
container.
Turn the motor on by flipping the switch to the
“I” position.
WET VACUUM OPERATION
WET VACUUM OPERATION
1
3
2
5
6
4
IMPORTANT!
When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a
gap at the tip of the nozzle opening to allow air inflow.The machine is fitted with a float valve that stops the
suction action when the containereaches its maximum capacity. You will notice an increase in motor speed.
When this happens, turn off the machine, disconnect from power supply, and drain the liquidinto a suitable
receptacle or drain. To continue vacuuming, refit the container with the draincap. After wet vacuuming,
turn the machine off and remove plug from power supply. Empty the container, clean and dry the inside
and outside before storage.

16 17
model no. 054-0246-8 | contact us 1-800-689-9928
Insert the large end of the hose into the blower
connection in the top of the motor housing.
Turn the motor on by flipping the switch to the
“I” position.
This Wet/Dry Vac has blowing capabilities.
To use the blower feature follow the instructions listed.
Ensure the power switch is turned off and plug
in the power supply.
The unit will now blow through the vacuum
hose and can be used to clear obstructions
within the hose.
WARNING!
If after a few seconds the hose continues to be blocked, turn off the unit and clear the hose manually.
WARNING!
ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSA Z94.3) BEFORE USING
BLOWER.
KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.
BLOWER OPERATION MAINTENANCE
1
1
33
2
2
4
4
Disconnect the hose from the container.
Verify that the power cord is disconnected from
the outlet.
Undo the clasps and remove the top section
from the container.
Clear all dirt or debris from the container and
hose.

18 19
model no. 054-0246-8 | contact us 1-800-689-9928
MAINTENANCE
Clean the foam filter or dust filter by washing it
with a mild soapy solution.
Check the hose, attachments and the power
cord to verify that they have not been damaged.
REPLACEMENT BAGS & FILTERS
Bags and filters should be replaced regularly.
Foam Sleeve / Wet Filter (054-0151)
Dry Reusable Filter (054-0148)
IMPORTANT!
CLEAN THE CARTRIDGE FILTER REGULARLY. IF THE MACHINE IS USED WITHOUT THE CARTRIDGE FILTER,
THE MOTOR WILL BURN OUT AND THE WARRANTY WILL BE VOIDED. ALWAYS ENSURE TO KEEP SPARE
FILTERS HANDY.
5
6
Problem Possible Causes Corrective Action
Vacuum will not operate. No power supply. Check power supply-cord, breakers,
fuses.
Faulty power cord. Check the power cord and repair or
replace as necessary.
Container is full ofiliquid. Empty container.
Dust comes from motor cover. The dust filter is missing or damaged. Attach or replace dust filter.
Reduced effciency and motor/speed
vibration.
There is a blockage in the nozzle, the
hose, or the container inlet, or the
dust filter is blocked by fine dust.
Check the nozzle, the hose, and the
container inlet for blockage. Take
off the dust filter, and wash and
clean it. Reuse it when it is dry. It is
recommended to use a new dust filter.
TROUBLESHOOTING

20 21
model no. 054-0246-8 | contact us 1-800-689-9928
ACCESSORIES
Additional accessories for your Mastervac®Wet/Dry Vacuum are available.
Consumables
054-0151 Foam Sleeve / Wet Filter
054-0148 Dry Reusable Filter
1 1/4" accessories
054-0047 Hose
054-0120 Multi-surface Nozzle
054-0009 Micro Kit
054-0084 Round Brush
054-0085 Crevice Tool
054-0086 Utility Nozzle
054-0087 Floor Nozzle
054-0128 Extension Wand
054-0079 Claw Utility Nozzle
054-0080 1 1/4" To 2 1/2" Adapter
054-0227 Crevice Tool And Soft Bristle Kit
054-0226 Drain Hero
EXPLODED VIEW
1
15
16
2
3
4
5
6
7
8
9
10
11
12
13
14

22 23
model no. 054-0246-8 | contact us 1-800-689-9928
PARTS LIST
If any parts are missing or damaged, or if you have any questions, please call
the Toll-free Helpline, at 1-800-689-9928.
WARRANTY
No. Description
1 Handle
2 Power head assembly
3 Float
4 Filter basket
5 Latch assembly x 2
6 Vacuum Port
7 Tank
8 Base
9 Grounding chain
10 Caster x 4
11 Extension wand x 3
12 2-in-1 Utility nozzle
13 Hose
14 Foam filter sleeve
15 Cloth filter
16 Floor brush/squeegee
MASTERVAC LIMITED WARRANTY
This Mastervac product is guaranteed for a period of three (3) years from the date of original retail
purchase against defects in materials and workmanship.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period and if covered under this warranty, we berepaired or
replaced(with the same model, or one of equal value or specification),at our option.
We will bear the cost of any repair or replacement and any costs of labour relating thereto.
This warranty is subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or
which is being used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be
supplied with the product which are expected to become inoperative or unusable after a reasonable
period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited to,
fuel, lubricants, vacuum bags, blades, belts, sandapaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e.
persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a reconditioned or
refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer is
installed therein or any repairs or alterations have been made or attempted by unauthorized persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited
to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical
cleaners;
i) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation,
any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal
legislation.
Made in China
Imported by
Trifleaf Distribution Trifeuil Toronto, Canada
M4S 2B8
