Mastervac 054-0012-4 User manual

Wet/Dry Vacuum Cart Kit
054-0012-4
Owner’s Manual
Toll-free Helpline: 1-800-689-9928
©
2009

2
SECTION Page
Specifications ……..…………………………………………………………………………….……..2
Safety Warnings ………………………….……………………………………………………..……..3
Location of Parts ….……………………….…………………………………………….…………..... 5
General Assembly Instructions ……………………………………………………..………..……… 6
Dry Vacuum Operation…………………….…………………………………………………..…….…7
Wet Vacuum Operation...……………………………………………………………..……..…..….... 8
Blower Operation ……………………………………………..…..………….…………………….…...9
Maintenance ……………………………………………………..…………..…………...………….…9
Cartridge Filter ………………………………………………………………………………..............10
Troubleshooting.………………………………………………………………………..……………...11
Accessories.……………………………………………………..………………...............................11

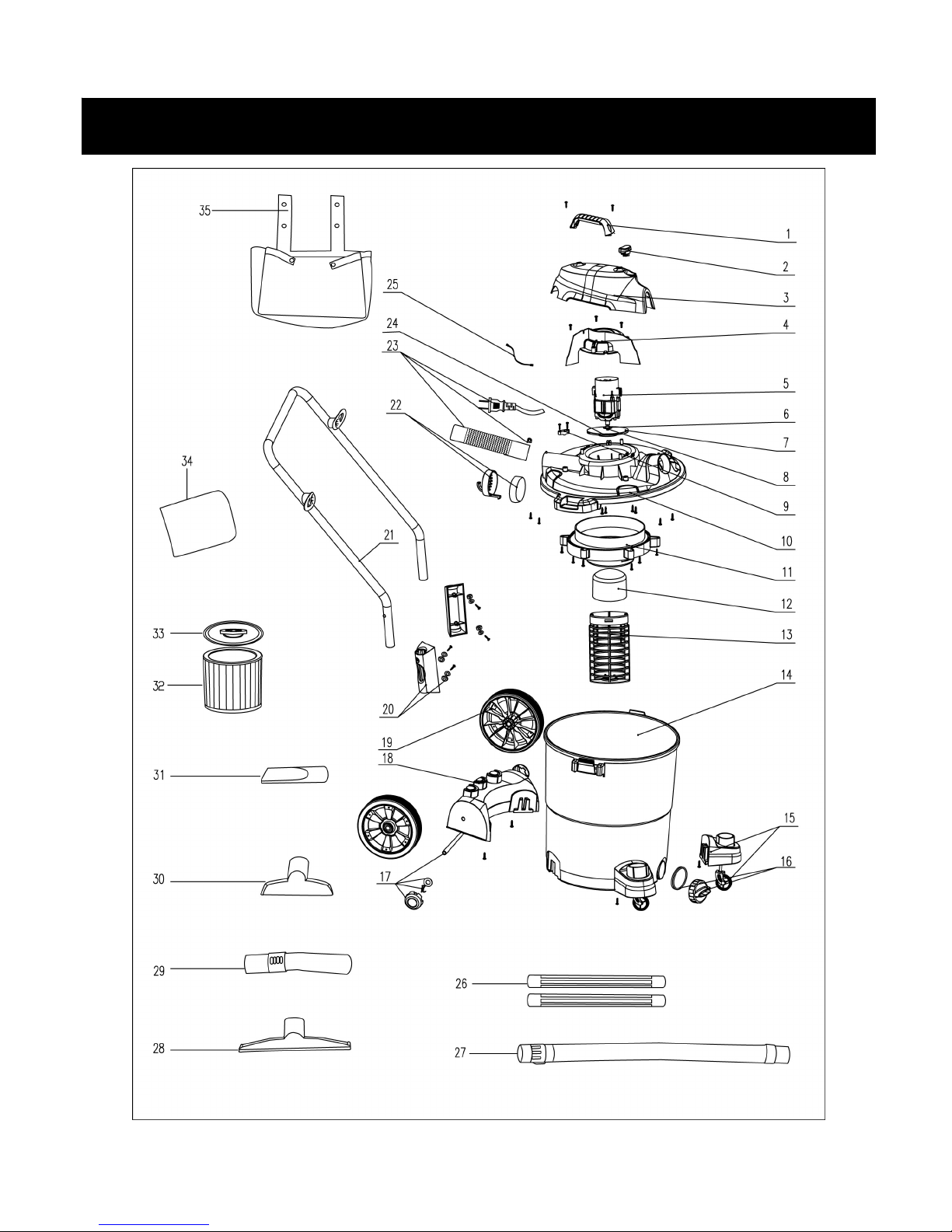

Exploded View...........................................................................................................................12
Parts List..……………………………………………………………..………….………...................13
Warranty.……………..………………………………………………………………………………...14
SPECIFICATIONS
Peak horsepower: 6
Power: 120 V, 60 Hz, 12 A
Tank size: 12 gallons (55 L)
Cubic Feet (airflow) per Minute (CFM) 280 CFM
Tank: Polypropylene
Hose: 2 1/2” (6.4 cm) diameter
7’(2.1m)
Filter: 3-layer anti-bacterial
Power cord: 10’ (3 m)
Weight: 28 lb 2 oz (12.8 kg)
Table of Contents

3
1. IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before using this appliance
Read and understand this instruction manual and all labels on the Wet/Dry Vacuum before using.
Safety is a combination of common sense, staying alert and knowing how this Wet/Dry Vacuum works. Use
this Wet/Dry Vacuum only as described in this manual. To reduce the risk of personal injury or damage to
the Wet/Dry Vacuum, use only recommended accessories.
Understanding Safety Terminology
DANGER: If safety information is not followed, someone will be seriously injured or killed.
WARNING: If safety information is not followed, someone could be seriously injured or killed.
CAUTION: If safety information is not followed, someone may be injured.
When using this Wet/Dry Vacuum follow basic safety precautions including the following:
WARNING - To reduce the risk of fire, electric shock, or injury:
• Do not run the Wet/Dry Vacuum unattended.
• Do not vacuum, or use this Wet/Dry Vacuum near liquids, gases, or explosive vapours like gasoline
or similar fuels, lighter fluid, cleaners, oil based paints, natural gas or hydrogen. Do not vacuum or
use this Wet/Dry Vacuum near explosive dusts like coal dust, magnesium dust, grain dust, or gun
powder as sparks inside the motor can ignite flammable vapours or dust.
• Do not vacuum burning or smoking items such as cigarettes, matches, or hot ashes.
• Keep the cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not use if the cord, plug or other parts are damaged.
• If the Wet/Dry Vacuum is not working correctly or has missing parts, has been dropped or damaged,
left outdoors or dropped in water, return it to an authorized service centre.
• Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the cord, or pull
the cord around sharp edges or corners.
• Do not run the Wet/Dry Vacuum over the cord.
• Do not handle the plug or the Wet/Dry Vacuum with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Wet/Dry Vacuum with a torn filter or without installing the filter except when
vacuuming liquids as described in the operation section of this manual.
• Do not use the Wet/Dry Vacuum as a toy. Pay particularly close attention when it is being used by or
near children.
• To reduce the risk of injury from the Wet/Dry Vacuum accidentally starting, unplug the power cord
before changing or cleaning the filter.
• Do not leave the Wet/Dry Vacuum unattended when it is plugged in. Unplug it from the power outlet
when not in use and before servicing. Turn off the Wet/Dry Vacuum before unplugging.
• Do not put any objects into the ventilation openings. Do not vacuum with any ventilation openings
blocked.
• Keep free of dust, lint, hair or any other items that may reduce the air flow.
• Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts.
• To reduce the risk of falling, use extra care when cleaning on stairs.
Safety Warnings

4
When using as blower:
• Direct air discharge only at work area.
• Do not direct air at bystanders.
• Do not use near children.
• Do not use blower for any purpose other than blowing dirt and debris.
• Do not use Wet/Dry Vacuum as a sprayer.
This Wet/Dry Vacuum is double insulated, eliminating the need for a separate grounding system. Use only
identical replacements parts. Read the servicing instructions before servicing the Wet/Dry Vacuum.
Use this Wet/Dry Vacuum only as described in this manual.
Observe the following warnings that appear on the motor housing of this Wet/Dry Vacuum.
DOUBLE INSULATED. GROUNDING NOT REQUIRED. WHEN SERVICING USE ONLY
IDENTICAL REPLACEMENT PARTS.
WARNING: To reduce the risk of electric shock, do not expose to rain. Store indoors.
WARNING: For your own safety, read and understand this instruction manual. Do not operate
unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes, coals, toxic, flammable or other
hazardous materials. Do not use near explosive liquids or vapours.
CAUTION:
Do not vacuum drywall dust or cold fireplace soot or ash with a standard Wet/Dry filter. This dust is very fine
and hence will not be captured by the filter and may cause damage. Refer to the operation section for proper
filter selection.
WARNING: SERVICING OF THE DOUBLE-INSULATED WET/DRY VACUUM
In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided instead of grounding.
No method of grounding is provided on a double-insulated appliance, nor should one be added.
Servicing a double-insulated Wet/Dry Vacuum requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts for a double-insulated
Wet/Dry Vacuum must be identical to the parts that are being replaced. This Wet/Dry Vacuum is
marked with the words ‘DOUBLE INSULATED’ and the symbol (square within a square) may
also be marked on the appliance.
• For household use only.
• To reduce the risk of electric shock, unplug before cleaning or servicing.
• DO NOT use without filters in place.
• To reduce the risk of electric shock, use indoors only.
CAUTION: To reduce the risk of injury from moving parts, unplug before servicing.

5

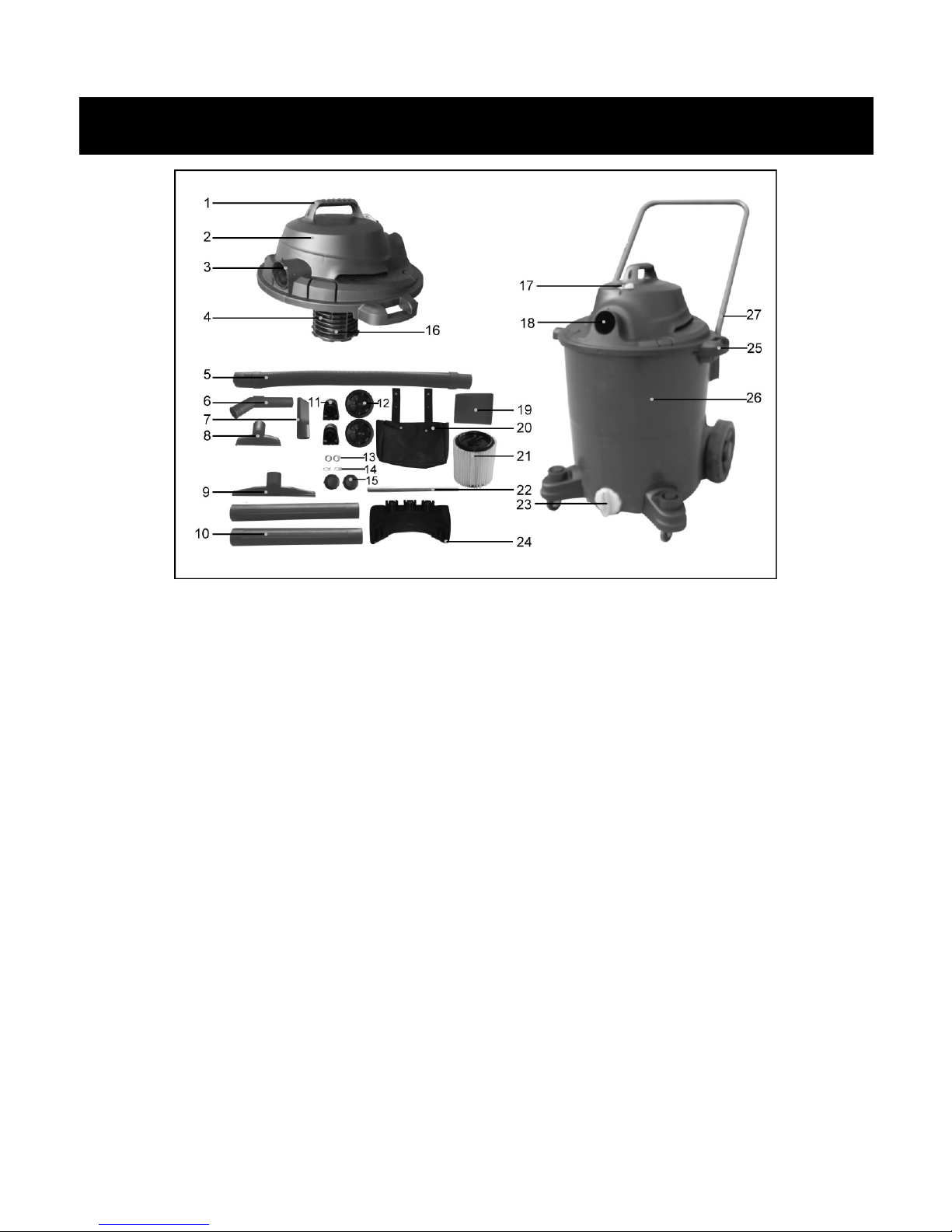

1. Tank handle
2. Top section
3. Blower connection
4. Filter basket
5. 2 ½” (6.35 cm) hose
6. Air regulator handle
7. Crevice tool
8. Utility nozzle
9. 14” (35.6 cm) squeeze nozzle
10. Extension wand (x 2)
11. Casters (x 2)
12. Wheel (x 2)
13. Washer (x 2)
14. ‘R’ lock pin (x 2)
15. Wheel cover (x 2)
16. Safety float valve
17. Switch
18. Vacuum hose connector
19. Foam filter
20. Storage bag
21. 3-layer anti-bacterial cartridge filter
22. Wheel shaft
23. Drain outlet
24. Rear support block
25. Clasp (x 2)
26. Tank
27. Main handle with foam grip
Location of Parts

6

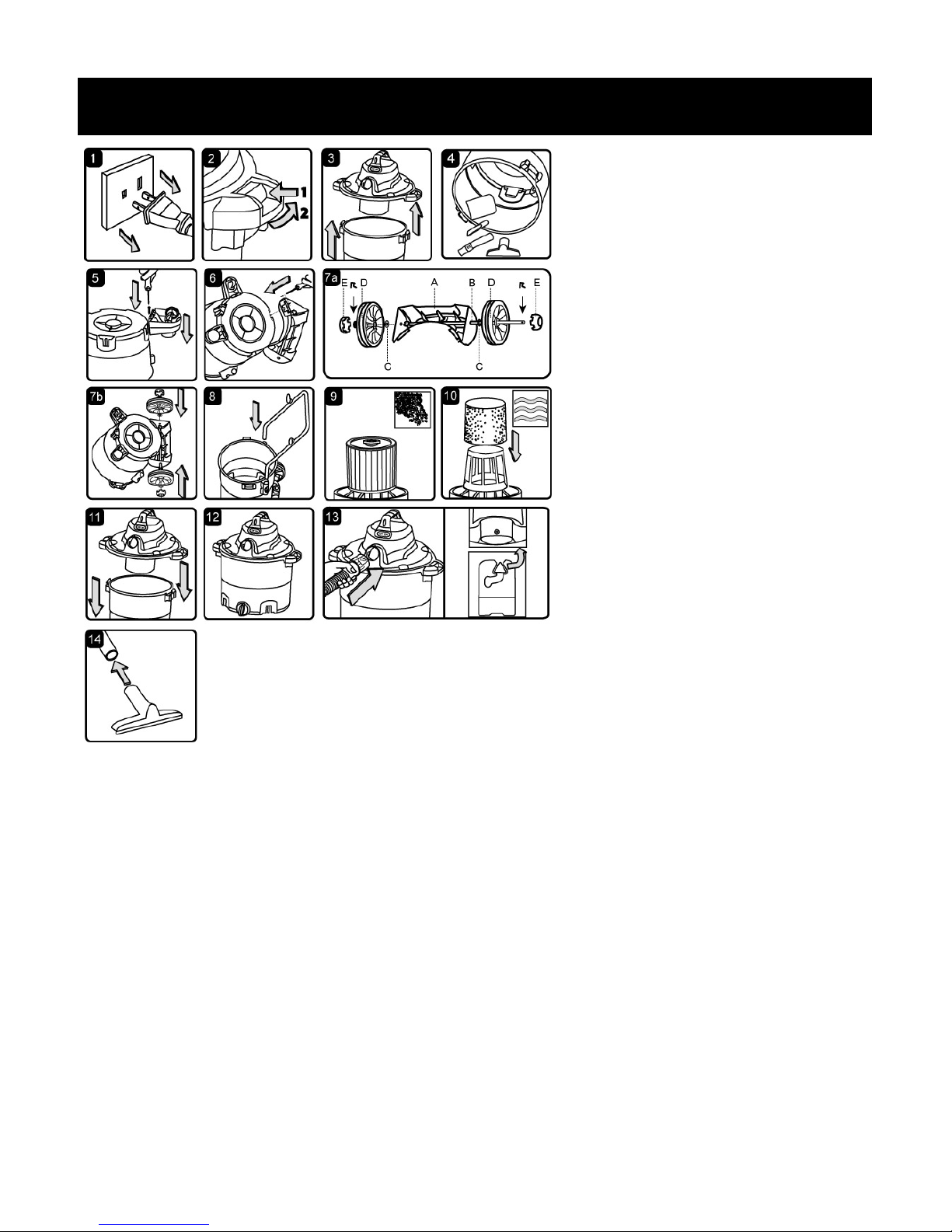

1. Ensure that the power cord is disconnected from the power outlet (figure 1).
2. Undo the clasps (figure 2).
3. Lift the top section off the tank (figure 3).
4. Remove the contents from inside the tank (figure 4).
5. Turn the tank upside down and insert casters on to the two front feet and secure with the supplied
screws. Verify that they are mounted correctly. Do not over tighten (figure 5).
6. Insert the rear wheel support block and secure with the supplied screws. Verify that they are
mounted correctly. Do not overtighten (figure 6).
7. Insert the wheel shaft (B) into the rear support block (A). Put washer (C) and then the wheel (D) on
the shaft. Insert the ‘R’ lock pin into the hole on the end of the shaft to lock the wheel. Snap the
wheel cover (E) on to the wheel. Repeat the same at the other end of the shaft (figure 7a and 7b).
8. Insert the push main handle into the handle socket mounted on the tank body. Push down until the
lock pin clicks in place (figure 8).
9. For dry vacuum cleaning, install the supplied 3-layer cartridge filter (figure 9).
10. For wet vacuum cleaning, install the supplied foam filter (figure 10).
11. Replace the top section on the tank (figure 11).
12. Align the top section with the clasps, and snap into place by applying pressure until the clasps click
(figure 12).
13. Insert the large end of the hose into the front inlet of the tank, and turn to lock (figure 13).
14. Fit the required accessory on to the suction tube (figure 14).
General Assembly Instructions

7
OPERATING INSTRUCTIONS – DRY VACUUMING
BEFORE STARTING
WARNING!
Ensure to read, understand, and apply the safety instructions in Section 1.
Reminder: DO NOT vacuum hazardous substances. The use of an incorrect filter will invalidate the
warranty.
1. Verify that the power cord is disconnected from the outlet (figure 1).
2. Ensure that the cartridge filter is completely mounted. Ensure that the filter is inserted all the way
(figure 2).
3. Replace the top section on the tank, and secure it in place using the clasps (figure 3).
4. Insert the larger end of the hose into the front inlet on the tank and lock it in place. Push the required
attachment onto the free end of the hose or extension (figure 4).
5. Plug the power cord into the power outlet (figure 5).
6. Turn the motor on by flipping the switch to the “I” position (figure 6).
7. Once you have completed vacuuming, flip the switch to the “O” position and unplug the power cord from
the power outlet.
DO NOT use the cartridge filter for wet or sharp materials.
O = OFF I = ON
Dry Vacuum Operation

8
OPERATING INSTRUCTIONS – WET VACUUMING
BEFORE STARTING
WARNING!
Ensure to read, understand, and apply the safety instructions in Section 1.
Reminder: DO NOT vacuum hazardous substances.

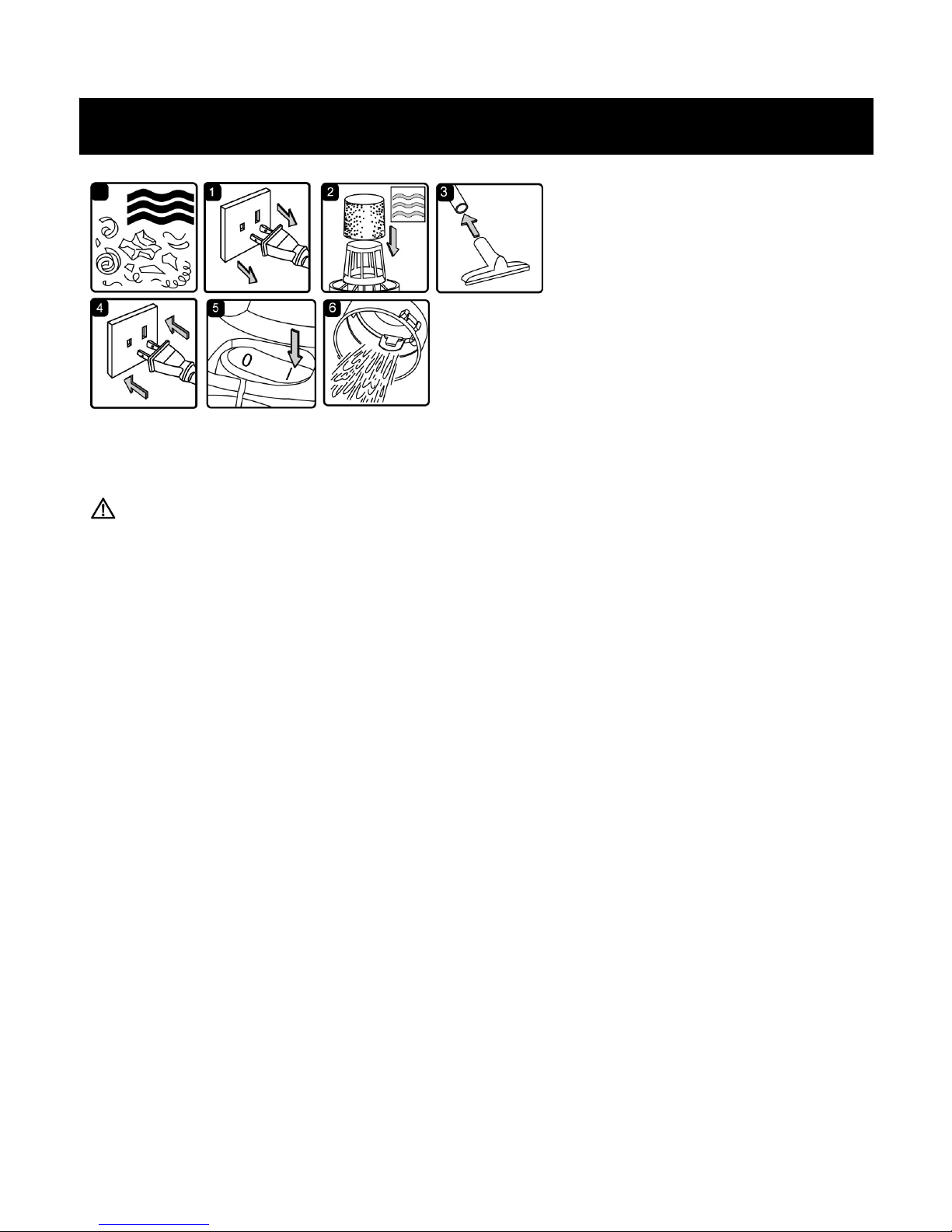

1. Ensure that the power cord is disconnected from the power outlet. Ensure that the tank is clean and free
of dust and dirt (figure1).
2. Remove the cartridge filter. Install a foam filter over the filter basket and place the top section back on the
tank (figure 2). DO NOT use the cartridge filter for wet materials.
3. Fit the desired nozzle to the vacuum hose (figure 3).
4. Ensure that the switch is in the “O” position before plugging the power cord into the power outlet (figure 4).
5. Switch the Wet/Dry Vacuum on (figure 5).
6.After use, empty and dry the tank (figure 6).
When vacuuming large quantities of liquid from a sink or container, etc., do not immerse the nozzle
completely into the liquid; leave a gap at the top of the nozzle opening to allow for air inflow. The machine is
fitted with a float valve that stops the suction action when the tank reaches its maximum capacity. An
increase in motor speed will be noticed. When this occurs, turn off the machine, disconnect from the power
supply, remove the head from the tank and empty the liquid into a suitable receptacle or drain. To continue
vacuuming, refit the head and proceed. After wet vacuuming, turn the machine off and remove the plug from
the power supply. Empty the tank and clean/dry the inside and the outside before storage.
Remember! The foam filter must be removed after wet vacuuming and a cartridge filter must be installed
before dry vacuuming again.
Wet Vacuum Operation

9

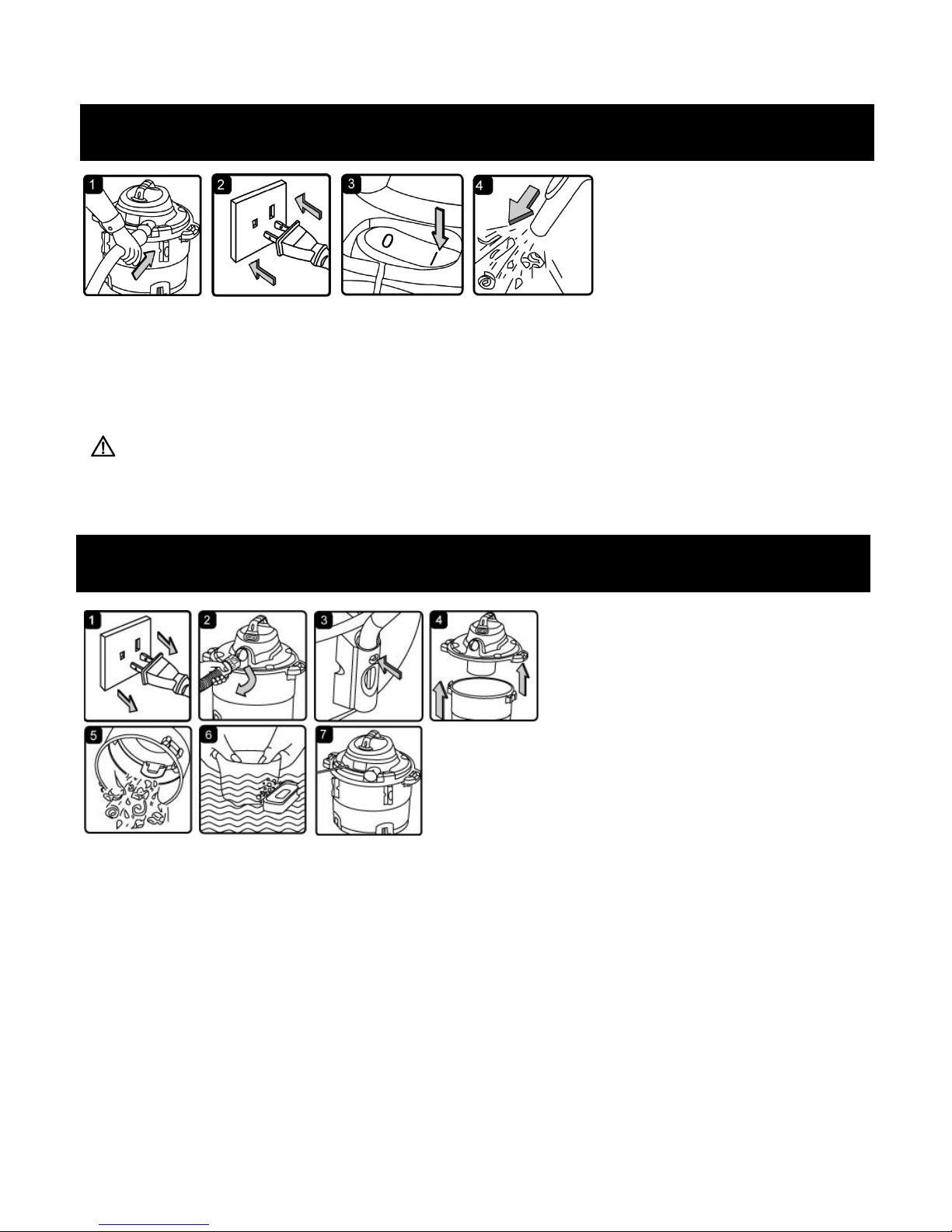

1. Insert the large end of the hose into the blower connection in the top of the motor housing (figure 1).
2. Ensure the power switch is turned off and plug in the power supply (figure 2).
3. Switch on the power (figure 3).
4. The unit will now blow through the vacuum hose and can be used to clear obstructions within the hose
(figure 4).
WARNING! If after a few seconds the hose continues to be blocked, turn off the unit and clear the
hose manually.
1. Ensure that the power cord is disconnected from the outlet (figure 1).
2. Disconnect the hose from the tank (figure 2).
3. Push the ‘R’ lock pin on the handle socket down and take off the handle (figure 3).
4. Undo the clasps and remove the top section from the tank (figure 4).
5. Clear all dirt or debris from the tank and hose (figure 5).
6. Clean the foam filter by washing it with a mild soapy solution (figure 6).
7. Check the hose, attachments and the power cord to ensure that they have not been damaged (figure 7).
IMPORTANT! CLEAN THE CARTRIDGE FILTER REGULARLY. IF THE MACHINE IS USED WITHOUT
THE CARTRIDGE FILTER, THE MOTOR WILL BURN OUT AND THE WARRANTY WILL BE VOIDED.
ALWAYS ENSURE TO KEEP SPARE FILTERS HANDY.
Maintenance
Blower Operation

10

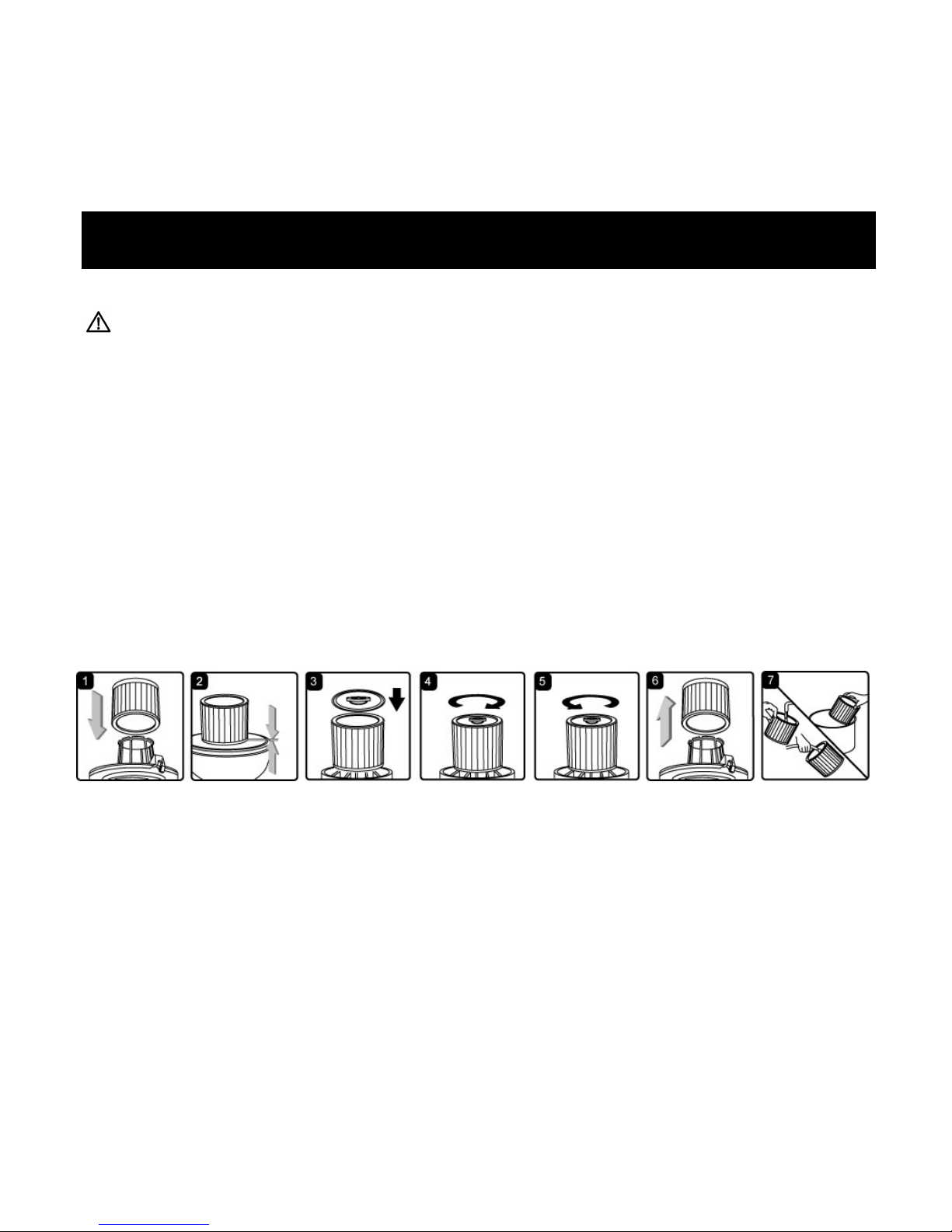

REPLACEMENT FILTERS
Replace filters regularly.
3-layer cartridge filter (054-0103-8) (part # 32)
Foam filter (054-0210-2) (part # 34)
MAINTENANCE
WARNING! Always disconnect the plug from the wall power outlet before removing the tank cover.
NOTICE! This filter is made of high quality paper designed to stop small particles of dust. The filter should
be used for dry pick-up. It is necessary to use a dry filter to pick up dust as a wet filter will clog quickly and
will be very difficult to clean. Handle the filter with care when removing it for cleaning or during installation.
Check the filter for tears or small holes as even a small hole can allow dust to pass through and out of the
cleaner. Do not use a filter with holes or tears, replace it immediately.
INSTALLATION AND CLEANING
1. Slide cartridge filter down over filter cage (figure 1 & 2).
2. Place retainer on top of cartridge filter against hole of basket (figure 3).
3. Hold lid assembly and turn retainer clockwise until tight. Ensure that there is no gap between filter and lid
assembly (figure 4).
4. To remove filter for cleaning again, hold lid assembly with one hand and turn retainer counter-clockwise
(figure 5).
5. Slide cartridge filter off filter cage (figure 6).
6. Clean filter by tapping it on inside of trash can (figure 7).
7. Clean filter by rinsing from the inside (figure 7).
8. When wet (to prevent mold and/or mildew build-up), the cartridge filter should be moved and allowed to
air dry for a 24-hour period before being re-installed back onto the filter cage.
3-Layer Cartridge Filter

11
Symptom Possible Causes Corrective Action
Wet/Dry vacuum will not operate. 1) No power supply. 1) Check power supply: cord,
breakers, fuses.
2) Faulty power cord. 2) Check the power cord and repair
or replace as necessary.
3) The tank is full of liquid. 3) Empty the tank.
Motor cover emits dust. 1) The cartridge filter is missing or
damaged.
1) Attach or replace the cartridge
filter.
Reduced efficiency and
motor/speed vibration.
1) Blockage in the nozzle, hose or
the tank inlet.
2) Filter may be blocked by fine
dust.
1) Check the nozzle, the hose and
the tank or filter inlet for blockage.
2) Remove the filter, wash and
clean it. Do not reuse until it is
completely dry. Use a new filter if
necessary.
Additional accessories for your MasterVac™ Wet/Dry Vacuum are available.
Consumables
054-0101-2 1-layer White Filter; General Dirt
054-0103-8 3-layer Blue Filter; Fine Dust
054-0104-6 5-layer Green Filter; Microban® HEPA filter (best for allergens)
054-0207-2 Reusable Dust Filter
054-0210-2 Reusable Foam Filter
2 1/2" Accessories
054-0013-2 Dusting Nozzle
054-0004-4 Crevice Tool
054-0033-4 Car Nozzle
054-0039-2 Wand
054-0049-8 Utility Nozzle
054-0054-4 Wet Nozzle
054-0057-8 Connector
054-0058-6 Floor Brush
054-0206-4 MasterVac™ Flexible Hose with Air Control Handle (2 1/2" diameter, extends 2–7')
054-0068-2 Detailing Kit
054-0074-6 Carpet Nozzle
054-0079-6 Claw Nozzle
054-0080-0 Adaptor
054-0081-8 Filter Nut
Microban® is a registered trademark of Microban Products Company.
Troubleshooting
Accessories

12
Exploded View

13
Item Number Description Qty
1 Tank handle assembly 1
2 Switch 1
3 Top cover 1
4 Air block board assembly 1
5 Motor assembly 1
6 Aluminum press board 1
7 Impeller 1
8 Press board 1
9 Cord clamp assembly 1
10 Lower cover 1
11 Tray assembly 1
12 Safety float valve 1
13 Filter basket 1
14 Tank 1
15 Caster assembly 4
16 Drain outlet assembly 1
17 Wheel shaft assembly 2
18 Accessory box assembly 1
19 Wheel 2
20 Main handle fixing clamp assembly 2
21 Main handle assembly 1
22 Noise reduction assembly 1
23 Cord wrap 1
24 Screw cap 1
25 Internal wiring 2
26 Extension wand 2
27 Hose 1
28 Floor nozzle 1
29 Air regulator handle 1
30 Utility nozzle 1
31 Crevice tool 1
32 Cartridge filter 1
33 Cartridge Clamp/Cover 1
34 Foam filter 1
35 Storage bag 1
Parts List

14
MASTERVAC™ LIMITED WARRANTY
This MASTERVAC™ product is guaranteed for a period of three (3 years from the date of original retail
purchase] against defects in materials and workmanship.
Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase
within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same
model, or one of equal value or specification), at our option. We will bear the cost of any repair or replacement
and any costs of labour relating thereto.
This warranty is subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has become
inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation, operation or
maintenance (as outlined in the applicable owner’s manual or operating instructions) or which is being
used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be
supplied with the product which are expected to become inoperative or unusable after a reasonable
period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited to, fuel,
lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e. persons
not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a reconditioned or
refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer is installed
therein or any repairs or alterations have been made or attempted by unauthorized persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to,
scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners;
and
i) this warranty will not apply to component parts sold by and identified as the product of another company,
which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the
manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect,
incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this
product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from province to
province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or
exclude any statutory warranties set forth in any applicable provincial or federal legislation.
Imported by Trilfeaf Distribution Trifeuil, Canada M4S 2B8
Warranty
