Matrix Versa Single-Station Strength User manual

OWNERS MANUAL
Versa Single-Station Strength
VS-S23 Converging Shoulder Press

Table Of Contents
Safety, General Care & Maintenence .................................................3
Getting Started (Product Specifications)..........................................5
Assembly Information ..........................................................................6
Markings .................................................................................................7
Parts List ................................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack to User Frame Assembly ......................... 10
Part 2 Arm Assembly................................................................... 12
Part 3 Cable Assembly................................................................. 14
Part 4 Seat Pad Assembly .......................................................... 18
Part 5 Plastics Assembly ........................................................... 20
Installation & Assembly: Optional Kits
Part 6 Premium Kit Assembly ....................................................23
Part 7 Short User Kit.................................................................... 31

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis-
ing personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix equipment
be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by your
country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over. This
must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your li-
ability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product contains chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5
GETTING STARTED
TECH SPECS
Overall dimensions 61”L X 57”W X 66”H
Weight Light Stack = 538 lbs (245 kg), Heavy Stack = 608 lbs (276
kg)
Shipping weight 402 lbs (182 kg)
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Structural parts 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.
MAINTENANCE CHECKLIST

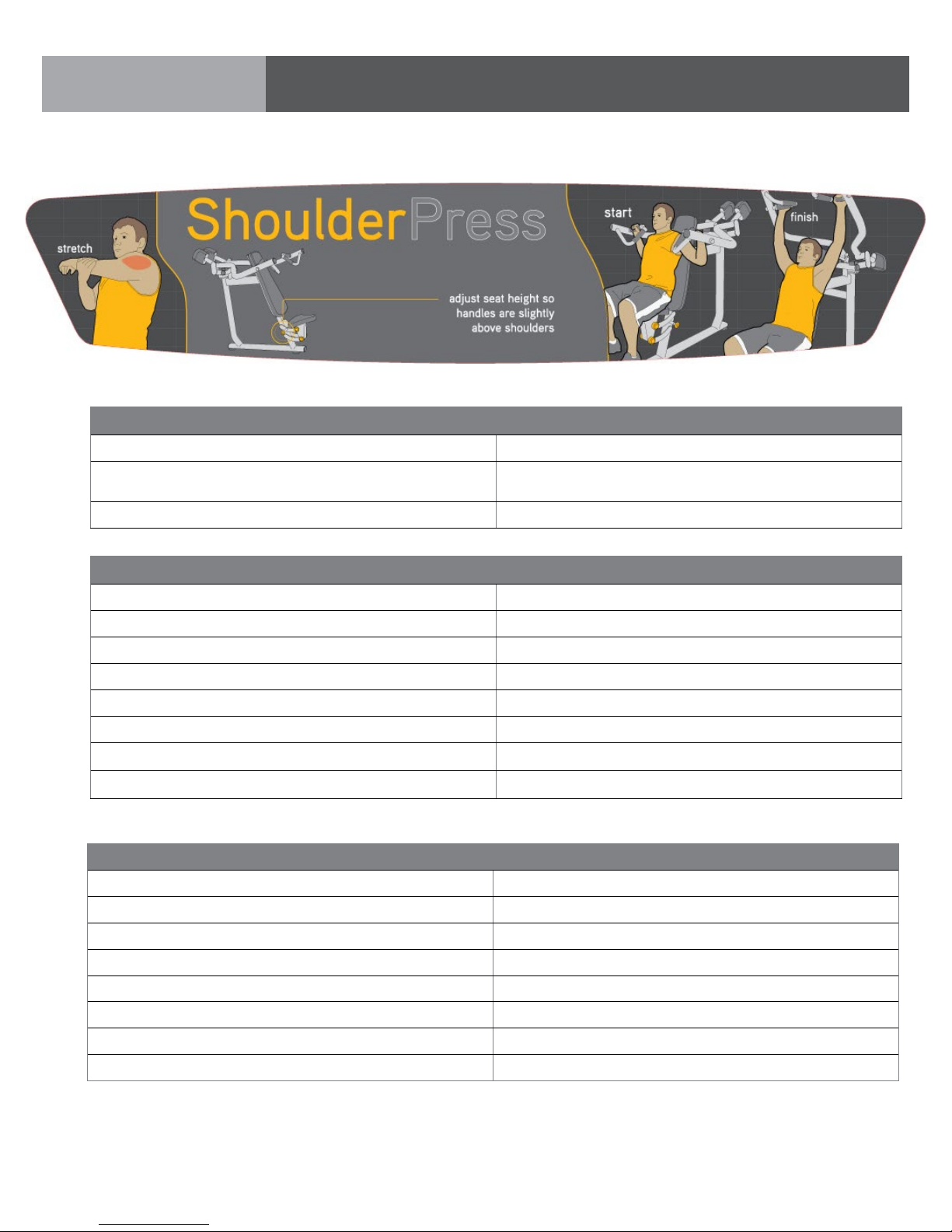

EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST
EXERCISE PLACARD
PRODUCT SPECIFICATIONS

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma-
trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack
the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 402 lbs. (182 kg) not including the weight stack. The standard weight stack for this machine is
160 lbs. (73 kg) & the heavy stack is 230 lbs. (104kg). To avoid injury to yourself and prevent damage to the frame compo-
nents, be sure to have proper assistance removing the frame pieces from this box. Please be sure to install the equipment
on a stable base, properly level the machine and leave at least two feet of clearance to enter and exit the machine. Maxi-
mum user weight for this machine is 300 lbs.
TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts

7

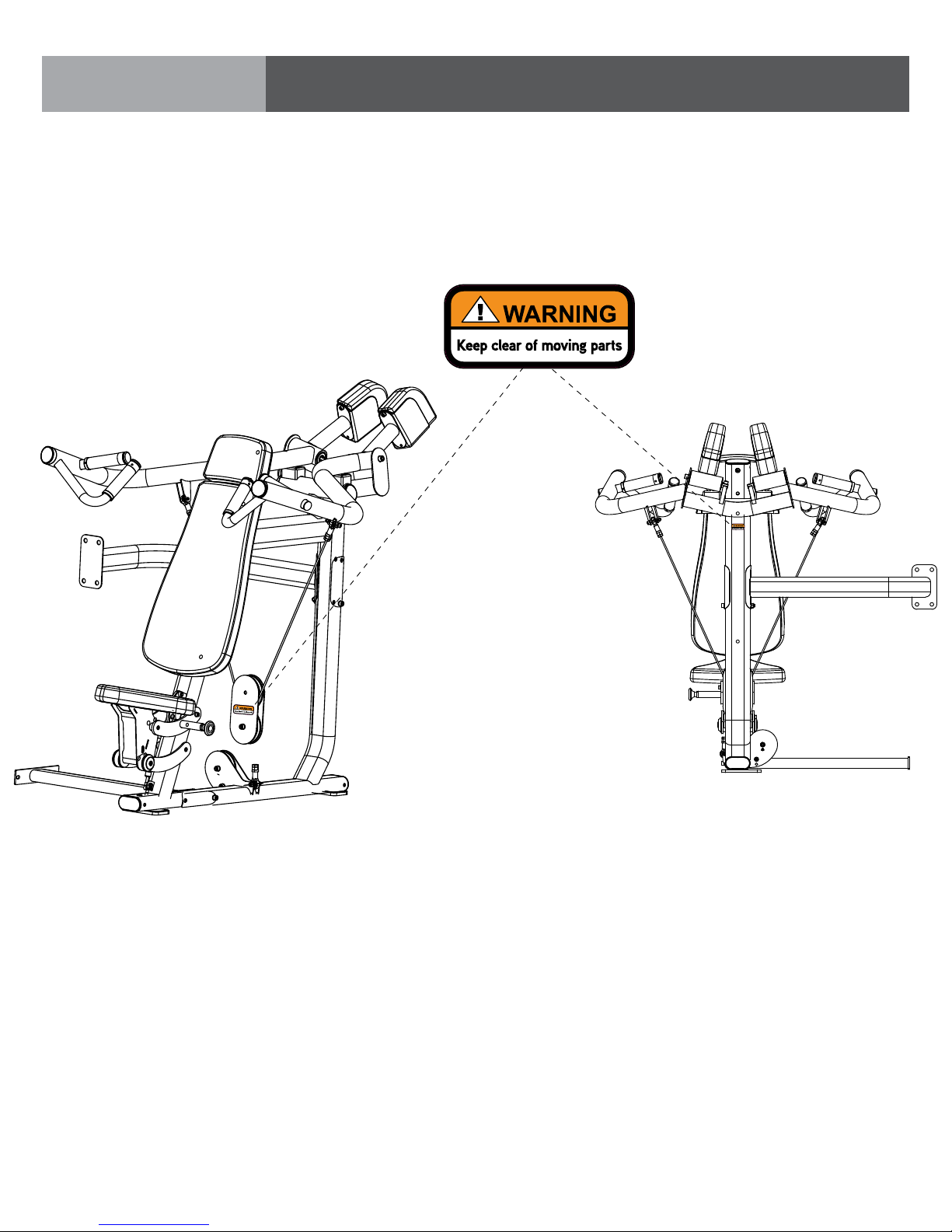

MARKINGS
WARNING LABEL LOCATIONS

8
ID DESCRIPTION QTY
1 Weight Stack 1
2 M10 Flat Washer 18
3 M10 X 20L Socket Head Cap Screw 6
4 Lower Connecting Tube 1
5 M10 Nylock Nut 4
6 User Frame 1
7 Wide Cupped Flange 2
8 M10 X 125L Socket Head Cap Screw 4
9 Upper Connecting Tube 1
10 Right Arm Assembly 1
11 Left Arm Assembly 1
12 M12 Large Flat Washer (Ø40 mm) 4
13 Belleville Washer 2
14 M10 X 30L Socket Head Cap Screw 2
15 Ø20 mm Shaft 2
16 Counter Weight 2
17 M8 Flat Washer 4
18 M8 X 20L Socket Head Cap Screw 4
19 M12 Flat Washer 2
20 M12 X 25L Socket Head Cap Screw 2
21 Pulley (Ø3.5”) 10
22 M10 X 50L Socket Head Cap Screw 3
23 Floating Pulley Plate 2
24 M8 X 45L Socket Head Cap Screw 1
25 M8 Nylock Nut 3
26 Cable Tie Rod End 3
27 User Frame Cable 1
28 M8 X 50L Socket Head Cap Screw 2
29 Head Pad 1
Parts List

9
ID DESCRIPTION QTY
30 Back Pad 1
31 M10 X 75L Socket Head Cap Screw 4
32 Bottom Pad 1
33 M10 X 20L Hex Bolt 4
34 Front Shroud 1
35 Rear Shroud 1
36 M8 X 25L SHC 4
37 M8 Flat Washer (Ø20 mm) 4
38 Top Cap 1
39 Top Cap Cover 2
PREMIUM KIT COMPONENTS
1P Wing 1
2P Rep Counter 1
3P Towel Hook 1
4P ASG Push Grip 2
5P Premium Pullpin 1
6P Seat Assist Gas Shock 1
7P M10 Nylock Nut 1
SHORT USER KIT
1SK M10 X 18L SHC 2
2SK M10 Flat Washer 4
3SK Coupler Plate 2
4SK M10 X 18L Hex Bolt 2
5SK Foot Rest 1
Parts List

10
PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
1
2
4
3
5
7
8
6
ID DESCRIPTION QUANTITY
1 Weight Stack 1
2 M10 Flat Washer 6
3 M10 X 20L SHC 2
4 Lower Connecting Tube 1
5 M10 Nylock Nut 2
6 User Frame 1
7 Wide Cupped Flange 1
8 M10 X 125L SHC 2
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY

11
ASSEMBLY
STEP 2 | USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
PART 1: USER FRAME ASSEMBLY
2
3
9
5
7
8
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 8
3 M10 X 20L SHC 4
5 M10 Nylock Nut 2
7 Wide Cupped Flange 1
8 M10 X 125L SHC 2
9 Upper Connecting Tube 1
Install the user frame hardware as shown.
Torque all M10 hardware from pages 10 & 11 to: 77 N-m/57 ft-lbs.

12
PART 2: ARM ASSEMBLY

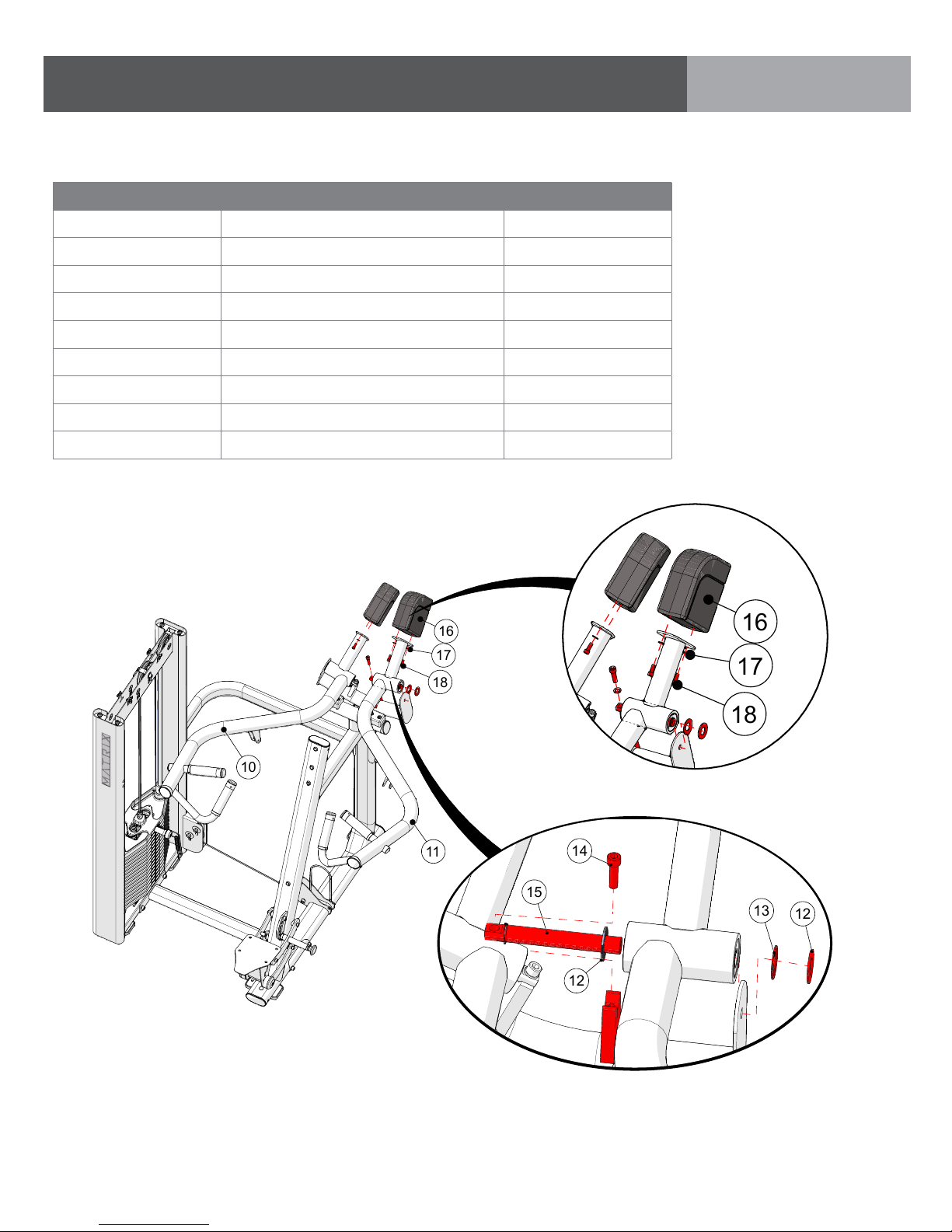

STEP 1 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
10 Right Arm Assembly 1
11 Left Arm Assembly 1
12 40mm Diameter Flat Washer 4
13 Belleville (Spring) Washer 2
14 M10 X 30L SHC 2
15 20 mm Diameter Shaft 2
16 Counter Weight 2
17 M8 Flat Washer 4
18 M8 X 20L SHC 4
ASSEMBLY
17
18
10
16
11
17
18
16
15
12
12
13
14
Attach the arms to the frame using the hardware shown, but DO NOT FULLY TIGHTEN
Belleville washer, item 13, must be assembled with inner (convex) diameter contacting the bearing. The outer
diameter and concave side of Belleville washer contacts the outer washer item 12.

13
ASSEMBLY

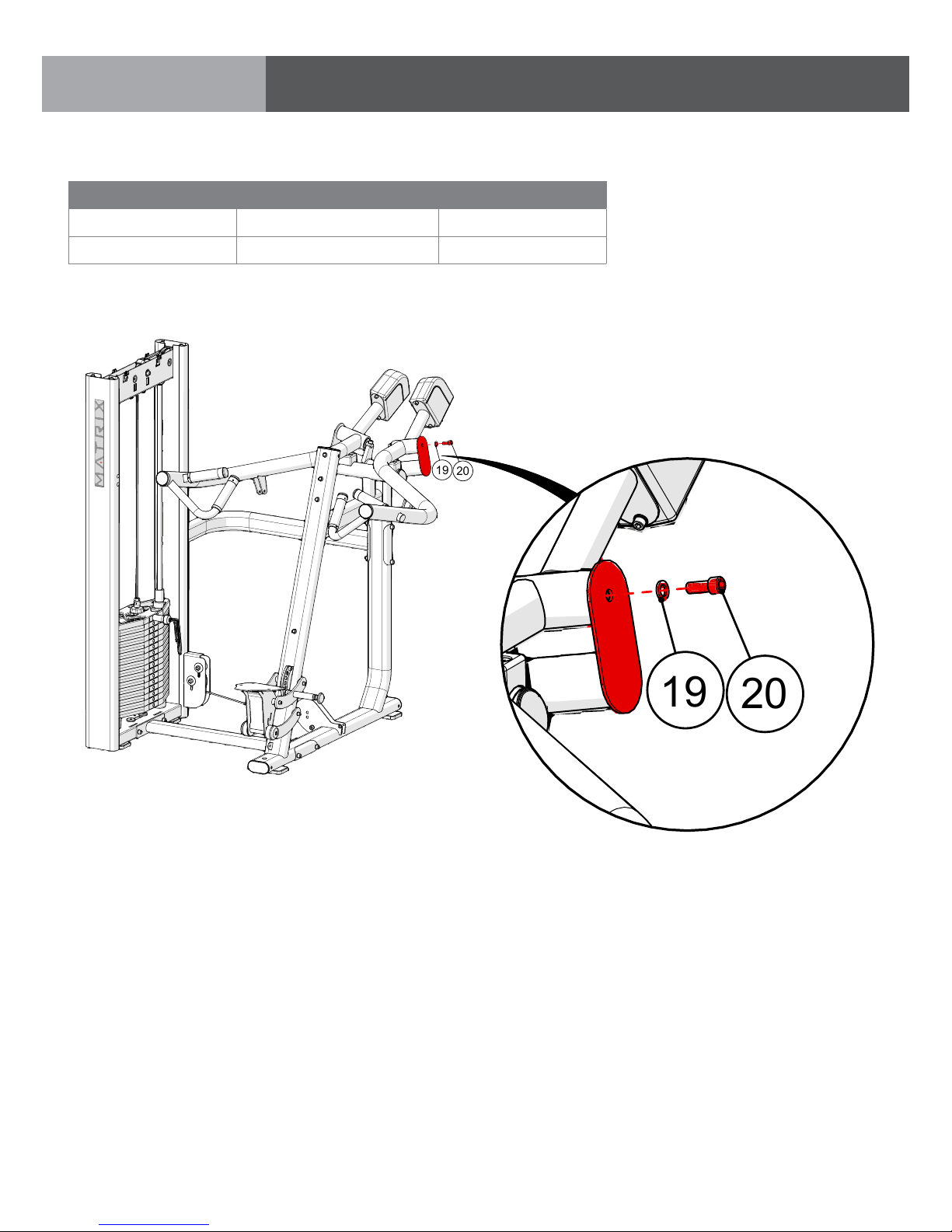

STEP 2 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 2: ARM ASSEMBLY
19
20
19
20
ID DESCRIPTION QUANTITY
19 M12 Flat Washer 2
20 M12 X 25L SHC 2
Install the pivot cap screw as shown. Torque all arm hardware to:
• M12 from step 2 to 136 N-m/100 ft-lbs.
• M10 from step 1 to 77 N-m/57 ft-lbs.

14
PART 3: CABLE ASSEMBLY

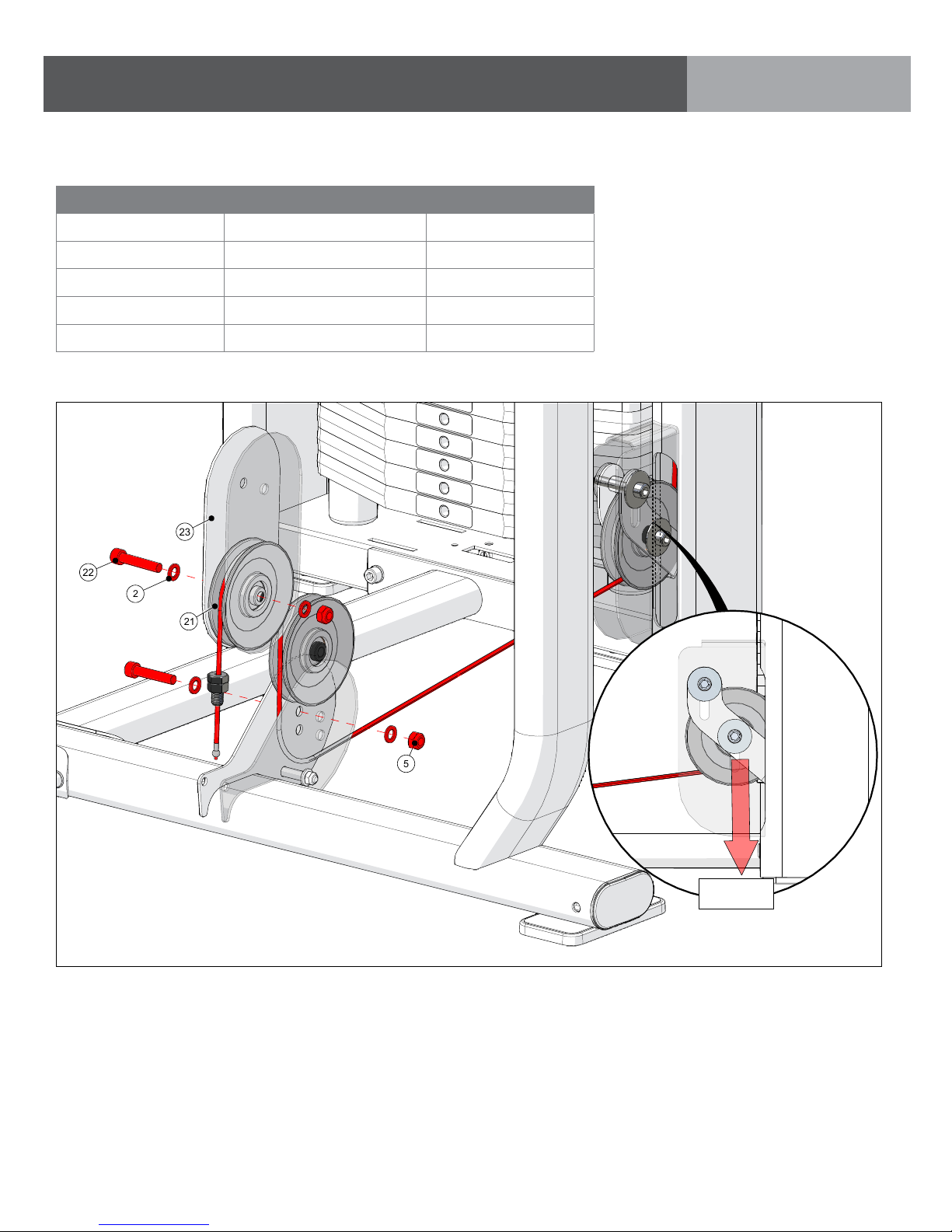

STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
5 M10 Nylock Nut 2
21 Pulley 3
22 M10 X 50L SHC 2
23 Floating Pulley Plate 2
22
2
5
21
23
View A
Cable tension is adjusted by raising or lowering pulley as shown in View A.
Note: Nuts for adjustable pulley must be on inside towards weight plates.
ASSEMBLY

15
ASSEMBLY
STEP 2 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 3: CABLE ASSEMBLY
24
18
26
25
ID DESCRIPTION QUANTITY
18 M8 Flat Washer 2
24 M8 X 45L SHC 1
25 M8 Nylock Nut 1
26 Cable Tie Rod End 1
Fully thread cable bolt into tie-rod, then attach to frame.
Torque M8 hardware to: 39 N-m/29 ft-lbs.

16
PART 3: CABLE ASSEMBLY

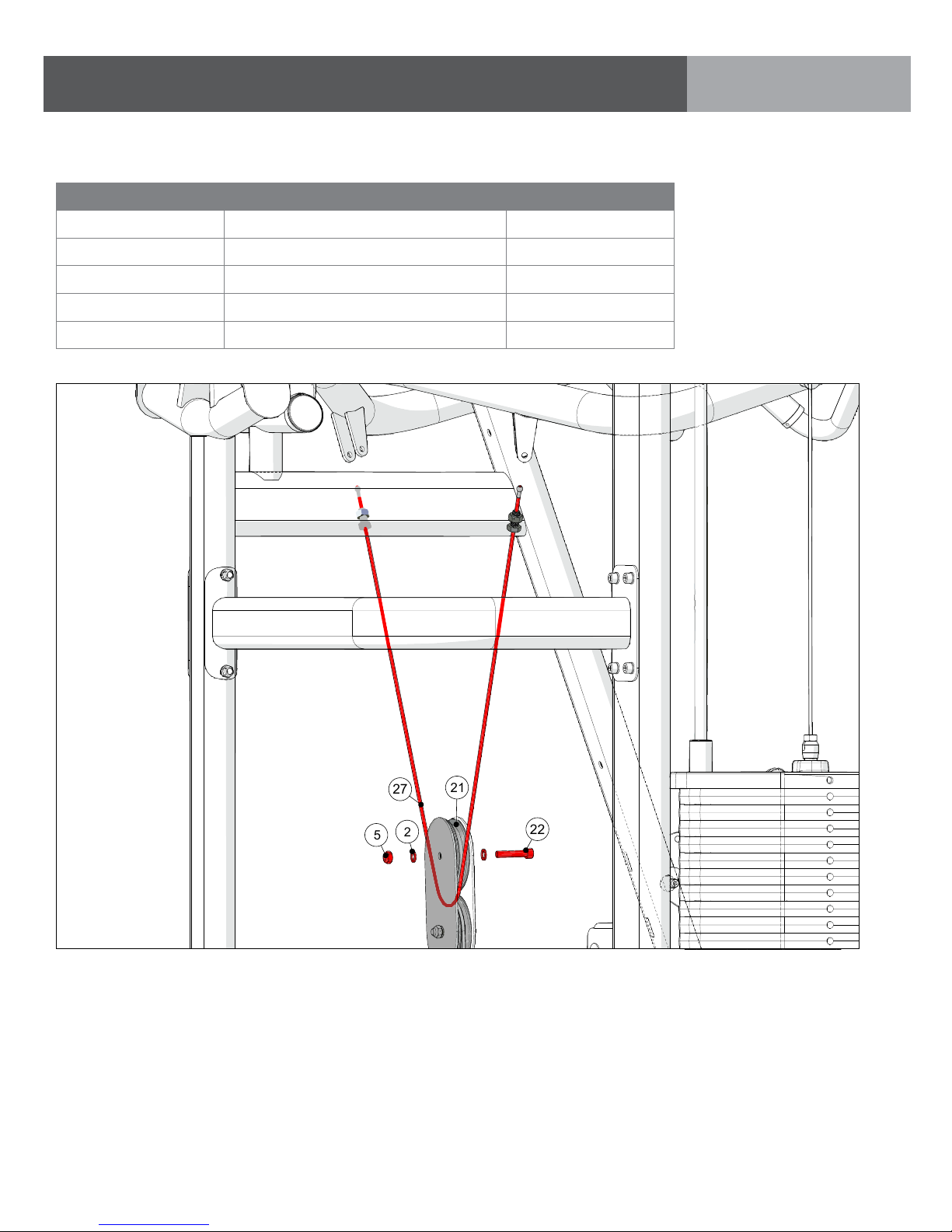

STEP 3 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES
27
22
21
2
5
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 1
5 M10 Nylock Nut 1
21 Pulley 1
22 M10 X 50L SHC 1
27 User Frame Cable 1
Install the secondary cable pulleys as shown.
Torque hardware to: 77 N-m/57 ft-lbs.
ASSEMBLY

17
ASSEMBLY
STEP 4 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 3: CABLE ASSEMBLY
25
26
18
28
ID DESCRIPTION QUANTITY
18 M8 Flat Washer 4
25 M8 Nylock Nut 2
26 Cable Tie Rod End 2
28 M8 X 50L SHC 2
*Note: Image shows left arm assembly only, though quantities reflect both left and right arm assemblies.
Fully thread cable bolt into tie-rod, then attach to frame.
Torque M8 hardware to: 39 N-m/29 ft-lbs.

18
STEP 1 | BACK PAD AND HEAD PAD ASSEMBLY INSTRUCTIONS & NOTES
2
31
30
29
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
29 Head Pad 1
30 Back Pad 1
31 M10 X 75L SHC 4
Install the head & back pads as shown.
Tighten to 57 N-m/41 ft-lbs.
ASSEMBLY
PART 4: SEAT PAD ASSEMBLY

19
ASSEMBLY
STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 4: SEAT PAD ASSEMBLY
ID DESCRIPTION QUANTITY
32 Bottom Pad 1
33 M10 X 20L Hex Bolt 4
33
32
33
32
Install the seat pads as shown.
Torque to 57 N-m/41 ft-lbs.

20
STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES
PART 5: PLASTICS ASSEMBLY
ID DESCRIPTION QUANTITY
34 Front Shroud 1
35 Rear Shroud (Not shown) 1
34
ASSEMBLY
Install the weight stack shrouds as shown.
Position hangers in their lowest position
