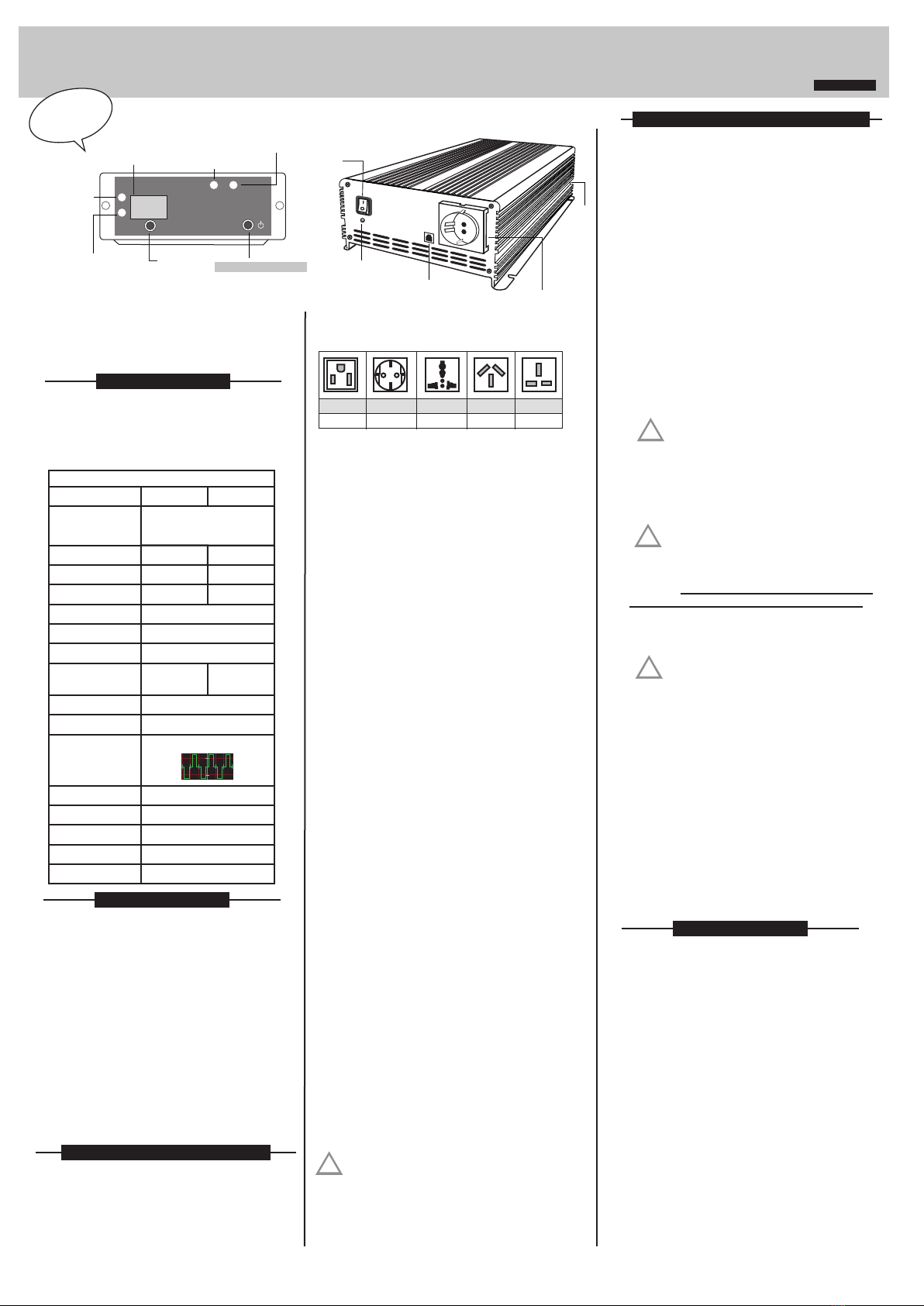

Maurer HT-E-1500-12 User manual

Fault Display Output
Power
(K Watt)
Overtemp
Protection
Input
Voltage
(vdc)
Select
Firstly, thank you for purchase
our product.
Please read this manual carefully before
installing or using this product.
Introduction
Specification
The power inverter series are the member
of the most advanced line of mobile AC
power systems available.
This model is used in a wide range of
application including remote homes, RVs,
sailboats and powerboats. It will operate
most televisions and VCR, personal
computers, small appliances and tools such
as drills, sanders, grinders, mixers and
blenders.
To get the most out of the power inverter,
it must be installed and used properly.
Please read the instructions in this manual
before installing and using this model.
Name and Main function
b. AC outlet:
Outlet sockets available:
3. Rear view:
a. Ventilation window:
Do not obstruct, allow at least 15cm for
airflow.
b. Battery terminals:
Connect to 12V/24V battery or other 12V/24V
power source. "+" is positive, "-" is negative.
Reverse polarity connection will blow internal
fuse and may damage inverter permanently.
c. Chassis ground lug:
Connect to earth ground or to vehicle chassis.
WARNING!!
Operation of the inverter without a proper
ground connection may result in an electrical
safety hazard.
！
Quick hook - up and testing
If you would like to quick hook-up the power
inverter and check its performance before
going ahead with your installation, please
follow these guideline.
1. Unpack and inspect the power inverter,
check to see that the power switch in the
OFF position.
2. Connect the cables to the power input
terminals on the rear panel of power
inverter. The red terminal is positive (+)
and black terminal is negative (-).
Connect the cables into the terminals and
tighten the wing nut to clamp the wires
securely.
3. Connect the cable from the negative terminal
of the inverter to the negative terminal of the
power source. Make a secure connection.
CAUTION!!
Loosely tightened connectors result in excessive
drop and may cause overheated wires and
melted insulation.
4. Before proceed further, carefully check if the
terminals connect correctly.
CAUTION!!
Reverse polarity connection will blow a fuse in
inverter and may permanently damage the
inverter. Damage caused by reverse polarity
connection is not covered by our warranty.
5. Connect the cable from the positive terminal
of inverter to the positive terminal of the power
source. Make secure connection.
WARNING!!
You may observe a spark when you make this
connection since current may flow to charge
capacitors in the power inverter.
Do not make this connection in the presence of
flammable fumes, explosions or fire may result.
6. Set power inverter switch to OFF position,
the indicator lights may blink and the internal
alarm may sound momentarily. This is normal.
Plug the test load into the AC receptacle on the
front panel of the inverter. Leave the test load
switch off.
7. Set power inverter switch to the ON position
and turn the test load on, the inverter should
supply power to the load.
！
！
！
1. Front view
a. ON/OFF switch:
Leave in the OFF position during installation.
Installation
1. Where to install
The power inverter should be installed in a
location that meets the following requirements:
a. Dry - Do not allow water to drip or splash on
the inverter.
b. Cool - Ambient air temperature should be
between 0°C and 40°C, the cooler environment
is better.
c. Ventilated - Allow at least 15cm of
clearance around the inverter for airflow.
Ensure the ventilation openings on the rear
and bottom of the unit are not obstructed.
d. Safe - Do not install the inverter in the same
compartment as batteries or in any
compartment capable of storing flammable
liquids such as gasoline.
2. Cables
DC to AC inverters requires high amperage/low
voltage DC power to low amperage/high voltage
AC power. To operate properly connect inverter
DC input terminals direct to battery with heaviest
wire available see chart below:
DC to AC Power inverter
manual
HT-E-152A2
Remote Control
Remote Control
Fault Indicator
Power LED
It is suitable for Australia ,
New Zealand, Canada,
America, Europe, Japan
and Universal type.
AC receptacle
SWITCH
ON/OFF switch
Please keep switch
in the OFF position
during installation.
Overtemp Protection Indicator
Front view
Output Frequency
Over Temperature
protection
Dimensions
(L×W×H)(by mm)
Output power
continuous
AC Output Voltage
Regulation
Input high voltage
protection
Efficiency
Overload protection
Net weight (by Kgs)
No load current draw
1500W
±8﹪
Input low voltage
alarm
DC11V ± 0.5V
DC16V ± 0.5V
DC22V ± 1V
DC32V ± 1V
Input low voltage
shut-down
DC10.5V ± 0.5V DC21V ± 1V
50/60Hz ±3%
YES
Output reverse
protection YES
Cooling fan YES
55℃±5℃
395*179*82.5
3.4
＞85﹪
AC100V
AC120V
AC230V
SPECIFICATIONS
Model No.
Output wave
Modified Sine Wave
Firstly, thank you for purchase our
product.
Please read this manual carefully
before installing or using this
product.
0.4 A(12V)
HT-E-1500-12 HT-E-1500-24
E-1500
Display
Select
Input Volt Mode Indicator
Output Watts Mode Indicator
ON/OFF
Case
0.2 A(24V)
type2 type3 type4 type5 type6
USA EUROPE UK
UNIVERSAL AUSTRALIA
2.Remote Control:
a.Over temp protection:
LED sparkles when product temperature gets
high, it would shut down automatically while
temperature arrives 55±5℃.
b. Overload protection indicator:
Orange LED lights when inverter shut down
due to overloading. Inverter would re-start
twice, if failed, inverter would shut down.
Please turn inverter OFF, reduce load and turn
inverter ON to reset.
c. Digital display of romote control:
Display under battery voltage mode and load
watts (Kw unit) mode, you can select the mode
as your demand.
d.Fault Indicator : When the below status occur,
and Display shows the below words--
HVP: high voltage protection.
LVP: low voltage protection.
OLP: over load protection or short circuit protection.
e.Display: shows different status as point d, and
modes (input voltage and output watts).
f.Select: Input voltage mode and output watts (KW)
selector.
g.Input Volt Mode Indicator.
h.Output Watts (K Watt) Mode Indicator.

Operation
To operate the power inverter, turn it on using the
ON/OFF switch on the front panel. The power
inverter is now ready to deliver AC power to your
loads. If you are operating several loads from the
power inverter, turn them on separately after the
inverter has been turned on. This will ensure that
the power inverter does not have to deliver the
starting currents for all the loads at once.
！
！
The neutral (common) conductor of the power
inverter AC output circuit is connected to the
chassis ground. Therefore, when the chassis is
connected to ground, the neutral conductor will
also be grounded. This conforms to national
electrical code requirements that separately
derived AC sources (such as inverters and
generators) have their neutral tied to ground in
the same way that the neutral conductor from the
utility line is tied to ground at AC breaker panel.
Caution!
The negative DC input of the power inverter is
connected to the chassis. Do not install the
power inverter in a positive ground DC system.
A positive ground DC system has the positive
terminal of the battery connected to the chassis
of the vehicle or to the grounding point.
Warning!
Do not operate the power inverter without
connecting it to ground. Electrical shock hazard
may result.
Remote Control:
The ON/OFF switch turns the control circuit in the
power inverter on and off.
When the switch is in the OFF position, the power
inverter draws no current from battery. When the
switch is in the ON position but with no load, the
power inverter draws less than 600mA
(12V version) or 300 mA (24V version) from
battery.
1. Battery voltage indicator (under input voltage
mode)
The battery voltage displays the voltage
at the input terminals of the power inverter. At low
input current, this voltage is very close to the
battery voltage. At high input current, this voltage
will be lower than the battery voltage because of
the voltage drop across the cable and connections.
Ideally, the voltage should remain betwwen 11V to
16V. If the voltage goes down to 10.5V (for 12V
spec.) or 21.0V (for 24V spec.), inverter may
shutdown.
Troubleshooting
1.Common problems
a. Buzz in audio systems:
Some inexpensive stereo systems and "boom
boxes" will emit a buzzing noise from their
loud speakers when operated from the power
inverter. This is because the power supply in
the device does not adequately filter the modified
sine wave produced by the power inverter.
The only solution is to use a sound system that
incorporates a higher quality power supply.
b. Television interference:
Operation of the power inverter can interfere with
television reception on some channels. If this
situation occurs, the following steps may help to
alleviate the problem.
-Make sure that the chassis ground lug on the
back of the power inverter is solidly connected
to the ground system of your vehicle, boat or home.
-Do not operate high power loads with the power
inverter while watching television.
-Make sure that the antenna feeding your
television provides an adequate ("snow free")
signal and that you are using good quality cable
between the antenna and the television.
-Move the television as far away from the power
inverter as possible.
-Keep the cables between the battery and the
power inverter as short as possible and twist them
together with about 2 to 3 twists per foot. This
minimizes radiated interference from the cables.
2.Troubleshooting guide
Warranty
We offer 12 months warranty from the date of
purchase and will repair or replace any defective
power Inverter ,this limited warranty is void if the
unit is abused,modified,installed improperly,if the
housing has been removed,if the serial number is
missing,or if the original identification markings
have been defaced,altered,or removed.The
supplier is not liable for any incidental,
consequential or other damages arising from the
use,cost of removal,installation,or troubleshooting
of thw customer's electrical systems.
Problem possible cause solution
No Output voltage 1.Make sure that inverter
cable connects to battery
well
2.Internal fuse blown out
1.Re-set the cable
2.Change new fuse
No voltage indicator
Reduce load
Inverter shuts down
and overload light
shows Overload
Charge battery
Battery volt is lowLow battery alarm
Improve ventilation
reduce inverter
temperature
or let it cool down
naturally
Inverter shuts down
and overtemp light
shows Overtemperature
This is only warranty and the company makes
no other warranties, express or implied, including
warranties of merchantability and fitness for a
particular purpose.
Repair or replacement are your sole remedies
and shall not be liable for damages, whether
direct, incidental, special or consequential, even
though cause by negligence or other fault.
Maintenance
Very little maintenance is required to keep your
inverter operating properly. You should clean
the exterior of the unit periodically to prevent
accumulation of dust and dirt. At the same time,
tighten the screws on the DC input terminals.
Ventilation
window
Red
Black
Battery terminals
Rear view
Connect to battery or
other power source.
"+" is positive（Red）,
" - " is negative（Black）.
Reverse polarity connection
will blow internal fuse and
may damage inverter
permanently.
3. Grounding
The power inverter has a lug on the rear panel
"chassis ground". This is to connect the chassis
of the power inverter to the ground. The ground
terminals in the AC outlets on the front panel of
the inverter are also connected to the ground lug.
The chassis ground lug must be connected to a
grounding point, which will vary depending on
where the power inverter is installed. In a vehicle,
connect the chassis ground to the chassis of the
vehicle. In a boat, connect to the boat's grounding
systems. In a fixed location, connect the chassis
ground lug to earth.
2. Load indicator (under output power mode)
Displays the load watts in KW unit, i.e. if your load
spec. is 1200W, the display would show you
1.2(KW).
3. Overtemp indicator
The overtemp indicator indicates that the power
inverter has shut itself down, because it is
overheated. The power inverter may overheat
because it has been operated at power levels
above its rating, or because it has been installed
in a location where does not allow it to dissipate
heat properly.
Please turn on the inverter again when it cools
down.
4. Overload indicator (OLP)
The overload indicator indicates that the power
inverter has shut itself down because its output
circuit or drastically overloaded.
Turn off the inverter, correct the fault condition
or reduce load,then turn on the inverter and try
again.
Operating limits
1.Input voltage
The power inverter will operate from input voltage
ranging 10.5V-16V (12V spec.) or 21V - 32V
(24V spec). If the voltage drops below 10.5V
(12V spec.) or 21.0V (24V spec.), an audible low
battery warning will sound, and digital display
shows LVP.
The power inverter will also shut down if the input
voltages exceed 16V (12V spec.) or 32V (24V spec).
If the voltage are shut down because of high input
volt protection, an audibel high batterywarning
will sound, and display would shows HVP.
※The error of above spec is ±0.5V (for 12V),
±1.0V (for 24V)
Max Watts Out Approx. Amps
100W
150W
300W
600W
1000W
1200W
1500W
1800W
2500W
10A
15A
30A
60A
100A
120A
150A
180A
250A
#16
#16
#12
#6 or 2 X #10
# 4
# 4
# 4
2 X #4
2 X #4
Teq'dWire Gauge
