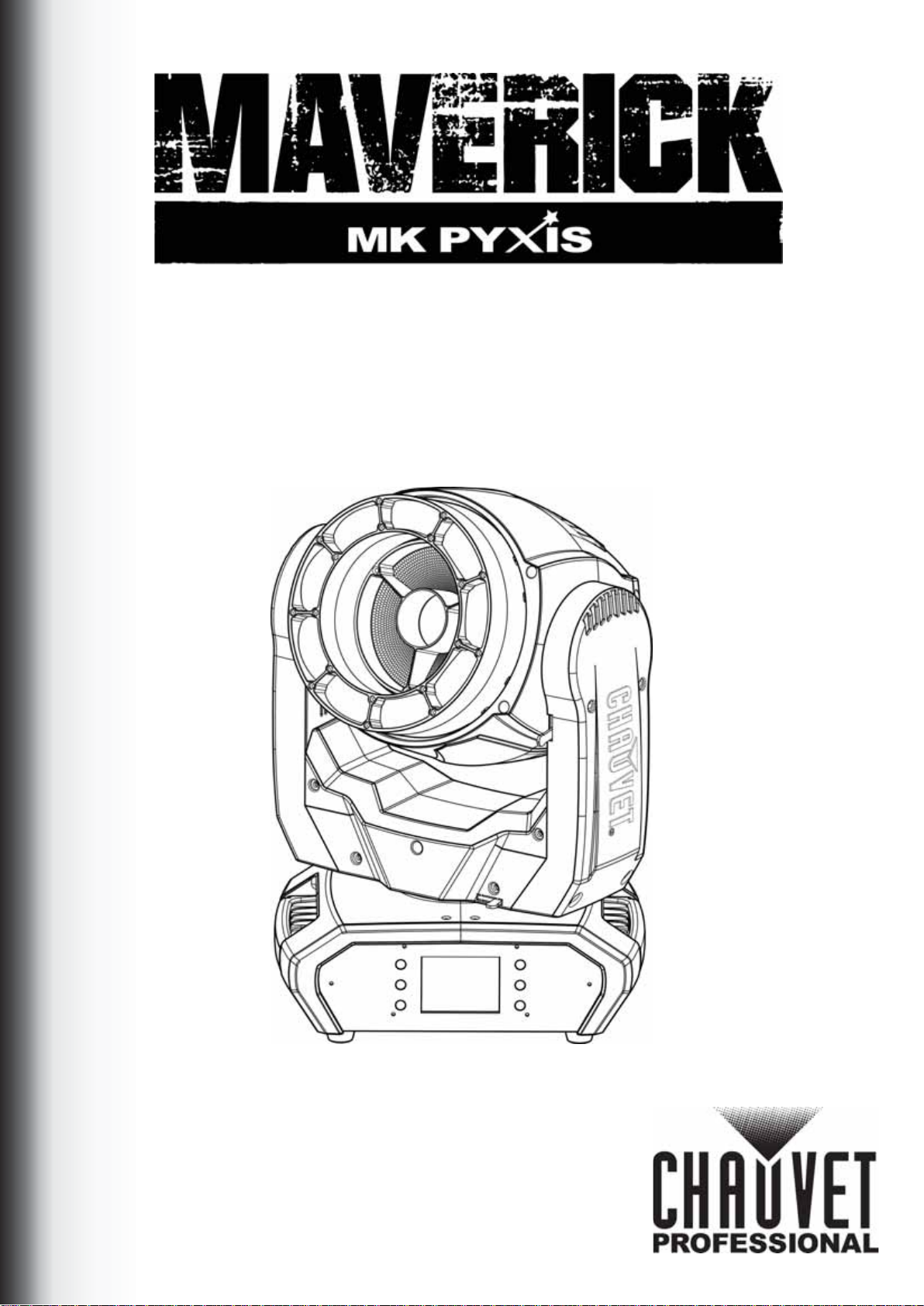

Maverick MK PYXIS User manual

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL

1
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
About This Guide
The Maverick MK Pyxis Quick Reference Guide (QRG) has basic product information such as connection, mounting,
menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DONOToperatethisproductoutdoorsorinanylocationwheredust,excessiveheat,water,orhumiditymayaffect
it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact your distributor to request support or return a
product. Visit www.chauvetprofessional.com for contact information.
What is Included
• Maverick MK Pyxis
• Seetronic Powerkon Power Cord
• 2 Omega Brackets with Mounting Hardware
• Warranty Card
• Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Power Linking
You can link up to 6 Maverick MK Pyxis products at 120 V, 11 products at 208 V, or 12 products at 230 V. Never exceed
this number. Power linking cords can be purchased separately.
Replacing the Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.

EN
2
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
Signal Connections
You can link the Maverick MK Pyxis to a controller or controller software using a DMX connection, an Ethernet
connection, or both. If using other Art-Net™, sACN, or Kling-Net -compatible products with the Maverick MK Pyxis, you
can control each individually on a single network. See the User Manual for information about how to connect and
configure the product for these signals.
Control Personalities
The Maverick MK Pyxis uses DMX, Art-Net™, sACN, WDMX, and Kling-Net for its control personalities:
DMX Connection
The Maverick MK Pyxis will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is
available from www.chauvetprofessional.com.
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik®
etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from
www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture
for Control Networks to transport DMX512 data over IP or any otherACN compatible network. ACN is maintained by the
Professional Lighting and Sound Association (PLASA).
Kling-Net Connection
Kling-Net is a network protocol that allows auto configuration of display devices using a Neutrik® etherCON® RJ45
Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. The Maverick MK Pyxis supports RDM protocol that allows feedback to monitor temperature
and changes to menu options. Download the User Manual from www.chauvetprofessional.com for more details.
Single Control Dual Control Movement Dual Control Pixels
Basic (26-channel) Basic (13-channel) Basic (30-channel)
Standard (66-channel) Standard (30-channel) Standard (40-channel)
Advanced (113-channel) Advanced (41-channel) Advanced (80-channel)
Tour (131-channel) Uses DMX, Art-Net™, or
sACN Uses DMX, Art-Net™, sACN, or Kling-Net
Uses DMX, Art-Net™,
sACN, or WDMX
In Dual Control mode, the Movement protocol and the Pixels protocol cannot be the same.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000 Mbps) Ethernet card
and network router.
ArKaos Kling-Net will only run Standard Pixels or Basic Pixels mode.

3
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the
mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting
clamps, go to http://trusst.com/products.
Mounting Diagram
Touchscreen Control Panel
The Maverick MK Pyxis has a touchscreen display as well as 6 control buttons. The touchscreen can be locked and
calibrated through the Setup options in the menu.
Control Panel Description
Button Function
<>Navigates upwards through the menu list or increases the numeric value when in a function
<>Exits from the current menu or function
<>Navigates downwards through the menu list or decreases the numeric value when in a function
<>Navigates leftwards through the menu list
<>Enables the currently displayed menu or sets the currently selected value into the selected function
<>Navigates rightwards through the menu list
Overhead Mounting Surface Mounting
Safety Cable
Mounting Clamp
Omega
Bracket

EN
4
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
Menu Map Programming Levels Description
Control Settings Control Settings Main Level
Control Settings
Single Control
DMX Personality
Basic Sets the DMX personality
(see Control Personalities)
Standard
Advanced
Tour
Start Address 0–512 Sets the DMX starting address
ArtNet Personality
Basic Sets the Art-Net™ personality
(see Control Personalities)
Standard
Advanced
Tour
Start Address 0–512 Sets the Art-Net™ starting address
Universe 0–255 Sets the Art-Net™ universe
sACN Personality
Basic Sets the sACN personality
(see Control Personalities)
Standard
Advanced
Tour
Start Address 0–512 Sets the sACN starting address
Universe 0–255 Sets the sACN universe
WDMX Personality
Basic Sets the WDMX personality
(see Control Personalities)
Standard
Advanced
Tour
Start Address 0–512 Sets the WDMX starting address
Dual Control
Movement
DMX Personality Basic Sets the DMX personality
(see Control Personalities)
Standard
Advanced
Start Address 0–512 Sets the DMX starting address
ArtNet Personality Basic Sets the Art-Net™ personality
(see Control Personalities)
Standard
Advanced
Start Address 0–512 Sets the Art-Net™ starting address
Universe 0–255 Sets the Art-Net™ universe
sACN Personality Basic Sets the sACN personality
(see Control Personalities)
Standard
Advanced
Start Address 0–512 Sets the sACN starting address
Universe 0–255 Sets the sACN universe
Pixels
DMX Personality Basic Sets the DMX personality
(see Control Personalities)
Standard
Advanced
Start Address 0–512 Sets the DMX starting address
ArtNet Personality Basic Sets the Art-Net™ personality
(see Control Personalities)
Standard
Advanced
Start Address 0–512 Sets the Art-Net™ starting address
Universe 0–255 Sets the Art-Net™ universe
sACN Personality Basic Sets the sACN personality
(see Control Personalities)
Standard
Advanced
Start Address 0–512 Sets the sACN starting address
Universe 0–255 Sets the sACN universe
KlingNet Personality Basic Sets the Kling-Net personality
(see Control Personalities)
Standard

5
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
Programming Levels Description
Test Mode Test Mode Main Level
Test Mode
Auto Test Auto test all functions
Manual Test
Pan
000–255 Manually control and test all settings
through the control panel
Tilt
P/T Speed
Red
Green
Blue
White
CTC
Color
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fade
Background
Background Dim.
Dimmer
Shutter
Function
Zoom
Setup Setup Main Level
Setup
Network Settings
Ethernet To DMX NO Do not convert ethernet in to DMX
YES Convert ethernet in to DMX out
IP Mode Manual Manually set IP address DHCP Network sets IP address
Static Product sets IP address
IP _ _ _._ _ _._ _ _._ _ _ Sets IP address in Manual mode
SubMask _ _ _._ _ _._ _ _._ _ _ Sets Subnet Mask in Manual mode
Pan Reverse NO Normal pan
YES Reversed pan
Tilt Reverse NO Normal tilt
YES Reversed tilt
Zoom Reverse NO Normal Zoom
YES Reversed Zoom
Screen Reverse NO Normal display YES Inverted display
AUTO Automatic display orientation
Pan Angle 540 540° pan range 360 360° pan range
180 180° pan range
Tilt Angle 270 540° tilt range 180 270° tilt range
90 180° tilt range
BL. O. P/T Move NO Do not black out while pan/tilt
YES Blackout while pan/tilt
Calibration NO Keep current settings
YES Calibrate touchscreen
Touchscreen Lock NO Display responds to touch
YES Display does not respond to touch
Lock Screen NO Lock the buttons and touch screen
Passcode: 0920
YES
Swap XY NO Do not swap pan and tilt
YES Pan controls tilt, tilt controls pan

EN
6
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
Programming Levels Description
Setup (cont.) Setup Main Level (cont.)
Setup (cont.)
WDMX Reset NO Do not reset WDMX
YES Reset WDMX
Backlight Timer
30S Display turns off after 30 seconds
1M Display turns off after 1 minute
5M Display turns off after 5 minutes
ON Display stays on
Loss of Data Hold Holds last signal received
Close Blacks out fixture
Fans Auto Fan speed according to product
temperature
Full Fan speed set on high
ECO Quiet mode
C Mixing Mode RGBW RGBW mode (additive)
CMY CMY mode (subtractive)
Dimmer Curve
Linear
Set the dimmer curve
Square
I Squa
SCurve
Dimmer Speed Smooth Set the dimmer speed
Fast
PWM Option
600Hz
Sets the Pulse Width Modulation
frequency
1200Hz
2000Hz
4000Hz
6000Hz
15000Hz
Color Balance
Red
100–255
Sets red LED maximum value
Green Sets green LED maximum value
Blue Sets blue LED maximum value
White Sets white LED maximum value
Preset Select PRESET A Recorded preset menu optionsPRESET B
PRESET C
Preset Sync NO Allows recorded preset menu options to be transferred to other Maverick MK1
Spots in the DMX daisy chain
YES
Reset Function
Pan/Tilt NO
Reset individual functions or all
functions from start-up
YES
Zoom NO
YES
All NO
YES
Factory Settings NO Reset to factory default settings
YES

7
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
Sys Info Sys Info Main Level
Sys Info
Fixture Information
Ver V_ Shows firmware version
Running Mode _ _ _ Shows current running mode
Address _ _ _ Shows current starting address
Temperature _ _ _ Shows current product temperature in
°C
Fixture Hours _ _ _ _ _ Shows number of hours product has
been powered on
Ip _ _ _._ _ _._ _ _._ _ _ Shows current IP address
SubMask _ _ _._ _ _._ _ _._ _ _ Shows current Subnet Mask
MAC _ _._ _._ _._ _._ _._ _ Shows current MAC address
Fan Information Head Fan1 Speed _ _ _ _ Shows speed of head fans in rpm
Head Fan2 Speed _ _ _ _
Error Information No Error!* Shows any errors, or No Error!
Programming Levels Description

EN
8
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE

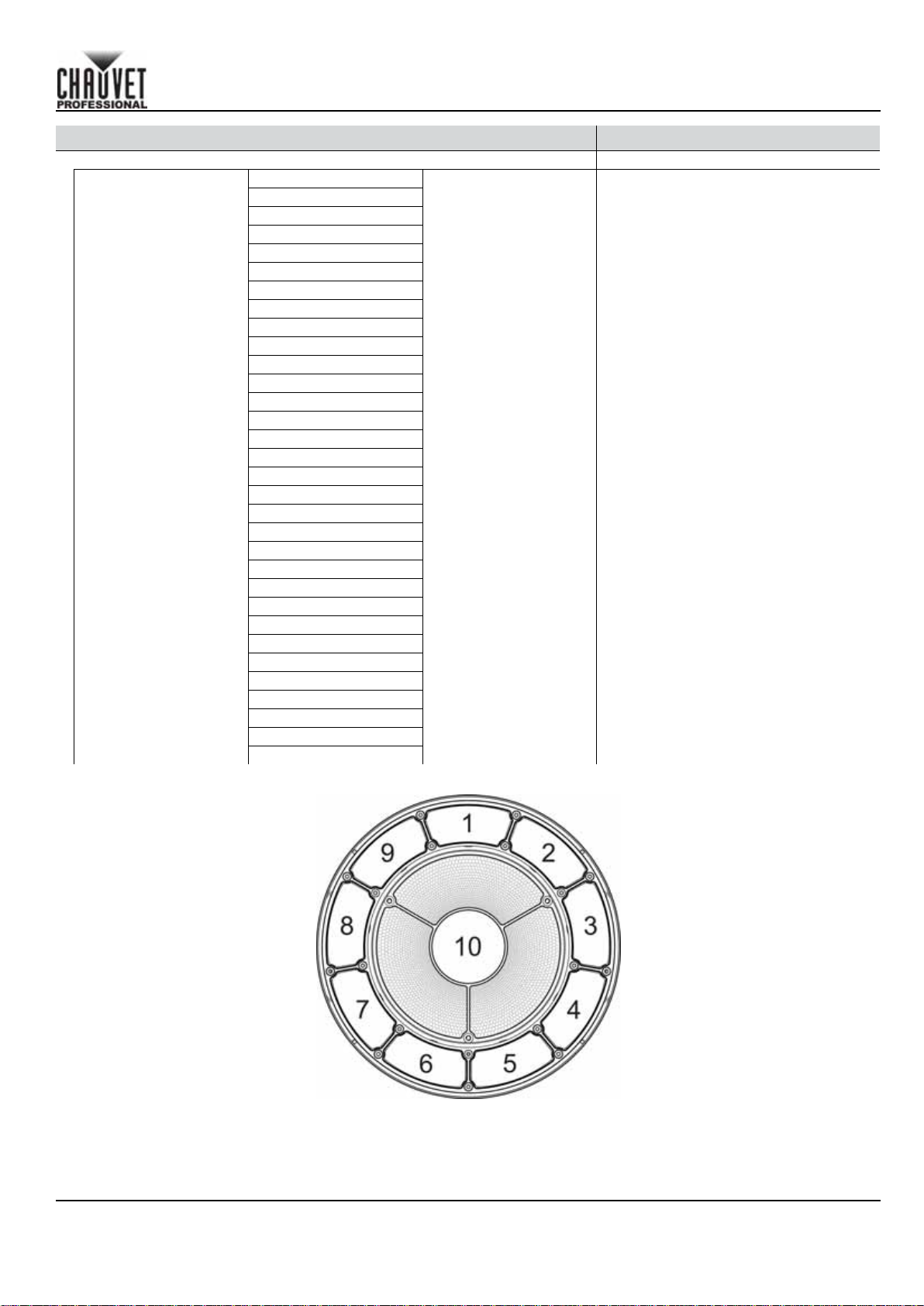

Zones for Pixel Control
Programming Levels Description
Sys Info (cont.) Sys Info Main Level (cont.)
Sys Info (cont.)
Channel Information
Frequency
_ _ _ Shows all current values from input
signals, 000–255
Pan
Pan Fine
Tilt
Tilt Fine
Pan Rotation
Tilt Rotation
P/T Speed
CTC
Color (1–2)
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fine
Background
Background Dim.
Bg. Dim. Fine
Dimmer (A–B)
Dimmer Fine (A–B)
Shutter (1–2)
Zoom
Function
Red (all, 1–10)
Red Fine (all, 1–10)
Green (all, 1–10)
Green fine (all, 1–10)
Blue (all, 1–10)
Blue Fine (all, 1–10)
White (all, 1–10)
White Fine (all, 1–10)
Dimmer (1–10)
Dimmer Fine (1–10)

9
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
Single Control Values
Single Control: Tour Mode (131-channel)
Channel Function Value Percent/Setting
1 Pan 000 255 0–100%
2 Pan Fine 000 255 0–100%
3 Tilt 000 255 0–100%
4 Tilt Fine 000 255 0–100%
5 Continuous Pan
000 No function
001 127 Continuous pan, fast to slow
128 No function
129 255 Reverse continuous pan, slow to fast
6 Continuous Tilt
000 No function
001 127 Continuous tilt, fast to slow
128 No function
129 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000 255 Fast to slow
8 CTC 000 No function
001 255 Color temperature, 2800–10000 K
9 Ring Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow

EN
10
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
10 Beam Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow
11 Gobo 000 No function
001 255 Gobos (indexed)
12 LED Macro / Auto Program 000 015 No function 016 135 LED macros
136 255 Auto programs
13 LED Macro / Auto Program
Speed
000 127 Auto speed, fast to slow
128 Hold
129 255 Auto speed, slow to fast
14 LED Built-in Delay 000 255 Fast to slow
15 Background Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow
16 Background Dimmer 000 255 0–100%
17 Background Fine Dimmer 000 255 0–100%
18 Main Dimmer 000 255 0–100%
19 Main Fine Dimmer 000 255 0–100%
Channel Function Value Percent/Setting

11
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
20 Ring Shutter
000 019 Off
020 024 On
025 069 Strobe, fast to slow
070 089 Strobe 100–0%, fast to slow
090 109 Strobe 0–100%, fast to slow
110 129 Random strobe, fast to slow
130 149 Random strobe 100–0%, fast to slow
150 169 Random strobe 0–100%, fast to slow
170 189 Pulse strobe, fast to slow
190 209 Random pulse strobe, fast to slow
210 229 Strobe 0–100–0%, fast to slow
230 244 Random pulse strobe, fast to slow
245 255 On
21 Beam Shutter
000 019 Off
020 024 On
025 069 Strobe, fast to slow
070 089 Strobe 100–0%, fast to slow
090 109 Strobe 0–100%, fast to slow
110 129 Random strobe, fast to slow
130 149 Random strobe 100–0%, fast to slow
150 169 Random strobe 0–100%, fast to slow
170 189 Pulse strobe, fast to slow
190 209 Random pulse strobe, fast to slow
210 229 Strobe 0–100–0%, fast to slow
230 244 Random pulse strobe, fast to slow
245 255 On
22 Zoom 000 255 Wide to narrow
23 Control
000 009 No function
010 014 Blackout on Pan/Tilt
015 019 Reserved for future use
020 024 RGBW (additive) color mixing mode
025 029 CMY (subtractive) color mixing mode
030 049 Reserved for future use
050 054 Pan reset
055 059 Tilt reset
060 064 Zoom reset
065 069 Reserved for future use
070 074 Reset all
075 109 Reserved for future use
110 114 Fast Pan/Tilt speed
115 119 Slow Pan/tilt speed
120 124 Slow fan mode
125 129 Full fan mode
130 134 Auto fan mode
135 139 Fast dimmer mode
140 144 Slow dimmer mode
145 255 Reserved for future use
24 Main Red 000 255 0–100%
25 Main Fine Red 000 255 0–100%
26 Main Green 000 255 0–100%
27 Main Fine Green 000 255 0–100%
28 Main Blue 000 255 0–100%
29 Main Fine Blue 000 255 0–100%
30 Main White 000 255 0–100%
31 Main Fine White 000 255 0–100%
Channel Function Value Percent/Setting

EN
12
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
32 Dimmer 1 000 255 0–100%
33 Fine Dimmer 1 000 255 0–100%
34 Red 1 000 255 0–100%
35 Fine Red 1 000 255 0–100%
36 Green 1 000 255 0–100%
37 Fine Green 1 000 255 0–100%
38 Blue 1 000 255 0–100%
39 Fine Blue 1 000 255 0–100%
40 White 1 000 255 0–100%
41 Fine White 1 000 255 0–100%
42 Dimmer 2 000 255 0–100%
43 Fine Dimmer 2 000 255 0–100%
44 Red 2 000 255 0–100%
45 Fine Red 2 000 255 0–100%
46 Green 2 000 255 0–100%
47 Fine Green 2 000 255 0–100%
48 Blue 2 000 255 0–100%
49 Fine Blue 2 000 255 0–100%
50 White 2 000 255 0–100%
51 Fine White 2 000 255 0–100%
52 Dimmer 3 000 255 0–100%
53 Fine Dimmer 3 000 255 0–100%
54 Red 3 000 255 0–100%
55 Fine Red 3 000 255 0–100%
56 Green 3 000 255 0–100%
57 Fine Green 3 000 255 0–100%
58 Blue 3 000 255 0–100%
59 Fine Blue 3 000 255 0–100%
60 White 3 000 255 0–100%
61 Fine White 3 000 255 0–100%
62 Dimmer 4 000 255 0–100%
63 Fine Dimmer 4 000 255 0–100%
64 Red 4 000 255 0–100%
65 Fine Red 4 000 255 0–100%
66 Green 4 000 255 0–100%
67 Fine Green 4 000 255 0–100%
68 Blue 4 000 255 0–100%
69 Fine Blue 4 000 255 0–100%
70 White 4 000 255 0–100%
71 Fine White 4 000 255 0–100%
72 Dimmer 5 000 255 0–100%
73 Fine Dimmer 5 000 255 0–100%
74 Red 5 000 255 0–100%
75 Fine Red 5 000 255 0–100%
76 Green 5 000 255 0–100%
77 Fine Green 5 000 255 0–100%
78 Blue 5 000 255 0–100%
79 Fine Blue 5 000 255 0–100%
80 White 5 000 255 0–100%
81 Fine White 5 000 255 0–100%
82 Dimmer 6 000 255 0–100%
83 Fine Dimmer 6 000 255 0–100%
84 Red 6 000 255 0–100%
85 Fine Red 6 000 255 0–100%
Channel Function Value Percent/Setting

13
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
86 Green 6 000 255 0–100%
87 Fine Green 6 000 255 0–100%
88 Blue 6 000 255 0–100%
89 Fine Blue 6 000 255 0–100%
90 White 6 000 255 0–100%
91 Fine White 6 000 255 0–100%
92 Dimmer 7 000 255 0–100%
93 Fine Dimmer 7 000 255 0–100%
94 Red 7 000 255 0–100%
95 Fine Red 7 000 255 0–100%
96 Green 7 000 255 0–100%
97 Fine Green 7 000 255 0–100%
98 Blue 7 000 255 0–100%
99 Fine Blue 7 000 255 0–100%
100 White 7 000 255 0–100%
101 Fine White 7 000 255 0–100%
102 Dimmer 8 000 255 0–100%
103 Fine Dimmer 8 000 255 0–100%
104 Red 8 000 255 0–100%
105 Fine Red 8 000 255 0–100%
106 Green 8 000 255 0–100%
107 Fine Green 8 000 255 0–100%
108 Blue 8 000 255 0–100%
109 Fine Blue 8 000 255 0–100%
110 White 8 000 255 0–100%
111 Fine White 8 000 255 0–100%
112 Dimmer 9 000 255 0–100%
113 Fine Dimmer 9 000 255 0–100%
114 Red 9 000 255 0–100%
115 Fine Red 9 000 255 0–100%
116 Green 9 000 255 0–100%
117 Fine Green 9 000 255 0–100%
118 Blue 9 000 255 0–100%
119 Fine Blue 9 000 255 0–100%
120 White 9 000 255 0–100%
121 Fine White 9 000 255 0–100%
122 Dimmer 10 000 255 0–100%
123 Fine Dimmer 10 000 255 0–100%
124 Red 10 000 255 0–100%
125 Fine Red 10 000 255 0–100%
126 Green 10 000 255 0–100%
127 Fine Green 10 000 255 0–100%
128 Blue 10 000 255 0–100%
129 Fine Blue 10 000 255 0–100%
130 White 10 000 255 0–100%
131 Fine White 10 000 255 0–100%
Channel Function Value Percent/Setting

EN
14
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
Single Control: Advanced Mode (113-channel)
Channel Function Value Percent/Setting
1 Pan 000 255 0–100%
2 Pan Fine 000 255 0–100%
3 Tilt 000 255 0–100%
4 Tilt Fine 000 255 0–100%
5 Continuous Pan
000 No function
001 127 Continuous pan, fast to slow
128 No function
129 255 Reverse continuous pan, slow to fast
6 Continuous Tilt
000 No function
001 127 Continuous tilt, fast to slow
128 No function
129 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000 255 Fast to slow
8 CTC 000 No function
001 255 Color temperature, 2800–10000 K
9 Ring Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow

15
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
10 Beam Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow
11 Gobo 000 No function
001 255 Gobos (indexed)
12 LED Macro / Auto Program 000 015 No function 016 135 LED macros
136 255 Auto programs
13 LED Macro / Auto Program
Speed
000 127 Auto speed, fast to slow
128 Hold
129 255 Auto speed, slow to fast
14 LED Built-in Delay 000 255 Fast to slow
15 Background Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow
16 Background Dimmer 000 255 0–100%
17 Background Fine Dimmer 000 255 0–100%
18 Ring Dimmer 000 255 0–100%
19 Ring Fine Dimmer 000 255 0–100%
Channel Function Value Percent/Setting

EN
16
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
20 Beam Dimmer 000 255 0–100%
21 Beam Fine Dimmer 000 255 0–100%
22 Ring Shutter
000 019 Off
020 024 On
025 069 Strobe, fast to slow
070 089 Strobe 100–0%, fast to slow
090 109 Strobe 0–100%, fast to slow
110 129 Random strobe, fast to slow
130 149 Random strobe 100–0%, fast to slow
150 169 Random strobe 0–100%, fast to slow
170 189 Pulse strobe, fast to slow
190 209 Random pulse strobe, fast to slow
210 229 Strobe 0–100–0%, fast to slow
230 244 Random pulse strobe, fast to slow
245 255 On
23 Beam Shutter
000 019 Off
020 024 On
025 069 Strobe, fast to slow
070 089 Strobe 100–0%, fast to slow
090 109 Strobe 0–100%, fast to slow
110 129 Random strobe, fast to slow
130 149 Random strobe 100–0%, fast to slow
150 169 Random strobe 0–100%, fast to slow
170 189 Pulse strobe, fast to slow
190 209 Random pulse strobe, fast to slow
210 229 Strobe 0–100–0%, fast to slow
230 244 Random pulse strobe, fast to slow
245 255 On
24 Zoom 000 255 Wide to narrow
25 Control
000 009 No function
010 014 Blackout on Pan/Tilt
015 019 Reserved for future use
020 024 RGBW (additive) color mixing mode
025 029 CMY (subtractive) color mixing mode
030 049 Reserved for future use
050 054 Pan reset
055 059 Tilt reset
060 064 Zoom reset
065 069 Reserved for future use
070 074 Reset all
075 109 Reserved for future use
110 114 Fast Pan/Tilt speed
115 119 Slow Pan/tilt speed
120 124 Slow fan mode
125 129 Full fan mode
130 134 Auto fan mode
135 139 Fast dimmer mode
140 144 Slow dimmer mode
145 255 Reserved for future use
26 Main Red 000 255 0–100%
27 Main Fine Red 000 255 0–100%
28 Main Green 000 255 0–100%
29 Main Fine Green 000 255 0–100%
30 Main Blue 000 255 0–100%
31 Main Fine Blue 000 255 0–100%
Channel Function Value Percent/Setting

17
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
32 Main White 000 255 0–100%
33 Main Fine White 000 255 0–100%
34 Red 1 000 255 0–100%
35 Fine Red 1 000 255 0–100%
36 Green 1 000 255 0–100%
37 Fine Green 1 000 255 0–100%
38 Blue 1 000 255 0–100%
39 Fine Blue 1 000 255 0–100%
40 White 1 000 255 0–100%
41 Fine White 1 000 255 0–100%
42 Red 2 000 255 0–100%
43 Fine Red 2 000 255 0–100%
44 Green 2 000 255 0–100%
45 Fine Green 2 000 255 0–100%
46 Blue 2 000 255 0–100%
47 Fine Blue 2 000 255 0–100%
48 White 2 000 255 0–100%
49 Fine White 2 000 255 0–100%
50 Red 3 000 255 0–100%
51 Fine Red 3 000 255 0–100%
52 Green 3 000 255 0–100%
53 Fine Green 3 000 255 0–100%
54 Blue 3 000 255 0–100%
55 Fine Blue 3 000 255 0–100%
56 White 3 000 255 0–100%
57 Fine White 3 000 255 0–100%
58 Red 4 000 255 0–100%
59 Fine Red 4 000 255 0–100%
60 Green 4 000 255 0–100%
61 Fine Green 4 000 255 0–100%
62 Blue 4 000 255 0–100%
63 Fine Blue 4 000 255 0–100%
64 White 4 000 255 0–100%
65 Fine White 4 000 255 0–100%
66 Red 5 000 255 0–100%
67 Fine Red 5 000 255 0–100%
68 Green 5 000 255 0–100%
69 Fine Green 5 000 255 0–100%
70 Blue 5 000 255 0–100%
71 Fine Blue 5 000 255 0–100%
72 White 5 000 255 0–100%
73 Fine White 5 000 255 0–100%
74 Red 6 000 255 0–100%
75 Fine Red 6 000 255 0–100%
76 Green 6 000 255 0–100%
77 Fine Green 6 000 255 0–100%
78 Blue 6 000 255 0–100%
79 Fine Blue 6 000 255 0–100%
80 White 6 000 255 0–100%
81 Fine White 6 000 255 0–100%
82 Red 7 000 255 0–100%
83 Fine Red 7 000 255 0–100%
84 Green 7 000 255 0–100%
85 Fine Green 7 000 255 0–100%
Channel Function Value Percent/Setting

EN
18
Maverick MK Pyxis QRG Rev. 2
QUICK REFERENCE GUIDE
86 Blue 7 000 255 0–100%
87 Fine Blue 7 000 255 0–100%
88 White 7 000 255 0–100%
89 Fine White 7 000 255 0–100%
90 Red 8 000 255 0–100%
91 Fine Red 8 000 255 0–100%
92 Green 8 000 255 0–100%
93 Fine Green 8 000 255 0–100%
94 Blue 8 000 255 0–100%
95 Fine Blue 8 000 255 0–100%
96 White 8 000 255 0–100%
97 Fine White 8 000 255 0–100%
98 Red 9 000 255 0–100%
99 Fine Red 9 000 255 0–100%
100 Green 9 000 255 0–100%
101 Fine Green 9 000 255 0–100%
102 Blue 9 000 255 0–100%
103 Fine Blue 9 000 255 0–100%
104 White 9 000 255 0–100%
105 Fine White 9 000 255 0–100%
106 Red 10 000 255 0–100%
107 Fine Red 10 000 255 0–100%
108 Green 10 000 255 0–100%
109 Fine Green 10 000 255 0–100%
110 Blue 10 000 255 0–100%
111 Fine Blue 10 000 255 0–100%
112 White 10 000 255 0–100%
113 Fine White 10 000 255 0–100%
Channel Function Value Percent/Setting

19
EN
QUICK REFERENCE GUIDE
Maverick MK Pyxis QRG Rev. 2
Single Control: Standard Mode (66-channel)
Channel Function Value Percent/Setting
1 Pan 000 255 0–100%
2 Pan Fine 000 255 0–100%
3 Tilt 000 255 0–100%
4 Tilt Fine 000 255 0–100%
5 Continuous Pan
000 No function
001 127 Continuous pan, fast to slow
128 No function
129 255 Reverse continuous pan, slow to fast
6 Continuous Tilt
000 No function
001 127 Continuous tilt, fast to slow
128 No function
129 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000 255 Fast to slow
8 CTC 000 No function
001 255 Color temperature, 2800–10000 K
9 Ring Color
000 No function
001 002 2700K R = 156 G = 118 B = 0 W = 63
003 004 3200K R = 156 G = 141 B = 5 W = 89
005 006 4200K R = 156 G = 141 B = 14 W = 255
007 008 5600K R = 156 G = 207 B = 54 W = 255
009 010 8000K R = 130 G = 255 B = 96 W = 255
011 Blue R = 0 G = 0 B = 255 W = 0
012 048 + Green R = 0 G = 0–255 B = 255 W = 0
049 Cyan R = 0 G = 255 B = 255 W = 0
050 086 - Blue R = 0 G = 255 B = 255–0 W = 0
087 Green R = 0 G = 255 B = 0 W = 0
088 124 + Red R = 0–255 G = 255 B = 0 W = 0
125 Yellow R = 255 G = 255 B = 0 W = 0
126 162 - Green R = 255 G = 255–0 B = 0 W = 0
163 Red R = 255 G = 0 B = 0 W = 0
164 200 + Blue R = 255 G = 0 B = 0–255 W = 0
201 Magenta R = 255 G = 0 B = 255 W = 0
202 238 - Red R = 255–0 G = 0 B = 255 W = 0
239 Blue R = 0 G = 0 B = 255 W = 0
240 247 Color fade, fast to slow
248 255 Color snap, fast to slow
