Maverick MK2 Spot User manual

User Manual

Edition Notes
Maverick MKII Spot User Manual Rev. 4
Edition Notes
The Maverick MK2 Spot User Manual Rev. 3 covers the description, safety precautions,
installation, programming, operation, and maintenance of the Maverick MK2 Spot. Chauvet
released this edition of the Maverick MK2 Spot User Manual in September 2016.
Trademarks
CHAUVET, the Chauvet logo and Maverick MK2 Spot are registered trademarks or trademarks
of Chauvet & Sons, LLC. (d/b/a Chauvet and Chauvet Lighting)
in the United States and other
countries. Other company and product names and logos referred to herein may be trademarks
of their respective companies.
Copyright Notice
The works of authorship contained in this manual, including, but not limited to, all design, text
and images are owned by Chauvet.
© Copyright 2016 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information
purposes only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification,
or printing of
this manual or its content for any other purpose without written consent from
Chauvet.
Document
Printing
For better results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If
using A4 paper (210 x 297 mm), configure your printer to scale the content accordingly.
Intended
Audience
Any person in charge of installing, operating, and/or maintaining this product should completely
read through the guide that shipped with the product, as well as this manual, before installing,
operating, or maintaining this product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects.
However, Chauvet assumes no responsibility and specifically disclaims any and all liability to
any party for any
loss, damage or disruption caused by any errors or omissions in this
document, whether such errors or omissions result from negligence, accident or any other
cause. Chauvet reserves the right to revise the content of this document without any obligation
to notify any person or company of such revision, however, Chauvet has no obligation to make,
and does not commit to make, any such revisions.
Document
Revision
The Maverick MK2 Spot User Manual Rev. 4 supersedes all previous versions of this manual.
Discard any older versions of this manual and replace with this version. Go to
www.chauvetprofessional.com for the latest version.

Table of Contents
Maverick MKII Spot User Manual Rev. 4 -i-
Table of Contents
1. Before You Begin...................................................................................................................................................1
What Is Included....................................................................................................................................................................1
Claims....................................................................................................................................................................................................1
Manual Conventions ..............................................................................................................................................................................1
Symbols.................................................................................................................................................................................................1
Product At A Glance ..............................................................................................................................................................1
Safety Notes ..........................................................................................................................................................................2
Personal Safety......................................................................................................................................................................................2
Mounting And Rigging............................................................................................................................................................................2
Power And Wiring..................................................................................................................................................................................2
Operation...............................................................................................................................................................................................2
Expected LED Lifespan .........................................................................................................................................................2
2. Introduction............................................................................................................................................................3
Description.............................................................................................................................................................................3
Features at a glance..............................................................................................................................................................3
Overview................................................................................................................................................................................3
Dimensions............................................................................................................................................................................4
3. Setup .......................................................................................................................................................................5
AC Power...............................................................................................................................................................................5
AC Plug..................................................................................................................................................................................................5
Fuse Replacement.................................................................................................................................................................................5
Mounting................................................................................................................................................................................6
Orientation .............................................................................................................................................................................................6
Signal Connections................................................................................................................................................................7
Art-Net™ Connection.............................................................................................................................................................................7
sACN Connection ..................................................................................................................................................................................7
4. Operation................................................................................................................................................................8
Touchscreen and Control Panel Description .........................................................................................................................8
Menu Map..............................................................................................................................................................................8
Operating Settings Configuration.........................................................................................................................................12
Home Screen.......................................................................................................................................................................................12
Network Setup .....................................................................................................................................................................................12
Personality...........................................................................................................................................................................................14
Settings................................................................................................................................................................................................14
Test Mode............................................................................................................................................................................................18
System Information..............................................................................................................................................................................18
Offset Mode .........................................................................................................................................................................19
DMX Values.........................................................................................................................................................................21
32CH....................................................................................................................................................................................21
24CH....................................................................................................................................................................................23
Gobo Designs......................................................................................................................................................................26
Color Wheel.........................................................................................................................................................................26
Gobo Replacement..............................................................................................................................................................................27
5. Firmware Update..................................................................................................................................................28
6. Technical Information..........................................................................................................................................31
Product Maintenance...........................................................................................................................................................31
Error Indication.....................................................................................................................................................................31
7. Technical Specifications.....................................................................................................................................32
Returns......................................................................................................................................................................33
Contact Us................................................................................................................................................................34

Before You Begin
Maverick MK2 Spot User Manual Rev. 4 -1-
1. BEFORE YOU BEGIN
What Is
Included
•Maverick MK2 Spot
•True 1 compatible power cord
•2 Omega brackets
•Warranty card
•User Manual
Claims
Carefully unpack the product immediately and check the box to make sure all the parts are in
the package and are in good condition.
If the box or the conten
ts (the product and included accessories) appear damaged from
shipping or show signs of mishandling, notify the carrier immediately, not Chauvet
. Failure to
report damage to the carrier immediately may invalidate your claim. In addition, keep the box
and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or
concealed damage, file a claim with Chauvet within 7 days of delivery.
Manual
Conventions
Convention
Meaning
1–512
A range of values in the text
50/60
A set of mutually exclusive values in the text
<SET>
A button on the product’s control panel
Settings
A product function or a menu option
MENU>Settings
A sequence of menu options
ON
A unique value to be entered or selected in a menu
Symbols
Symbols
Meaning
Critical installation, configuration, or operation information. Failure to
comply with this information may cause the product not to work,
damage third-party equipment, or cause harm to the operator.
Important installation or configuration information. Failure to comply
with this information may keep the product from working.
Useful information.
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data
transmission protocol.
Product At A
Glance
Use on Dimmer
x
Auto Programs
x
Outdoor Use
x
Auto-Ranging Power Supply
P
Master/Slave
x
Replaceable Fuse
P
DMX
P
User-Serviceable
x

Before You Begin
-2- Maverick MK2 Spot User Manual Rev. 4
Safety Notes
Read all the following Safety Notes before working with this product. These notes include
important information about the installation, usage, and maintenance of this product.
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained Chauvet certified technicians. Do not open the
housing or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.
Personal Safety
•Avoid direct eye exposure to the light source while the product is on.
•Always disconnect this product from its power source before servicing.
•Always connect this product to a grounded circuit to avoid the risk of electrocution.
•Do not touch this product’s housing during operation because it may be very hot.
Mounting And
Rigging
•This product is for indoor use only! To prevent risk of fire or shock, do not expose this
product to rain or moisture. (IP20)
•CAUTION: When transferring product from extreme temperature environments, (e.g. cold
truck to warm humid ballroom) condensation may form on the internal electronics of the
product. To avoid causing a failure, allow product to fully acclimate to the surrounding
environment before connecting it to power.
•Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
•Make sure there are no flammable materials close to this product while it is operating.
•When hanging this product, always secure to a fastening device using a safety cable.
•Never carry the product by the power cord or any moving part.
Power And
Wiring
•Make sure the power cord is not crimped or damaged.
•Always make sure you are connecting this product to the proper voltage in accordance
with the specifications in this manual or on the product’s specification label.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
•Never connect this product to a dimmer pack or rheostat.
•Make sure to replace the fuse with another of the same type and rating.
•Never disconnect this product by pulling or tugging on the power cable.
Operation
•Do not operate this product if you see damage on the housing, lenses, or cables. Have the
damaged parts replaced by an authorized technician at once.
•Do not cover the ventilation slots when operating to avoid internal overheating.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a
higher temperature.
•In case of a serious operating problem, stop using this product immediately!
If your Chauvet product requires service, contact Chauvet Technical Support.
Expected LED
Lifespan
LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters,
LEDs exhibit higher operating temperatures than in ideal, single-
LED conditions. For this
reason, using clustered LEDs at their fullest intensity significantly reduces the LEDs’ lifespan.
Under normal conditions, this lifespan can be 40,000 to 50,000 hours. If extending this lifespan
is vital, lower the operating temperature by improving the ventilation around the product and
reducing the ambient temperature to an optimal operating range. In addition, limiting the overall
projection intensity may also help to extend the LEDs’ lifespan.

Introduction
Maverick MK2 Spot User Manual Rev. 4 -3-
2. INTRODUCTION
Description
Stunningly bright with precision engineered optics and a color mixing system that will leave you
breathless, the Maverick MK2 Spot sets new standards in moving head LED spots. Powered by an
industry leading 440W LED engine, this fixture boasts a CMY+CTO color mixing system, two 6
position rotating s
lot and lock gobo wheels, a 7 position + white color wheel, variable frost and 3
facet prism. All of this projected through a 13° to 37° zoom system. With the ability to control the
Maverick MK2 Spot over DMX, Art-Net, or by WDMX, there is an option for ev
ery situation. As an
added feature, this fixture can receive Art-Net in, and send out DMX, simplifying cable runs.
Features at a
glance
•440W LED light engine
•16-bit Dimming
•Variable CMY+CTO color mixing
•Two rotating, indexing and interchangeable slot and lock gobos
•DMX , WDMX, sACN, and Art-Net control
•13° to 37° Zoom angle
•Iris, 3-facet prism, and frost for beam control
•True 1 compatible power input
Overview
Rear View
Display
Menu
Buttons
Power
Switch
Yoke
Handles
Rubber Foot
(x4)
Fans
etherCON® Through
Ports
3-pin DMX
In/Out
5-pin DMX
In/Out
True 1
Compatible
Power In
Wireless
Antenna
Fuse-Holder
Ethernet LED
Indicator
Front View

Introduction
-4- Maverick MK2 Spot User Manual Rev. 4
Dimensions
14.6 in
371 mm
15.6 in
396 mm
21.6 in
549 mm
9.8 in
249 mm
17.6 in
447 mm
4.5 in
114 mm
15.1 in
384 mm
9.8 in
249 mm
11.1 in
282 mm
26.4 in
671 mm

Setup
Maverick MK2 Spot User Manual Rev. 4 -5-
3. SETUP
AC Power
Each Maverick MK2 Spot has an auto-ranging power supply that works with an input voltage
range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each
Maverick
MK2 Spot, refer to the label affixed to the product. You can also refer to the
Technical
Specifications chart in this manual.
The listed current rating indicates the maximum current draw during normal operation. For mor
e
information, you may download Sizing Circuit Breakers from the Chauvet website
:
www.chauvetprofessional.com.
•Always connect this product to a protected circuit with an appropriate electrical
ground to avoid the risk of electrocution or fire.
•Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel serves only as a 0 to 100% switch.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
AC Plug
The Maverick MK2 Spot comes with a power input cord terminated with a True 1 compatible
connector on one end and an Edison plug on the other
end (U.S. market). If the power input
cord that came with your product has no plug, or if you need to change the Edison plug, use the
table below to wire the new plug.
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow or Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Fuse
Replacement
Disconnect this product from the power outlet.
1. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.2. Remove the blown fuse and replace with another fuse of the same type and rating3. (F 10 A, 250 V).
Screw the fuse holder cap back in place and reconnect power.
4.
Make sure to disconnect the product’s power cord before replacing a blown fuse. Always
replace the blown fuse with another of the same type and rating.

Setup
-6- Maverick MK2 Spot User Manual Rev. 4
Mounting
Before mounting this product, read and follow the Safety Notes. For our CHAUVET
Professional line of mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position and make sure there is adequate room for
ventilation, configuration, and maintenance. The Maverick MK2 Spot
can be suspended upright
or upside down using the 2 Omega brackets included, or it can be placed on its rubber feet on a
flat level surface.
Chauvet recommends using the following general guidelines when mounting this product:
•When selecting an installation location, consider easy access to this product for operation,
programming adjustments, and routine maintenance.
•Make sure to mount this product away from any flammable material as indicated in the
Safety Notes.
•Never mount in places where rain, high humidity, extreme temperature changes, or
restricted ventilation may affect the product.
•If hanging this product, make sure that the mounting location can support the product’s
weight. See the Technical Specifications for the weight-bearing requirements of this
product.
•When hanging this product, always secure to a fastening device using a safety cable. For
our CHAUVET Professional line of safety cables, go to http://trusst.com/products/.
•When mounting the product on the floor, make sure that the product and cables are away
from people and vehicles.
•Place the Maverick MK2 Spot so that it can move freely without hitting anything or anybody.
•Leave enough slack on the cable to prevent tension and pull on the plugs.
Mounting Diagram
Safety
Cable
Overhead Mounting
Floor Mounting
Rubber Feet (x4)
Mounting Clamps
Omega Brackets

Setup
Maverick MK2 Spot User Manual Rev. 4 -7-
Signal Connections
The Maverick MK2 Spot can receive DMX, sACN or Art-Net™ signals. The Maverick MK2 Spot
has 2 etherCON® through ports, and 3- and 5-pin DMX In and Out ports. For more information
about DMX, read the DMX primer at:
http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf
Art-Net™
Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers large amounts of DMX512
data using an etherCON® RJ45 connection over a large network. An Art-
Net™ protocol
document is available from www.chauvetprofessional.com.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
Chauvet Professional recommends using unicast Art-Net™ for best results.
sACN
Connection
Also known as ANSI E1.31, streaming ACN is an Ethernet protocol that uses the layering and
formatting of Architecture for Control Networks to transport DMX512 data over TCP/IP or any
other ACN compatible network. ACN is maintained by the Professional Lighting and Sound
Association (PLASA).

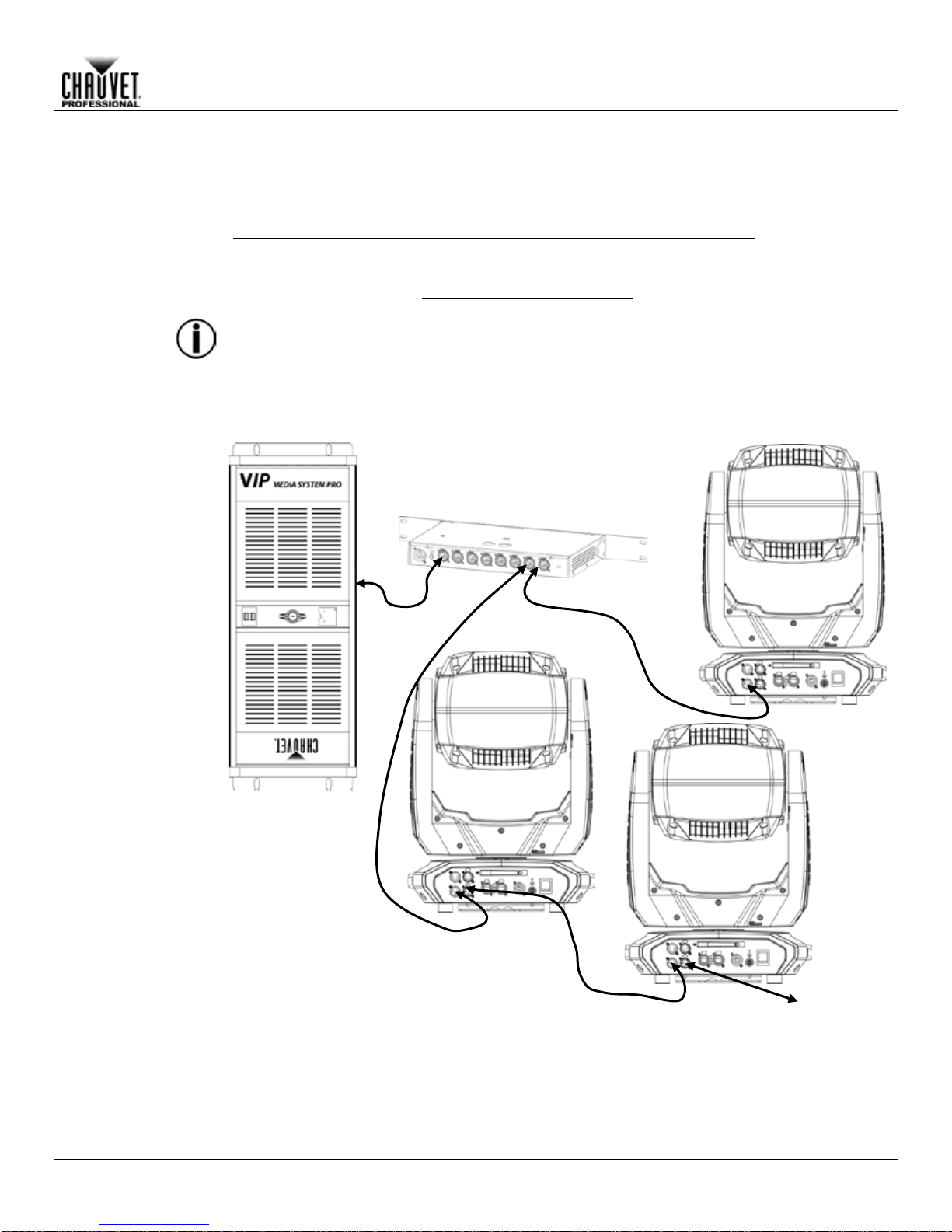

Connection
Diagram
Switch or Router
(such as the NET-Switch
from CHAUVET Professional)
Computer/Controller
(running TCP/IP
protocol)
To other TCP/IP
Devices
