Maxell MXAP-HEP200 User manual

The illustrations used in the instruction manual (this document) may differ from the actual product.
MXAP-HEP200
Air Purifier
User Manual
Thank you for purchasing this MAXELL product. Before use, make sure to read this Instruction Manual and
use the product correctly and safely.
2
3
6
8
15
17
18
Maintenance
1
2
3
4
5
6
7
Table of contents
Introduction
Safety Caution
Name of Each Part
How to Use
Troubleshooting
Specifications
19
8Warranty Policy
MNL210126-00
EN
EN
TC
User Manual

Contents of the package
1Introduction
Maxell shall not be responsible for any damage caused by fires, earthquakes, action of a third party,
any accidents, intended or unintended misuse or other usage under abnormal conditions.
This Instruction Manual may be subject to change without prior notice.
In order to improve the product, the appearance or part of the specifications may be
subject to change without prior notice.
Unauthorized duplication of all or part of this Instruction Manual without permission is
prohibited, except for the case of personal use. In addition, do not reprint this Instruction
Manual without permission.
All explicit and implicit contents not stated in the user manual are not covered.
About the user manual
Maxell shall not be responsible for failure due to any damage caused by usage other than described
in the instruction manual.
This product is not being designed to be any equipment or device which could be concerned with
human life such as medical device, nuclear device, astronomical device, transportation device etc.,
nor equipment or devices which requires high reliability. In case this product is used for the above
equipment and/ or systems, Maxell do not responsible for any injuries or fire accident cause by the
failure of this product.
Maxell shall not be responsible for damage caused by malfunction due to combination with connected
equipment.
Disclaimer
●
●
●
●
●
●
●
●
Pre-filter x 1
(inside the main unit)
Main unit x 1 Remote control x 1
Ceramic balls box x 1
(inside the water tank)
User manual
(This
document)
Anti-bacterial cotton,
H13 HEPA filter x 1
(inside the main unit)
Humidifying filter x 1
(inside the water tank)
Cellular-activated carbon,
cold catalyst filter x 1
(inside the main unit)
IONIZER
Auto
ON/OFF
UNLOCK
LOCK
RESET
SLEEP
TIMER
STERILIZE
2
EN

Abnormality / Malfunction
Main unit and AC plug
Do not repair, modify or disassemble
If this product emits smoke, unusual an odor, unusual sound, or water or a foreign object
enters inside, please stop using immediately and disconnect the AC plug. Continued use
may cause smoke, ignition, fire, electric shock, etc.
It may cause fire, electric shock or injury.
*2: Minor injury refers to hurt, burnt, electric shock, etc. which do not result in hospitalization or long-term follow-up
consultation.
*3: Property damage refers broad damages to houses or properties and domestic animals/ pets.
stands for caution to fire, explosion, high temperature when handling the product.
Details will be illustrated inside the symbol.
(e.g. Electric shock)
Stop using immediately and disconnect the power plug from the outlet
*1: Severe injury is indicated by those that have after effects such as blindness, injury, burns (high temperature/ low
temperature/chemical), electric shock, fracture, poisoning, etc. and those requiring hospitalization or long-term
regular hospital visits for treatment.
stands for prohibited actions when handling the product.
Details will be illustrated inside or next to the symbol or with written description next to it.
(e.g. Do not decompose)
stands for instruction which must be followed.
Details will be illustrated inside or next to the symbol or with written description next to it.
(e.g. Remove plug from socket)
Please strictly follow
Warning
Caution
If it is handled incorrectly, it is assumed that the user may suffer death or serious
injury*1
If it is handled incorrectly, it is assumed that the user may suffer minor injury*2 or
there is a possibility that property damage*3 may occur
2Safety Caution
●If dropped or damaged, please stop using immediately
Continued use may cause overheating, ignition, electric shock, fire or injury.
Main body
Do not put fingers or foreign objects (metal, etc.) into the air outlet or air inlet
It may cause electric shock or injury.
Do not put water, tobacco ash or flammable materials into the product from
the air outlet or air inlet
It may cause electric shock or fire.
Do not cover the air outlet and air inlet with hands or any objects
It may cause electric shock or malfunction.
●
●
●
●
Do not use with wet hands
It may cause overheat, electric shock or malfunction.
WARNING
Example of symbols
Keep dry
Do not wet or pour water into the product except designated area.
It may cause electric shock, fire or product failure.
●
●
●
3
EN

● Do not place this machine up-side-down, because there is a liquid humidification device in it
It may cause damage and malfunction.
Make sure the plug is fully inserted into socket
If it is not fully inserted, it may cause electric shock or fire.
●
Maintenance
Be sure to disconnect the AC plug when cleaning and maintenance
It may cause fire or electric shock.
●
Be sure to disconnect the AC plug when not in use for a long period of time
It may result in electric shock or electric leakage fire due to insulation deterioration.
●
Do not place in direct sunlight or places with abnormally high temperatures
This may cause deterioration of the device surface and parts and may also cause a fire. Do not
place the product in a closed vehicle, in direct sunlight or near a heater such as a stove.
Do not place in an unstable place
Do not place the product on an unstable table or on an inclined surface.
It may drop or fall, resulting in injury or malfunction.
When moving or carrying the product, please must hold the handle
If you hold the product without using the handle, the product body may be damaged, fall or cause
unexpected injury.
●
●
●
CAUTION
●
Do not pick up or move the machine while it is running. When moving or storing, do not pull
the power cord
This may cause a short circuit or do internal damage to the power cord. This may lead to a re or
electric shock.
●Do not damage power cord or outlet. Do not cut, excessively twist, pull, or bend the power
cord. If the power cord is damaged, please stop using the product
It may cause electrical shock or fire.
●Do not use power supplies, universal sockets, or connective devices that exceed the
recommended power rating. Use only AC 220V power
Using a universal socket or connected power source that exceeds this rating may lead to
overheating and cause a re.
●Do not allow water, flammable cleaners, or other liquids enter into the product
It may cause electrical shock, fire or malfunction.
●This product cannot replace normal ventilation equipment, vacuum cleaners, or kitchen
fans
Purpose of the product is dierent.
●Do not use this product in a humid or hot environment, such as the shower, restroom, or
kitchen
It may cause malfunction and unpleasant smell.
Cleaning
Do not use chemicals
Do not wipe the main unit with benzene, thinner, alcohol etc.
Also, do not use contact cleaner. The product surface may deteriorate, and the parts may melt.
●
4
EN

● Do not use the air purifier in a room that is using an incense-type insect killer
Chemical residue may accumulate in the machine and then be released, causing harm to
physical health.
After using insect killer or mosquito coils, allow the room to be fully ventilated before using
the air purier.
● This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety
It may cause accident or injury.
●Children should be supervised to ensure that they do not play with appliance
This may cause accident or injury.
●For cleaning & user maintenance, please refer to section Maintenance
It may cause damage and malfunction.
5
5
EN

3Name of Each Part
PM2.5 Value
UV Light Sterilization
Wind Speed
Water Tank
Ionzier
Reset Button
Child Lock Button
Sleep Mode Button
Wind Speed- Button
Wind Speed+ Button
Automatic Operation ButtonTimer Button
Power On/O Button
Indicator Light of
Air Quality
Air Outlet
Light Sensor
Operation Panel
Display
6
EN

Handle
(Left and Right)
Air Inlet
(Left and Right)
Water Tank
Particulate Sensor
(Remove the cover)
7
EN

4How to Use
A. There are dierences between the inside and the
outside of the dust lter #3 (antibacterial cotton, H13
HEPA lter). Attention: The side with a handle should
be placed outwards.
B. There are dierences between the inside and the
outside of the absorption lter #2 (Cellular -Activated
Carbon Filter and cold catalyst lter).
Attention: The side with a handle should be placed
outwards.
C. Install the pre-lter #1. Make sure the lower locks are
in proper position and upper locks are click properly.
D. Install the front cover.
1. Removing the lter from the
plastic bag:
2. Installing the lter and front cover.
A. Remove the front cover.
B. Remove the lter.
C. Take the lter out of the
packaging.
Make sure to remove plastic bag o
the lter before use. Main unit will not operate if the front panel is
uncovered.
Locks
Locks
Handle
Handle
Installing the Filter
8
EN

Prepare for Humidification
1. Pull the water tank out from the side of the
purier.
2. Remove the package of the humidifying
lter.
3. Put the humidifying lter into the water tank.
4. Open the rubber lid of the inlet.
5. Add about 1L cold water through the inlet,
lling around 80% of the water tank.
6. After adding water, close the lid.
7. Push the tank back into the purier.
8. This machine has evaporative
humidifying function.
If water is added into the water tank, water
will evaporate automatically with puried air to
provide moist and clean air. The humidication
eect is related to the wind speed, and it works
better when the machine is operating at a higher
speed level. If the water level becomes low, the
indicator light will ash while the machine
continues working. If the water tank is taken out,
the indicator light will turn o.
Water Tank
9
EN

•
Automatic stop function (when the product tumbles)
Automatic stop function (when the front panel or air outlet grill is
removed)
If the front panel or air outlet grill is accidentally removed
during operation, operation will stop.
Operation will resume by reinstalling the front panel and air outlet grill.
If the main unit tumbles during operation, operation will be
stopped. Restart the operation by re-erecting the main unit and
pressing the power button.
Warning: Tumble of product may lead water leakage and result in product failure.
Please make sure the product places in stable and flat surface.
Attention
In the following cases, pressing the button may not work.
• Pressing the button with a nail. • Wearing gloves or plasters. • Operating with dry fingers. • Touching
other operation buttons. • A sticker is pasted on the operation panel. • The operation panel is dirty.
※
Attention
Please press the operation panel by whole nger properly.

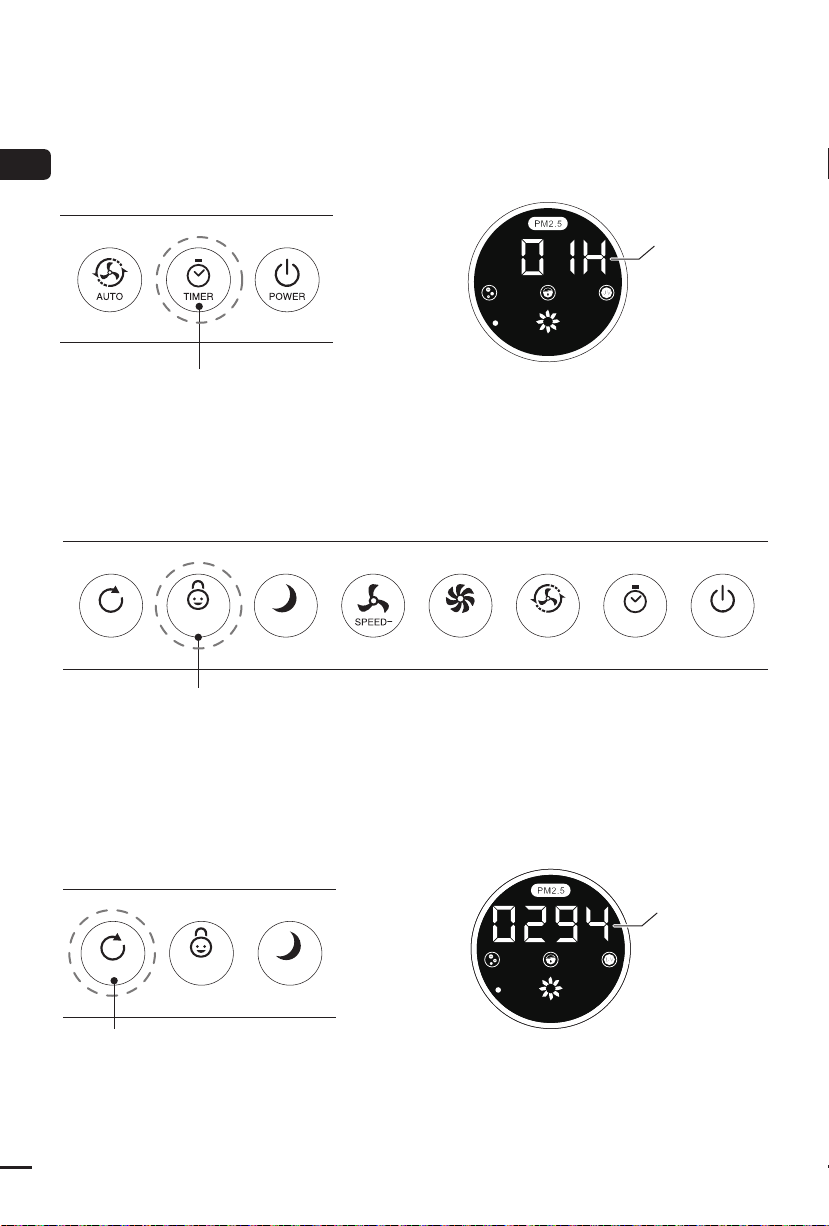

How to operate
When press the button on the operation panel, the “beeping” sound will be heard and the operation will
change accordingly.
1. Power on
When you press the power button, the power button and the auto mode button on the operation
panel light on. The machine enters the default automatic operating mode, the negative ion and UV
sterilization function will be started by default setting. The product has no memory function. So
every time restart by power button, it starts from automatic mode with wind speed level 1.
Wind Speed Level 1
PM2.5 Value
UV Light Sterilization
Water Tank
Ionizer
Indicator
Light
Display
Operation Panel
Power On / O Button
How to connect
Connect the AC plug into a power outlet.
When the machine is plugged in, the buzzer will sound
once and the power button turns red.
10
EN

2. Automatic mode
The value detected by the PM2.5 sensor will aect the wind speed level of the machine and the
light sensor of the machine determines whether the machine should enter into sleep mode. When
the ambient light is less than 3 lumens for 2 minutes, the machine enters into sleep mode. When
the ambient light lumens is greater than 3-10 lumens for 3 minutes, the machine quits sleep mode.
Relations Between the Wind Speed and PM2.5 Data
Wind Speed Wind Speed
PM2.5 Data
1 0-50
2 51-80
3 81-100
4 101-120
5 121-140
6 141-160
7 161-300
8 301-500
Light Color PM2.5 Data Light Color
Yellow
Red
Green
Blue
Operation Panel
Auto Mode Button
3. Manual Mode
Press the speed "+" or speed "-" button and change the machine into manual mode, the speed "+"
and speed "-" button on the operation panel light on. The speed "+" button increases the wind
speed and the maximum level is 8. The speed "-" decreases the wind speed and the minimum
level is 1. There are 8 wind speed levels in manual mode.
Operation Panel
SPEED+AUTO
Speed +/- Button
Operation Panel
No Light
No Display
Display
4. Sleep Mode
SLEEP SPEED+
Sleep Button
When pressing the sleep button, the sleep button on the operational panel lights on. The machine
enters into the sleep mode and quits the auto mode or manual mode in 5sec. Then all the lights and
displays are turned o and the machine operates at wind speed level 1. Press any button once and
then press the sleep button/auto button/speed “+” or speed “-“ button to quit the sleep mode.
11
EN

When the machine is on, the negative ion/ UV sterilization function are automatically turned on. The
machine operation panel cannot control the ON/OFF of negative ion/ UV sterilization function operation,
these functions can only be switched o by the remote control only.
8. Negative ion / UV Sterilization Function
6. Child Lock Function
Press the child lock button when the machine is operating, the child lock button on the operational
panel lights on and other button operations will be disabled. Press and hold the child lock button
again for 5 seconds to release the child lock function.
Operation Panel Accumulated
Operating Time
Display
7. Reset Function
RESET CHILD
LOCK SPEED+TIMER POWERAUTO
RESET CHILD
LOCK SLEEP
Operation Panel
Child Lock Button
Reset Button
SLEEP
The machine is equipped with a timer function for lter replacement. Short press the reset button can
check the accumulated operating time (unit is in hour). When the timer accumulates to 1500 hours
(max. is 1500 hours), the reset button will keep ashing for reminding users to replace new lters. You
can long press the reset button for 5 sec to clear the reset button light and the accumulated operating
time will be reset.
Timer
Display
Operation Panel
The working time can be set with the timer button when the machine is operating. When pressing
the timer button, the timer button on the operational panel lights on. Timer setting will be shown
on display. The minimum and maximum setting unit are 1 hour and 12 hours respectively (the
setting unit is an hour). When complete the setting of timer, the display will go back to show the
value of PM2.5 after 5 seconds.
5. Timer Function
Timer Button
12
EN

10. Remote Control
Power On/O ButtonAuto Mode Button
Speed “+” Button
Reset Button
Child Unlock Button
(Short press can release
the child lock function)
Speed “-” Button
Child Lock Button
UV Sterilization Button
Sleep Mode Button Negative ion Button
IONIZER
Auto ON/OFF
UNLOCK
LOCK
RESET
SLEEP
TIMER
STERILIZE
To stop the operation, press the power button again. The power button’s light turns red, operation stops,
and display turns o.
9. Power off
UV SterilizationNegative Ion
Operation Panel
Power On / O Button
Wind Speed
Water Tank
PM2.5 Value
UV Light Sterilization
Ionzier
Indicator
Light
Display
13
EN

Note:
1. Please be sure to remove the insulation sheet at the battery compartment before rst use.
2. Use the remote control within a distance of 3 meters from the main unit.
3. If you need to control the main unit, please point the remote controller towards the display of main unit.
4. When the main unit receives valid remote control signal, a “beeping” sound will be heard.
5. Do not leave the battery in the remote controller if they are not going to be used for 3 months or more.
Battery Warning:
1. Remove worn-out battery from equipment immediately and dispose of promptly.
2. Keep all batteries (used or new) out of the reach of children.
3. Check the battery regularly and replace with a new battery if not used for a long time.
4. Never dispose of batteries in fire, as they could explode.
5. Remove battery from the electrical device is not going to be used for a long time.
6. If the performance of battery decreases substantially, it is time to replace new battery.

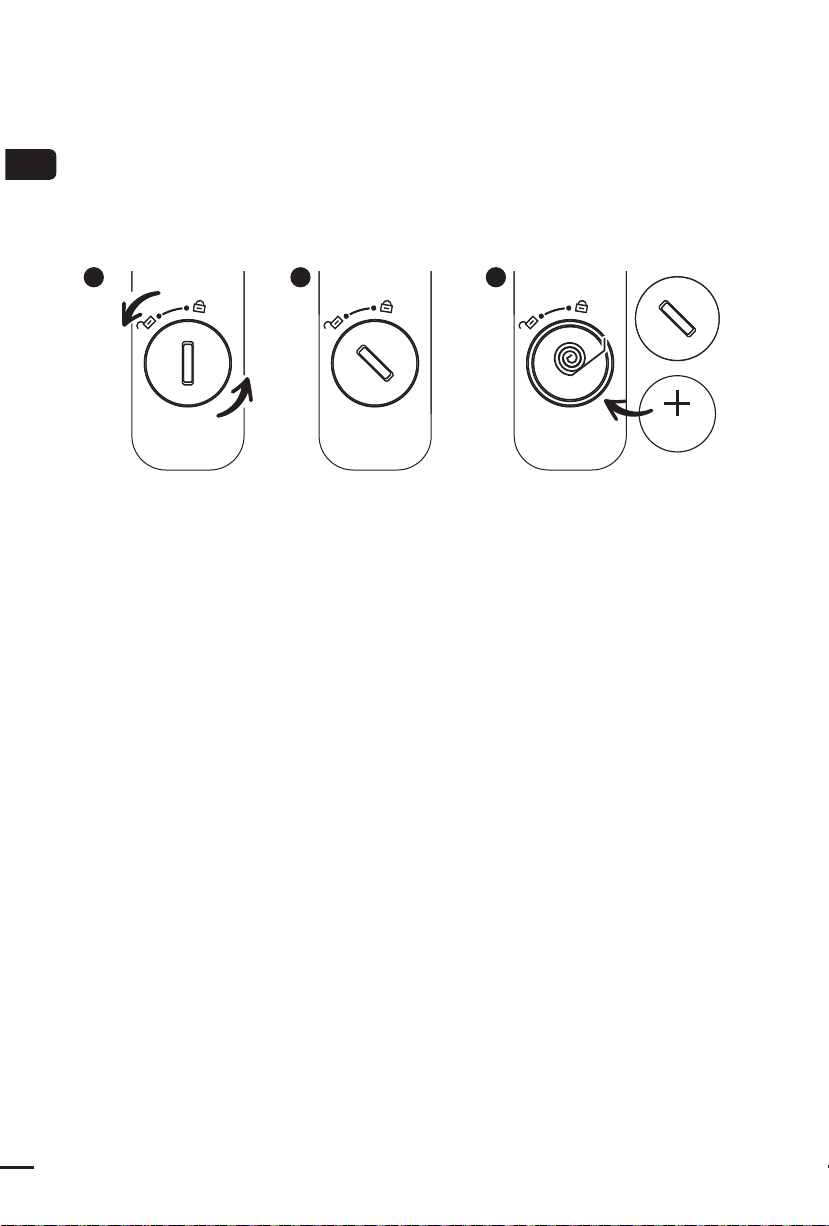

1. Remove the battery cover in the rear part of the remote control as illustrated.
2. Take out the old battery and replace with a new one (“+” facing up).
3. Reinstall the battery cover and lock it.
If the remote control stops working or works improperly, replace the battery (CR2032 lithium battery) with
a new one.
Replacing Battery
1 2 3
CR2032
CR2032
CR2032
CR2032
14
EN

WARNING: If use water to cleaning the lters, ltration performance
may reduce.
WARNING: If use water to cleaning the lters, ltration performance
may reduce.
Before cleaning, be sure to stop operation and unplug from the socket.
●Do not operate the machine in absence of a filter. It will not be able to remove the dust. Dust taken
into the machine may cause malfunction.
●When not using the machine for a long period of time, please unplug it. Power is also consumed
while in standby mode.
●You may need to replace filters sooner depending on where and how you use the appliance (such as
a household with a large smoking population or areas with higher air pollution). Replace the filter if
filtration is not noticeable.
2. Cellular-Activated Carbon, cold catalyst lter (Suggest to clean every month and replace the lter
after the main unit has operated 1500 hours/ 6 months)
●Clean the dust from the front of the lter with a vacuum cleaner.
●Place the lter in a ventilated area, this will allow harmful gasses
and germs to dissipate. Do not place under too much sunlight
exposure.
●The lter is delicate. Do not press too hard on the lter while
vacuuming.
●Do not use water to clean this lter.
1. Pre-lter (Clean depends on dirt level. Suggest to replace every 2 years or any damage occur.)
●Clean the surface of the lter with a vacuum cleaner or wash
with water. Allow to dry thoroughly.
3. Antibacterial cotton, H13 HEPA lter (Suggest to clean every month and replace the lter after the
main unit has operated 1500 hours/ 6 months)
●Place the lter in a ventilated area, this will allow harmful gasses
and germs to dissipate. Do not place under too much sunlight
exposure.
●Do not use water to clean this lter.
5Maintenance
4. Water Tank (Clean depends on dirt level)
●Clean the water tank with water and dry thoroughly.
15
EN

7. Cleaning of air outlet (Clean depends on dirt level)
●Switch o the power and pull out the plug from
socket.
●Put the hand on air grid locks and pull up to remove.
●Use a cloth to clean the air grid and cover it back.
9. Particulate sensor (Clean depends on dirt level)
●Switch o the power and pull out the plug from socket.
●Remove the external cover of the particulate sensor and wipe
the lens with a dry cotton swab to remove the dirt gently as
shown in the gure.
●Install the external cover to original position after cleaning.
●Do not insert the cotton swab into any area other than the
lens.
●Be sure to unplug the power cord before cleaning.
●If you are unable to see the lens clearly, please use a light for
assistance.
8. Clean anion generator (Clean depends on dirt level)
●When you hear the machine producing a creaking
sound, use a cotton swab as a cleaning tool. Insert
the cotton swab from the ventilation window above
the anion emission head. Regularly clean the dust all
around the emission head.
Cotton Swab
Cotton Swab
Emission Heads
●Clean the humidifying lter with water and dry thoroughly.
6. Humidifying filter (Clean depends on dirt level. Suggest to replace every year or any damage occurred.)
5. Ceramic balls (Clean depends on dirt level. Suggest to replace every year or any damage occurred.)
●Clean the ceramic ball box with water and dry thoroughly.
WARNING: Do not stuck any objects into particulate sensor.
It may cause error of air quality measure and result in
malfunction of product.
Air Grid Locks
16
WARNING: Take out the air grid during operation, the
machine will stop automatically. Please turn o the
machine before cleaning.
EN

6Troubleshooting (If failure is suspected, check the following)
CausePhenomenon Solution
No power
Does not operate.
(The Power Button
does not light on)
Or pressing button
has no response
Connect the plug to the power outlet securely and
rmly
Front panel came o / Air grid does
not install well
Securely attach the front panel / Install air grid
properly
The main unit fell
Child lock is on
Remove the dirt on operation panel
Remove anything that is blocking the air outlet or
air intake
Follow the instruction of (5) Maintenance “9.
Particulate sensor”
Move it somewhere else and try again
Wearing gloves or bandages Press the button directly with your nger
Touching another operation button Press one button each time
Child lock is on Press and hold the Child Lock Button for 5 sec to
cancel the child lock function
The machine has
been operated for a
long time but no
signicant
improvement in air
quality
Did not remove the plastic bag on the
lters
The lters are placed in incorrect order Follow the instruction of (4) How to use “2. Installing
the lter and front cover.”
The air outlet or air intake have been
blocked
The particulate senor is dirty
The machine is put in a place that
cannot absorb the dirty air easily
Follow the instruction of (5) Maintenance “8. Clean
anion generator”
Follow the instruction of (5) Maintenance“1-3 Clean
the lters
Replace with new lters
Follow the instruction of How to use “7. Reset
function"
Too much dust on the anion generator
The lters are dirty
The lters have not been replaced for
a long time
The lter replacement notication
function is ON
The operation panel is dirty
Cannot operate
The air from the
outlet is weak
The reset button lights
on continuously
There is banging or
chirping sound while
running
The smell of the
air outlet is
unpleasant
The air is dirty but
the indicator light
remains in green
color or the indicator
light keeps in red
color even the
machine operates
continuously
Stand the unit upright
Press and hold the Child Lock Button for 5 sec to
cancel the child lock function
The main unit tilt Place the machine on a stable and at surface
Follow the instruction of (4) How to use “1. Removing
the lter from the plastic bag” &“2. Installing the lter
and front cover.”
4
4
5
5
5
4
17
EN

7Specifications
Product Name
Power Input
Rated Power
Power Cord
Anion Concentration
Amount of Particulate-
Cleaned Air (CADR)
Amount of Formaldehyde-
Cleaned Air (CADR)
Suggested Applicable Area
Suggested Period to
Replace Filters
Weight
Dimension
Operation Temperature 0~40˚C
Country of Origin China
Air Purier
450m3/h
90W
54m2 MAX
3
20 million/cm
Approx. 2m
84m3/h
Approx. 11.5kg
AC220V~50-60Hz
#1 Pre-lter 2 years
#2 Cellular-Activated Carbon, cold catalyst lter
6 months / 1500 hours
#3 Antibacterial cotton, H13 HEPA lter 6 months /
1500 hours
400 x 230 x 660mm
Disposal of product
When disposing of this product, please follow the instructions (local regulations) of each local
government.
18
EN

8Warranty Policy
During the warranty period from the date of purchase, if the product fails in a defective condition
under normal use in accordance with this user manual and other written precautions, free repair and
free replacement service shall be provided based on this policy.
For details, please contact the seller or store.
1. During the warranty period, repair and replacement services may charge if :
a. Damage and malfunctions caused by failing to use in accordance with the user manual, remodeling or
improper repair.
b. Damage and malfunctions caused by improper handling after purchase (such as dropping), house
moving or bad transport.
c. Damage and malfunctions caused by natural disasters such as re, earthquake, ooding, thunderstorm,
as well as external factors such as pollution, salt damages, gas leak (hydrous gas, etc.) and abnormal
power voltage.
d. Damage and malfunctions caused by commercial uses (such as equipping on vehicles, ships, etc.) and
other non-household purposes (including demonstrations, displays or exhibitions, etc.).
e. Failure to present proof of purchase (such as receipt or store invoice).
f. Incomplete information written on warranty slip such as date of purchase, user name, store name, or
rewritten text is found.
g. Request for warranty service for any accessories or consumable items other than the main unit.
h. Purchased as second-hand from such as auctions and recycling shops.
2. Maxell do not take responsibility for compensation for secondary damage (such as loss of expected
prot, mental damage, etc.) resulting from failure of this product.
3. Mail fee shall be borne by user even within the warranty period.
4. In case of address change, please consult the seller or store in advance.
5. This warranty is only valid at the country or place of purchase, no international warranty service shall be
provided.
6. Re-issuance of this warrant slip is not available. Please keep it properly.
Hong Kong Agent:
New Star Company LTD.
Address:10/F, Startex Building,
14 Tai Yau Street,
San Po Kong,
Kowloon, Hong Kong
Tel : +852 2796 2522
http://www.newstarltd.com.hk
19
EN

Table of contents
Other Maxell Air Cleaner manuals
Popular Air Cleaner manuals by other brands

Better Air
Better Air BA-500 Quick start installation guide

TUR MIX
TUR MIX AX 550 Instruction

cleanAIR
cleanAIR AtmosAir FC-400 Series Installation, operation and maintenance guide

Pure-Pro
Pure-Pro Professional air purifier owner's manual

Better Air
Better Air BIODIFY quick start guide

Germguardian
Germguardian AC5000 Use & care instructions
