Maxima Hera Easy Plus Mounting instructions

LANGUAGE
EN
ISTRUCTION
HERA
EASY
PLUS
USE MANUAL

1
GENERAL CONTENTS
DESCRIPTION OF THE MACHINE ..............................................................................................................PAG. 02
MACHINE OPERATIONS............................................................................................................................PAG. 03
1a STEP: LOWER DRUM FILLING ............................................................................................................................ PAG. 03
2a STEP: WATER TANK FILLING.............................................................................................................................. PAG. 03
3a STEP: FILLING THE DETERGENT TANK .............................................................................................................. PAG. 03
4a STEP: TURNING ON ............................................................................................................................................ PAG. 04
5a STEP: HOSE CONNECTION ................................................................................................................................. PAG. 05
6a STEP: ACCESSORY STARTING............................................................................................................................. PAG. 05
ACCESSORIES EQUIPPED WITH MACHINE...............................................................................................PAG. 06
1 HANDLE WITH HOSE.................................................................................................................................... PAG. 06
2 MULTIFUNCTION BRUSH.............................................................................................................................. PAG. 06
2A FITTING FOR LIQUID SUCTION..................................................................................................................... PAG. 06
2B FITTING FOR CARPETS.................................................................................................................................. PAG. 06
2C UNIVERSAL FITTING ..................................................................................................................................... PAG. 06
3 WINDOW CLEANER...................................................................................................................................... PAG. 07
4 150 MM. NOZZLE ......................................................................................................................................... PAG. 07
4A WINDOW CLEANER FITTING........................................................................................................................ PAG. 07
4B BRISTLE FITTING ........................................................................................................................................... PAG. 07
5 STEAM NOZZLE ADAPTER ........................................................................................................................... PAG. 07
6 EXTENSIONS ................................................................................................................................................. PAG. 07
7 TANK FILLING BOTTLE ................................................................................................................................. PAG. 07
ROUTING MAINTENANCE ........................................................................................................................PAG. 08
OPTIONAL.................................................................................................................................................PAG. 09
SAFETY RULES AND CAUTIONS ...............................................................................................................PAG. 10
TROUBLESHOOTING .................................................................................................................................PAG. 11
AFTER-SALES ASSISTANCE ......................................................................................................................PAG. 12

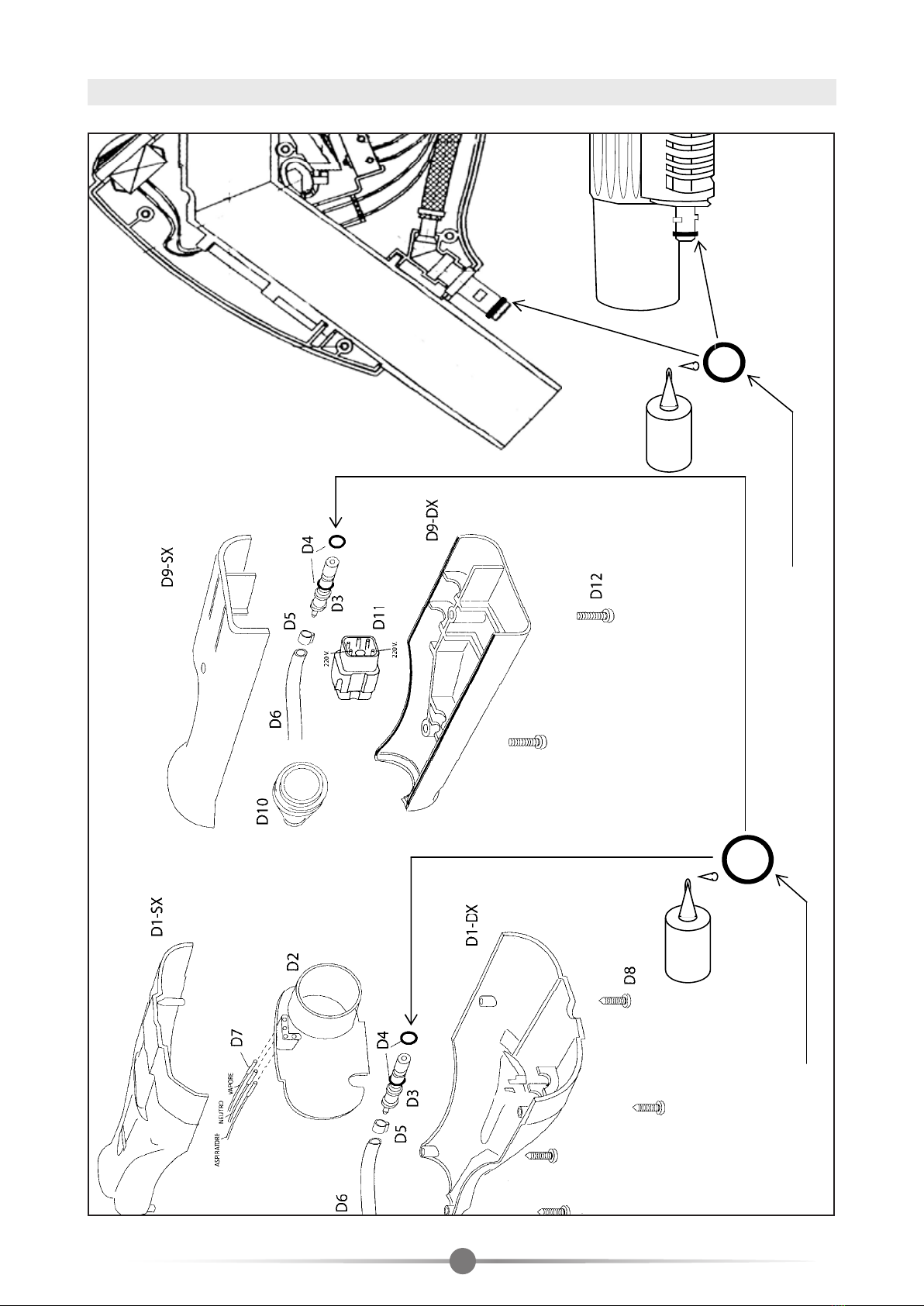

SPARE O-RING .......................................................................................................................................... PAG. 13
WARNING: READ THE PRESENT MANUAL BEFORE USING THE APPLIANCE.
INTRODUCTION
WE THANK YOU FOR CHOOSING THIS PRODUCT MADE IN ITALY.
THIS MACHINE IS THE RESULT OF A CAREFUL SEARCH CARRIED OUT BY PEOPLE KEEN ON CLEAN AND INNOVATION
AND IT REPRESENTS THE NEWEST PRODUCT AMONG THE NEW-GENERATION MULTIFUNCTION DEVICES.
THIS MACHINE CARRIES OUT THE FUNCTIONS OF 5 DIFFERENT HOUSEHOLD APPLIANCES: IT SUCKS, WASHES, DRIES,
SANITIZES AND IRONS. IT IS A SPECIAL, POWERFUL AND ECOLOGICAL MACHINE, IT DOESN’T NEED FILTERS OR
BAGS TO BE REPLACED PERIODICALLY AND EXPLOITS THE NATURAL PROPERTIES OF WATER TO ENSURE MAXIMUM
HYGIENE AND CLEANLINESS.
THANKS TO ITS SMALL OVERALL DIMENSION IT CAN BE HANDLED EASILY AND KEPT ANYWHERE.
WE RECOMMEND READING CAREFULLY THIS MANUAL TO DISCOVER ALL ELEKTRA FEATURES AND POTENTIALITIES.
MOREOVER, WE RECOMMEND STRICTLY FOLLOWING THE ADVISES AND CAUTIONS FOR A CORRECT USE IN ORDER
TO ENSURE VERY GOOD RESULTS AND SAFETY.

12
10
11
5
1
2
3
4
6
7
8
9
2

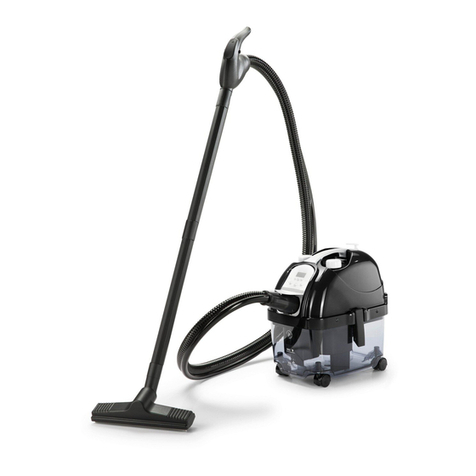

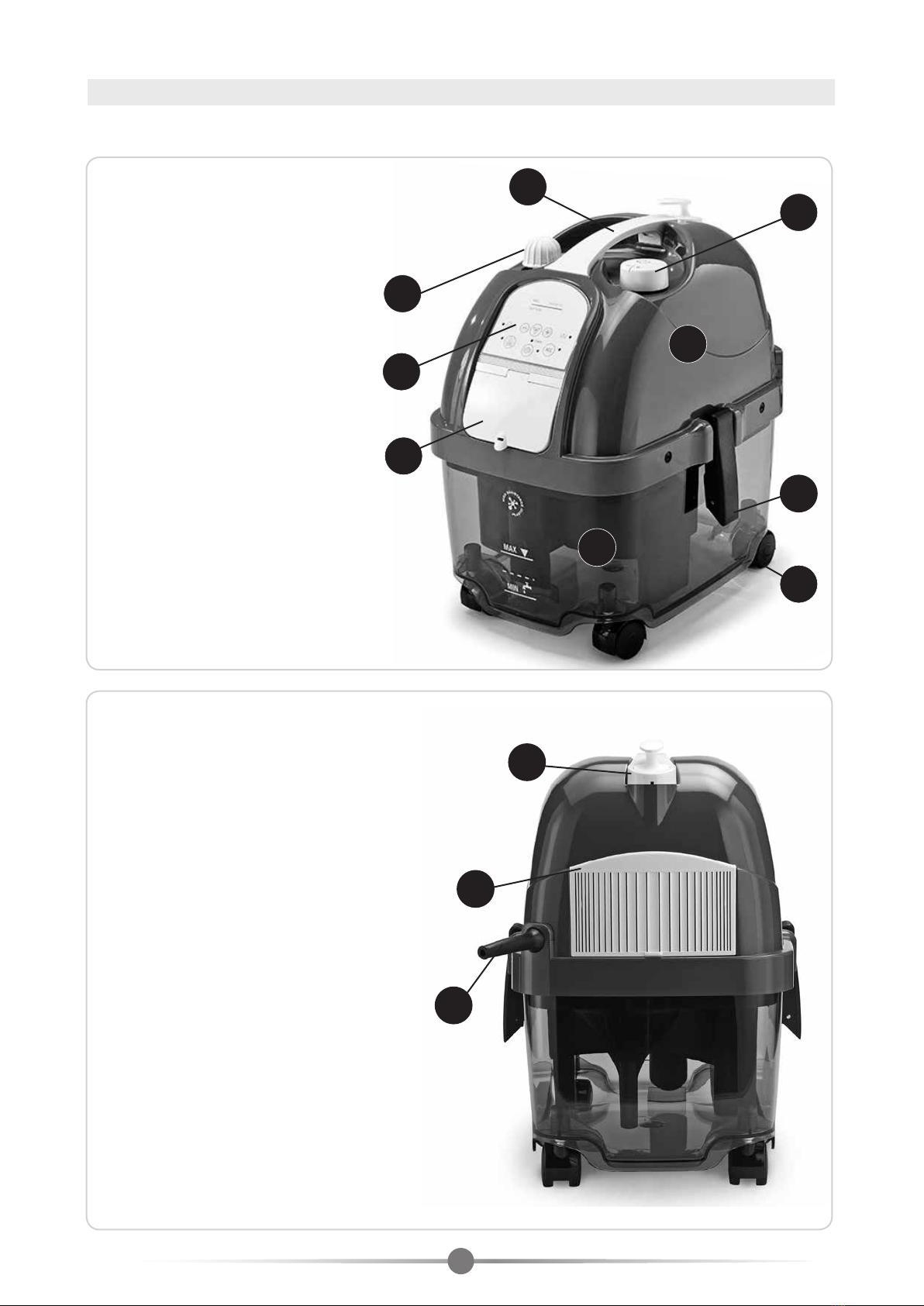

DESCRIPTION OF THE MACHINE
Front part
1. Opening to insert the hoses
2. Control panel
3. Steam adjusting knob
4. Boiler safety plug
5. Upper cover
6. Handle
7. Lower drum
8. Closing hook
9. Wheels
Rear part
10. Filter cover
11. Feeding cable
12. Detergent tank plug and cable reel

FIG.6
FIG.5
FIG.1 FIG.2
FIG.4
FIG.3
FIG.8
FIG.7
3
MACHINE OPERATION
1ST STEP: LOWER DRUM FILLING
• Unhook the closing devices (fig.1);
• Lift the upper cover (fig.2);
• Fill the lower drum with about 2 litres of clean water (fig.3)
• Reposition the cover by paying attention to the drum level
indicator. It must be is in the front part (fig.4)
IMPORTANT: to avoid motor damages during the
suction check that the liquid contained in the drum
does not exceed the level indicated on the drum
itself (MAX) (fig.4) otherwise we recommend
emptying the drum.
2ND STEP: TANK FILLING
• Remove the plug when the machine is cold and not under
pressure (fig.5), fill the tank with water by using the suitable
bottle supplied through the mouth of the safety plug (fig.6)
then close by screwing and pressing the plug downwards.
• When the water is finished in the tank, the “f” light will light
up and at the same time there will be an acoustic signal; in
this case immediately turn off the boiler by pushing button
“A”, eliminate any pressure residue by pressing the steam
button on the handle (fig.13 page 5).
• At this point disconnect the feeding cable, then eliminate
any pressure residue by slightly unscrewing the safety plug
(BE CAREFUL OF ANY STEAM THAT MAY SPURT OUT)
• Once there is no residue pressure, wait 5/10 minutes and
repeat from point 1.
WARNING: DO NOT TURN ON THE BOILER IF IT IS
EMPTY, YOU COULD MAY DAMAGE THE RESISTANCE
(NOT COVERED BY WARRANTY). DO NOT TOUCH AND/
OR OPEN THE SAFETY PLUG WHEN THE BOILER IS ON
OR STILL UNDER PRESSURE! DANGER OF BURNS!
3RD FILLING THE DETERGENT TANK
• Remove the plug (fig.7)
• Fill the tank with water or diluted detergent by using the
funnel provided (fig.8) paying attention to the capacity limit
of the tank (any excess water will automatically flow into
the lower drum).
• Put the plug again.
WARNING: Fill the lower drum only with water.
Use detergents approved by the manufacturer
only - non foaming detergents -the use of different
detergents or chemical products may compromise
the apparatus safety.
Do not use fragrances-essential oils different
from the ones approved by the Manufacturer.
They may damage the drum.
Empty and wash the drum after each use.
To clean the drum, use natural soap and rinse
with abundant water.

Ad eC
f
G
FIG. 9
B
44
4TH STEP: TURNING ON
• Connect the supply cable to a 230V plug provided with
earth. On the panel a red light “e” POWER will light up.
• For the vacuum cleaner function: press push button “B” and
ad just the power by means of keys +/-.
• For the steam function: press push button “A”, after about
7 minutes pilot light “d” lights up and the device reaches
the optimum working temperature and pressure. The steam
must be adjusted by means of the knob (fig.9) according to
the surface to be treated.
• For the iron / carpet cleaner function: press push button “C”,
the corresponding pilot light lights up.
• Detergent: this function allows different surfaces to be cold
washed, executing good dirt removal. It is recommended
especially for cleaning rugs/carpets/cushions. It can also be
used as a prewash before using the steam. Normal water
may be used or, if necessary, specific detergent diluted at
2-10% in water.
Start the detergent function by pressing push button G, the
corresponding light will light up. When the detergent in
the tank is finished the “Detergent” light will flash and the
detergent emission will also stop; in this case refill the rear
tank.
NOTE: the “Detergent” function and the steam function are
independent: on starting the detergent the steam emission will
automatically stop; to reinstate it just press push button G. The
“Detergent” can also be used when the boiler is off.
LIST OF THE PANELS FUNCTIONS
A. Push button to turn the boiler on
B. Push button to start and adjust the
motor (+/-)
C. Push button to start the iron / carpet cleaner
d. Pilot light signalling the steam is ready
e. Power light
f. Pilot light signalling the water is finished
G. Push button Detergent

FIG.11 FIG.12
FIG.13 FIG.14
FIG.10
55

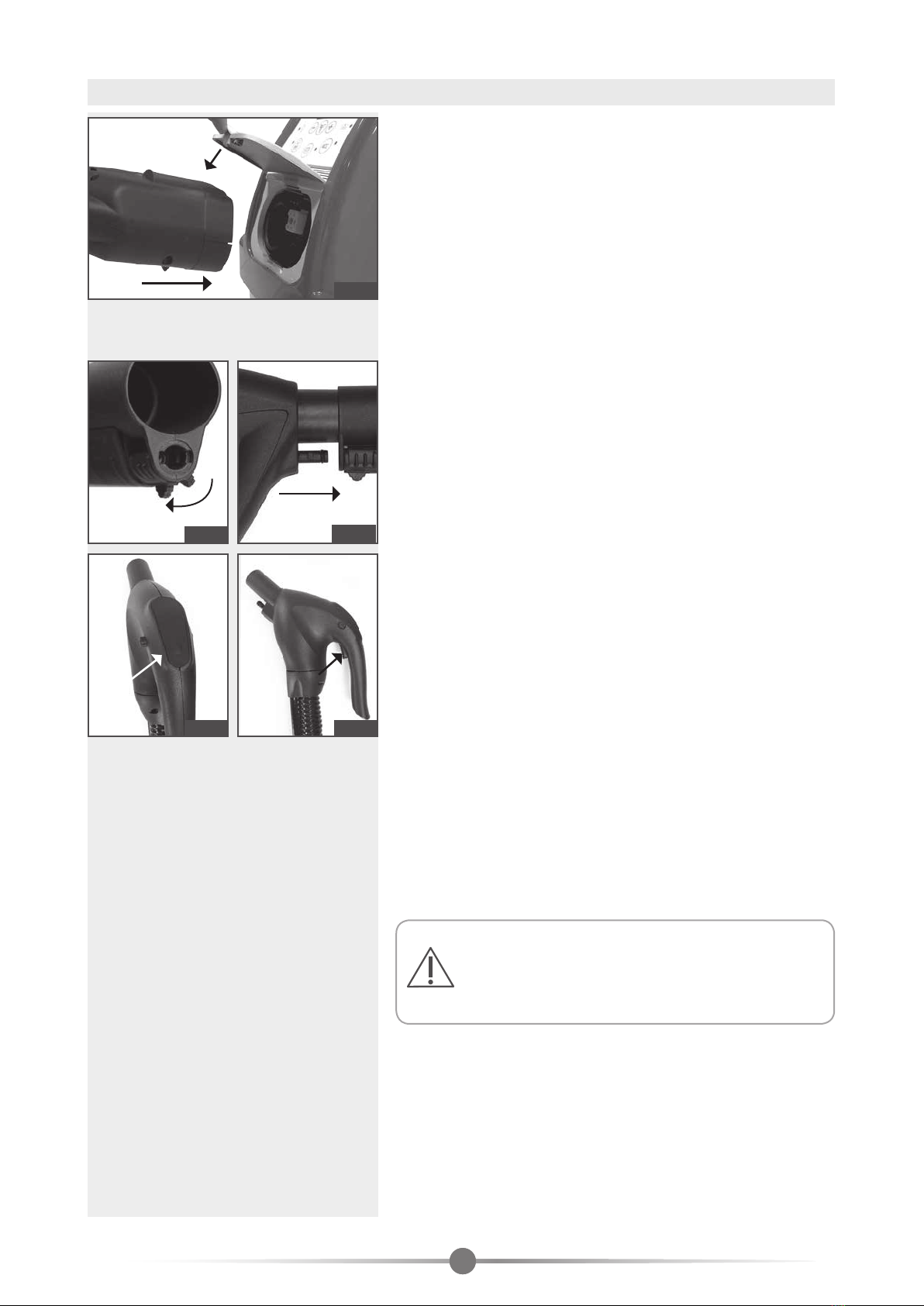

5TH STEP: HOSE CONNECTION
• To connect the hose, move upwards the door covering the
plug (fig.10), insert the plug and close the door by making
sure the pawl is into its proper seat.
6TH STEP: ACCESSORY STARTING
• All the accessories carry out the double function of suction
and steam. They fit in directly on the handle or on the
extensions.
• Move the ring nut to open position and keep it open (fig.11).
• Fit in the extension hose or the accessory (fig.12).
• Move the ring nut to close position. Release the spring wheel
for the hose extension.
• Press the button located on the start handle once and then
once again to stop suction (fig.13).
• To regulate the suction motor power, keep the button
pressed down during use (fig.13); every 4 seconds the power
will increase until it reaches maximum power (lev. 5) and
then it will restart from the minimum power (lev. 3). Once it
has reached the desired power, take pressure off the button;
the chosen power will be memorised.
• Keep the button under the handle pressed for steam and
then take pressure off it to stop (fig.14). The same button
will start the “Detergent”.
WARNING: DO NOT USE STEAM ON ELECTRIC
FIXTURES WHICH ARE ON OR ENERGIZED!

2B
2C
2A
2
d
A
B
e
C
1
open open
close close
66

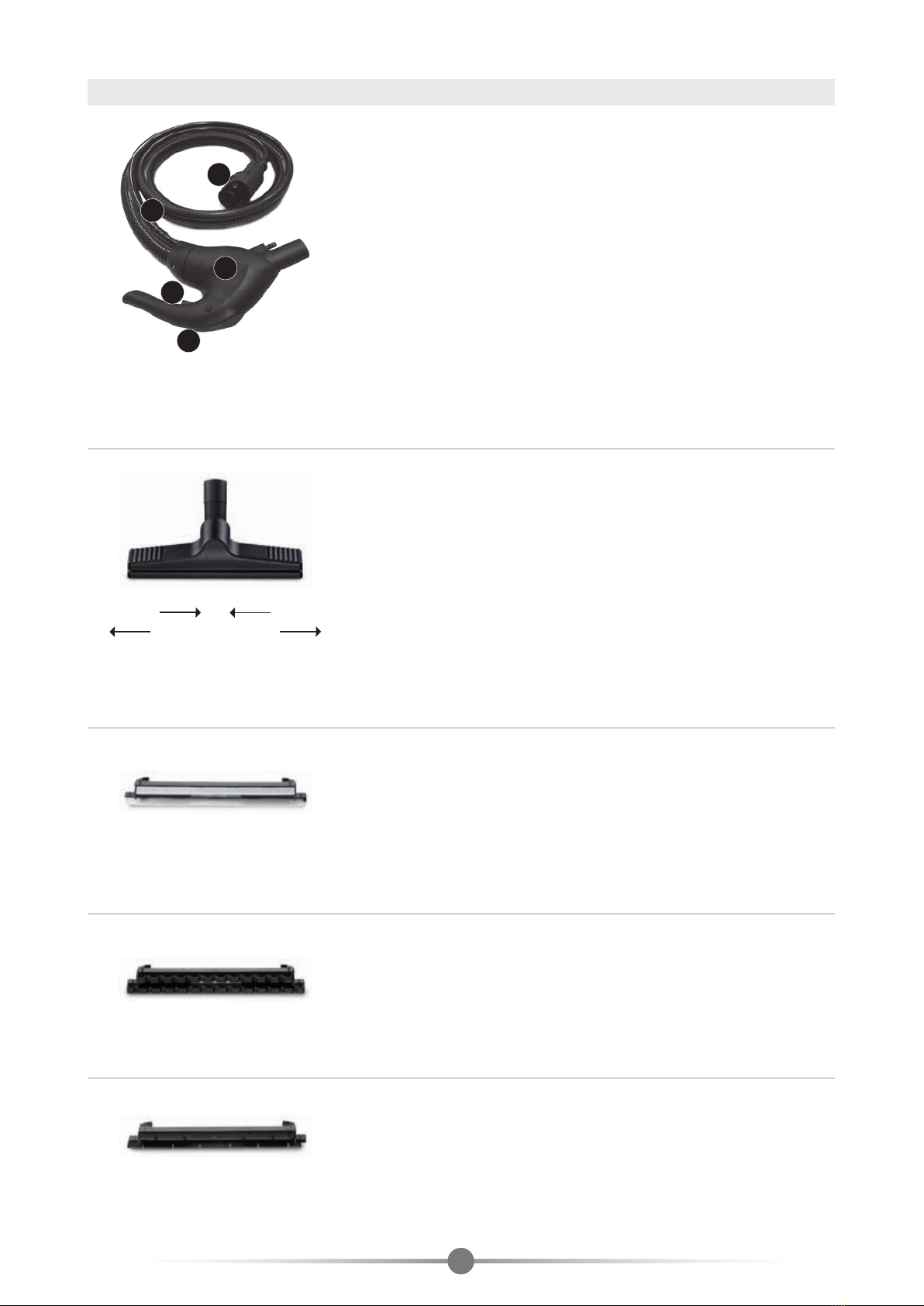

ACCESSORIES SUPPLIED WITH THE MACHINE
1. HANDLE WITH HOSE
A. Plug.
B. Hose.
C. Handle.
d. Steam push button.
e. Suction push button.
MAINTENANCE OF THE HOSE
After every use we recommend rinsing the hose by sucking one/
two litres of water from a basin to prevent the dirt from settling
on the internal walls. Then, hook it, so that it can get dry.
2. MULTIFUNCTION BRUSH
It is equipped by an articulation which allows it to turn 360°. This
brush can clean areas difficult to be reached (under the furniture
and the beds, on high cupboards, etc.) and various kind of floor,
carpets, etc.
To use the desired fitting on the brush, just insert it and by
keeping it pressed, move the orange sliders inwards (fig. 2). To
remove the fitting, move the sliders outwards.
2A. FITTING FOR LIQUID SUCTION
It is fitted to clean floors, plastic coatings, marble, etc..
Steam the surface to be cleaned and then suck; the result is a
perfectly clean and dry surface.
2B. FITTING FOR CARPETS
The rounded shape allows sliding and cleaning carpets and fitted
carpets more easily.
2C. UNIVERSAL FITTING
It can be used as vacuum cleaner on floors, tiles, plastic coatings.

6
5
5B
5A
5C
7
3
4A
4
4B
7

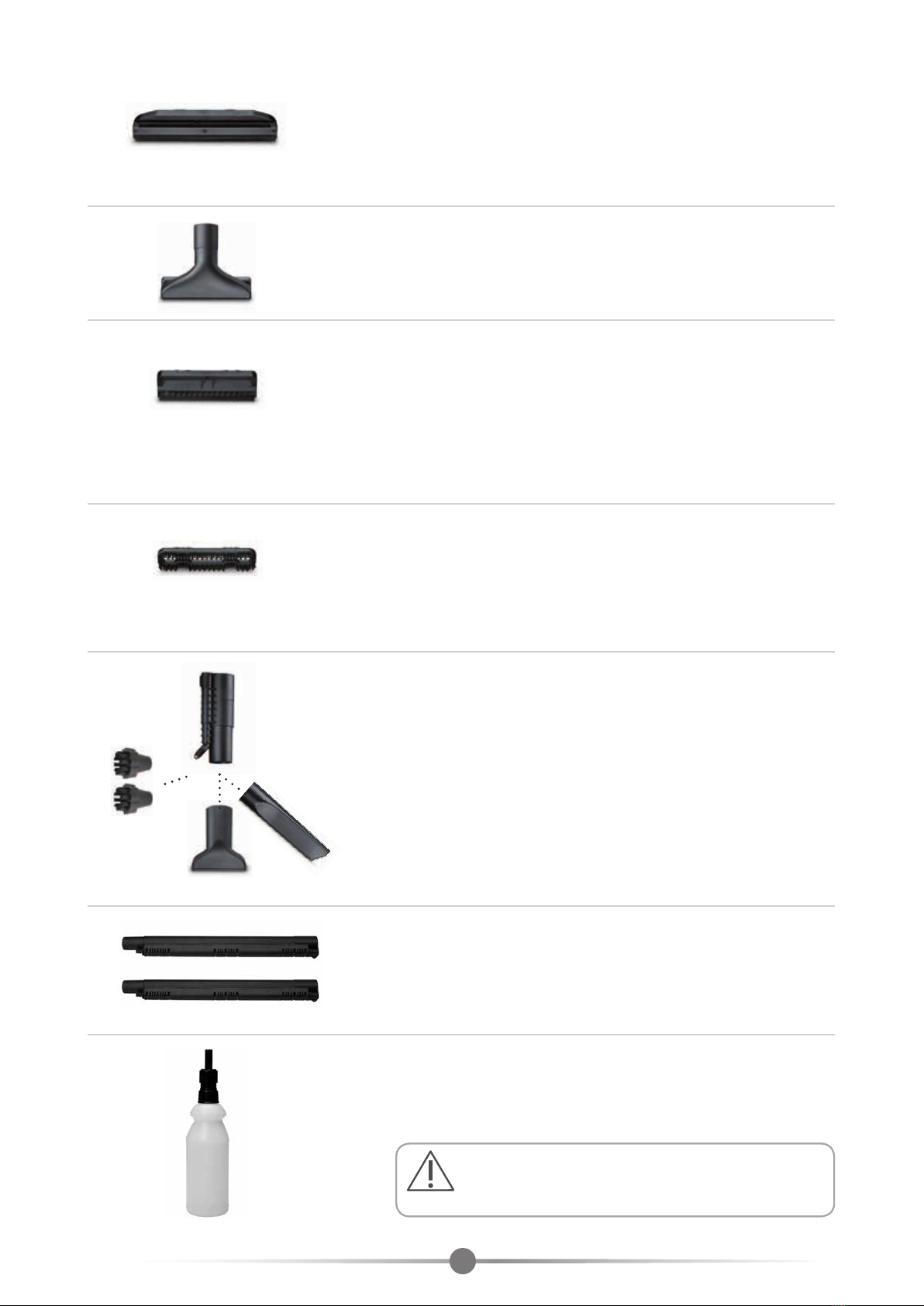

3. WINDOW CLEANER
The window cleaner is particularly suitable for the cleaning of
windows and mirrors.
For the use refer to point 4A.
NOTE: in winter the windows must be previously warmed by using
the accessory at a distance of 10/15 cm. before starting cleaning.
4. 150 MM. NOZZLE
It is a brush on which the following fittings can be assembled:
4A. WINDOW CLEANER FITTING
Ideal to clean “English” windows. For a correct use we
recommend warming the accessory by keeping the steam push
button pressed for some seconds and steaming in the air. Then
proceed with the cleaning.
It is possible to steam and suck at the same time or separately.
We recommend using the window cleaner from the top to the
bottom by keeping it well pushed on the window.
4B. BRISTLE FITTING
It can be used to clean sofas, armchairs, seats, etc.
For a correct use steam and suck by keeping pressed the brush
against the surface so that the dirt can be easily removed.
5. ADAPTER FOR THE STEAM LANCE
5A. Bristle brush diameter 30 mm
5B. 80 mm nozzle
5C. Lance
Particularly recommended to clean shower boxes, grills, fly
screens and the spaces between the tiles etc. Ideal also for the
defrosting of freezers or refrigerators.
6. EXTENSIONS
Essential to clean floors, washable walls or high windows. They
can be used combined with any other accessory.
7. BOTTLE TO FILL THE TANK
IMPORTANT: adjust the pressure of the steam
according to the type of surface. Pay attention to
the more delicate surfaces.

C
B
A
NO!
NO!OK
C
AB
D
88
COMPONENTS OF FILTER AND SEPARATOR
A. Molecular separator.
B. Knurled screw.
C. Filter.
D. Motor support.
ROUTINE MAINTENANCE
DETERGENT PUMP
If you do not use the Power Jet function and/or do not use the
machine for a few days, we recommend rinsing the pump pouring
only water into the detergent tank and emptying it once or twice.
MOTOR SUPPORT (D)
It is located under the upper cover. For the cleaning at first we
recommend disconnecting the device. Use only a wet cloth. Do not
use direct water jets (i.e.: shower, tap, etc.).
THE MACHINE CAN BE TIPPED TO ONE SIDE ONLY FOR
THIS FUNCTION (DO NOT OVERTURN THE MACHINE
FOR ANY REASON!)
FILTER AND SEPARATOR
Once the filter is removed, you can see the “molecular separator”
(A). Both the filter and the separator must be washed separately
with water. To remove them, contact an authorised service centre.
NOTE FOR THE TECHNICIAN AT THE SERVICE CENTRE:
To remove filter (C) remove the safety screw by turning it until it
comes away. To remove separator (a) unscrew knurled screw (B) and
remove from the housing. Be careful on re-inserting it as it has a set
housing. Screw the knurled screw clockwise without tightening it
too much. Do not use the machine if the plastic filter is not inserted
or if it is without the “molecular separator”.
SPONGE FILTER
The filter cover (A) is located in the rear part of the machine and can
be removed by sliding it upwards.
Once the filter cover has been removed, you can reach the silencer
filter (B) which is located in the motor air outlet (C). We recommend
cleaning it periodically by washing it with water.
A. Filter cover
B. Silencer filter
C. Air outlet
