Maximum C 901 CX User manual

1Maximum C 901 CX
Cable receiver
Maximum C 901 CX
USER MANUAL
ENGLISH
POWER
C 901 CX

2Maximum C 901 CX
TABLE OF CONTENTS
1. Remote control functions...............................................................................page 3
2. Operating the receiver from the buttons on the front.....................................page 4
3. Installation..................................................................................................... page 5
4. Connection of the receiver.............................................................................page 6
 5. Thersttimeyouturnthereceiveron...........................................................page 6
6. Channel lists.................................................................................................. page 8
7. The personal channel lists.............................................................................page 8
8. Moving and editing of channel lists................................................................page 9
 9. Dailyuse........................................................................................................page 10
10. EPG - Electronic Program Guide...................................................................page 11
11. Timer..............................................................................................................page 11
12. Access control............................................................................................... page 12
 13. Thetype-inbox..............................................................................................page 12
14. Searching for new channels.......................................................................... page 13
15. Advanced channel search............................................................................. page 14
16. Installation..................................................................................................... page 14
17. Teletext.......................................................................................................... page 15
18. Radio channels..............................................................................................page 15

3Maximum C 901 CX
1. Remote Control functions
INFO Shows the status bar on the TV screen.
TV/AV Changes between the video and the receiver picture.
TV/Radio Changes between the TV and Radio programmes in the receiver.
  “Standby”-Turnsthereceiveronandoff.
0-9 Number buttons.
UHF No function.
SAT Shows the signal information on the screen.
PR Previous program.
EPG Shows the program information.
One page up.
One page down.
AUDIO Choice of sound track.
POSITION Program editing.
One press shows the subtitles, the second press of this
button shows the text TV.
No function.
EXIT Back to the previous menu point, or cancel a menu choice.
PR+Program up or up in the menu navigation.
MENU Enters the main menu, the second press of the button exits
the menu.
- Turn the sound down or left in menu navigation.
OK Shows the program lists or accept a change.
+
Turn the sound up or right in menu navigation.
Mute sound.
PR-Program down or down in menu navigation.
FAV Change between the favourite lists.
NOTE!
Please be aware that the coloured keys have different functions according to, where you are in the
menus. Their function will be show on the screen.
5
5
6
6
_
L
R

4Maximum C 901 CX
2. Operating the receiver from the buttons on the front
Front panel:
Ifforanyreasontheremotecontrolstopsworking,thereceivercanverybasicallybecontrolled
with the buttons on the front.
1 = TurnthereceiveronorputthereceiverintotheStand-bymode
2 = Next channel
3 = Previous channel
 4=Display
Card reader:
5 = The top slot is for the conax Smart card. The card has to be inserted with the
 yellowICchipdownwardsandtowardstherearofthereceiver.
POWER
C 901 CX
1 2 3
5
4

5Maximum C 901 CX
3. Installation
Read these instructions carefully before connecting the receiver.
YournewDigitalReceiverhasbeendesignedtobeuser-friendlyandeasytouse.Thereceivercan
receivedigitalchannelsviacable.Furthermore,thereceiverhastheabilitytodecodeConaxencoded
channels with the help of a smart card.
Adigitalsoundoutputontherearofthereceivergivesthepossibilityofrealcinemasound,ifyouhave
asurroundamplier.
Oneofthegoalsinthedevelopmentofthisreceiver,hasbeentomakeaneasytousemenustructure,
enabling user-satisfaction. Under the development, we have paid particular attention to the software in
thereceiver,especiallythestability,sothatthereislessneedforupdatesofthesoftware.Eventhough
particular attention has been paid to the software, there is no guarantee that an update will not be
necessary,e.g.ifthereisanychangetothewayinwhichtheprogramsaresent.
Itisimportanttoensurethatyouhavethemostrecentsoftwareinyourreceiver;thiswillgiveyouthe
best possible performance from the receiver. The software can be downloaded from the homepage
www.kjaerulff1.com.
Safety!
Toprotectyouandyourreceiverfromhazardsanddanger,protectthereceiverfrom:
• Fluids, of all forms.
• Cold, heat and extreme temperature changes.
• Dust
 •Lackofventilation,especiallyiftheventilationholesbecomecovered.
• Crushing.
Ifyoutakethereceiverfromacoldenvironmenttoawarmone,pleasebecarefulwiththecondensa-
tionbuildupinthereceiver.Tostopanyhazardhere,pleaseallowthereceivertostandwithoutpower
connected for at least one hour.
Lightning can damage the receiver. Therefore remember to remove the signal cable from the
receiver, if there is a risk of lightning.
Donotallowforeignobjects(metalobjects,paperclips,uids,candlewax,andotheritems)toenter
the receiver cabinet, through the ventilation holes and the card reader. This can short circuit the
receiverandcausearehazard.Ifanythingdoesenterthecabinet,removethecablefromthemains
immediatelyandcontactyourdealer.
Pleasepayparticularattentiontothemainscable,sothatitcannotbedamagedinanyway.Thecable
mustnotbesubjectedtosharpedges,knots,orheavyfurniture.Damagetothemainscablecan
causearehazardorelectricalshock.
The mains power cable must not be pulled on. To remove the power, please hold the plug and do not
pull on the cable. Pulling on the cable can damage it.
Lightning,damagefromuids,connectionofanyequipmentnotspeciedinthismanual,useofexces-
siveforce,installationofanysoftwarenot ofcially released(patchorcopysoftware)is not covered
under the terms of the guarantee.

6Maximum C 901 CX
CABLE IN CABLE OUT
1 2
5 4
6
3 7
8
5. The rst time you turn the receiver on
Whenyouturnthereceiveronforthersttime,youwillbeguidedthroughtheinstallation
process.
Step by step:
1. Connect the receiver to the mains.
 2.Turnyoutelevisionon.
3. The installations guide will now be shown on the screen.
Choice of language:
Choosethelanguageyouwishtouseforthemenus,withPR-PR-and PR+.Whenyouhavechosen
thelanguageyouwishtouse,pressOK.
TV Format
Theseoptionsallowyoutochoose,whichtypeofequipmentisconnectedtothereceiver.
1. TV Format.
Thisoptionallowsyoutochoose,whichtypeofTVyouhave.A4:3oraViaTV(Widescreen).
Highlight the menu option and press OK.YoucannowchangetheoptionbypressingPR-PR-and
PR+.
4. Connection of the receiver
1 = Input for cable signals.
2 = Output to the next digital receiver.
 3=Soundoutput,canbeconnectedtoanamplier.
4 = SCART output, should be connected to the TV as this gives the best picture.
5 = SCART inout/output to a Video or DVD recorder.
6=Digitalopticaloutput,connectedtoasurroundamplieryoucanexperience 
real cinema sound.
 7=Connectionforpowersupply
8 = RS-232, Software update from PC.

7Maximum C 901 CX
2. TV Scart
 ThisoptionwilldenewhichtypeofPictureinformationyouwishtouse.CVBSorRGB.CVBS
haslimitedpictureinformationandworksonalltypesoftelevision.WhereasRGBhasmore
pictureinformation.WerecommendtheuseofRGBifpossible,sometypesofTVcannotwork
withRGB,somakesureyouchoosethecorrectsetting.
 Whenyouhavemadetheappropriateadjustmentstothesettings,pressGREEN to search for
channels.

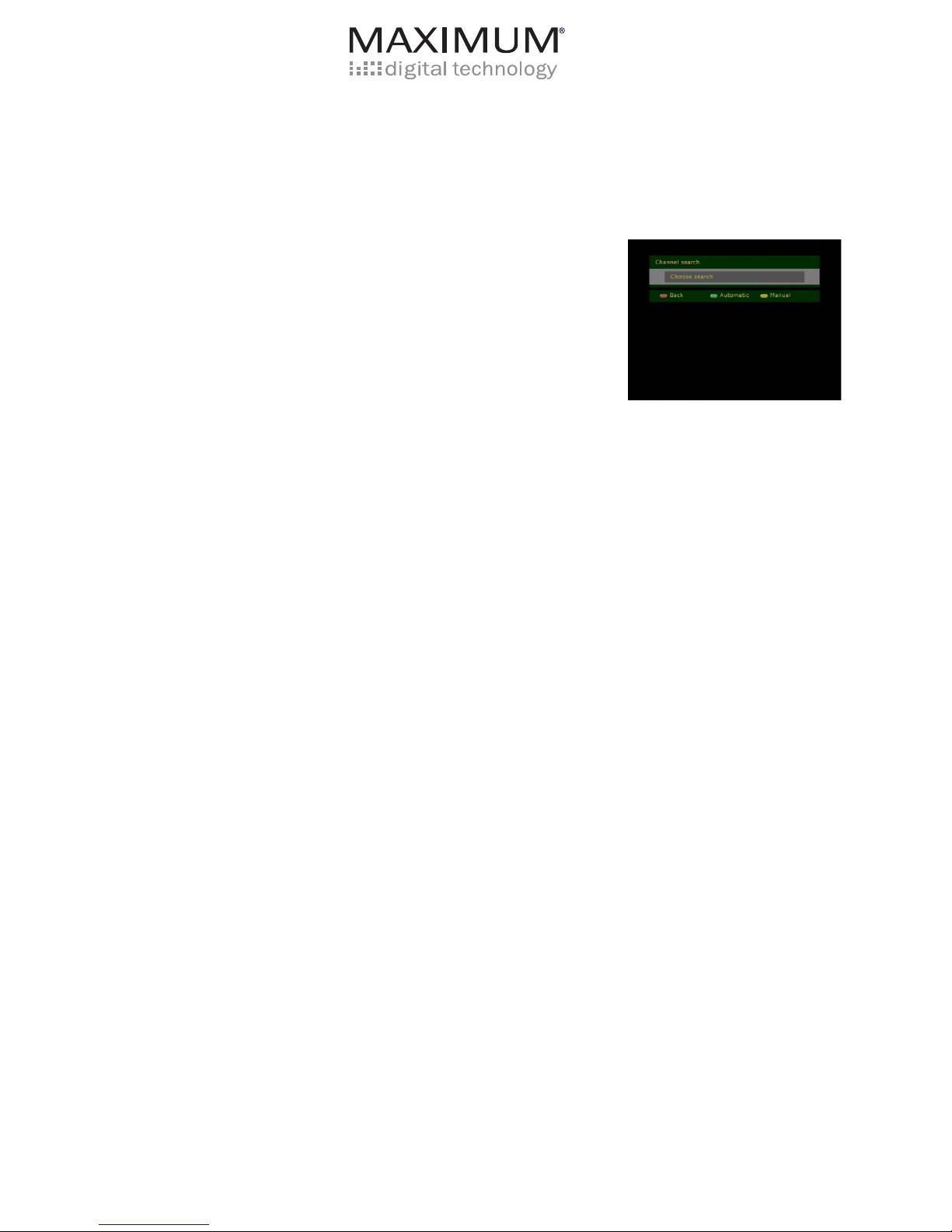

Search:
The receiver will now start to search for channels. Depending on the number of channels, this can
take up to 10 minutes.

8Maximum C 901 CX
Clock
ToensurethattheEPGandTimerfunctionsinthereceiverworkcorrectly,thereceiverhasto
beset-upwiththerighttimezone.Thiswillnormallybeset-upcorrectlybythereceiver,and
there would be no need to change the settings.
1. Time zone: Choosewhichtimezoneyouarein.
2. Update channel. Choose the channel that the receiver should update the clock from.
WhenyounowpressGREENthereceiverwillbereadyforuse.
6. Channel lists
Alldependingonwhichareatherecieverisin,itwillndandallocatechannelsdifferently
accordingtotheoperators’lists.(Thiswillonlyworkwheretheoperatorhasimplementedthis
function).Theminimumwillbeacompletemainlistwitheverychannelinit.
7. The personal channel lists
Adigitalreceivercanreceivealargenumberofchannels.Tomakethismoreuserfriendly,
youcanorganisethechannelstosuityourneeds.Apartfromtheliststhereceivergenerates
youcanalsodenefourlists.
To do this, press MENUandyouwillcomeintothemenu.HighlightChannels and press OK.
To make a channel list, highlight EditbypressingPR-PR-and PR+andconrmthechoiceby
pressing OK.
Press FAVuntilyouhavethelistwitheverychannelinit.
Byusingthenumberbuttons1–4youcanaddachanneltooneofthefourfavouritelists.
FirsthighlightachannelyouwouldlikeinthelistwithPR-PR-and PR+. After this, press 1 if
youwantthechannelintherstfavouritelist,2ifitshouldbeinthesecondfavouritelist,and
the same with 3 and 4.
Thesamechannelcanappearineverylistifnecessary.
Theorderyouchoosethemwillalsobetheordertheyare
displayedwhenyouarenished.SoifyouchooseChannel1to
beinthelistrst,channelthree,thenchanneltwo,thelistwillbe
in the order Channel 1- Channel 3- Channel 2.
Ifyouwanttodeleteachannelfromafavouritelist,youpressoneofthenumberbuttons1-4,
dependingonwhichlist(1-4)youwanttodeleteachannelfrom.

9Maximum C 901 CX
8. Moving and editing of channel lists
Itcanbeanideatomovechannelssothattheyareeasytond.
To move and edit channels around, press MENU to enter the menu. Highlight channels and press OK.
Then highlight EditbyusingPR-PR-and PR+, then press OK.
Inthemainlistyouhavethefollowingpossibilities:
Erasing channels:Highlightthechannelyouwishtoerase,thenpressGREEN. A message will be
shown on the screen. If the channel should be erased press GREEN. If this was a mistake, press
RED.Ifyouremoveachannelfromthemainlistyoualsoremoveitfromeveryotherlist.
Change the name of the program list:IfyoupressYELLOWyoucanchangethenameofthepro-
gram list.
• StartUp List
This is the channel list the receiver should start on if the
receiver has been turned off. Press OK to choose the
 channellistyouwouldlikethereceivertostarton.
With PR-PR-and PR+youcanhighlightthelist,then
press OKtoconrmyourchoice.
• FAV1 is the name of Favourite list 1.
• FAV2 is the name of Favourite list 2 .
• FAV3 is the name of Favourite list 3.
• FAV4 is the name of Favourite list 4.
Tochangethenameofthefavouritelist,pleasereadchapter“Thetypeinbox”.PressGREEN to save
the settings, and RED to come back to the previous menu.
Tochangeanoperatorlistorafavouritelist,thelisthastobechosenrst.DothisbypressingFAV.
Everytimeyoupress,thenextlistwillbeused.Youcanseewhichlistisactiveinthebottomlefthand
corner. To change the order in which the list is presented, highlight the channel that is to be moved
with PR-PR-and PR+. Press RED and the channel will change colour
togrey.Highlightthechannel,whereyouwouldliketomovethechosen
channel to and press RED again.
Thechannelwillnowbeplacedwhereyouhighlighted.
Edit channel name and channel data:
Tochangeachannelnameandchanneldata,highlightthechannelyou
wish to change, and press OK.
Name=Thechannelname.NB!Thisnamewillcomebackifyousearchfornewchannels.
Frequency=Thefrequencythechannelsendson,thisshouldnotbechanged.
Adult lock=Crossthisboxifyouwouldlikethechanneltobelockedbyacode.
Service ID, VID/PCR/AUD =Theseareonlyusedonspecialchannels.Thisrequirestheusertotype
these in.
Quality=Thequalityofthesignalthatthereceiverreceives.Thisshouldbeashighaspossible.
Ifyouchangeanyofthese,pressGREEN to save the changes. To cancel the changes press RED.

10 Maximum C 901 CX
9. Daily use
Onceyouhavemadeafavouritelist,youarereadytousethereceiverforthersttime.
Channel navigation:
Press PR-PR-to choose the next channel and PR+to choose the previous channel. Press
OKtoshowalistofthechannelswhichareavailableinthecurrentchannellist.Byusing
PR-and PR+youcanmovethehighlightingupordownthelist.Whenyouhavehighli-
ghtedthechannelyouwouldliketosee,pressOK. You can choose a different channel list
bypressingFAV.
The green bar at the bottom of the picture, shows the name of the present channel list. The
channellist.Thechannellistwitheverychannel,iscalledTV.
Info bar:
Everytimeyouchangeachannel,theinfobarwillbeshownonthescreen.Theinfobarcon-
tainsinformationonthechannelthatyouhavechangedto,e.g.theactualprogramonthe
channel, the next program on the channel, how long the program
hasleft.Theinfobarcanalwaysbeshownonthescreenbypres-
sing INFO.IfyoupressINFO twice there will be more information
showabouttheprogramyouarewatching.Moreinformationon
thenextprogramcanbefoundbypressing+.
Choose a different soundtrack:
Some channels are transmitted with a number of different soundtracks. Press RED to
change the soundtrack.
Subtitles:
A number of channels have different subtitles available. Press YELLOWandyouwillseea
listofthesubtitlesavailable.Ifyoudonotwantanysubtitles,highlightNo subtitles, there
willbenomoresubtitleswhileyouareonthesamechannel.
Thereceiverwillalwayschoosethesubtitlesthatmatchyourchoiceoflanguage.

11Maximum C 901 CX
6
6
5
5
10. EPG - Electronic Program Guide
A big advantage of digital receivers is that a number of operators send, what is called an
EPG(ElectronicProgramGuide).TheEPGgivestheuseradisplayofwhichprogramswill
be on what channels.
To see this information press EPG. The TV screen will look as
shown in the picture to the right. Showing information on the
PresentandtheNextprogramforthenextvechannelsinthe
channel list. Using PR+and PR-PR-highlightthechannelyouwish
to see more information on and press OK.
Ifyoucannotseetheprogramyouwishtohaveinformationon,
press and to choose the next or previous page. The receiver
willnowcollectmoreinformationonthechannel,suchastheprogramsforthenext7days.
This can take up to 30 seconds.
Theexactnumberofdaysshown,dependsontheprogram
distributorandcanvaryfromchanneltochannel.Insomecases,
thepicturewilldisappearwhilsttryingtondtheEPGdata.More
informationabouttheprogramcanbefoundbypressingOK.
Ifyouwouldliketorecordaprogramonavideorecorder,youcan
sendtheinformationtothetimerbypressingGREEN. Remember
to set the Timer on the video recorder to start at the same time.
Ifyouwouldratherchangetotheprogram,pressYELLOW. To come out of the EPG func-
tion, press EXIT until the picture comes back.
11. Timer
The receiver can start at a planned time. Used together with a Video recorder or a DVD
recorder,thetimerwillenableyoutorecordprograms.
Press MENU to enter the Menu. Press PR-PR-until Timer is highlighted, then press OK. The
TVscreenwillnowshowalistofthetimersthathavebeenprogrammed.Ifyouwouldliketo
program a new timer, press YELLOW.
Thefollowinginformationhastobeputintothetimer:
List=Thelistyouknowthechannelwiththeprogramyouwouldliketorecordisin.
Channel=Thechannelyouwouldliketorecordon.
Text=Anametohelpyourememberwhichtimeriswhich.
Start = When the program starts.
Press GREEN to save the timer, or RED to cancel the timer.
Remember to also program the Video Recorder or DVD recorder.

12 Maximum C 901 CX
12. Access control
The access control menu shows all relevant information on the smart card.
A further function in the access control menu is the Adult Lock. This can lock channels that
all users should not have access to.
To do this press MENU. Use PR+and PR-PR-to highlight Access Control and press OK.
TherstmenuwillonlybeshownifthereisaCanalDigitalcardinthesmartcardslot.
Highlight Adult Lock with PR-PR-and press OK.BypressingOK
again and PR-PR-youcanactivatetheAdultlock.
Afterthis,youmusttypeinafourdigitcode.Typeinthesame
code again in the next box.
Press GREEN to save the settings or RED to cancel the settings.
To activate the Adult Lock, the receiver has to be turned off and
on again.
TheMenuwillnowbelocked,andcanonlybeopenedwiththefourdigitcode.Ifyouhave
forgottenthecode,contactyourdealerwhocanhelptoopenthereceiveragain.
NB! Every channel that is locked can only be opened with the four digit code.
13. The type-in box
Thereareanumberofplacesinthemenus,whereyouwillbeaskedtotypeininformation.A
type-inboxcandothis.Thetype-inboxwillautomaticallyappearifyoucantypeinanything.
Use PR+and PR-PR-to move the cursor up and down,
-and +will move the cursor left
or right. When the cursor is on the right letter, press OK.
With GREEN and REDyoucanmovethecursorbackwardsandforwardsinthetextyou
have written. This can be helpful if there is an error in the text.
YELLOW changes between capital and small letters.
BLUE deletes the last letter.
Whenyouhavewrittenyourtext,placethecursoronOK and press OK.

13Maximum C 901 CX
14. Searching for new channels
Therewillalwaysbenewchannelsavailable,soonceinawhilewerecommendthatyousearch
fornewchannels.Thereceiverwillautomaticallysearchfornewchannelsandaddthemtothe
lists.Forsomeotheroperatorsyouwillhavetoinitiateasearch.
Press MENU to enter the Menu. Highlight Channels and press
OK. Highlight “Channel Search” and press OK again.
Youwillhavethefollowingpossibilities:
GREEN=Automatic,thereceiverwillsearchthroughthefrequen-
ciesitknowsandndnewchannels.
YELLOW=Manualyouhavetoprovideafrequencythatyou
would like to search on.
We recommend you always to search automatically, as this is the easiest and will nd
the most usual channels.

14 Maximum C 901 CX
15. Advanced channel search
Therearesomechannelsthatcannotbefoundautomaticallyinthereceiverandtherefore
need a manual search.
Press MENU to enter the menu. Highlight Channels and press OK. Highlight Channel
Search and press OK.
Press YELLOW to start a manual search.
Thefollowinghastobetypedin:
Startfrequency,Stopfrequency,Frequencysteps,SymbolRate
and QAM.
Press GREENtostartthesearch.Inthemostcases,thereceiverwillndthenewchannel.
Ifthereceiverdoesnotndthechannel,youmayhavetoinputthefrequencymanually.This
manual search is not included in the manual.
16. Installation
Themenustructurehasallofthebasicsettingsforthereceiverunderonesection:instal-
lation.
Thismanualwillonlyhighlightthemostimportant,astherearemanyfunctionsthatareauto-
maticallyset-up.PressMENU to enter the menu. Highlight Installation and press OK.
Language: YoucanchoosewhichlanguageyouwouldliketheMenu,soundandsubtitlesto
be in.
Clock: Thereceiverwillautomaticallyinstallallsettings.Changesshouldonlybemade,if
youaresituatedinacountrythathasadifferentlanguagetotheoneyouuseinthemenu.
TV Format:
ThisishowthepictureispresentedonyourTV.YoushouldonlychooseCVBSifyouhave
problems with RGB.
Reset Receiver:
Thiswillresetthereceivertothefactorysettings.Thistakesthereceiverbacktothersttime
youturnedthereceiveron.
NB!Ifyouusethisfunction,allchannelsandsettingwillbereset.
Information:
This shows information on the receiver, e.g. which version of software is installed. This infor-
mationisnecessaryforcustomersupportifyouhaveaproblem.

15Maximum C 901 CX
17. Teletext
Yourreceiverisequippedwithaminimumof2000pagesofteletext.PressYELLOW twice to
entertheteletext.Inthetopstatusbaryoucanseewhichchannelyouareon.P:xxxshows
whichpageyouareon,S:1/xshowshowmanypagesareunderthispage,andthelast
thing is the time. With PR+and PR-PR-youcanchoosethenextorpreviouspage.
With–and+youcanchoosethenextorprevioussubpage.
Ifyourequireanotherpage,pressthenumberkeys(0-9)to
choose a new page.
Press INFO to see hidden text.
Buttonsandincreasethetextsize.Pressortwicetoseethenormaltextsize.
The coloured buttons can direct the teletext to some pre-programmed pages.
Press EXIT to exit the teletext.
18. Radio channels
Your receiver will during the channel search have found a number of radio channels. To hear
these radio channels, press TV/RADIO. You can now make a favourite list in the radio list or
justhearthemusicyoulike.Thereceiverworksthesameonradiochannels,asitdoeson
TV channels.
5
5
6
6
5
5
6
6

16 Maximum C 901 CX
© Kjaerulff1 A/S 2005
