MaxLite ML4LE171RLWH27MSC-V2 User manual

perating Instructions ML4LE171RLWH27MSC-V2 / ML4LE171RLBK27MSC-V2
MaxLite LED Small utdoor Lantern
WARNING:
RISK F ELECTRICALSH CK
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label
information.
• Make all electrical and grounded connections in accordance with the National
Electrical Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
CAUTI N:
RISK F INJURY
• Wear gloves and safety glasses at all times when removing luminaire from
carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be
hazardous to children.
• Don't touch the lamp when in use.
• Always switch off the mains supply. 5-10 minutes later to replace the lamp after the
used lamp has cooled down.
Model Numbers:
ML4LE171RLBK27MSC-V2 (Black)
ML4LE171RLWH27MSC-V2 (White)
®
General Safety Information
• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all warnings
and instructions included with and on the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this
equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires should be
performed by a qualified licensed electrician.
• For Residential installation: f you are unsure about the installation or
maintenance of the luminaires, consult a qualified licensed electrician and
check your local electrical code.
• DO NOT NSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and grounded
UL listed junction box.
© Copyright 2017. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: inf[email protected]
Page: 1
REV: 11/07/17

General Wiring Diagrams
CAUTI N: Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
Wiring:
1.) Connect the black fixture wire to the (+) L NE supply wire.
2.) Connect the white fixture wire to the (-) COMMON supply wire.
3.) Connect the green fixture wire to supply ground wire.
Mounting Instructions
1. Fix the crossbar to the junction box with screws.
(See Figure 1)
2. Use the wire nuts to connect the white power line
to the white power line from the wall. And do the
same to the black power line. Connect the
grounding wire from the fixture to the grounding
wire from the wall. and fix the grounding wire to
the green screw.
(See Figure 2 or wiring diagram above.)
3. Secure the fixture onto the crossbar with
screws.
© Copyright 2017. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: inf[email protected]
4. Screw included LED bulb into socket.
(See Figure 3)
Page: 2
REV: 11/07/17
perating Instructions ML4LE171RLWH27MSC-V2 / ML4LE171RLBK27MSC-V2
MaxLite LED Small utdoor Lantern
®

© Copyright 2017. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: inf[email protected]
Motion Sensor Instructions
Note: Choose a mode by sliding the switch on the bottom of the back plate of the fixture. when power is first
applied, the light will turn on immediately. Wait for 20 seconds to allow the sensor to warm up.
TEST M DE (daytime and nighttime operation.)
The light will turn to low-level brightness (50% brightness). The light will turn to
high-level brightness (100% brightness) when motion is detected, and stay on
as long as the motion continues. The light will revert to low-level brightness
about 5 seconds after motion is no longer detected.
AUT M DE (nighttime operation only; on at dusk, off at dawn)
• At dusk, the light will turn to low-level brightness (50% brightness). The light will
turn to high-level brightness (100% brightness) when motion is detected, and stay
on as long as the motion continues. When the motion stops, the light will remain
on for the predetermined time (5 ~ 300 seconds), and then revert to low-level
brightness.
• The light will turn off automatically at dawn.
• During Test Mode, the light will come ON for 5 sec. every time motion is
detected. Setting the shut-off delay time only when the light is in the Auto Mode.
• Clean the sensor lens with a soft cloth every 1 or 2 months to prevent
losing sensitivity.
D2D M DE (nighttime operation only; on at dusk, off at dawn)
• The light will turn to high-level brightness (100% brightness) at dusk. t will turn
off at dawn.
Manual verride Mode (6-hours auto Rest)
• To shift to the manual override mode, set the switch to “AUTO”
Mode. Turn the wall switch “OFF” and then turn it “ON” within 2 seconds.
The light will remain on for 6 hours. To shift back to the “AUTO” mode,
turn the wall switch “OFF” and then turn it “ON” within 2 seconds again.
(See Fig.1)
• The light will turn off automatically at dawn
Note: To make sure the above functions operate properly, always
keep the wall switch in the “ON” position (including the daytime).
Shut-off Delay
The Shut-off delay is the length of time the light will stay at high level
brightness after motion has ceased to be detected. This Shut-off delay can be
set when operation is in “AUTO” mode by using the “T ME” knob located on the
left side of the panel at the bottom of the back plate (See Fig. 2).
To increase the shut-off delay, turn the knob clockwise. To decrease shut off delay,
turn the knob counterclockwise. The delay may be adjusted from a minimum of 5
seconds to a maximum of 5 minutes. The light will stay on as long as motion is
detected continuously and will automatically turn to low-level brightness when no
more motion is detected after the delay time has passed.
Customization ptions
Page: 3
REV: 11/07/17
perating Instructions ML4LE171RLWH27MSC-V2 / ML4LE171RLBK27MSC-V2
MaxLite LED Small utdoor Lantern
®

© Copyright 2017. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: inf[email protected]
Motion Sensor Customization ptions (Continued)
Sensitivity of Motion Sensor
The sensitivity of the motion sensor can be adjusted by using the
“SENS T V TY” knob located on the right side of the panel at the bottom
of the back plate (See Fig. 2). To increase sensitivity, turn the knob clockwise.
To decrease sensitivity, turn the knob counterclockwise. The sensitivity may
be adjusted from a minimum of 5 feet to a maximum of 30 feet.
N TE:
1. The sensitivity of the motion sensor will increase as the environmental
temperature gets cooler. For best performance, gently clean the lens with
a soft cloth every 1 or 2 months to maintain maximum sensitivity.
2. For best performance, install fixture at least 6.5 feet above the ground.
At such a height, the fixture will provide a detection distance of up to 30
feet at 77 degrees Fahrenheit. (See Fig. 3)
3. The sensor detects motion across a 150 degree range. (See Fig. 4)
4. The sensor will be more sensitive to motion across its detection path than
motion directly towards it. (See Fig. 5)
5. To reduce possible nuisances, do not mount the fixture near a heat source
like an air conditioner, vent or furnace exhaust, or in a direction facing any
reflecting object or other light source.
Troubleshooting:
If the light does not work at all:
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring connection is correct.
3. Cover the sensor with dark color cloth to verify that the ambient light level is not too high.
In TEST Mode, if the light stays on over 5 seconds after motion is no longer detected:
1. Make sure the slide switch is at the TEST position.
2. Cover the sensor with a dark color cloth to verify that motion is not detected.
In AUT Mode, if the lightstays on full brightness after 5 minutes:
1. Make sure no motion could be detected by the sensor.
2. Make sure that mode entry is not in manual override.
In D2D / Manual override Mode, if the light stays on after dawn:
1. Whether the ambient light level is too low.
If the light blinks:
1. Make sure the light is not mounted near a barbecue, air conditioner or other heat source.
Page: 4
REV: 11/07/17
perating Instructions ML4LE171RLWH27MSC-V2 / ML4LE171RLBK27MSC-V2
MaxLite LED Small utdoor Lantern
®

MaxLite nc. warrants its products for a minimum period of FIVE (5) years from the date of original purchase from
MaxLite or its authorized distributor/dealer (the “Warranty Period”), as follows: f a Product fails to operate during the
Warranty Period as a result of defects in materials or workmanship, MaxLite will, at its option, repair it, replace it with
the same or like Product.
Please refer to Maxlite’s website (at http://maxlite.com/resources/warranties) for the complete
terms and conditions of our warranty.
Limitation of Liability
THE FOREGO NG WARRANTY S EXCLUS VE, AND S THE SOLE REMEDY FOR ANY AND ALL CLA MS,
WHETHER N CONTRACT, N TORT OR OTHERW SE AR S NG FROM THE FA LURE OF PRODUCT AND S N
L EU OF ALL OTHER WARRANT ES, EXPRESS OR MPL ED, NCLUD NG ALL WARRANT ES OF
MERCHANTAB L TY OR F TNESS FOR A PART CULAR PURPOSE, WH CH WARRANT ES ARE HEREBY
EXPRESSLY D SCLA MED TO THE EXTENT PERM TTED BY LAW AND, N ANY EVENT, SHALL BE L M TED TO
THE WARRANTY PER OD SPEC F ED ABOVE. THE L AB L TY OF MAXL TE SHALL BE L M TED TO THE TERMS
OF THE EXPRESS WARRANTY SET FORTH HERE N. N NO EVENT W LL MAXL TE BE L ABLE FOR ANY
SPEC AL, NC DENTAL OR CONSEQUENT AL DAMAGES NCLUD NG, W THOUT L M TAT ON, DAMAGES
RESULT NG FROM LOSS OF USE, PROF TS, BUS NESS OR GOODW LL, LABOR COSTS, REMOVAL OR
NSTALLAT ON COSTS, DECREASE N THE L GHT OUTPUT OF THE LAMP, AND/OR DETER ORAT ON N THE
LAMP’S PERFORMANCE, WHETHER OR NOT MAXL TE HAS BEEN ADV SED OF THE POSS B L TY THEREOF.
UNDER NO C RCUMSTANCES SHALL MAXL TE’S ENT RE L AB L TY FOR A DEFECT VE PRODUCT EXCEED
THE PURCHASE PR CE OF THAT PRODUCT. WARRANTY SERV CES PROV DED UNDER THESE TERMS AND
COND T ONS DO NOT ENSURE THE UN NTERRUPTED OPERAT ON OF PRODUCTS; MAXL TE SHALL NOT BE
L ABLE FOR DAMAGES CAUSED BY ANY DELAYS NVOLV NG WARRANTY SERV CE.
This Limited Warranty gives you specific legal rights and you may also have other rights that may vary from state to
state. Because some states or jurisdictions do not allow the exclusion or limitation of liability for consequential or
incidental damages, this limitation may not apply to you.
Warranty Information
© Copyright 2017. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 973-244-7300 Fax: 973-244-7333 Email: inf[email protected]
Page: 5
REV: 11/07/17
perating Instructions ML4LE171RLWH27MSC-V2 / ML4LE171RLBK27MSC-V2
MaxLite LED Small utdoor Lantern
®
This manual suits for next models
1
Table of contents
Other MaxLite Lantern manuals
Popular Lantern manuals by other brands

BION TECHNOLOGIES
BION TECHNOLOGIES Linea xs inground hp user manual

Home Decorators Collection
Home Decorators Collection 13654 Use and care guide

WE-EF

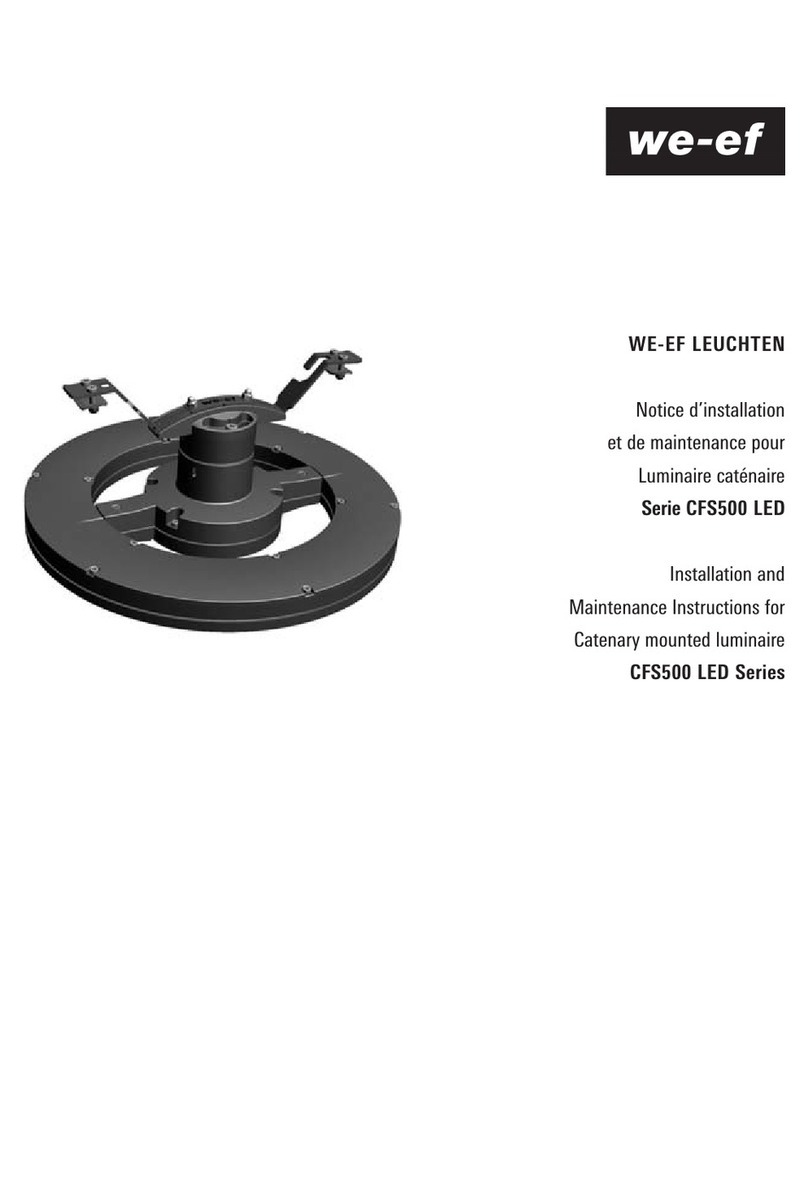

WE-EF CFS500 Series Installation and maintenance instructions
