MAXPhotonics E1-10W User manual

Maxphotonics Co.,Ltd.

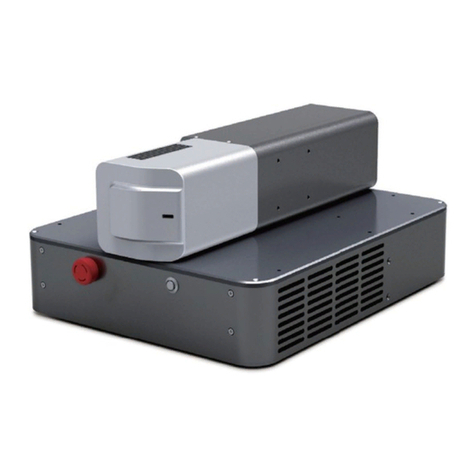

E1-10W All-in-one Engraving Machine (Fiber Laser)

Copyright Notation
Copyright © Maxphotonics Co ., Ltd ( here after referred to as Maxphotonics). All
rights reserved. You may not copy, modify, transmit or publish this publication,
in any form, in any media or by any means, without the prior written permission
of Maxphotonics, except as allowed under applicable copyright laws. Permitted
copies shall bear the same copyright and proprietary notices that were contained
on the original version.
Maxphotonics believes that the information provided is accurate and reliable;
however Maxphotonics makes no warranty, representation,expression or
implication that this document can be used as reference in other occasions.
Furthermore, Maxphotonics does not assume responsibility for any infringement
of patents or other rights of third parties due to use of the information contained
in this document. Maxphotonics shall not be liable for errors contained in this
document or for direct or indirect damages of relevant equipment.
Maxphotonics and the Maxphotonics Logo are registered trademarks of
Maxphotonics Co., Ltd., and the Logo does not break any regulations of
Trademark law.Maxphotonics grants no rights for patent or other intellectual
property mentioned herein.
All information contained in this document is subject to change and revision
without notice.
Subject to change without notice.
Maxphotonics Co.,Ltd.
Address: Maxphotonics Industrial Park, 3rd Furong Road,
Furong Industrial Area, Shajing, Baoan, Shenzhen, China.518125
E-Mail: [email protected]
http://en.maxphotonics.com

1
Preface
Thank you for using the E1-10W all-in-one engraving machine products from
Maxphotonics. We compile this document for you in order that the equipment
is used and maintained properly. Due to the limited level of the writers, coupled
with time constraints, there are some careless mistakes in this document, your
understanding and suggestion to help us make an improvement will be much
appreciated . Thank you again for using Maxphotonics' products.
Please take time to read and understand this User's Guide and familiarize
yourself with the operating and maintenance instructions before you use the
product. We strongly recommend that the operator read the Section 2 titled
“Safety Information” prior to operating the product.
This User's Guide should stay with the product to provide you and all future
users and owners of the product with important operating, safety and other
information.
We identify the parts to which you need to pay special attention in the document
with underscore. Please notice those information to prevent the unnecessary
damages.

2
Company Prole
Found in 2004, Maxphotonics is one of the first fiber laser manufacturers in
China. It is also the first in China to realize independent intellectual property
rights and vertical integration in the core technologies of ber lasers and optical
devices. One of the national high-tech enterprises. Maxphotonics has developed
into an internationally renowned laser manufacturer that develops, manufactures
and sells fiber lasers and core optical components. It is the second largest
domestic ber laser manufacturer in the domestic market.
Maxphotonics specializes in the research, development, production and sales of
ber lasers, including pulsed ber lasers, continuous ber lasers and direct diode
lasers. It also implements pump sources, combiners, fiber gratings, isolators,
laser output heads, and stripping. Optical devices such as molds, acousto-optic
modulators, and pattern matchers are produced autonomously. Products are
widely used in marking, engraving, cutting, drilling, cladding, welding, surface
treatment, rapid prototyping and additive manufacturing processes.
More informations，please visit our website：
http://en.maxphotonics.com

Contents 3
Company Prole ……………………………………………………………… 2
Chapter 1 Product Accessories List ……………………………………… 5
1-Standard ……………………………………………………………………… 5
2-Professional Edition…………………………………………………………… 6
3-Deluxe Edition ………………………………………………………………… 7
Chapter 2 Button/Indicator Description …………………………………… 8
1-Host Indicator ………………………………………………………………… 8
2-Power Interface ……………………………………………………………… 8
Chapter 3 Quick Installation Instructions ………………………………… 9
1-Handheld Engraving ………………………………………………………… 9
2-Fixed Focus Bracket Installation Instructions …………………………… 10
Chapter 4 Download And Operation ……………………………………… 11
1-Download And Install ………………………………………………………… 11
2-Access The Host ……………………………………………………………… 11
3-Connect To WIFI ……………………………………………………………… 12
4-APP Device Connection ……………………………………………………… 12
Chapter 5 Product Specications ………………………………………… 14

Contents
4
Chapter 6 Use Safety Guidelines …………………………………………… 15
Chapter 7 Precautions ………………………………………………………… 17
Chapter 8 Disclaimer ………………………………………………………… 18
Chapter 9 Warn ………………………………………………………………… 19
Chapter 10 Copyright Statement …………………………………………… 21
Chapter 11 Appendix ………………………………………………………… 22

5
Chapter 1
Product Accessories List
1. Host
2. Power Adapter
3. Fixed focus bracket
4. Wireless network card
5. Goggles
6. Wooden ruler
1-Standard (products Included In This Set)

6Chapter 1 Product Accessories List
Manual lift table + host
2-Professional Edition

7
Chapter 1 Product Accessories List
3-Deluxe Edition
Electric lift table + host + mobile portable power supply + material package.
DECLARE:
◎For details of packaging, please refer to the purchased version.

8
Chapter 2
Button/Indicator Description
1-Host Indicator
2-Power Interface
1. Preview button
2. Host indicator
3. Short press to stop/long press to start
engraving button
①
①
③
③
②
②
1. Electric stand power interface
2. Exhaust fan reserved power interface
3. Host DC power interface (round)

9
Chapter 3
Quick Installation Instructions
4. Hold the host handle,
Align the surface of the object to be
engraved.
2. Access the host DC power
supply.
3. The installation is complete,
Complete the engraving according
to the APP guidelines.
1. Install the fixed focus bracket on
the bottom of the main unit.
1-Handheld Engraving
Carved Object
Surface

10 Chapter 3 Quick Installation Instructions
1. Insert the 4 support rods into the connector, then lock the screws.
2. Align the bottom plate with the support rod, the connector "BACK" is in the
same direction as the groove on the bottom plate, and then lock the screws.
3. Buckle the bottom 4 protective sheets into the support rod.
2-Fixed Focus Bracket Installation Instructions

11
Chapter 4
Download And Operation
1、Download And Install
Method: Select Android download APP or PC software application through QR
code.
Client software installation: Double-click the software installation package
→ select the installation path, check agree to install, install → complete the
installation.
2. Access The Host
Insert the wireless network card into the computer, search for the WiFi hotspot
of the engraving machine and connect it. The initial password of the WiFi
hotspot is 123456789.
Host DC power interface
Owl PC ClientOwl Android Client

12 Chapter 4 Download And Operation
3. Connect To WiFi
Open the software, click Device Connection Management, select WiFi in the
pop-up box, and click Connect, the WiFi column turns green, indicating that the
connection is successful.
host indicator
Open the APP and search for connected devices in the APP:
The indicator light of the host flashes blue (alternative: red and green two-color
lights), which means WiFi to be activated;
The main unit is always on blue light (alternative: red and green two-color light),
which means the WiFi system is stable.
1. If Wi-Fi is not turned on, turn on Wi-Fi first.
2. Click "Device not connected" on the main interface again, confirm that the
device is powered on, and find the corresponding address of the handheld
marking machine.
3. When you need to disconnect, click "Device is connected", enter the next
interface and click the connection device address page, and a prompt box will
pop up and click "Disconnect".
4. APP Device Connection
Notice：
◎The mobile phone does not need to be connected to the wireless network
WLAN of the device. After connecting to the wireless network of the device, the
mobile phone will not be able to access the Internet normally.

13
Chapter 4 Download And Operation
Select the content to be engraved on the APP homepage to start engraving.
Unable to connect/Failed to connect:
1. The device cannot be searched: Please confirm whether the power of the
device is turned on and whether the battery is charged. After confirming, power
off and restart and follow the steps to connect again.
2. Connection failure: Please confirm whether the device has been connected
to other mobile terminals or computers. If there is a connection, you need to
disconnect other connections first, and then follow the steps to connect again.

14
Chapter 5
Product Specications
size
Overall size: 183*79*163 ｍｍ
weight
Overall weight: 1.5KG
Laser type
Pulse Fiber Laser
Laser wavelength
1064nm
Laser output power
10W
Exterior
Aluminum alloy anodizing
document transfer
WiFi
Supported document formats
jpg, png, bmp, dxf, dwg
APP connection method
WiFi connection
APP operating system
Support Android 6.0 + Windows 10
power input
DC (24V, 7.5A)
range of working temperature
0°C~40°C
Operating humidity range
5%~80% (non-zero frosting)

15
Chapter 6
Use Safety Guidelines
1. Before starting the installation, please first check that the equipment is in
good condition, and the laser mirror surface is clean and free of contamination.
2. Installation specification: Before starting the operation, please refer to the
instruction manual to fix the main unit (use fixed-focus brackets and other
accessories with fixed functions or support objects) to avoid falling due to
unstable placement.
3. Please be sure to supply power to the device according to the power and
type of power (24V, 7.5A adapter) indicated in the instruction manual.
4. Before starting the laser engraving, please make sure to take safety
measures. For example, you can install a fixed focus bracket or a laser
protective cover, wear goggles to prevent the laser from accidentally hurting
your eyes or skin, and remove irrelevant items to prevent laser exposure. And
cause unnecessary damage, especially to remove flammable and explosive
materials to prevent fire.
5. When starting the engraving after the laser is started, do not move the
device, so as not to cause the device to stop working due to self-protection or
even to affect the final effect of the engraved work due to the displacement of
the engraved object.
6. If you must move the device or the engraved item, please operate it before
starting the engraving or after the engraving has been completed. Do not move
the device or item during the laser work.
7. Due to the danger of lasers, do not allow minors, children and people who do
not have self-protection awareness to approach the equipment at work.

16 Chapter 6 Use Safety Guidelines
8. Before using this product to engrave, please check that the engraved object
will not release toxic and harmful gases during the laser burning process, so as
to avoid poisoning accidents.
9. If there is peculiar smell and smoke generated during the engraving process,
please use an electric fan to blow it away in time or place it in a spacious and
ventilated place to operate.
10. Before using this product to engrave objects, check whether the engraved
objects have total reflection or diffuse reflection characteristics, and special
attention should be paid to safety protection for such objects (it is recommended
to use a whiteboard pen to blacken the engraved area before engraving).
11. Do not use the host to directly irradiate the skin or eyes of the human body
or pets to avoid irreversible damage.

17
Chapter 7
Precautions
◎Please read the [Use Safety Guide] in detail, and keep all the contents in
mind to standardize the operation.
◎This product does not contain any user-replaceable components, no matter
what the scene, please do not attempt to disassemble the device or eliminate
the problem by yourself.
◎The main unit in the working state will emit laser light, and the beam will
burn the skin of the human body; especially to the eyes of the human body
or animals (pets), the damage is extremely serious; in addition, the electronic
products such as mobile phones and Pads The screen damage is also extremely
serious. The correct use and maintenance of this product is extremely important
to the safe operation of this product. Regarding the operation and maintenance
specifications of this product, please strictly follow the instructions in this
manual.
◎When operating this product, be sure to wear goggles throughout.
◎When the engraving machine processes high-reflection materials, if the
processing graphics are in the center of the marking area, there will be a
phenomenon that some areas cannot be engraved. This phenomenon is an
inherent defect of the engraving machine and cannot be avoided. Now there are
two ways to avoid this defect. measure:
1. Move the pattern in the center on the host computer page to ensure that the
pattern is not in the center;
2. On the parameter setting page of the host computer, reducing the engraving
speed can effectively reduce the missed marking range, but the corresponding
marking effect will be different.

18
Chapter 8
Disclaimer
Thank you for purchasing the Owl Laser Engraver. The content mentioned in
this article is related to your safety and legal rights and responsibilities. Before
using this product, please read this article carefully to ensure the correct
settings for the product. Failure to observe and follow the instructions and
warnings in this document may cause injury to you and the surrounding people,
or damage the host or other surrounding items. Once you use this product, it is
deemed that you have carefully read the disclaimer and warning information,
and understand, recognize and accept all terms and contents of this statement.
You promise to use this product only for normal purposes, and agree that Owl
Laser will not be responsible for any damage, injury or any legal liability caused
by direct or indirect use of this product. Users should follow, including but not
limited to, all safety guidelines mentioned in this article.
