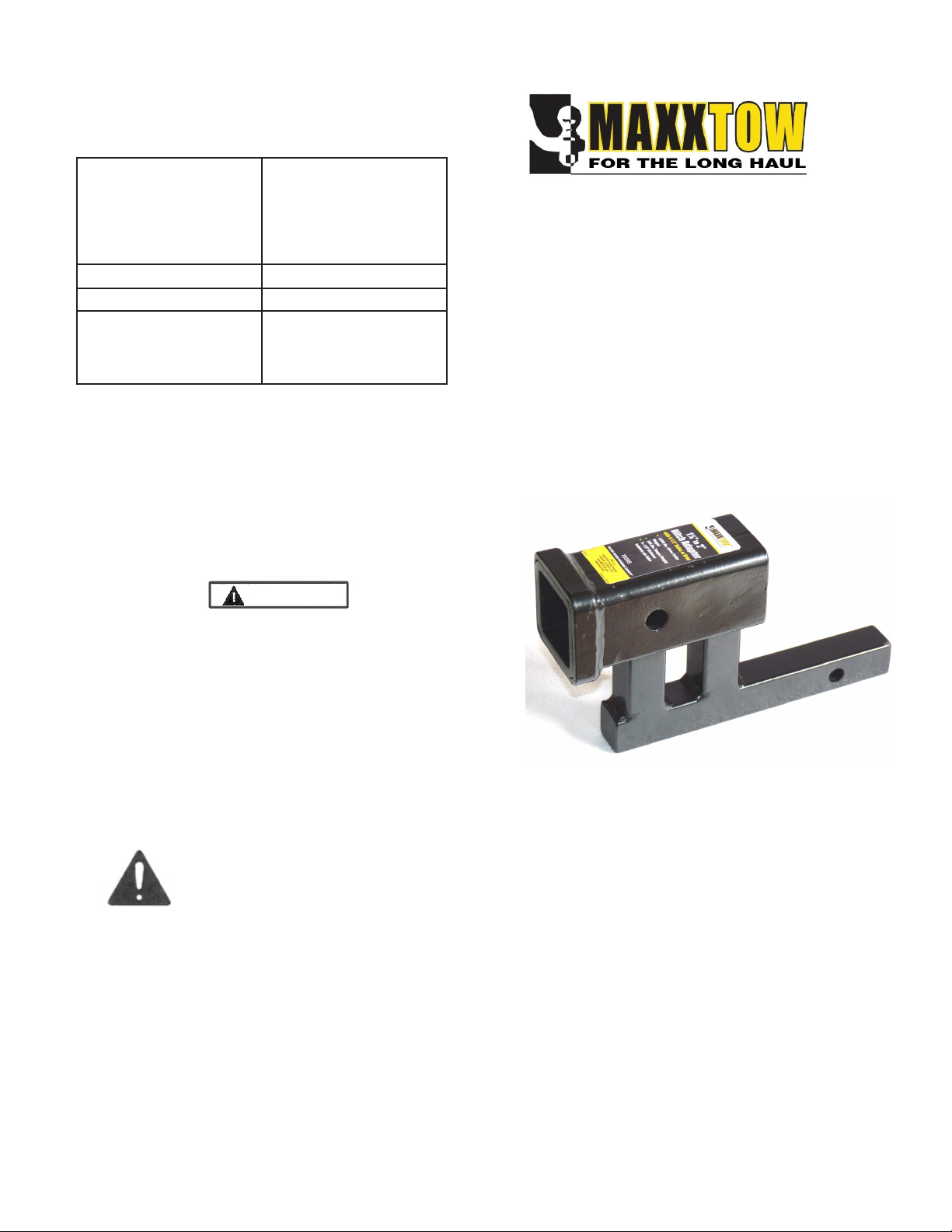

MAXXTOW 70355 User manual

Read and understand this entire manual before installing and
using this product. SAVE THIS MANUAL
Instruction Manual
Functions 1-1/4” Hitch Adapter
with 4-1/2” rise; 2” x 2”
Receiver for accesso-
res (bike rack or cargo
carrier). 6-1/2” distance
between pin holes.
Maximum Weight Rating 350 Lb. Tongue Weight*
Top Hitch Receiver Not For Towing
Hitch Pins Required -
Steel with R-Shaped Safe-
ty Clip (not included)
1/2” Diameter for hitch
connection;
5/8”diameter for
accessory connection.
*Tongue Weight refers to a combination of the
amount of the trailer’s weight that presses down
on the trailer hitch, and the weight of the accesso-
ry and its load. Example: If a cargo carrier and it’s
load (total weight = 150 Lbs.) is to be connected to
the upper receiver, the maximum additional tongue
weight that can press down on the trailer hitch is
200 Lbs. The combination of these two tongue
weights should not exceed 350 Lbs.
1-1/4” to 2”
Hitch Adapter
with
4-1/2” Rise
Model 70355
Specications
WARNING
Too much tongue weight can lower the tow vehicle in back, result-
ing in traction, steering and braking problems.
Too little tongue weight can reduce rear wheel traction, resulting
in instability, swaying or jackkning.
For proper handling, tongue weight should be under 10% of the
Gross Trailer Weight (GTW).
Do not exceed the maximum weight ratings shown in the Speci-
cations table.
Do not exceed the rating of the lowest rated component in the
vehicle/trailer towing set-up.
Copyrightc2013 by MAXXTOW. All rights reserved. No portion of this manual or any artwork contained herein may be repro-
duced in any shape or form without the express written consent of MAXXTOW. Due to continuing improvements, actual prod-
uct may differ slightly from the product described herein. Tools required for assembly and maintenance may not be included.

IMPORTANT SAFETY
INFORMATION
This is a SAFETY ALERT symbol.
It is used to alert you to
potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible injury or death.
DANGER indicates a
hazardous situation which, if not avoided,
will result in death or injury.
WARNING indicates a
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a
hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE indicates
important information which, if not followed,
may cause damage to equipment.
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions. The manual offers impor-
tant information on how to assemble, use
and maintain this product.
Write the product’s model number and
purchase date on the cover page of this
manual.
Keep this manual (and your purchase re-
ceipt) in a safe place.
UNPACKING
The shipment should be thoroughly inspected as
soon as it is received. The signed “bill of lad-
ing” is acknowledgement by the carrier of receipt
in good condition or shipment covered by our
invoice. For your own protection, if any of the
goods called for on the bill of lading are shorted
or damaged, do not accept them until the carrier
makes a notation on the freight bill of the shorted
or damaged goods.
Notify MAXXTOW immediately if any hidden
loss or damage is discovered after receipt.
DANGER
WARNING
CAUTION
NOTICE
INSTRUCTION
MANUAL
WARNING concerning Risk of Eye
Injury. Wear ANSI approved eye
protection.
WARNING concerning Risk of
Hearing Loss. Wear hearing pro-
tection.
Denition of Symbols
IMPORTANT SAFETY
INSTRUCTIONS
1. Read and understand all
safety warnings and in-
structions. Failure to follow the warnings
and instructions may result in serious injury
or death. Save all warnings and instructions
for future reference.
2. Personal and Work Area Safety
A. Always wear ANSI approved
safety goggles.
B. Always wear hearing protec-
tection when working in
noisy environments. Prolonged exposure
to high intensity noise can cause hearing
loss.
C. Use safety equipment. Safe-
ty shoes, hard hat and work
gloves must be used for applicable condi-
tions.
Model 70355 Page 2
D. Dress appropriately. Never wear loose
tting clothing or jewelry when working.
Contain long hair, and keep hair, clothing
and gloves away from moving parts.
E. Use common sense when working.
Stay alert and concentrate when setting up
and using this Hitch Adapter. Never work
while under the inuence of alcohol, drugs or
medications.

Model 70355 Page 3
Personal and Work Area Safety (continued)
F. While setting up and using the Hitch
Adapter, keep work area clean and well
lighted. Keep spectators and children out of
the work area.
3. Use of the Hitch Adapter
A. Do not exceed the
Hitch Adapter’s maximum weight ratings
(see Specication chart on cover page).
B. Always make sure that the tow vehicle’s
engine is turned off, with emergency brake
on, before attempting to install this product.
Take safety precautions to prevent unsafe
movement of the accessory as it is being
connected to the vehicle. Make sure vehi-
cle’s wheels are chocked before attempting
to attach the accessory to the tow vehicle.
C. Make sure that the Hitch Adapter is
securely connected to the vehicle’s re-
ceiver. Use of a 1/2” diameter steel hitch
pin and R-Shaped safety clip (both not in-
cluded) are required for this connection.
Make sure safety clip is fully engaged.
D. The upper receiver (with collar) is for
attaching accessories such as a bike rack
or cargo carrier. Use of a 5/8” diameter
steel hitch pin and R-Shaped safety clip
(both not included) are required to con-
nect the accessory to this Hitch Adapter.
Make sure safety clip is fully engaged.
Upper receiver is not for
towing.
E. Only use this Hitch Adapter on an appro-
priate sized vehicle receiver (1-1/4” x 1-1/4”).
Read and adhere to all instructions and
safety warnings provided by the manufac-
turer of the receiver used on the vehicle.
F. It is critical that the
connection between the vehicle’s receiv-
er, this Hitch Adapter, and the attached
accessory be made correctly. This con-
nection must be solid, and must include
the use of both sets of hitch pins/R-
Shaped safety clips. An improper con-
nection could loosen while the vehicle/
accessory are on the road, resulting in
serious property damage, personal injury
or death.
G. Safety chains between the vehicle and
the attached accessory are recommended.
H. Always keep arms, feet and legs away
from under the vehicle and the accessory
to be attached, when the accessory is be-
ing connected or loaded with cargo. Keep
spectators away when setting up and using
this product.
I. Be aware of the danger of “dynamic
loading”. This situation arises when a load
is dropped onto the Hitch Adapter, resulting
in a short term excessive load. Dynamic
loading can result in damage and failure of
the Hitch Adapter and/or the attached acces-
sory, and personal injury to people nearby.
J. Before each use, check the Hitch
Adapter, the vehicle’s receiver and the
attached accessory to make sure all
hardware is tightly secured. Check for
damaged or worn parts; never use the Hitch
Adapter if it is damaged.
Keep in mind that the warnings previ-
ously discussed cannot cover all pos-
sible events and circumstances. It is
important that the person setting up and
using this product use common sense at
all times.
WARNING
WARNING
WARNING

1. A 1/2” diameter steel hitch pin and match-
ing R-Shaped Safety Clip (both not included)
are needed to secure the Hitch Adapter’s
shank to the vehicle’s receiver
- see illustration below and photo to the right.
Insert shank of Hitch Adapter so that re-
ceiver with collar (for accessories) is on top.
Never mount this product with receiver (with
collar) on the bottom.
2. All accessories (bike rack, cargo carrier,
etc.) must be secured to the top receiver
(with collar) with a 5/8” diameter steel hitch
pin and R-Shaped safety clip. Hitch pins
and safety clips are not included. Make sure
safety clips are always fully engaged.
3. Read and adhere to all safety warnings
and instructions provided by the manufac-
turer of the vehicle’s receiver, and the acces-
sory being connected to the Hitch Adapter. Model 70355 Page 4
Setting Up the Hitch Adapter
Hitch Pin
R-Shaped Safety Clip
Hitch
Adapter’s
Shank
Always wear ANSI approved
safety goggles.
MAXXTOW is not responsible for the at-
tachment or the installation of this prod-
uct. The attachment of this product is
critical and beyond the control of MAXX-
TOW Towing Products. It neither guaran-
tees, nor will it be liable for any damage
resulting from the Hitch Adapter’s attach-
ment or improper use.
Limited Warranty. MAXXTOW warrants
to the original retail purchaser that the
product is free of defects in material and
workmanship at the time of shipment. This
product is warranteed for 90 days from
the date of purchase. This warranty is
expressly in lieu of all other warranties,
express or implied. Proof of purchase is
required for warranty transactions; a copy
of the original invoice or sales receipt is
required.
4. Do not exceed the maximum weight rat-
ings shown in the specication chart on
cover page of this manual.
Hitch
Adapter
Shank
1/2” diameter steel
hitch pin required,
with R-Shaped
safety clip
Accessory
Receiver
5/8”diameter steel
hitch pin required
with R-Shaped
safety clip
Manufactured and Distributed by:
MAXXTOW Towing Products, 1270 Avenida Acaso STE E, Camarillo,
CA 93012
Tel: [phone] Fax: [phone] www.maxxtow.com
MAXXTOW Towing Products ensures complete satisfaction with
this product. In the event of missing or damaged parts please call
toll free, Customer service hours 9:00-5:00, Monday-Friday, PST.,
1-855-MAXX-TOW
