MAYAH C11 Series User manual

© 2010 MAYAH Communications
Manual for C11

MAYAH, C11, FLASHCAST are registered Trademarks. All other trademarks are acknowledged with this.
C11 User Manual; Order-No. C11-UM001
Revision 02/2010
© 2010 MAYAH Communications
For copying this manual, even by extract, an explicit written permission of Mayah Communication GmbH is required.

3Contents
© 2010 MAYAH Communications
List of Contents
Part I Introduction 6
...................................................................................................................................61What is C11 Codec Series
...................................................................................................................................82Scope of Delivery
...................................................................................................................................83Useful Accessories
Part II First Start 10
...................................................................................................................................101Before Start
...................................................................................................................................102Connectors
...................................................................................................................................133LEDs ...................................................................................................................................144Buttons
...................................................................................................................................155Graphic User Interface
...................................................................................................................................166Switching On and Off
...................................................................................................................................167Useful Hints
......................................................................................................................................................... 16
Default IP settings
......................................................................................................................................................... 18
How to access C11 via FTP
......................................................................................................................................................... 18
How to start Web Remote
......................................................................................................................................................... 18
How to update C11 firmware
......................................................................................................................................................... 19
How to activate Keycodes
......................................................................................................................................................... 20
How to reset C11
......................................................................................................................................................... 20
Boot Script
Part III Front panel user interface 22
...................................................................................................................................221Monitor ......................................................................................................................................................... 24
Headphones
......................................................................................................................................................... 24
Mixer .................................................................................................................................................. 25
Structure of dialog and navigation
.................................................................................................................................................. 25
Mixer profiles
........................................................................................................................................... 26
User profiles
........................................................................................................................................... 26
Factory profiles
........................................................................................................................................... 27
Skin profiles
.................................................................................................................................................. 27
Gain .................................................................................................................................................. 28
Mixer matrix
......................................................................................................................................................... 29
Setup .................................................................................................................................................. 29
Audio In
.................................................................................................................................................. 32
Mix Mode
.................................................................................................................................................. 33
AES
...................................................................................................................................342Codec/Transmission
......................................................................................................................................................... 34
Connect menu
.................................................................................................................................................. 35
Last connections
.................................................................................................................................................. 35
Phone book menu
.................................................................................................................................................. 36
Direct Dial menu
......................................................................................................................................................... 39
Status menu
.................................................................................................................................................. 39
Interface status
.................................................................................................................................................. 42
Coding

Manual for C114
© 2010 MAYAH Communications
......................................................................................................................................................... 42
Setup menu
.................................................................................................................................................. 42
Interface menu
........................................................................................................................................... 43
Ethernet
........................................................................................................................................... 45
ISDN ........................................................................................................................................... 49
POTS (PSTN)
........................................................................................................................................... 50
3G/UMTS
.................................................................................................................................................. 52
Quality
.................................................................................................................................................. 56
Enhanced Applications
........................................................................................................................................... 56
Intercom
........................................................................................................................................... 56
Dual Mode
........................................................................................................................................... 57
Redundancy
...................................................................................................................................593Record/Playback
......................................................................................................................................................... 60
Play menu
.................................................................................................................................................. 61
Upload
.................................................................................................................................................. 62
Tracks
......................................................................................................................................................... 63
Record menu
.................................................................................................................................................. 63
Setup ........................................................................................................................................... 64
Quality
........................................................................................................................................... 65
Storage
......................................................................................................................................................... 66
Card menu
...................................................................................................................................674System ......................................................................................................................................................... 67
Configurations
......................................................................................................................................................... 68
Miscellaneous
.................................................................................................................................................. 68
Device ID
.................................................................................................................................................. 68
Date & Time
.................................................................................................................................................. 69
LCD Display
.................................................................................................................................................. 69
System health
.................................................................................................................................................. 69
Versions
.................................................................................................................................................. 69
Connections
.................................................................................................................................................. 70
User Interface
.................................................................................................................................................. 70
Display option
.................................................................................................................................................. 70
Factory Default
.................................................................................................................................................. 70
Timeouts
.................................................................................................................................................. 71
AJC .................................................................................................................................................. 72
Export Configuration
.................................................................................................................................................. 72
Import Configuration
.................................................................................................................................................. 72
Ancillary Data
......................................................................................................................................................... 73
Switch off
Part IV How to use for 76
...................................................................................................................................761Recording during transmission
...................................................................................................................................772Playback during transmission
Part V Technical specifications 80
...................................................................................................................................801Models
...................................................................................................................................812General Technical Data
Index 83

Part I
Introduction

Introduction >
6
© 2010 MAYAH Communications
Manual for C11
1Introduction
1.1 What is C11 Codec Series
C11 Codec Series comprises the following general features:
·Transmission over variety of network interfaces
·Mixer (enhanced mixer functionality depending on model)
·Recording (depending on model)
·Playback of files (depending on model)
·Recording during Transmission (depending on model)
·Playback during Transmission (depending on model)
·FTP support for transmission of audio files (depending on model)
·E-mail support for transmission of audio files (depending on model, upcoming
feature)
·FTP support for configuration export/import operations
·Dual Mode over ISDN (depending on model)
·Intercom functionality by Audio-over-IP
·Gateway functionality (upcoming feature)
·Backup functionality (upcoming feature)
·Web Remote
Generally it can be distinguished between two kinds of C11 models:
'standard models' C1130/31/35, C1140/41, C1180/81
'advanced models' C1150/51/55, C1160/61, C1190/91
The advanced models have got the following additional features:
·Slots for optional transmission interfaces (3G, POTS)
·Slots for storage media (e.g. SD Card)
·Recording & playback
·Switchable Mic/Line Inputs
C11 has an easy to use and intuitive User Interface developed in co-operation
with some of our key customers. However, suggestions for possible
improvements are highly appreciated. For this and any other questions referring
C11 please contact [email protected].
a) Transmission
C11 is based on the core technology of one of the most powerful professional
audio codec CENTAURI II. Live audio or recorded audio can be transmitted and
received via the following interfaces:
·Ethernet (IP transmission)
·ISDN
·POTS (optional; IP transmission; see chapter Useful Accessories)
·3G/UMTS (optional; IP transmission; see chapter Useful Accessories)
·WLAN (optional; IP transmission; see chapter Useful Accessories)
b) Professional audio interfaces

Introduction > What is C11 Codec Series 7
© 2010 MAYAH Communications
Manual for C11
C11 provides:
·AES/EBU audio input/output & sync
·Line inputs/outputs with 24 bit DA/AD converters
·Switchable limiter
·Switching between line and microphone input (advanced models only)
·Switchable high pass filter (advanced models only)
·Switchable attenuation of -20 dB (advanced models only)
·Switchable phantom power of 48 Volts for condenser microphones (advanced
models only)
c) Recorder (depending on model)
C11 can record audio on the following media:
·Standard SD-card (see also chapter Introduction/Useful Accessories)
·Standard USB stick (see also chapter Introduction/Useful Accessories)
The audio signal can be recorded from the audio inputs and/or decoder output.
The recorded audio can be saved in following formats
·MPEG Layer 2; file format Digas Musifile; file name extension .msf
·MPEG Layer 3; file format BWF; file name extension .mp3
·Linear audio (PCM); file format: BWF; file name extension .wav
·AAC; file format RAW; file name extension .aac
·AAC (HE); file format RAW; file name extension .aac
d) Player (depending on model)
C11 can play back and hence transmit the recorded files. The audio can be
monitored via the headphones and the line output (see also chapter First Start/
Connectors).
e) Recording during Transmission (depending on model)
C11 can also record the transmitted audio in linear format. This enables you to
protocol all your transmissions.
f) Playing during Transmission (depending on model)
C11 enables to listen to an audio file while another audio is transmitted. So you
can add pre-recorded material to a live audio feed.
g) Intercom
In Intercom mode besides the main connection a 'command connection' (e.g. to
call for technician) can be established additionally.
g) Gateway (upcoming feature)
Gateway mode enables the re-routing of audio received at one connection to the
other, e.g. ISDN to IP.
h) Backup (upcoming feature)
Backup mode enables the failover functionality, i.e. if one connection fails C11
automatically switches to another connection, e.g. IP to ISDN.
i) Dual Mode (depending on model)
With C114x and C116x Dual Mode enables establishing of two independent
ISDN mono connections.
h) Web Remote
C11 can be configured and administrated by an integrated web interface. See
also chapter First Start/Useful Hints/How to start Web Remote. The functionality
of this web interface is described in an additional manual. However, usually this
manual is not needed since the web remote interface is self-explanatory.

Introduction > Scope of Delivery
8
© 2010 MAYAH Communications
Manual for C11
1.2 Scope of Delivery
·C11
·This manual (order no. C11-UM001)
·C11 AC/DC power supply (order no. C11PSU)
International AC/DC PSU (100-240 VAC, 50 - 60 Hz)
·Basic 19" rack mount accessories
·Other standard accessories (see packing list)
1.3 Useful Accessories
Original MAYAH C11 accessories
·C11 3G/UMTS card (order no. C11-3G)
·C11 WLAN card (future option; not available yet)
·C11 POTS card (order no. C11POTS)
·C11 AES/EBU DE9 to 3x XLR adapter (Order no C11C20)
·C11 USB RS232 adapter (Order no. C11C21) for ancillary data transport or
remote control via terminal emulation (see also Chapter System/
Miscellaneous/Ancillary Data)
Special MAYAH C11 rack mount accessories
·Mechanical Kit to mount two ½ 19” C11xx units side by side in a 19” rack
(order no. C11KIT)
·C11 RPSU - Redundant Power Supply for up to 8 C11 units (order no.
C11RPSU)
Other C11 accessories
·SD/SDHC card (for recording; depending on model)
·PCMCIA memory card (for recording; depending on model)
·PCMCIA adapter for CF memory card (for recording; depending on model)
·USB stick or other USB-based storage device (for recording; depending on
model)
Note:
·If you want to use C11 for mobile transmission you need an 3G/UMTS or a
WLAN card.
·If you want to use C11 for recording you need either an SD/SDHC card, a PC
memory card (e.g. Compact Flash card with PC Card adapter) or a USB
storage device.

Part II
First Start

First Start >
10
© 2010 MAYAH Communications
Manual for C11
2 First Start
2.1 Before Start
·Check if scope of delivery (see chapter Scope of Delivery) is complete with
help of the included packing list
·For later recording/playback insert either an SD/SDHC card or a USB stick or
PC memory card (only advanced models)
·For later mobile transmission insert either the original C11 3G/UMTS card or
the original C11 WLAN card (only advanced models)
·For later POTS-transmission insert the original C11 POTS card (only
advanced models)
Installation in rack
When installing the C11 in a rack or another assembly you should
make sure that the housing has the necessary air exchange and if
one C11 mounted on top of the other you should have a cooling
system that produces an air current to prevent heat accumulation.
Environment and Operating Conditions
Do not subject the device to damp (e.g. proximity to humidifiers etc.),
heat (e.g. proximity to radiators, direct sunlight) or mechanical stress
(e.g. shaking)! Make sure that the ventilation openings of the device
are not obstructed when the device is in operation!
2.2 Connectors

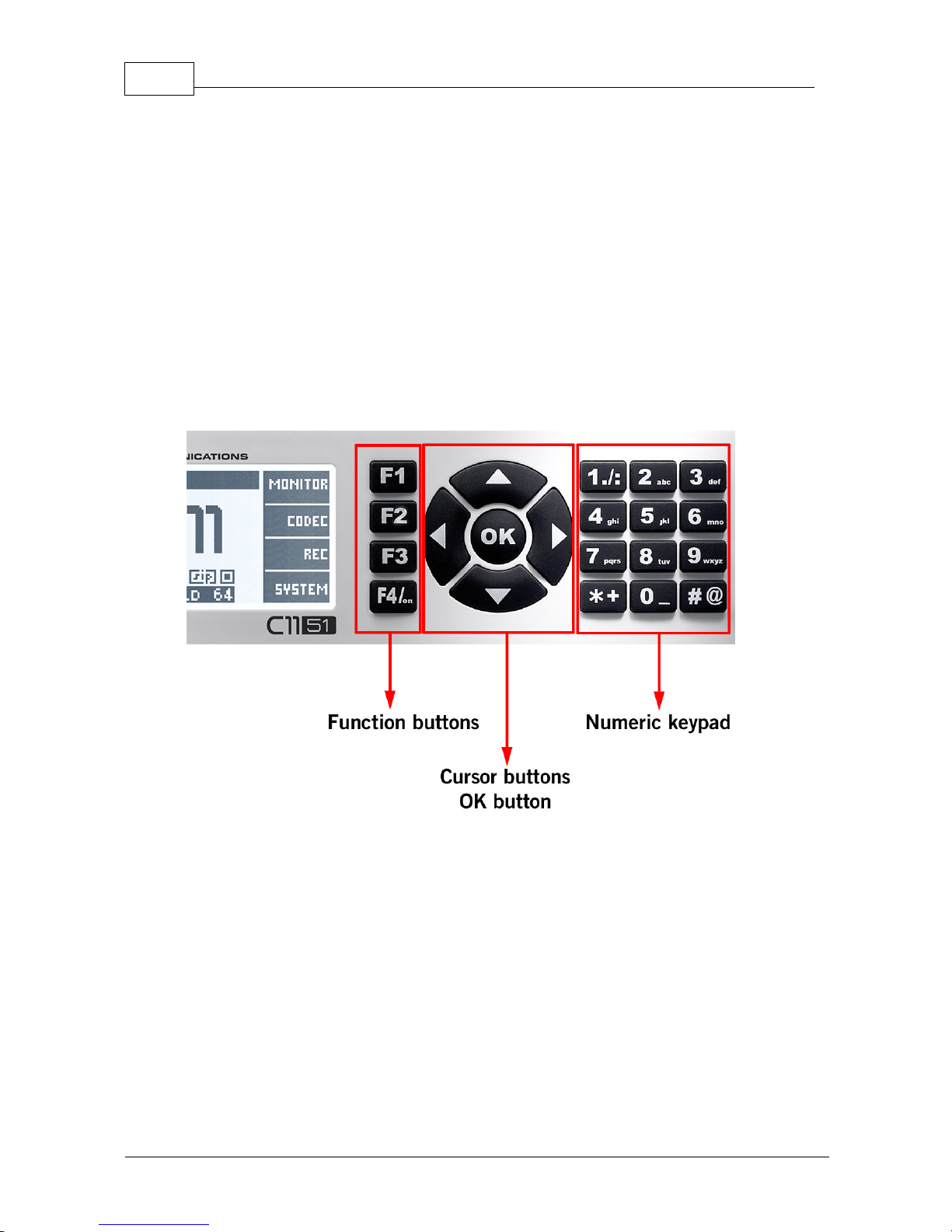

Connectors on the front panel
Headphones: 1/4" (6.3 mm) stereo phone jack (TRS)

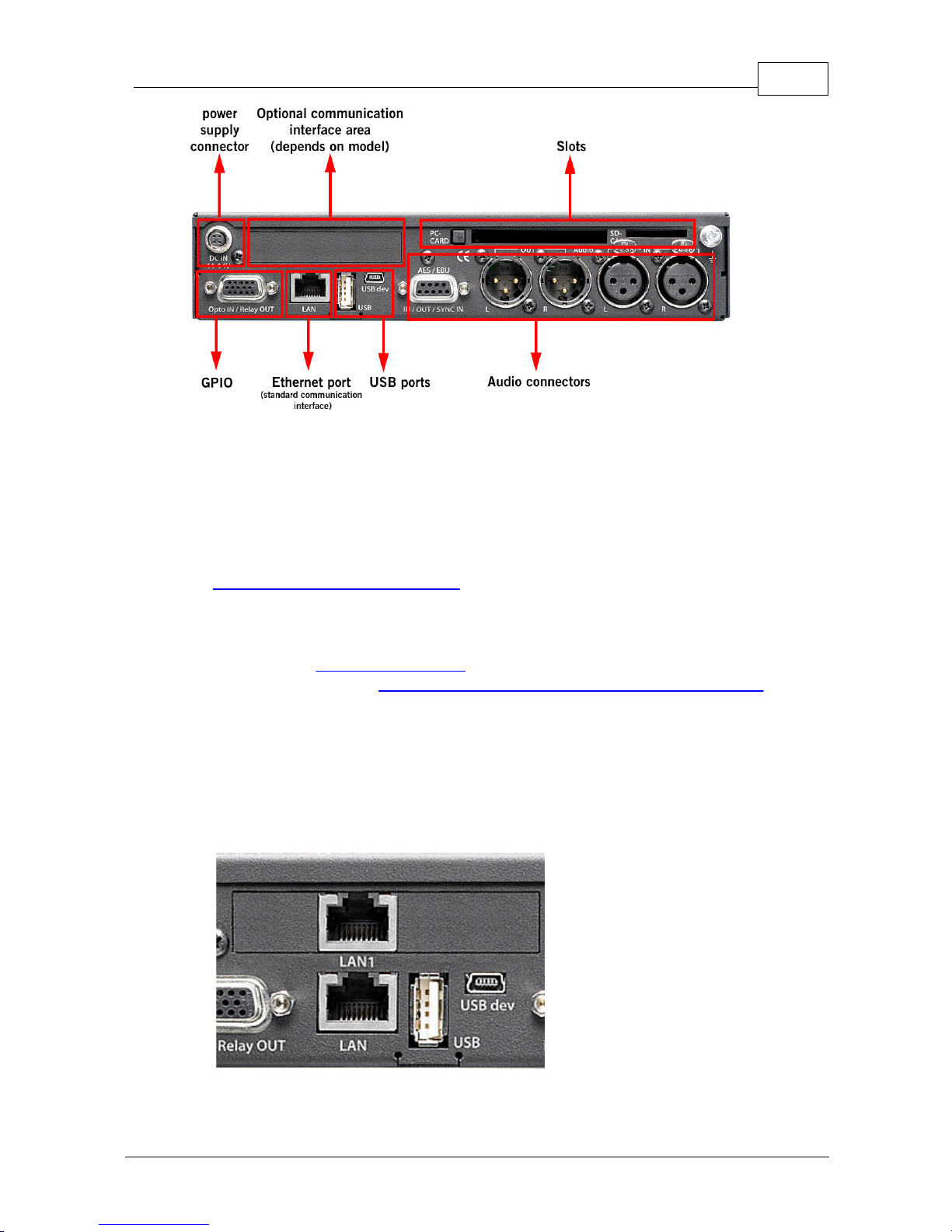

Connectors on the rear panel
