Preface

This document is intended to assist the service technician in the operation, maintenance and repair of the Rane

device. Together with the User Reference Manual, this document provides a complete description of the

functionality and serviceability of the Device. Any comments or suggestions you may have pertaining to the

document are welcome and encouraged.

Read This!

In addition to any purchase price that Rane may charge as consideration for Rane selling or otherwise transferring

this service manual (“Manual”) to you, if you are not a service and repair facility (“Service Center”) authorized by

Rane in writing to be an authorized Service Center, Rane sells or transfers the Manual to you on the following terms

and conditions:

Only Service Centers authorized by Rane in writing are authorized to perform service and repairs covered by an

Rane warranty (if any), and transfer of the Manual to you does not authorize you to be an authorized Service Center.

Therefore, if you perform, or if the Manual is used to perform, any service or repairs on any Rane product or part

thereof, any and all warranties of Rane as to that product and any service contract with Rane for that product

shall be voided and shall no longer apply for such product, even if your services or repairs were done in

accordance with the Manual.

All service or repairs done by you or with reference to the Manual shall be solely your responsibility, and Rane shall

have no liability for any such repairs or service work. All such service or repairs are performed at the sole risk of

the person performing the service or repairs. You agree that all such work will be performed in a competent,

professional and safe manner at all times and to indemnify and fully hold Rane and its successors and assigns

harmless in the event of any failure to so perform.

Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of resale or other

transfer.

As the owner of the copyright to the Manual, Rane does not give you the right to copy the Manual, and you agree

not to copy the Manual without the written authorization of Rane. Rane has no obligation to provide to you any

correction of, or supplement to, the Manual, or any new or superseding version thereof.

Rane shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in its sole discretion.

You shall not use, sell or otherwise transfer spare or replacement parts supplied by Rane to you (i) to repair or be

used in products manufactured for or by third parties or (ii) to any third parties for any purpose.

You shall not make any warranties or guarantees with respect to the products of Rane or the use thereof on behalf

of Rane or in your own name.

The foregoing describes the entire understanding related to sale or transfer of the Manual to you, and no other

terms shall apply unless in a writing signed by an authorized representative of Rane.

All Trademarks are property of their respective companies.

Confidential Rane Service Manual

Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO WATER OR

MOISTURE.

The arrowhead symbol on a lightning flash inside a triangle is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the enclosed product which may

be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point inside a triangle is intended to alert the user to the presence of

important operating, maintenance and servicing instructions in the literature which

accompanies the product.

REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED RANE SERVICE CENTER WILL

VOID THE RANE WARRANTY.

PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY RANE

DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES

OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.

ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED RANE SERVICE CENTER SHALL

BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND RANE SHALL HAVE NO LIABILITY TO THAT

ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.

Regarding the Power Supply Fuse

Caution: The product under service may employ the use of a replaceable fuse. Danger of

fire or electrocution if fuse is incorrectly replaced. Replace with only the same type or

equivalent type recommended by the equipment manufacturer.

Regarding the Internal Battery

Caution: The product under service may employ the use of a internal battery. Danger of

explosion if battery is incorrectly replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries according to the

manufacturer’s instruction.

Confidential Rane Service Manual

Safety Instructions

Carefully read the applicable items of the operating instructions and these safety suggestions before using this

product. Use extra care to follow the warnings written on the product itself and in the operating instructions. Keep

the operating instructions and safety suggestions for reference in the future.

1. Power Source. The product should only be connected to a power supply which is described either in the

operating instructions or in markings on the product.

2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to step on the

cords and such that nothing will be placed on or against them.

3. Periods of Non-use. If the product is not used for any significant period of time, the product’s AC power supply

cord should be unplugged from the AC outlet.

4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any openings of the

product.

5. Water or Moisture. The product should not be used near any water or in moisture.

6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or other heat

producing equipment.

7. Ventilation. When installing the product, make sure that the product has adequate ventilation. Improperly

ventilating the product may cause overheating, which may damage the product.

8. Mounting. The product should only be used with a rack which the manufacturer recommends. The

combination of the product and rack should be moved carefully. Quick movements, excessive force or uneven

surfaces may overturn the combination which may damage the product and rack combination.

9. Cleaning. The product should only be cleaned as the manufacturer recommends.

10. Service. The user should only attempt the limited service or upkeep specifically described in the operating

instructions for the user. For any other service required, the product should be taken to an authorized service

center as described in the operating instructions.

11. Damage to the Product. Qualified service personnel should service the unit in certain situations including

without limitation when:

a. Liquid has spilled or objects have fallen into the product,

b. The product is exposed to water or excessive moisture,

c. The AC power supply plug or cord is damaged,

d. The product shows an inappropriate change in performance or does not operate normally, or

e. The enclosure of the product has been damaged.

SPECIFICATION

FUNCTION

1. Motor On/off Switch--------------------------2 Way switch mounted to the Strobe.

2. Start/Stop Switch------------------------------When this button is pressed it will start and stop the platter.

LED State: Green when song is playing, Red when platter is stopped.

3.33/45 Rpm switches---------------------------Tact Switch with Plastic Button

4.Pitch Range Select-----------------------------The buttons control pitch ranges (8, 16, 50 percent).

5.Pitch Slider--------------------------------------This fader will adjust the pitch or speed of the track. There are 3 LEDs that

Work with the pitch slider. One is center detent. The other 2 are for pitch

adjustment takeover mode. Pitch takeover will guide the end user when they

change deck layers to the exact spot of where the pitch slider is currently set

to. LED state: Bright when active.

6.Needle Drop/Hot Cues------------------------Primary: This touch strip will seek through the loaded track.

LED state: Bright when active.

Secondary: Will trigger hot cues when Cue mode button is active.

When in Cue Mode the LED State is as follows: Bright when a hot cue is set.

7.Needle Drop/Cue Mode button---------------This button will toggle the Touch strip between Needle drop and hot cue modes.

LED State: Dim/off, Bright when CUE MODE is active

8.Deck Focus Buttons---------------------------DECK 1 (Tact Switch w/Red LED) [MIDI]:When this button is pressed it will

set deck 1 as the active deck via MIDI. Deck 1 will use MIDI Ch. 1 (Transport)

and MIDI Ch. 5 (Other Functions. This will be specified with greater detail in

the MIDI spec).

DECK 2 (Tact Switch w/Red LED) [MIDI]: When this button is pressed it will

set deck 2 as the active deck via MIDI. Deck 2 will use MIDI Ch. 2 (Transport)

and MIDI Ch. 6(Other Functions. This will be specified with greater detail in

the MIDI spec).

LED State: Dim/off, Bright when active

DECK 3 (Tact Switch w/Red LED)[MIDI]:When this button is pressed it will

set deck 3 as the active deck via MIDI. Deck 3 will use MIDI Ch. 3 (Transport)

and MIDI Ch. 7 (Other, Functions. This will be specified with greater detail in

the MIDI spec).

LED State: Dim/off, Bright when active

DECK 4 (Tact Switch w/Red LED) [MIDI]: When this button is pressed it will

set deck 4 as the active deck via MIDI. Deck 4 will use MIDI Ch. 4 (Transport)

and MIDI Ch. 8 (Other Functions. This will be specified with greater detail in

the MIDI spec).

SERVICE MANUAL

ＭＯＤＥＬ：ＴＷＥＬＶＥＭKII

DISASSEMBLY PROCEDURES

1. REMOVAL OF THE VINYL ASSEMBLY AND ALUMINIUM PLATTER ASSEMBLY AND

TOP PANEL AND FRONT PANEL AND BOTTOM BASE .(Fig1)

(A) REMOVE THE 17 PCS SCREWS WHICH ON THE TOP CHASIS SIDE AND BOTTOM BASE SIDE.

(B) DRAW THE TOP HOUSING FOLLOWING THE DIRECTION OF THE ARROW ABOUT DISTANCE 25 MM.

(D)LIFT THE ONE SIDE OF THE TOP HOUSING FOLLOWING THE DIRECTION OF ARROW ABOUT HEIGHT

200MM BEFORE UNPLUGGING THE 4 PCS CONNECTOR WHICH ON THE SIDE OF BOTTOM BASE.

(E) TAKE OUT THE TOP CHASIS SIDE.

(F) TAKE OUT THE BOTTOM BASE SIDE.

Fig.1

2.REMOVAL OF THE CONTROL PCBA AND P/S PCBA AND MOTOR (ASSEMBLY). (Fig2)

(A) REMOVE THE FADER SHAFT CAP AND 1 PC KNOB AND 2 PCS FFC AND 3 PCS LINE.

(B) REMOVE THE 23 PCS SCREWS.

(D) REMOVE THE 11 PCS BUTTON FROM THE CONTROL PCBA.

(E) UNPLUG THE 1 PCS CONNETOR BEFORE REMOVAL OF THE P/S PCBA.

(F) TAKE OUT THE 3 PCS BUTTON AND THE BUTTON FRAME AND SPRING.

(G) REMOVE THE 4 PCS SCREWS AND 4 PCS WASHERS BEFOR REMOVAL OF THE MOTOR.

Fig.2

3.REMOVAL OF THE LED PCB ASSEMBLY. (Fig3)

(A) REMOVE THE E-RING.

(B) REMOVE THE PLASTIC AND NEON LIGHT CAP AND SWITCH WHEEL AND STEEL BALL AND SPRING.

(D) TAKE THE TOP CHASIS.

Fig.3

4.REMOVAL OF THE USB PCB ASSEMBLY AND OPEN FRAME TYPE. (Fig4)

(A) UNPLUG THE ONE PCS CONNECTOR.

(B) REMOVE THE １０ PCS SCREWS

(D) TAKE OUT THE USB PCBA.

(E) TAKE OUT THE AC CONNECTOR.

(F) TAKE THE BOTTOM BASE.

Fig.4

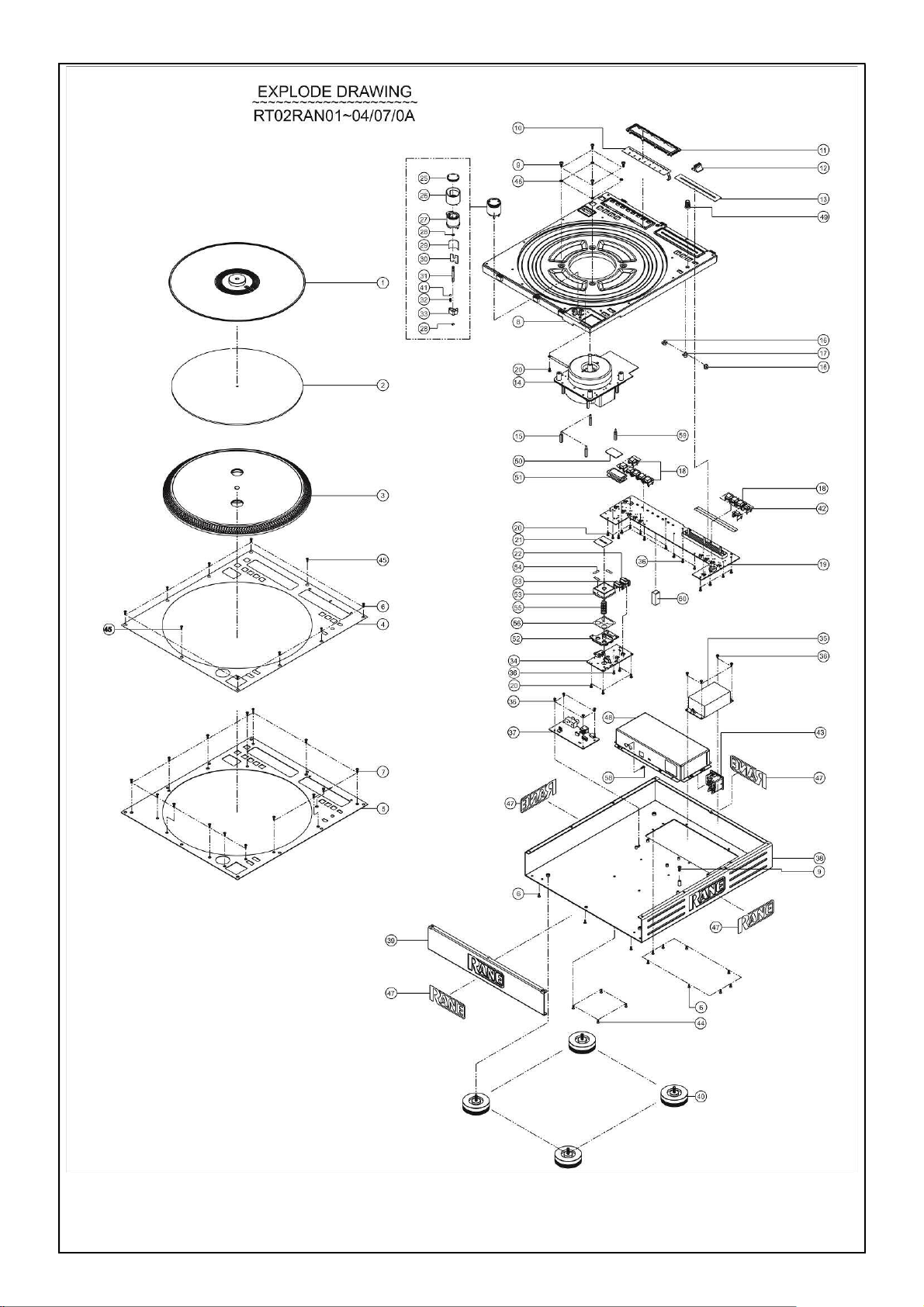

LEVEL P/N DESCRIPTION QTY REF

0.1 BA2A9308F2 Washer(f9 Black) 4

0.1 BAGL-55A CABLE CLIP 55L 1

0.1 BC1015025000 Bubble Pad 1

0.1 CA040218004 USB 2.0 1.8M A/B Black CORE 1

0.1 CN0100000511 Flat Cable GND Wire Black f3.2 Length 1

0.1 CN0220001001 Flat Cable Multicolored 2P Pitch 2.0mm 1

0.1 CN0239602005 Flat Cable 2Pin Pitch 3.96mm Single Row 1

0.1 CN0239602006 Flat Cable 2Pin Pitch 3.96mm Single Row 1

0.1 D60-1 5/32 STEEL BALL 1 41

0.1 ERE73 E Ring 3mm 2 28

0.1 FFC1610001001 Connector 16P 100MM 1

0.1 FFC1610003501 FFC 16pin Pitch:1.0mm Length:350mm 1

0.1 K46-1 Wire Tie 3

0.1 LA67YH104 GND INDICATE STICKER 1

0.1 LAC22RAN76 Serial barcode label 1

0.1 LAC51RAN69 PSE Warning Label(Sotsheet)(07) 1

0.1 LAC52MAR1086 Warning Label(Sotsheet) 1

0.1 LAC54RAN61 Warning Label(01)(02)(03)(04)(07) 1

0.1 LAC64RAN81 Saety lable-China(0A) 1

0.1 LAC61RAN71 Label(JP)(07) 1

0.1 LAC62RAN77 EAN barcode label 2

0.1 LAC62RAN78 Code39 barcode label(01) 1

0.1 LAC67RAN29 Label(LOGO) 1

0.1 LAC67RAN51 LOGO Label 1

0.1 LAC67YAH261 Label f8mm Green 1

0.1 MT1105513001 hexagon brass(L=20mm)(marking) 1 59

0.1 MT1105594 Copper 3 15

0.1 MT122040801 Front panel(painting) 1 39

0.1 MT123002501 Top bracket(painting) 1 5

0.1 MT123031901 Bottom housing Cable trough(pa 1 48

0.1 MT123032102 Bottom housing rame(printing) 1 38

..2 MT123032101 Bottom housing rame(painting) 1

0.1 MT322031102 Neon Light cap-AL 1 26

..2 MT3220311 Neon Lamp Cap 1

0.1 MT3540202 Spindle 1 31

0.1 NM1201802 Slipmat 1 2

0.1 NM1204407 Non woven mat under button 1 56

0.1 NM1204408 Non woven mat above button 3 54

0.1 NP207RAN24 Name Plate(VR) 1 13

0.1 NP207RAN25 Name Plate(START/STOP) 1 21

0.1 NP212RAN28 Name Plate(LOGO) 4 47

0.1 NP212RAN49 Decorating mylar(top) 1 4

0.1 NP212RAN56 OLED Windows Plate 1 50

0.1 NP717TEA05 Protecting Film 75*75mm 1

0.1 OTMAS130-B10K Strip FSR 10K(MAS130-B10K-031-BB02) 1 10

0.1 PRT02RAN01/02/03/04/07/0A Packing Assembly 1

..2 CB313N020 Separate Wall 1

..2 CB513S093 Separate Wall 1

..2 CGRT01313RAN02 Inner Box 1

..2 CGRT02313RAN01 Git Box 1

..2 CTRT02513RAN01 Master Carton 1

..2 GERAN07 Download Instruction Card 1

..2 OPRI04RAN08 Seety Manual(1396-D)(01)(02)(03)(0A) 1

..2 OPRT02RAN01 User's manual(EN)(01)(02)(03)(04) 1

..2 OPRT02RAN03 User's manual-CN(0A) 1

..2 OPRT02RAN02 User's manual((JP)(07) 1

..2 PE060930BO Pe Bag 1

..2 PE160240600B06 Pe Bag 1

..2 PE230370404B09 Pe Bag 1

..2 PLRT0101 Poly oam 1

..2 PLRT0102 Poly oam 1

RT02RAN01/02/03/04/07/0A BOM

..2 SD56049000 Sot Sheet 1

..2 TP15100C Fiber taper 100mm*55M (3M8915 0

0.1 PT0710631203 VR Knob paint Process 1 12

0.1 PT11106129 Light pipe(rectangle) 1 17

0.1 PT11106190 Light pipe(triangle) 2 16

0.1 PT1204406 FSR Holder 1 11

0.1 PT1210614 Button 9 18

0.1 PT1210635 Button 2 42

0.1 PT1210658 Start-stop button 1 53

..2 MT1210602 Shat o sliding button 1

0.1 PT1210659 Button rame 1 52

..2 MT1210603 Bush o sliding button rame 1

0.1 PT1210664 Konb(PP+Mineral iber) 1 49

0.1 PT1230204 Cabinet 1 8

..2 PM8540T-B004 ABS MATERIAL 0.64

0.1 PT351060407 Knob Print 1 25

..2 PT3510604 KNOB 1

0.1 PT351064710 Button 45RPM 1 22

..2 PT3510647 Button 1

0.1 PT351064711 Button 33RPM 1 23

..2 PT3510647 Button 1

0.1 PT3520315 Neon Light lens 1 29

0.1 PT3520316 Neon Light cap-inside 1 27

0.1 PT3540201 PLASTIC 1 33

0.1 PURT0201 conducting sponge 1 60

0.1 PW63200UC01 AC POWER SUPPLY CORD Long 2.0m UL+CSA(01) 1

UP301-104 AC POWER SUPPLY CORD Long 1.83m EU(02)

PW53200UK03 AC POWER SUPPLY CORD Long 2.0m UK(03)

PW22200JIS02 AC POWER SUPPLY CORD Long 2.0m JIS(07)

PW63200CCEE01 AC POWER SUPPLY CORD Long 2m CCEE(0A)

0.1 SC0306RINI Screw M3X6 PPN 15 36

0.1 SC0308FABBI Screw 15 7

0.1 SC0308FIBI Screw M3X8 PFB 19 6

0.1 SC0308PBBI Screw M3X8 PBB Tapping 1 58

0.1 SC0308RBNI Screw M3X8 PRN Tapping 14 20

0.1 SC0308RIBI Screw M3X8 PPB 4 44

0.1 SC0312FBBI Screw M3X12 PFB Tapping 2 45

0.1 SC0410RINI Screw M4X10 PPN 5 9

0.1 SP1204304 Spring o sliding button 1 55

0.1 SP3540201 SPRING 1 32

0.1 SPSEP10652800-1 Open rame type 28v 2.32A 1 35

0.1 TP021420G Double Sided Tape 1

0.1 TWDWZ20150202 AC Base Assembly 1 43

..2 CN0100001025 Flat Cable GND Wire GRN/YEL f 1

..2 DWZ201502 Dual Isolation Cable 2P 3.93mm 1

..2 JK742R363152150 AC JACK 3P 180° PIN 1

..2 K46-1 Wire Tie 1

0.1 TWMT123060201 Foot Module 4 40

..2 GELL-263 Glue 0

..2 MT1230602 Foot 4

..2 RU1230605 Rubber Pad 4

..2 SC0625S2IBI Screw M6x25 HSB 4

0.1 TWMT35052120301 AL platter module 1 3

..2 MT350521203 AL plattert=6 (painting rustpr 1

...3 MT350521202 AL platter t=6(machining) 1

....4 MT350521201 AL platter t=6 (painting 3% bl 1

.....5 MT3505212 AL platter t=6 (raw) 1

..2 PE360400404B09 Pe Bag 1

..2 PT3505203 Disc Fixed granule 2

..2 RU1230702 Rubber Pad o platter 1

0.1 TWRT01RAN04 Vinyl module-acrylic-black 1 1

..2 CB120RAN01 Vinyl inner sleeve 1

..2 MT11044209 Mounting plate 1

..2 NP612RAN61 acrylic round plate(black) 1

..2 SC2605FIBI Screw M2.6X5 PFB 3

..2 TWMT120442501 Module o quick release 1

...3 MT120442501 Quick-releasing adapter(E-depo 1

...3 MT120442601 Quick-releasing latch(E-deposi 1

...3 NP212RAN34 Maylar o quick release 1

...3 SP1204301 Compressing spring or latch 2

0.1 UHFS25.5X5X15 Core K5B FS 25.5X5X15-0 1

0.1 WR02RCA10003 RCA Cable 2P Wire Length 1000m 1

0.1 WR1020002001 Shielding Cable 10Pin Single R 1

0.1 WRUSB05200020B1 ISOLATION CABLE,USB2.0,5PIN,SI 1

0.1 WS070409IN Washer 4mm 4 46

0.1 TWPC19C02501 Function PCB Integration Asse 1

..2 NM1106138 Velvet Carpet 1

..2 TWPC19C02501T Function PCB SMT Integration A 1

...3 PC19C025 Function PCB 1

...3 TWPC19C025A01T Function PCB SMT Assembly 1

....4 AA822524X IC SN74HC165PW 2 IC5,7

....4 AL2-54-0138 Moset BSS138 N-CH 2 Q3,6

....4 AL2-75-4344 IC CS4344-CZZ 24bit 192KHz Ste 1 IC11

....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 9 C45,50,51,59,67,74,81,89,104

....4 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 4 C4,5,7,63

....4 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 3 C62,71,72

....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 22 C1,10,48,49,54,55,56,60,64,65,70,76,78,83,

84,85,93,94,99,111,113,114

....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 13 C40,46,79,91,92,100,101,102,105,106,107,

108,115

....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 4 C18,47,57,112

....4 CS150J5003NPO CCAP SMD 15pF/50V 5% 0603 NPO 6 C52,53,86,87,95,96

....4 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 1 C42

....4 CS224K5003X7R CCAP SMD 220nF 10% 50V 0603 X7R 22 C12,14,15,16,17,20,21,22,23,25,27,29,30,3

2,33,34,35,36,38,39,41,44

....4 CS225K1603X5R CCAP SMD 2.2uF/16V 10% 0603 X5R 2 C109,110

....4 CS226K1006X5R CCAP SMD 22uF/10V 10% 1206 X5R 1 C19

....4 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 7 C11,13,24,26,28,31,37

....4 CS561J5003NPO CCAP SMD 560pF/50V 5% 0603 NPO 7 C61,68,75,82,90,97,98

....4 DICM1213A01SO Diode ESD Protection Arrays CM1213A 2 D1,2

....4 DIEN1N4148WSM HF Diode 1N4148 SOD123 SMD 2 D4,5

....4 ECS10616B Capacitor Electrolytic 10uF/16V 3 EC3,4,6

....4 ECS10716D Capacitor Electrolytic 100uF/16V 1 EC1

....4 ECS22616B Capacitor Electrolytic 22uF/16V 1 EC2

....4 ECS47616D Capacitor Electrolytic 47uF/16V 1 EC5

....4 FCN1T0501502

FCN Down Touch ZIF SMD Pitch:0.5mm 15P

1 FCN4

....4 FCN1T1000401 FCN Up Touch ZIF SMD Pitch=1.0mm 4P 1 FCN3

....4 FCN1T1001602

FCN Down Touch ZIF SMD Pitch=1.0mm 16P

2 FCN1,2

....4 IC74AHC1G14DBVR IC 74AHC1G14DBVR 1 IC9

....4 IC74AHCT541PWR IC 74AHCT541PWR 1 IC14

....4 IC74HCT595D IC 74HCT595D 6 IC4,6,8,10,12,15

....4 ICDRV602 IC DRV602 TSSOP 1 IC13

....4 ICIMXRT1021DAF5 IC MIMXRT1021DAF5A 1 IC1

....4 ICTLV803SDBZR IC TLV803SDBZR SOT-23 THLD:2.9 1 IC3

....4 ICYH108C03 ICW25Q80DVSSIG+Program 1 IC2

.....5 ICW25Q80DVSSIG IC Flash imbx8 W25Q80DVSSIG SO 1 -

....4 JKCIM-H75N2 Micro SD Jack 16P 90° Female Push-Push 1 JK1

....4 LD6703ARQHGRBYW Liquid-emitting Diode Red/Green/Blue SMD 8 LD9,10,11,12,13,14,15,16

....4 LDKPT-2012QWF-D LED White SMD 0805 4 LD1,2,7,8

....4 LDSP170DLG74-5M LED Green SMD 0805 5 LD3,18,19,20,21

....4 LDSP170DNB74-5M LED Blue SMD 0805 5 LD4,5,6,17,22

....4 RS000004J06 RESISTOR 0 5% SMD 1206 1 R4

....4 RS000008J05 RESISTOR 0 5% SMD 0805 5 R3,7,17,18,19

....4 RS000010J03 RESISTOR 0 5% SMD 0603 1 R1

....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 1 R108

....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R56

....4 RS002K10F03 RESISTOR 2K 1% SMD 0603 1 R9

....4 RS003310F03 RESISTOR 33 1% SMD 0603 20 R23,26,28,29,33,34,48,51,60,61,78,80,91,9

2,102,103,121,122,127,130

....4 RS003K10F03 RESISTOR 3K 1% SMD 0603 1 R14

....4 RS010010F03 RESISTOR 100 1% SMD 0603 15 R8,10,13,15,16,24,25,46,58,76,89,100,119,

149,151

....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 42

R2,21,22,27,31,32,38,39,40,41,42,43,44,45,

62,63,64,65,66,67,68,69,71,72,107,124,125,

131,132,134,136,137,138,139,140,141,142,

143,144,145,146,150

....4 RS012010F03 RESISTOR 120 1% SMD 0603 5 R47,116,117,118,120

....4 RS015010F03 RESISTOR 150 1% SMD 0603 17 R36,37,49,52,53,57,59,75,81,85,88,94,97,1

01,106,115,123

....4 RS024010F03 RESISTOR 240 1% SMD 0603 8 R74,79,84,87,93,96,99,105

....4 RS027010F03 RESISTOR 270 1% SMD 0603 8 R73,77,82,86,90,95,98,104

....4 RS036K10F03 RESISTOR 36K 1% SMD 0603 2 R110,111

....4 RS039010F03 RESISTOR 390 1% SMD 0603 1 R54

....4 RS039K10F03 RESISTOR 39K 1% SMD 0603 2 R109,112

....4 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 1 R30

....4 RS068K10F03 RESISTOR 68K 1% SMD 0603 2 R113,114

....4 RS2M2110F03 RESISTOR 2.21M 1% SMD 0603 1 R35

....4 RS30K110F03 RESISTOR 30.1K 1% SMD 0603 1 R20

....4 RS392K10F03 RESISTOR 392K 1% SMD 0603 1 R126

....4 RS47K510F03 RESISTOR 47.5K 1% SMD 0603 5 R11,12,55,147,148

....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 3 R50,70,83

....4 TE6A2000501 Pin Header 180° Pitch 2.0mm Single Row 5Pin SMD 1 (TE2)

....4 TE6A2001001 Pin Header 180° Pitch 2.0mm Single Row 1 (TE1)

....4 TRDMP3099L MOSFET DMP3099L P-CHAN 30V 3.8A 2 Q1,5

....4 TRDTC124ESM Transormer DTC 124EKA NPN 1 Q4

....4 UHACM2012900-2P Chock 90 0.4A 2.0X1.2mm 1 L2

....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 6 L3,4,5,6,7,8

....4 UHNR5040T4R7N INDUCTOR 4.7uH 3.1A 0.038 OHM 1 L1

....4 XTM24000X801 Crystal 24MHZ SMD 3225 Fundame 1 XTM1

...3 TWPC19C025B01T USB PCB SMT Assembly 1

....4 AL2-51-0140 Schottky Barrier Rectiiers Diode 1 D200

....4 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 2 C212,215

....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 8 C200,201,202,203,204,205,207,211

....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 1 C210

....4 CS332K5003X7R CCAP SMD 3.3nF/50V 10% 0603 X7R 1 C209

....4 CS820J5003NPO CCAP SMD 82pF/50V 5% 0603 NPO 1 C208

....4 ECS10716D Capacitor Electrolytic 100uF/16V 3 EC200,201,203

....4 ECS22735GLE ECAP LOW ESR 220UF/35V 10x10.3mm SMD 1 EC202

....4 ICBA033FP IC BA033FP 1 IC200

....4 ICTPS54140DGQ IC TPS54140 1.5A 42V DCTODC Converter 1 IC201

....4 ICUSBLC62SC6 IC USBLC62SC6 1 IC202

....4 RS000008J05 RESISTOR 0 5% SMD 0805 1 R210

....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R207

....4 RS010010F03 RESISTOR 100 1% SMD 0603 2 R208,209

....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 2 R202,206

....4 RS220K10F03 RESISTOR 220K 1% SMD 0603 1 R205

....4 RS53K610F03 RESISTOR 53.6K 1% SMD 0603 1 R200

....4 RS698K10F03 RESISTOR 698K 1% SMD 0603 1 R203

....4 UHDRRI125-101M Inductor, 100UH±20% 1.3A SMD 1 L200

....4 UHPIH4D28-2R2N Inductor 2.2UH 2A ±20% 4.7*4.7mm 2 L201,202

...3 TWPC19C025C01T P/S PCB SMT Assembly 1

....4 AL2-54-0138 Moset BSS138 N-CH 3 Q300,301,302

....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 3 C300,301,302

....4 DICM1213A01SO Diode ESD Protection Arrays CM1213A 1 D301

....4 DIEN1N4148WSM HF Diode 1N4148 SOD123 SMD 1 D300

....4 ECS47616D Capacitor Electrolytic 47uF/16V D type SMD 2 EC300,301

....4 FCN1T1001602

FCN Down Touch ZIF SMD Pitch=1.0mm 16P

1 FCN300

....4 LD6703ARQHGRBYW Liquid-emitting Diode Red/Green/Blue SMD 4 LD302,303,304,305

....4 LDSP170DNB74-5M LED Blue SMD 0805 2 LD300,301

....4 RS002210F03 RESISTOR 22 1% SMD 0603 1 R321

....4 RS002710F03 RESISTOR 27 1% SMD 0603 1 R318

....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 4 R305,310,315,319

....4 RS015010F03 RESISTOR 150 1% SMD 0603 6 R300,301,304,308,312,316

....4 RS015K10F03 RESISTOR 15K 1% SMD 0603 1 R320

....4 RS024010F03 RESISTOR 240 1% SMD 0603 4 R303,307,311,314

....4 RS027010F03 RESISTOR 270 1% SMD 0603 4 R302,306,309,313

....4 RS02K210F03 RESISTOR 2.2K 1% SMD 0603 1 R317

....4 RS02R210J03 RESISTOR 2.2 5% SMD 0603 1 R322

....4 TR2SA1037ASM TRANSISTOR 2SA1037AKR PNP 1 Q303

....4 TR2SC2412KSM TRANSISTOR 2SC2412K NPN 1 Q304

...3 TWPC19C025D01T LED PCB SMT Assembly 1 30

....4 LDKPTC2012SURCK RED LED KPTC2012 SURCK 0805 4 LD400,401,402,403

..2 TWPC19C025A01 Function PCB DIP Assembly 1 19

...3 OTEO012832DWPP OLED 30*11.5*1.4mm 128*32 Dots white 1 OLED1

...3 PT15044129 OLED Holder 1 (OLED1)

...3 SWEN11-HSB1AF15 Switch Rotational Encode 20Pulse Push 1 ENC1

...3 SWEVQ11L05R Switch Tact 5mm 160g Horizonta DIP 11 SW1,2,3,4,5,6,7,8,9,10,11

...3 TE591271001

Pin Header 180° Pitch:1.27mm Dual Row 5Pin*2 SMD

1 (TE3)

...3 TWOTMSD8GC402 OTMSD8GC4+Program 1 (JK1)

....4 OTMSD8GC4 Micro SD Card 8G Class 4 1 -

...3 VRS10310022 Potentiometer Slide 10KB 100mm 15mm 1 VR1

..2 TWPC19C025B01 USB PCB DIP Assembly 1 37

...3 JK0KUSBXHTBS1NO B-TYPE USB Jack 90° (Orange) 1 JK200

...3 RJ2008HP-11F15A 2PIN RCA JACK 1 JK201

...3 SWSSSS923802 Switch Slide 2P2T 1 SW200

...3 TE10200502 Connector (5P Socket)180° 1 (TE201)

...3 TE10201002 Connector(10P Socket) 1 (TE202)

...3 TE613960201 Connector 2P 180 1 (TE200)

..2 TWPC19C025C01 P/S PCB DIP Assembly 1 34

...3 SWDF-03S-6P-M-Z Micro switches SWDF-03S-6P-M-Z 1 SW302

...3 SWEVQ11L05R Switch Tact 5mm 160g Horizonta DIP 2 SW300,301

...3 SWSM1N6S501C Switch(AC) 1 SW303

...3 TE612000202 Terminal 2P 2.0 180° 1 (TE300)

0.1 MD996EYAH01 DD Motor 1 14

..2 BW653245SS Washer 3M/M 1 36

..2 ERE710 10mm E Ring 1 4

..2 LAP22YAH448 Bar Code Label 1

..2 MAG3510019 Magnet Torque 5.2kg 1 2

..2 MT3205512 Motor Spindle 1 5

..2 MT3210054 MAGNET BASE 1 1

...3 MT321003101 BEARING BASE 1

..2 MT3210060 CENTER AXIS 1 3

..2 MT3210061 SHELF 1 28

..2 MT3210062 BRACKET 1 33

..2 MT3210089 Metal Plate 1 14

..2 MT3500102 RIVET 7 13

..2 PT3210014 Dust Cover 1 30

..2 PT351001402 IRON 1 7

..2 PT3510015 COIL 1 9

..2 RN3100111 C RING (10MM) 1 11

..2 RN4050001 CS RING 1 12

..2 SC0303SIBI Screw M3X3 HXB 2 17

..2 SC0306RBNI Screw M3X6 PRN Tapping 1 35

..2 SC0306WBNI Screw M3X6X8 PRWN W/WASHERTa 5 29

..2 SC0330PBCI Screw M3X30 PPC Tapping 6 6

..2 SC2606RINI SCREW M2.6X6 PPN 6 16

..2 TWMT321000601 Stator Insulating Line Ring 1 8

..2 TWMT321005601 Motor Base Assembly 1

...3 MT3210055 BRONZE SLEEVE 1 34

...3 MT3210056 IRON BASE 1 18

..2 TWMT321005701 Douser Process 1

...3 MT3210057 DOUSER FIXED BASE 1 19

...3 MT3210068 DOUSER HOLDER 2 20

...3 NP632YAH104 DOUSER(900RPM) 1 21

...3 RN042001 CS RING 1 23

..2 TWMT321005801 Douser Process 1

...3 MT3210058 FIXED BASE 1 27

...3 MT3210069 DOUSER HOLDER 2 25

...3 NP632YAH105 DOUSER(900RPM) 1 26

...3 RN042501 FIXED RING (25MM) 1 24

..2 WS109506205M Washer 2 22

..2 WS663309IC Spring Washer 3# 2 31

..2 TWPC16P02112 Motor PCB Assembly 1

...3 TWPC16P02112T Motor PCB SMT Assembly 1

....4 PC16P021 Motor PCB 2Layer FR-4 1.6T 118 1

....4 TWPC16P021A12T Motor PCB SMT Assembly 1

.....5 AL2-51-0140

Schottky Barrier Rectiiers Diode B140-13-F SMA

1 D2

.....5 CS104K1206X7R CCAP SMD 0.1uF/100V 10% 1206 X7R 1 C25

.....5 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 15 C1,2,3,4,5,6,7,12,16,21,22,23,27,30,31

.....5 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 1 C19

.....5 CS150J5003NPO CCAP SMD 15pF/50V 5% 0603 NPO 2 C38,39

.....5 CS225K5006X7R CCAP SMD 2.2uF/50V 10% 1206 X7R 8 C13,14,17,18,20,24,26,32

.....5 CS330J5003NPO CCAP SMD 33pF/50V 5% 0603 NPO 2 C28,34

.....5 CS332K5003X7R CCAP SMD 3.3nF/50V 10% 0603 X7R 1 C10

.....5 CS820J5003NPO CCAP SMD 82pF/50V 5% 0603 NPO 1 C11

.....5 DIP6SMB47CA Diode TVS(47V) 1 ZD1

.....5 DIS3J Diode S3J SMC 1 D1

.....5 ECS10716D Capacitor Electrolytic 100uF/16V 3 EC1,2,3

.....5 ECS22735GLE

ECAP LOW ESR 220UF/35V 10x10.3mm SMD

2 EC4,5

.....5 HSDRV5013 DRV5013 Digital-Latch Hall Eect Sensor 3 H1,2,3

.....5 IC74AHC245PW IC SN74AHC245PWR 1 IC2

.....5 ICDRV8313PWPR IC DRV8313PWPR 1 IC4

.....5 ICOPA2365AIDR IC OPA2365A Ampliier 1 IC5

.....5 ICTLV1117LV33 IC TLV1117LV33DCYR 3.3V 1A 1 IC1

.....5 ICTPS54140DGQ IC TPS54140 1.5A 42V DCTODC Converter 1 U1

.....5 ICYH108P15 IC YH108P15(TMS320F28034+Program) 1 IC3

......6

ICTMS320F28034 IC TMS320F28034 Blank 1 -

.....5 RS000010J03 RESISTOR 0 5% SMD 0603 1 R17

.....5 RS004710F03 RESISTOR 47 1% SMD 0603 25 R4,7,9,13,14,15,16,18,28,29,30,31,32,33,34

,35,36,37,38,48,50,51,52,53,54

.....5 RS010010F03 RESISTOR 100 1% SMD 0603 5 R42,43,44,47,62

.....5 RS010K10F03 RESISTOR 10K 1% SMD 0603 13 R8,26,27,39,40,41,49,55,56,57,58,60,67

.....5 RS01K210F03 RESISTOR 1.2K 1% SMD 0603 4 R45,46,61,66

.....5 RS020K10F03 RESISTOR 20K 1% SMD 0603 2 R59,68

.....5 RS02K210F03 RESISTOR 2.2K 1% SMD 0603 1 R25

.....5 RS033K10F03 RESISTOR 33K 1% SMD 0603 4 R11,12,23,24

.....5 RS047010F03 RESISTOR 470 1% SMD 0603 1 R80

.....5 RS082010F03 RESISTOR 820 1% SMD 0603 2 R19,22

.....5 RS0R0104F06 RESISTOR 0.01 1% SMD 1206 3 R63,64,65

.....5 RS220K10F03 RESISTOR 220K 1% SMD 0603 1 R6

.....5 RS53K610F03 RESISTOR 53.6K 1% SMD 0603 1 R2

.....5 RS698K10F03 RESISTOR 698K 1% SMD 0603 1 R5

.....5 UH201209T-600Y BEAD 60±25% 3A 0805 4 L5,8,9,10

.....5 UH453232T-3R3K Capacitor 3.3UH 4 L2,4,6,7

.....5 UH465516-351 Common mode inductance-350 1 L3

.....5 UHDRRI125-101M Inductor, 100UH±20% 1.3A SMD 1 L1

.....5 XTM10000XB Crystal 10MHz 3225+SMD Fundame 1 X1

....4 TWPC16P021B02T Sensor PCB SMT Assembly 1

.....5 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 1 C9

....4 TWPC16P021C02T Sensor PCB SMT Assembly 1

.....5 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 1 C15

...3 TWPC16P021A11 Main PCB Assembly 1

....4 FCN2S1001601 FCN Dual Touch 180° Pitch=1.0mm 16P 1 FCN1

....4 TE612000402 Connector 4Pin P=2.0mm 1 TE1

....4 TE612000403 Connector(4P Socket) 180° 1 TE4

....4 TE613960201 Connector 2P 180 2 TE2,3

....4 TE962541401 Connector 14P 1 TE5

...3 TWPC16P021B02 Sensor PCB Assembly 1

....4 CN0420000506 Flat Cable 4Pin Pitch 2.0mm Single Row 1 CN1

....4 DIHEDS-9700F50 Optical Encoder 1 SEN1

...3 TWPC16P021C02 Sensor PCB Assembly 1

....4 CN0420001013 Flat Cable 4Pin Pitch 2.0mm Single Row 1 CN2

....4 DIHEDS-9700F50 Optical Encoder 1 SEN2

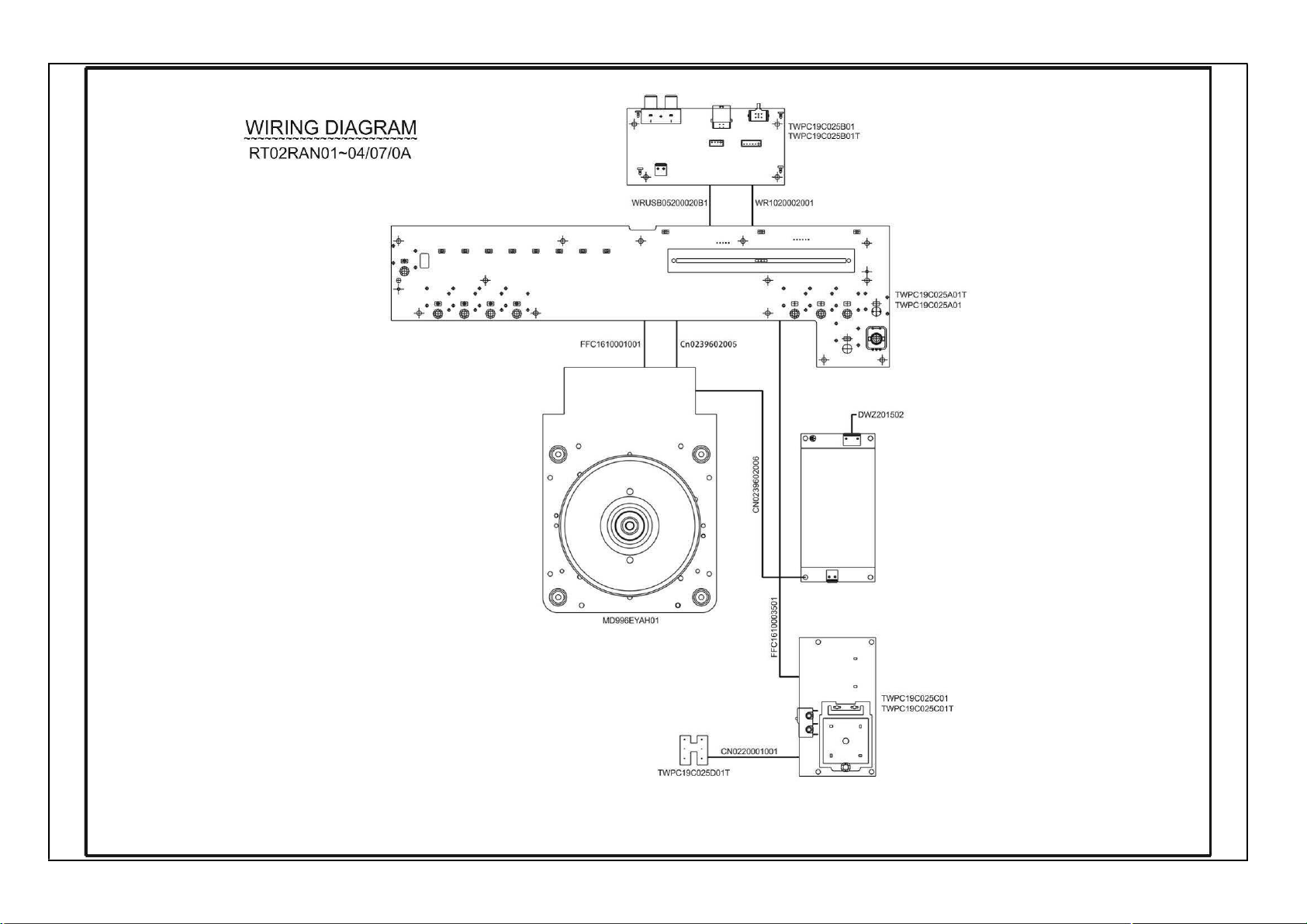

D D

C C

B B

A A

Check REV Description

Title:

Size

Number Revision

Date :

File Name:

Sheet of

Design By :

DATEDesignApproval

RT02-PC19025A-CTRL

2 4

DGND

VCC

RCK

SCK

SCLR

QB 1

QC 2

QD 3

QE 4

QF 5

QG 6

QH 7

GND 8

IC12

74HCT595D

C70

0.1uF

R78 33

R80 33

C74

100pF

C75

560pF

DGND

VCC

RCK

SCK

SCLR

QB 1

QC 2

QD 3

QE 4

QF 5

QG 6

QH 7

GND 8

IC10

74HCT595D

C78

0.1uF

R91 33

R92 33

C81

100pF

C82

560pF

DGND

VCC

RCK

SCK

SCLR

QB 1

QC 2

QD 3

QE 4

QF 5

QG 6

QH 7

GND 8

IC8

74HCT595D

C84

0.1uF

R102 33

R103 33

C89

100pF

C90

560pF

LED+5V

R104 270

R105 240

R106 150

CTRL_MOSI1

CTRL_CLK1

CTRL_CS1

R77 270

R79 240

R81 150

R82 270

R84 240

R85 150

R86 270

R87 240

R88 150

R90 270

R93 240

R94 150

R95 270

R96 240

R97 150

R98 270

R99 240

R101 150

R73 270

R74 240

R75 150

R76 100

R89 100

R100 100

DGND

VCC

RCK

SCK

SCLR

QB 1

QC 2

QD 3

QE 4

QF 5

QG 6

QH 7

GND 8

IC15

74HCT595D

C99

0.1uF

R121 33

C104

100pF

C61

560pF

R119 100

LD17

CUE MODE

LD7

LEFT

R115 150

R120 120

LD20

DECK2R118 120

R117 120

R116 120

LD19

DECK3

LD18

DECK4

LD8

CENTER

LD1

RIGHT

R53 150

R52 150

R49 150

DGND

VCC

RCK

SCK

SCLR

QB 1

QC 2

QD 3

QE 4

QF 5

QG 6

QH 7

GND 8

IC6

74HCT595D

C64

0.1uF

R60 33

R61 33

C67

100pF

C68

560pF

R58 100

LD6

R57 150

LD5

16%

R59 150

LD4

50%

R36 150

LD2

BACKR37 150

R47 120

LD3

INSTANTDGND

DGND

VCC

RCK

SCK

SCLR

QB 1

QC 2

QD 3

QE 4

QF 5

QG 6

QH 7

GND 8

IC4

74HCT595D

C54

0.1uF

R48 33

R51 33

C59

100pF

R46 100

DGND

CTRL_MOSI

CTRL_CLK

CTRL_CS

CTRL_MOSI1

CTRL_CLK1

CTRL_CS1

C94

0.1uF

R125

10K

R124

10K

R83 49.9

R45

10K

R44

10K

R43

10K

R42

10K

R41

10K

R40

10K

R39

10K

R38

10K

SH/LO

1CLK

QH 7

GNDGND

QH 9

SER

CLK-INH

VCCVCC

IC5

SN74HC165PW

C55

0.1uF

R68

10K

R67

10K

R66

10K

R65

10K

R64

10K

R63

10K

R62

10K

SH/LO

1CLK

QH 7

GNDGND

QH 9

SER

CLK-INH

VCCVCC

IC7

SN74HC165PW

C65

0.1uF

R70

49.9

SW6

DECK-1

SW5

DECK-2

SW4

DECK-3

SW3

DECK-4

SW2

CUE MODE

SW9

SW10

16%

SW11

50%

SW7

BACK

SW8

INSTANT

SW+3.3V

DGND

SW+3.3V

DGND

SW+3.3V

CTRL_MISO

CTRL_CS

CTRL_CLK CTRL_CLK2

CTRL_CLK2

CTRL_CS

CTRL_CLK2

SW+3.3V

NEEDLE DROP PITCH

TO FSR

A+3V3

DGND

VR1

10KB

DGND

KEY_START

KEY_33

KEY_45

MO_ON/OFF

LED_33

LED_45

3Vp 2

CH1

3Vp 2

CH1

AA428998J(DNS)

FCN3

C60

0.1uF

C56

0.1uF

R54

390

R55

47.5K

R56

C62

0.01uF

C63

1nF AD_PITCH

AD_STRIP

R69

10K

SW+3.3V

DGND

R72

10K

R71

10K

C71

0.01uF

C72

0.01uF

2C3

ENC1

BROWSE

BROWSE_PUSH

BROWSE_ENC_B

BROWSE_ENC_A

SDIN

DEM/SCLK

LRCK

MCLK

GND 8

VA 9

5FILT+ 6

AOUTL 7

AOUTR 10

IC11

CS4344

VOUT-R

VOUT-L

EC4

10uF/16V

EC3

10uF/16V

C83 0.1uF

C79 1uF

C85

0.1uF

AGND.

SAI1_BCK

SAI1_LRCK

SAI1_DATA

SAI1_MCLK

+5V

1N4148

R107

10K

R108

C93

0.1uF

DTC124EST

C91

1uF

C92

1uF

C86

15pF

C87

15pF

C95

15pF

C96

15pF

C97

560pF

C98

560pF

R109

39K

R112

39K

R110

36K

R111

36K

R113

68K

R114

68K

C100

1uF

C101

1uF

C102

1uF

EC6

10uF/16V

EC5

47uF/16V VOUT-R VOUT- L

+4.3V

DGND DGND DGND

+INR

-INR

OUTR

SGND

PVSS

7CP 8

PVDD 9

PGND 10

NC 11

OUTL 12

-INL 13

+INL 14

IC13

DRV602

DGND

BROWSE_PUSH

DVS-LDVS-R

DAC Circuit

Switch Circuit

LED Circuit

Encode Circuit

VR Circuit

C57

10uF

C77

22pF(DNS)

DGND

C69

22pF(DNS)

DGND

C73

22pF(DNS)

DGND

C80

22pF(DNS)

DGND

C88

22pF(DNS)

DGND

C103

22pF(DNS)

DGND

C66

22pF(DNS)

DGND

C58

22pF(DNS)

DGND

C76

0.1uF

2 4

IC9A

IC74AHC1G14DBVR GND

VCC

IC9B

IC74AHC1G14DBVR

OE1 1

A0 2

A1 3

A2 4

A3 5

A4 6

A5 7

A6 8

A7 9

GND

11 Y6

12 Y5

13 Y4

14 Y3

15 Y2

16 Y1

17 Y0

OE2 19

VCC 20

IC14

74AHCT541PWR

A+3V3

AGND.

AGND.AGND.

AGND.

LED_START_B

LED_START

LED_STOP

D+5V

LD22

DVS MODER123 150

LED+5V

LD21

DECK1

R50 49.9

R122 33

SW1

DVS-MODE

LED+5V

UG-12832HSWEG05

OLED

DGND

OLED_CD

OLED_CS

OLED_RST

FCN4

To OLED D+3V3

D+3V3

C105 1uF

C106 1uF

C107 1uF

C108 1uF

C109 2.2uF

C110 2.2uF

R126 392K

R21

10K

C111

0.1uF

OLED_CLK

OLED_D0

4LD9

4LD10

4LD11

4LD12

4LD13

4LD14

4LD15

4LD16

C115

1uF

DGND

AGND.

0Ω-1206

PIC5401

PIC5402

COC54

PIC5501 PIC5502

COC55

PIC5601

PIC5602

COC56

PIC5701

PIC5702

COC57

PIC5801

PIC5802

COC58

PIC5901

PIC5902

COC59

PIC6001

PIC6002

COC60

PIC6101

PIC6102

COC61

PIC6201

PIC6202

COC62

PIC6301

PIC6302

COC63

PIC6401

PIC6402

COC64

PIC6501 PIC6502

COC65

PIC6601

PIC6602

COC66

PIC6701

PIC6702

COC67

PIC6801

PIC6802

COC68

PIC6901

PIC6902

COC69

PIC7001

PIC7002

COC70

PIC7101

PIC7102

COC71

PIC7201

PIC7202

COC72

PIC7301

PIC7302

COC73

PIC7401

PIC7402

COC74

PIC7501

PIC7502

COC75

PIC7601

PIC7602

COC76

PIC7701

PIC7702

COC77

PIC7801

PIC7802

COC78

PIC7901PIC7902

COC79

PIC8001

PIC8002

COC80

PIC8101

PIC8102

COC81

PIC8201

PIC8202

COC82

PIC8301PIC8302

COC83

PIC8401

PIC8402

COC84

PIC8501

PIC8502

COC85

PIC8601 PIC8602

COC86

PIC8701

PIC8702

COC87

PIC8801

PIC8802

COC88

PIC8901

PIC8902

COC89

PIC9001

PIC9002

COC90

PIC9101

PIC9102

COC91

PIC9201 PIC9202

COC92

PIC9301

PIC9302

COC93

PIC9401PIC9402

COC94

PIC9501

PIC9502

COC95

PIC9601

PIC9602

COC96

PIC9701

PIC9702

COC97

PIC9801

PIC9802

COC98

PIC9901

PIC9902

COC99

PIC10001

PIC10002

COC100

PIC10101

PIC10102

COC101

PIC10201

PIC10202

COC102

PIC10301

PIC10302

COC103

PIC10401

PIC10402

COC104

PIC10501 PIC10502

COC105

PIC10601 PIC10602

COC106

PIC10701 PIC10702

COC107

PIC10801 PIC10802

COC108

PIC10901PIC10902

COC109

PIC11001PIC11002

COC110

PIC11101

PIC11102

COC111

PIC11501

PIC11502

COC115

PID101

PID102

PID103

COD1

PID201

PID202

PID203

COD2

PID301

PID302

COD3

PID401 PID402

COD4

PID501

PID502

COD5

PIEC301

PIEC302

COEC3

PIEC401

PIEC402

COEC4

PIEC501

PIEC502

COEC5

PIEC601

PIEC602

COEC6

PIENC101

PIENC102 PIENC103

PIENC104PIENC105

COENC1

PIFCN301

PIFCN302

PIFCN303

PIFCN304

COFCN3

PIFCN401

PIFCN402

PIFCN403

PIFCN404

PIFCN405

PIFCN406

PIFCN407

PIFCN408

PIFCN409

PIFCN4010

PIFCN4011

PIFCN4012

PIFCN4013

PIFCN4014

PIFCN4015

COFCN4

PIIC401

PIIC402

PIIC403

PIIC404

PIIC405

PIIC406

PIIC407

PIIC408

PIIC409

PIIC4010

PIIC4011

PIIC4012

PIIC4013

PIIC4014

PIIC4015

PIIC4016

COIC4

PIIC501

PIIC502

PIIC503

PIIC504

PIIC505

PIIC506

PIIC507

PIIC508

PIIC509

PIIC5010

PIIC5011

PIIC5012

PIIC5013

PIIC5014

PIIC5015

PIIC5016

COIC5

PIIC601

PIIC602

PIIC603

PIIC604

PIIC605

PIIC606

PIIC607

PIIC608

PIIC609

PIIC6010

PIIC6011

PIIC6012

PIIC6013

PIIC6014

PIIC6015

PIIC6016

COIC6

PIIC701

PIIC702

PIIC703

PIIC704

PIIC705

PIIC706

PIIC707

PIIC708

PIIC709

PIIC7010

PIIC7011

PIIC7012

PIIC7013

PIIC7014

PIIC7015

PIIC7016

COIC7

PIIC801

PIIC802

PIIC803

PIIC804

PIIC805

PIIC806

PIIC807

PIIC808

PIIC809

PIIC8010

PIIC8011

PIIC8012

PIIC8013

PIIC8014

PIIC8015

PIIC8016

COIC8

PIIC902 PIIC904

COIC9A

PIIC903

PIIC905

COIC9B

PIIC1001

PIIC1002

PIIC1003

PIIC1004

PIIC1005

PIIC1006

PIIC1007

PIIC1008

PIIC1009

PIIC10010

PIIC10011

PIIC10012

PIIC10013

PIIC10014

PIIC10015

PIIC10016

COIC10

PIIC1101

PIIC1102

PIIC1103

PIIC1104

PIIC1105 PIIC1106

PIIC1107

PIIC1108

PIIC1109

PIIC11010

COIC11

PIIC1201

PIIC1202

PIIC1203

PIIC1204

PIIC1205

PIIC1206

PIIC1207

PIIC1208

PIIC1209

PIIC12010

PIIC12011

PIIC12012

PIIC12013

PIIC12014

PIIC12015

PIIC12016

COIC12

PIIC1301

PIIC1302

PIIC1303

PIIC1304

PIIC1305

PIIC1306

PIIC1307 PIIC1308

PIIC1309

PIIC13010

PIIC13011

PIIC13012

PIIC13013

PIIC13014

COIC13

PIIC1401

PIIC1402

PIIC1403

PIIC1404

PIIC1405

PIIC1406

PIIC1407

PIIC1408

PIIC1409

PIIC14010

PIIC14011

PIIC14012

PIIC14013

PIIC14014

PIIC14015

PIIC14016

PIIC14017

PIIC14018

PIIC14019

PIIC14020

COIC14

PIIC1501

PIIC1502

PIIC1503

PIIC1504

PIIC1505

PIIC1506

PIIC1507

PIIC1508

PIIC1509

PIIC15010

PIIC15011

PIIC15012

PIIC15013

PIIC15014

PIIC15015

PIIC15016

COIC15

PIL301

PIL302

COL3

PIL401

PIL402

COL4

PIL501

PIL502

COL5

PIL601

PIL602

COL6

PIL701

PIL702

COL7

PILD101PILD102

COLD1

PILD201PILD202

COLD2

PILD301PILD302

COLD3

PILD401PILD402

COLD4

PILD501PILD502

COLD5

PILD601PILD602

COLD6

PILD701PILD702

COLD7

PILD801PILD802

COLD8

PILD901

PILD902

PILD903

PILD904

COLD9

PILD1001

PILD1002

PILD1003

PILD1004

COLD10

PILD1101

PILD1102

PILD1103

PILD1104

COLD11

PILD1201

PILD1202

PILD1203

PILD1204

COLD12

PILD1301

PILD1302

PILD1303

PILD1304

COLD13

PILD1401

PILD1402

PILD1403

PILD1404

COLD14

PILD1501

PILD1502

PILD1503

PILD1504

COLD15

PILD1601

PILD1602

PILD1603

PILD1604

COLD16

PILD1701PILD1702

COLD17

PILD1801PILD1802

COLD18

PILD1901PILD1902

COLD19

PILD2001PILD2002

COLD20

PILD2101PILD2102

COLD21

PILD2201PILD2202

COLD22

COOLED

PIQ401

PIQ402

PIQ403

COQ4

PIR401PIR402 COR4

PIR2101

PIR2102

COR21

PIR3601

PIR3602

COR36

PIR3701

PIR3702

COR37

PIR3801

PIR3802

COR38

PIR3901

PIR3902

COR39

PIR4001

PIR4002

COR40

PIR4101

PIR4102

COR41

PIR4201

PIR4202

COR42

PIR4301

PIR4302

COR43

PIR4401

PIR4402

COR44

PIR4501

PIR4502

COR45

PIR4601

PIR4602

COR46

PIR4701

PIR4702

COR47

PIR4801

PIR4802

COR48

PIR4901

PIR4902

COR49

PIR5001

PIR5002

COR50

PIR5101

PIR5102

COR51

PIR5201

PIR5202

COR52

PIR5301

PIR5302

COR53

PIR5401

PIR5402

COR54

PIR5501

PIR5502

COR55

PIR5601

PIR5602

COR56

PIR5701

PIR5702

COR57

PIR5801

PIR5802

COR58

PIR5901

PIR5902

COR59

PIR6001

PIR6002

COR60

PIR6101

PIR6102

COR61

PIR6201

PIR6202

COR62

PIR6301

PIR6302

COR63

PIR6401

PIR6402

COR64

PIR6501

PIR6502

COR65

PIR6601

PIR6602

COR66

PIR6701

PIR6702

COR67

PIR6801

PIR6802

COR68

PIR6901

PIR6902

COR69

PIR7001

PIR7002

COR70

PIR7101

PIR7102

COR71

PIR7201

PIR7202

COR72

PIR7301

PIR7302

COR73

PIR7401

PIR7402

COR74

PIR7501

PIR7502

COR75

PIR7601

PIR7602

COR76

PIR7701

PIR7702

COR77

PIR7801

PIR7802

COR78

PIR7901

PIR7902

COR79

PIR8001

PIR8002

COR80

PIR8101

PIR8102

COR81

PIR8201

PIR8202

COR82

PIR8301

PIR8302

COR83

PIR8401

PIR8402

COR84

PIR8501

PIR8502

COR85

PIR8601

PIR8602

COR86

PIR8701

PIR8702

COR87

PIR8801

PIR8802

COR88

PIR8901

PIR8902

COR89

PIR9001

PIR9002

COR90

PIR9101

PIR9102

COR91

PIR9201

PIR9202

COR92

PIR9301

PIR9302

COR93

PIR9401

PIR9402

COR94

PIR9501

PIR9502

COR95

PIR9601

PIR9602

COR96

PIR9701

PIR9702

COR97

PIR9801

PIR9802

COR98

PIR9901

PIR9902

COR99

PIR10001

PIR10002

COR100

PIR10101

PIR10102

COR101

PIR10201

PIR10202

COR102

PIR10301

PIR10302

COR103

PIR10401

PIR10402

COR104

PIR10501

PIR10502

COR105

PIR10601

PIR10602

COR106

PIR10701PIR10702

COR107

PIR10801

PIR10802

COR108

PIR10901

PIR10902

COR109

PIR11001PIR11002

COR110

PIR11101PIR11102

COR111

PIR11201

PIR11202

COR112

PIR11301PIR11302

COR113

PIR11401PIR11402

COR114

PIR11501

PIR11502

COR115

PIR11601

PIR11602

COR116

PIR11701

PIR11702

COR117

PIR11801

PIR11802

COR118

PIR11901

PIR11902

COR119

PIR12001

PIR12002

COR120

PIR12101

PIR12102

COR121

PIR12201

PIR12202

COR122

PIR12301

PIR12302

COR123

PIR12401

PIR12402

COR124

PIR12501

PIR12502

COR125

PIR12601PIR12602

COR126

PISW101 PISW102

COSW1

PISW201 PISW202

COSW2

PISW301 PISW302

COSW3

PISW401 PISW402

COSW4

PISW501 PISW502

COSW5

PISW601 PISW602

COSW6

PISW701 PISW702

COSW7

PISW801 PISW802

COSW8

PISW901 PISW902

COSW9

PISW1001 PISW1002

COSW10

PISW1101 PISW1102

COSW11

PIVR101

PIVR102

PIVR103

COVR1

POAD0PITCH

POAD0STRIP

POBROWSE0ENC0A

POBROWSE0ENC0B

POBROWSE0PUSH

POCTRL0CLK

POCTRL0CLK1

POCTRL0CLK2

POCTRL0CS

POCTRL0CS1

POCTRL0MISO

POCTRL0MOSI

POCTRL0MOSI1

PODVS0L

PODVS0R

POKEY033

POKEY045

POKEY0START

POLED033

POLED045

POLED0START

POLED0START0B

POLED0STOP

POMO0ON0OFF

POOLED0CD

POOLED0CLK

POOLED0CS

POOLED0D0

POOLED0RST

POSAI10BCK

POSAI10DATA

POSAI10LRCK

POSAI10MCLK

POVOUT0L

POVOUT0R

D D

C C

B B

A A

Check REV Description

Title:

Size A3 Number Revision

Date :

File Name:

Sheet of

Design By :

DATEDesignApproval

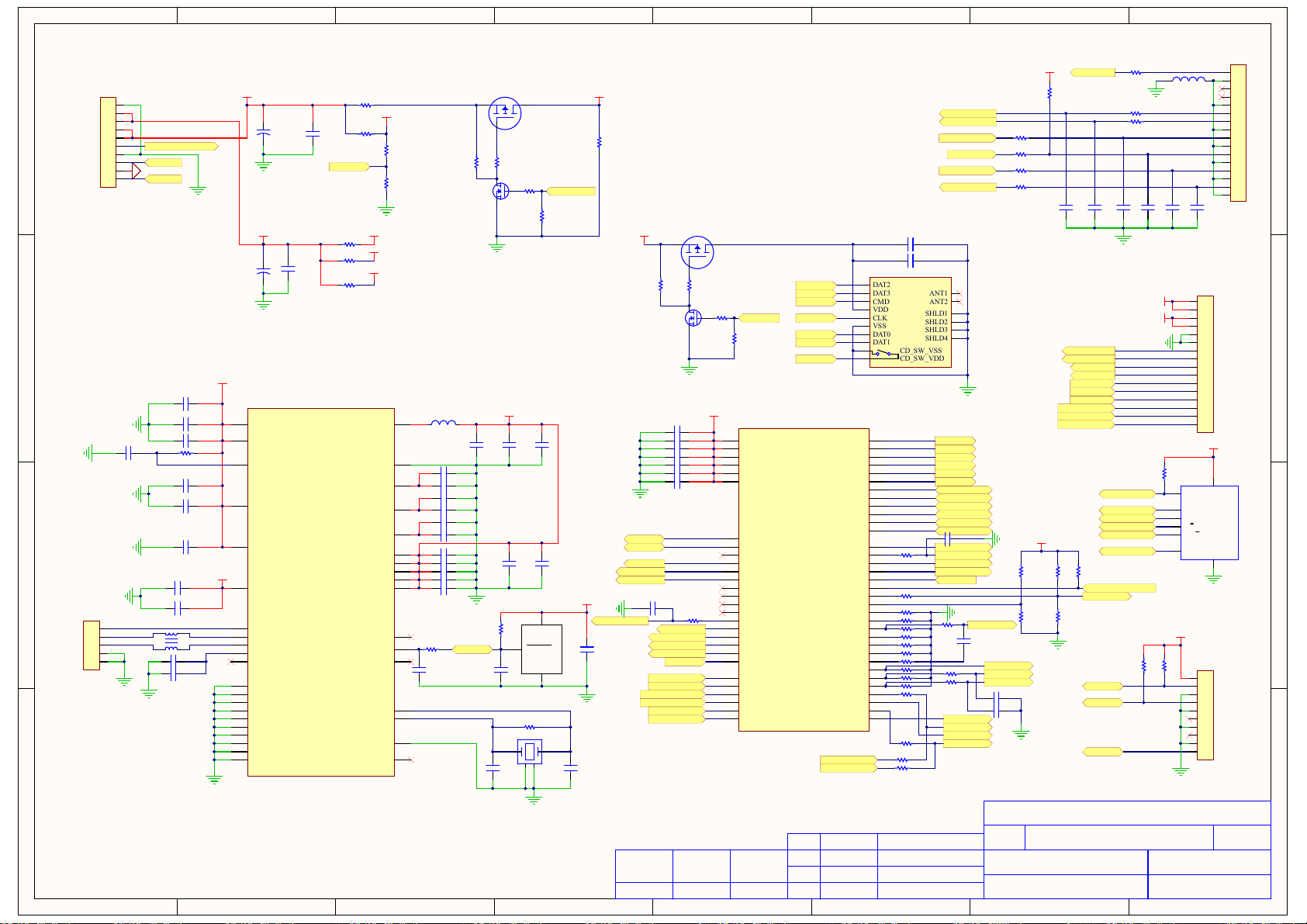

RT02-PC19025A-MCU

1 4

DGND

MOTOR_CLK

MOTOR_CS

MOTOR_MOSI

MOTOR_MISO

VINYL-ENC-A

VINYL-ENC-B

SWD_DIO

SWD_CLK

POR

D+3V3

R32

10K

R31

10K

DGND

C12 0.22uF

C11 4.7uF

C20 0.22uF

D+3V3

DGND

C15 0.22uF

DGND

C29 0.22uF

C26 4.7uF

DGND

C33 0.22uF

DGND

C14 0.22uF

C13 4.7uF

D+3V3

C16 0.22uF

C21 0.22uF

C22 0.22uF

C23 0.22uF

C25 0.22uF

DGND

C44 0.22uF

DGND

A+3V3

C27 0.22uF

C24 4.7uF

DGND

C17

0.22uF

4.7uH/3.1A

C18

10uF

C19

22uF

C36

0.22uF

C37

4.7uF

C30 0.22uF

C28 4.7uF

C32 0.22uF

C31 4.7uF

C34 0.22uF

C35 0.22uF

C38 0.22uF

C39 0.22uF

C41 0.22uF

MCU+1V1

DGND

D+3V3

GND

RESET

VDD

IC3

DGND

1 3

XTM1

24MHz

R35

2.21M

DGND

L2 ACM2012-2P

D-.

D+.

LED_PWR

CTRL_MISO

CTRL_MOSI

CTRL_CLK

CTRL_CS

FLASH_CS

FLASH_D1

FLASH_D2

FLASH_D0

FLASH_CLK

FLASH_D3

SWD_DIO

SWD_CLK

C47 10uF

C48 0.1uF

DGND

D+3V3

DGND

FLASH_CS

FLASH_D0

FLASH_D1

FLASH_D2

FLASH_D3

FLASH_CLK

R22

10K

DO/(IO1)

WP/(IO2)

GND

DI/(IO0)

CLK

HOLD/(IO3)

VCC 8

IC2

W25Q80DVSSIG

POR

SAI1_BCK

SAI1_LRCK

SAI1_DATA

SAI1_MCLK

DGND

KEY_START

KEY_33

KEY_45

MO_ON/OFF

LED_START_B

LED_33

LED_45

STROBE

To P/S PCB FCN300

To Motor PCB FCN?

To USB PCB TE201

STROBE

DGND

LED+5V+5V

D+3V3

D+5V

A+3V3

+3V3

DGND

Vol_Det

DGND

LED_PWR

To USB PCB TE202

EC1

100uF/16V

C10

0.1uF

EC2

22uF/16V

R14

R11

47.5K

R12

47.5K

R16

100

BSS138

DMP3099L

VDD_SOC_IN 18

VSS

DCDC_IN

DCDC_GND 24

DCDC_LP 25

DCDC_PSWITCH

DCDC_IN_Q

VDD_SOC_IN 28

VSS

ON_OFF 30

POR_B 31

TEST_MODE

PMIC_ON_REQ 33

VDD_SNVS_IN

VDD_SNVS_CAP 35

RTC_XTALI 36

RTC_XTALO 37

USB_OTG1_VBUS

VSS

VDD_USB_CAP

USB_OTG1_DN

USB_OTG1_DP

NGND_KEL0

VDD_HIGH_CAP 44

USB_OTG1_CHD_B

XTALI 46

XTALO 47

VDD_HIGH_IN

VSS

NVCC_PLL 50

VDDA_ADC_3P3

VSS

VDD_SOC_IN 69

VSS

VDD_SOC_IN 81

VDD_SOC_IN 91

VSS

IC1A

MIMXRT1015DAF5A

GPIO_AD_B1_15

GPIO_AD_B1_13

54 GPIO_AD_B1_12

GPIO_AD_B1_14

GPIO_AD_B1_11

56 GPIO_AD_B1_10

GPIO_AD_B0_15

60 GPIO_AD_B0_14

61 GPIO_AD_B0_13

62 GPIO_AD_B0_12

63 GPIO_AD_B0_11

64 GPIO_AD_B0_10

65 GPIO_AD_B0_09

66 GPIO_AD_B0_08

67 GPIO_AD_B0_07

68 GPIO_AD_B0_06

72 GPIO_AD_B0_05

73 GPIO_AD_B0_04

74 GPIO_AD_B0_03

75 GPIO_AD_B0_02

76 GPIO_AD_B0_01

77 GPIO_AD_B0_00

NVCC_GPIO

GPIO_EMC_09 1

GPIO_EMC_08 2

GPIO_EMC_07 3

GPIO_EMC_06 4

GPIO_EMC_05 6

GPIO_EMC_04 7

GPIO_EMC_35 82

GPIO_EMC_34 83

GPIO_EMC_33 84

GPIO_EMC_32 85

GPIO_EMC_27 86

GPIO_EMC_26 87

GPIO_EMC_25 88

GPIO_EMC_24 89

GPIO_EMC_23 90

GPIO_EMC_22 93

GPIO_EMC_21 94

GPIO_EMC_20 96

GPIO_EMC_19 97

GPIO_EMC_18 98

GPIO_EMC_17 99

GPIO_EMC_16 100

GPIO_SD_B1_11 8

GPIO_SD_B1_10 9

GPIO_SD_B1_09 10

GPIO_SD_B1_08 11

GPIO_SD_B1_07 12

GPIO_SD_B1_06 13

GPIO_SD_B1_05 14

GPIO_SD_B1_03 16

GPIO_SD_B1_04 15

GPIO_SD_B1_02 17

GPIO_SD_B1_01 21

GPIO_SD_B1_00 22

IC1B

MIMXRT1015DAF5A

DGND

DVS-L

DVS-R

LED+5V

D+5V

Vol_Det

VINYL-ENC-A

VINYL-ENC-B

MOTOR_CLK

MOTOR_CS

MOTOR_MOSI

MOTOR_MISO

BROWSE_ENC_B

BROWSE_ENC_A

MOTOR_TORQUE

C40 1uF

R3 0

R7 0

R17 0

R18 0

R1 0 1

FCN1

FCN2

R33 33

R34 33

R23 33

1nF

DGND

C42 22pF

DGND

10K

D+3V3

AGND.

R26 33 Speed Detect

Speed Detect

LED_START

LED_STOP

R19 0

SW+3.3V

MOTOR_TORQUE

D+3V3

R27

10K

AD_PITCH

AD_STRIP

R28 33 R29 33

R20 30.1K

SD_CD

SD_CLK

SD_CMD

SD_D0

SD_D1

SD_D2

SD_D3

TE3

OLED_CD

OLED_CS

OLED_RST

OLED_CLK

OLED_D0

R127 33

MOTOR_CLK

MOTOR_MOSI

R128 0(DNS)

R129 0(DNS)

DAT2

DAT3

CMD

VDD

CLK

VSS

DAT0

DAT1

SHLD1 13

SHLD2 14

SHLD3 15

SHLD4 16

ANT2 10

CD_SW_VSS

ANT1 9

CD_SW_VDD

JK1

SD_CLK

SD_CMD

SD_D0

SD_D1

SD_D2

SD_D3

SD_CD

DGND

C112 10uF

C113 0.1uF

DGND

R132

10K

R133

10K(DNS)

R135

10K(DNS)

R136

10K

R131

10K

R134 10K

R137 10K

R139 10K

R140 10K

R141 10K

R142 10K

DGND

R138 10K

R143 10K

R144 10K

R145 10K

DGND

R147

47.5K

R148

47.5K

R149

100

BSS138

DMP3099L

D+3V3

SD_PWR

R146

10K

R130 33

R150

10K

TE1

R8 100

R10 100

R13 100

R15 100

R24 100

R25 100

1nF

C46

1uF

C49

0.1uF

R30

4.7K

TE2

C53

15pF

C52

15pF

C50 100pF

C51 100pF

C45

100pF

C43 100pF

R151 100

C114

0.1uF

PIC101

PIC102

COC1

PIC401

PIC402

COC4

PIC501

PIC502

COC5

PIC601

PIC602

COC6

PIC701

PIC702

COC7

PIC801

PIC802

COC8

PIC901

PIC902

COC9

PIC1001

PIC1002

COC10

PIC1101

PIC1102

COC11

PIC1201

PIC1202

COC12

PIC1301PIC1302

COC13

PIC1401PIC1402

COC14

PIC1501

PIC1502

COC15

PIC1601PIC1602

COC16

PIC1701

PIC1702

COC17

PIC1801

PIC1802

COC18

PIC1901

PIC1902

COC19

PIC2001

PIC2002

COC20

PIC2101PIC2102

COC21

PIC2201PIC2202

COC22

PIC2301PIC2302

COC23

PIC2401

PIC2402

COC24

PIC2501PIC2502

COC25

PIC2601

PIC2602

COC26

PIC2701

PIC2702

COC27

PIC2801

PIC2802

COC28

PIC2901

PIC2902

COC29

PIC3001

PIC3002

COC30

PIC3101

PIC3102

COC31

PIC3201

PIC3202

COC32

PIC3301

PIC3302

COC33

PIC3401

PIC3402

COC34

PIC3501

PIC3502

COC35

PIC3601

PIC3602

COC36

PIC3701

PIC3702

COC37

PIC3801

PIC3802

COC38

PIC3901

PIC3902

COC39

PIC4001

PIC4002

COC40

PIC4101

PIC4102

COC41

PIC4201

PIC4202

COC42

PIC4301

PIC4302

COC43

PIC4401

PIC4402

COC44

PIC4501

PIC4502

COC45

PIC4601

PIC4602

COC46

PIC4701

PIC4702

COC47

PIC4801

PIC4802

COC48

PIC4901

PIC4902

COC49

PIC5001

PIC5002

COC50

PIC5101

PIC5102

COC51

PIC5201

PIC5202

COC52

PIC5301

PIC5302

COC53

PIC11201

PIC11202

COC112

PIC11301

PIC11302

COC113

PIC11401

PIC11402

COC114

PIEC101

PIEC102

COEC1

PIEC201

PIEC202

COEC2

PIFCN101

PIFCN102

PIFCN103

PIFCN104

PIFCN105

PIFCN106

PIFCN107

PIFCN108

PIFCN109

PIFCN1010

PIFCN1011

PIFCN1012

PIFCN1013

PIFCN1014

PIFCN1015

PIFCN1016

COFCN1

PIFCN201

PIFCN202

PIFCN203

PIFCN204

PIFCN205

PIFCN206

PIFCN207

PIFCN208

PIFCN209

PIFCN2010

PIFCN2011

PIFCN2012

PIFCN2013

PIFCN2014

PIFCN2015

PIFCN2016

COFCN2

PIIC1018

PIIC1019

PIIC1023

PIIC1024

PIIC1025

PIIC1026

PIIC1027

PIIC1028

PIIC1029

PIIC1030

PIIC1031

PIIC1032

PIIC1033

PIIC1034

PIIC1035

PIIC1036

PIIC1037

PIIC1038

PIIC1039

PIIC1040

PIIC1041

PIIC1042

PIIC1043

PIIC1044

PIIC1045

PIIC1046

PIIC1047

PIIC1048

PIIC1049

PIIC1050

PIIC1051

PIIC1059

PIIC1069

PIIC1070

PIIC1079

PIIC1081

PIIC1091

PIIC1092

COIC1A

PIIC101

PIIC102

PIIC103

PIIC104

PIIC105

PIIC106

PIIC107

PIIC108

PIIC109

PIIC1010

PIIC1011

PIIC1012

PIIC1013

PIIC1014

PIIC1015

PIIC1016

PIIC1017

PIIC1020 PIIC1021

PIIC1022

PIIC1052

PIIC1053

PIIC1054

PIIC1055

PIIC1056

PIIC1057

PIIC1058

PIIC1060

PIIC1061

PIIC1062

PIIC1063

PIIC1064

PIIC1065

PIIC1066

PIIC1067

PIIC1068

PIIC1071

PIIC1072

PIIC1073

PIIC1074

PIIC1075

PIIC1076

PIIC1077

PIIC1078

PIIC1080

PIIC1082

PIIC1083

PIIC1084

PIIC1085

PIIC1086

PIIC1087

PIIC1088

PIIC1089

PIIC1090

PIIC1093

PIIC1094

PIIC1095

PIIC1096

PIIC1097

PIIC1098

PIIC1099

PIIC10100

COIC1B

PIIC201

PIIC202

PIIC203

PIIC204

PIIC205

PIIC206

PIIC207

PIIC208

COIC2

PIIC301

PIIC302

PIIC303

COIC3

PIJK101

PIJK102

PIJK103

PIJK104

PIJK105

PIJK106

PIJK107

PIJK108

PIJK109

PIJK1010

PIJK1011

PIJK1012

PIJK1013

PIJK1014

PIJK1015

PIJK1016

COJK1

PIL101 PIL102

COL1

PIL201

PIL202 PIL203

PIL204

COL2

PIL801

PIL802

COL8

PIQ101

PIQ102

PIQ103

COQ1

PIQ301

PIQ302

PIQ303

COQ3

PIQ501

PIQ502

PIQ503

COQ5

PIQ601

PIQ602

PIQ603

COQ6

PIR101

PIR102

COR1

PIR201

PIR202

COR2

PIR301

PIR302

COR3

PIR701

PIR702

COR7

PIR801PIR802

COR8

PIR901

PIR902

COR9

PIR1001PIR1002

COR10

PIR1101

PIR1102

COR11

PIR1201

PIR1202

COR12

PIR1301PIR1302

COR13

PIR1401

PIR1402

COR14

PIR1501PIR1502

COR15

PIR1601PIR1602

COR16

PIR1701

PIR1702

COR17

PIR1801

PIR1802

COR18

PIR1901

PIR1902

COR19

PIR2001PIR2002

COR20

PIR2201

PIR2202

COR22

PIR2301PIR2302

COR23

PIR2401

PIR2402

COR24

PIR2501

PIR2502

COR25

PIR2601PIR2602

COR26

PIR2701

PIR2702

COR27

PIR2801

PIR2802

COR28

PIR2901PIR2902

COR29

PIR3001

PIR3002

COR30

PIR3101

PIR3102

COR31

PIR3201

PIR3202

COR32

PIR3301PIR3302

COR33

PIR3401PIR3402

COR34

PIR3501PIR3502

COR35

PIR12701PIR12702

COR127

PIR12801PIR12802

COR128

PIR12901PIR12902

COR129

PIR13001PIR13002

COR130

PIR13101

PIR13102

COR131

PIR13201

PIR13202

COR132

PIR13301

PIR13302

COR133

PIR13401PIR13402

COR134

PIR13501

PIR13502

COR135

PIR13601

PIR13602

COR136

PIR13701PIR13702

COR137

PIR13801PIR13802

COR138

PIR13901PIR13902

COR139

PIR14001PIR14002

COR140

PIR14101PIR14102

COR141

PIR14201PIR14202

COR142

PIR14301PIR14302

COR143

PIR14401PIR14402

COR144

PIR14501PIR14502

COR145

PIR14601

PIR14602

COR146

PIR14701

PIR14702

COR147

PIR14801

PIR14802

COR148

PIR14901PIR14902

COR149

PIR15001

PIR15002

COR150

PIR15101

PIR15102

COR151

PITE101

PITE102

PITE103

PITE104

PITE105

PITE106

PITE107

PITE108

PITE109

PITE1010

COTE1

PITE201

PITE202

PITE203

PITE204

PITE205

COTE2

PITE301

PITE302

PITE303

PITE304

PITE305

PITE306

PITE307

PITE308

PITE309

PITE3010

COTE3

PIXTM101

PIXTM102

PIXTM103

PIXTM104

COXTM1

POAD0PITCH

POAD0STRIP

POBROWSE0ENC0A

POBROWSE0ENC0B

POCTRL0CLK

POCTRL0CS

POCTRL0MISO

POCTRL0MOSI

PODVS0L

PODVS0R

POFLASH0CLK

POFLASH0CS

POFLASH0D0

POFLASH0D1

POFLASH0D2

POFLASH0D3

POKEY033

POKEY045

POKEY0START

POLED033

POLED045

POLED0PWR

POLED0START

POLED0START0B

POLED0STOP

POMO0ON0OFF

POMOTOR0CLK

POMOTOR0CS

POMOTOR0MISO

POMOTOR0MOSI

POMOTOR0TORQUE

POOLED0CD

POOLED0CLK

POOLED0CS

POOLED0D0

POOLED0RST

POPOR

POSAI10BCK

POSAI10DATA

POSAI10LRCK

POSAI10MCLK

POSD0CD

POSD0CLK

POSD0CMD

POSD0D0

POSD0D1

POSD0D2

POSD0D3

POSD0PWR

POSPEED DETECT

POSTROBE

POSWD0CLK

POSWD0DIO

POVINYL0ENC0A

POVINYL0ENC0B

POVOL0DET

This manual suits for next models

Table of contents

Popular Recording Equipment manuals by other brands

Seitron

Seitron ITP F22 1 manual

Vais Technology

Vais Technology GSR Generation 2 owner's manual

TEKNIKOM

TEKNIKOM MYLOG user manual

Telos Alliance

Telos Alliance Axia Quasar user manual

TK Audio

TK Audio BC2-ME quick start guide

Siemens

Siemens AS-i Master CM 1243-2 a manual

Euphonix

Euphonix R-1 Digital Multitrack Operation manual

Roland

Roland AR-3000 reference guide

T&D

T&D TR-73U user manual

Roland

Roland AX-7 Service notes

Niles

Niles dbi-2 installation guide

Kenwood

Kenwood KGC-4400 Service manual

Korg

Korg SQ-10 owner's manual

Vip2

Vip2 VK2-REC16HD user manual

Allen-Bradley

Allen-Bradley Guardmaster EtherNet/IP 440R-ENETR installation instructions

OHAUS

OHAUS SCOUT instruction manual

Extron electronics

Extron electronics Ethernet Control Interface IPL T PCS4 user manual

Free The Tone

Free The Tone AMBI SPACE owner's manual

Rane Twelve MKII User manual

Popular Recording Equipment manuals by other brands
